3) Tail Lamp

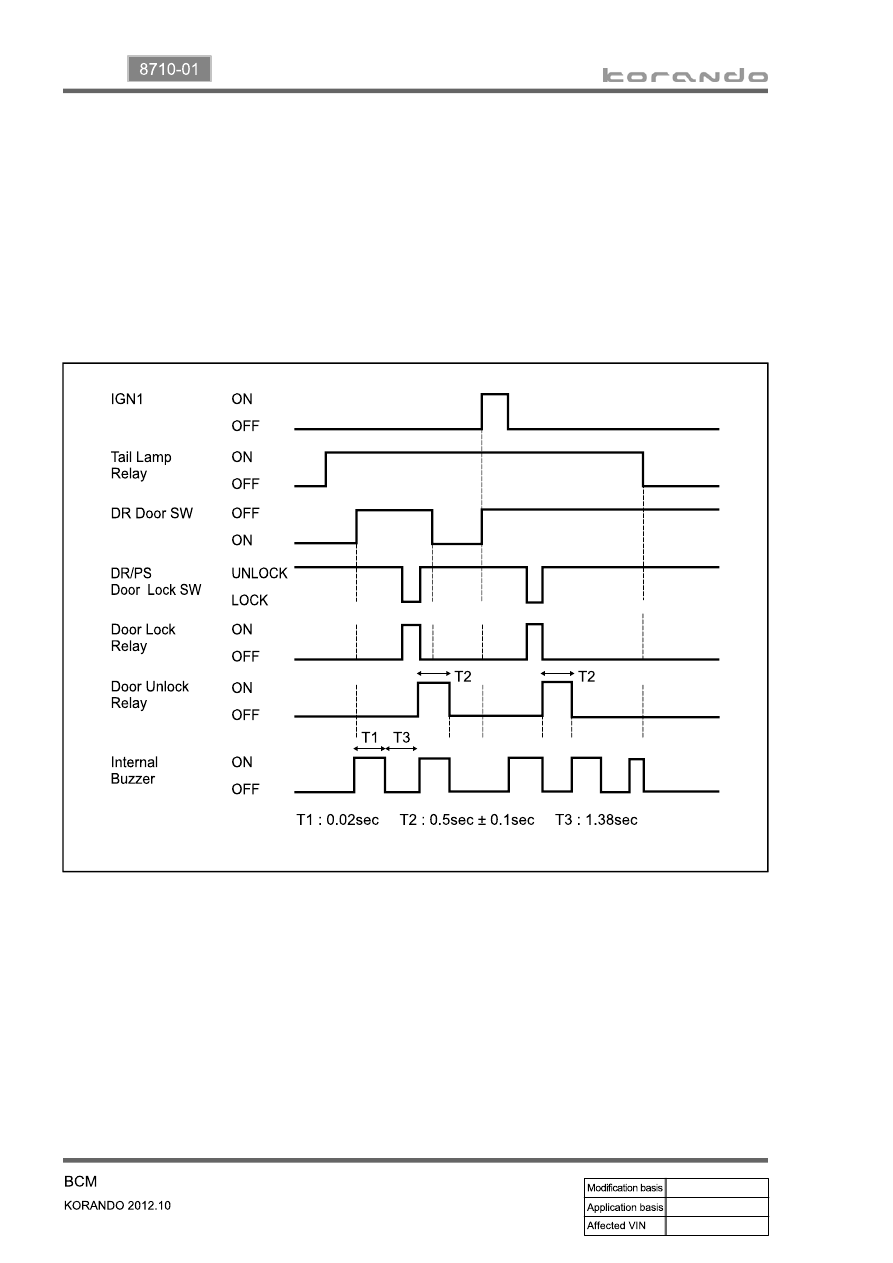

Tail lamp left ON warning (sunroof and ignition key reminder functions have priority)

▶

The buzzer sounds for 10 seconds with the interval of 0.02 s ON and 1.38 s OFF when opening the

driver door with the key removed (without SKM)/with IGN OFF or ACC (with SKM) and tail lamp ON.

The buzzer stops its operation when turning off the tail lamp or closing the driver door during buzzer

operation. The buzzer stays ON when turning the tail lamp on again after turning it off during buzzer

operation.

This function is not available when the ignition switch (IGN1) is in ON position.

1.

2.

3.

03-25

8710-01

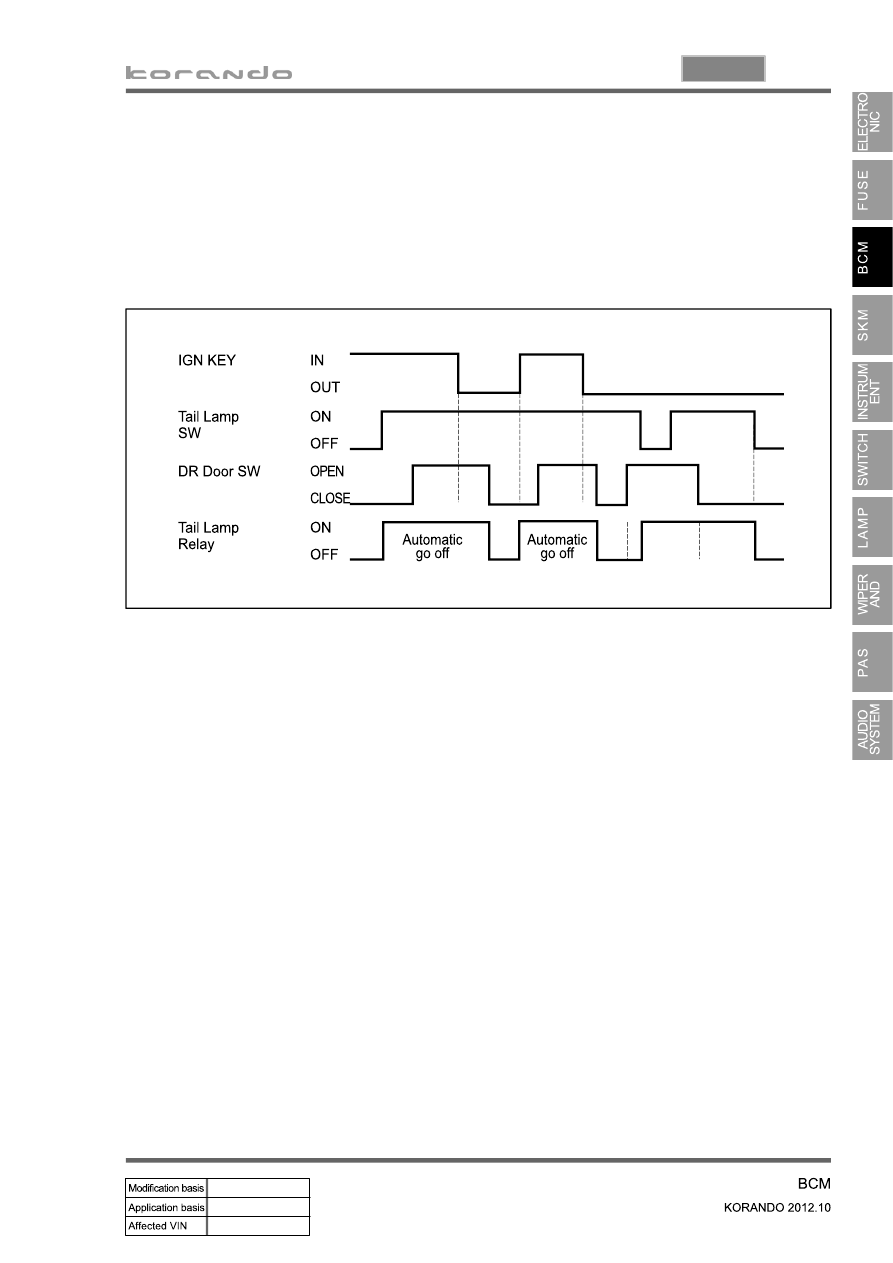

Tail lamp auto OFF

▶

When opening and closing the driver door after turning off the ignition with the tail lamp ON, the tail

lamps go off automatically.

The tail lamps come on again when inserting the ignition key (without SKM) and turning on the

ignition (with SKM) after tail lamp auto OFF.

The tail lamp should not go off when turning on the tail lamp switch with the ignition key removed

(without SKM) and with power off or ACC ON (with SKM).

1.

2.

3.

Tail lamp ON warning (with SKM)

▶

The tail lamp ON warning signal is sent via the BCAN communication when the tail lamp remains ON

with the ignition key OFF or ACC.

1.

03-26

4) Door Ajar Warning

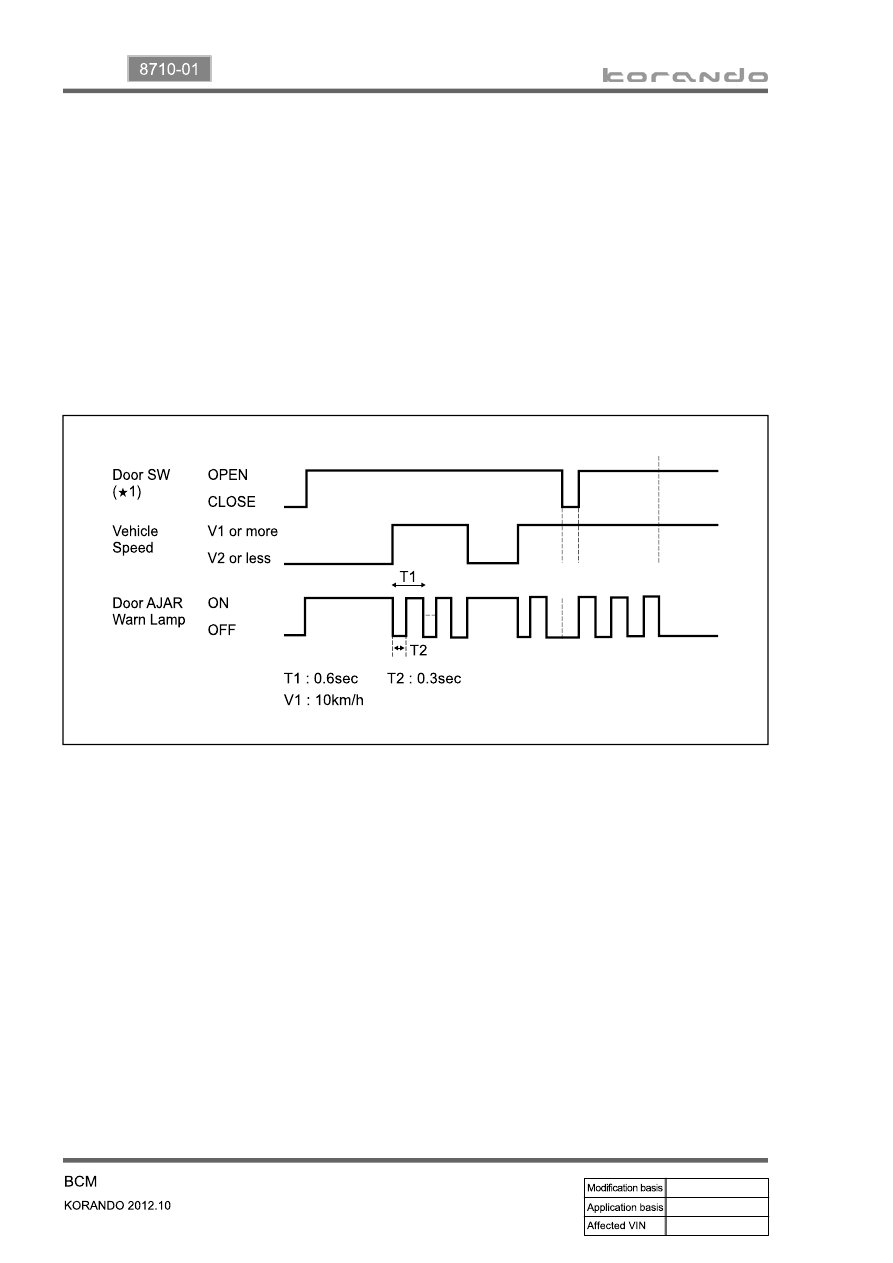

While the BCM without SKM controls the warning lamp, the BCM with SKM controls the warning lamp

and sends the signal via the BCAN communication. But, this control is available only when any of doors

or tailgate, except engine hood, is open.

The instrument cluster controls the door ajar warning lamp according to the signal from the BCM.

(However, the BCM controls the door ajar warning lamp with the electric wire together with the BCAN

communication.)

Also, the instrument cluster controls the blinking function according to the vehicle speed.

(However, the BCM controls the door ajar warning lamp blinking with the electric wire together with

the BCAN communication.)

1.

2.

(*1) : Ajar: Driver, passenger, rear door or tailgate is open

         Close: Driver, passenger, rear door and tailgate are closed

03-27

8710-01

5) Seat Belt

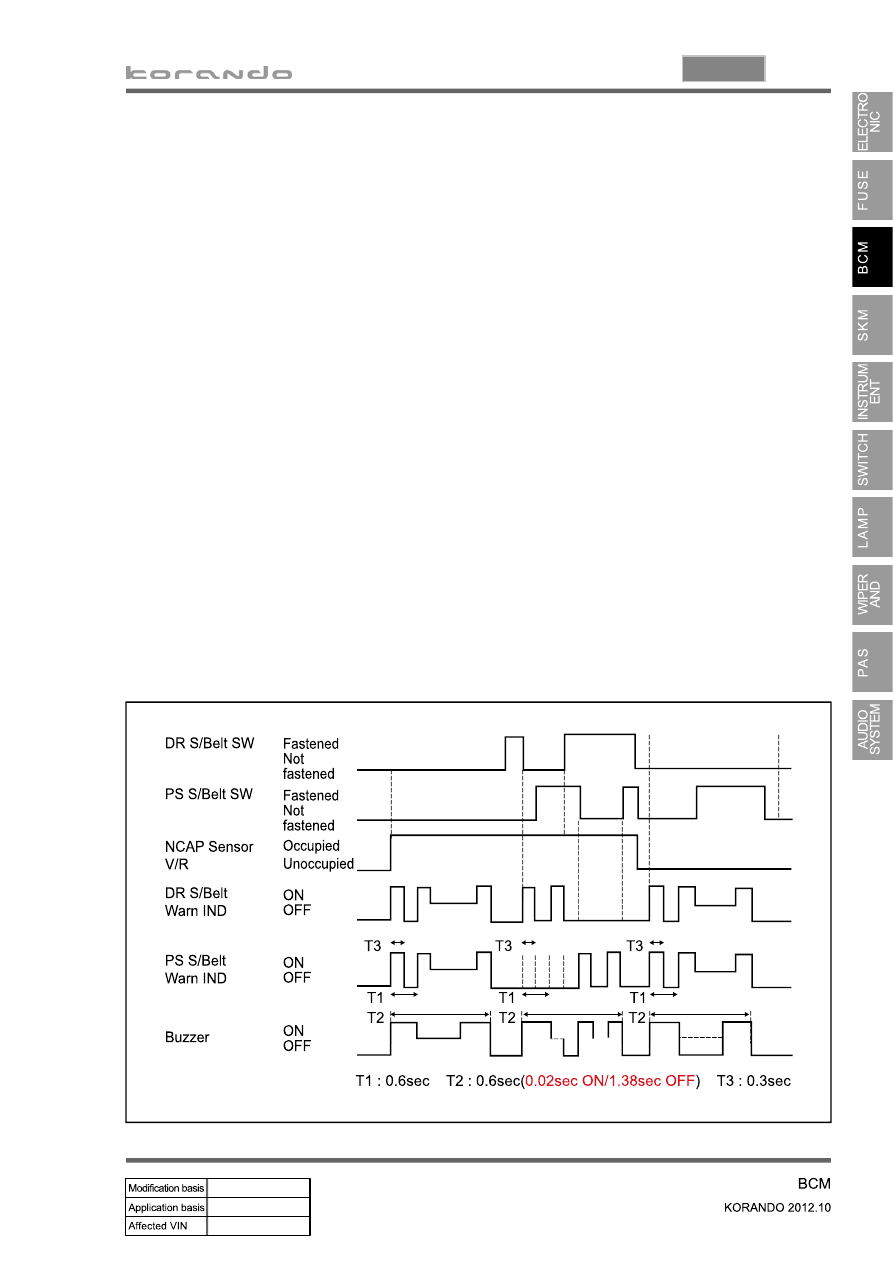

Seat belt warning

▶

When turning the ignition switch (IGN1) to ON from OFF position, the BCM sends the driver and front

passenger seat belt warning signals to the instrument cluster module through the CAN

communication, and the buzzer sounds for 0.6 seconds with the interval of 0.02 s ON and 1.38 s

OFF. If the driver/passenger seat belts are fastened, the buzzer does not sound but the warning lamp

blinks during the period. (the buzzer is controlled by BCM and the warning lamp is controlled by ICM)

For the passenger seat, however, the system detects if the passenger seat is empty or occupied and

operates the warning lamp only for the first time.

After that, the only seat belt reminder detects if the passenger seat is occupied.

For the driver seat, the seat belt reminder operates only when the seat belt is not fastened at the

vehicle speed of 25 km/h or higher.

The instrument cluster module controls the driver/passenger seat belt warning lamps by receiving the

driver/passenger seat belt warning lamp signals.

When turning the ignition switch (IGN1) to OFF position during the warning operation, the buzzer

stops and the warning lamp goes off.

If the driver/passenger seat belt is fastened during the warning operation, the buzzer stops but the

warning lamp blinks for the remaining time of the period.

If the driver/passenger seat belt signal changes to "unfastened" from "fastened" with IGN1 ON, the

driver/passenger seat belt warning lamp comes on and the buzzer sounds again for 0.6 seconds.

But, if the condition for seat belt reminder operation is met during the warning operation, the warning

operation stops and the seat belt reminder function is activated.

1.

2.

3.

4.

5.
