03-16

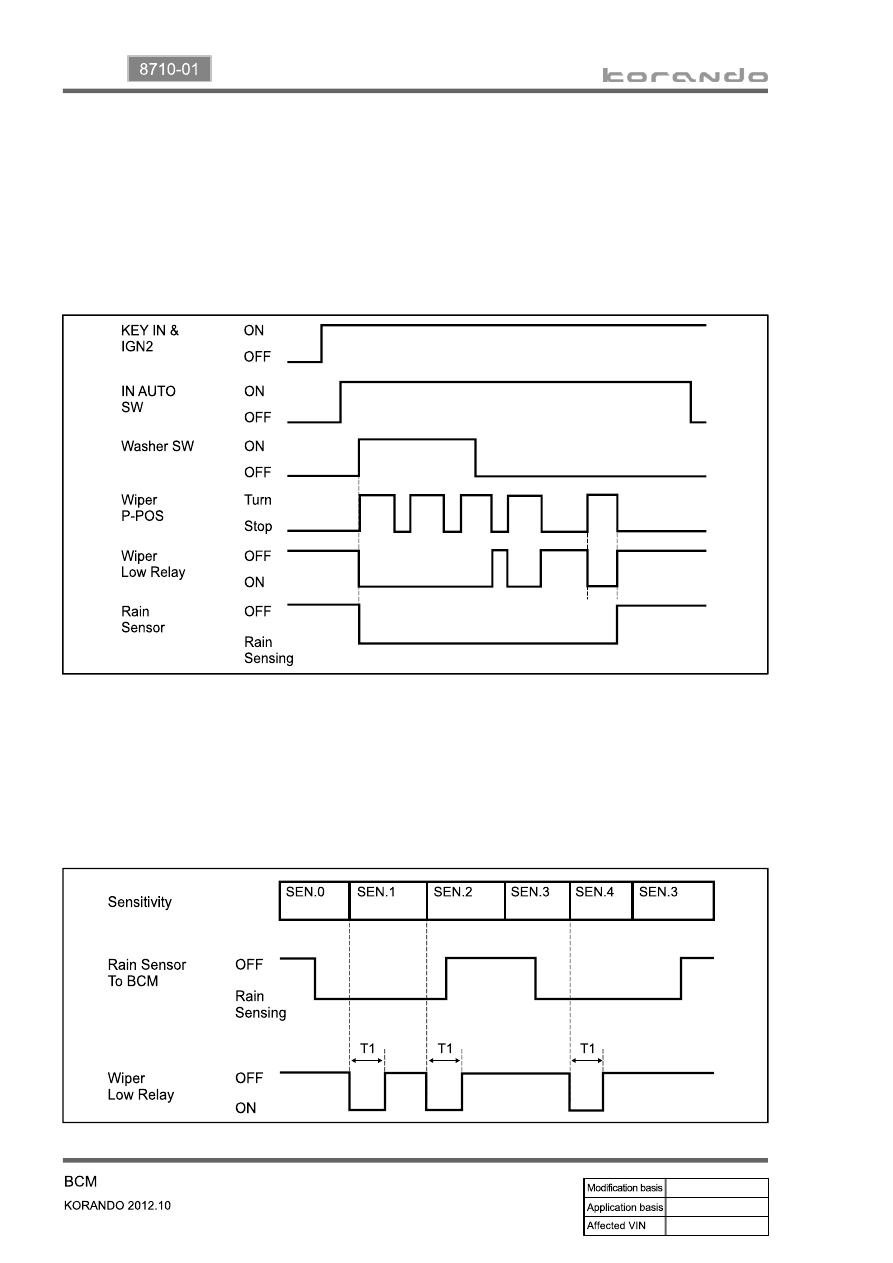

Washer coupled wiper in rain sensing mode

▶

When the washer switch signal is received during intermittent operation coupled with rain sensor

with IGN ON and intermittent/automatic washer switch operation, the wipers operate in washer

coupled mode regardless of the communication with the rain sensor. However, if the washer switch

signal is received the washer relay is activated and wiper relay remains activated, when the data

coupled with rain sensor indicates continuous wiper operation.

Even though the wiping system is in washer coupled wiper mode, the operating data are sent to rain

sensor.

1.

2.

Sensitivity adjustment (instant wiping)

▶

When the wiping speed control switch is turned to "FAST" with IGN2 ON, intermittent/automatic wiper

switch in "ON" position and wiper motor stop (parking position), the wiper motor operates one cycle at

low speed.

(only when the rain sensor detects raindrops)

If the wiping speed control switch is changed more than 2 stages within 2 seconds, the wiper motor

operates only one cycle.

1.

*

03-17

8710-01

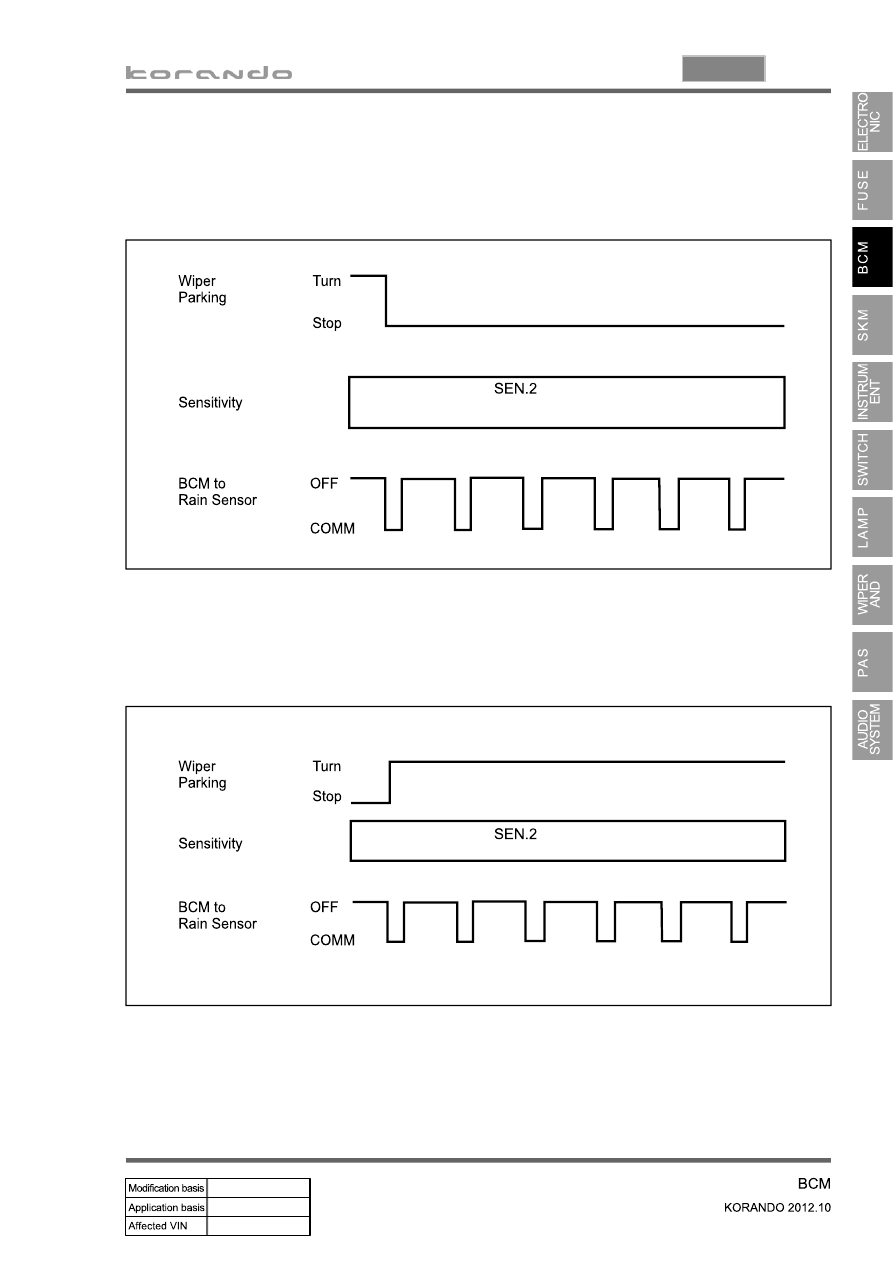

Processing method for abnormal wiper parking signal

▶

The wiper system sends continuously the signal for current status when the wiper parking terminal is

shorted to ground with IGN2 ON and intermittent wiper switch in "ON" position.

The wiper motor runs only when the rain sensor requires the wiper operation.

1.*

When the parking terminal is shorted to power with IGN2 ON and intermittent wiper switch in "ON"

position, the wiper system sends the signal for current wiping status for 2 seconds. After that, it sends

the current signal for parking status continuously.

The wiper motor runs only when the rain sensor requires the wiper operation.

2.*

03-18

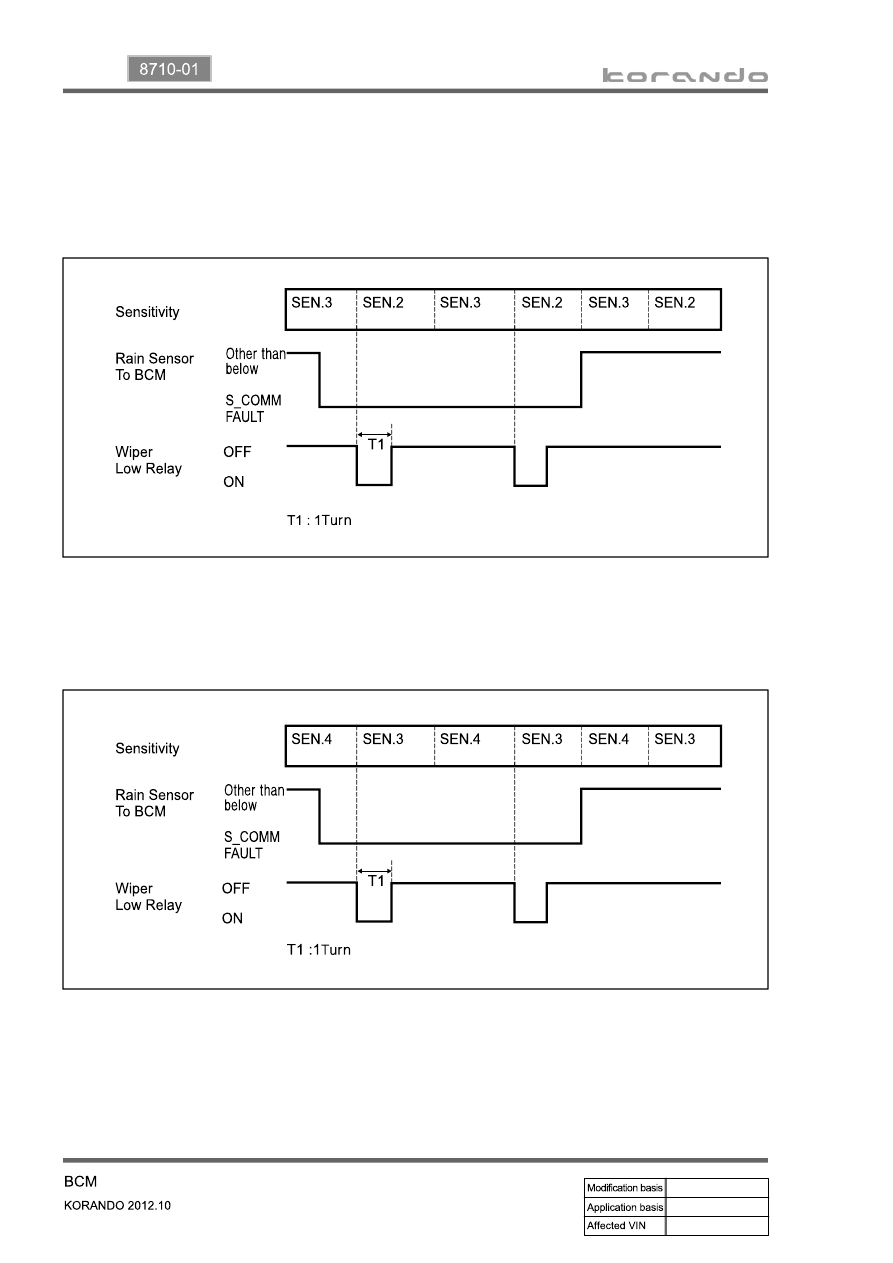

Processing method for rain sensor malfunction

▶

If the BCM is received the signal for sensor malfunction from the rain sensor unit when turning the

wiping speed control switch to 2 from 3 stage with IGN ON and intermittent/automatic wiper switch in

"ON" position, the wiper motor operates one cycle at low speed.

1.

If the BCM is received the signal for communication error from the rain sensor unit when turning the

wiping speed control switch to 3 from 4 stage with IGN ON and intermittent/automatic wiper switch in

"ON" position, the wiper motor operates one cycle at low speed.

2.

03-19

8710-01

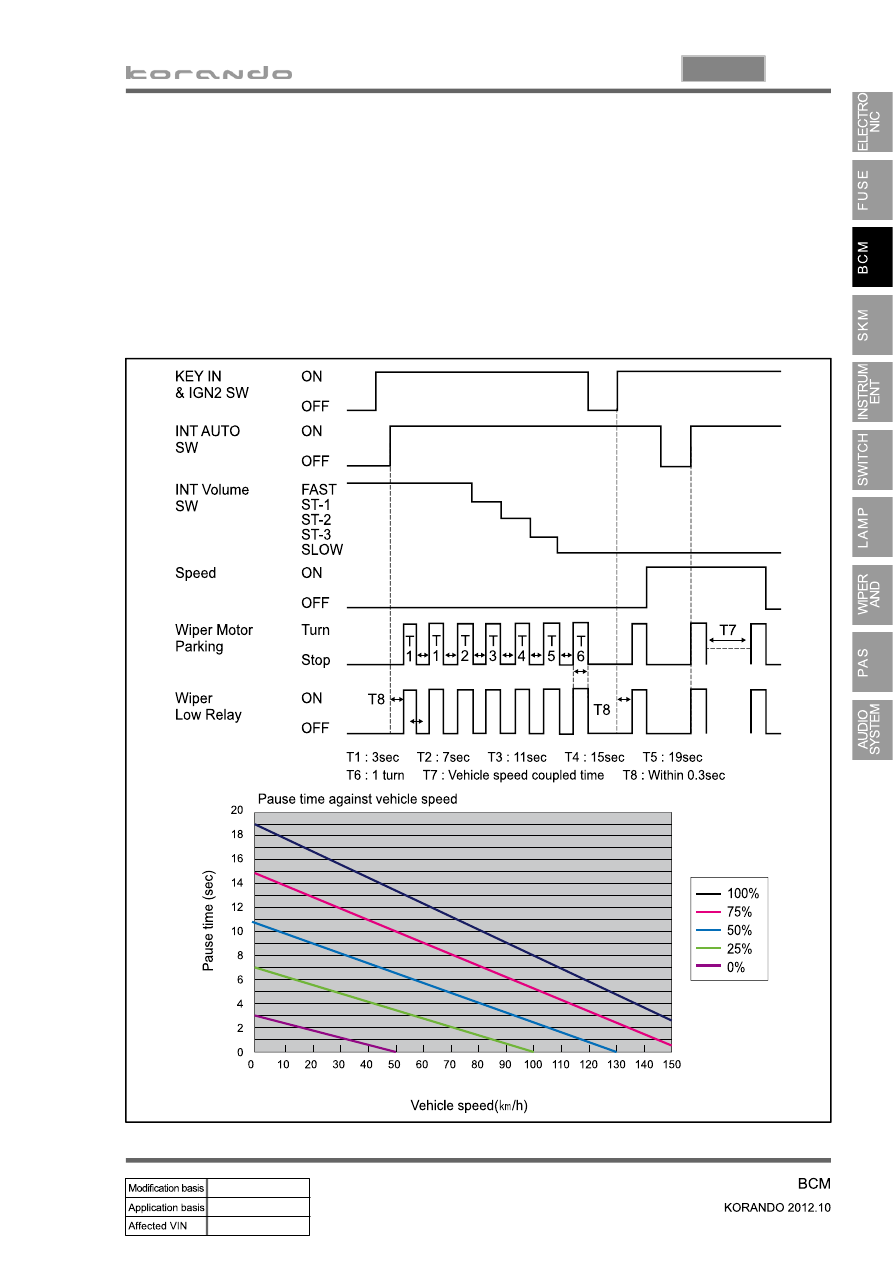

Speed sensitive intermittent wiper

▶

The BCM without rain sensor operates the wiper as follows:

When turning the ignition switch to ON from OFF position with the intermittent wiper switch in "ON"

position, the wipers do not operate.

When turning the wiper switch to ON from OFF position after turning the ignition switch to ON position,

the wipers operate one cycle.

The wiper's operation cycle depends on the vehicle speed (CAN communication with instrument

cluster) and wiping speed the side fascia panel.
- Operation cycle: 3±0.5 sec (FAST) to 19±2 sec (SLOW)

1.

2.

3.
