03-8

Seat belt reminder (SBR)

Previous

Current

If the driver seat belt is not fastened with the
ignition switch ON, engine running and vehicle
speed above 10 km/h, the seat belt reminder is
activated.
In addition, even though the vehicle speed reduces
to below 10 km/h after the reminder is activated at
speed of 10 km/h or higher, it will remain activated.

If the driver seat belt is not fastened with the
ignition switch ON, engine running and vehicle
speed above 25 km/h, the seat belt reminder is
activated.
In addition, if the seat belt reminder is activated at
the speed of 25 km/h or higher and the speed
reduces to below 25 km/h within 5 minutes, the
interior buzzer sound stops. The buzzer sounds for
5 minutes again when the speed is 25 km/h or
higher.

03-9

8710-01

1. OVERVIEW & FUNCTIONS

BCM (Body Control Module) controls the electric equipment on car body and outputs the control and

warning signals as below.

List

Function

List

Function

1

Wiper control

14

Tailgate open control

2

Ignition key reminder warning

15

Theft deterrent

3

Tail lamp control

16

Time lag power window control

4

Door ajar warning

17

System power sleep mode

5

Seat belt control

18

Flasher function

6

Sunroof warning

19

DRL (daytime running lamp) control

7

Room lamp control

20

Fog lamp control

8

Key hole illumination control

21

Auto light control (LIN)

9

Defogger control

22

Immobilizer function

10

Keyless entry function

23

Folding/unfolding function

11

Door lock/unlock control

24

Approach (puddle) lamp control

12

Panic alarm

25

SKM warning buzzer control

13

Headlamp control (escort)

26

Diagnosis function

<Table 1>

03-10

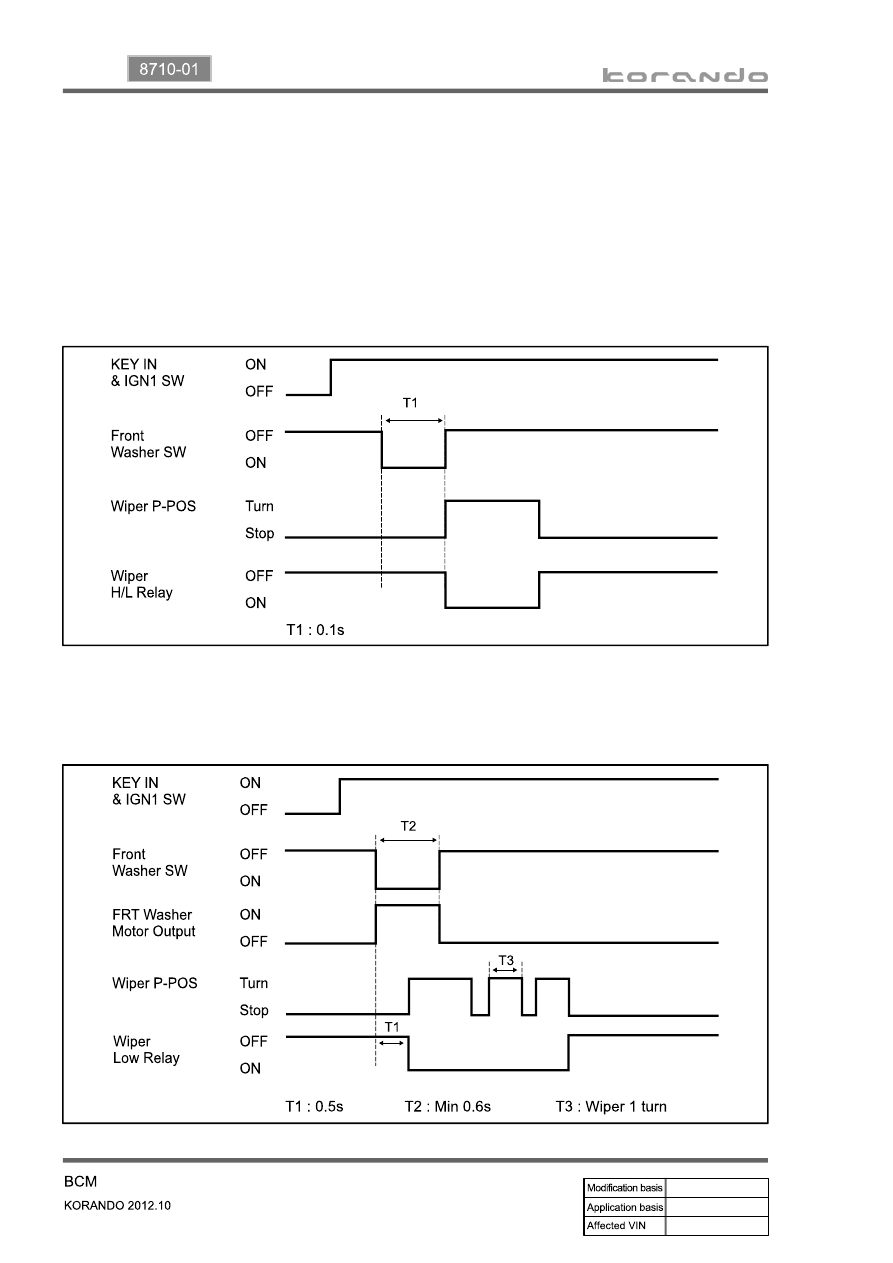

1) Wiper Control

(1) Wiper mist & front washer coupled wiper

Wiper mist

▶

When the multi-function switch is rotated for more than 0.1 second to activate the mist mode with

IGN1 ON, the wiper relay is activated after 0.1 second. It will be deactivated when the wiper motor

is in the parking position.

While the wiper operates at high speed when the mist switch signal is received, it operates at low

speed if the switch is returned to its starting position.

1.

2.

Front washer coupled wiper

▶

When holding the front washer switch at ON position for more than 0.6 seconds with IGN ON, the

wiper relay is activated 0.5 seconds after. The wiper stops after three more wipes since that the

washer switch is turned to "OFF" position.

1.

03-11

8710-01

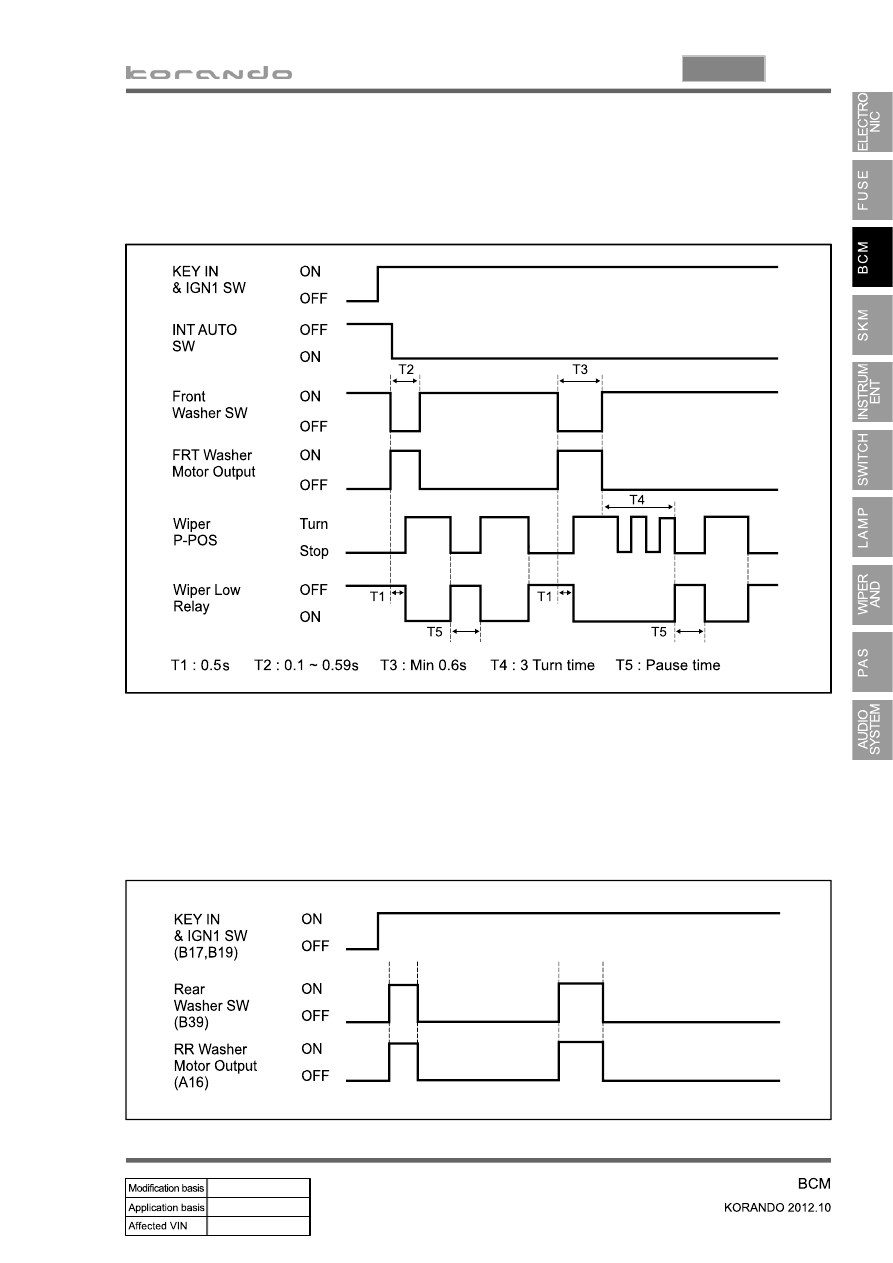

Rear washer motor control

▶

When turning ON the rear washer switch with the key inserted and IGN ON, the washer fluid is

sprayed the side fascia panel.

If the front washer or automatic washer switch signal is received during the rear washer switch

operation, the washer motor stops and the front washer or automatic washer motor begins to operate.

1.

2.

When holding the front washer switch at ON position for 0.1 to 0.59 seconds during the wiper

operation by the intermittent/automatic wiper switch, the wiper will operate only once. When holding

the washer switch for more than 0.6 seconds, the wiper relay is activated 0.5 seconds after. The

wiper stops after three more wipes since that the washer switch is turned to "OFF" position.

3.
