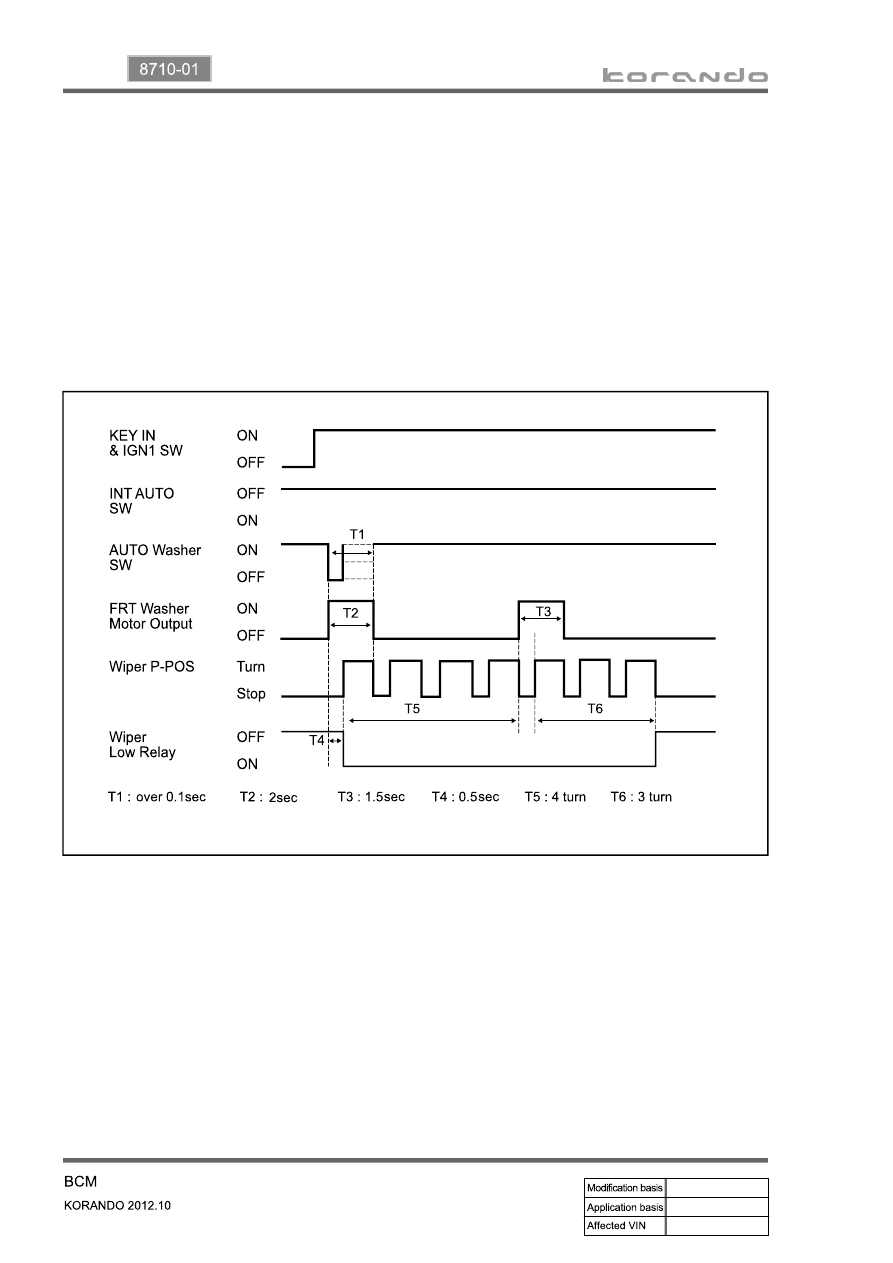

Auto washer coupled wiper

▶

When turning ON the auto washer switch with IGN ON and intermittent/automatic wiper switch OFF,

the washer fluid is sprayed onto the windshield glass for 2 seconds and the wipers operate 4 times.

After then, additionally, the washer fluid is sprayed for 1.5 seconds and the wipers operate 3 times

again.

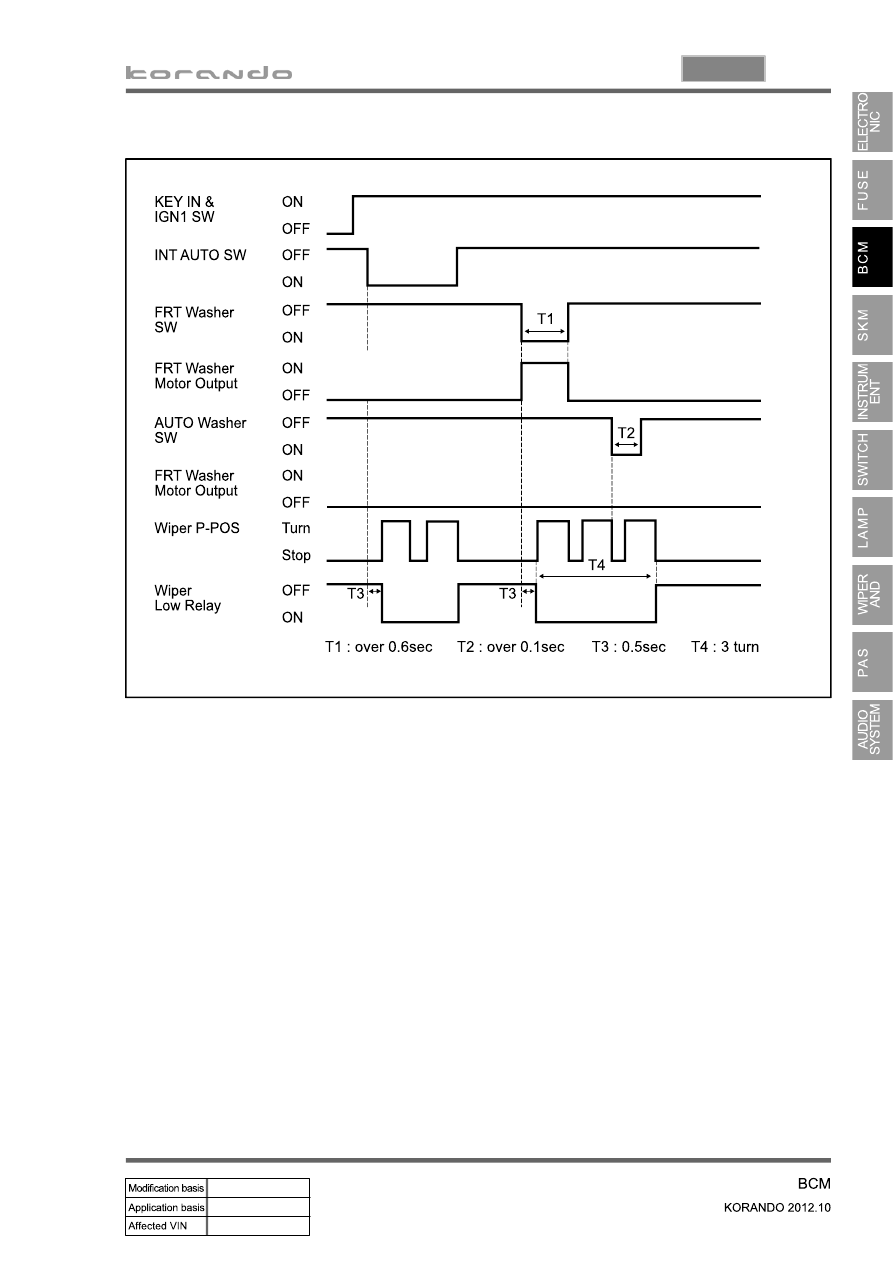

The auto washer switch signal is overridden during speed sensitive intermittent wiper, washer

coupled wiper or auto washer coupled wiper operation.

When turning the wiper switch to AUTO position during the operation of auto washer, the auto

washer stops its operation and the intermittent/automatic wiping mode will be started.

The front and rear washer switch signal are overridden during the operation of auto washer.

1.

2.

3.

4.

03-13

8710-01

03-14

Rain sensor coupled wiper (LIN)

▶

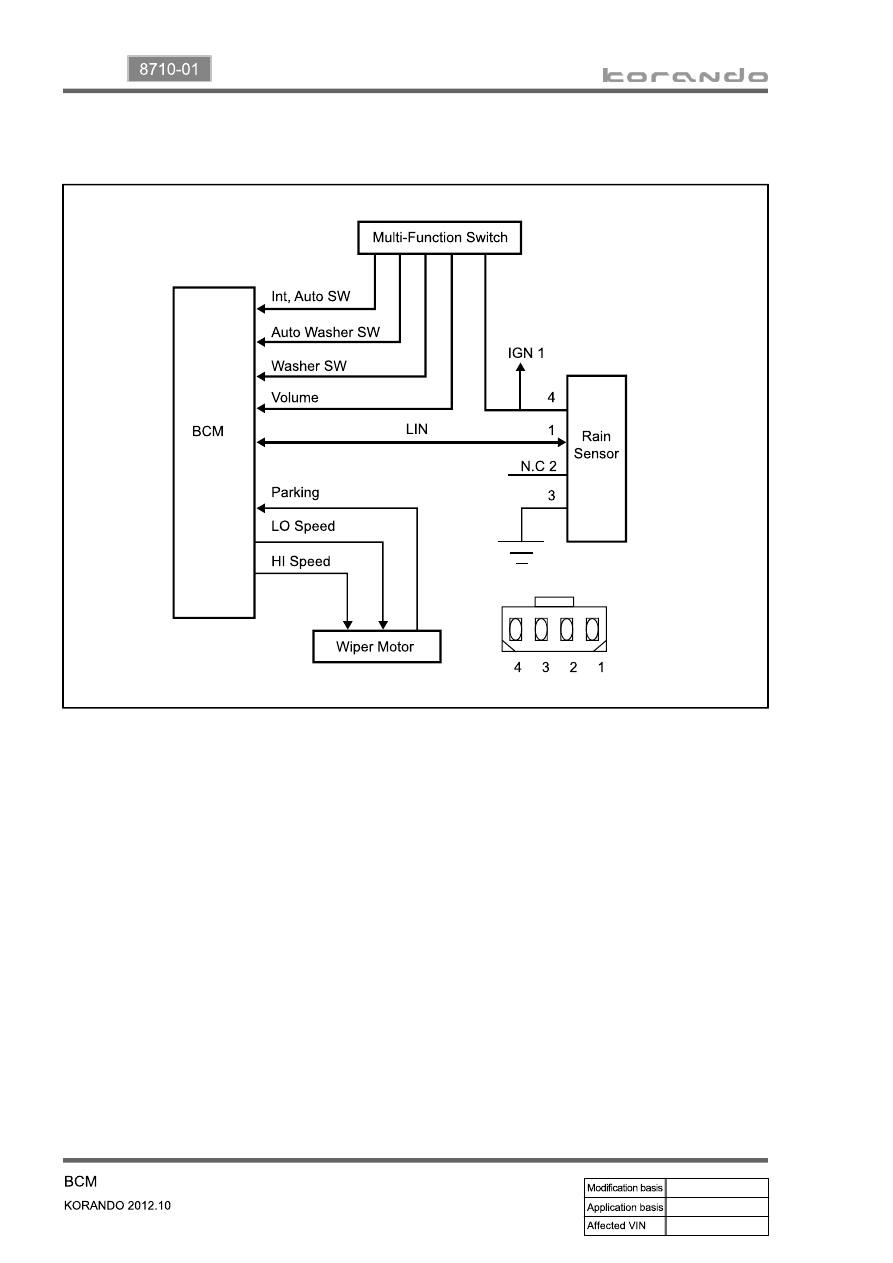

System layout

1.

Data recognition & operation

2.

Data recognition time

The system performs LIN communication regardless of the conditions of wiper and light switch when

the ignition switch is in ON position. If the intermittent/automatic wiper switch is in "AUTO" and the

light switch is in "AUTO" position, the wiper system operates according to the LIN data.

The data received from the rain sensor is recognized for 2 times consecutively.

Operation when recognizing data

No data: wiper low/high relay OFF

Low speed signal: low relay ON (ON for at least one cycle), but high relay OFF

High speed signal: high relay ON (ON for at least one cycle), but low relay OFF

The washer switch signal is overridden during continuous operation of the wiper.

(Washer coupled wiper function is available only during intermittent operation)

-

-

03-15

8710-01

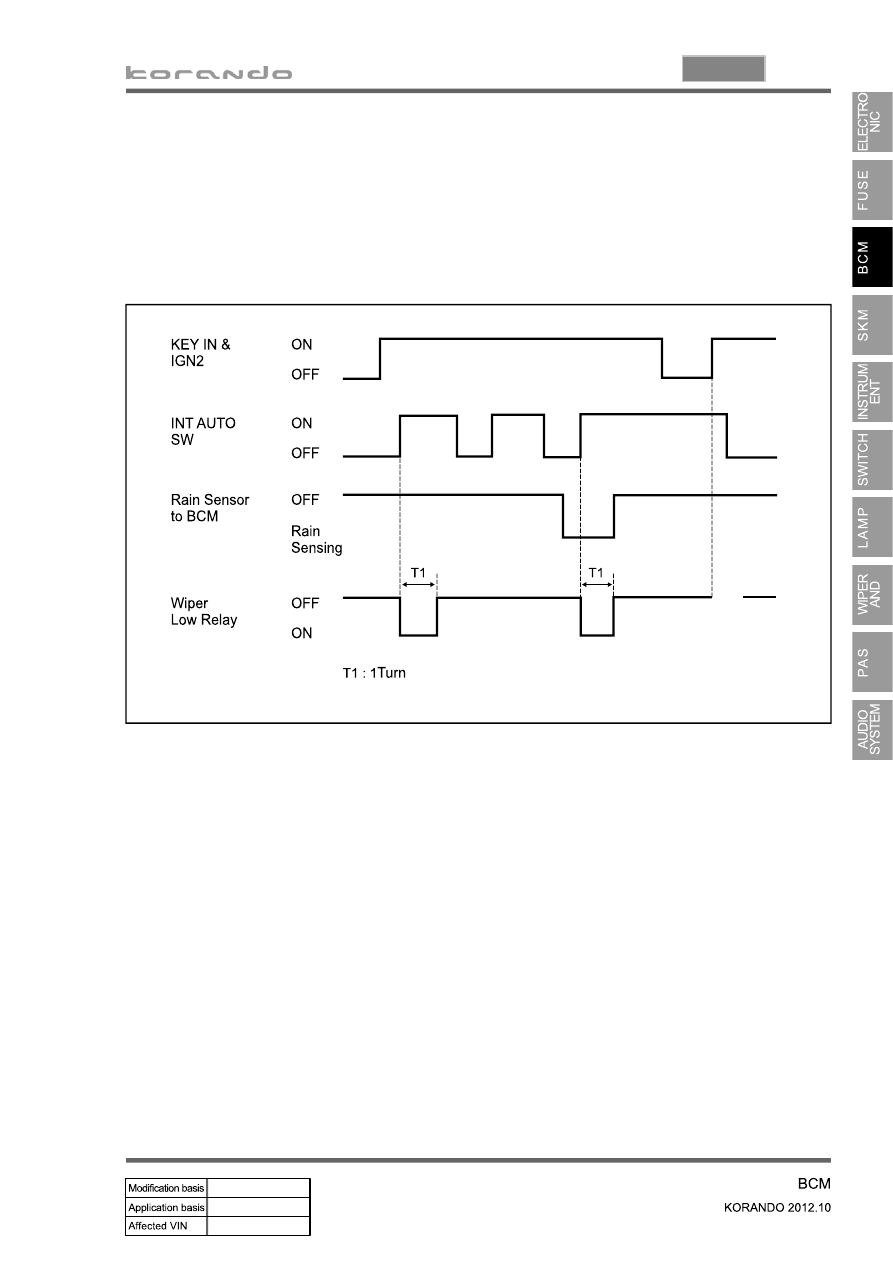

Power-up reminder wiper

▶

If the intermittent/automatic wiper switch is in "ON" position, the wiper motor does not operate even

when turning the ignition switch to ON from OFF position.

When turning the intermittent/automatic wiper switch to ON from OFF position with IGN ON, the wipers

operate once at low speed initially regardless of the communication with the rain sensor. After that, the

wipers operate once at low speed only when the rain sensor detects

the side fascia panel.

1.

2.
