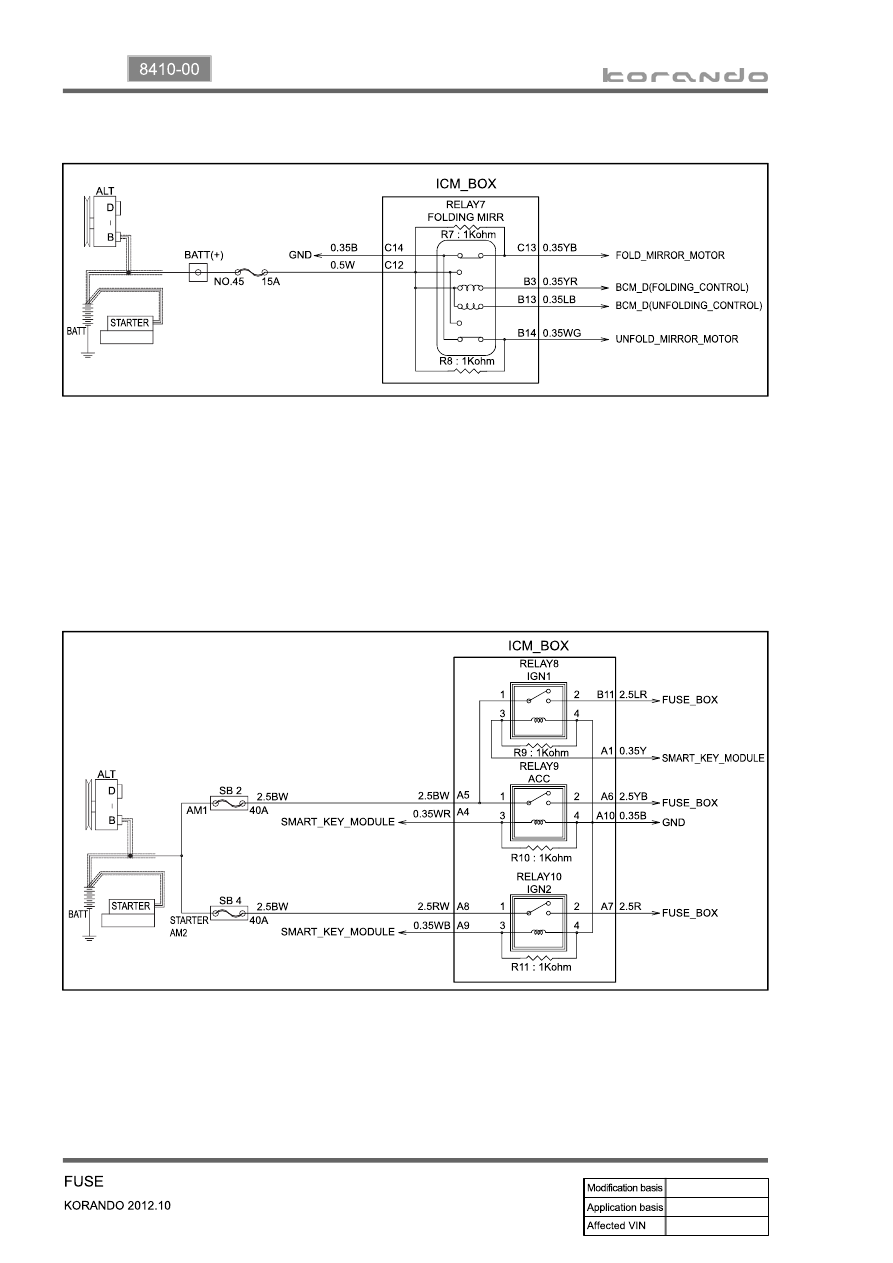

(3) Outside mirror folding relay

The power for the outside mirror folding relay is supplied through the fuse no. 45 in the engine

compartment CE box and the relay is operated by the operation signals from the no. D16 and no. D17 of

the BCM.

(4) IGN1, IGN2, ACC relays

Manual operation of BCM

▶

When pressing the outside mirror folding/unfolding switch with IGN ON, the mirrors are folded or

unfolded according to the previous mirror position. If the mirror is already folded, then the mirror will be

unfolded and vise versa. This operation will be performed for T1.

For models with SKM

▶

The power supplied through the AM1 fuse goes to the ACC relay no.1 and IGN1 relay no. 1. The power

supplied through the starter motor AM2 goes to the IGN2 relay no. 1. The IGN1 and IGN2 relays are

operated by the signals from the no. A1 and no. A2 of the SKM. Refer to SKM description for operating

conditions.

02-29

8410-00

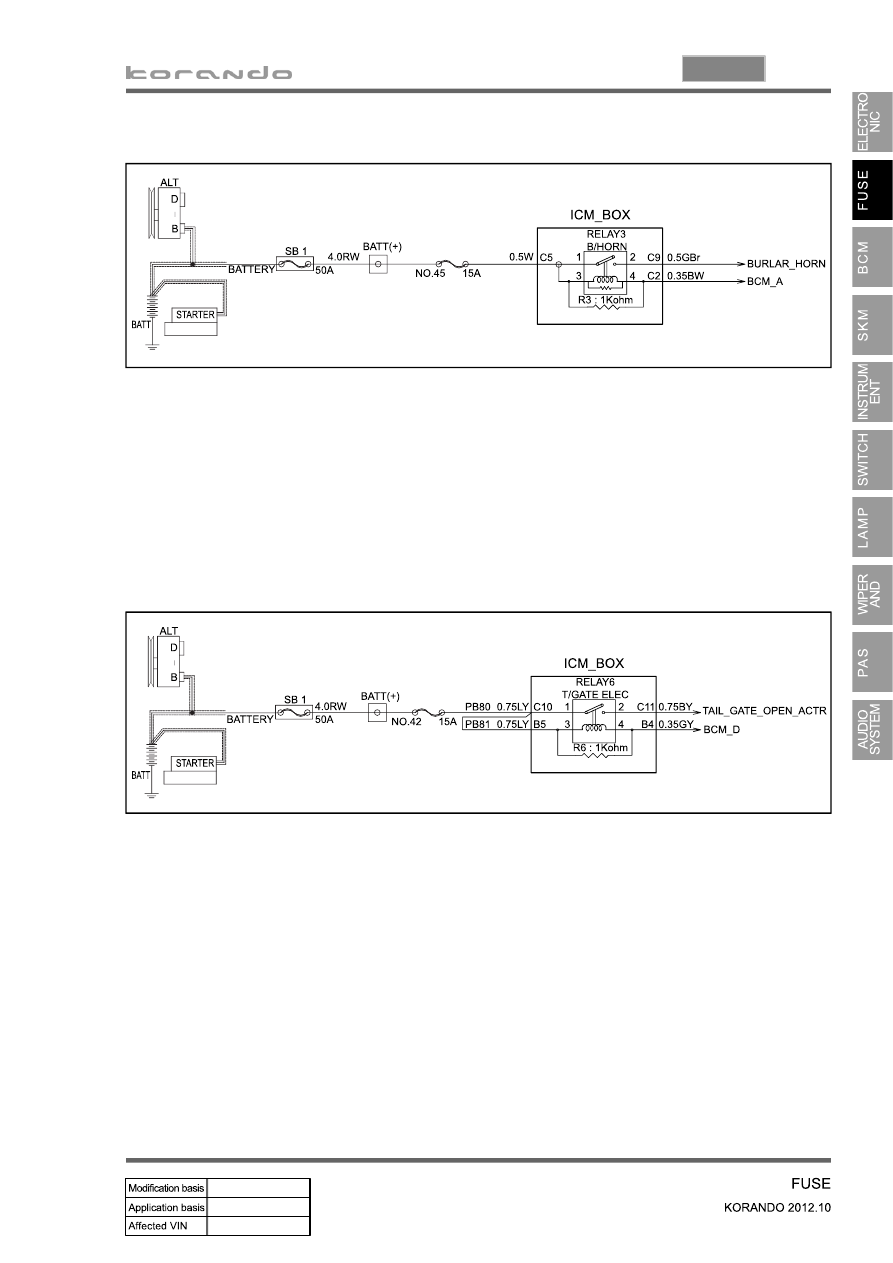

(5) Horn relay

The power for the theft deterrent horn relay is supplied to the ICM terminal no. C5 through the battery

SB1 and fuse no. 45 in the interior fuse box.

The relay is operated by the signals from the BCM terminal no. A24. Refer to Conditions For Theft

Deterrent for operating conditions.

(6) Tailgate relay

The power for the tailgate relay is supplied to the ICM terminals no. C10 and no. B5 through the battery

SB1 and fuse no. 42 in the interior fuse box. The relay is operated (i.e. ON/OFF) by the operation signal

from the BCM terminal no. D6.

Deactivation condition

▶

Without SKM

The tailgate open relay is turned OFF immediately after the driver's door is locked or the vehicle

speed becomes 3 km/h or more during its activation.

With SKM

Refer to the section Tailgate of BCM for the operating conditions.

-

-

02-30

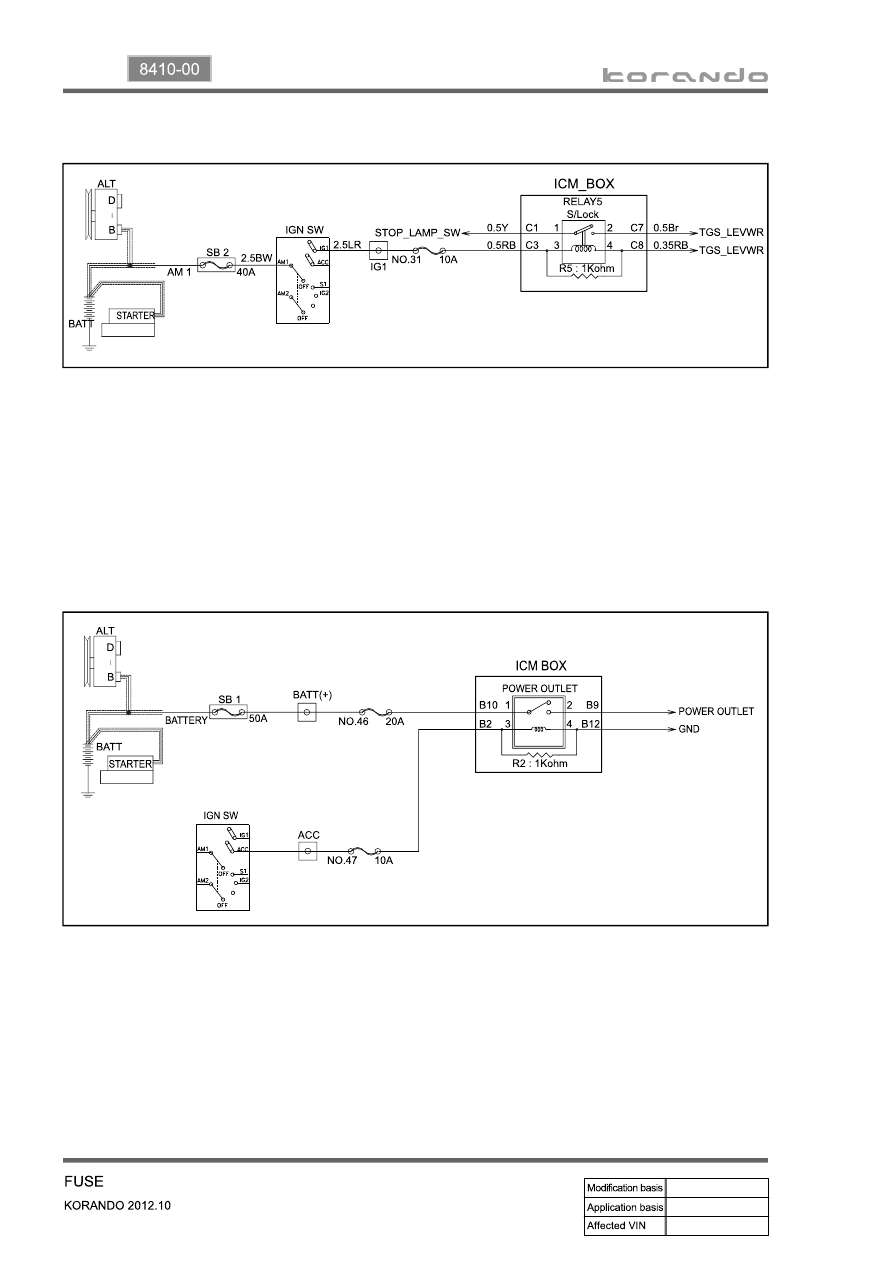

(7) Shift lock relay

The shift lock relay is used in the models with A/T and receives power through the SB2 and fuse no. 31

in the interior fuse box with the IGN1 turned ON. If the operating conditions are met (stop lamp switch

ON), the battery power is supplied to the ICM terminal no. C1. If the gear mode conditions are met, the

relay is operated by the signals from the terminal no. 10 of the gear selector lever.

(8) Power outlet relay

The power for the power outlet relay is supplied to the ICM terminal no. B10 through the battery SB1

and fuse no. 46 in the interior fuse box. The relay is earthed through the fuse no. 47 in the interior fuse

box and then ICM terminals no. B2 and no. B12 when the ignition key is turned to ACC.

03-3

8710-01

1. SPECIFICATION

Pin No.

Specification

Remark

Rated voltage

DC 13.5 V

-

Operating voltage

DC 9.0 to 16.0 V

DC 7.0 to 18.0 V (CAN)

-

Operating temperature

-30 to +80°C

-

Storage temperature

-40 to +85°C

-

Transponder

Frequency

134.2 KHz ± 4 KHz

-

Operating

temperature

-40 to +85°C

-

Max. humidity

95%

-

High resistant voltage

24 V

-

Dark current

BCM without SKM: 7.0 mA or less

BCM with SKM: 4.0 mA or less

All switches OFF, key removed,

all doors LOCK and in sleep

mode

Voltage drop

1.0 V or less

at pin B6 and all pins for

IN/OUT

Frequency characteristics

▶

Pin No.

Specification

Remark

Receive frequency

433.920±0.015 MHz

-

Bandwidth

15KHz ± 2KHz or less

-

Modulation method

FSK

-

Range

10M or longer (open)

-
