03-20

Wiper low/high control

▶

The wiper low relay is activated when the wiper low switch is operated and the wiper high relay

activated when the wiper high switch is operated.

The wiper motor returns to parking position and stops, even when turning off the ignition switch during

wiper operation.

The wiper relay should remain activated during wiper operation in low/high mode even though the

system does not receive P-POS signal. (During intermittent/automatic wiper operation, the wiper relay

should be deactivated after 5 seconds if there is no P-POS signal for 3 seconds in order to inform the

driver of faulty signal)

While the wiper operates at low/high speed, the front/rear washer switch can be operated but the auto

washer switch cannot.

The wiper motor returns to parking position and stops when turning off the ignition switch during wiper

operation in high mode.

1.

2.

3.

4.

5.

03-21

8710-01

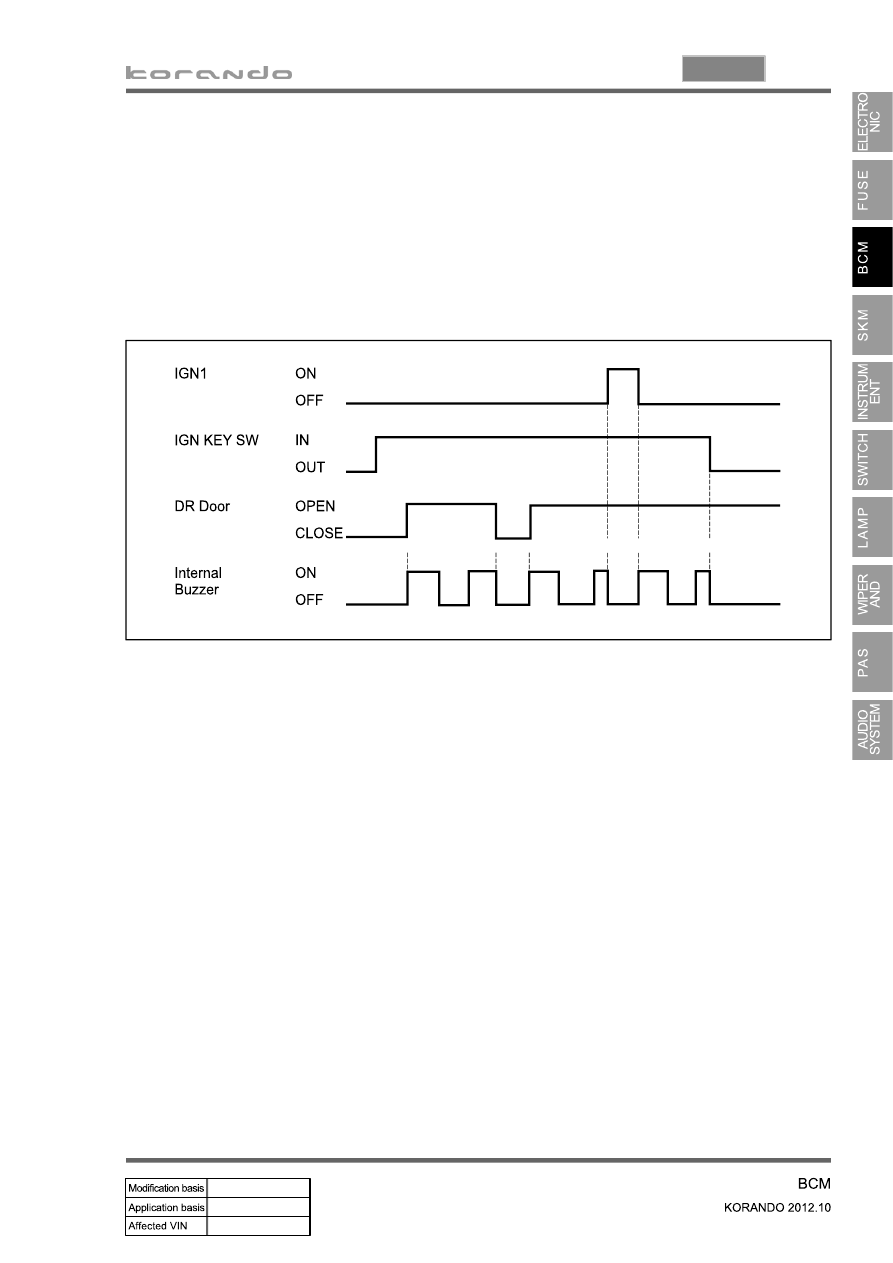

2) Ignition Key Reminder

Key reminder warning

(This function has priority over the "Tail lamp on warning".)

▶

When opening the driver door while the ignition key is inserted into the key cylinder, the buzzer sound

for 10 seconds with the interval of 0.02 s ON and 1.38 s OFF.

When removing the ignition key or closing the driver door during the buzzer output (within 10

seconds), the buzzer stops its operation.

This function is not available when the ignition switch (IGN1) is in "ON" position.

1.

2.

3.

03-22

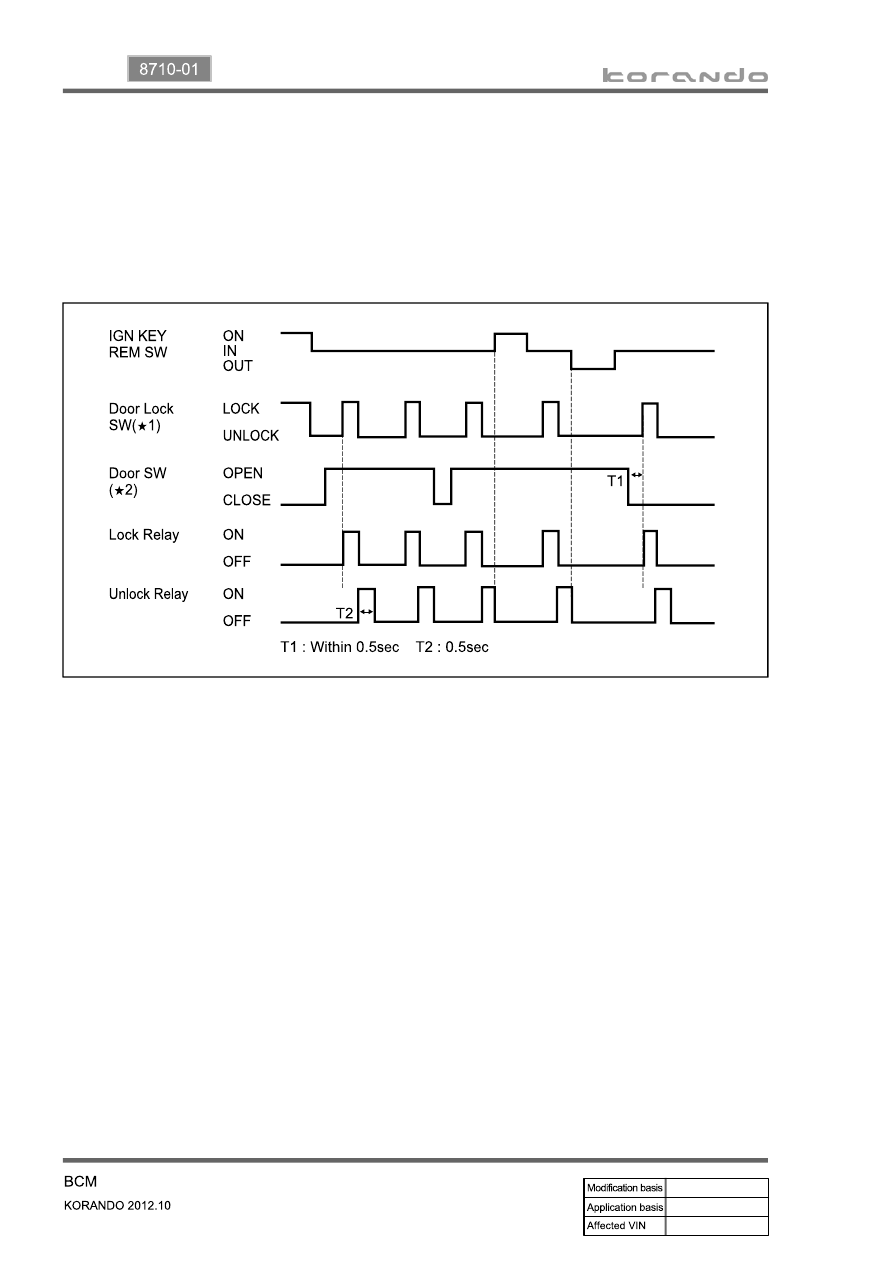

Ignition key reminder

▶

When opening a front door or turning on the door lock switch while the ignition key is inserted into the

key cylinder, the doors are locked for 0.5 seconds, and unlocked.

The door remain unlocked even when the door lock switch is received "door lock" signal within 0.5

seconds after opening and closing the door.

However, the doors should not be unlocked when removing the ignition key during the locking

process by door lock switch.

1.

2.

3.

(*1) : Driver door lock switch or passenger door lock switch

(*2) : Driver door switch or passenger door switch

03-23

8710-01

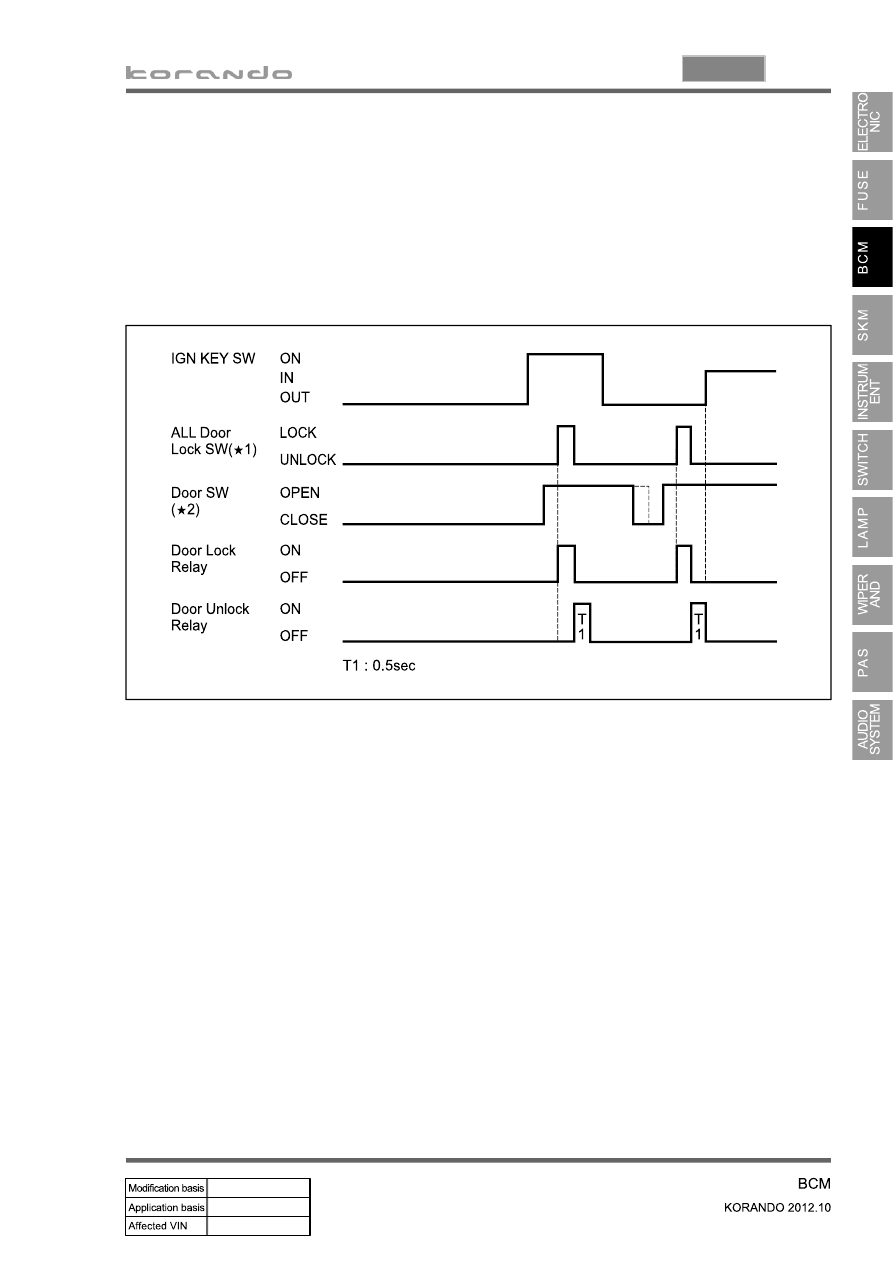

Anti-lock function when a door is open

▶

If any of doors (except tailgate and engine hood) is open, the doors are locked once but immediately

unlocked when receiving the lock signal.

The door remains unlocked for 0.5 seconds when closing the door during unlock.

The system also performs operation as above while the key is removed or the ignition switch is

turned to "ON" position. The ignition key reminder function is activated while the ignition key is

inserted into the key cylinder.

This function is not available when the vehicle speed is over 10 km/h.

1.

2.

3.

4.

(*1) : Driver door lock switch or passenger door lock switch

(*2) : Driver door switch or passenger door switch
