03-28

Seat belt reminder

▶

Operating conditions for seat belt reminder are as follows: IGN ON, engine running (over 300 rpm),

vehicle speed of 25 km/h or higher, driver seat belt unfastened, passenger seat belt unfastened and

passenger seat occupied. In addition, if the seat belt reminder is activated at the speed of 25 km/h or

higher and the speed reduces to below 25 km/h within 5 minutes, the interior buzzer sound stops. The

buzzer sounds for 5 minutes again when the speed is 25 km/h or higher.

The seat belt reminder stops its operation when fastening the seat belt, but starts the operation again if

unfastening the seat belt.

If the seat belt reminder is initially operated due to unfastened driver seat belt, the buzzer sounds with

the interval of 0.02s ON/1.18s OFF, the instrument cluster sends the driver seat belt warning signal

(SBR) and the seat belt warning lamp stays on.

At this time, the buzzer sounds for 5 minutes.

If the seat belt reminder is operated due to unfastened passenger seat belt when the passenger seat

belt reminder sensor detects that the passenger seat is occupied, the instrument cluster sends the

driver seat belt warning signal and the seat belt warning lamp stays on.

For this case, the indicator shows each status of the driver and passenger seats but the indoor buzzer

is common to both seats.

If the simultaneous operating condition for the indoor buzzer is met, the driver seat has the priority.

If the driver seat belt is fastened, the same operation is also carried out in the passenger seat

automatically.

The buzzer and the warning lamp are operated according to the vehicle speed as below table during

the seat belt reminder operation.

1.

2.

3.

4.

5.

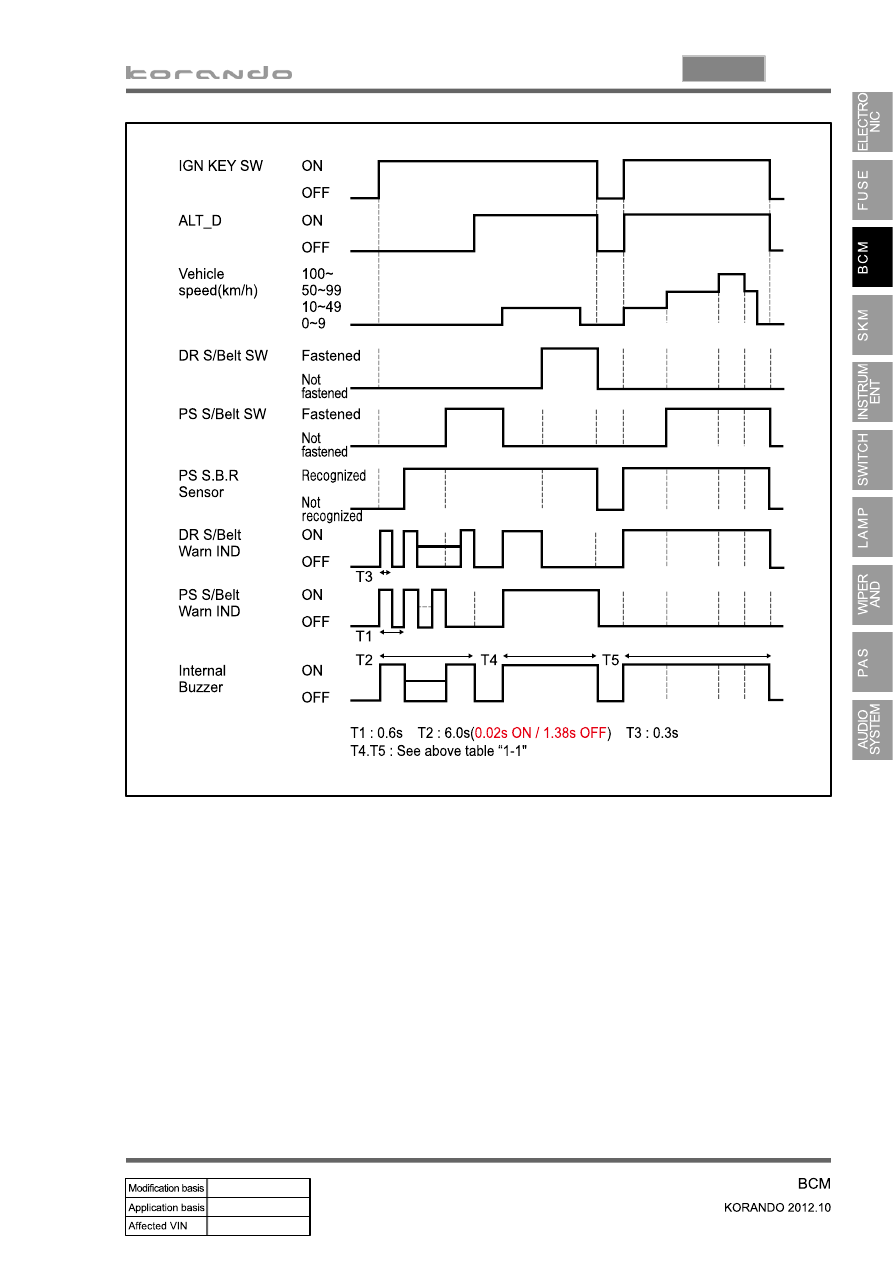

Seat belt reminder operation

Priority of buzzer operation: SBR ⇒ Key reminder warning ⇒ Sunroof warning ⇒ Tail lamp ON
warning ⇒ Hazard warning flasher ⇒ Turn signal lamp.

6.

Buzzer

Warning lamp

25 Km/h ~ 49 Km/h

0.02s ON / 1.18s OFF

Keep ON

50 Km/h ~ 99 Km/h

0.02s ON / 0.98s OFF

Keep ON

10 Km/h ~ 49 Km/h

0.02s ON / 0.78s OFF

Keep ON

Function

Vehicle speed

Seat belt remind warning lamp (EU only)

This lamp comes on for 6 seconds after turning on the ignition switch. If the vehicle speed goes

over 10 km/h without fastened the seat belt, the inside buzzer sounds.

-

03-29

8710-01

03-30

6) Sunroof

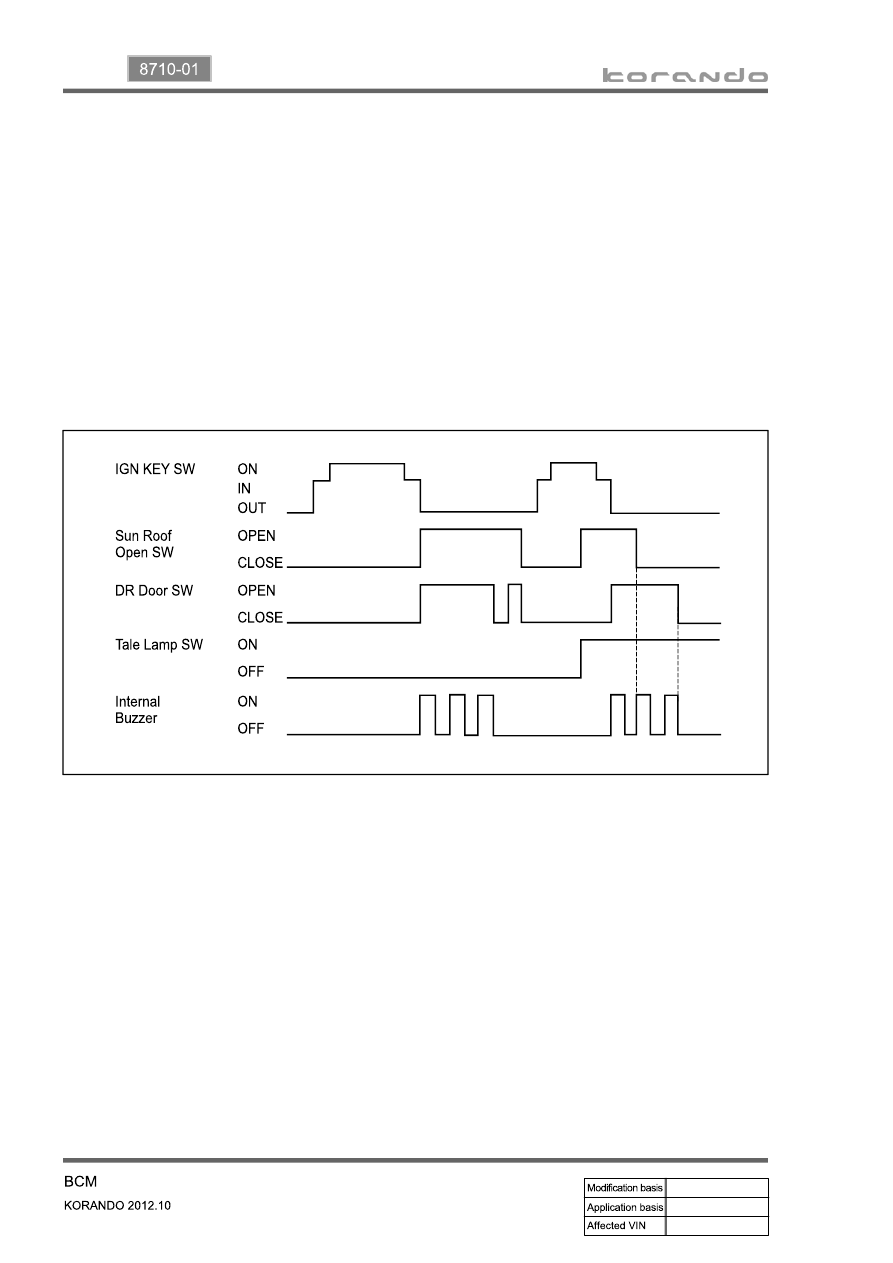

Sunroof warning

▶

When removing the ignition key with the sunroof open (without SKM) or when opening the driver door

with IGN OFF or ACC and sunroof open (with SKM), the indoor buzzer sounds for 10 seconds with

the interval of 0.02s ON/1.58s OFF.

When opening and closing the driver door or closing the sunroof during indoor buzzer operation, the

buzzer stops its operation immediately.

When closing the driver door or sunroof and opening again during warning operation, the sunroof

warning does not work. If the condition is met after the ignition switch is turned to "ON" position again,

the indoor buzzer sounds for 10 seconds with the interval of 0.02s ON/1.58s OFF.

The sunroof warning has a priority over the tail lamp ON warning.

1.

2.

3.

4.

03-31

8710-01

7) Room Lamp

Door coupled room lamp and dimming control

▶

When opening any of doors while the room lamp switch in overhead console is pressed in ("Door"

coupled position), the room lamps come on. If the key is removed and door stays open, the room lamps

automatically goes off after 10 minutes. The sleep mode will be deactivated when the door is locked or

closed with the lamp OFF automatically.

When closing the door with IGN ON, the room lamps go off immediately.

When closing the door with IGN OFF, the room lamps stays on for 2 seconds and are dimmed out for

3 seconds.

When turning the ignition switch to ON position during dimming out operation, the room lamps go off

immediately.

When receiving the door unlock signal with IGN OFF, key removed and door closed, the room lamps

come on for 30 seconds. (It operates depending on REKES unlock and manual unlock signals for

BCM with SKM.)

4. When receiving the door unlock signal again in Step (4), the overhead room lamp and center room

lamp stay on for 30 seconds additionally. (For BCM with SKM, the extension depends on the REKES

unlock signal.)

When opening a door during the linked and dimming operation, the room lamps stays ON. When

closing it again, the system performs the operation in Step (1) and (2).

When all the door switches are changed from its closing state to its opening state, the room lamps are

dimmed out. The room lamps go off immediately when entering into the theft deterrent mode. (For

BCM with SKM, door lock is carried out by the REKES lock and manual lock signals.)

The room lamps come on when the auto approach function is activated.

1.

2.

3.

4.

5.

6.

7.

8.

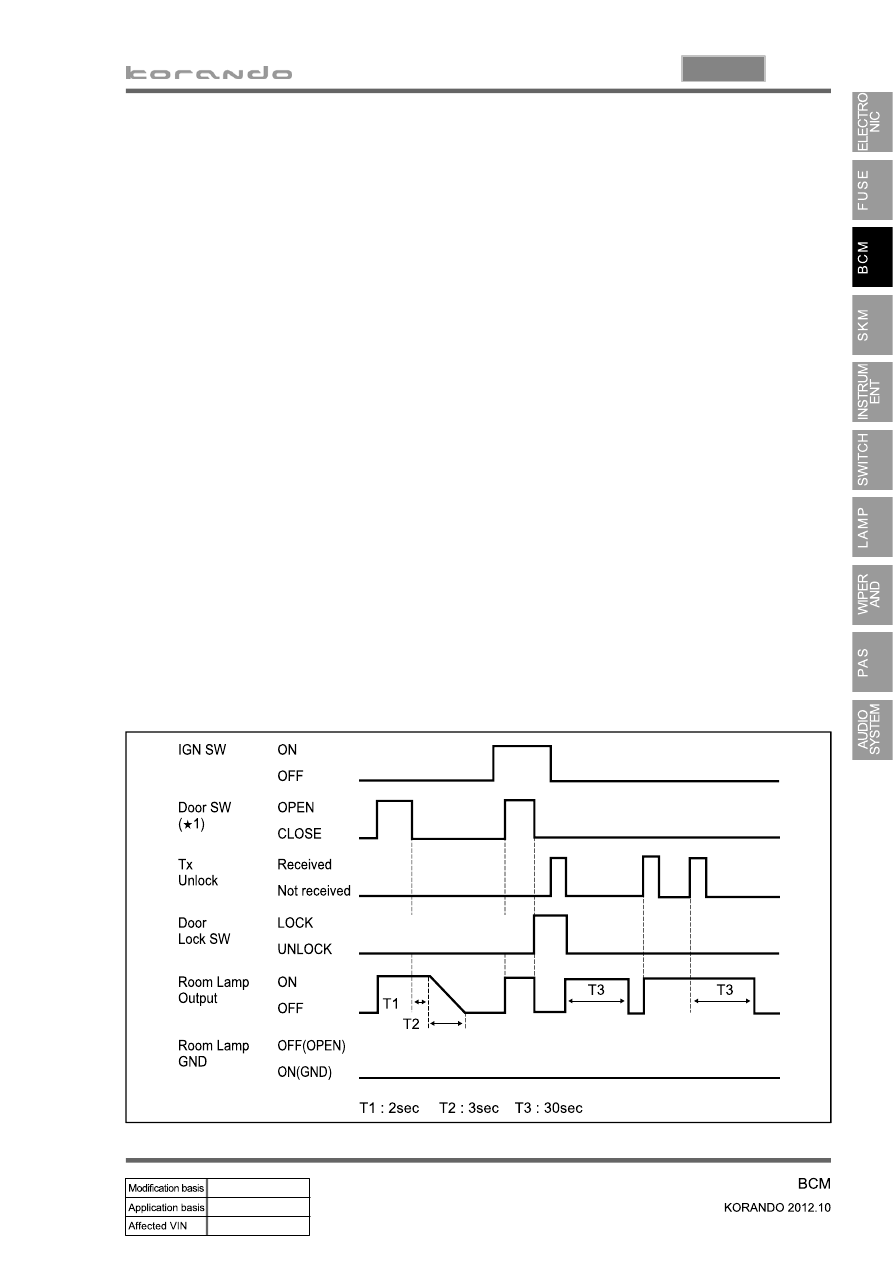

Room lamp control by door coupled room lamp operation

▶
