03-52

Theft deterrent alarm control in BCM with SKM

▶

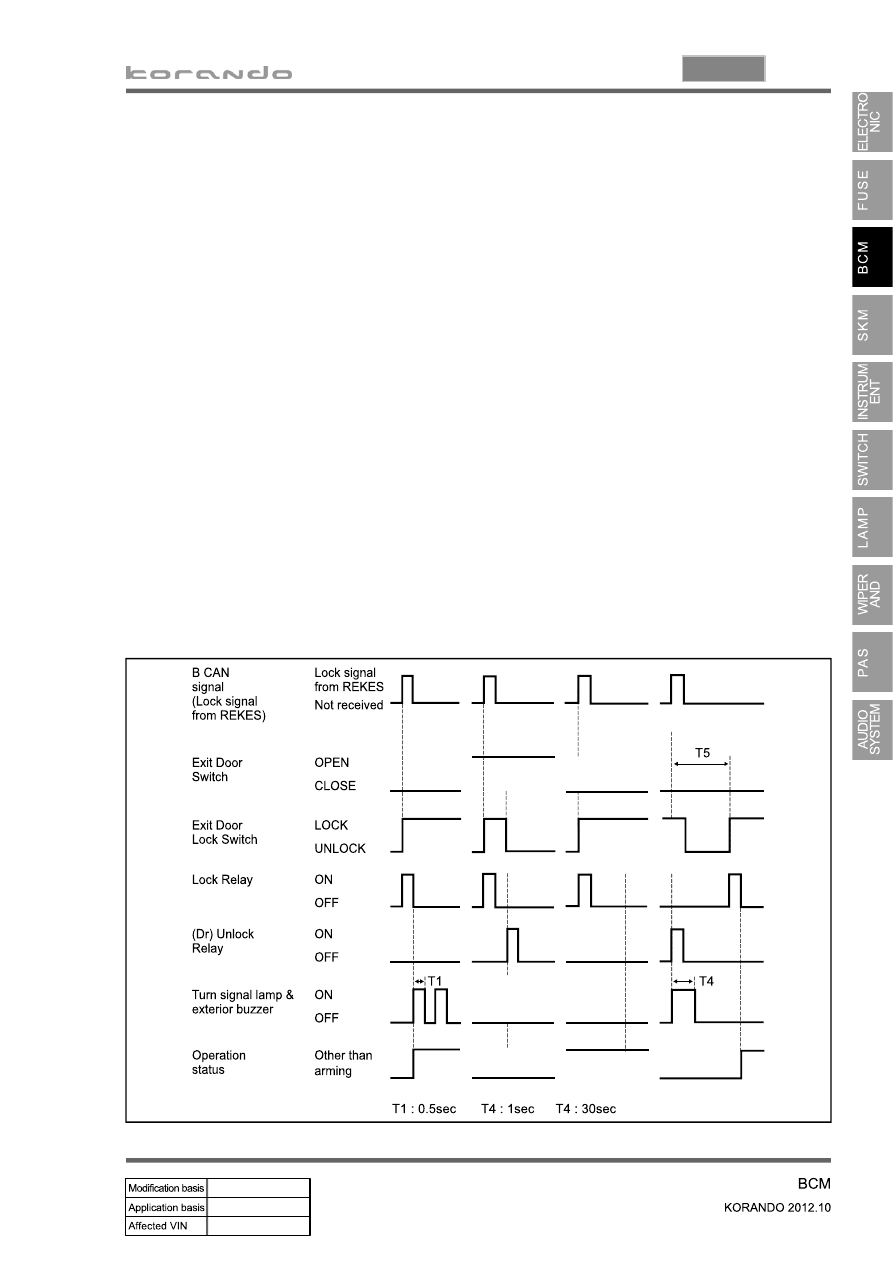

Entering into theft deterrent mode by smart key remote control

1.

When receiving the door lock signal from the smart key remote control with power OFF or ACC ON

and tailgate and engine hood closed, the doors are locked and the theft deterrent mode is

activated. At this time, the turn signal lamps blink twice and the exterior buzzer sounds once at

interval with 50 ms ON/50 ms OFF. (SKM turns off the vehicle and sends the signal, when ACC

ON)

The BCM unlock the doors immediately after locking them first without operating turn signal lamp

and exterior buzzer and the system does not enter into theft deterrent mode, if the door lock signal

is received from the smart key remote control when the driver door is unlocked and any of doors is

open.

The BCM locks all the doors and system does not enter into theft deterrent mode if all the doors are

closed when the door lock signal is received from the smart key remote control with the tailgate and

engine hood open. However, if the tailgate and engine hood is closed, the turn signal lamps blink

twice, exterior buzzer sounds once and theft deterrent mode is entered.

If all the doors, tailgate or engine hood is open or the ignition switch is not turned to ON position

within 30 seconds after receiving the door unlock signal from the smart key remote control, the

doors are locked, turn signal lamps blink twice, exterior buzzer sounds once and theft deterrent

mode is re-activated.

The theft deterrent mode can be activated only when the above conditions are satisfied, excepting

manual lock.

Ex) The theft deterrent mode cannot be activated when locking the doors with key hole on door.

-

-

-

-

-

03-53

8710-01

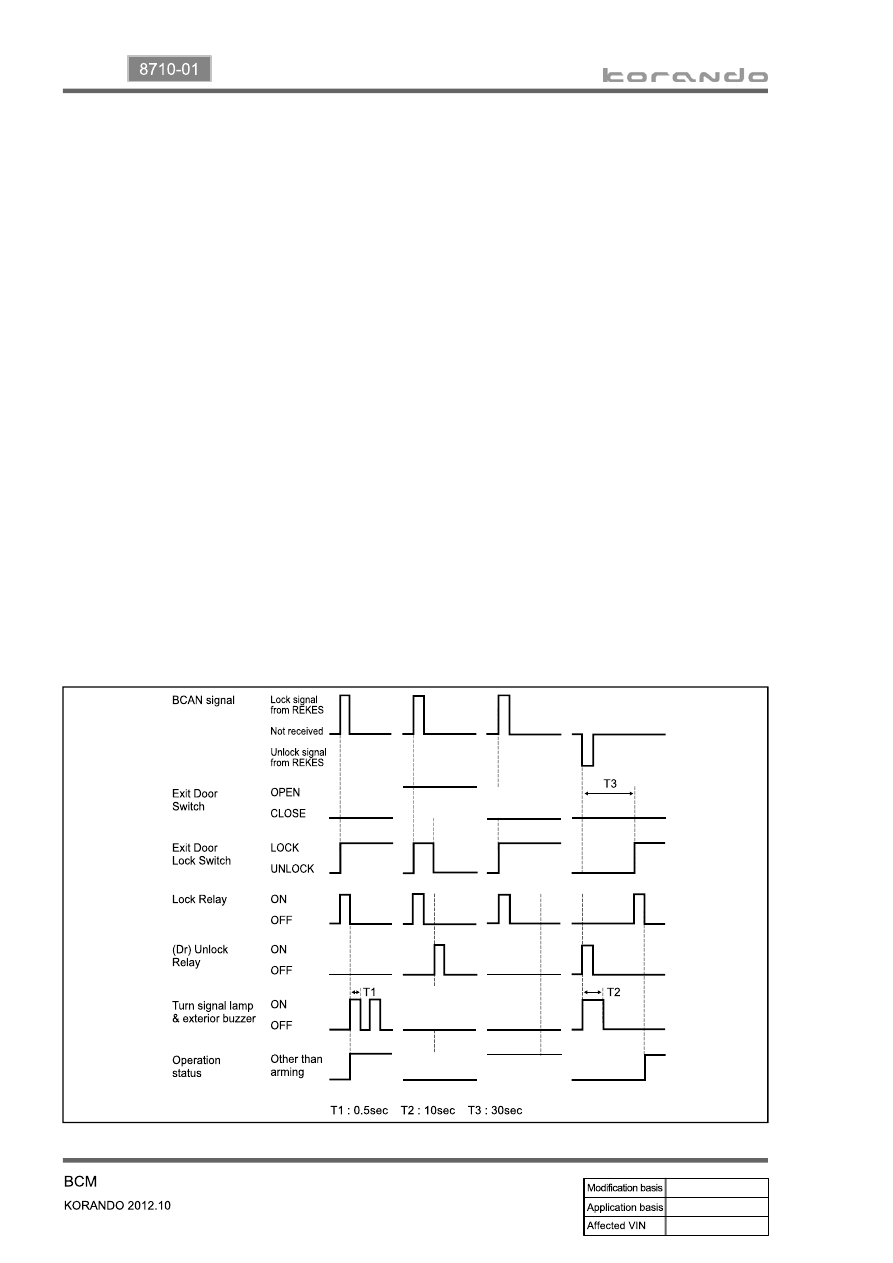

Entering into theft deterrent mode by SKM passive entry

2.

When receiving the signal from the outside door handle switch with power OFF or ACC ON,

tailgate and engine hood closed and driver door unlocked, the doors are locked and the theft

deterrent mode is activated. At this time, the turn signal lamps blink twice and the exterior buzzer

sounds once at interval with 50 ms ON/50 ms OFF. (SKM turns off the vehicle and sends the

signal, when ACC ON)

The BCM unlock the doors immediately after locking them first without operating turn signal lamp

and exterior buzzer and the system does not enter into theft deterrent mode, if the door lock signal

is received from the outside door handle switch when the driver door is unlocked and any of doors

is open.

The BCM locks all the doors and system does not enter into theft deterrent mode if all the doors

are closed when the door lock signal is received from the outside door handle switch with the

tailgate and engine hood open. However, if the tailgate and engine hood is closed, the turn signal

lamps blink twice, exterior buzzer sounds once and theft deterrent mode is entered.

If all the doors, tailgate or engine hood is open or the ignition switch is not turned to ON position

within 30 seconds after receiving the door unlock signal from the outside door handle switch with

the driver door locked, the doors are locked, turn signal lamps blink twice, exterior buzzer sounds

once and theft deterrent mode is re-activated.

The theft deterrent mode can be activated only when the above conditions are satisfied, excepting

lock by smart key remote control signal.

Ex) The theft deterrent mode cannot be activated when locking the doors with key hole on door.

-

-

-

-

-

03-54

Disarming

3.

If the door unlock signal is received from the smart key remote control with power OFF or the

outside door handle switch signal is received with the driver door locked, the doors are unlocked,

turn signal lamps blink once, exterior buzzer sounds twice at the intervals with 50 ms ON/450 ms

OFF and theft deterrent mode is deactivated. When receiving the door unlock signal with the theft

deterrent mode disarmed, the turn signal lamps blink and exterior buzzer sounds.

When tailgate is open by tailgate open switch signal (only tailgate disarmed)

When verified smart key is detected and manual tailgate is open by tailgate open switch signal

(only tailgate disarmed)

When ignition switch is turned to ON position

-

-

-

-

In theft deterrent mode

BCM observes the conditions below continuously:

4.

Battery connection (B+)

Front/rear door open

Tailgate open

4 doors lock/unlock

Engine hood open

-

-

-

-

-

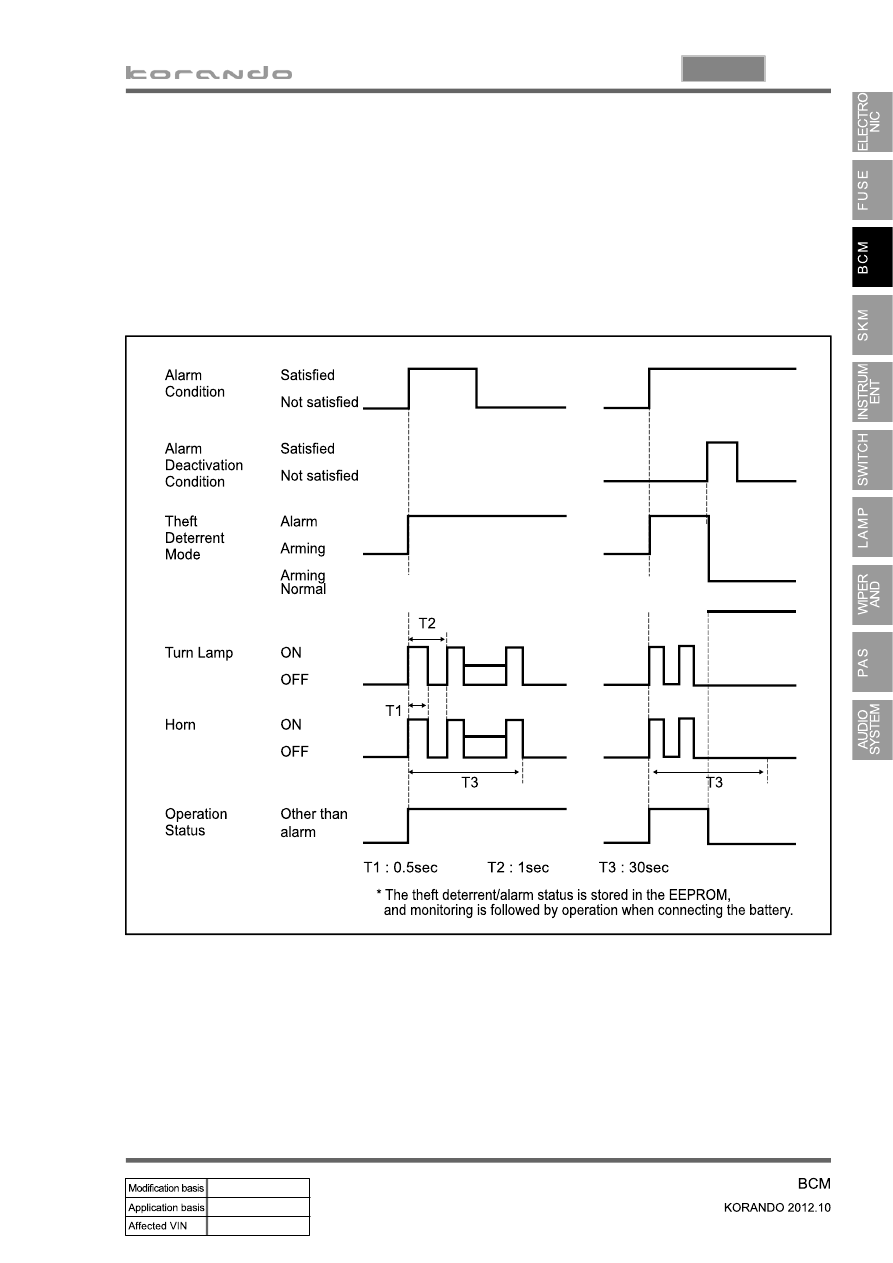

Activation of theft deterrent alarm

5.

When any of doors, tailgate or engine hood is open in theft deterrent mode

When unlocking the door lock switch in theft deterrent mode

When opening a door after completion of theft deterrent alarm (for 30 seconds)

Horn and the turn signal lamps operate for 30 seconds with the interval of 0.5s ON/0.5s OFF.

-

-

-

-

Warning cancellation requirements

6.

The theft deterrent alarm is deactivated by the following BCAN signals during its operation: (theft

deterrent mode maintains)

-

When door is unlocked by smart key remote control

When door is locked by smart key remote control

When tailgate is open by smart key remote control

When passive door is unlocked due to smart key detection

When tailgate is open due to smart key detection

When panic alarm is activated by smart key remote control

1)

2)

3)

4)

5)

6)

When turning the ignition switch to ON position during the theft deterrent alarm, the alarm stops

immediately.

When turning the ignition switch to ON position during the theft deterrent alarm, the alarm stops and

the theft deterrent mode is deactivated after 30 seconds (remaining time).

If there is not any disarming commend, the alarm stays ON for 30 seconds and the theft deterrent

mode continues.

-

-

-

03-55

8710-01

Re-entering into theft deterrent mode after tailgate open

7.

If all the doors, excepting tailgate, are in theft deterrent mode and the BCM is received the signal

indicating that the verified smart key is not in the vehicle when the tailgate is closed again, the

system enters into the theft deterrent mode again in 1 second. At this time, the turn signal lamps

blink twice and exterior buzzer sounds once by the BCM.

-

Operation when disarming

8.

The horn and the turn signal lamps stop their operation.

-
