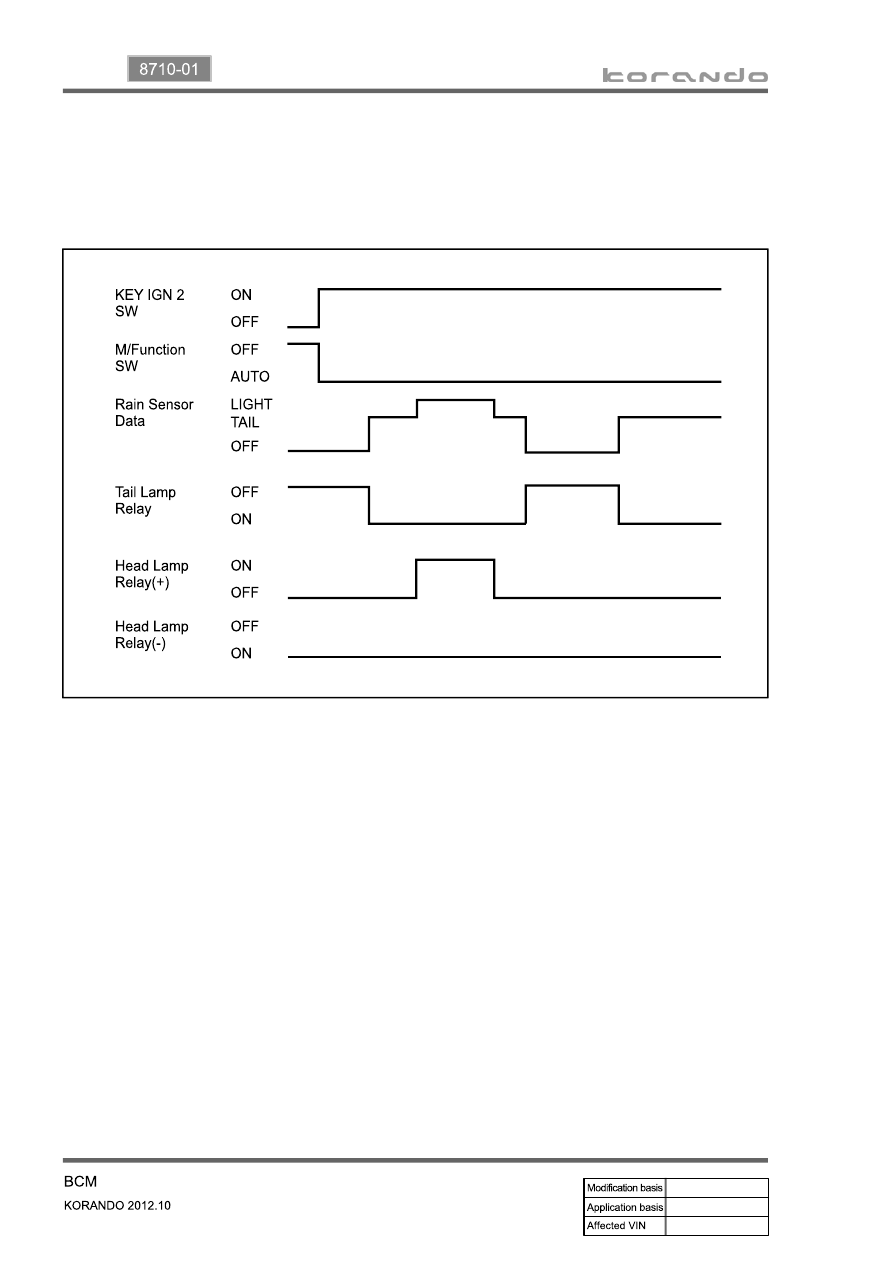

21) Auto Light Control (LIN)

 The BCM communicates with the auto light sensor when turning the ignition switch to ON position, and

controls the tail lamps and the headlamps depending on the LIN data with the light switch AUTO.

1.

03-65

8710-01

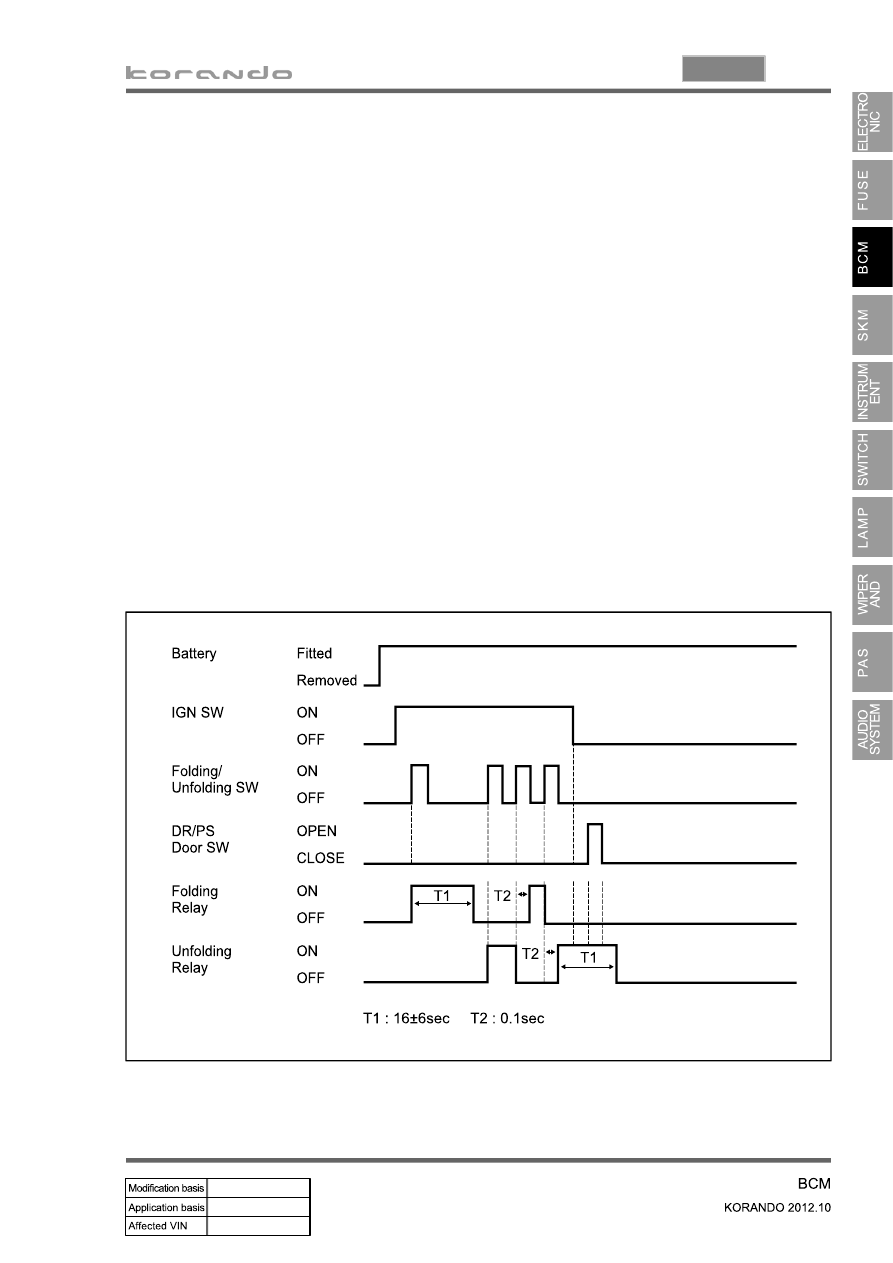

22) Outside Mirror Folding/Unfolding Control

Folding/unfolding control

▶

When pressing the mirror folding/unfolding switch with IGN ON, the mirrors are folded or unfolded

according to the mirror condition. If the outside rearview mirror was folded, the mirror should be
unfolded, and vice versa. Folding/unfolding output is activated for 16±6 seconds.

This operation time should be completed even when the ignition switch is turned to OFF position

during its operation.

At first time pressing the mirror folding/unfolding switch after reconnecting the battery, the mirror

folding operation is performed.

You can control the mirror position within the first 30 sec. after turning the ignition OFF. In other

words, this control must be available for 30 seconds (time lag period) after turning the ignition switch

to OFF position. Folding/unfolding is completed when time lag of 30 seconds elapse during

operation.

When receiving the folding/unfolding signal during the mirror folding/unfolding operation, the output

should be activated after having time lag of 0.1 second.

The folding/unfolding operation is performed regardless of the vehicle speed.

Manual operation
- Mirror unfolded → Mirror folding/unfolding signal from switch → Mirror folding
- Mirror folded → Mirror folding/unfolding signal from switch → Mirror unfolding

1.

2.

3.

4.

5.

03-66

Auto folding/unfolding control

▶

Setting

1.

Set auto folding function: When pressing the mirror folding switch for over 3 seconds, the auto

folding function is set and the internal buzzer sounds once (ON: 0.1 sec, OFF: 0.2 sec).

Release auto folding function: When pressing the mirror folding switch for over 3 seconds, the

auto folding function is set and the internal buzzer sounds twice (ON: 0.1 sec, OFF: 0.2 sec).

-

-

Auto folding sequence

2.

When receiving the LOCK signal from the REKES, the system operates in the sequence of "Door
lock → Theft deterrent mode activation → Mirror folding" for BCM without SKM.

When receiving the outside door handle switch signal or door lock signal from the smart key
remote control, the system operates in the sequence of Door lock → Theft deterrent mode
activation → Mirror folding" for BCM with SKM.

-

-

When the auto folding function is set, the automatic unfolding is not available if the mirrors have been

folded manually.

(The outside rearview mirror will be folded automatically if the auto folding function is set.)

The factory setting is the enabling the auto folding function.

4.

5.

23) Approach (Puddle) Lamp Control

Without SKM

▶

Approach lamp ON

1.

When receiving the UNLOCK signal in the theft deterrent mode, the approach lamps come

ON for 30 seconds.

When turning the ignition switch to OFF from ON position and opening the driver door, the

approach lamps come ON.

-

-

Approach lamp OFF

2.

When receiving the door lock signal with the approach lamps ON, the lamps go OFF

(reactivation of theft deterrent mode).

When turning the ignition switch to ON position with the approach lamps ON, the lamps go OFF.

The approach lamps go OFF after 30 seconds.

-

-

-

Auto unfolding sequence

3.

When receiving the UNLOCK signal from the REKES, the system operates in the sequence of
"Door unlock → Theft deterrent mode deactivation → Mirror unfolding" for BCM without

SKM.

When receiving the outside door handle switch signal or door unlock signal from the smart key
remote control, the system operates in the sequence of Door unlock → Theft deterrent
mode deactivation → Mirror unfolding" for BCM with SKM.

-

-

03-67

8710-01

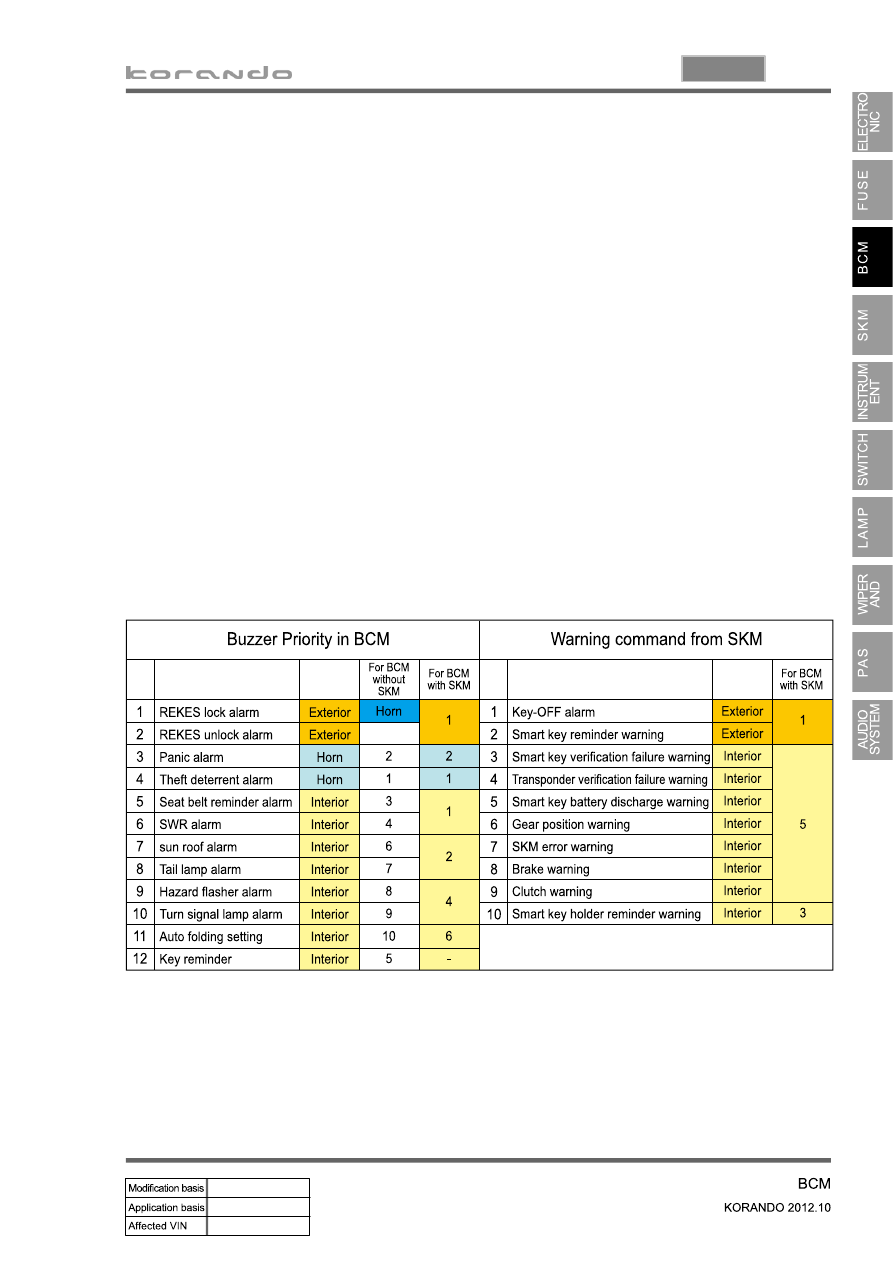

24) Buzzer Control

Priority are as follows:

With SKM

▶

Approach lamp ON

1.

When turning the ignition switch to OFF from ON position and opening the driver door, the

approach lamps come ON.

When receiving the UNLOCK signal from the smart key remote control or outside door handle

switch signal in the theft deterrent mode, the approach lamps come ON for 30 seconds.

When receiving the AUTO approach signal in the theft deterrent mode, the approach lamps

come ON for 30 seconds.

-

-

-

Approach lamp OFF

2.

When receiving the door lock signal from the smart key remote control or outside door handle

switch signal with the approach lamps ON, the lamps go OFF (reactivation of theft deterrent

mode).

When turning the ignition switch to ON position with the approach lamps ON, the lamps go OFF.

The approach lamps go OFF after 30 seconds.

-

-

-
