SsangYong Korando III (2010 year). Manual - part 99

03-4

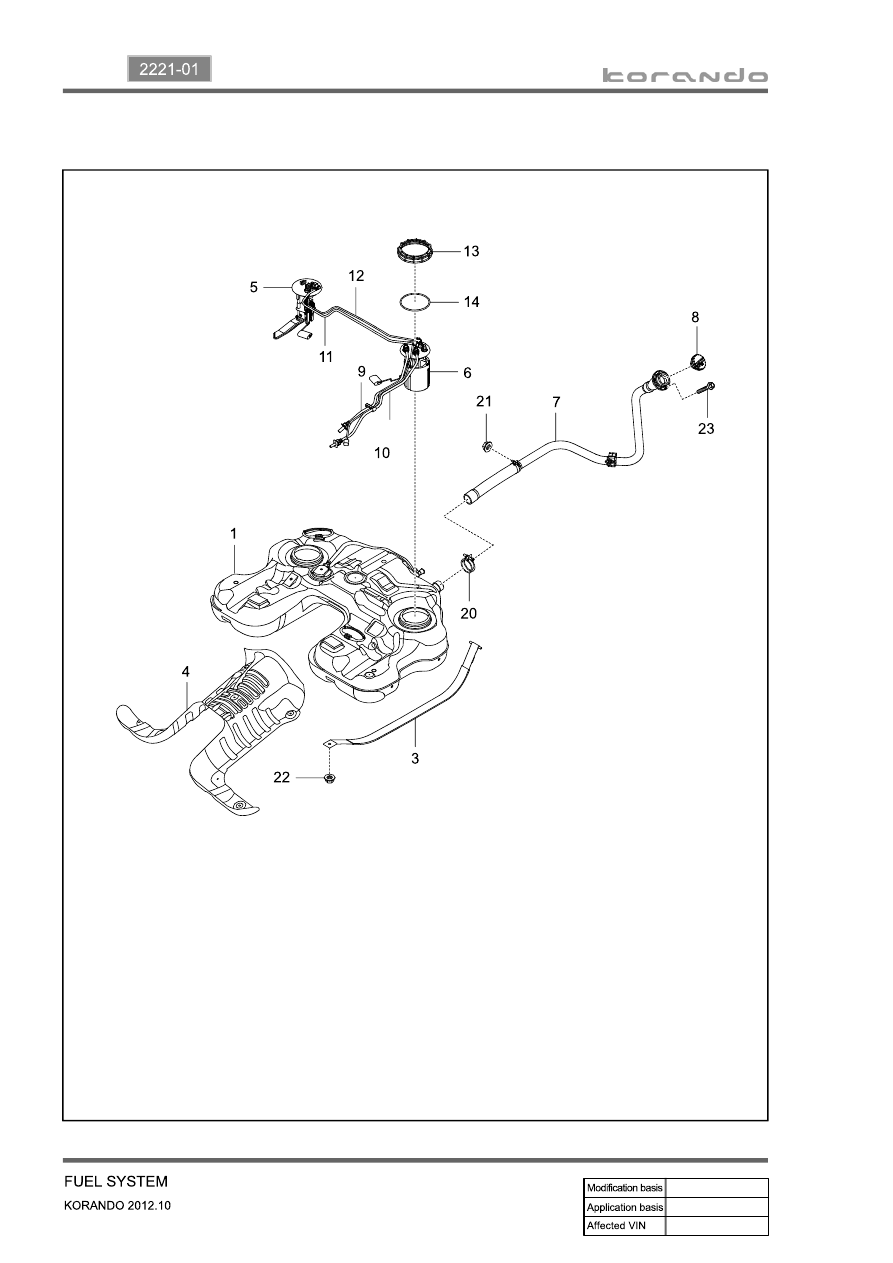

2. SYSTEM LAYOUT

Fuel tank assy

Fuel tank strap assy

Heat shield assy

Sub sender assy

Main fuel pump assy

Fuel filler assy

Fuel filler cap assy

Feed tube assy

Return tube assy

1.

3.

4.

5.

6.

7.

8.

9.

10.

Suction tube assy

Harness wiring assy

Fuel pump plate cover

O-ring

clamp

Nut

Nut

Screw

11.

12.

13.

14.

20.

21.

22.

23.

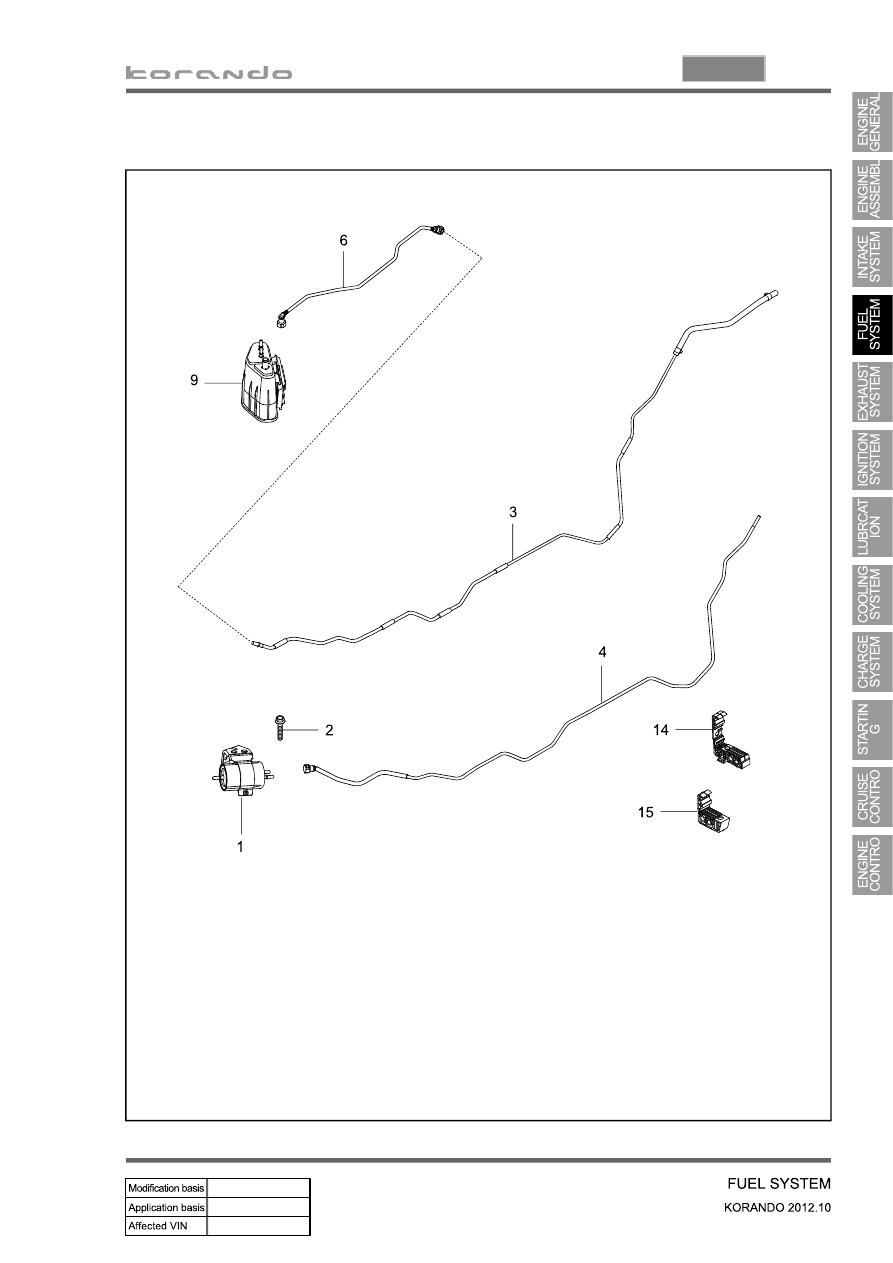

03-5

2221-01

Fuel Filter Assy

Bolt

Fuel Return Pipe

Fuel Supply pipe

Fuel Vapor Pipe Assy

Canister Compl

Fuel line Holder

Fuel line Holder

1.

2.

3.

4.

6.

9.

14.

15.

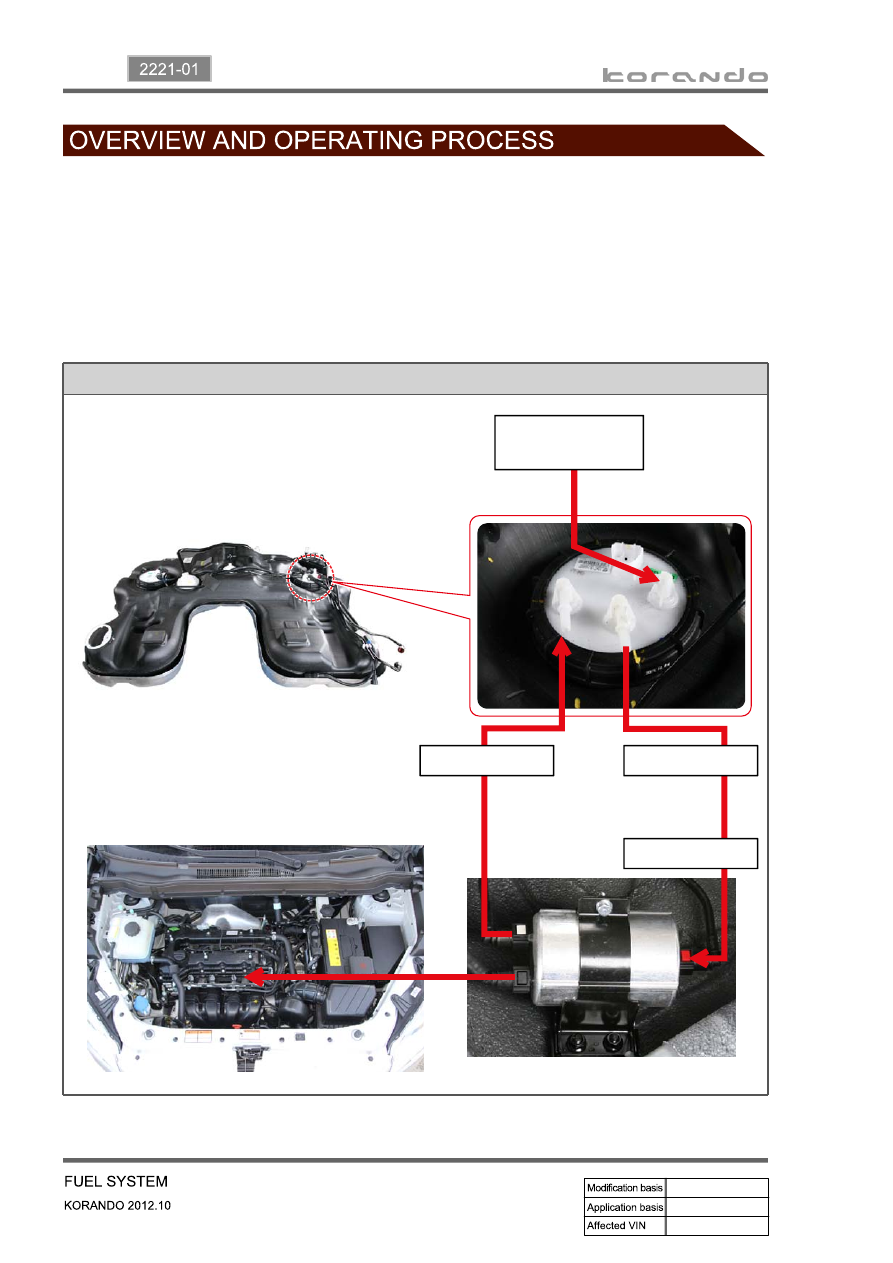

03-6

Returnless Type

1. OVERVIEW

The fuel system is a returnless type that the fuel pressure regulator is mounted inside the fuel tank.

The engine ECU controls the fuel injection in each injector electronically.

According to the engine loads, the engine ECU draws or cuts off the evaporated gas in canister into the

combustion chamber. The fuel system consists of fuel tank, fuel lines, fuel pump and fuel pressure

regulator.

Fuel supply line to

sub tank

Fuel return line

Fuel supply line

Maintain 3.8 bar
