03-8

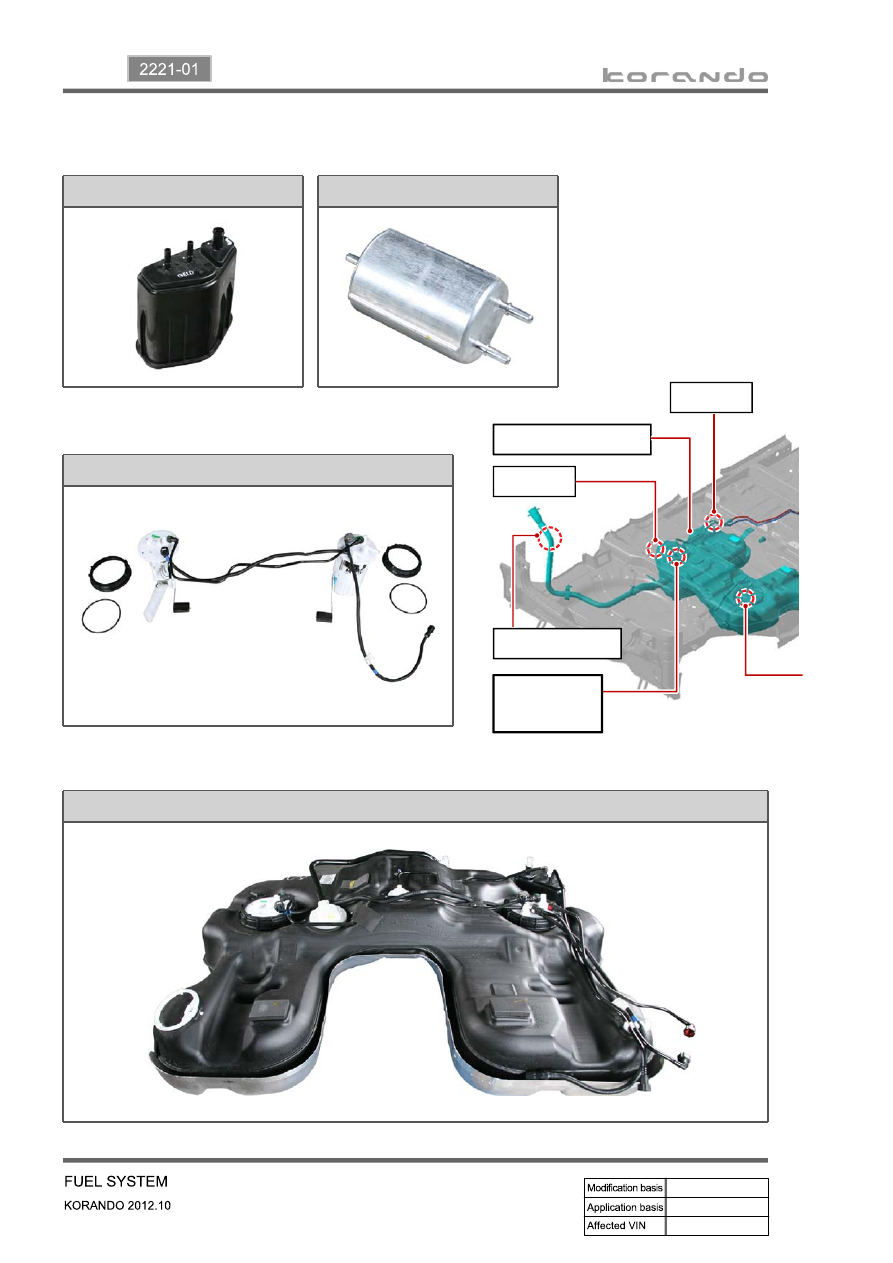

Fuel pump and fuel sender assembly

2. COMPONENTS

Canister

Fuel filter

Fuel tank assembly

Primary fuel

sender

Fuel tank assembly

Fuel neck hose

Canister

Fuel filter

03-9

2221-01

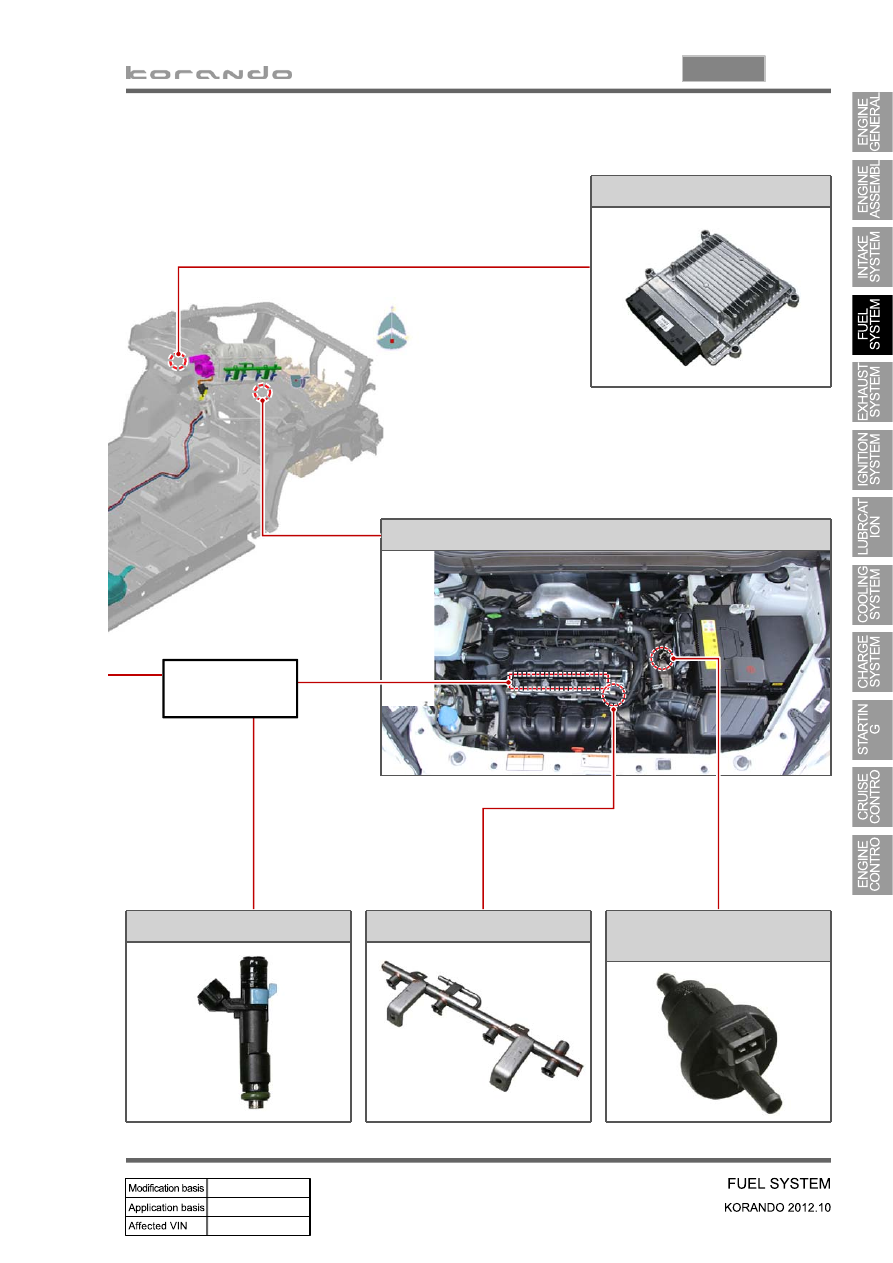

Engine ECU

Engine compartment

Injector

Purge control solenoid

valve

Fuel rail

Secondary fuel sender

03-10

3. SCHEMATIC DIAGRAM OF FUEL FLOWS

03-11

2221-01

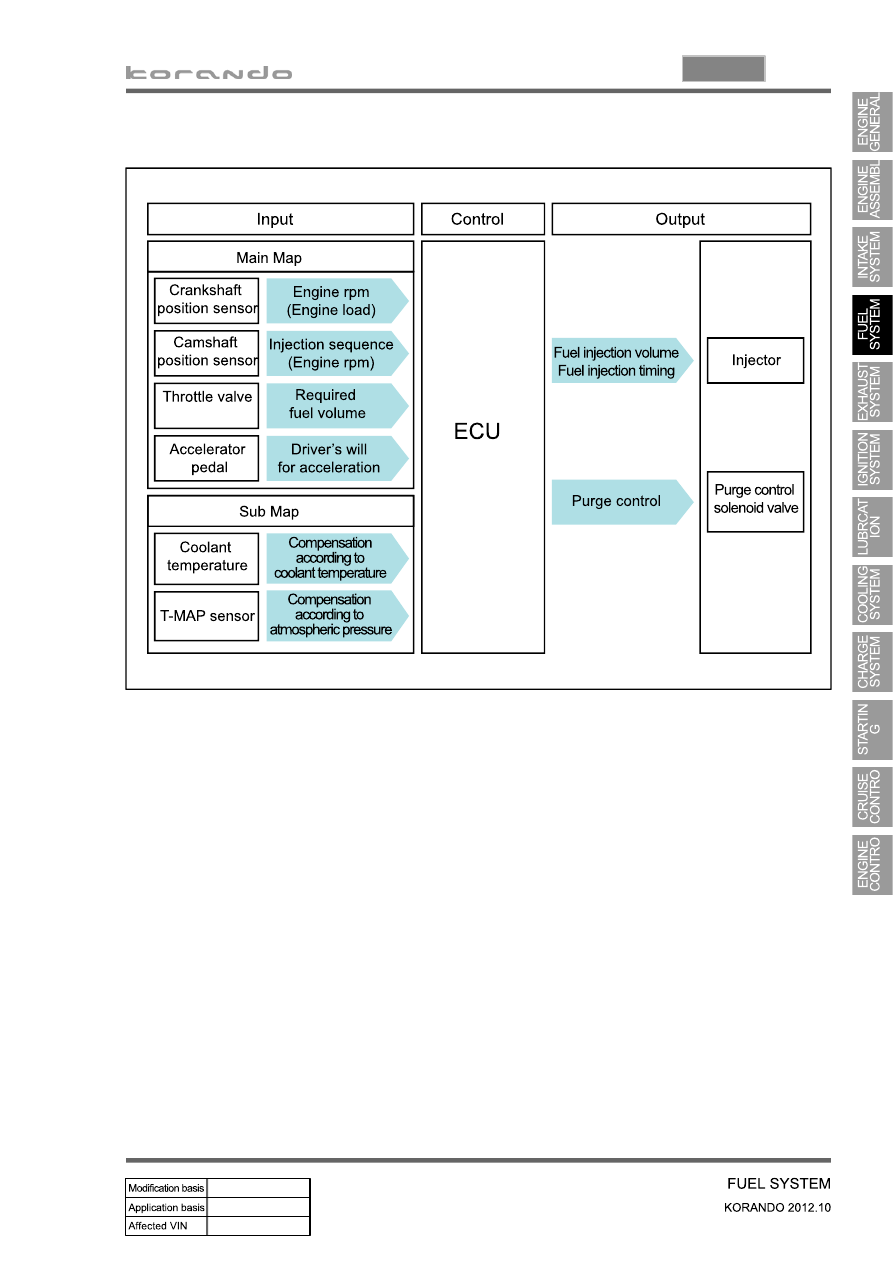

4. INPUT/OUTPUT DEVICES

The engine ECU calculates the accelerator pedal based on the input signals from various sensors, and

controls the overall operation of the vehicle.

The ECU receives the signals from various sensor through data line, and performs effective airfuel ratio

control based on these signals.
