04-8

When Long Runner is operating

When Short Runner is operating

3. OPERATING PROCESS

Intake air flows

04-9

1740-01

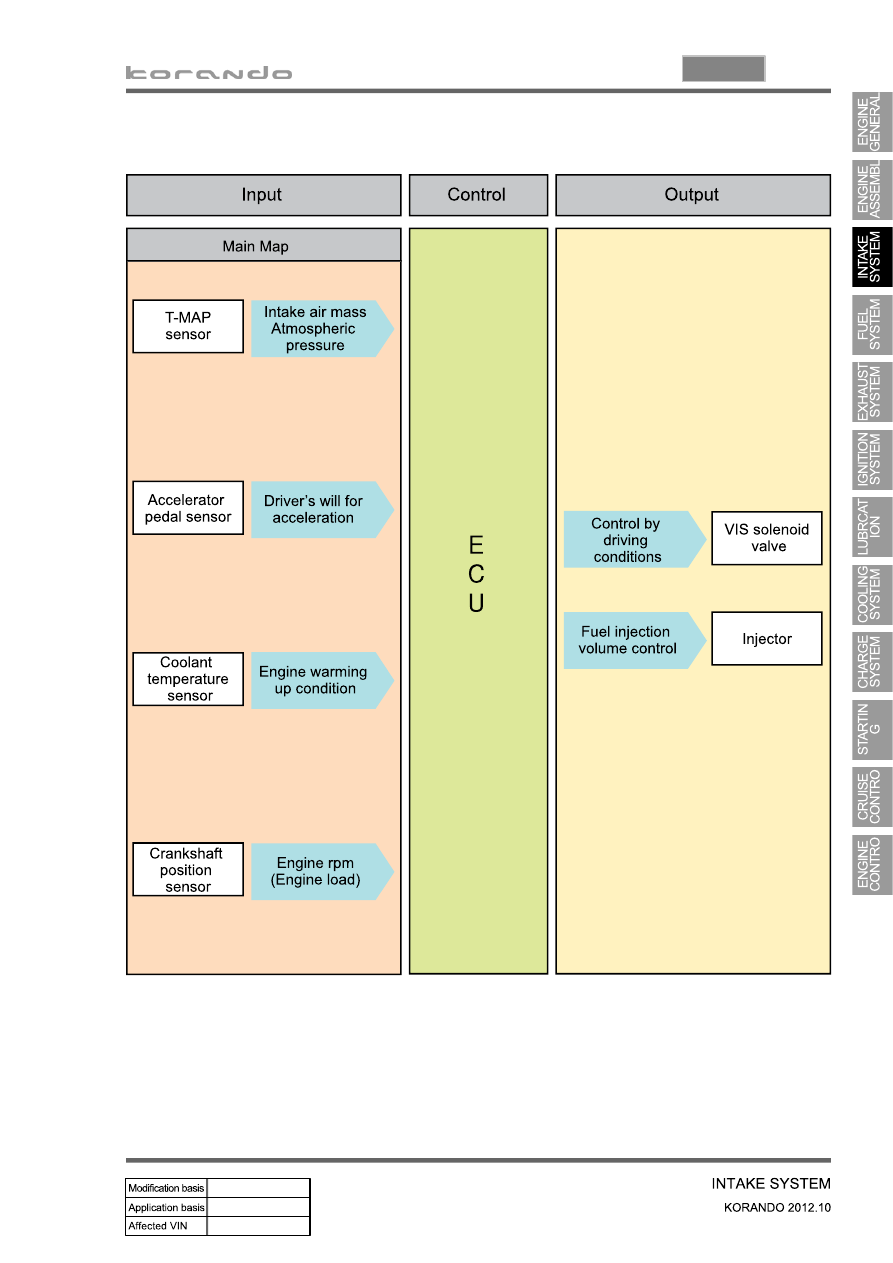

4. INPUT/OUTPUT DEVICES

04-10

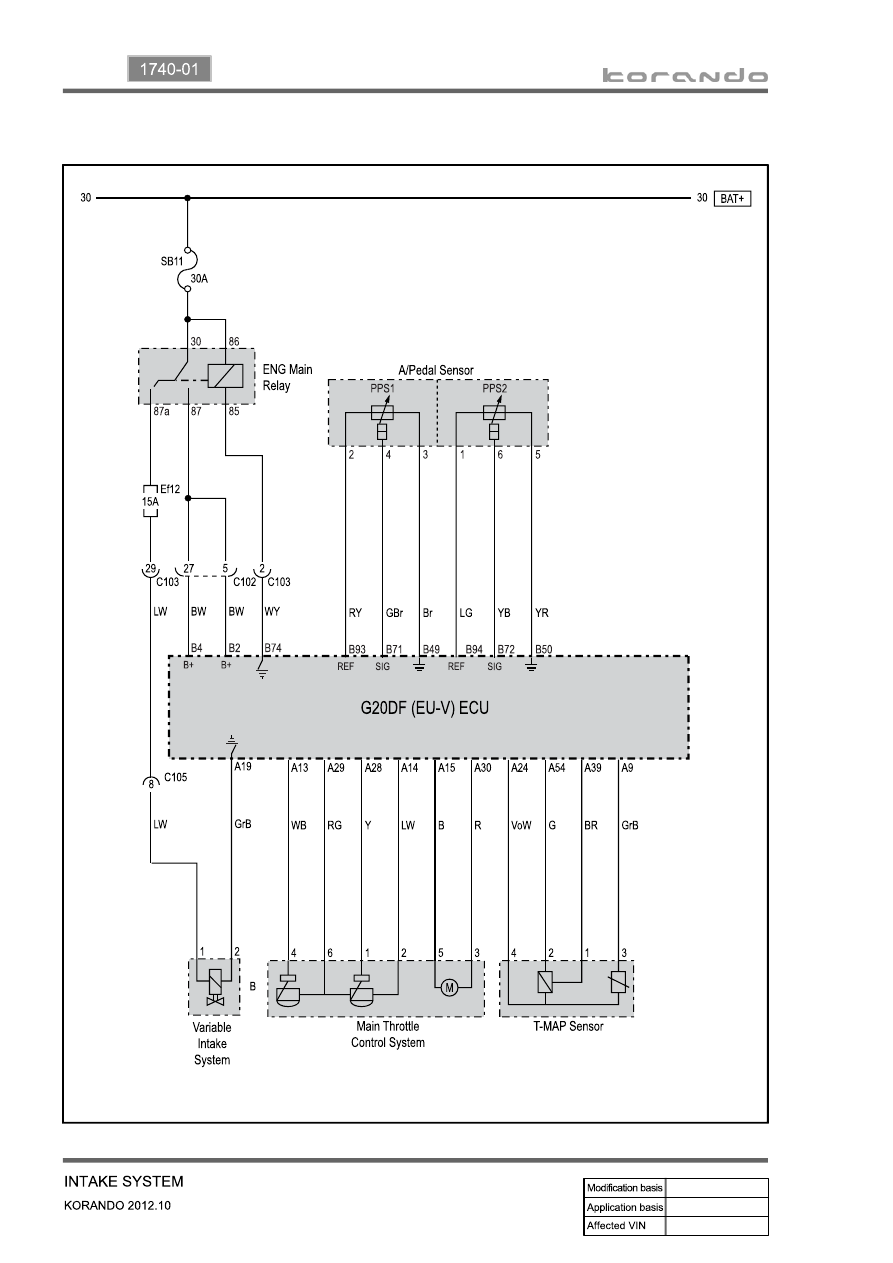

5. CIRCUIT DIAGRAM

03-3

2221-01

1. SPECIFICATION

Unit

Specification

Fuel system

Fuel

Unleaded gasoline

Fuel injection

MPI (Muilt Point Injecter) type

Fuel supply

Returnless Fuel System

Fuel tank

Capacity

57 L

Material

Plastic

Fuel sender

Dual sender type

Fuel filter

Service interval

Change every 100,000 km

Fuel pump

Pressure

3.8 bar

Injector

Color

Black

Capacity

187.2 g/min
