02-36

Bottom of cylinder block

Crankshaft sprocket installing surface

Crankshaft lower bearing

Crankshaft lower bearing

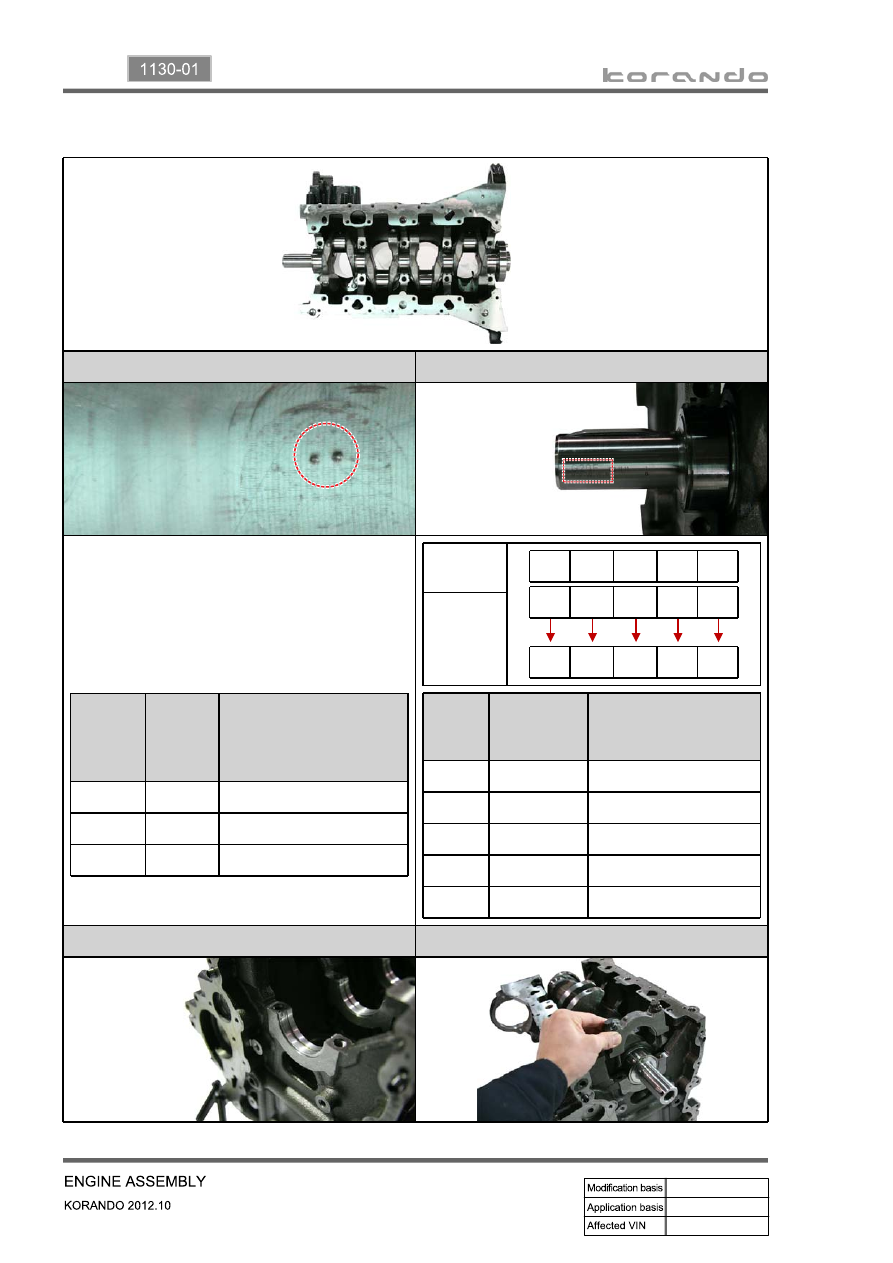

Selection of crankshaft main bearing

▶

핀 펀치 마크별 베어링 선택

Pin

punch

mark

Color

Diameter of crankshaft

main journal in cylinder

block (mm)

*

Blue

62.500 ~ 62.506

**

Yellow

62.506 ~ 62.513

***

Red

62.513 ~ 62.519

Mark

Color

Diameter of

crankshaft main

journal (mm)

B

Blue

57.960 ~ 57.965

Y

Yellow

57.955 ~ 57.960

R

Red

57.950 ~ 57.955

W

White

57.945 ~ 57.950

V

Violet

57.940 ~ 57.945

Engine

name

Main

journal

bearing

#1

#2

#3

#4

#5

G

2

0

D

F

R

R

W

W

R

02-37

1128-01

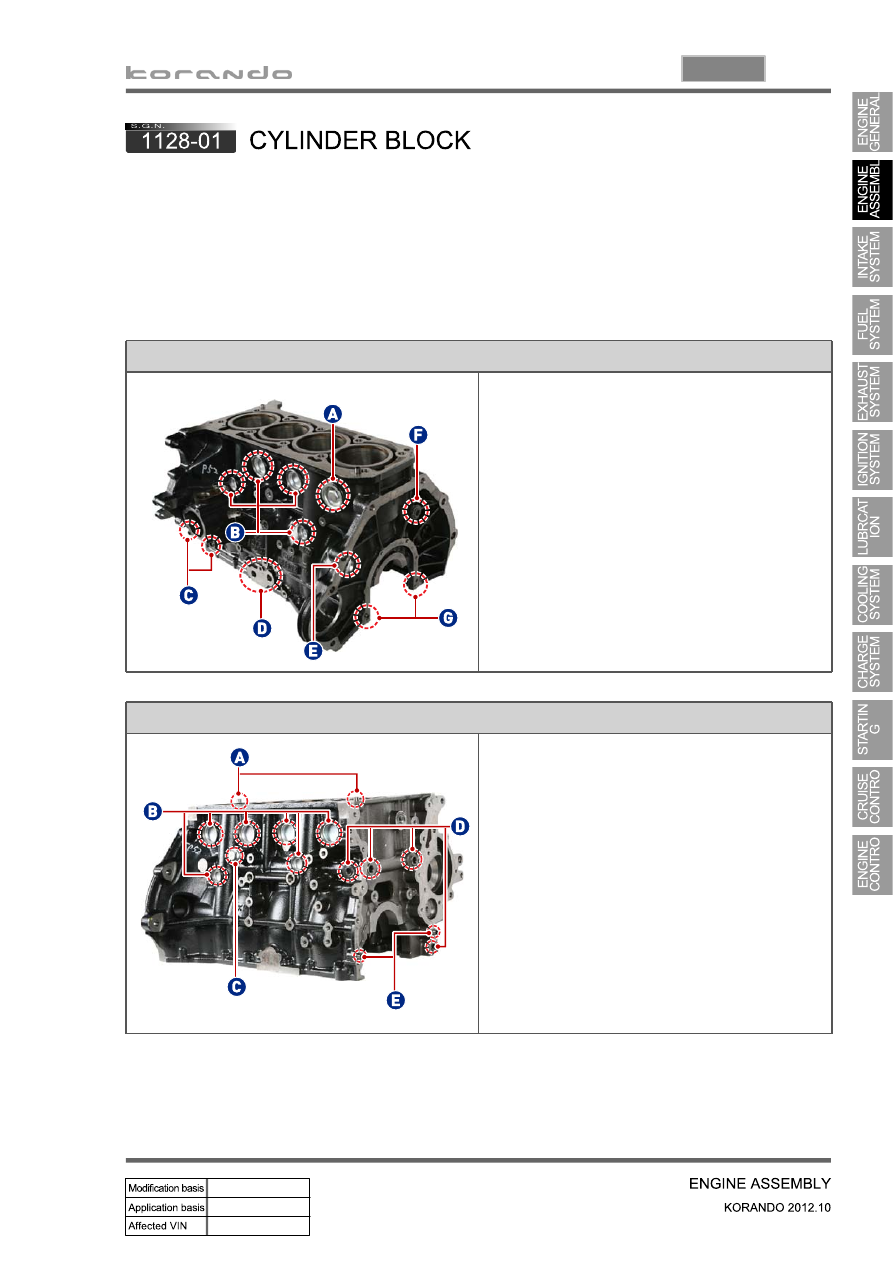

Front view

Rear view

Spring pin (cylinder head mounting)

Expansion plug (exhaust: 6)

Screw plug (water jacket plug) (30Nm)

Screw plug (oil gallery plug)

Spring pin (T.G.C.C)

A.

B.

C.

D.

E.

Overview

▶

The cylinder block is made of special cast iron, and contains the major components such as cylinder

head, crankshaft and piston assembly. There are oil and coolant galleries to lubricate and cool the

engine.

Components

▶

Plug screw (water jacket plug) (70Nm)

Expansion plug (intake: 4)

Spring pin (A/C mounting)

Oil gallery (oil filter assembly)

Ctankshaft position sensor mounting

Plug screw (oil gallery plug)

Spring pin (RR seal mounting)

A.

B.

C.

D.

E.

F.

G.

02-38

Engine oil

Coolant

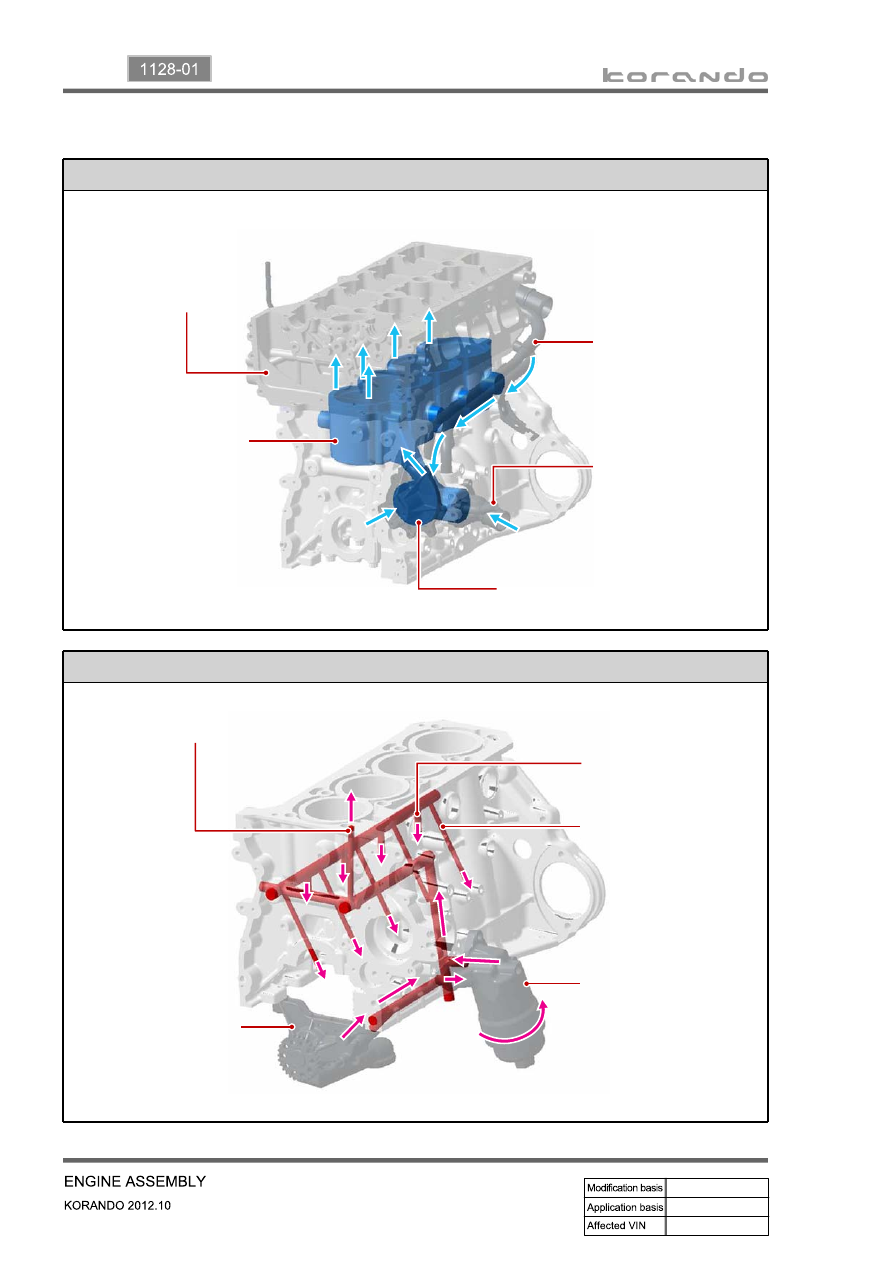

Coolant and oil flows

▶

Cylinder head

Cylinder block water

jacket

Coolant pump

Coolant pipe

Thermostat

Supply line to cylinder head

Oil pump

Supply line to PCJ

Main bearing

Oil filter assembly

04-3

1740-01

1. SPECIFICATION

Unit

Description

Specification

Air cleaner element

Filter type

Dry, filter element

Filtering area

0.225 m²

Service interval

Clean every 7,500 km

Change every 15,000 km

Air cleaner assembly

Weight

1.45 kg

Operating temperature

25℃

Capacity

7L

Shorten the service interval under severe conditions such as driving on a dusty road or offroad.

*
