2. LAYOUT

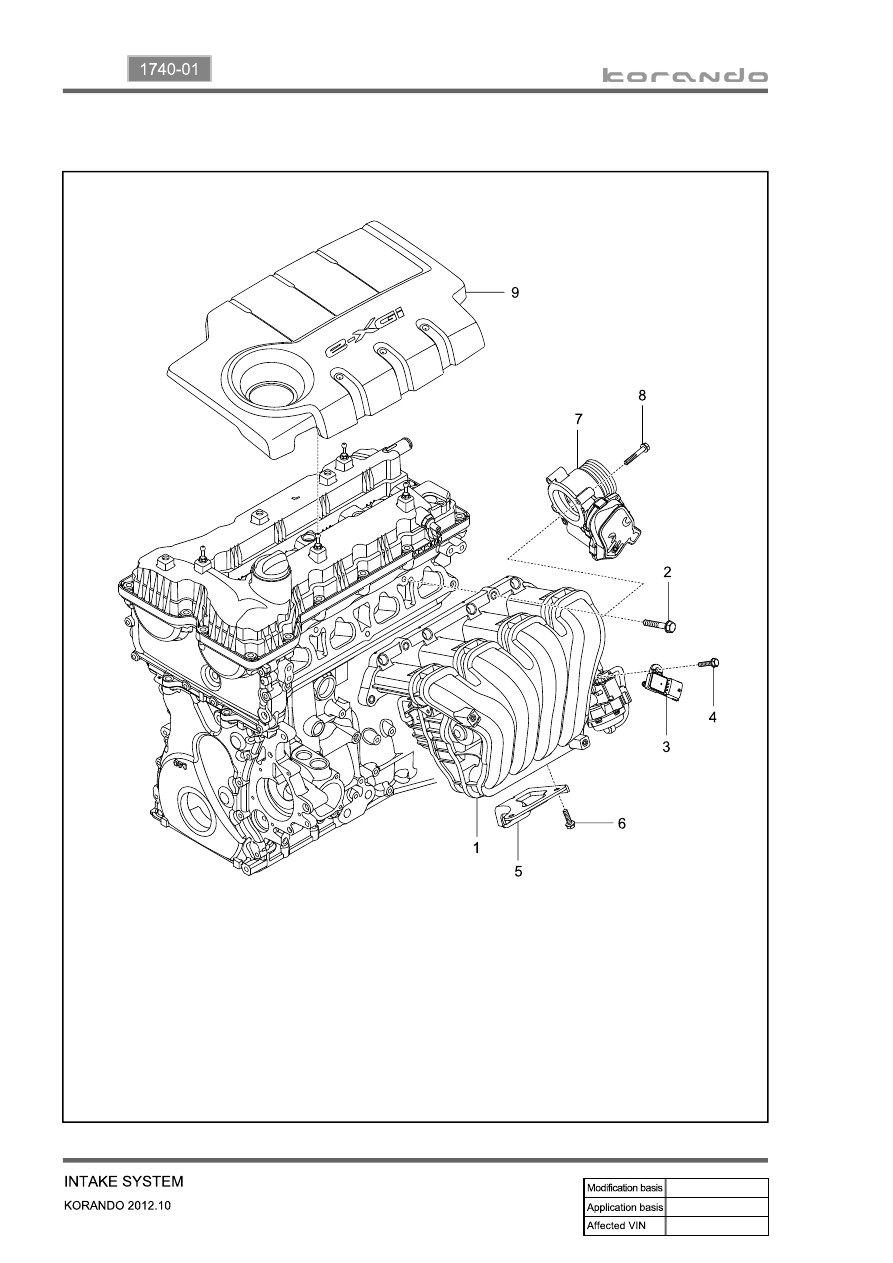

Intake Manifold Assy

Bolt

T-MAP sensor

Bolt

Intake Manifold Brkt

1.

2.

3.

4.

5.

Bolt

Electric Throttle Body

Bolt

Acoustic Cover

6.

7.

8.

9.

04-5

0000-00

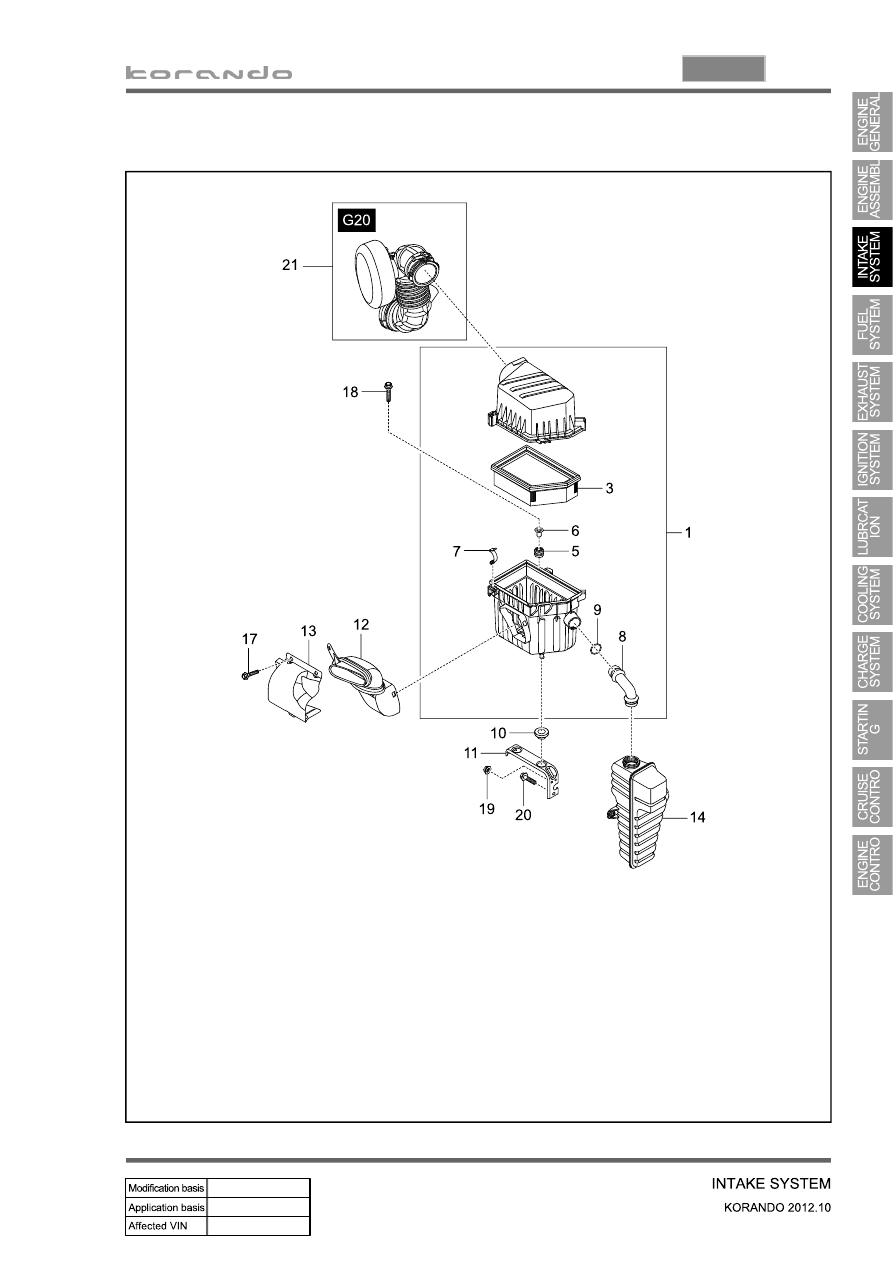

Air Cleaner Assy

Element Assy

Air Cleaner MTG NO.2

Insulator Collar

Spring Clamp

Resonance Duct

Resonance O-Ring

Air Cleaner MTG NO.1

Air Cleaner MTG Bolt

1.

3.

5.

6.

7.

8.

9.

10.

11.

Snorkel Assy

Water Portector

Resonator Assy

RR Fascia MTG Screw Rivet

Bolt

Nut

Screw

Air Cleaner to Engine Hose Assy

12.

13.

14.

17.

18.

19.

20.

21.

04-6

T-MAP sensor

VIS valve

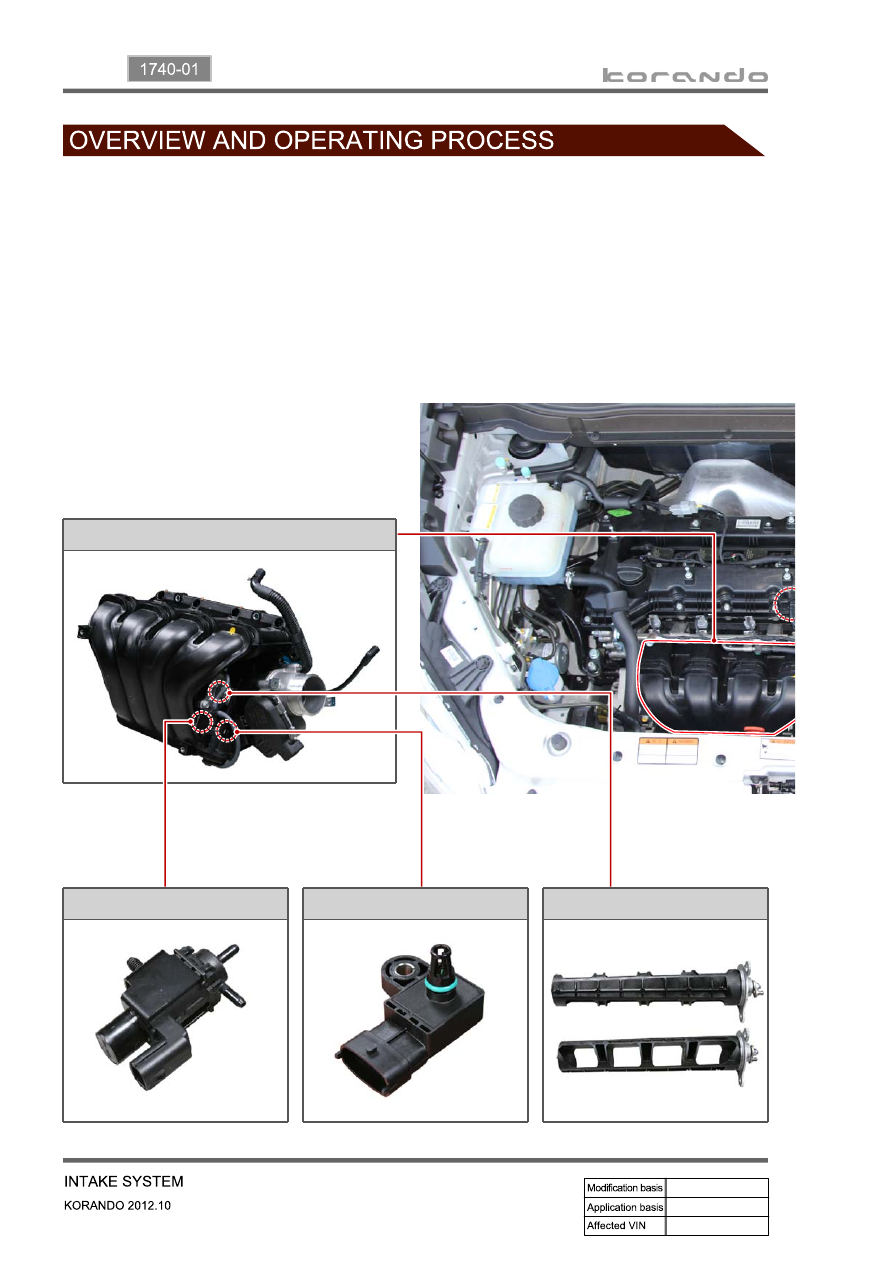

1. OVERVIEW

To improve the engine performance, the VIS system has been introduced in the intake manifold. It
provides the “Long Runner” in low speed and the “Short Runner” in high speed.

And, to reduce the internal pulsation in the intake manifold, the Runner # 1 and #2 are located in
symmetry position with Runner #3 and #4. To reduce the air resistance, the throttle body is tilted b

2. COMPONENTS

VIS solenoid valve

Intake manifold assembly

04-7

0000-00

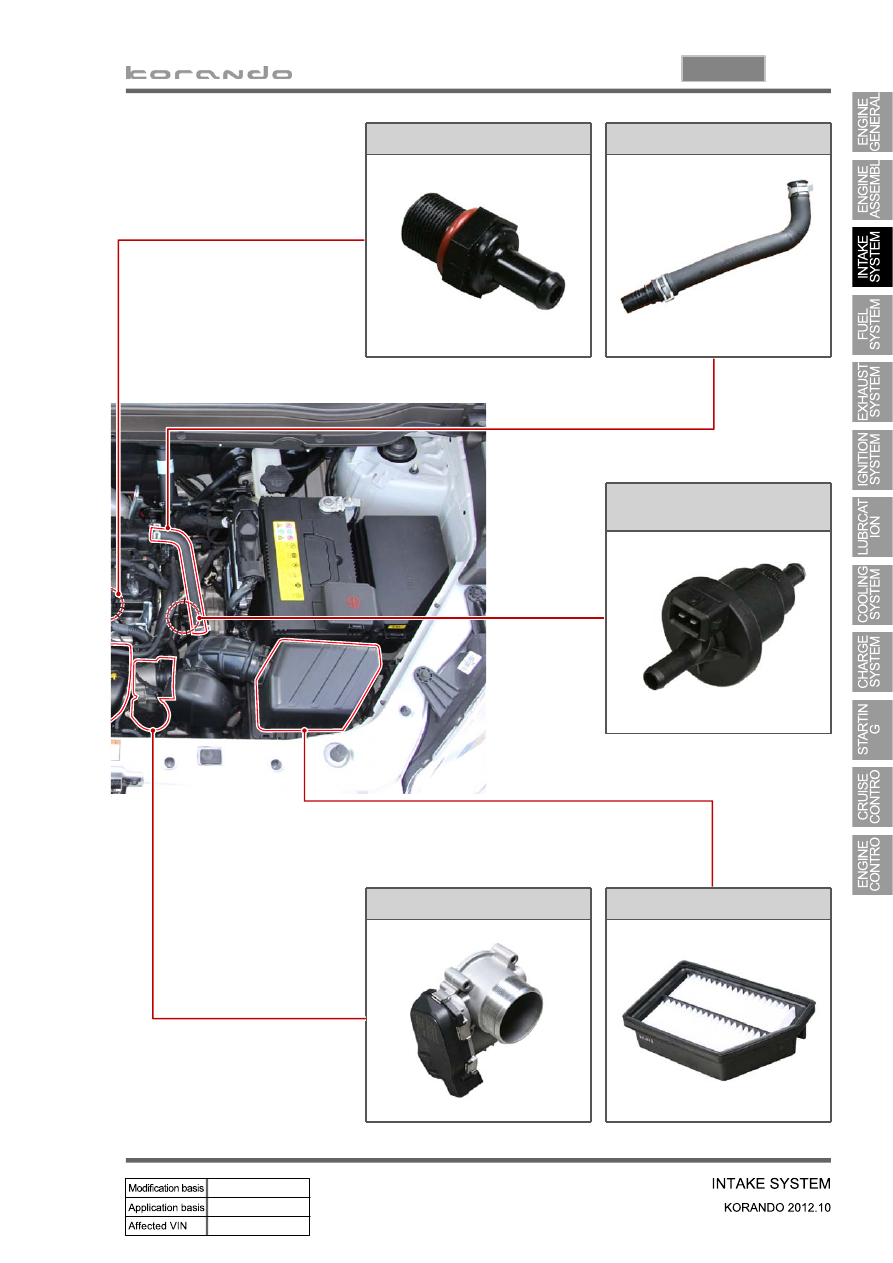

Purge control solenoid

valve

Blow-by hose

PCV valve

Electronic throttle body

Air cleaner element
