ROOF  9Q-3

SSANGYONG  MY2002

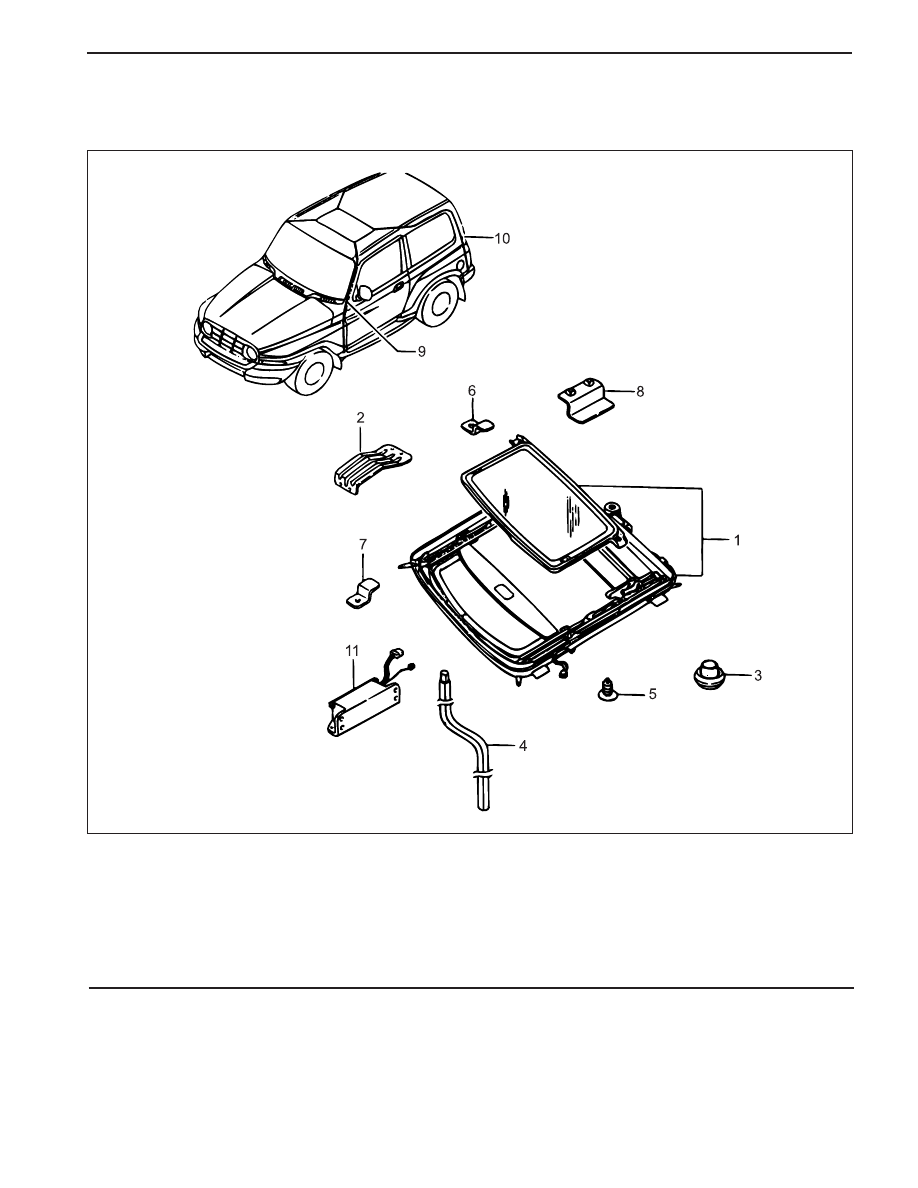

COMPONENTS LOCATOR

ROOF

KAA9Q010

1 Inner Sliding Sun Roof Assembly
2 Sun Roof Body Mounting Bracket
3 Drain Hose Rear Grommet
4 Sun Roof Motor Spanner
5 Mounting Clip
6 Mounting Bracket

7 Mounting Bracket assembly
8 Sun Roof Mounting Bracket
9 Drain Front Hose

10 Drain Rear Hose
11 Sun Roof Module Assembly

SSANGYONG  MY2002

9Q-4  ROOF

KAA9Q030

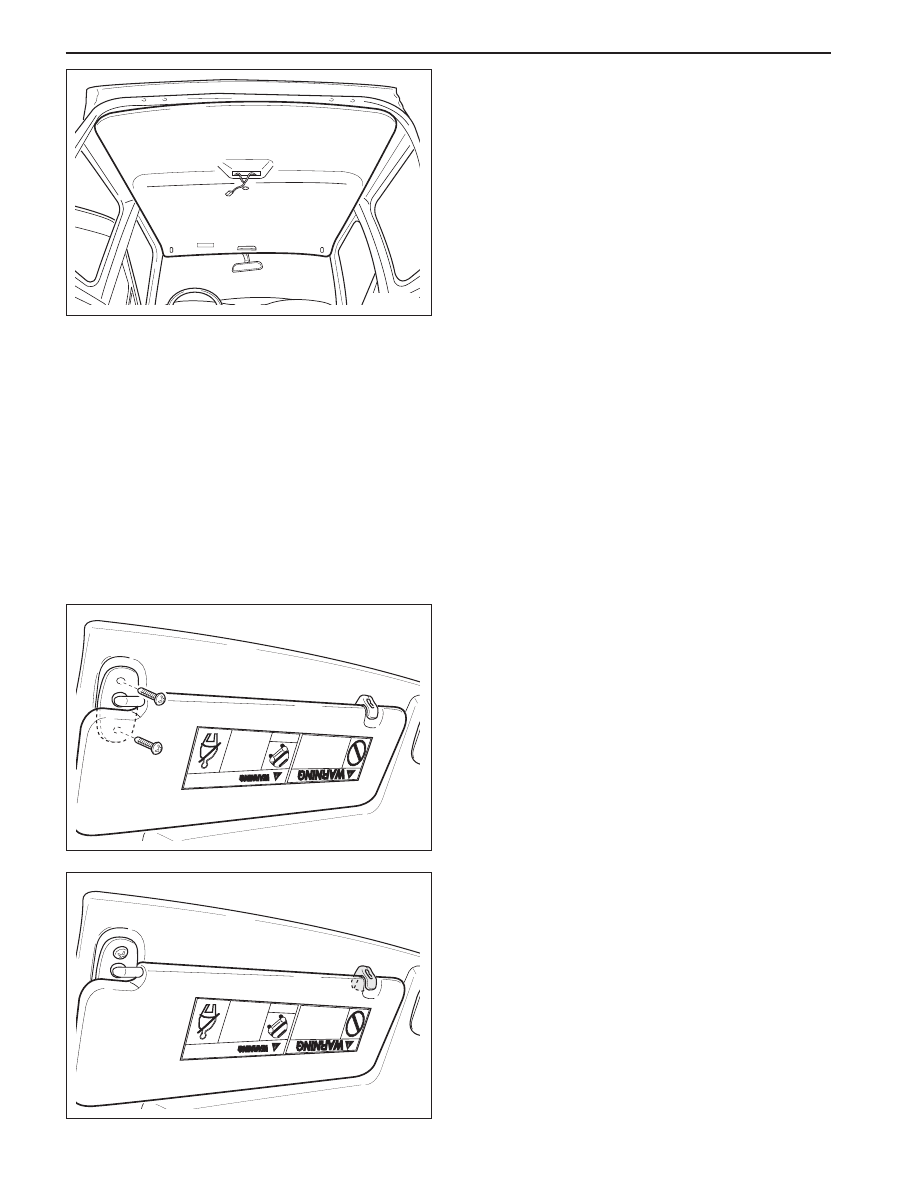

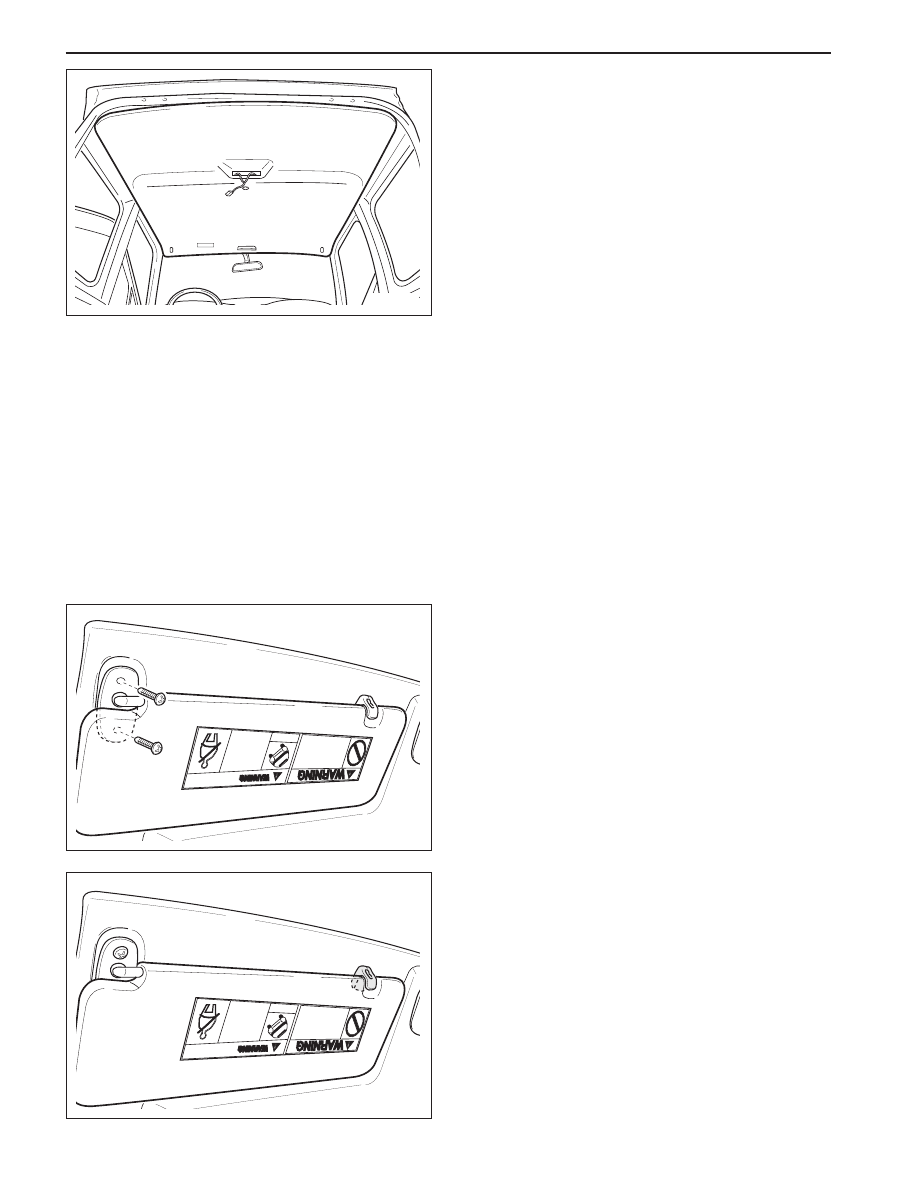

SUN VISORS

Removal and Installation Procedure

1. Remove the screws and the sun visor from the

headliner.

KAA9Q020

UNIT REPAIR

FORMED HEADLINER

Removal and Installation Procedure

1. Remove the front and rear upper seat belt anchor.

Refer to Section 8A, Seat Belts.

2. Remove the assist handles. Refer to Section 9G,

Interior trim.

3. Remove the sun visors. Refer to “Sun visors” in

this section.

4. Remove the power sunroof control switch. Refer

to “Power Sunroof Control Switch” in this section.

5. Remove the interior courtesy lamp. Refer to Section

9B, Lighting system.

6. Remove the left and the right A-pillar trim panel.

7. Remove the upper quarter trim panel. Refer to

Section 9G, Interior Trim.

8. Remove the child seat anchor. Refer to Section

9H, Seats.

9. Remove the headliner.

10. Installation should follow the removal procedure

in the reverse order.

2. Remove the screw and the sun visor support from

the headliner.

3. Installation should follow the removal procedure

in the reverse order.

KAA9Q040

SECTION 9R

BODY FRONT END

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

Description and Operation ................................... 9R-2

Body Front End .................................................... 9R-2

Components Locator ............................................ 9R-3

Body Front End .................................................... 9R-3

Repair Instructions ................................................ 9R-4

On-Vehicle Service Unit Repair ................................ 9R-4

Lubrication .......................................................... 9R-4

Fasteners ............................................................ 9R-4

Anticorrosion Materials ......................................... 9R-4

Cowl Vent Grille ................................................... 9R-5

Hood ................................................................... 9R-5

Hood Hinges ....................................................... 9R-6

Hood Gas Spring ................................................. 9R-6

Specifications ....................................................... 9R-7

Fastener Tightening Specifications ....................... 9R-7

SSANGYONG  MY2002

9R-2  BODY FRONT END

DESCRIPTION AND OPERATION

BODY FRONT END

This vehicle has a unitized body with a frame assembly
supporting the engine and the transaxle. The fender
panels and the radiator support are also integral parts
of the body.
