SsangYong Korando II (1996-2006 year). Manual - part 460

BODY FRONT END  9R-3

SSANGYONG  MY2002

8

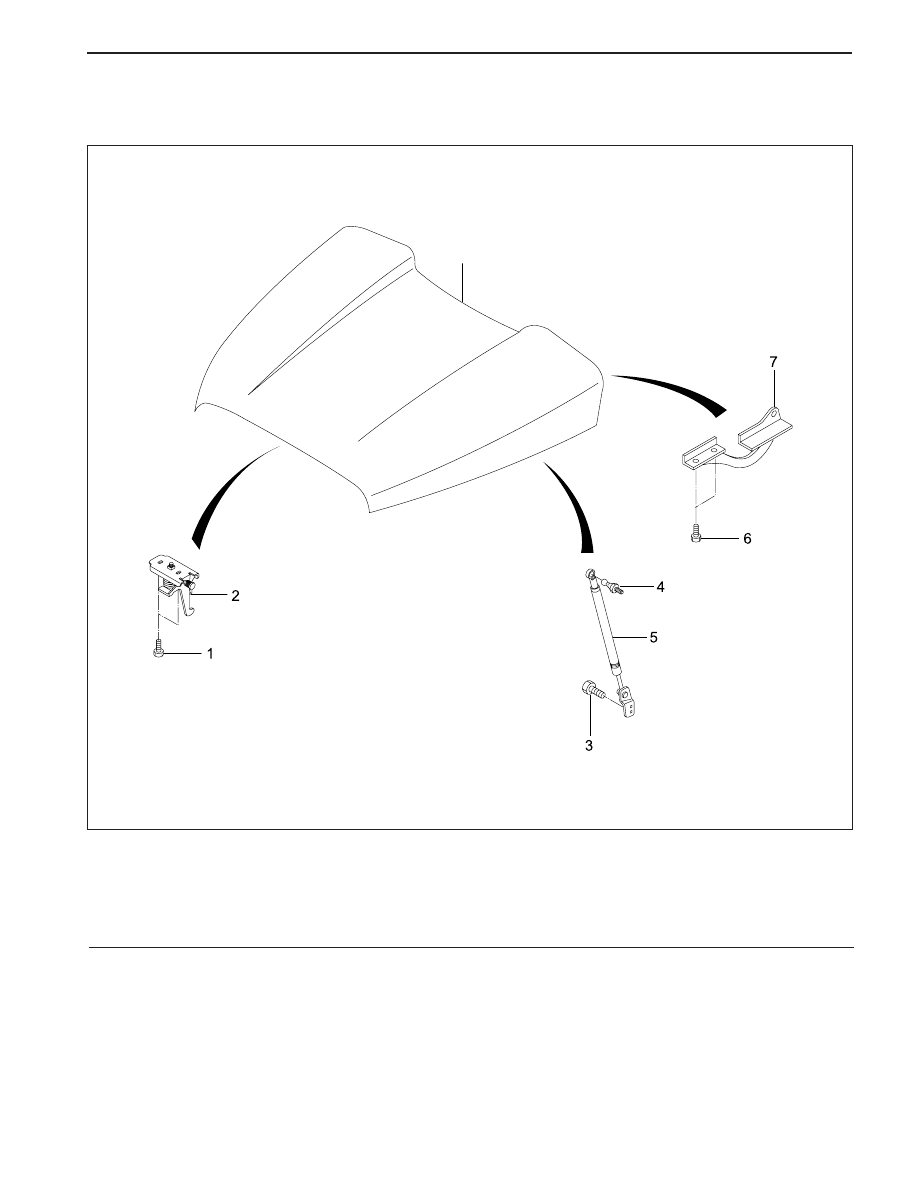

COMPONENTS LOCATOR

BODY FRONT END

KAA9R010

1 Bolt
2 Hood Striker Safety Assembly
3 Bolt
4 Mounting Ball Stud

5 Hood Lifter Assembly
6 Bolt
7 Hood Hinge Assembly
8 Hood

SSANGYONG  MY2002

9R-4  BODY FRONT END

ON-VEHICLE SERVICE

UNIT REPAIR

LUBRICATION

The hood hinges and the locking mechanisms require
periodic lubrication for proper operation. Refer to
Section 0B, General Information for the specific types
and intervals of lubrication.

FASTENERS

Notice: Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.

Many aluminum components are used on current
models. Aluminum in contact with steel may corrode
rapidly if it is not protected by special finishes or
isolators.

The fasteners used have a special finish which provides
adequate protection from corrosion. These special
fasteners differ in color to easily identify them from
the standard metric fasteners, which are medium blue
in color.

When replacing fasteners, avoid substituting otherwise
similar fasteners in the same location.

ANTICORROSION MATERIALS

To provide rust resistance, anticorrosion materials have
been applied to the interior surfaces of most of most
of the metal panels. When servicing these panels,
properly recoat them with a service-type anticorrosion
material if any of the original material has been
disturbed.

REPAIR INSTRUCTIONS

BODY FRONT END  9R-5

SSANGYONG  MY2002

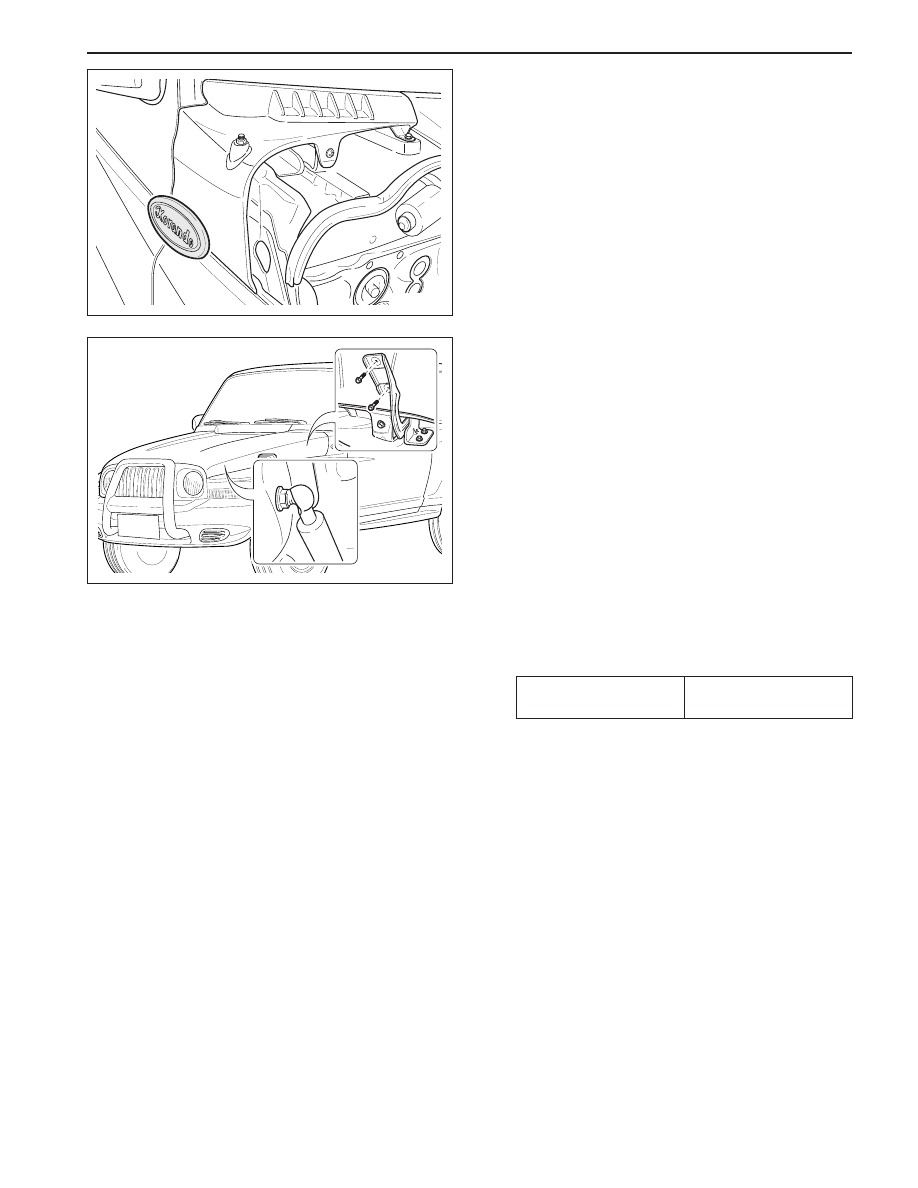

COWL VENT GRILLE

Removal and Installation Procedure

1. Open the hood.

2. Remove the wiper arms. Refer to Section 9D,

Wipers/Washer System.

3. Remove the cowl vent grille with the screws.

4. Installation should follow the removal procedure

in the reverse order.

KAA9R020

KAA9R030

HOOD

Removal and Installation Procedure

Important: Install protective coverings over the fenders
and the windshield to prevent damage to the paint,
the glass, and the moldings when removing and
installing the hood.

1. Open the hood.

2. Mark the position of the hinge to the hood to aid

in alignment during installation.

3. Remove the washer hoses from the hood.

4. Remove the hood gas spring. Refer to “Hood Gas

Spring” in this section.

5. Remove the bolts retaining the hood to both of

the hinges.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

6. With the aid of another technician, remove the hood

from the hinges.

7. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

7.84 - 11.76 N•m

 (5.78 - 8.68 lb-ft)

SSANGYONG  MY2002

9R-6  BODY FRONT END

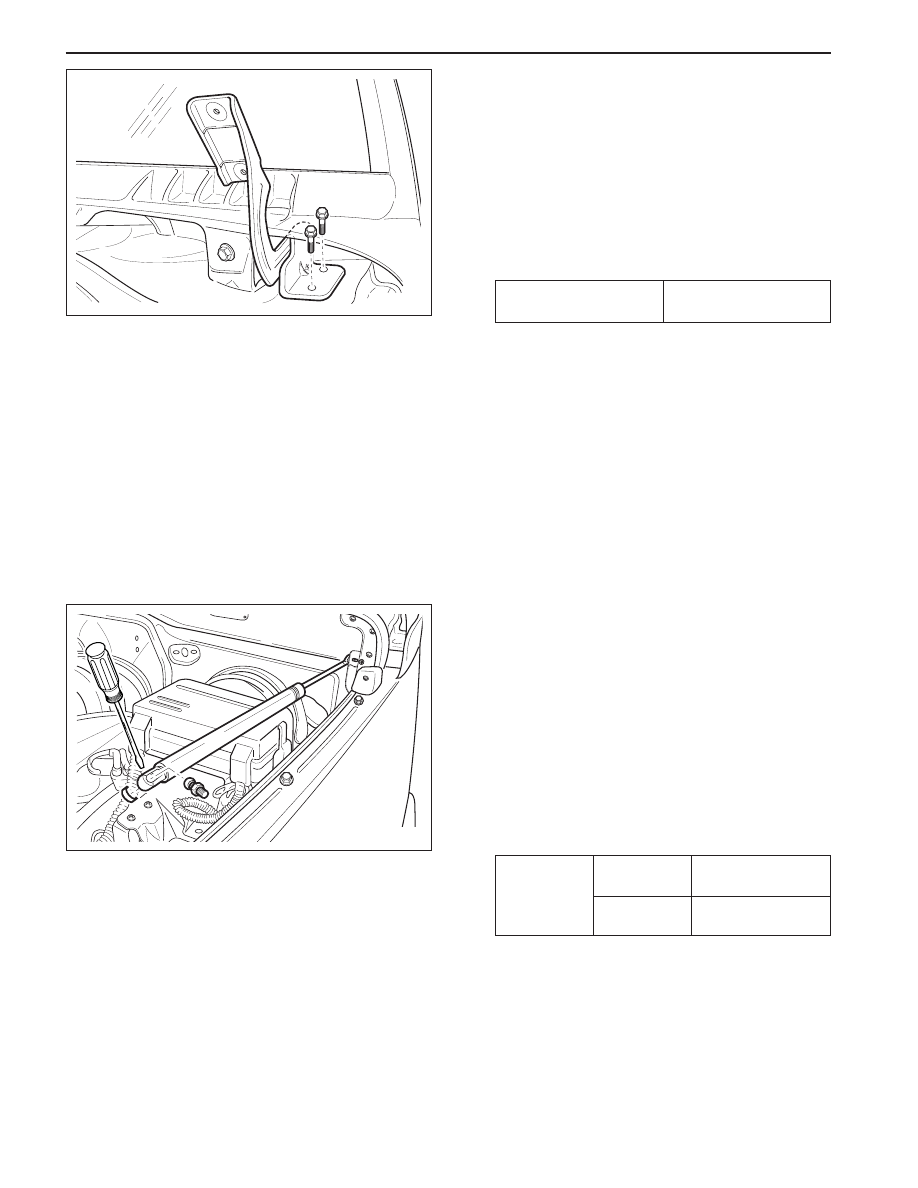

HOOD HINGES

Removal and Installation Procedure

1. Remove the hood. Refer to “Hood” in this section.

2. Remove the cowl vent grille. Refer to “Cowl Vent

Grille” in this section.

3. Remove the side cowl vent panel Refer to “Side

Cowl Vent Panel” in this section.

4. Remove the bolts and the hood hinges

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

5. Installation should follow the removal procedure

in the reverse order.

KAA9R040

HOOD GAS SPRING

Removal and Installation Procedure

1. Open the hood.

2. Remove the wiper arms. Refer to Section 9D,

Wipers/Washer System.

3. Remove the cowl vent grille with the screws.

4. Remove gas spring fix bolt and pull up the gas

spring from the ball stud by spreding the retainer
with screw driver.

5. Remove ball stud from hood. (or not)

Installation Notice

6. Installation should follow the removal procedure

in the reverse order.

KAA9R050

Tightening Torque

12.74 - 25.48 N•m

(9.4 - 18.8 lb-ft)

Tightening

Torque

9 - 11 N•m

(6.63 - 8.11 lb-ft)

16 - 23 N•m

(11.8 - 16.96 lb-ft)

Spring fix

bolt

Ball stud

bolt
