SsangYong Korando II (1996-2006 year). Manual - part 458

DOORS  9P-13

SSANGYONG  MY2002

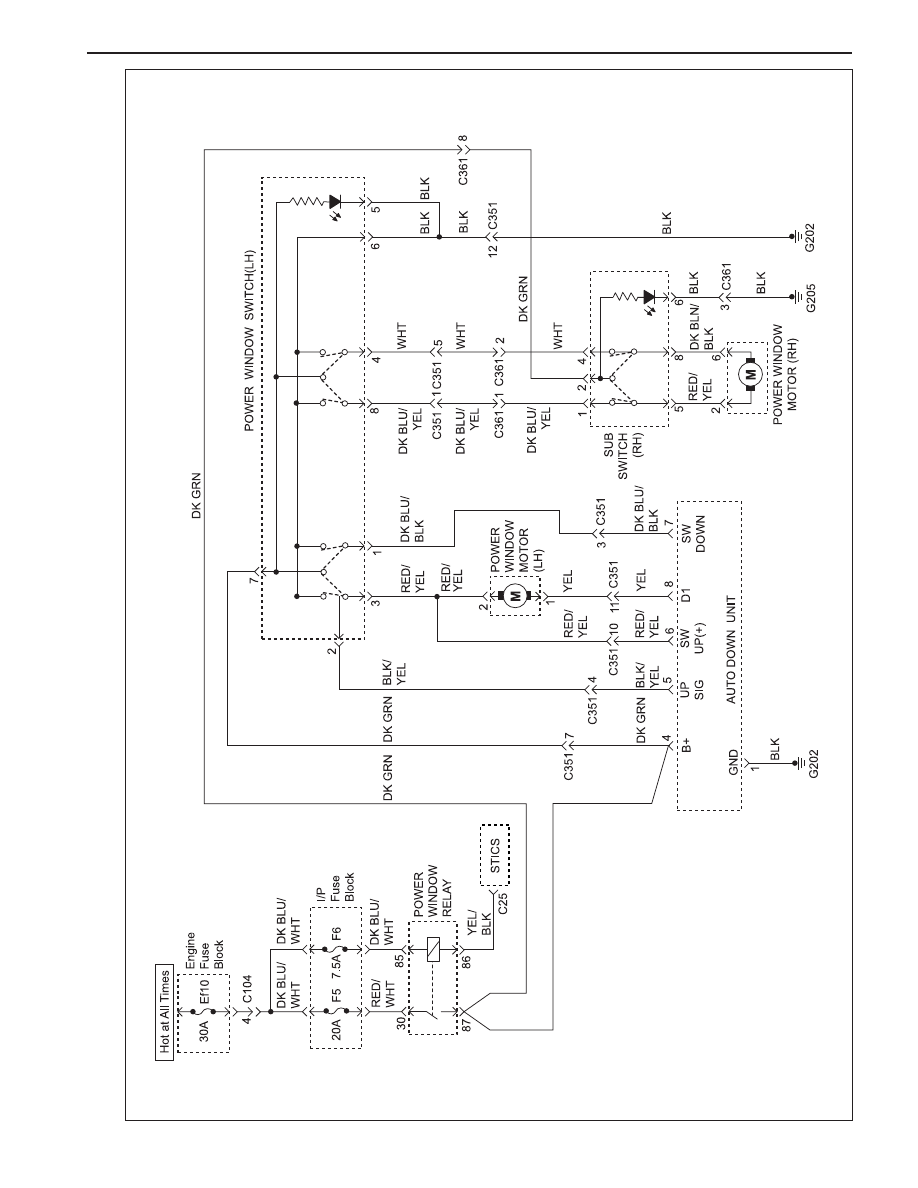

POWER WINDOW

KAA9P180

DOORS  9P-3

SSANGYONG  MY2002

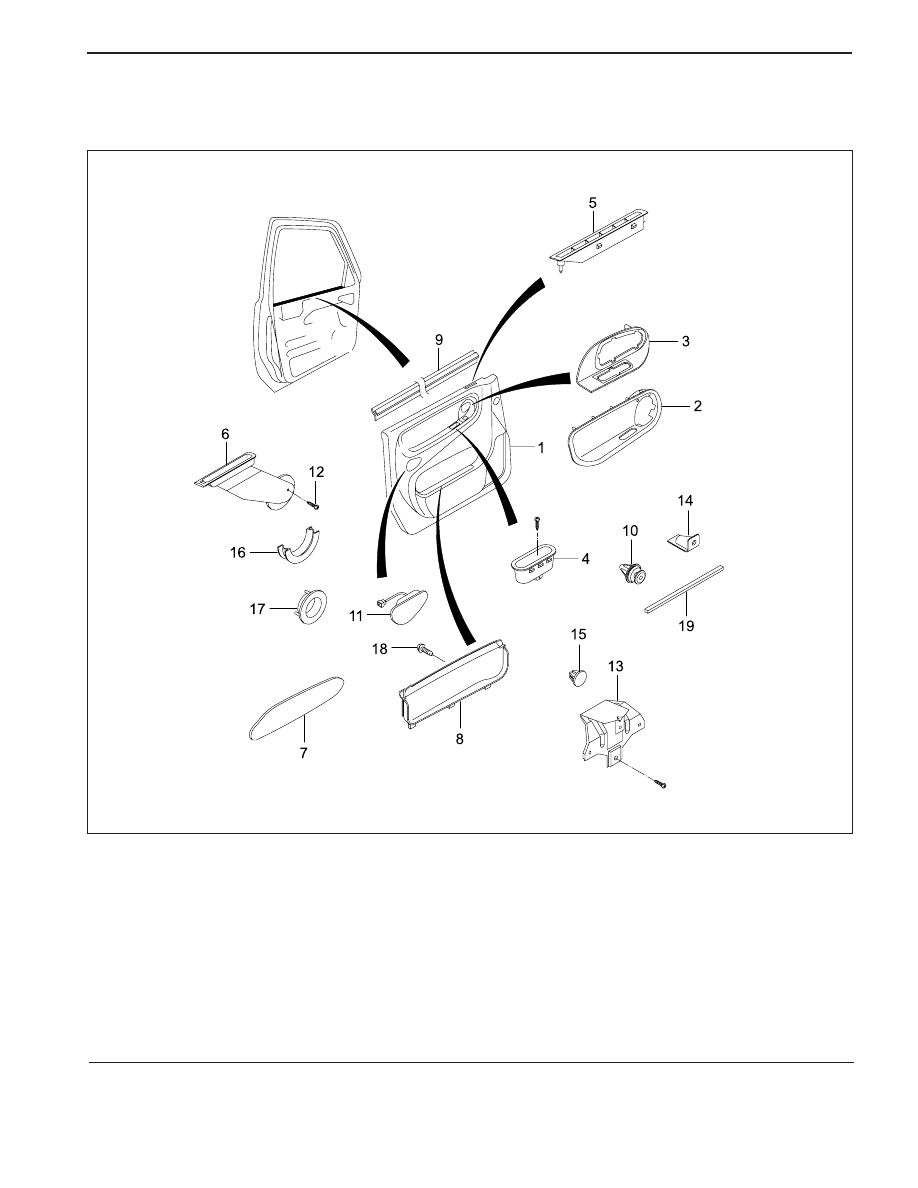

COMPONENTS LOCATOR

DOORS

KAA9P010

1 Door Trim Panel Assembly
2 Center Upper Panel
3 Inside Handle Mounting Plate
4 Door Pull Handle
5 Door Defroster Nozzle
6 Door Defroster Duct
7 Door Trim Panel
8 Door Pocket
9 Belt Inside Strap

10 Door Trim Mounting Fastener

11 Door Courtesy Lamp
12 Screw
13 Door Pull Handle Mounting Support Bracket
14 Door Trim Complete Mounting Clip
15 Door Inside Handle Mounting Grommet
16 Door Defroster Grommet
17 Door Defroster Grommet Vessel
18 Door Pocket Mounting Screw
19 Door Trim Pad

SECTION 9Q

ROOF

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

Description and Operation .................................. 9Q-2

Sunvisors ........................................................... 9Q-2

Cat Hook ............................................................ 9Q-2

Components Locator ........................................... 9Q-3

Roof ................................................................... 9Q-3

Unit Repair ........................................................... 9Q-4

Formed Headliner ............................................... 9Q-4

Sun Visors .......................................................... 9Q-4

SSANGYONG  MY2002

9Q-2  ROOF

DESCRIPTION AND OPERATION

SUNVISORS

The sun visors swing down in order to block out glare.
They also swing to the side when they are released
from the support. Each sun visor has a vanity mirror.

CAT HOOK

The coat hook is fastened to the headliner above the
left hand rear passenger’s seat.
