DOORS  9P-5

SSANGYONG  MY2002

DOOR LOCK STRIKER
ADJUSTMENT

Installation Notice:

The door lock striker is an important attaching part
that can affect the performance of vital components
and systems and can cause major repair expenses. If
replacement becomes necessary, the door lock striker
must be replaced by one with the same part number
or with an equivalent part. Do not use a replacement
part of lesser quality or of a substitute design. The
s p e c i f i e d   t o r q u e   v a l u e s   m u s t   b e   u s e d   d u r i n g
reassembly in order to ensure the proper retention of
the part.

The door lock striker consists of a striker with two screws
that are threaded into a tapped, floating cage plate
located in the appropriate body pillar. This floating
cage plate allows the striker to be easily adjusted in
or out and up or down. The door is secured in the closed
position when the door lock fork snaps over and
engages the striker.

Fore/Aft Adjustment

1. The door must be properly aligned.

2. Close the door until the lock fork contacts the

striker.

3. Stand next to the door opening and move the door

slowly in and out, just touching the striker each
time.

4. The alignment of the lock fork and the striker can

b e   e a s i l y   s e e n .   T h e   l o c k   f o r k   s h o u l d   b e
perpendicular to and fall near the middle of the
striker between the B-pillar and the end of the
striker.

5. If a fore or aft adjustment is required, use the

following steps:

5.1 Remove the striker screws.

5.2 Remove the spacer in order to move the striker

toward the front of the vehicle.

5.3 Add a 2 mm (0.8 inch) spacer in order to move

the striker toward the front of the vehicle.

5.4 Install the striker screws.

6. Perform the up/down or the in/out adjustment.

Refer to “up/down or in/out Adjustment” in this
section.

SSANGYONG  MY2002

9P-6  DOORS

KAA9P050

FRONT DOOR LOCK

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the inside door handle. Refer to “Inside

door Handle” in this section.

3. Disconnect the inside door handle and the lock

rods.

4. Remove the screws and the guide rail.

5. Remove the screws and the front door lock.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

6. Installation should follow the removal procedure

in the reverse order.

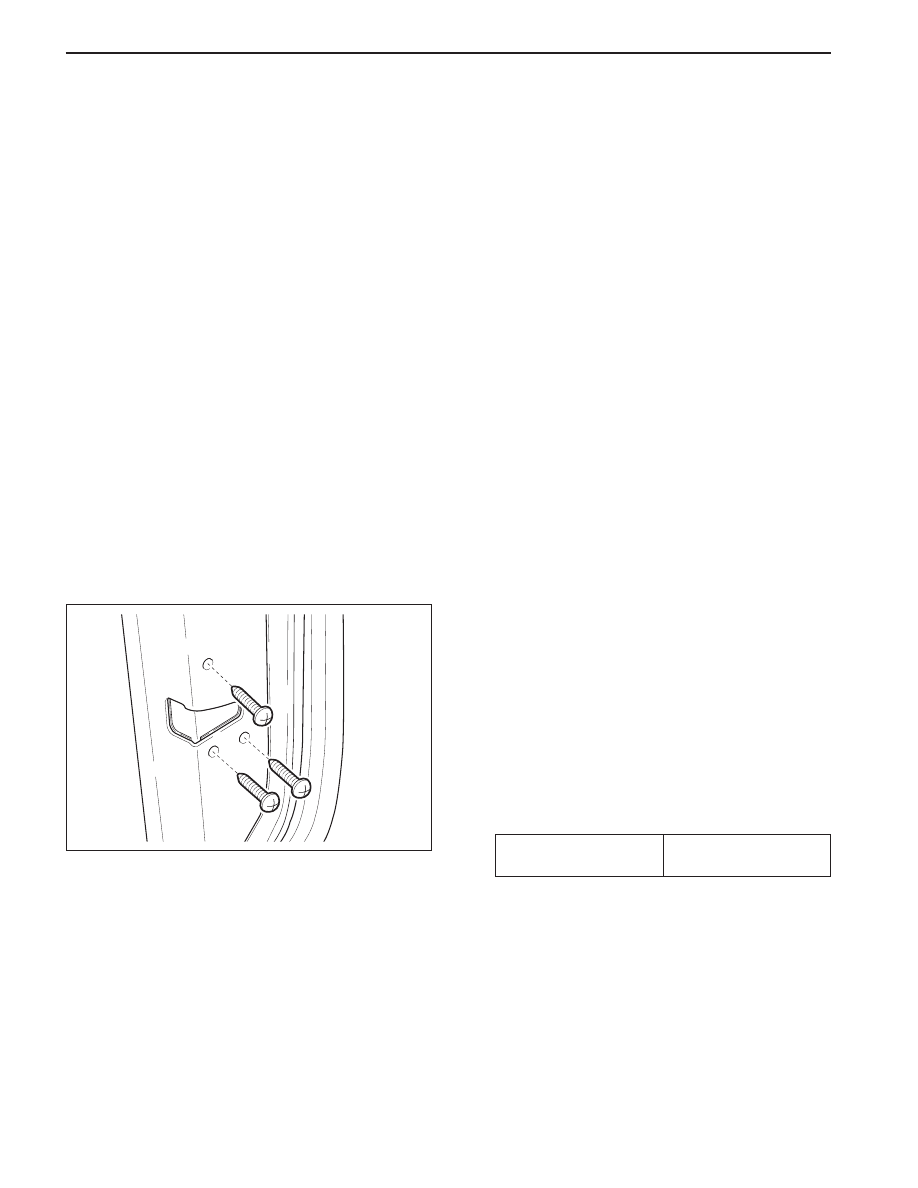

Up/Down or In/Out Adjustment

An adjustment of the striker in the up/down or in/out
directions may be necessary for a number of reasons:

•

Vehicle frame damage as the result of a collision.

•

Installation of new door weather stripping.

•

Customer complaints of excessive wind noise.

•

Difficulty in opening or closing the door.

In order to adjust the door striker in an up/down or in/
out direction, perform the following procedure:

1. The door must be properly aligned.

2. Loosen the striker screws.

3. The floating cage plate can be moved slightly

using the ends of the striker screws. Move the
floating cage plate to the desired position.

Notice: It is important to use a flat-end rotary file in
order not to damage the tapped floating cage plate.
The striker screws and the tapped floating cage plate
are important attaching parts that could affect the
performance of vital components and systems.

4. If proper adjustment requires that the floating cage

plate be moved more than is possible, use an
electric hand drill and a 3/8-inch rotary file with a
flat head in order to enlarge the body opening in
the direction required.

5. Tighten the striker screws to the correct position.

Tightening Torque

6.86 - 9.8 N•m

 (5.06 - 7.23 lb-ft)

DOORS  9P-7

SSANGYONG  MY2002

KAA9P060

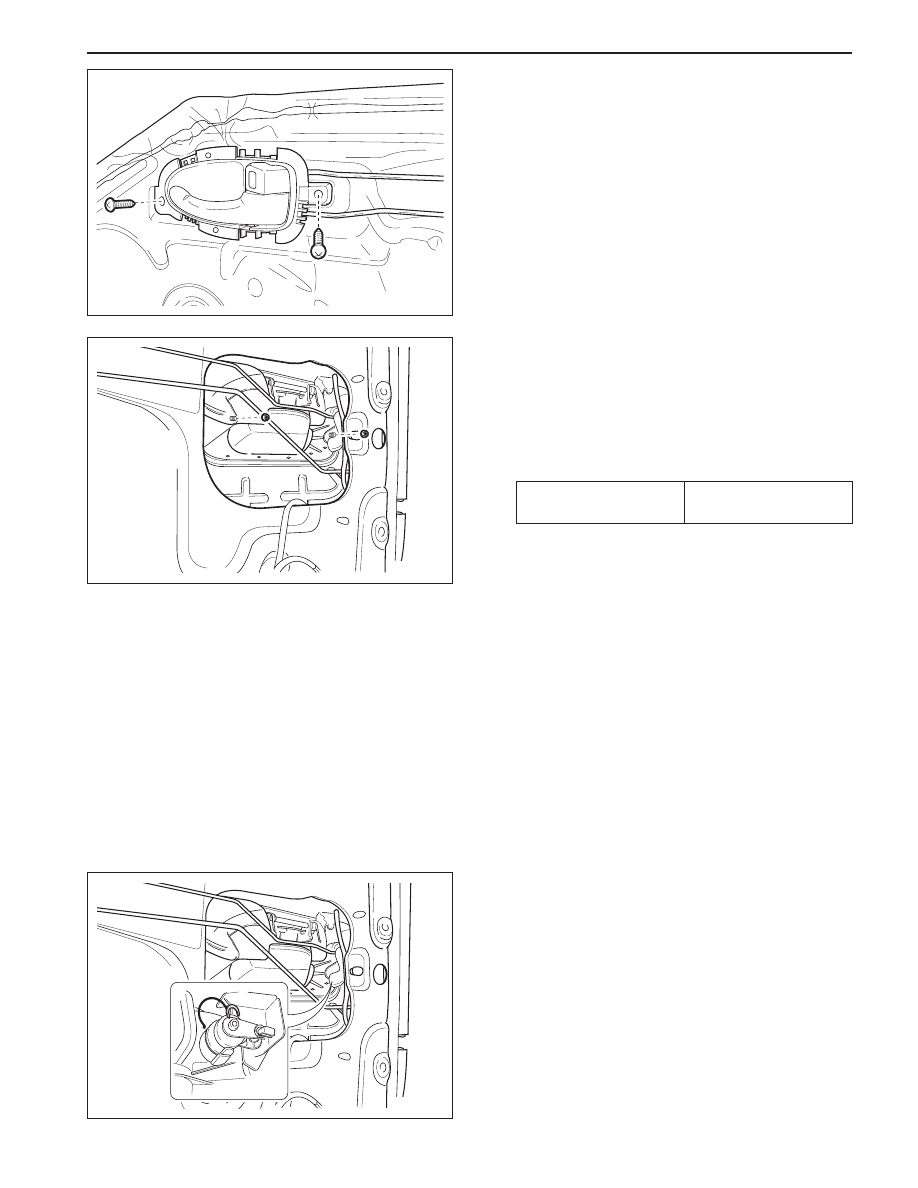

INSIDE DOOR HANDLE

Removal and Installation Procedure

1. Remove the door trim panel. Refer to Section 9G,

Door Trim Panel.

2. Remove the inside door handle with the screws.

3. Disconnect the inside door handle and the lock

rods.

4. Installation should follow the removal procedure

in the reverse order.

KAA9P070

KAA9P080

OUTSIDE DOOR HANDLE

Removal and Installation Procedure

1. Remove the door seal trim. Refer to “Door Seal

Trim” in this section.

2. Remove the nuts of outside door handle.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

3. Disconnect the outside door handle and the lock

rods.

4. Disconnect the electrical connector.

5. Installation should follow the removal procedure

in the reverse order.

DOOR LOCK CYLINDER

Removal and Installation Procedure

1. Remove the door seal trim. Refer to “Door Seal

Trim” in this section.

2. Remove the outside door handle. Refer to “Outside

Door Handle” in this section.

3. Remove the retaining clip.

4. Remove the door lock cylinder.

5. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

3.92 - 5.49 N•m

 (2.92 - 4.08 lb-ft)

SSANGYONG  MY2002

9P-8  DOORS

KAA9P100

KAA9P110

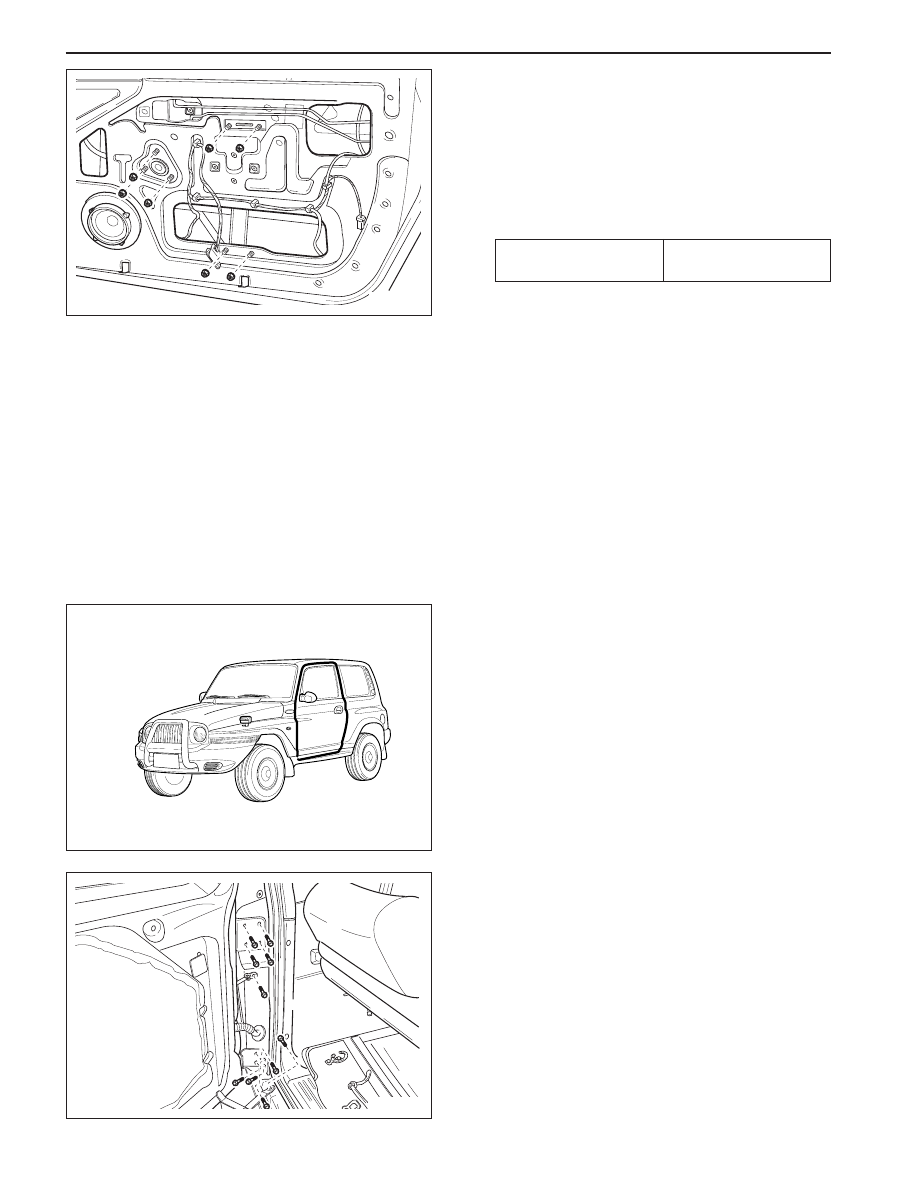

FRONT DOOR ASSEMBLY

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the door hold open link. Refer to “Door

Hold Open Link” in this section.

3. Disconnect the body to door rubber grommet and

the electrical connector.

4. With the aid of another technician, remove the bolts

and the door.

5. Installation should follow the removal procedure

in the reverse order.

TAIL GATE ASSEMBLY

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the door hold open link with the bolt.

3. Disconnect the body to tailgate rubber grommet

and the electrical connector.

4. With the aid of another technician, remove the bolts

and the door.

5. Installation should follow the removal procedure

in the reverse order.

KAA9P090

POWER WINDOW REGULATOR

Removal and Installation Procedure

1. Disconnect the battery cable.

2. Remove the door glass. Refer to Section 9L, Glass

and Mirrors.

3. Remove the nuts and the regulator.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

4. Disconnect the electrical connector.

5. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

3.92 - 5.49 N•m

 (2.92 - 4.08 lb-in)
