9O-2  BUMPERS AND FASCIAS

DESCRIPTION AND OPERATION

BUMPERS

The bumper systems are designed to sustain a collision
into a fixed barrier at 8 km/h (5 mph) without damage.

BUMPERS AND FASCIAS  9O-3

SSANGYONG  MY2002

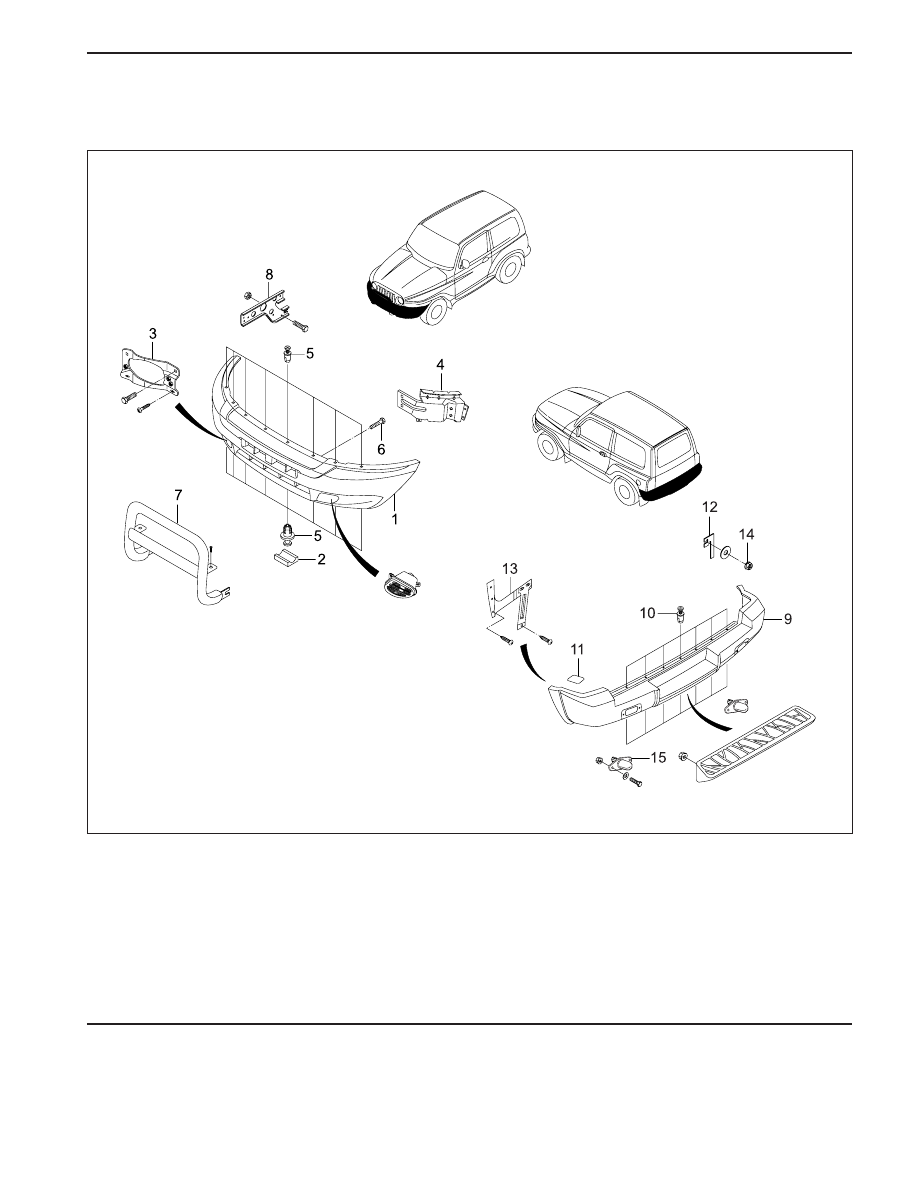

COMPONENTS LOCATOR

BUMPERS AND FASCIAS

1 Front Bumper Assembly
2 Pad
3 Fog Lamp Mounting Bracket
4 Side Mounting Bracket
5 Rivet
6 Bolt
7 Front Nudge Bar Assembly
8 Side Support Bracket

9 Front Bumper Assembly

10 Rivet
11 Protection Tape
12 Rear Bumper Spacer
13 Side Bracket
14 Nut
15 License Lamp Assembly

KAA9O010

SSANGYONG  MY2002

9O-4  BUMPERS AND FASCIAS

KAA9O030

KAA9O040

2. Remove the front bumper with the bolts.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

3. Remove the front bumper fascia.

4. Installation should follow the removal procedure

in the reverse order.

KAA9O020

ON-VEHICLE SERVICE

UNIT REPAIR

FRONT BUMPER FASCIA

Removal and Installation Procedure

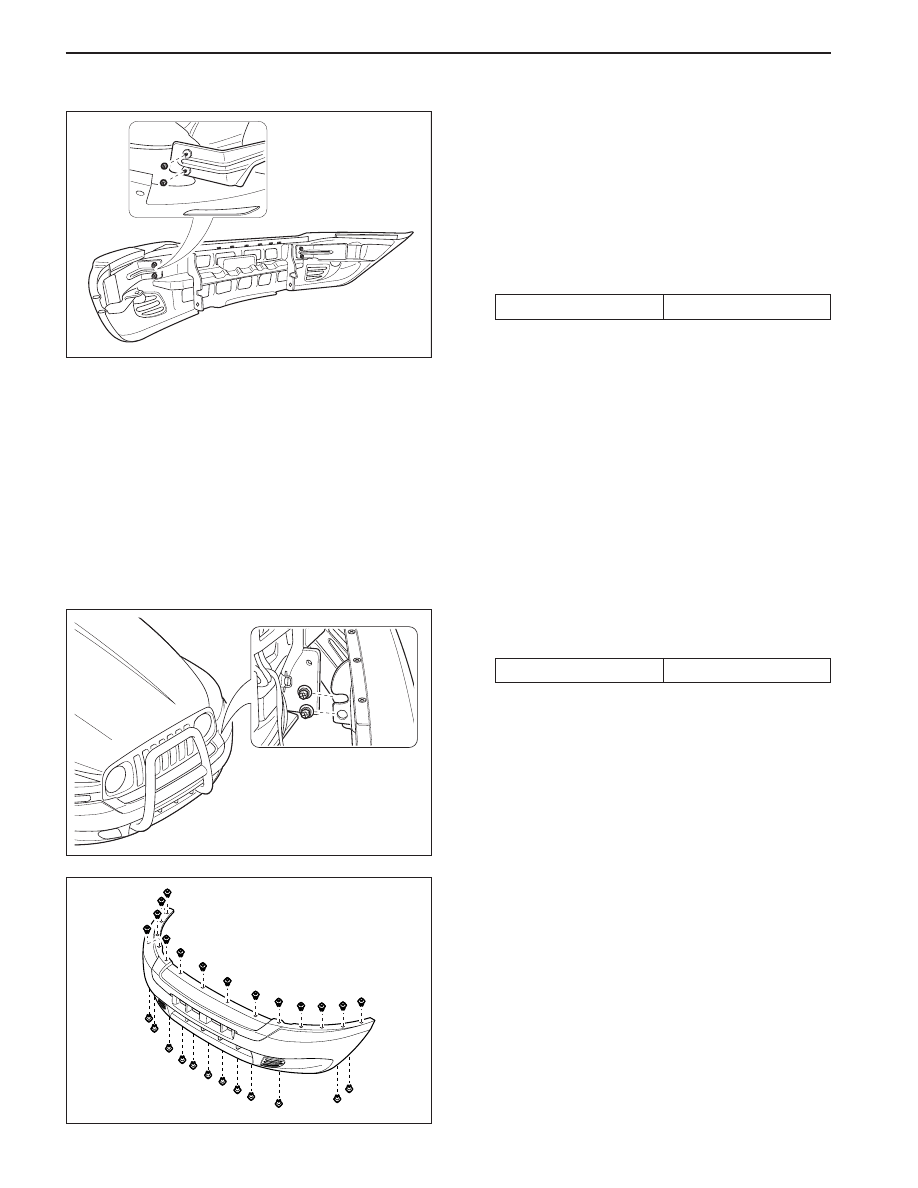

1. Remove the side support bracket nuts.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

REPAIR INSTRUCTIONS

Tightening Torque

11 N•m (97 lb-in)

Tightening Torque

117 N•m (154 lb-ft)

BUMPERS AND FASCIAS  9O-5

SSANGYONG  MY2002

KAA9O050

REAR BUMPER FASCIA

Removal and Installation Procedure

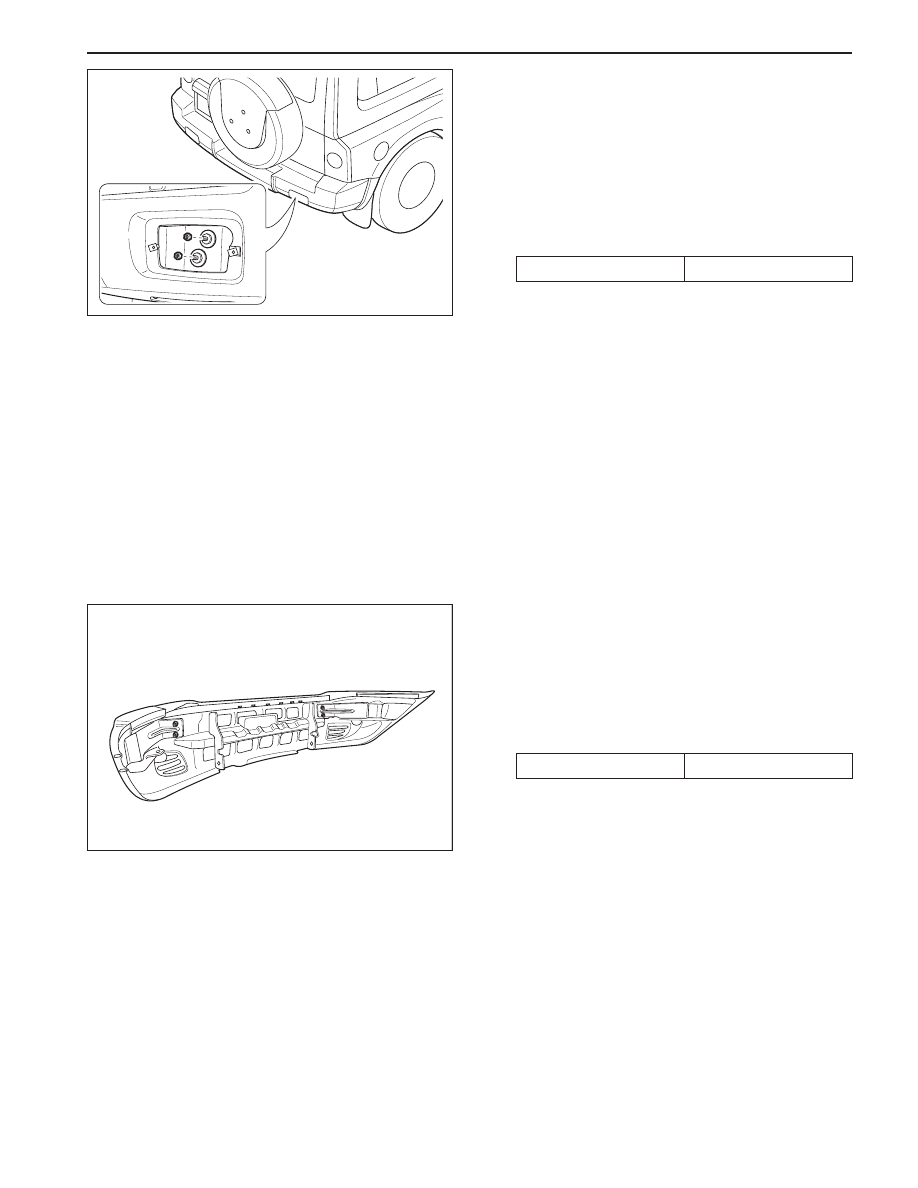

1. Remove the mud guard. Refer to Section 9M,

Exterior Trim.

2. Remove the rear bumper with the bolts.

3. Remove the rear bumper fascia from the rear

bumper.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

4. Installation should follow the removal procedure

in the reverse order.

KAA9O060

FRONT BUMPER IMPACT BAR

Removal and Installation Procedure

1. Remove the front bumper fascia. Refer to Front

Bumper Fascia in this section.

2. Remove the nuts with the front bumper impact bar.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

3. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

29  N•m (21 lb-ft)

Tightening Torque

117 N•m (154 lb-ft)
