BUMPERS AND FASCIAS  9O-7

SSANGYONG  MY2002

Front Bumper Fascia Scrivet

Front Bumper Mounting Bolts

Front Bumper Im Pact Bar Nuts

Rear Bumper Fascia Nuts

Side Support Bracket Nuts

Application

N•m

Lb-Ft

Lb-In

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

11

117

117

29

11

-

154

154

21

-

97

-

-

-

97

SECTION 9P

DOORS

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

Description and Operation ................................... 9P-2

Power Door Locks ................................................ 9P-2

Power Windows ................................................... 9P-2

Door Lock Striker ................................................. 9P-2

Components Locator ............................................ 9P-3

Doors .................................................................. 9P-3

Repair Instructions ................................................ 9P-4

On-Vehicle Service Unit Repair ................................ 9P-4

Door Glass Run ................................................... 9P-4

Door Side Opening Weatherstrip .......................... 9P-4

Door Lock Striker ................................................. 9P-4

Door Lock Striker Adjustment ............................... 9P-5

Front Door Lock ................................................... 9P-6

Inside Door Handle .............................................. 9P-7

Outside Door Handle ........................................... 9P-7

Door Lock Cylinder .............................................. 9P-7

Power Window Regulator ..................................... 9P-8

Front Door Assembly ........................................... 9P-8

Tail Gate Assembly ............................................. 9P-8

Door Hinge .......................................................... 9P-9

Door Hold Open Link ........................................... 9P-9

Outside Channel Molding ..................................... 9P-9

Door Weatherstrip ................................................ 9P-9

Door Seal Trim ................................................... 9P-10

Specifications ..................................................... 9P-11

Fastener Tightening Specifications ..................... 9P-11

Schematic and Routing Diagrams ..................... 9P-12

Central Door Locks System ................................ 9P-12

Power Windows ................................................. 9P-13

SSANGYONG  MY2002

9P-2  DOORS

DESCRIPTION AND OPERATION

POWER DOOR LOCKS

The power door locks use a solenoid that is contained
in each door lock assembly. The door locks are
activated by the actuator on the inside door handle or
by the lock cylinder on the driver’s side door only.
When the driver’s side door is locked or unlocked by
the actuator or lock cylinder, all doors are locked or
unlocked accordingly.

POWER WINDOWS

The power windows are controlled by electrical
switches on the door trim center upper panel and are

operated by a motor at each window regulator. The
windows are lowered by pressing the switch and are
raised by pulling up on the switch. The window will
stop movement when the switch is released or when
the windowis completely open or closed.

DOOR LOCK STRIKER

The front door lock strikers each consist of a striker
with two screws threaded into a floating cage plate in
the B-pillars. The door lock fork snaps over and engages
the striker.

SSANGYONG  MY2002

9P-4  DOORS

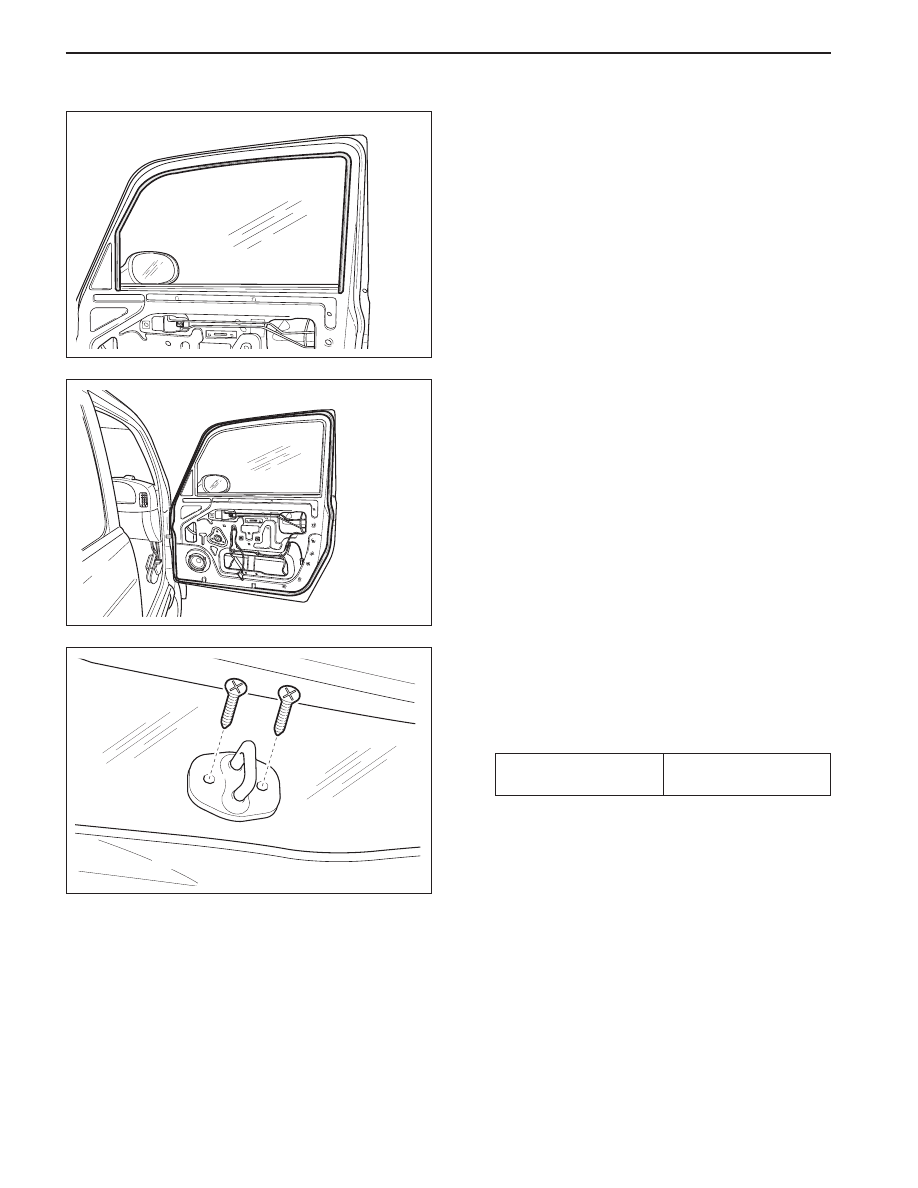

DOOR LOCK STRIKER

Removal and Installation Procedure

1. Remove the screws and the door lock striker.

Installation Notice

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

2. Installation should follow the removal procedure

in the reverse order.

KAA9P020

ON-VEHICLE SERVICE

UNIT REPAIR

DOOR GLASS RUN

Removal and Installation Procedure

1. Lower the window.

2. Remove the glass from the door.

3. Remove the front door glass run.

4. Installation should follow the removal procedure

in the reverse order.

REPAIR INSTRUCTIONS

KAA9P030

DOOR SIDE OPENING
WEATHERSTRIP

Removal and Installation Procedure

1. Remove the side opening weatherstrip.

2. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

9.8 - 18.62 N•m

 (7.23 - 13.74 lb-ft)

KAA9P040
