SsangYong Korando II (1996-2006 year). Manual - part 422

SSANGYONG MY2002

9B-12 LIGHTING SYSTEM

Luggage Lamp Inoperative (Cont’d)

Step

Action

1. Remove the luggage lamp bulb and inspect the

filament.

2. If the filament is not broken, test the bulb using

the vehicle’s battery and a jumper wire.

Does the bulb pass the visual and physical check?
Replace the bulb.
Is the repair complete?
1. Reinstall the luggage lamp bulb.
2. Check fuse F1.
Is fuse F1 blown?
1. Check for a short circuit and repair if necessary.
2. Replace the fuse.
Is the repair complete?
Check the voltage at fuse F1.
Does the voltage at fuse F1 equal the specified
value?
Repair the open circuit between the battery and fuse
F1.
Is the repair complete?
1. Disconnect the luggage lamp electrical connector.
2. Check the voltage at the ORN wire.
Does the voltage at the ORN wire equal the specified
value?
Repair the open circuit between fuse F1 and the
luggage lamp.
Is the repair complete?
1. Reconnect the luggage lamp.
2. Remove the luggage lamp switch.
3. With a voltmeter or test lamp, test the 204, 114

wire at the luggage lamp switch.

Does the voltage at the luggage lamp switch equal
the specified value.
Repair the open circuit between the luggage lamp
and the luggage lamp switch.
Is the repair complete?
Use an ohmmeter to check the resistance between
ground and the luggage lamp switch.Is the resis-
tance equal to the specified value?
Replace the luggage lamp switch.Is the repair
complete?
Repair the ground circuit for the luggage lamp switch.
Is the repair complete?

Yes

Go to Step 3

System OK

Go to Step 4

System OK

Go to Step 7

System OK

Go to Step 8

System OK

Go to Step 11

System OK

Go to Step 12

System OK

Go to Step 2

Go to Step 5

Go to Step 6

Go to Step 9

Go to Step 10

Go to Step 13

Value (s)

11 - 14 v

Ω

LIGHTING SYSTEM 9B-13

SSANGYONG MY2002

DOOR COURTESY LAMPS

Door Courtesy Lamps Inoperative

Step

Action

1. Remove the door courtesy lamp bulb and inspect

the filament.

2. If the filament is not broken, test the bulb using

the vehicle’s battery and a jumper wire.

Does the bulb pass the visual and physical check?
Replace the bulb.
Is the repair complete?
1. Reinstall the door courtesy lamp bulb.
2. Check fuse F1.
Is fuse F1 blown?
1. Check for a short circuit and repair if necessary.
2. Replace the fuse.Is the repair complete?
Check the voltage at fuse F1.
Does the voltage at fuse F1 equal the specified
value?
Repair the open circuit between the battery and fuse
F1.
Is the repair complete?
1. Disconnect the door courtesy lamp electrical

connector.

2. Check the voltage at terminal 129, 130 of connec-

tors main DR and C361.

Does the voltage at terminal 20 of connectors C351
and C361 equal the specified value?
Repair the open circuit between the door courtesy
lamp and the front door switch.
Is the repair complete?
1. Reconnect the door courtesy lamp.
2. Remove the front door switch.
3. With a voltmeter or test lamp, test the WHT wire

at the front door switch.

Does the voltage at the front door switch equal the
specified value?
Repair the open circuit between the door courtesy
lamp and the front door switch.
Is the repair complete?
Use an ohmmeter to check the resistance between
ground and the BLK wire at the front door switch
connector on the harness side.
Is the resistance equal to the specified value?
Replace the front door switch.
Is the repair complete?
Repair the ground circuit for the front door switch.
Is the repair complete?

Yes

Go to Step 3

System OK

Go to Step 4

System OK

Go to Step 7

System OK

Go to Step 8

System OK

Go to Step 11

System OK

Go to Step 12

System OK

Go to Step 2

Go to Step 5

Go to Step 6

Go to Step 9

Go to Step 10

Go to Step 13

Value(s)

11 - 14 v

Ω

SSANGYONG MY2002

9B-14 LIGHTING SYSTEM

CIGAR LIGHTER

Cigar Lighter Inoperative

Step

Action

Check fuse F15.
Is the fuse blown?
1. Check for a short circuit and repair if necessary.
2. Replace the fuse.
Is the repair complete?
1. Turn the ignition key to the ACC position.
2. Use a voltmeter to check for voltage at fuse F15.
Does the battery voltage available at the fuse F15
match the value specified?
Repair the open power-supply circuit for fuse F15.
Is the repair complete?
1. Remove the electrical connector from the back of

the cigar lighter.

2. Turn the ignition key to the ACC position.
3. Use a voltmeter to check the voltage at terminal 1

of the cigar lighter.

Does the battery voltage available at terminal 1 of the
cigar light match the value specified?
Repair the open circuit between the fuse F15 and the
cigar lighter.
Is the repair complete?
With the ignition key still in the ACC position, use an
ohmmeter to check continuity between terminal 2 of
the cigar lighter connector and ground.
Does the battery voltage match the value specified?
Repair the open ground circuit.
Is the repair complete?
Replace the cigar lignter.
Is the repair complete?

Yes

Go to Step 2

System OK

Go to Step 5

System OK

Go to Step 7

System OK

Go to Step 9

System OK

Go to Step 3

Go to Step 4

Go to Step 6

Go to Step 8

Value(s)

11 - 14 v

LIGHTING SYSTEM 9B-15

SSANGYONG MY2002

REPAIR INSTRUCTIONS

KAA9B020

KAA9B030

ON-VEHICLE SERVICE

UNIT REPAIR

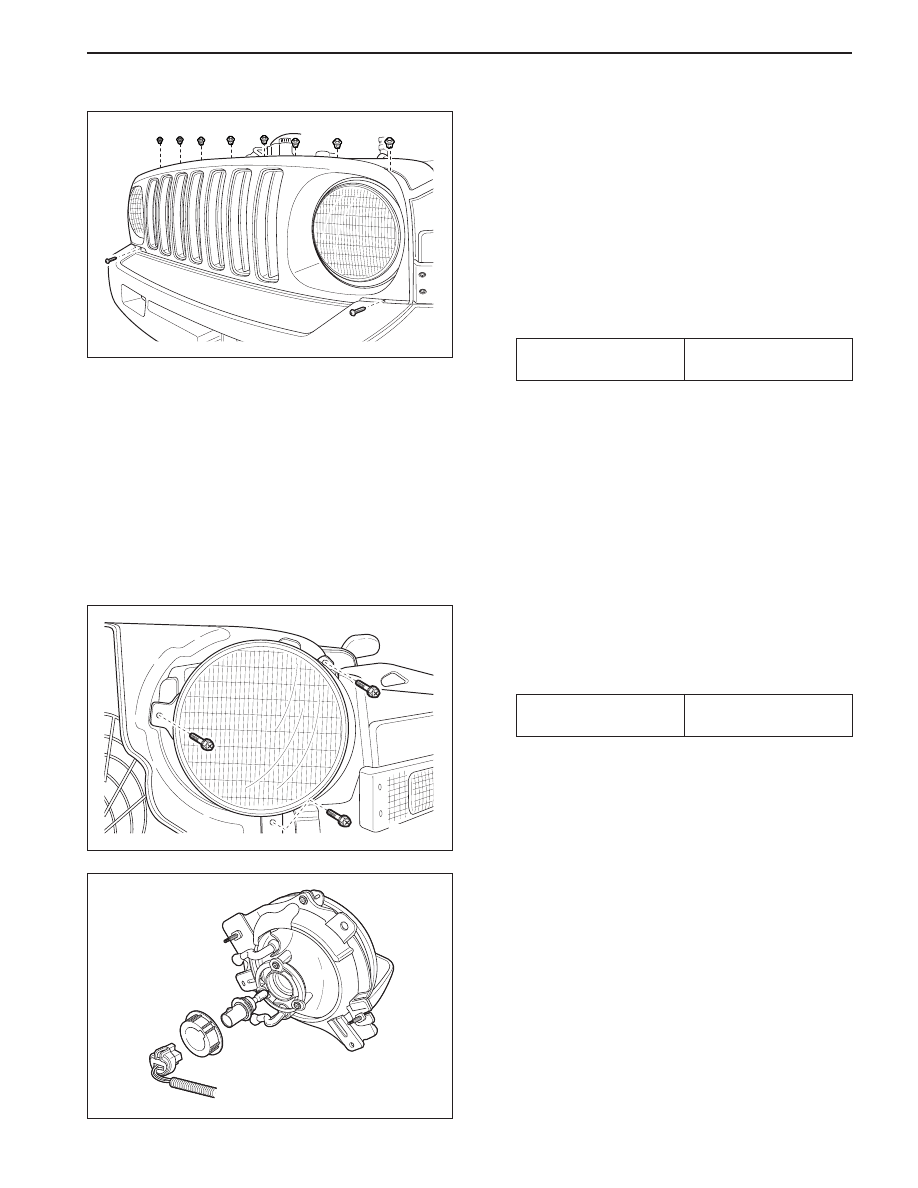

HEAD LAMPS

Removal and Installation Procedure

1. Open the hood.

2. Disconnect the negative battery cable.

3. Remove screws and row the radiator grille.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

4. Disconnect the headlamp assembly electrical con-

nector.

5. Remove the headlamp.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

Tightening Torque

5 - 9 N•m

(44 - 80 lb-in)

Tightening Torque

5 - 9 N•m

(44 - 80 lb-in)

KAA9B040

6. Turn the headlamp bulb locker and remove the

headlamp bulb.

7. Installation should follow the removal procedure

in the reverse order.
