SSANGYONG  MY2002

9B-4  LIGHTING SYSTEM

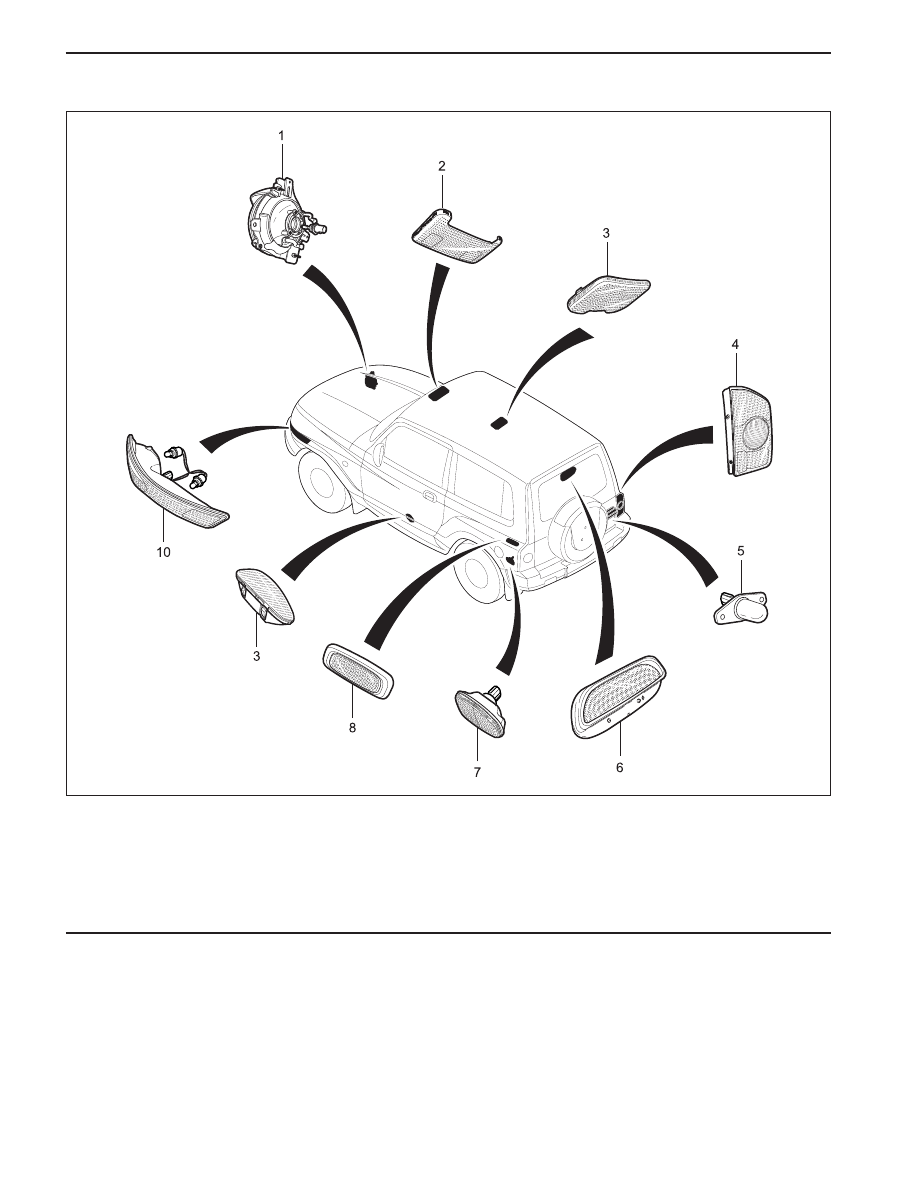

COMPONENTS LOCATOR

1 Head Lamp
2 Front Room Lamp
3 Center Room Lamp
4 Rear Combination Lamp
5 License Plate Lamp

6 Center High Mounted Stop Lamp
7 Rear Side Marker Lamp
8 Luggage Lamp
9 Door Courtesy Lamp

10 Front Combination Lamp

KAA9B010

LIGHTING SYSTEM  9B-5

SSANGYONG  MY2002

DIAGNOSTIC INFORMATION AND PROCEDURE

HEAD LAMPS

Low-Beam Headlamps are Inoperative, High-Beam Headlamps Are OK

Step

1

2

3

4

5

6

7

8

9

10

Action

Check fuses EF21 and F12.
Are fuses EF21 or F12 blown?
1. Check for a short circuit and repair if necessary.
2. Replace the fuse.
Is the repair complete?
Check the voltage at fuses EF21 and F12.
Dose the voltage available at fuses EF21 and F12
equal the value specified?
Remove the headlamp relay (Low) and temporarily
substitute a known good relay such as the fog lamp
relay or the illumination lamp relay.
1. Return the substituted relay to its original position.
2. Replace the inoperative headlamp relay (Low).
Is the repair complete?
1. Return the substituted relay to its original position,

but do not reinstall the handlamp relay (Low)

2. Using a voltmeter or test lamp, check for the

headlamp relay socket terminal 30.

Does the battery voltage available at the headlamp
relay (Low) socket equal the specified value?
Repair the open circuit between fuse EF20 and the
headlamp relay (Low).
Is the repair complete?
Replace the faulty headlamps.
Is the repair complete?
Check the voltage between fuses EF21 or F12 and the
headlamp relay.
Does the voltage available at fuses EF21 and F12
equal the specified value?
Repair the open circuit between fuses EF21 and F12
and the headlamp relay.
Is the repair complete?

Yes

Go to Step 2

System OK

Go to Step 4

Go to Step 5

System OK

Go to Step 8

System OK

System OK

System OK

System OK

No

Go to Step 3

-

Go to Step 9

Go to Step 6

-

Go to Step 7

-

-

Go to Step 10

-

Value(s)

-

-

11 - 14 v

-

-

0

Ω

-

-

11 - 14

-

High-Beam Headlamps Are Inoperative, Low-Beam Headlamps Are OK

Step

1

2

3

Action

Check fuse F12, and EF23.
Is fuse F12 blown, or EF23?
1. Check for a short ciruit and repair if necessary.
2. Replace the fuse.
Use an ohmmeter to sheck continuity between the
fuse F12.
Does the ohmmeter indicate the specified value?

Yes

Go to Step 2

System OK

Go to Step 4

No

Go to Step 3

-

Go to Step 5

Value(s)

-

-

0

Ω

SSANGYONG  MY2002

9B-6  LIGHTING SYSTEM

High-Beam Headlamps Are Inoperative, Low-Beam Headlamps Are OK (Cont’d)

Step

4

5

6

7

8

9

10

11

Action

1. Check for a short circuit. Repair it if necessary.
2. Replace the fuse.
Is the repair complete?
1. Disconnect the headlamp switch.
2. Put the switch in the high-beam position.
3. Use an ohmmeter to check the continuity of the

headlamp dimmer switch between terminals 3
and 2.

Does the ohmmeter indicate the specified value?
Replace the headlamp switch.
Is the repair complete?
1. Disconnect the high-beam headlamp connectors.
2. Turn the high-beam headlamps on.
3. Use a voltmeter to check the voltage at terminal 2

of the headlamp connectors.

Does the voltmeter indicate the specified value?
Repair the open circuit between the fuse block and
the high-beam headlamps.
Is the repair complete?
Use an ohmmeter to check continuity between
terminal 2 of the headlamp connectors and ground
G104.
Does the ohmmeter indicate the specified value?
Repair the open ground circuit.
Is the repair complete?
Replace the faulty high-beam headlamps.
Is the repair complete?

Yes

System OK

Go to Step 7

System OK

Go to Step 9

System OK

Go to Step 11

System OK

System OK

No

-

Go to Step 6

-

Go to Step 8

-

Go to Step 10

-

-

Value(s)

0

Ω

0

Ω

-

11 - 14 v

-

0

Ω

-

-

LIGHTING SYSTEM  9B-7

SSANGYONG  MY2002

Step

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

Action

Check fuse EF12.
Is EF12 blown.
1. Check for a short circuit and repair it, if

necessary.

2. Replace the fuse.
Is the repair complete?
Use a voltmeter or test lamp to check fuse EF12.
Does the battery voltage available at fuse EF12 equal
the specified value?
Repair the open circuit from the battery to fuse EF12.
Is the repair complete?
Remove the fog lamp relay and temporarily substitute
a known good relay such as the headlamp relay or the
illumination lamp relay.
1. Return the substituted relay to its original position.
2. Replace the inoperative fog lamp relay.
Is the repair complete?
1. Return the substituted relay to its original position,

but do not reinstall the fog lamp relay.

2. Using a voltmeter or test lamp, check the fog lamp

relay socket terminal 30.

Does the battery voltage available at the fog lamp
relay socket equal the specified value?
Repair the open circuit between fuse EF12 and the fog
lamp relay.
Is the repair complete?
At the fog lamp relay socket, use an ohmmeter or test
lamp to verify that the connector for relay terminal 85
is connected to ground.
Does the resistance equal the specified value?
Repair the ground circuit for the fog lamp relay.
Is the repair complete?
With the fog lamp relay reinstalled and the switch on,
test for voltage at the fog lamp connector.
Does the battery voltage available at the fog lamp
connector equal the specified value?
Repair the open circuit between the fog lamp relay
terminal 87 and the fog lamps.
Is the repair complete?
Use an ohmmeter or test lamp to check the ground at
the ground side of the fog lamp connector.
Does the resistance equal the specified value?
Repair the fog lamp ground circuit.
Is the repair complete?
Replace the faulty fog lamp bulbs.Is the repair
complete?

Yes

Go to Step 2

System OK

Go to Step 5

System OK

Go to Step 6

System OK

Go to Step 9

System OK

Go to Step 11

System OK

Go to Step 13

System OK

Go to Step 15

System OK

System OK

No

Go to Step 3

-

Go to Step 4

-

Go to Step 7

-

Go to Step 8

-

Go to Step 10

-

Go to Step 12

-

Go to Step 14

-

-

Value(s)

-

-

11 - 14 v

-

-

-

11 - 14 v

-

0

Ω

-

11 - 14 v

-

0

Ω

-

-

FOG LAMPS

Fog Lamps Inoperative
