BODY WIRING SYSTEM  9A-23

SSANGYONG  MY2002

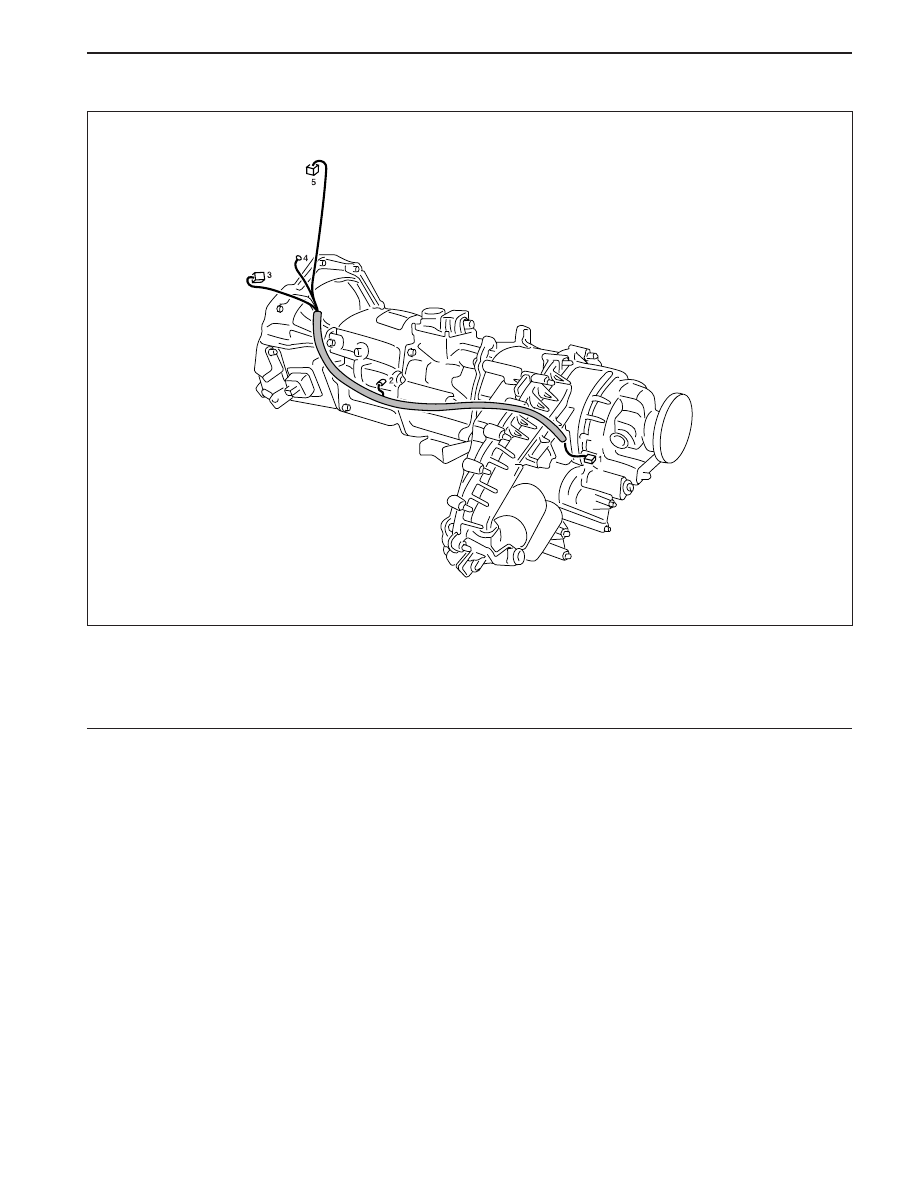

Manual Transmission

1 C302
2 Back up switch
3 Micro switch

4 Engine oil pressure switch
5 Engine speed sensor

YAD9B350

SECTION 9B

LIGHTING SYSTEM

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

Description and Operation ................................... 9B-2

Head Lamps - ON Reminder ................................ 9B-2

Head Lamps ........................................................ 9B-2

Daytime Running Lamps ...................................... 9B-2

Parking and Turn Signal Lamps ........................... 9B-2

Fog Lamps .......................................................... 9B-2

Rear Combination Lamps ..................................... 9B-2

Center High-Mounted Stop Lamp ......................... 9B-2

Backup Lamps .................................................... 9B-3

License Plate Lamps ........................................... 9B-3

Interior Room Lamps ........................................... 9B-3

Luggage Lamps .................................................. 9B-3

Components Locator ............................................ 9B-4

Diagnostic Information and Procedure ............... 9B-5

Head Lamps ........................................................ 9B-5

Fog Lamps .......................................................... 9B-7

Tail Lamps .......................................................... 9B-8

Interior Room and Luggage Lamps .................... 9B-11

Door Courtesy Lamps ........................................ 9B-13

Cigar Lighter ...................................................... 9B-14

Repair Instructions .............................................. 9B-15

On-Vehicle Service Unit Repair .............................. 9B-15

Head Lamps ...................................................... 9B-15

Front Combination Lamp .................................... 9B-16

Center High-Mounted Stop Lamp ....................... 9B-16

Rear Combination Lamps ................................... 9B-17

Fog Lamps ........................................................ 9B-17

Interior Courtesy Lamp ....................................... 9B-18

Door Courtesy Lamp .......................................... 9B-18

Luggage Lamp .................................................. 9B-19

License Plate Lamps ......................................... 9B-19

Specifications ..................................................... 9B-20

Bulb Usage Chart .............................................. 9B-20

Fastener Tightening Specifications ..................... 9B-20

Schematic and Routing Diagrams ..................... 9B-21

Head Lamp Leveling Device (HLLD) : Gasoline .. 9B-21

Head Lamp Leveling Device (HLLD) : Diesel ...... 9B-22

Tail Lamp Relay Circuit Position Lamp,

Tail Lamp, License Lamp ................................ 9B-23

Illumination Switch ............................................. 9B-24

Turn Signal Lamp ............................................... 9B-25

Front Fog Lamp ................................................. 9B-26

Rear Fog Lamp .................................................. 9B-27

Stop Lamp, BTSI (Brake Transmission

Shift Interlock) - Metal Top .............................. 9B-28

Stop Lamp, BTSI (Brake Transmission

Shift Interlock) - Soft Top ................................. 9B-29

SSANGYONG  MY2002

9B-2  LIGHTING SYSTEM

DESCRIPTION AND OPERATION

HEAD LAMPS -  ON REMINDER

When the headlamp switch is in the headlamps-on or
parkinglamps-on positions, voltage is applied to the
chime module. With the headlamp switch on and the
driver’s side door open, the module loses voltage. The
module senses this change. If voltage is still available,
it  is applied to sound the chime. The chime can be
turned off by turning the headlamp switch off or closing
the driver’s side door. To replace the chime module,
refer to Section 9E, Instrumentation / Driver Information.

HEAD LAMPS

The headlamps are controlled by the multifunction lever
on the left side of the steering column. They will come
on with the ignition switch in on position. Turning the
headlamp  switch to the first position turns on the
parking  lamps, the license plate lamps, and the
instrument panel illumination. Turning the switch to the
second position turns on all of the previous lamps and
the headlamps. Turning the switch off turns off all the
lamps.

The headlamps high beam and low beams are also
controlled by this lever. When the headlamps are on,
pushing the lever away from the driver until the switch
clicks changes the lamp from low beam to high beam.
An indicator lamp on the instrument cluster assembly
will come on when the high beam headlamps are on.
To return the headlamps to low beams, pull the lever
toward the driver.

The headlamps must be aimed for proper illumination
of  the road. Headlamp aim should be checked
whenever a  new headlamp assembly is installed or
when service or  repairs to the front end may have
disturbed the headlamp assembly or its mountings.

DAYTIME RUNNING LAMPS

The daytime running lamps (DRL) will illuminate under
the following conditions:

•

 The ignition is ON.

•

 The light switch is OFF.

•

 The parking brake is released.

When the head lamps are on, the DRL will turn off.

To turn the DRL off when idling, apply the parking
brake.

PARKING AND TURN SIGNAL
LAMPS

The parking lamps can be turned on by turning the
headlamp switch to the first position. The parking lamps
can be turned off by turning the switch off.

When the turn signals are activated, the appropriate
turn signal lamps flash to signal a turn. The front, the
rear, work only when the ignition is on.

The front and rear turn signals are controlled by the
multifunction  lever on the left side of the steering
column. Moving the lever all the way up or down past
the detent will turn on the turn signals. When the turn
is complete,  the lever will automatically be release,
and the front and the rear turn signals will stop flashing.

For changing lanes or shallow turns in which the steering
wheel does not turn far enough to cancel the signal,
move the signal to the first detent and hold it there.
The turn signal will cancel when the lever is released.

FOG LAMPS

The fog lamp switch is located in multifunction lever
on the right side of steering column. To use the fog
lamps, first turn on the parking lamps. Then, turning
the fog lamps switch on position. The indicator light in
the instrument  cluster will illuminate to indicate that
the fog lamps are on. Turning the switch again to turn
off the fog lamps. The indicator light will then go off.

The fog lamps must be aimed for proper illumination
of the road. Fog lamp aim should be checked when a
new bulb is installed or if service or repairs to the front
end may have disturbed the fog lamp assembly or its
mountings.

REAR COMBINATION LAMPS

The taillamps, stoplamps, backup lamps and turn
signals are one assembly.

Turning on either the headlamps or the parking lamps
will also turn on the taillamps. When the brake pedal
is pushed, the taillamps will glow more brightly to serve
as stop lamps.

CENTER HIGH-MOUNTED STOP
LAMP

The center high-mounted stoplamp is on the tail gate
and will come on when the brake pedal is pressed.

LIGHTING SYSTEM  9B-3

SSANGYONG  MY2002

BACKUP LAMPS

The backup lamps will come on when the transaxle is
shifted into reverse. On a vehicle with an automatic
transaxle, the backup lamps are activated by inhibitor
switch. On a vehicle with a manual transaxle, they are
activated by a reverse switch with is part of the
transaxle.

LICENSE PLATE LAMPS

The license plate lamps will come on when the head
lamps or the parking lamps are on. The license plate
lamps are mounted on the rear door handle cover,
above the license plate.

INTERIOR ROOM LAMPS

The room lamp is located on the front position of head
liner and has three the center switch pushed, both of
two bulbs of the lamp are on at the same tine. When
any  door is open. The switchs on the left and right
side turn on the bulbs of each side. They are off, if the
switch is pushed again the second room lamp is located
on the middle position it the switch push off again, the
lamp will turn off.

LUGGAGE LAMPS

The luggage lamp is under the trin plate on the left
side of quarter.
