BODY WIRING SYSTEM  9A-19

SSANGYONG  MY2002

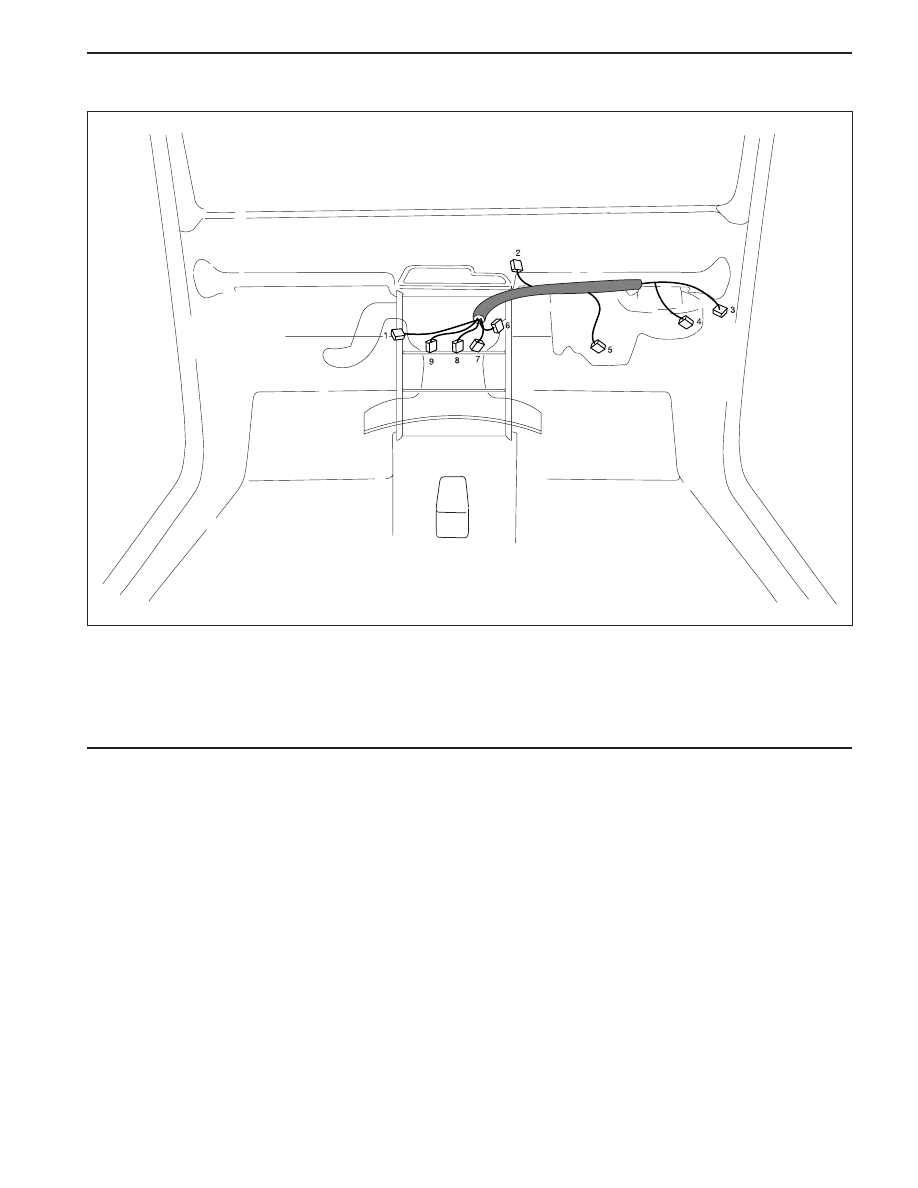

W/H AIR - CONDITIONER

1 Mode actuator
3 Intake actuator
4 Blower motor
5 Resistor

6 Blower relay
7 A/CON switch
8 Control pannel
9 Blower switch

KAA9A140

SSANGYONG MY2002

9A-20  BODY WIRING SYSTEM

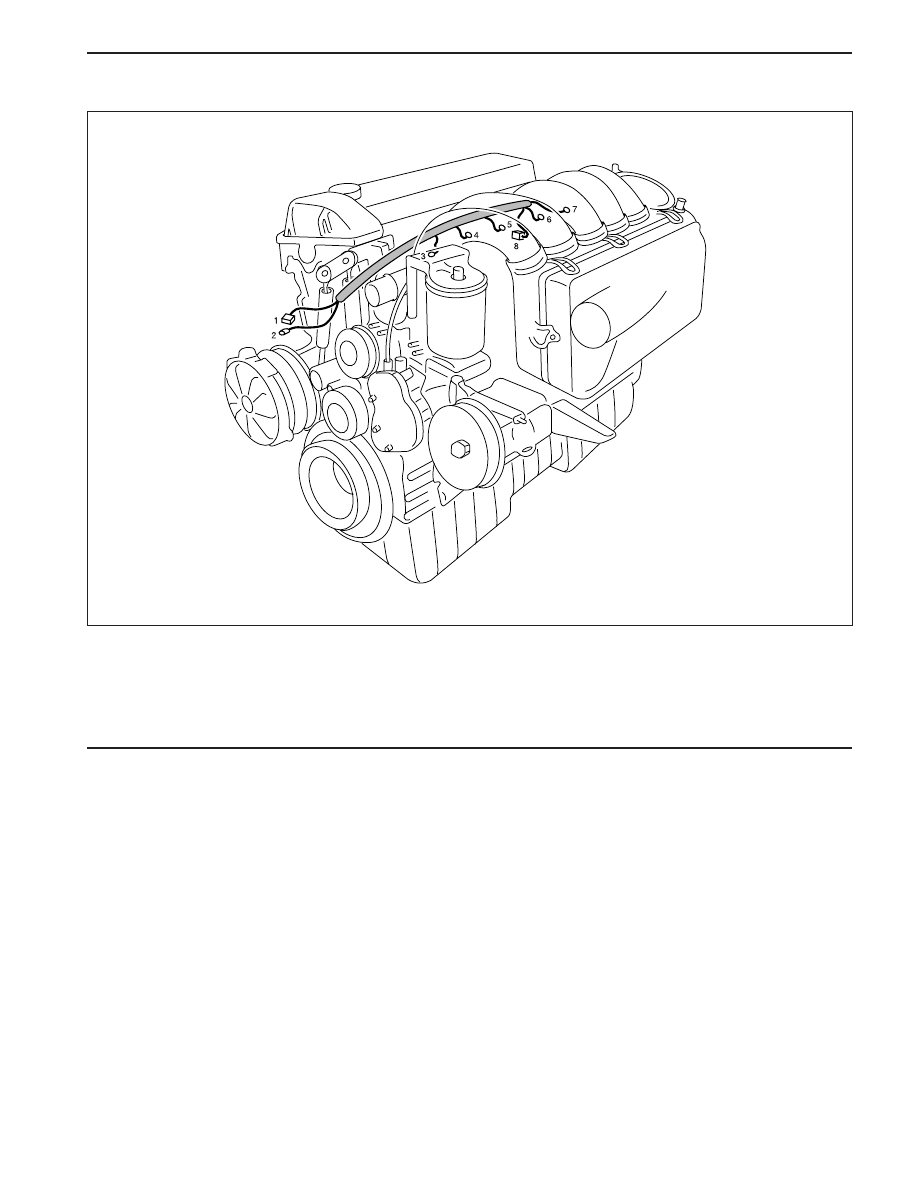

W/H ENGINE CONTROL (GASOLINE)

6 Crankshaft position sensor
7 Oil pressure switch
8 Knock sensor 2
9 Air flow sensor

10 Ignition coil 3
11 Ignition coil 2
12 Ignition coil 1
13 Injector 6
14 Injector 5
15 Injector 4

16 Injector 3
17 Injector 2
18 Injector 1
19 Camshaft actuator
20 Camshaft position sensor
21 Engine coolant temperature sensor (Gauge)
22 Engine temperature sensor
23 Throttle motor & sensor
24 Knock sensor 1
25 Intake manifold resonance flap

KAA9A150

BODY WIRING SYSTEM  9A-21

SSANGYONG  MY2002

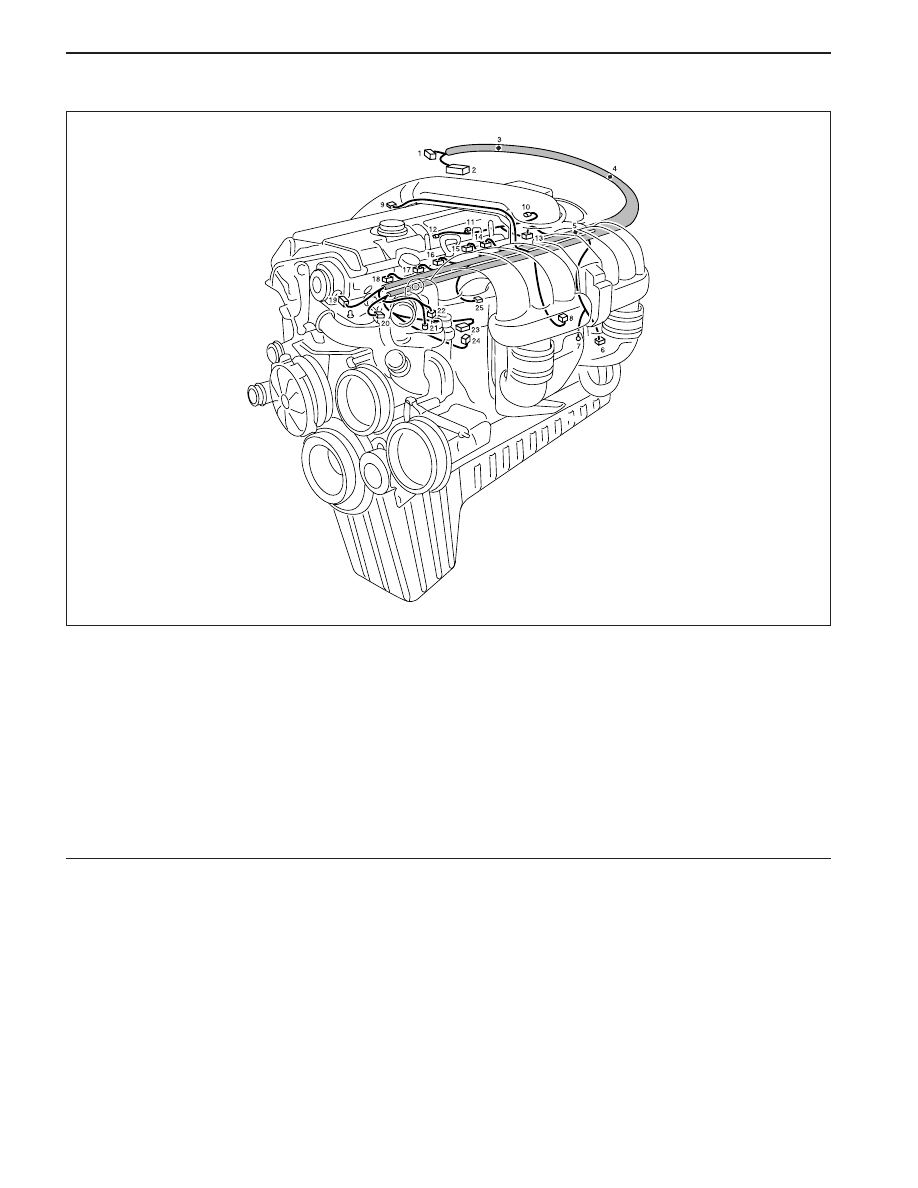

W/H PRE - HEATING (DIESEL)

1 Preheating time control relay
3 Glow plug 1
4 Glow plug 2
5 Glow plug 3

6 Glow plug 4
7 Glow plug 5 (662 LA only)
8 Engine coolant temperature sensor (Gauge)

KAA9A160

SSANGYONG MY2002

9A-22  BODY WIRING SYSTEM

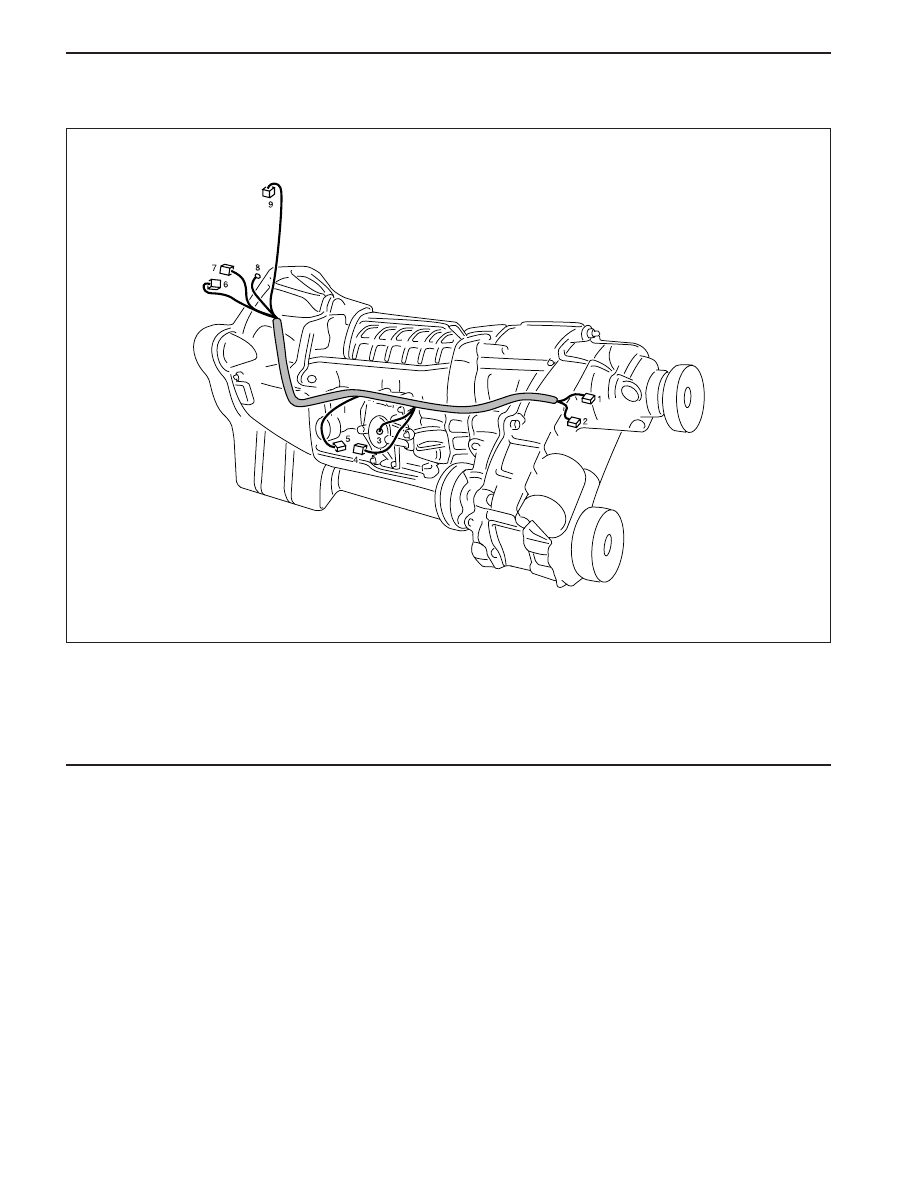

W/H TRANSMISSION

Automatic Transmission

3 Transmission
4 T/M Lever
5 Inhibitor switch
6 Micro switch (Diesel E/G)

7 Throttle position sensor (Diesel E/G)
8 Engine oil pressure switch
9 Engine speed sensor (Diesel E/G)

YAD9B350
