SSANGYONG  MY2002

9B-16  LIGHTING SYSTEM

KAA9B050

KAA9B060

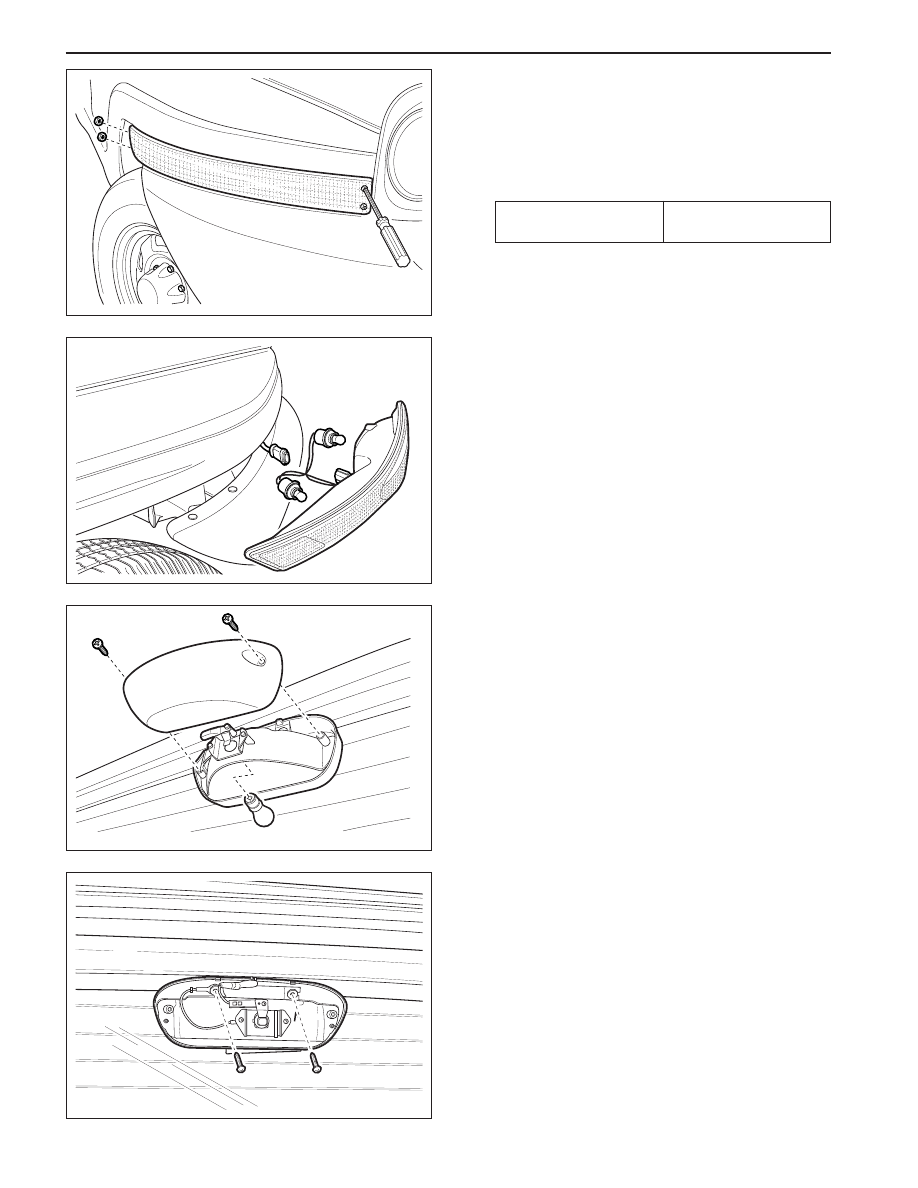

FRONT COMBINATION LAMP

Removal and Installation Procedure

1. Disconnect negative battery cable.

2. Remove the screws and nuts.

Installation Notice

•

Dissimilar metals in direct contact with each
other  may corrode rapidly. Make sure to use
the correct  fasteners to prevent premature
corrosion.

Tightening Torque

5 - 9 N•m

 (44 - 80 lb-in)

KAA9B080

KAA9B090

CENTER HIGH-MOUNTED STOP

LAMP

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the center high-mounted stop lamp cover

3. Disconnect the CHMSL electrical connector.

4. Remove the screws with the CHMSL

5. Installation should follow the removal procedure

in the reverse order.

3. Disconnect and remover the front combination

lamp.

4. Remove the inoperative bulb.

5. Installation should follow the removal procedure

in the reverse order.

LIGHTING SYSTEM  9B-17

SSANGYONG  MY2002

KAA9B070

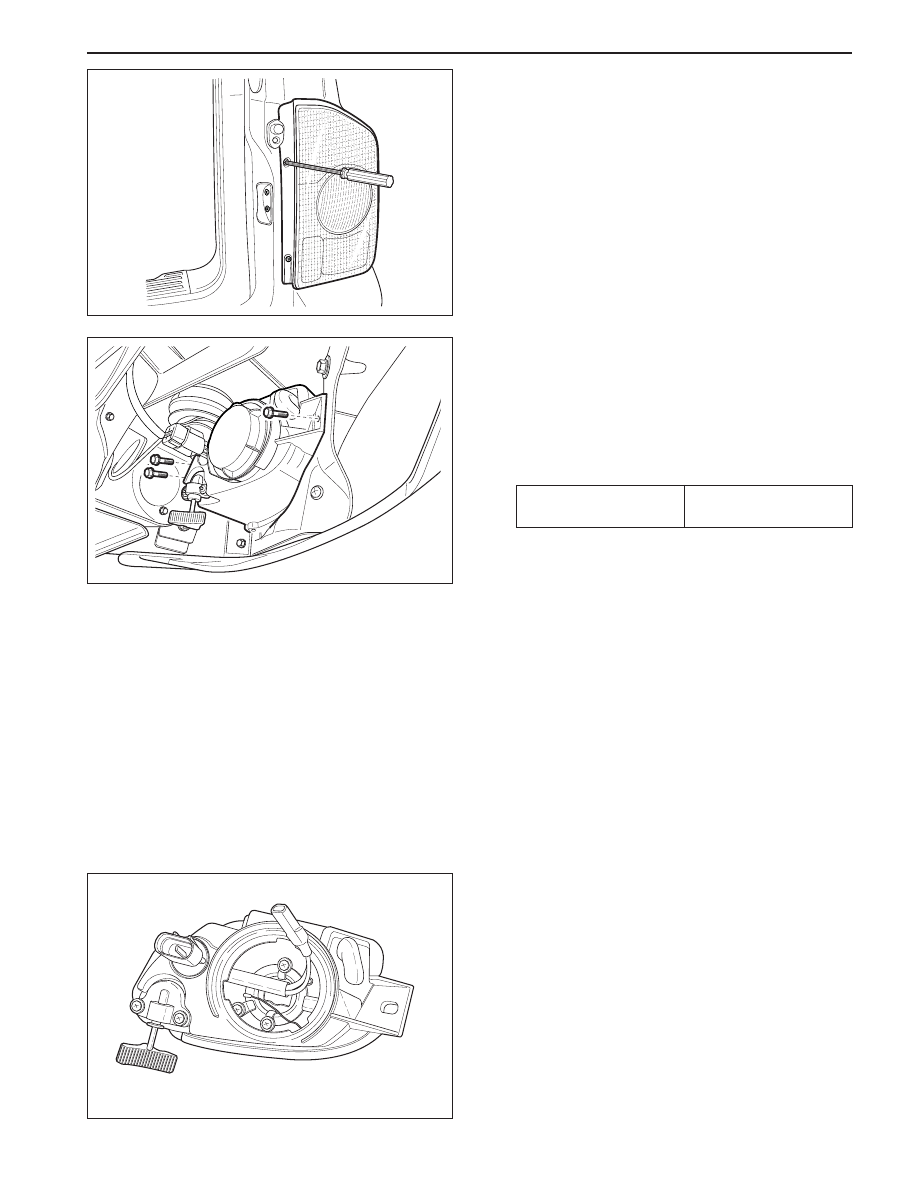

REAR COMBINATION LAMPS

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the screws and the lamp assembly

3. Remove any inoperative bulb.

4. Installation should follow the removal procedure

in the reverse order.

KAA9B100

FOG LAMPS

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the bolts that secure the fog lamp

assembly

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

3. Remove the fog assembly.

4. Disconnect the fog lamp assembly electrical

connector.

Tightening Torque

5 - 9 N•m

 (44 - 80 lb-in)

KAA9B110

5. Remove the fog lamp dust cover.

6. Remove the locking clip.

7. Remove the bulb fromthefog lamp assembly.

8. Disconnect the bulb electrical connector.

9. Installation should follow the removal procedure

in the reverse order.

SSANGYONG  MY2002

9B-18  LIGHTING SYSTEM

KAA9B130

KAA9B140

4. Disconnect the electrical connector.

5. Remove the bulb.

6. Installation should follow the removal procedure

in the reverse order.

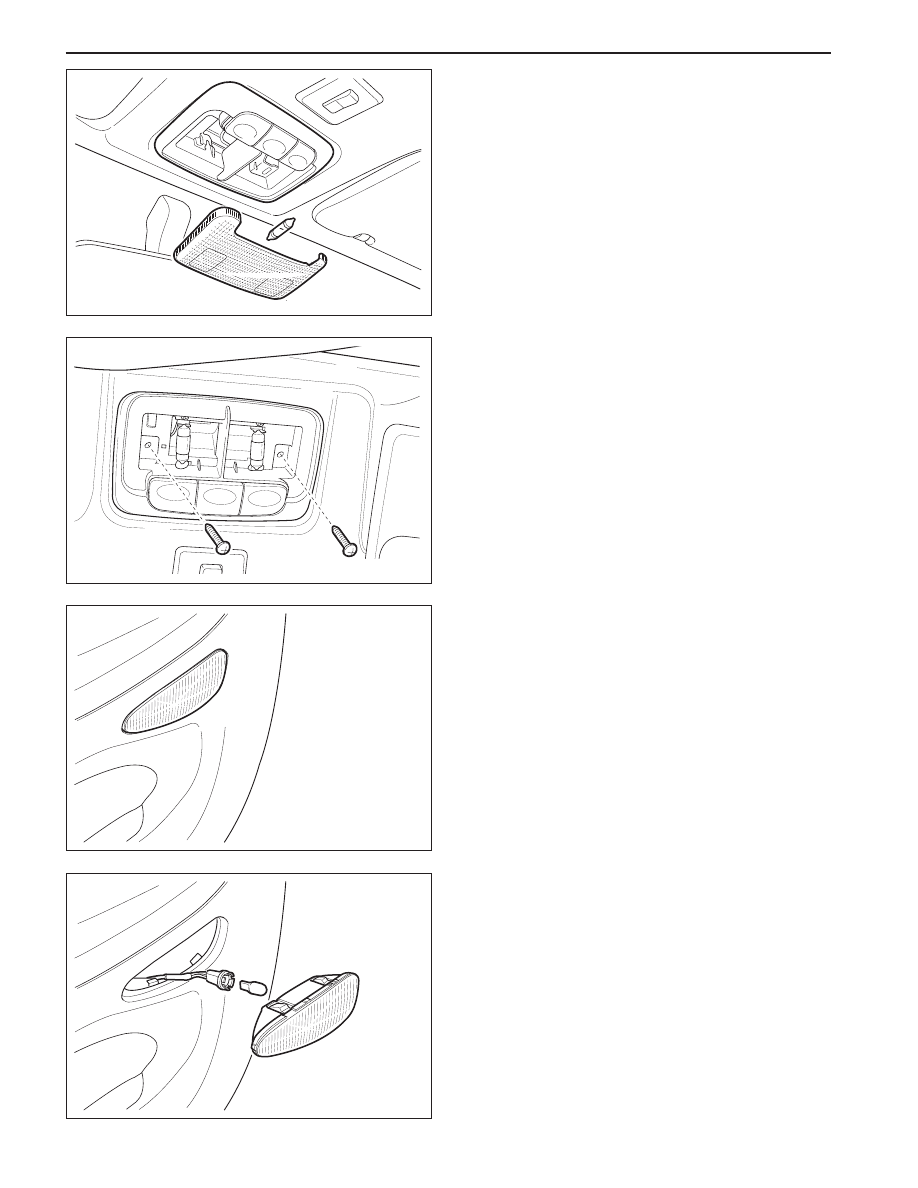

INTERIOR COURTESY LAMP

(Front Room Lamp Shown, Center Room
Lamp Similar)

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Pry off the room lamp lens by inserting a screw

driver into the recess along the edge of the lens.

3. Remove the screws and the room lamp housing

from the headliner.

KAA9B160

3. Disconnect the electrical connector.

4. Remove the bulb.

5. Installation should follow the removal procedure

in the reverse order.

KAA9B150

DOOR COURTESY LAMP

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Pry off the door courtesy lamp assembly by

inserting a flat driver.

LIGHTING SYSTEM  9B-19

SSANGYONG  MY2002

KAA9B170

KAA9B180

4. Disconnect the electrical connector.

5. Remove the bulb.

6. Installation should follow the removal procedure

in the reverse order.

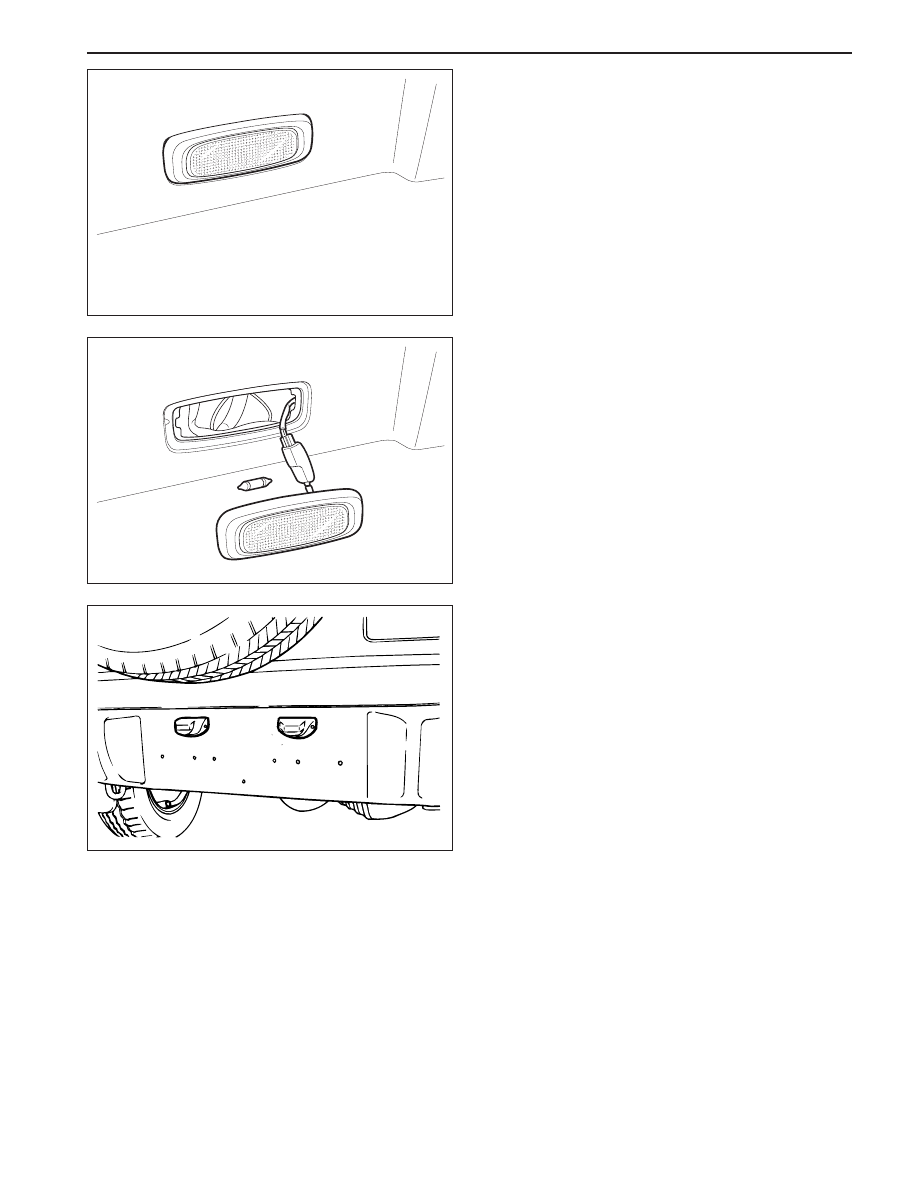

LUGGAGE LAMP

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Open the tail gate.

3. Pry off the luggage lamp assembly by inserting a

flat driver.

KAA9B120

LICENSE PLATE LAMPS

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the screws and the license plate lamp

assembly.

3. Remove the license plate lamps

4. Installation should follow the removal procedure

in the reverse order.
