SsangYong Actyon Sports II. Manual - part 93

02-59

8710-01

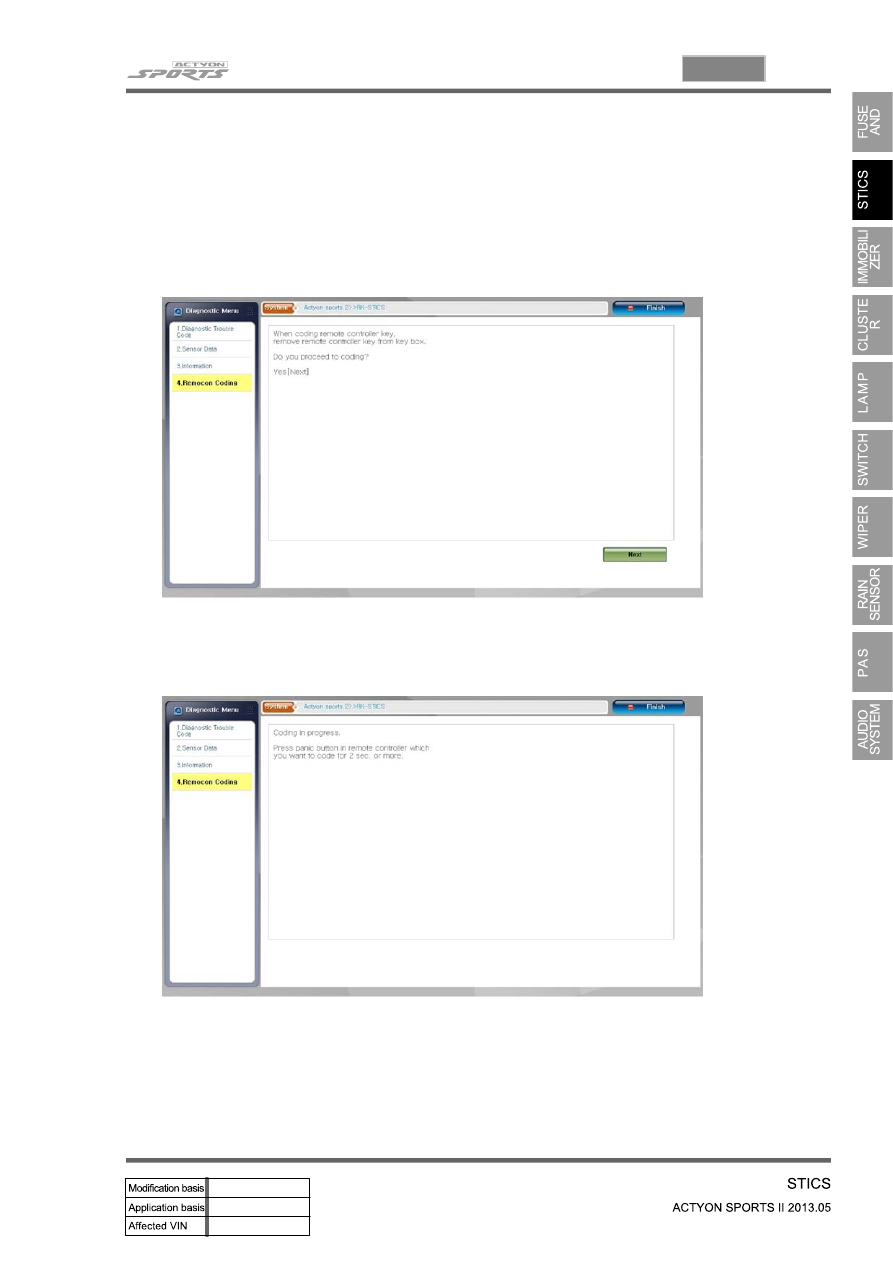

4) How to Code REKES Key

If you replace the REKES key or immobilizer key to new one, you should code the REKES key using the

diagnostic device. (maximum 5)

Connect the diagnostic device to the vehilce and select the vehicle type and system (RK-STICS).

When the following screen is displayed, select 'REMOCON CODING'.

1.

Remove the remote control key from the ignition key box and press 'Next'. Press the door UNLOCK

(PANIC) button on the remote control key once (for approx. 2 seconds or longer).

2.

02-60

When you code newly purchased remote control key:

When you lost the remote control key and purchase a new one, if you code only the newly

purchased one, the existing remote control key becomes unavailable. You must code the newly

purchased remote control key together with the existing one.

-

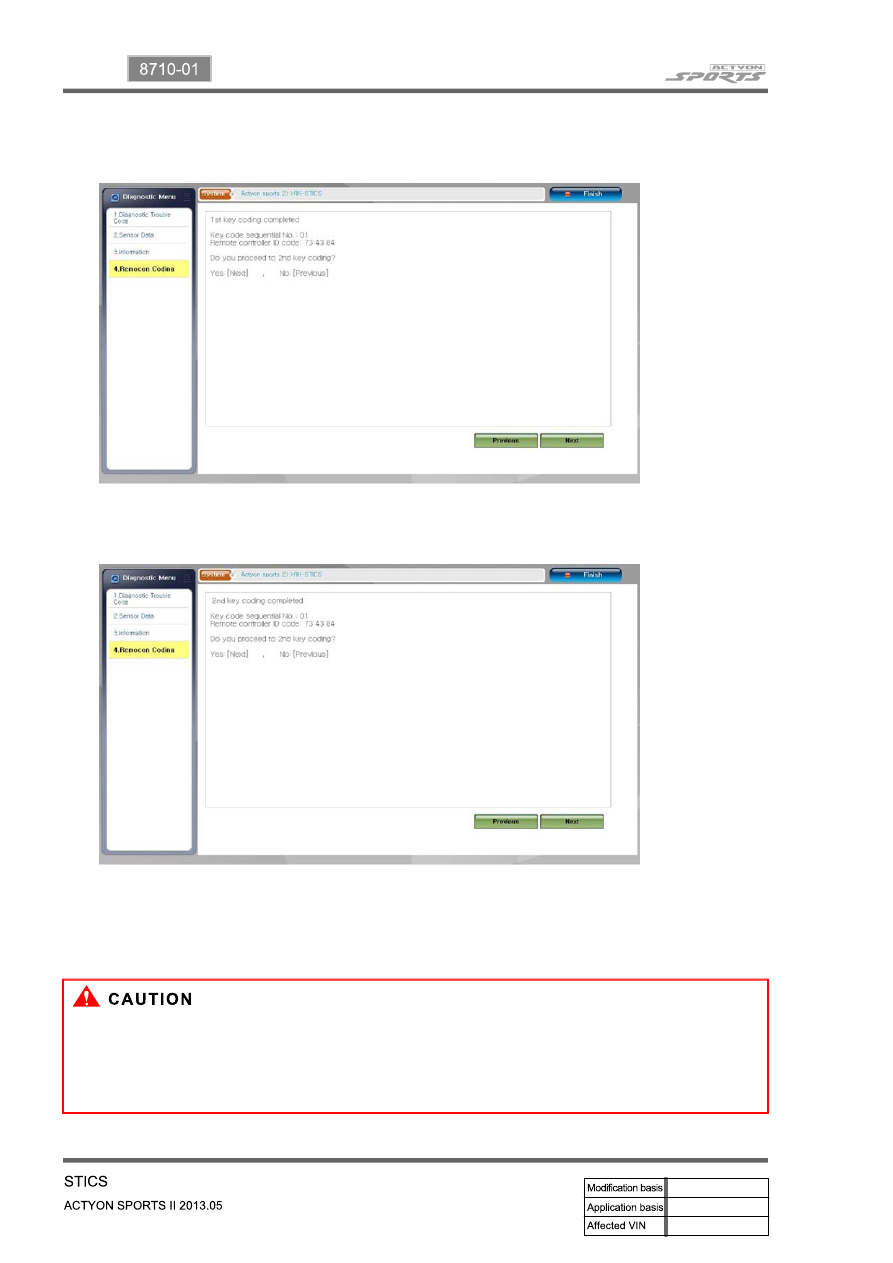

The first key coding completion screen is displayed with beep sound as follows: Press 'Next' and

perform the second remote control key coding in the same way.

  3.

When the second key coding is completed, the following screen is displayed. Finish the remote

control key coding by pressing 'Previous'.

  4.

Exit the diagnostic screen, remove the device from the diagnostic connector and perform the

function test for the remote control key. If it does not work well, perform the above procedures again.

  5.

02-61

0000-00

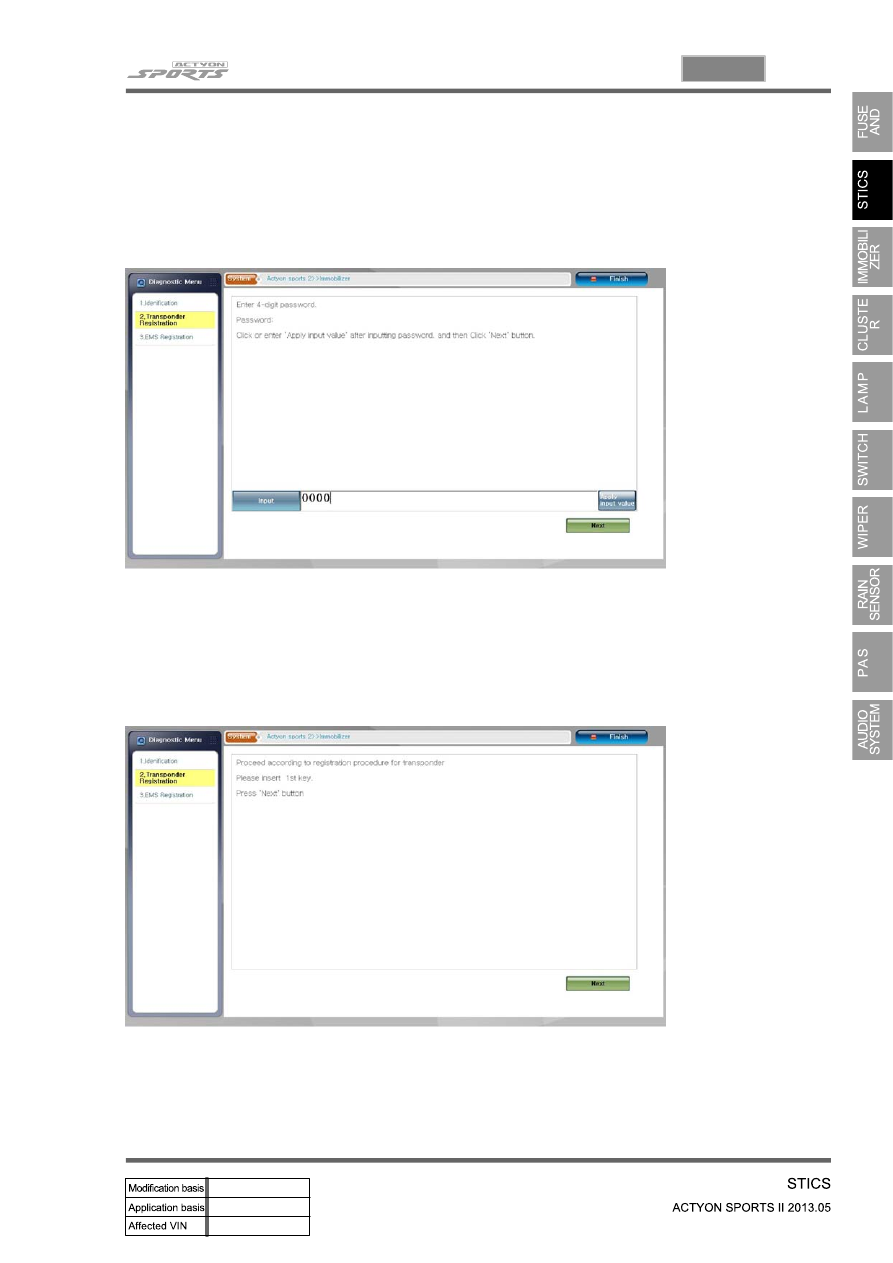

5) How to Register Transponder

Insert the ignition key into the key cylinder and turn it to the "ON" position.

Select the vehicle type and system (immobilizer) on the diagnosis program.

Select the Transponder registration menu and enter the password. (initial value is "0000") Select "Next".

1.

2.

3.

Press "Next" with the first key in key box.

4.

02-62

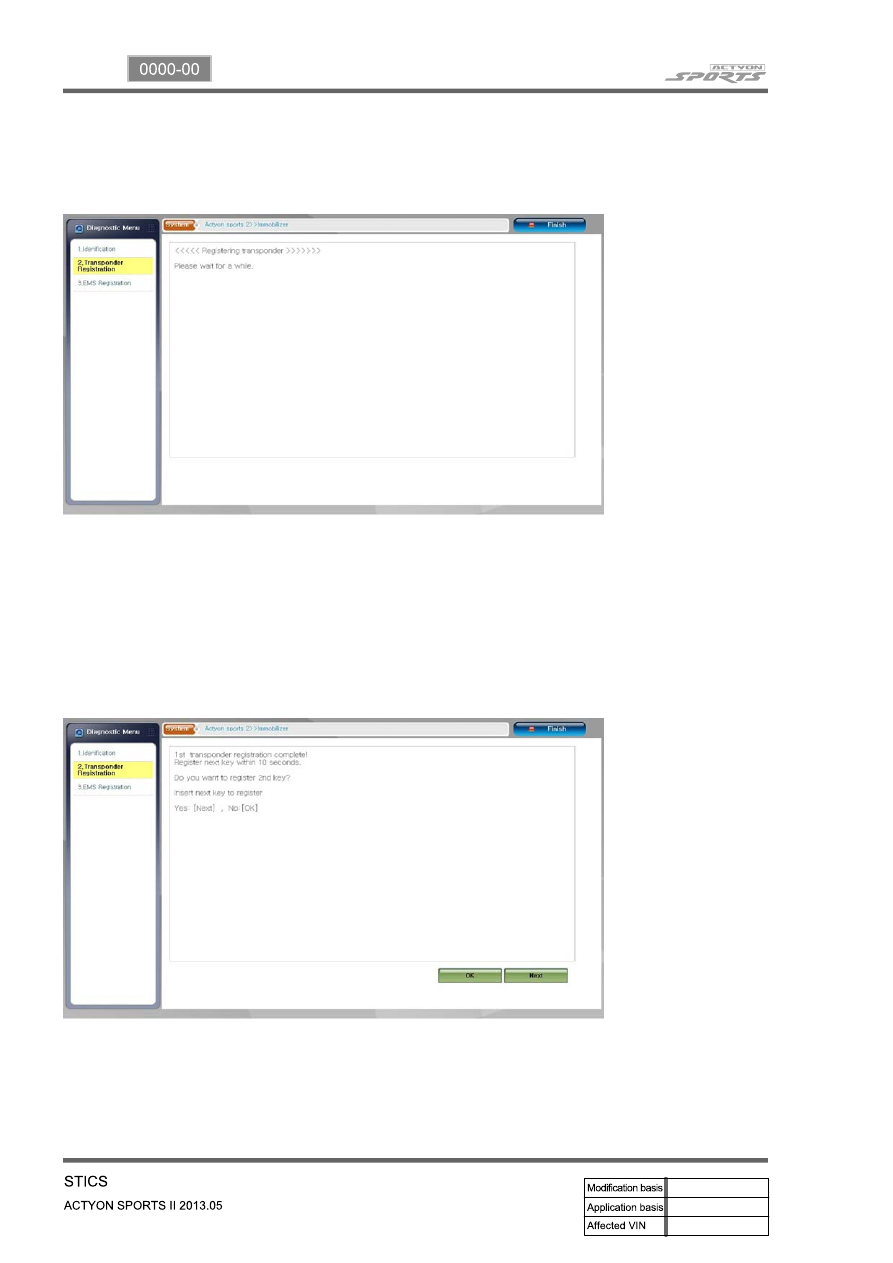

Check the progress.

5.

If another key should be registered additionally, insert the second key into the key cylinder and press

"Next" within 10 seconds since the first transponder coding is complete.

6.
