Specification of Receiver

▶

Operating requirements

1.

You should remove the ignition key.

-

Code registration requirement

2.

You can register the code only using the diagnostic device.

-

Transmitter code registration

3.

You can register up to 5 transmission codes to the remote control key.

The receiver does not output the received code during registration.

Connect the device to the diagnostic terminal.

The code can be registered only by the panic signal from the transmitter.

(Other switches (LOCK/UNLOCK) can't code.)

a.

b.

c.

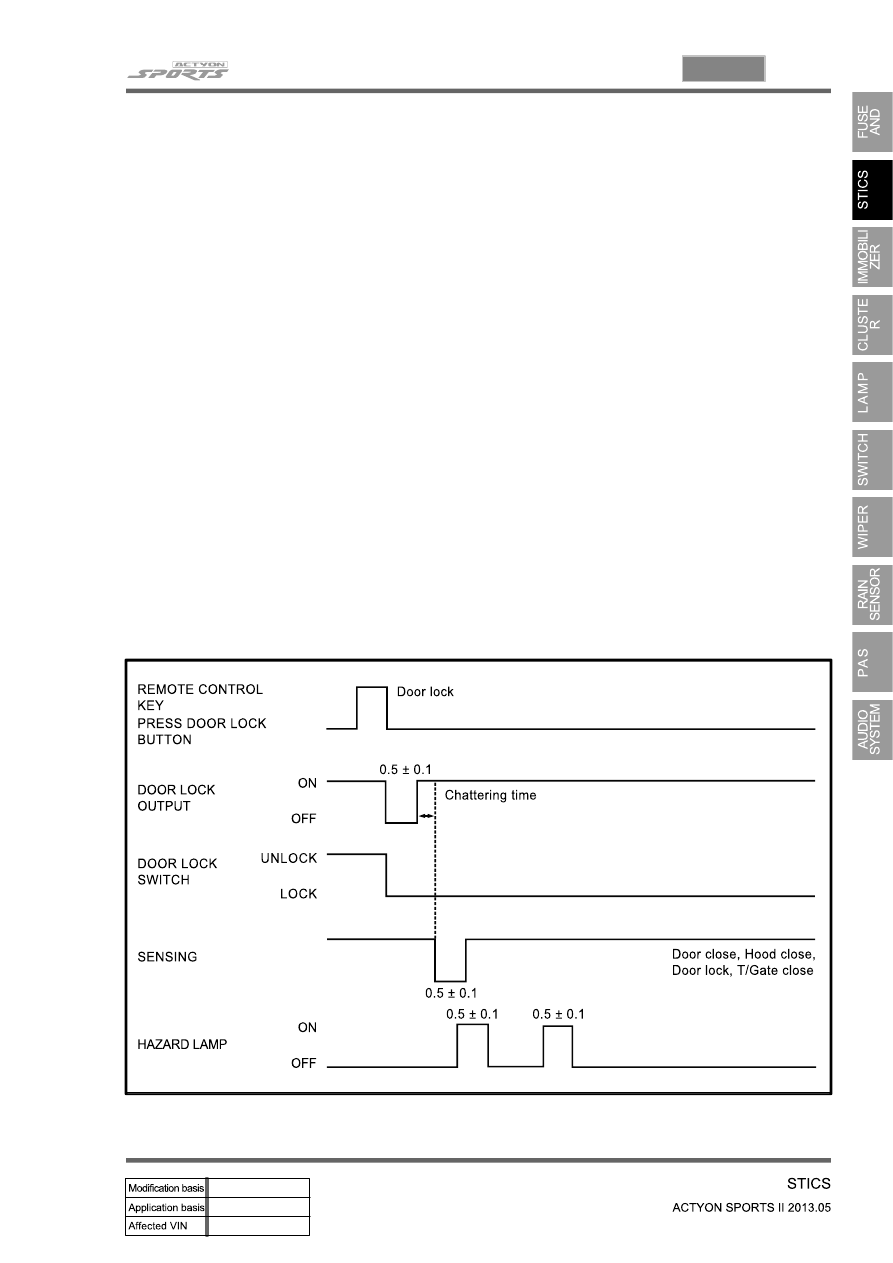

Remote Door Lock

▶

All doors are locked when briefly pressing the door LOCK burron on remote control key (less than

0.5 seconds).

The system outputs LOCK signal immediately after receiving the door lock message from the

remote control key. The system activates the theft deterrent mode when all doors are locked while

they are fully closed (the hazard warning lamps blink twice.).

1.

2.

02-52

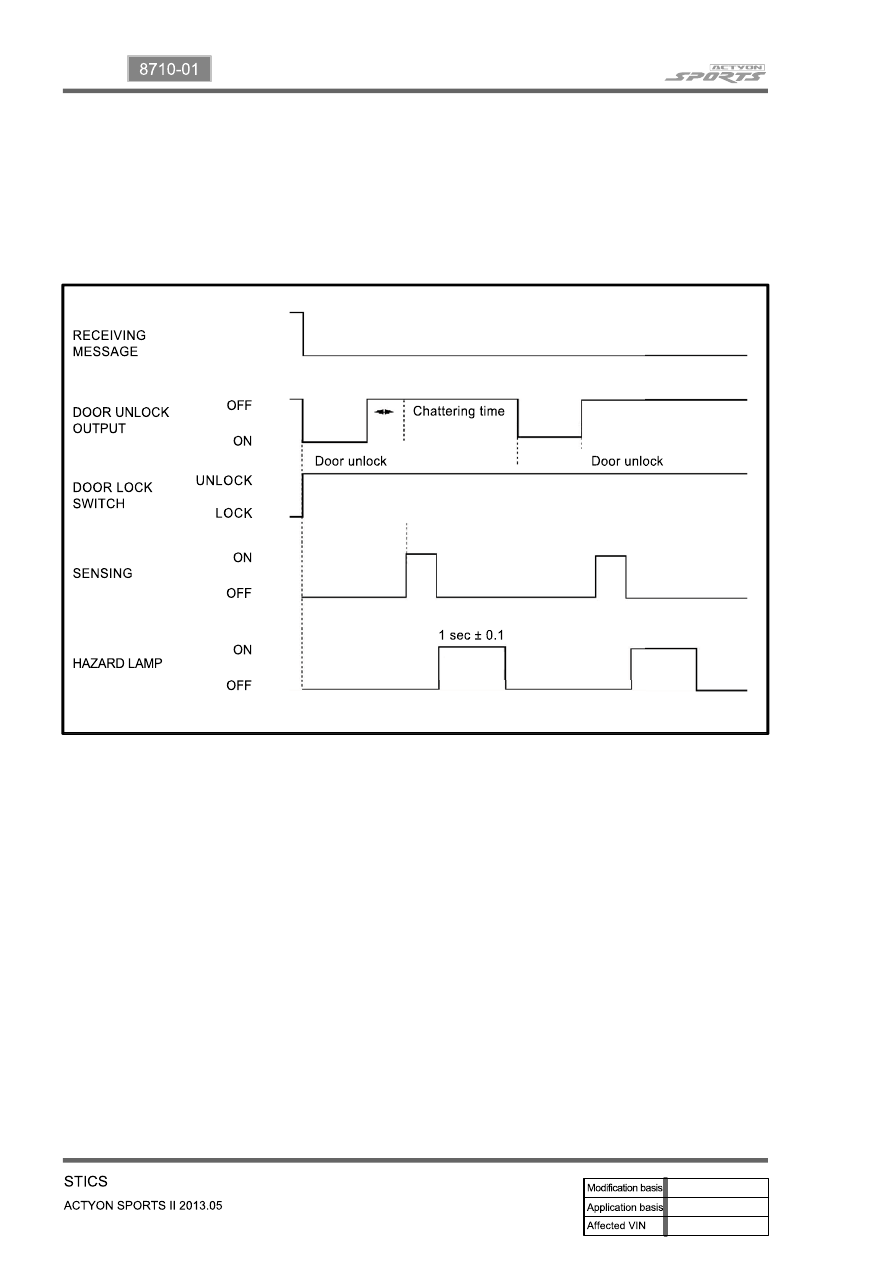

Door Unlock

▶

The door unlock operates when pressing the door switch on the remote control key for longer than

0.5 seconds.

The door unlock relay is "ON" for 0.5 seconds when receiving the door unlock message from the

remote control key.

The hazard warning lamps blink once only when all the doors unlocked successfuly.

1.

2.

3.

02-53

8710-01

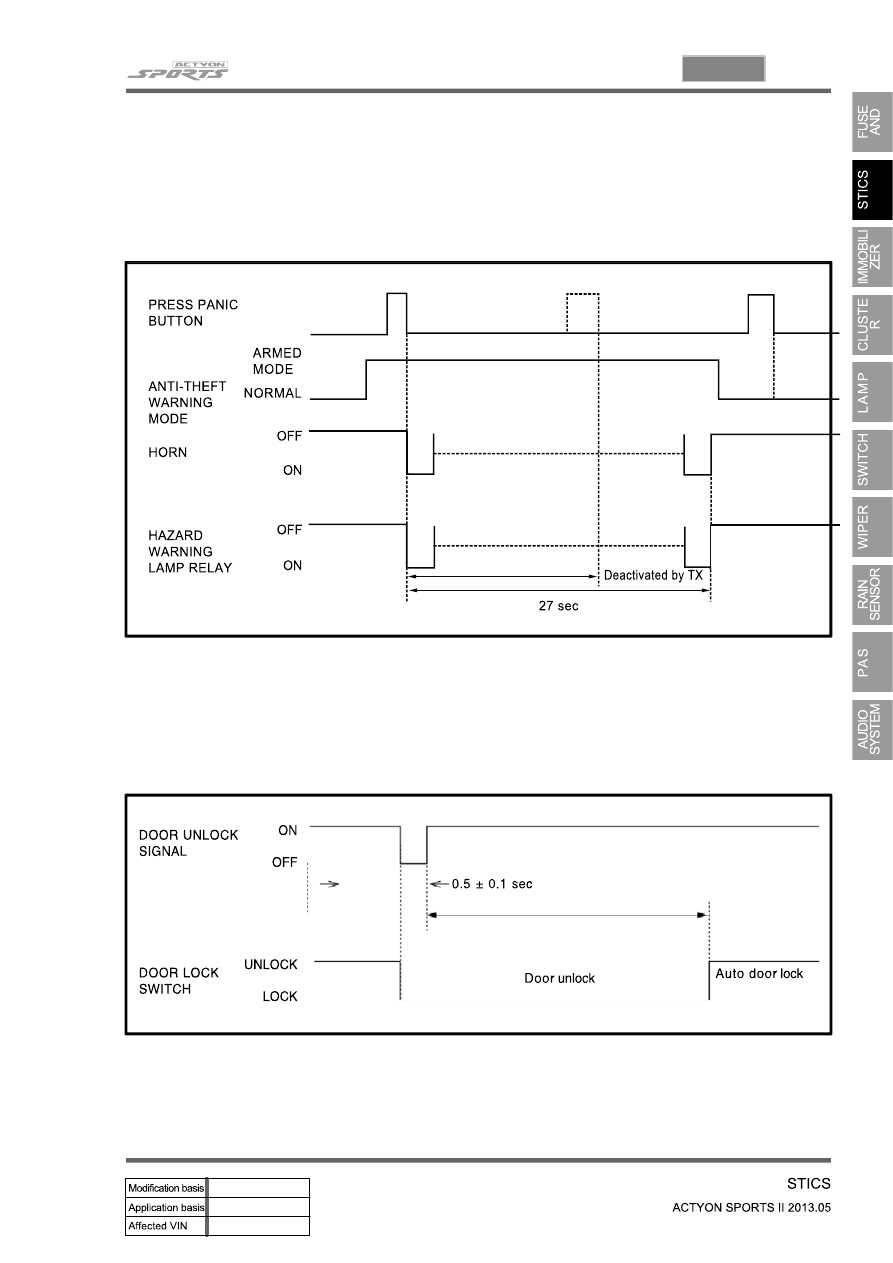

Remote Panic

▶

If you press and hold the door UNLOCK and PANIC button (more than 2 seconds) on the remote

control key, the panic function is activated.

The vehicle activates the panic alarm by using the horn and hazard warning lamp for 27 seconds

when receiving the panic message from the remote control key.

1.

2.

Auto Door Lock in 30 Seconds after Pressing Door Unlock Button

▶

If no door is opened for 30 seconds after inputting remote door unlock, the doors are automatically

locked and the armed mode of anti-theft system is activated again (RELOCK function).

1.

02-54

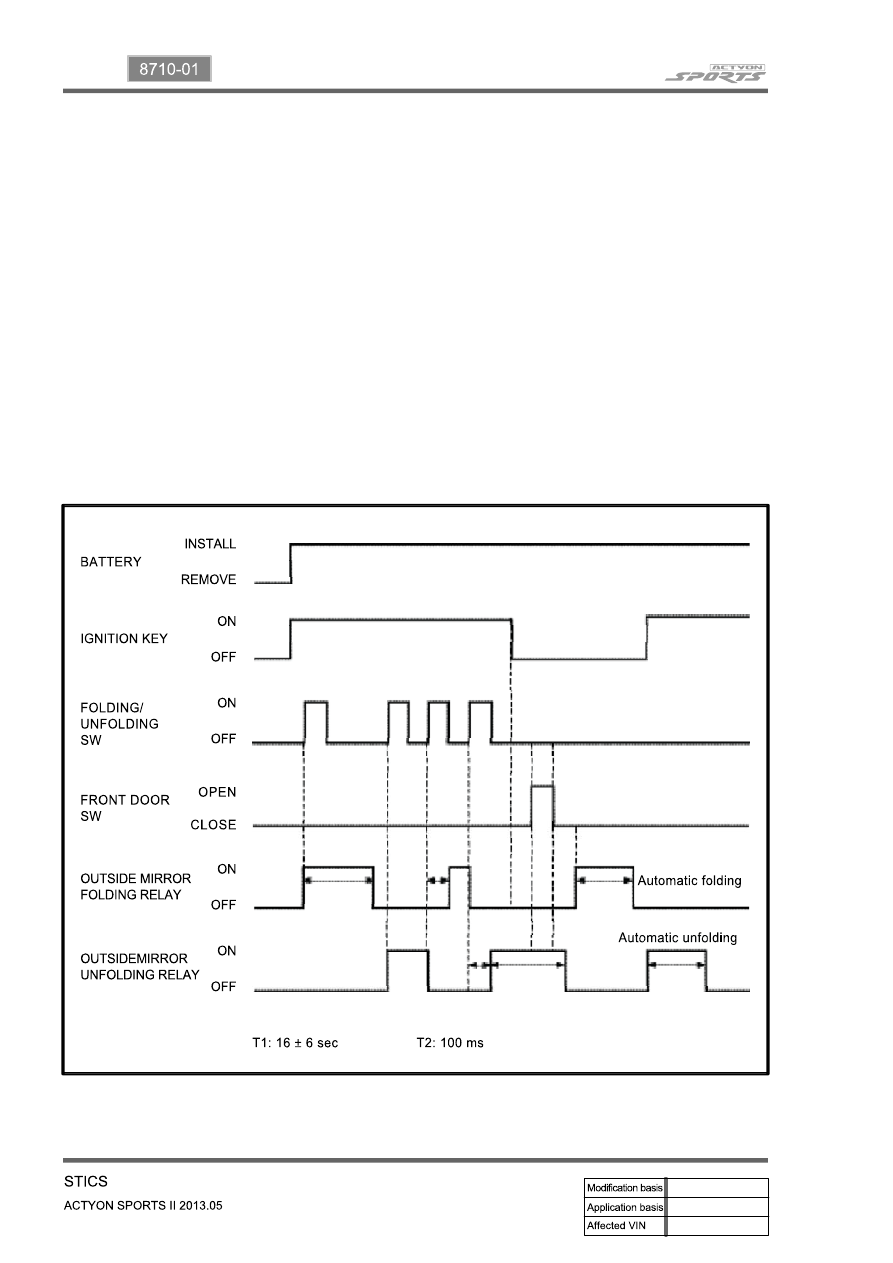

Outside rearview mirror folding/unfolding control

▶

If you press the folding/unfoling switch with the ignition switch in "ON" position, the outside rearview

mirror is folded or unfolded depending on the previous status. At this time, folding/unfolding outputs

are maintained for about 15 to 17 seconds.

Even though the ignition switch is turned to "OFF" position during folding/unfolding output, the output

continues on for remaining time.

When removing and refitting the battery, the first switch input folds the mirror.

If you turn the ignition switch to the "OFF" from "ON" position, operating time is extended by 60

seconds. Unlikely the previous model, opening the front door does not affect the extension time.

(i.e., opening/closing the front door is irrelevant)

If the unfolding input is received from the switch during folding output or the folding input is received

during unfolding output, the existing output stops and new output is activated after the delay time of

about 0.1 second.

When the vehilce speed is above 50 km/h with the mirror unfolded, even though the folding signal is

received it is overridden.

(folding is possible only at vehicle speed of less than 50 km/h )

1.

2.

3.

4.

5.

6.
