02-55

8710-01

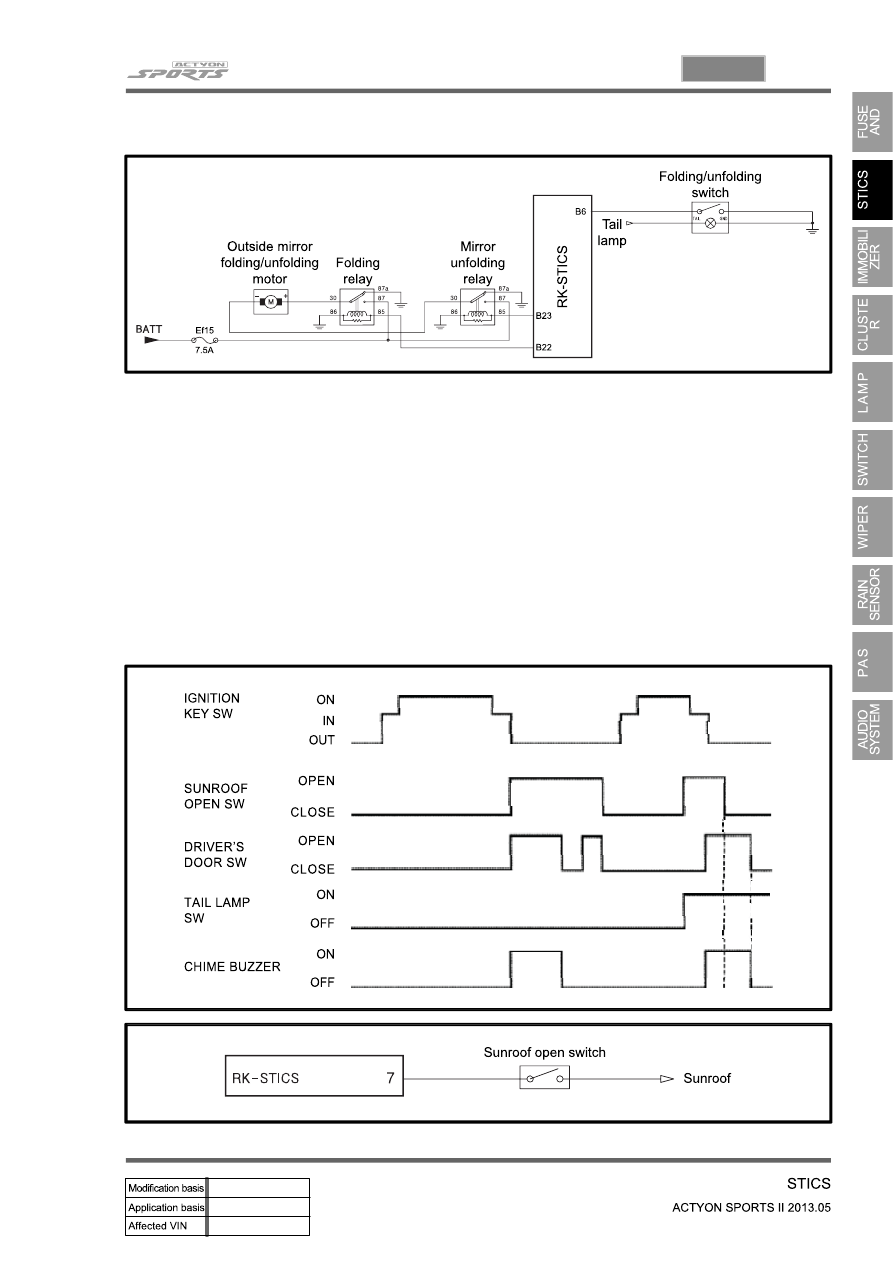

STICS Outside Rearview Mirror Folding/Unfolding Control Circuit

▶

If you remove the ignition switch and open the driver's door with the sunroof open, the chime buzzer

sounds.

As soon as you close the driver's door or the sunrooof, the chime buzzer output stops.

However, when operating conditions in step (1) are met after the operation in step (2), the chime

buzzer will not sound again. If you turn the ignition swtich to the "ON" position again and the

operating contions in step (1) are met, the chime buzzer sounds again.

If the operating condtions for door ajar warning and sunroof open warning are met at the same time,

the sunroof open warning is activated preferentially.

1.

2.

3.

4.

In order to prevent the driver from getting off the vehicle with the sunroof open, the reminder function for

the driver is added. This function is activated as follows:

Sunroof open warning

▶

02-56

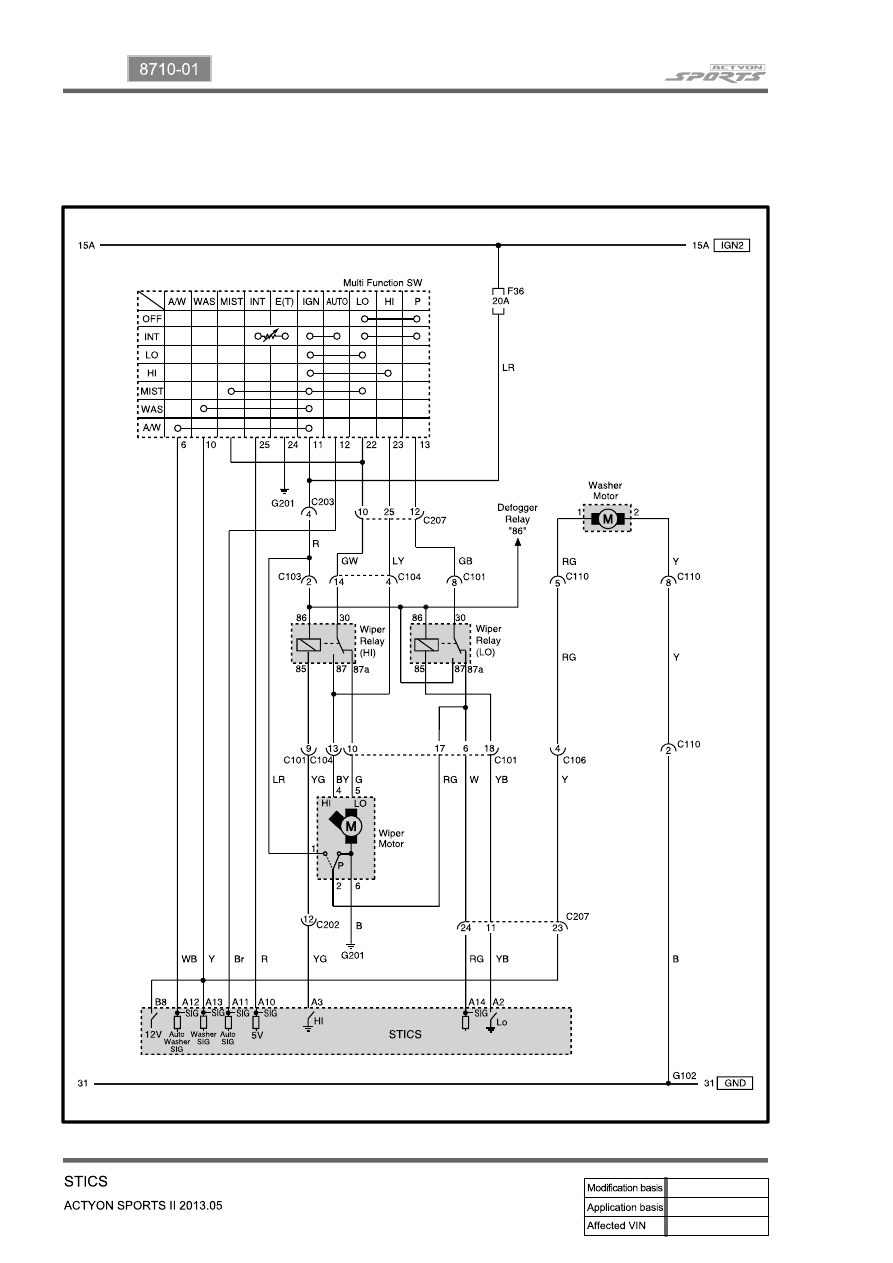

FRT wiper / washer

▶

3. CIRCUIT DIAGRAM

02-57

8710-01

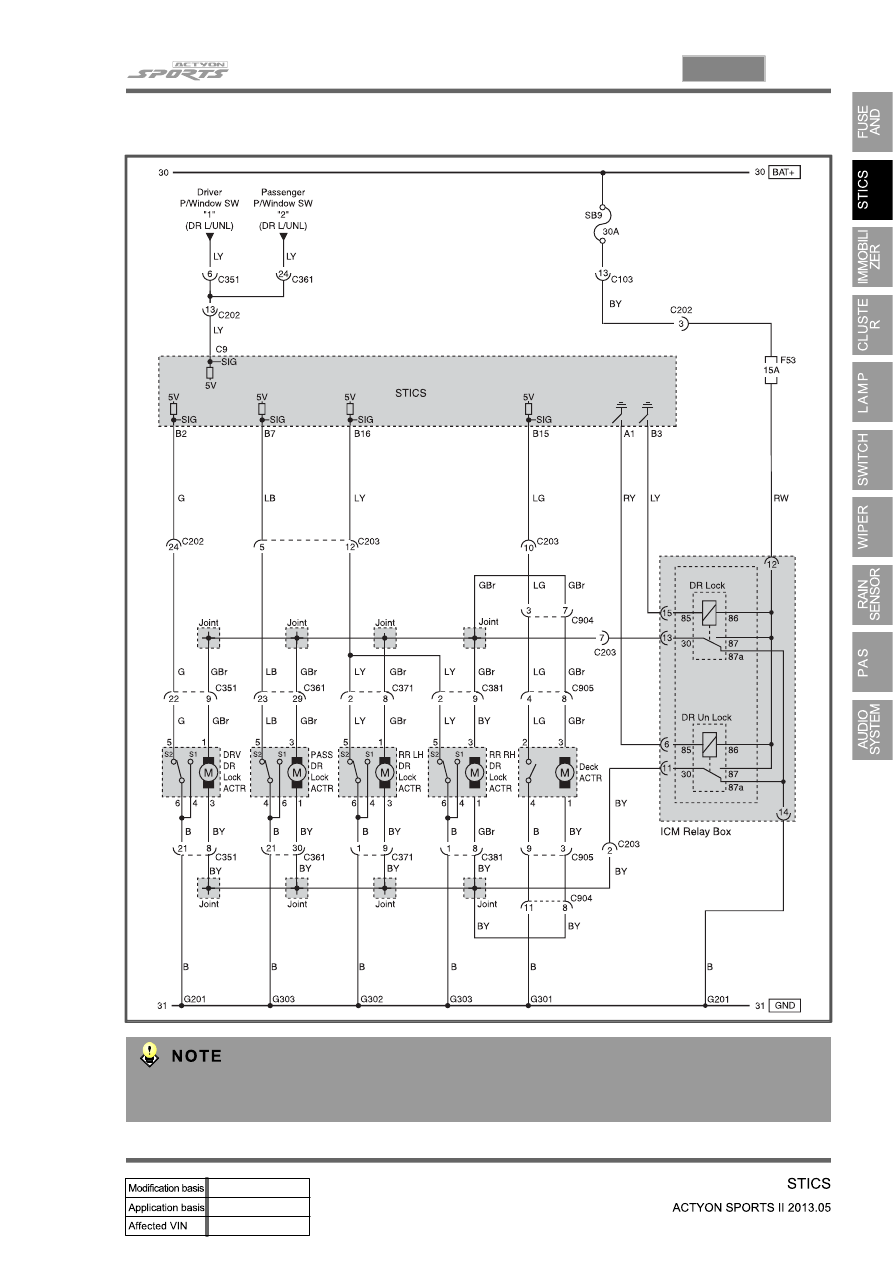

Central Door Lock Circuit

▶

The door ajar warning lamp in the instrument cluster does not come on even though the tailgate is

opened.

02-58

You can register up to 2 transmission codes to the remote control key.

The receiver does not output the received code during registration.

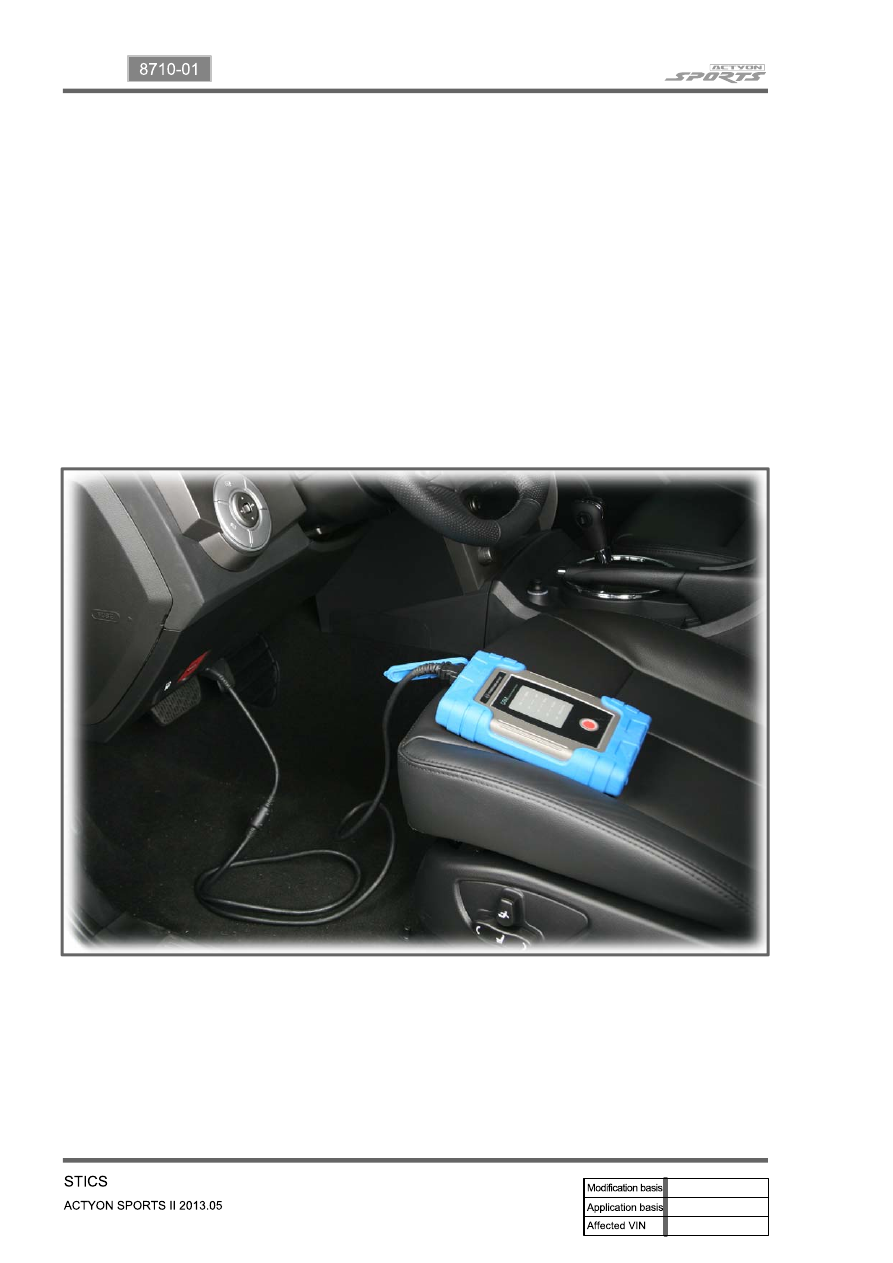

The remote control key should be coded using the diagnostic device.

a.

b.

c.

1) Operating requirements

You should remove the ignition key.

2) Code registration requirement

You can register the code only using the diagnostic device.

3) Transmitter code registration

4. REKES Key Coding
