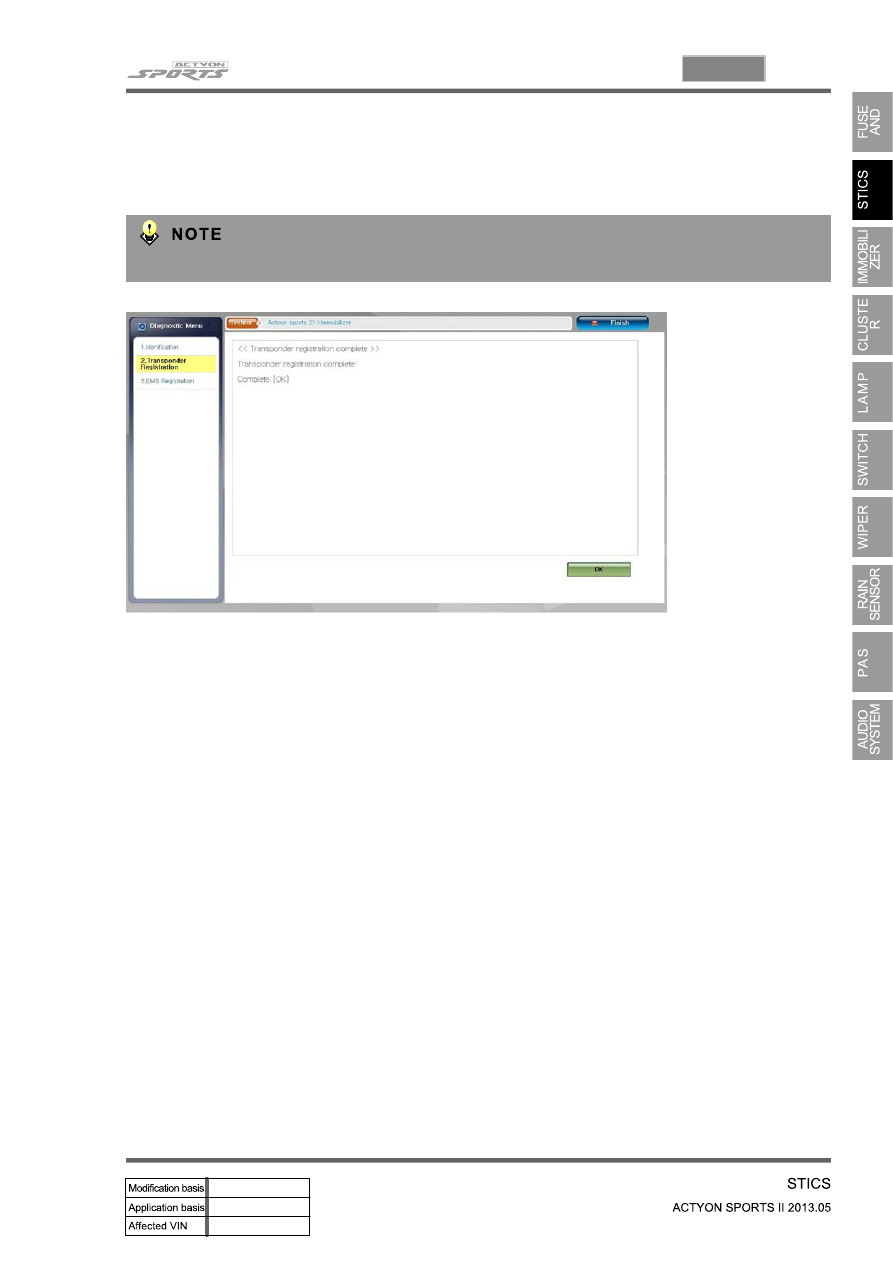

Press "OK" button when the registration is complete.

7.

If the registration fails, press "Previous" button and perform the registration procedures again.

02-64

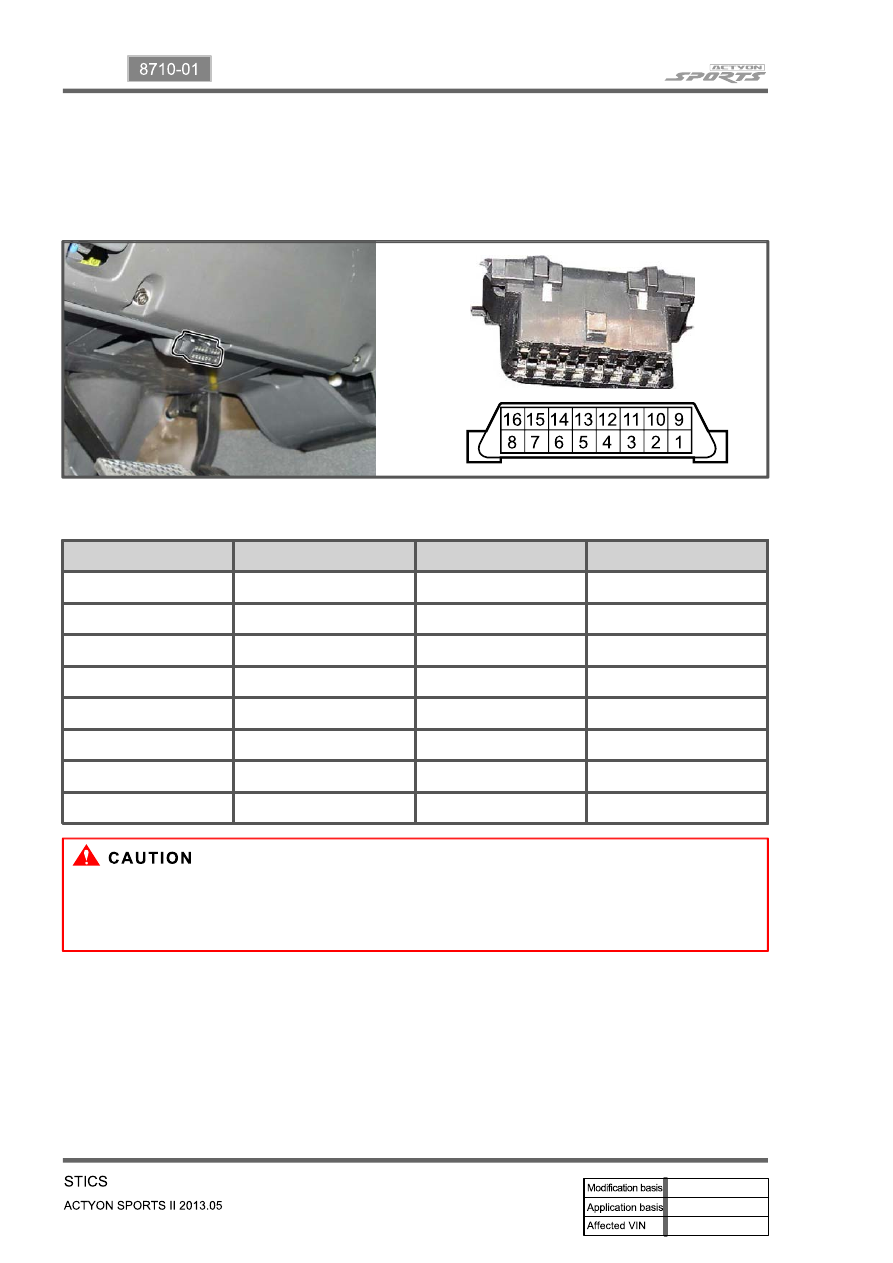

6) Pin Arrangement of Diagnostic Connector

Diagnosis connector is installed at the lower driver side instrument panel and it consists of 16 pins.

REKES key coding should be done using the diagnostic device.

▶Fuction For Each Terminal

Pin No.

Function

Pin No.

Function

1

-

9

Air bag

2

-

10

-

3

STICS "C1"

11

TCU(6AT)

4

Ground

12

SSPS Unit

5

Signal ground

13

TCCU

6

CAN - HIGH

14

CAN - LOW

7

GSL ECU

15

STICS "B21"

8

-

16

Battery +

The REKES key coding is not performed by connecting the REKES coding terminal (No. 15) of the

diagnostic connector to the jump wire between the ground terminals.

(possible only diagnostic device)

03-3

7010-06

ECU

REKES key

Diagnostic connector

1. SYSTEM CONFIGURATION

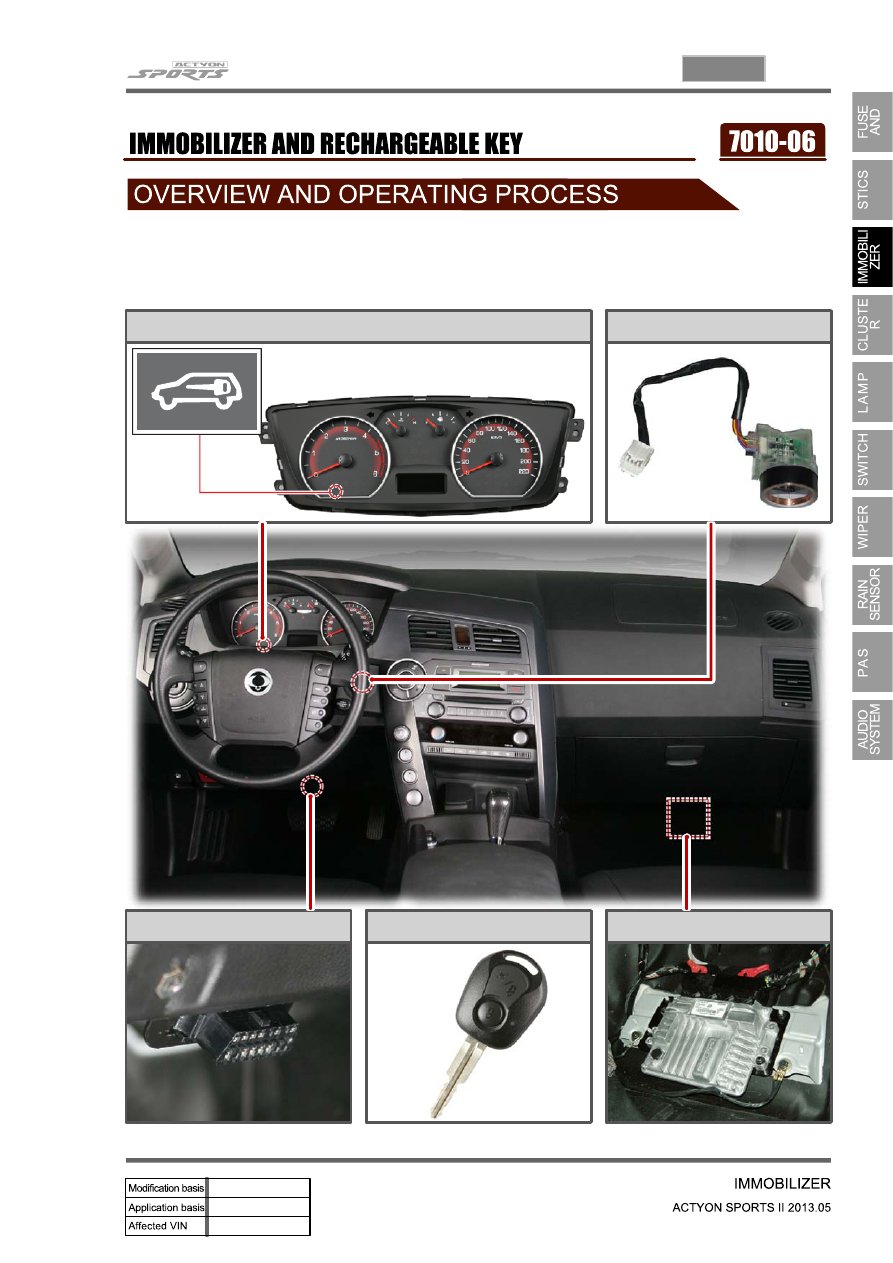

1) Components and Locations

Immobilizer warning lamp in instrument panel

Immobilizer unit

03-4

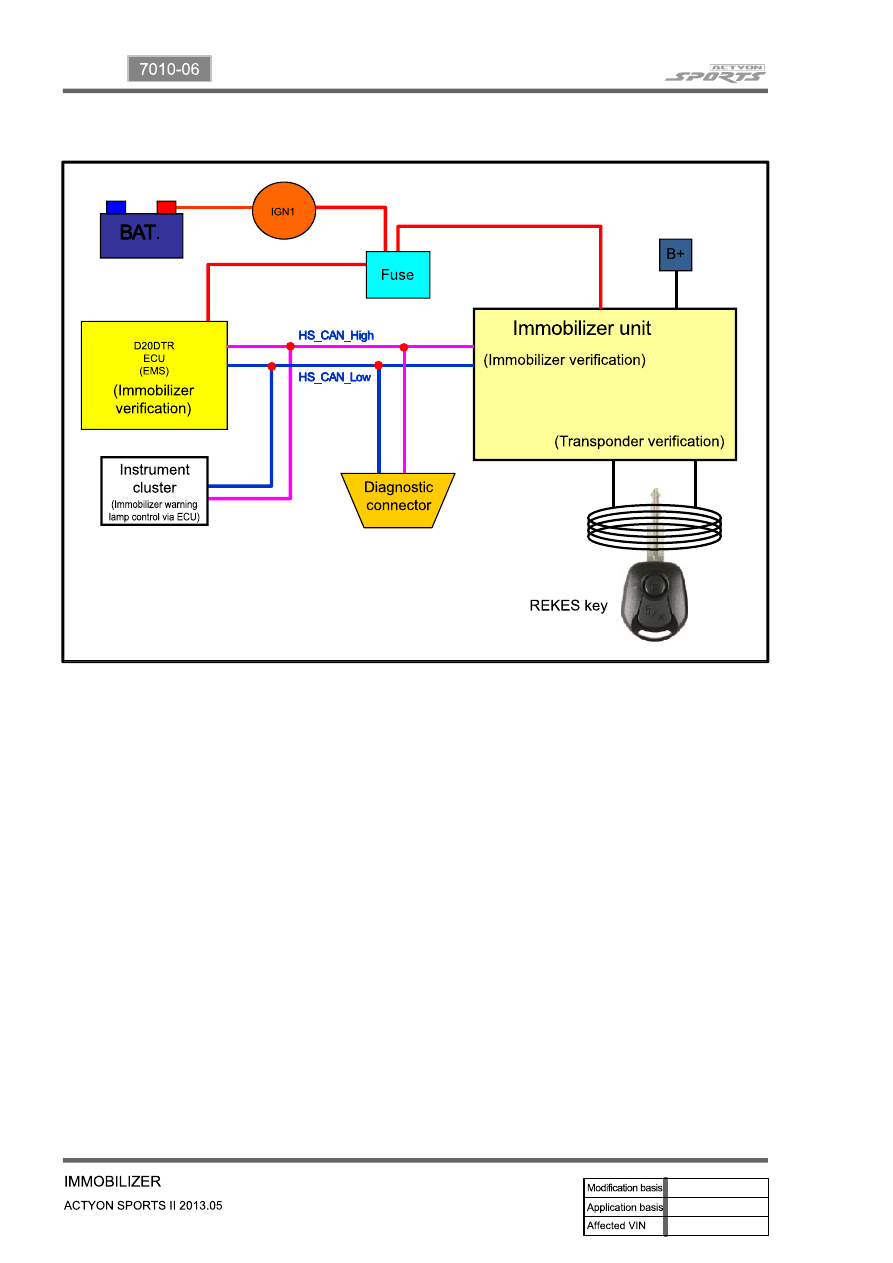

2) System Diagram

The certification for the immobilizer is performed when turning the ignition switch to the "ON" position after

the CAN communication between the ECU and immobilizer is established.
