Renault Zoe (2024 year). Manual in english - page 12





parking distance control.............................

(up to the end of the DU)

driving ........................................................

(up to the end of the DU)

reversing sensor ........................................

(up to the end of the DU)

2.63

ENG_UD74756_5

Aide au parking (X10 - Renault)



Parking distance control

PARKING DISTANCE CONTROL

(1/7)

Operating principle

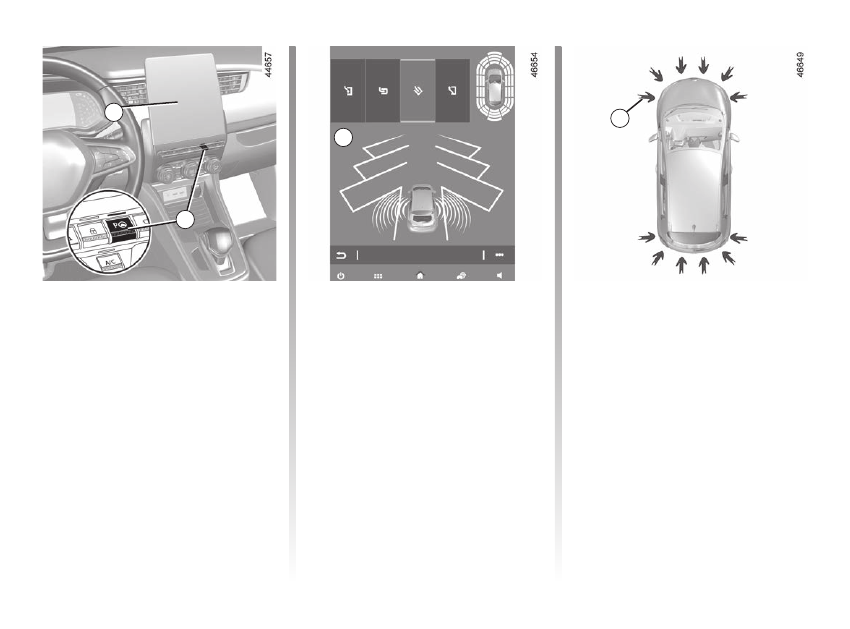

Ultrasonic sensors, indicated by



arrows

1

, are fitted in the bumpers to

measure the distance between the ve-

hicle and an obstacle.

Depending on the vehicle, the system

detects obstacles to the front, the rear

and the sides of the vehicle.
The parking distance control system

is only activated when the vehicle is

driven at a speed below approximately

6 mph (10 km/h).
This measurement is indicated by

beeps which become more frequent the

closer you come to the obstacle, until

they become a continuous beep when

the vehicle is approximately 20 to

30 centimetres from the obstacle.

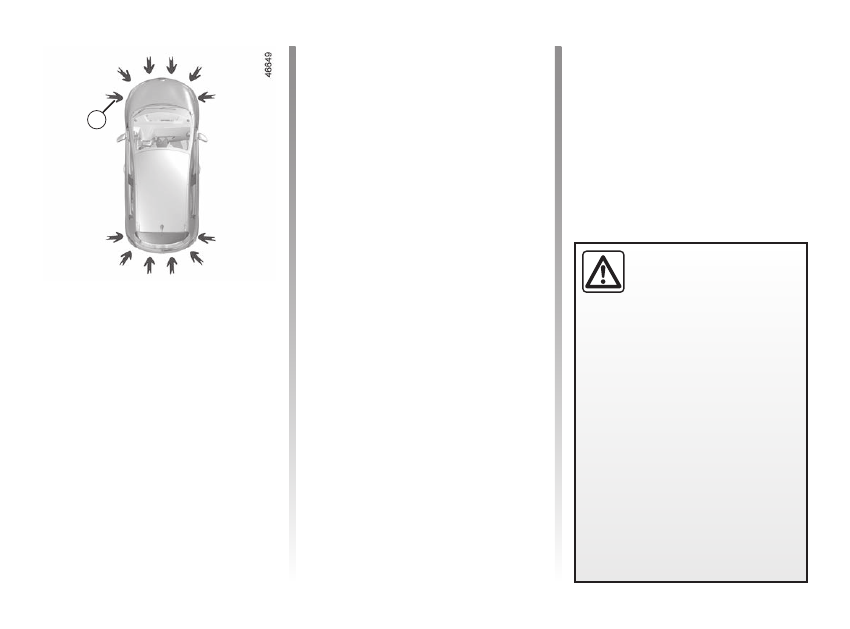

Location of the ultrasonic

sensors 1

Ensure that the ultrasonic sensors indi-

cated by the arrows

1

 are not obscured

(by dirt, mud, snow, a badly fitted/at-

tached number plate, etc.), impacted,

modified (including paintwork) or ob-

structed by any accessory fitted to the

rear and/or, depending on the vehicle,

to the front or sides of your vehicle.

1

This function is an addi-

tional driving aid.
Under no circumstances

should it replace the driv-

er’s care or responsibility whilst re-

versing.
The driver should always be ready

for sudden incidents while driv-

ing: always ensure that there are

no small, narrow moving obstacles

(such as a child, animal, pushchair,

bicycle, stone, post, etc.) in the blind

spot when manoeuvring.

display .......................................................

(current page)

2.64

ENG_UD74756_5

Aide au parking (X10 - Renault)



PARKING DISTANCE CONTROL

(2/7)

Operation

Most objects located less near the

front, rear and sides of the vehicle are

detected.
Depending on the distance of the ob-

stacle, the frequency of the beep will

be higher while approaching it, and

will become a continuous beep around

20 cm away for obstacles to the sides,

and around 30 cm for obstacles to the

front or rear. Depending on the vehicle,

the green, orange (or yellow depending

on the vehicle) and red zones will be

displayed on the

C

 display.

C

A

B

2

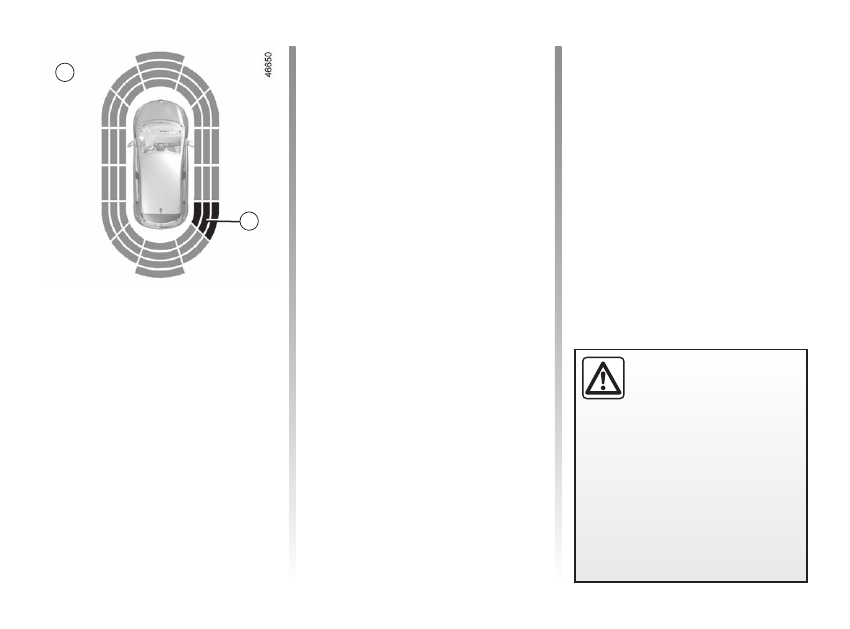

Vehicle fitted with a navigation

system
Note:

 the display

2

 shows the vehicle

surroundings and emits beeps.

It is necessary to travel a few metres

before the side detection is activated.

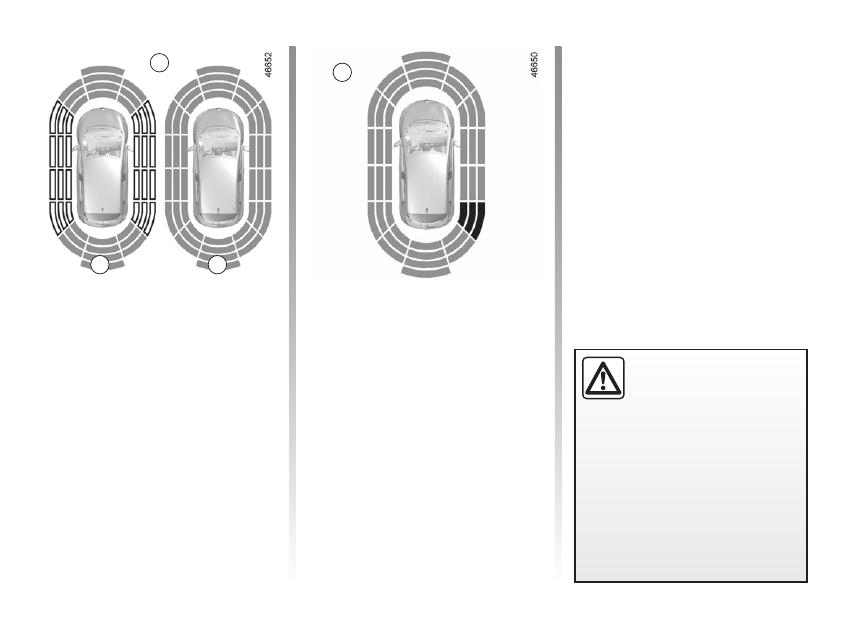

If all areas have a grey background, the

whole area around the vehicle is being

monitored:

–

A

: analysis of the vehicle surround-

ings in progress;

–

B

: analysis of the vehicle surround-

ings carried out.

An impact to the under-

side of the vehicle while

manoeuvring (e.g. strik-

ing a post, raised kerb or

other street furniture) may result in

damage to the vehicle (e.g. defor-

mation of an axle).
To avoid any risk of accident, have

your vehicle checked by an ap-

proved dealer.

Note:

 in the event of a change in tra-

jectory during a manoeuvre, the risk of

collision with an obstacles may be sig-

nalled late.

2.65

ENG_UD74756_5

Aide au parking (X10 - Renault)



D

Detection of obstacles to the side

(depending on the vehicle)
Depending on the direction of the

wheels, the system determines the tra-

jectory of the vehicle and notifies the

driver of any risk or otherwise of a col-

lision with an obstacle

3

 to the side of

the vehicle.

PARKING DISTANCE CONTROL

(3/7)

If a side obstacle is detected:
–  the beeps become faster and then

sound continuously as the obstacle

gets nearer. Green, orange and red

zones will be displayed on the dis-

play

D

;

–  if there is no risk of collision, no beep

will sound when approaching the ob-

stacle. Green, orange and red zones

will be displayed interspersed on the

display

D

.

Note:

 in the event of a change in tra-

jectory during a manoeuvre, the risk of

collision with an obstacle may be sig-

nalled late.

An impact to the under-

side of the vehicle while

manoeuvring (e.g. strik-

ing a post, raised kerb or

other street furniture) may result in

damage to the vehicle (e.g. defor-

mation of an axle).
To avoid any risk of accident, have

your vehicle checked by an ap-

proved Dealer.

3

2.66

ENG_UD74756_5

Aide au parking (X10 - Renault)



PARKING DISTANCE CONTROL

(4/7)

4

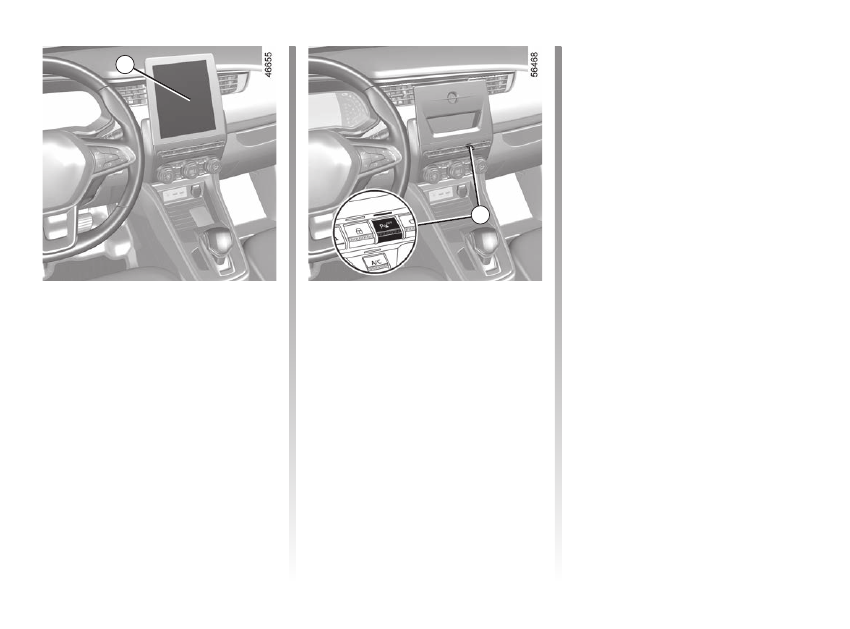

Activation/deactivation

Vehicle fitted with a navigation

system

With the vehicle stationary and the

engine running, from the multimedia

screen

4

, select the “Settings” menu,

select the “Vehicle” tab, select the

“Parking assistance” menu then select

“ON” or “OFF” to activate or deactivate

areas covered by the ultrasonic sen-

sors.

Vehicles without a navigation

system

With the vehicle stationary and the

engine running, press switch

5

 to acti-

vate or deactivate the function.

5

Setting on vehicles not fitted

with a navigation system

Depending on the vehicle, with the ve-

hicle stationary, engine running, some

settings can be adjusted from the multi-

media screen

4

.

Please refer to the multimedia instruc-

tions for further information.

Select “Settings”, “Parking assistance”.

Parking distance control audio

volume

Select “Settings”, “Parking assistance”,

“Sound”. Adjust the volume of Park

Assist by pressing “

+

” or “

-

”.

2.67

ENG_UD74756_5

Aide au parking (X10 - Renault)



PARKING DISTANCE CONTROL

(5/7)

When the vehicle is travelling at a

speed below approximately 6 mph

(10 km/h), some noises (motorcy-

cle, lorry, pneumatic drill etc.) may

trigger the beeping sound of the

parking distance control.

Operating faults

If the system detects an operating fault,

a beep sounds for approximately three

seconds each time the reverse gear is

selected and the message “Check park-

ing distance control” appears on the in-

strument panel. Check that your ultra-

sonic sensors are clean. If the message

remains, contact an approved dealer.

An impact to the under-

side of the vehicle while

manoeuvring (e.g. strik-

ing a post, raised kerb or

other street furniture) may result in

damage to the vehicle (e.g. defor-

mation of an axle).
To avoid any risk of accident, have

your vehicle checked by an ap-

proved dealer.

Setting on vehicles fitted

with a navigation system

(continued)

System sound

Enables the system sound to be



chosen. Select “Settings”, “Parking as-

sistance”, “Sound”.

Deactivating the system sound

Activate or deactivate the parking dis-

tance control sound.

Note:

 if you deactivate the sound, you

will no longer be notified with beeps

when approaching an obstacle.

Parking distance control

automatic deactivation

The system deactivates:
–  when the vehicle speed is above ap-

proximately 6 mph (10 km/h);

–  depending on the model, when the

vehicle is stationary for more than

approximately 5 seconds and an ob-

stacle is detected (such as when in a

traffic jam, etc.);

–  when you are in position

N

;

–  when an operating fault is detected.

2.68

ENG_UD74756_5

Aide au parking (X10 - Renault)



PARKING DISTANCE CONTROL

(6/7)

System servicing/repairs

–  In the event of an impact, the alignment of the sensors may be altered and their operation may consequently be affected.

Deactivate the function and consult an authorised dealer.

–  Any work in the area where the sensors are located (repairs, replacements, etc.) must be carried out by a qualified profes-

sional.

Only an authorised dealer is qualified to service the system.

System disturbance

Some conditions can disrupt or damage the operation of the system, for example:
–  poor weather conditions (rain, snow, hail, black ice, etc.);
–  in the event of exposure to strong electromagnetic waves (under high-voltage lines, etc.);
–  some types of noise (motorcycle, lorry, pneumatic drill, etc.).

Risk of false alarms or absence of warnings

In the event of the system behaving abnormally, deactivate it and consult an authorised dealer.

2.69

ENG_UD74756_5

Aide au parking (X10 - Renault)



PARKING DISTANCE CONTROL

(7/7)

Limitation of the system operation

–  The area around the sensors must be kept clean and free of any modifications in order to ensure the proper operation of the

system.

–  Small objects moving close to the vehicle (motorcycles, bicycles, pedestrians, etc.) may not be recognised by the system.
–  The system may not detect objects that are too close to the vehicle.
–  The system may not provide a warning when the other vehicles or objects are travelling at a significantly different speed.
–  During a change in trajectory, during a manoeuvre, the system may report obstacles with a delay.

Deactivating the function

You must disable the function if the sensor area has been damaged (rear bumper).

parking distance control.............................

(up to the end of the DU)

rear view camera .......................................

(up to the end of the DU)

2.70

ENG_UD81386_3

Caméra de recul (X10 - Renault)



Reversing camera

REVERSING CAMERA

(1/4)

3

C

B

A

4

2

1

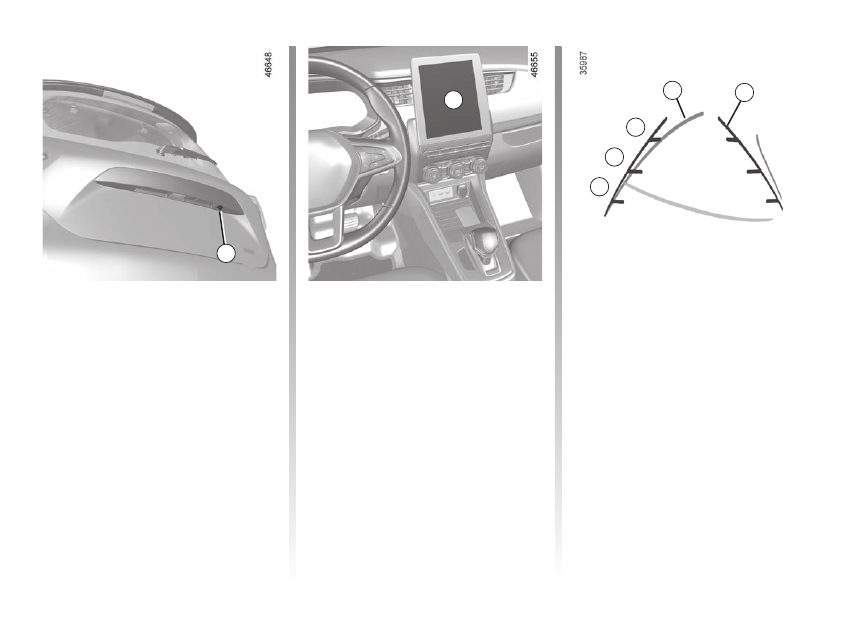

Operation

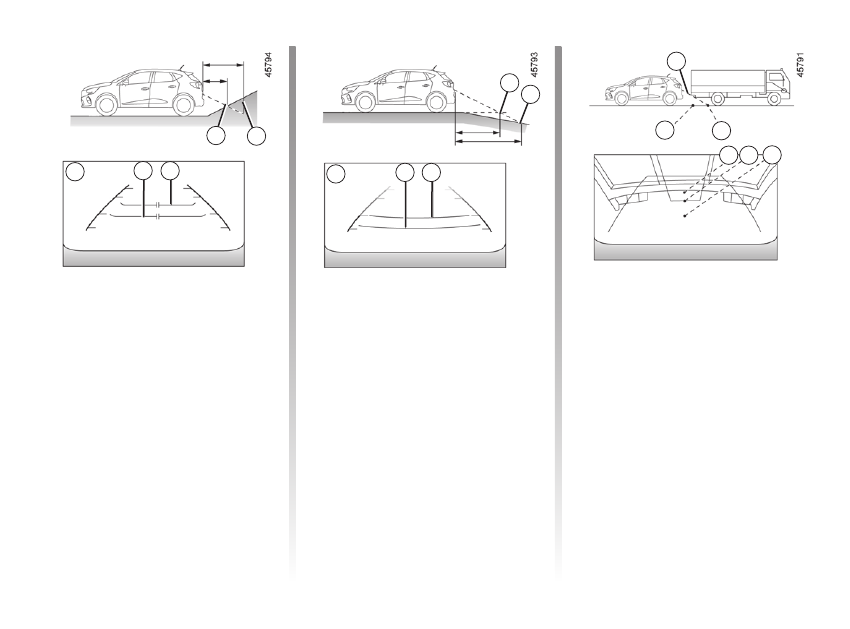

When the vehicle is reversing, the

camera

1

 on the luggage compart-

ment lid transmits a view of the area

surrounding the rear of the vehicle to

the multimedia display

2

 accompanied

by two guiding lines

3

 and

4

 (fixed and

mobile).
This system uses several guidelines for

its operation (mobile for trajectory and

fixed for distance). When the red zone

is reached, use the bumper image to

stop accurately.

Fixed clearance gauge 3

The fixed clearance gauge comprises

coloured markers

A

B

 and

C

 indicating

the distance behind the vehicle:
–

(red) approximately 30 centimetres

from the vehicle;

–

(yellow) approximately 70 centime-

tres from the vehicle;

–

(green) approximately 150 centi-

metres from the vehicle.

This gauge remains fixed and indicates

the vehicle trajectory if the wheels are

in line with the vehicle.

4 moving guide line:

This is shown in blue on the multime-

dia screen

2

. It indicates the vehicle tra-

jectory according to the position of the

steering wheel.

Special feature

Make sure that the camera is not ob-

scured (by dirt, mud, snow, condensa-

tion etc.).

2.71

ENG_UD81386_3

Caméra de recul (X10 - Renault)



REVERSING CAMERA

(2/4)

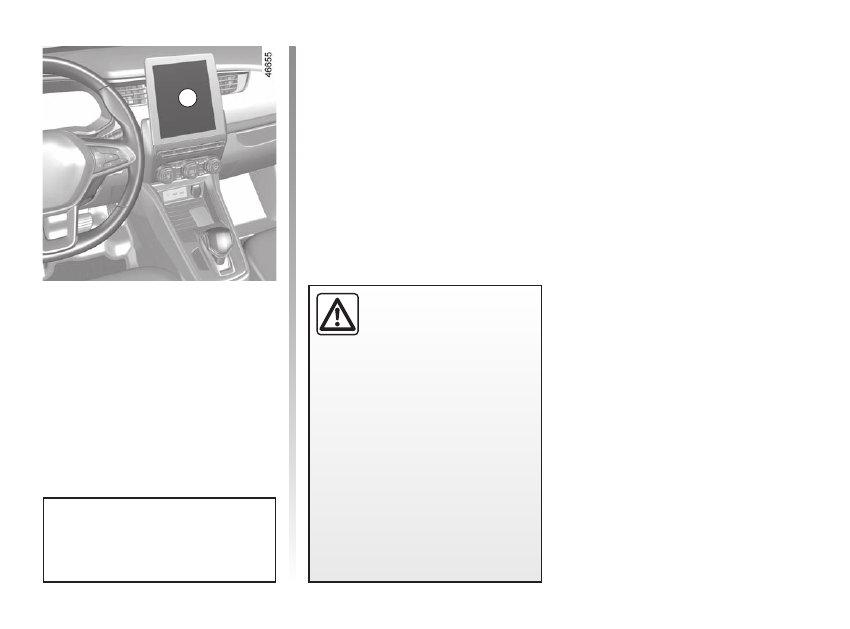

2

This function is an additional

aid. It cannot, therefore,

under any circumstances

replace the vigilance or the

responsibility of the driver.
The driver should always be ready

for sudden incidents while driv-

ing: always ensure that there are

no small, narrow moving obstacles

(such as a child, animal, pushchair,

bicycle, stone, post, etc.) in the blind

spot when manoeuvring.

Each time the vehicle is started,

the function continues the mode

saved the last time the engine was

stopped.

Activating, deactivating the

reversing camera

With the vehicle stationary and the

engine running, from the multimedia

screen

2

 you can add or remove the

guides and adjust the camera image

settings (brightness, contrast etc.).

Please refer to the multimedia instruc-

tions for further information.

2.72

ENG_UD81386_3

Caméra de recul (X10 - Renault)



The screen shows a reverse mirror

image.
The frames are a representation

projected on a flat surface. This in-

formation is to not be taken into ac-

count when superimposed on a

vertical object or an object on the

ground.
Objects which appear on the edge

of the screen may be deformed.
In very bright light (snow, vehicle in

sunshine, etc.), the camera vision

may be adversely affected.
If the boot is open or poorly closed,

the message “Tailgate open” ap-

pears and the camera display dis-

appears.

REVERSING CAMERA

(3/4)

Operating faults

When reverse gear is engaged, if the

system detects an operating fault, a

black screen is displayed temporarily

on the multimedia screen

2

.

This may be caused by a fault affecting

the camera or screen (clearness, fixed

image, delayed communication etc.).
If the temporary display of the black

screen persists, please consult an ap-

proved dealer.

2.73

ENG_UD81386_3

Caméra de recul (X10 - Renault)



REVERSING CAMERA

(4/4)

Difference between the

estimated distance and

actual distance

Reversing towards a steep uphill

slope

The fixed guidelines

3

 show the dis-

tances as closer than they actually are.
The objects shown on the screen are

actually further away on the slope.
For example, if the screen displays an

object at

D

, the actual distance of the

object is at

E

.

Reversing towards a steep downhill

slope

The fixed guidelines

3

 show the dis-

tances as further than they actually are.
Therefore, the objects shown on the

screen are actually closer on the slope.
For example, if the screen displays an

object at

G

, the actual distance of the

object is at

F

.

Reversing towards a protruding

object

Position

H

 seems further than posi-

tion

J

 on the screen. However, posi-

tion

H

 is at the same distance as posi-

tion

K

.

The trajectory indicated by the fixed

and mobile guidelines do not take into

account the height of the object. So

there is a risk that the vehicle may col-

lide with the object when reversing to-

wards position

K

.

G

E

D

F

D

E

F

G

H

K

J

H J K

3

3

parking assistance: assisted parking .........

(up to the end of the DU)

driving aids ................................................

(up to the end of the DU)

driver assistance........................................

(up to the end of the DU)

driving ........................................................

(up to the end of the DU)

assisted parking.........................................

(up to the end of the DU)

2.74

ENG_UD74982_2

Stationnement assisté (X10 - Renault)



Assisted parking

ASSISTED PARKING

(1/5)

Using ultrasonic detectors as indicated

by the

3

 arrows installed in the vehicle

bumpers, this function helps to find ac-

cessible parking spaces and assists in

the parking manoeuvre.
Remove your hands from the steering

wheel, you only control:
–  the accelerator pedal;
–  the brake pedal;
–  the gear lever.
You can retake control at any time by

operating the steering wheel.

Switching on

While the engine is running, vehicle

stationary or driving at less than ap-

proximately 19 mph (30 km/h):
–  press switch

2

.  The indicator light in

switch

2

 lights up and display

A

 ap-

pears on the multimedia screen

1

.

–  set the direction indicator to the side

of the vehicle where you want to

park.

A

Special features

Ensure that the ultrasonic sensors indi-

cated by arrows

3

 are not obscured (by

dirt, mud, snow, etc.).

3

2

1

2.75

ENG_UD74982_2

Stationnement assisté (X10 - Renault)



ASSISTED PARKING

(2/5)

Choice of manoeuvre

The system can perform four types of

manoeuvres:

–  parallel parking;

–  perpendicular parking;

–  angle parking;

– moving out of a parallel parking

space.

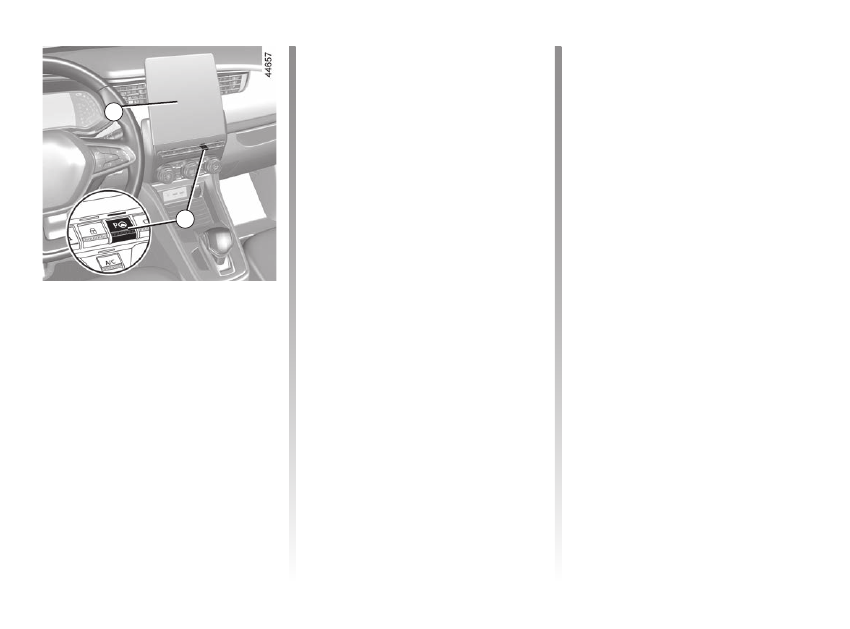

From the

1

 multimedia screen, select

the manoeuvre to carry out.

Operation

Parking

As long as the vehicle speed is less

than 19 mph (30 km/h), the system

searches for available parking spaces

on the side of the vehicle chosen by the

driver.

Note:

 if parking spaces are available

on the other side of the vehicle, set the

direction indicator to the other direc-

tion to enable the system to search for

spaces.
Once a space has been found, it is dis-

played on the multimedia screen, indi-

cated by a small letter “P”. Drive slowly,

with the direction indicators activated

on the side where the space is avail-

able, until the “Stop” message is dis-

played and a beep sounds.

Note:

 when starting the vehicle, or after

having successfully completed parallel

parking using the system, the default

manoeuvre proposed by the system is

assistance in exiting a parallel parking

space. In other cases, the default ma-

noeuvre can be set from the multimedia

screen

1

. Please refer to the multime-

dia instructions for further information.

The system start up is accompa-

nied by activation of the parking dis-

tance control and, on those vehicles

equipped, the reversing camera to

help the driver visualise the ma-

noeuvre.

 2.63,

 2.70.

2

1

2.76

ENG_UD74982_2

Stationnement assisté (X10 - Renault)



ASSISTED PARKING

(3/5)

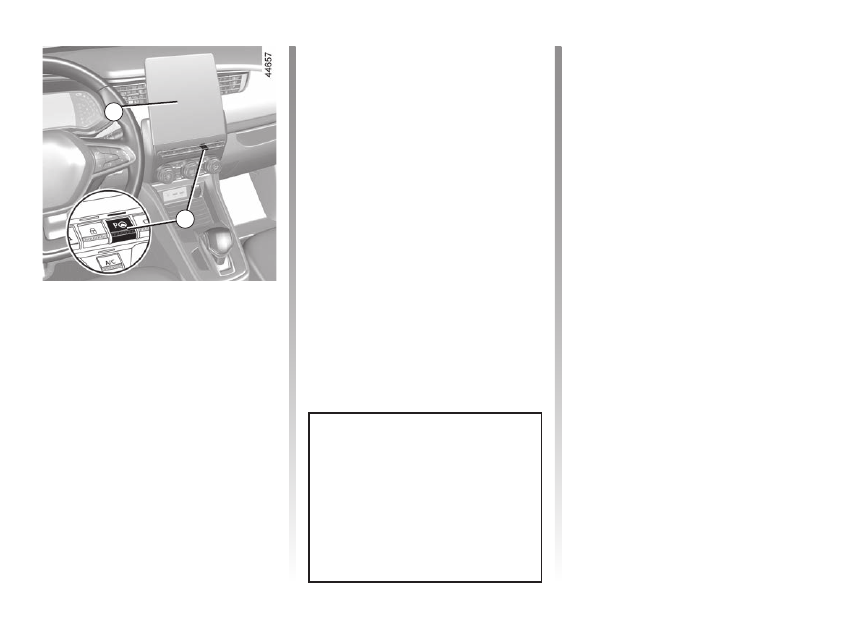

–  Release the steering wheel;
– carry out manoeuvres at the front

and rear by following the instructions

shown on the multimedia screen

1



and using the parking distance con-

trol system alerts.

Your speed should not exceed around 4

mph (7 km/h).
Once the vehicle is in a position to exit
the parking space, the

 warning

light disappears from the instrument

panel and a sound signal and message

appear on the multimedia screen

1

 to

confirm that the manoeuvre is com-

plete.

Exiting a parallel parking space

– Briefly press the

2

 switch;

– select “Exit parallel parking space”

mode;

– activate the direction indicator on the

side you wish to go out of;

– press and hold switch

2

 (approx. two

seconds).

The indicator light

 lights up

on the instrument panel and a beep

sounds.

The space is then indicated on the mul-

timedia screen by a capital letter “P”.
–  Stop the vehicle;
–  select reverse gear.

The indicator light

 lights up

on the instrument panel and a beep

sounds.
–  Release the steering wheel;
–  follow the instructions shown on the

multifunction screen

1

.

Your speed should not exceed around 4

mph (7 km/h).

Once the warning light

 on the

instrument panel goes off and a beep

sounds, the manoeuvre has been com-

pleted.

This function is an addi-

tional driving aid.
Therefore, it can under no

circumstances replace the

driver’s vigilance and responsibility

during manoeuvres (the driver must

always be ready to brake).

When manoeuvring, the



steering wheel may turn

quickly: do not put your

hands inside, and make

sure that nothing is caught inside.

2

1

2.77

ENG_UD74982_2

Stationnement assisté (X10 - Renault)



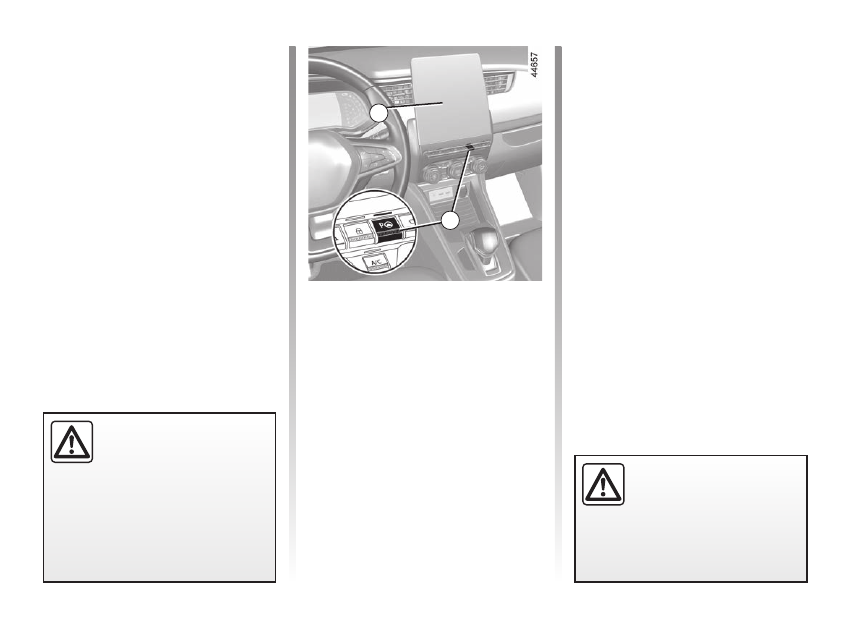

Suspending/Resuming the

manoeuvre

The manoeuvre is suspended in the fol-

lowing circumstances:
–  you take control of the wheel;
–  the vehicle is stationary for too long;
–  an obstacle in the direction of move-

ment prevents the manoeuvre from

being completed;

–  the engine stops;
–  a door or the luggage compartment

is opened.

ASSISTED PARKING

(4/5)

The warning light on the

2

 switch turns

off and the

 warning light disap-

pears from the instrument panel and a

sound signal confirms that the manoeu-

vre has been suspended. The reason

for suspending the manoeuvre will be

displayed on the multimedia screen

1

.

Make sure:
– you have released the steering

wheel;

and

–  that all doors and the boot are closed;
and

–  that no obstacles are in the way of

the direction of movement;

and

–  that the engine is started.
If the warning light on the

2

 switch

flashes, this indicates that the system

is once again available to resume the

manoeuvre.
To resume the manoeuvre, press and

hold the

2

 switch. The warning light on

the

2

 switch comes on and

 is

displayed on the instrument panel.
Follow the instructions shown on the

multimedia screen

1

.

Cancelling the manoeuvre

The manoeuvre is cancelled in the fol-

lowing cases:
–  the vehicle speed has exceeded 4

mph (7 km/h);

–  by pressing switch

2

;

–  you have performed more than ten

forwards/backwards movements in

one manoeuvre;

–  the parking distance control sensors

are dirty or blocked;

–  the vehicle wheels have skidded;
–  the manoeuvre has been suspended

for too long.

The warning light on the

2

 switch turns

off and the

 warning light disap-

pears from the instrument panel and a

sound signal confirms that the manoeu-

vre has been cancelled. The reason for

cancelling the manoeuvre will be dis-

played on the multimedia screen

1

.

2

1

2.78

ENG_UD74982_2

Stationnement assisté (X10 - Renault)



ASSISTED PARKING

(5/5)

This function is an additional driving aid. This function is not under any circumstances intended to replace the due care

and attention of the driver, who should at all times be in control of the vehicle. Make sure that the manoeuvre complies

with the applicable traffic regulations in your location.
The driver should always be ready for sudden incidents while driving: always ensure that there are no small, narrow

moving obstacles (such as a child, animal, pushchair, bicycle, stone, post, etc.) in the blind spot when manoeuvring.

System servicing/repairs

–  In the event of an impact, the alignment of the sensors may be changed and their operation may consequently be affected.

Deactivate the function and consult an authorised dealer.

–  Any work in the area where the sensors are located (repairs, replacements, exterior trim modifications, etc.) must be carried

out by a qualified professional.

Only an authorised dealer is qualified to service the system.

In the event of system disturbance

Certain conditions may disrupt or impair operation of the system, such as poor weather conditions (snow, hail, ice etc.).

In the event of the system behaving abnormally, deactivate it and consult an authorised dealer.

Risk of erroneous false alarms.

Limitations of the system operation

–  The system cannot detect objects located in the sensor blind spots.
–  Always visually check that the parking space proposed by the system is still available and contains no obstacles.















Content      ..     10      11      12      13     ..
