Renault Zoe (2024 year). Manual in english - page 13





3.1

ENG_UD82781_9

Sommaire 3 (X10 - Renault)



Section 3: your comfort

Air vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.2

Manual air conditioning  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.4

Automatic climate control   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.7

Air conditioning: programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.11

Air conditioning: information and advice on use  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.13

Multimedia equipment  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.15

Electric windows  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.16

Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.18

Passenger compartment storage, fittings  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.19

Accessories socket  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.22

Rear bench seat: functions  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.24

Rear parcel shelf  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.25

Luggage cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.26

Boot, spoiler. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.27

Transporting objects in the luggage compartment   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.28

air vents .....................................................

(up to the end of the DU)

3.2

ENG_UD57739_1

Aérateurs (sorties d’air) (X10 - Renault)



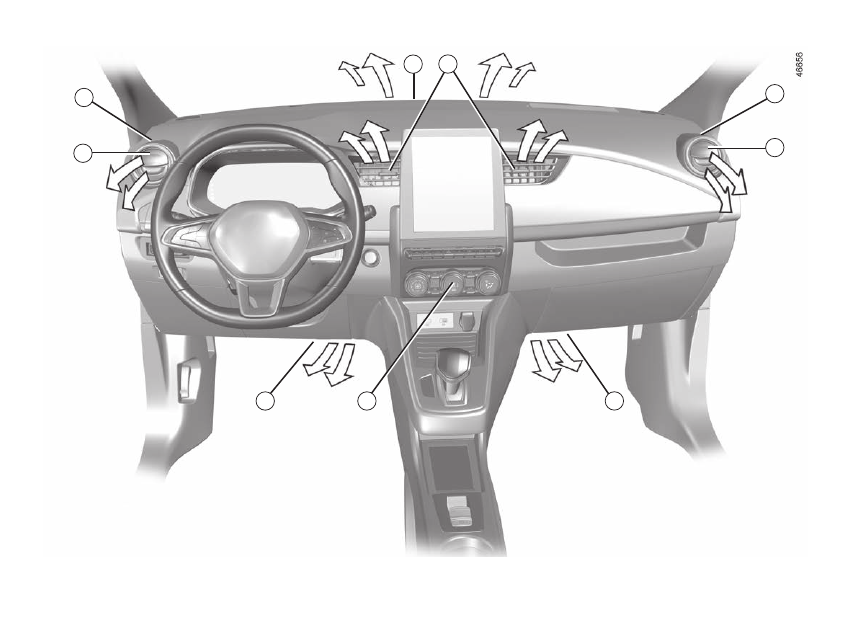

Air Vents

AIR VENTS: air outlets

(1/2)

1

  side air vent.

2

  side demister outlet.

3

  windscreen demisting vents.

4

  centre air vents.

5

  passenger footwell heater outlets.

6

  control panel.

1

1

3

5

6

5

2

2

4

3.3

ENG_UD57739_1

Aérateurs (sorties d’air) (X10 - Renault)



AIR VENTS: air outlets

(2/2)

To remove bad odours from your ve-

hicles, only use the systems designed

for this purpose. Consult an approved

Dealer.

Do not add anything to the

vehicle’s ventilation circuit

(for example, to remove

bad odours).

There is a risk of damage or of

fire.

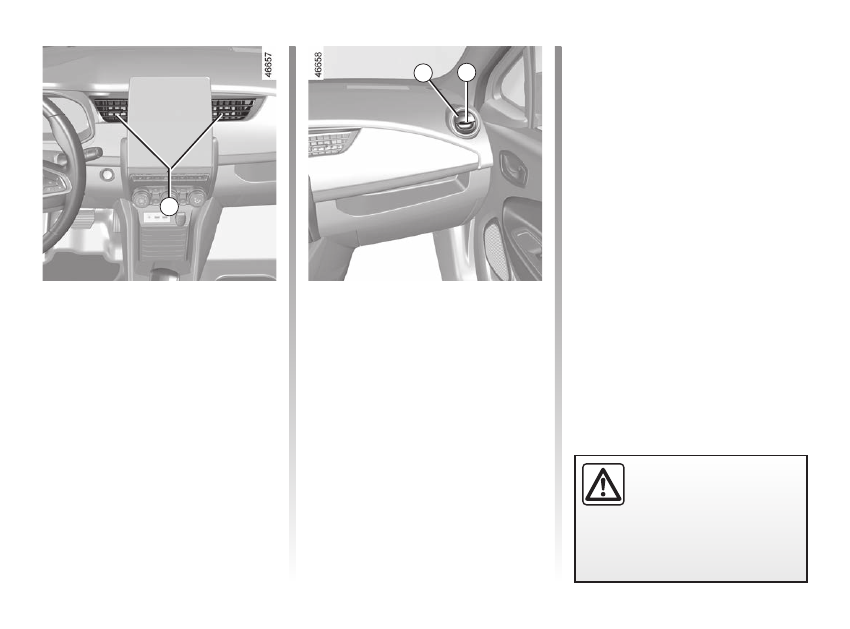

Side air vents

Air flow

To open air vent

1

, press on the air vent

(point

7

) until it is open as far as re-

quired.

Direction

To direct the air flow, swivel side air

vent

1

.

Centre air vents.

Direction

Move cursors

4

 to the required position.

1

7

4

air conditioning ..........................................

(up to the end of the DU)

heating system ..........................................

(up to the end of the DU)

air conditioning ..........................................

(up to the end of the DU)

temperature regulation ..............................

(up to the end of the DU)

ventilation ..................................................

(up to the end of the DU)

3.4

ENG_UD66783_3

Air conditionné manuel (X10 - Renault)



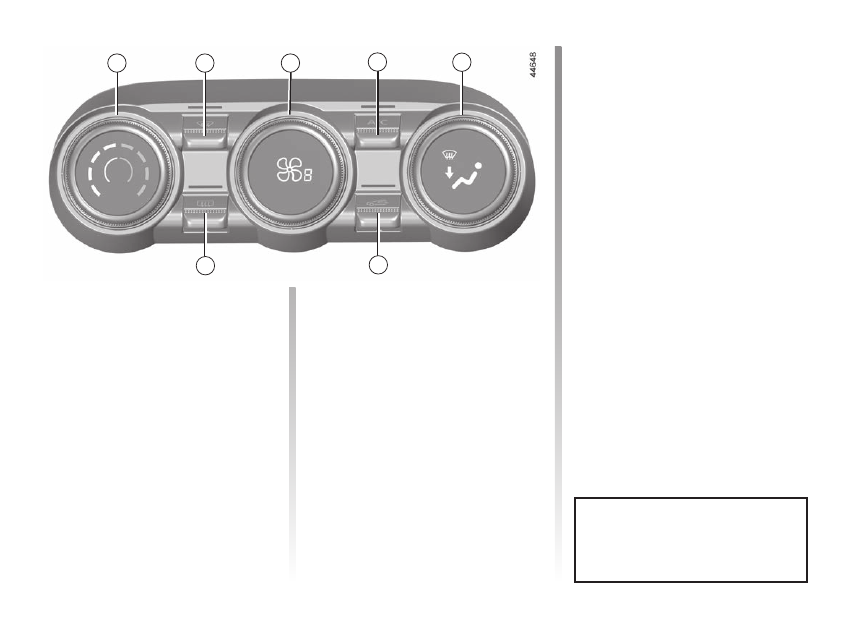

Manual air conditioning

MANUAL AIR CONDITIONING

(1/3)

The controls

1

   Adjusting the air temperature.

2

  “Clear View” function.

3

   Push button to adjust fan speed and

stop the system.

4

   Air-conditioning activation control.

5

  Passenger compartment air distribu-

tion adjustment.

6

  Air recirculation.

7

   De-icing/demisting of the rear screen

and, depending on the vehicle, the

door mirrors.

Heating or air-conditioning can only be

used while the engine is running.

Some buttons have an operating

tell-tale which indicates the operat-

ing status.

Switching air conditioning on

or off

(depending on vehicle)
The air conditioning is switched on (in-

dicator light on) or off (indicator light off)

using button

4

.

The system cannot be switched on if

the control

3

 is set to OFF.

The air conditioning system is used

for:



lowering the temperature inside the

passenger compartment;

– eliminating condensation more

quickly.

Advice:

 to optimize vehicle range, de-

activate the air conditioning when the

outside temperature is comfortable.

Adjusting the ventilation

speed

Turn the control

3

 to one of the eight

positions to start the ventilation system

and adjust the power.

Position



OFF

In this position:

–  the air conditioning switches off au-

tomatically;

–  the ventilation speed of air in the

passenger compartment is zero;

–  there is, however, a slight flow of air

when the vehicle is moving.

This position should not normally be

used.

1

2

3

4

5

6

7

3.5

ENG_UD66783_3

Air conditionné manuel (X10 - Renault)



ö

The air flow is directed towards

the dashboard vents and to-

wards the footwells.

ô

The air flow is mainly directed

to the dashboard air vents.

ó



The air flow is directed mainly

towards the footwells.

Rear screen de-icing/

demisting

Press the

7

 button: the integrated indi-

cator light comes on. This function ena-

bles rapid demisting/de-icing of the rear

screen and the rear view mirrors (on

equipped vehicles).

To exit this function,

 press button

7



again. Demisting automatically stops.

MANUAL AIR CONDITIONING

(2/3)

Adjusting the air temperature

Turn the control

1

 to one of the eight

positions to set the temperature. The

further towards the red the slide is, the

higher the temperature will be.
When the air conditioning system is

used for long periods, it may begin to

feel cold. To increase the temperature,

turn control

1

 to the right.

Recommendations

In the event of freezing, manu-

ally de-ice the windscreen using a

scraper rather than the de-icing/de-

misting function in order to reduce

your energy consumption.

Adjusting the distribution

of air in the passenger

compartment

Turn control

5

 to choose the distribution

option.

W

All the air is then directed to

the windscreen and front side

window demisting vents.

The air flow is distributed be-

tween front side window de-

misting vents, the windscreen demist-

ing vents and the footwells.

3

7

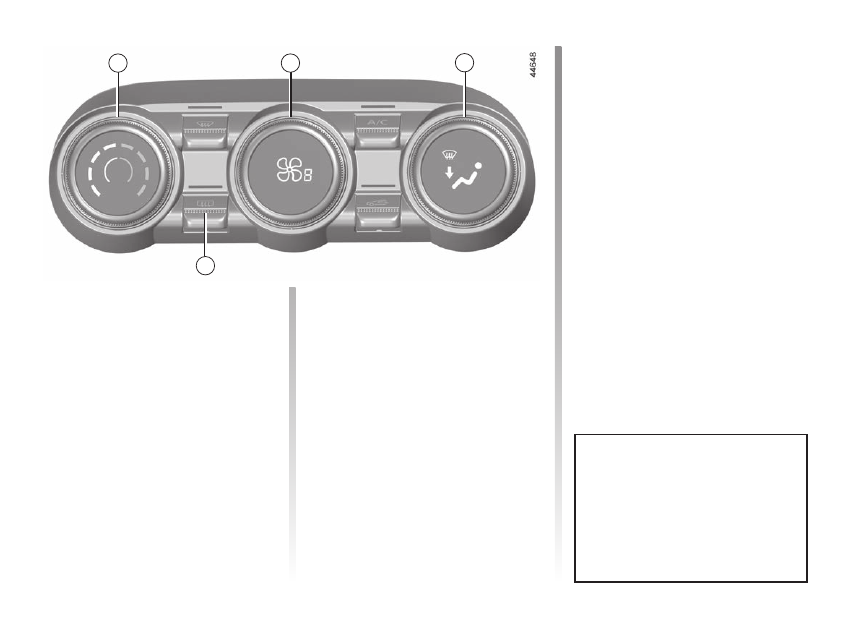

5

1

3.6

ENG_UD66783_3

Air conditionné manuel (X10 - Renault)



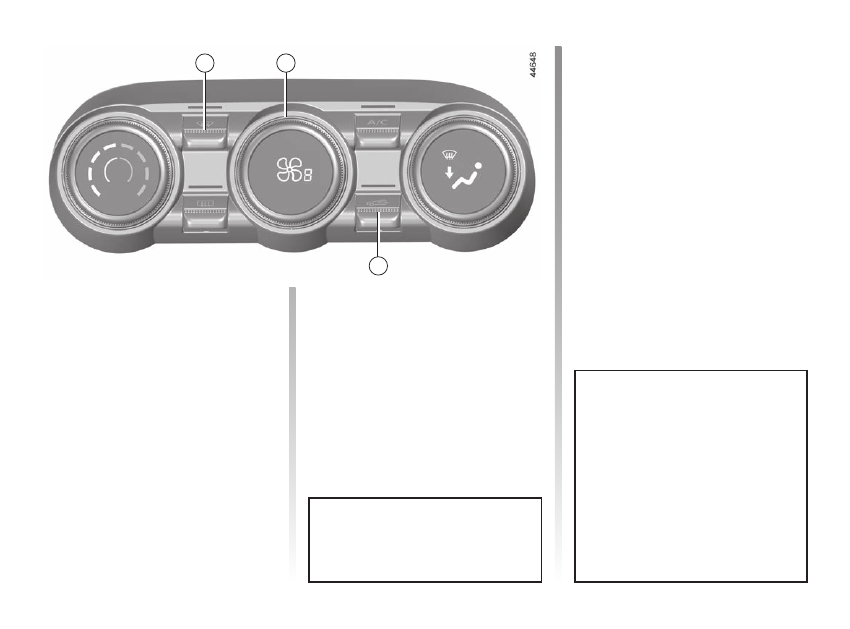

MANUAL AIR CONDITIONING

(3/3)

The demisting/de-icing will still take

priority over the air recirculation.

Switching the air

recirculation on

Press button

6

: the integrated indicator

light comes on. In these conditions, air

is taken from the passenger compart-

ment and is recycled, with no air being

taken from outside the vehicle.

Air recirculation is for:

–  isolating the vehicle from the exter-

nal atmosphere (driving in polluted

areas, etc.);

– lowering the passenger compart-

ment temperature as quickly as pos-

sible.

Stopping the system

Press button

3

.

Prolonged use of air recirculation

can lead to condensation forming on

the side windows and windscreen,

and discomfort due to the use of

non-renewed air in the passenger

compartment. We therefore advise

you to return to normal mode (exter-

nal air) as soon as the air recircula-

tion function is no longer required,

by pressing the button

6

 again.

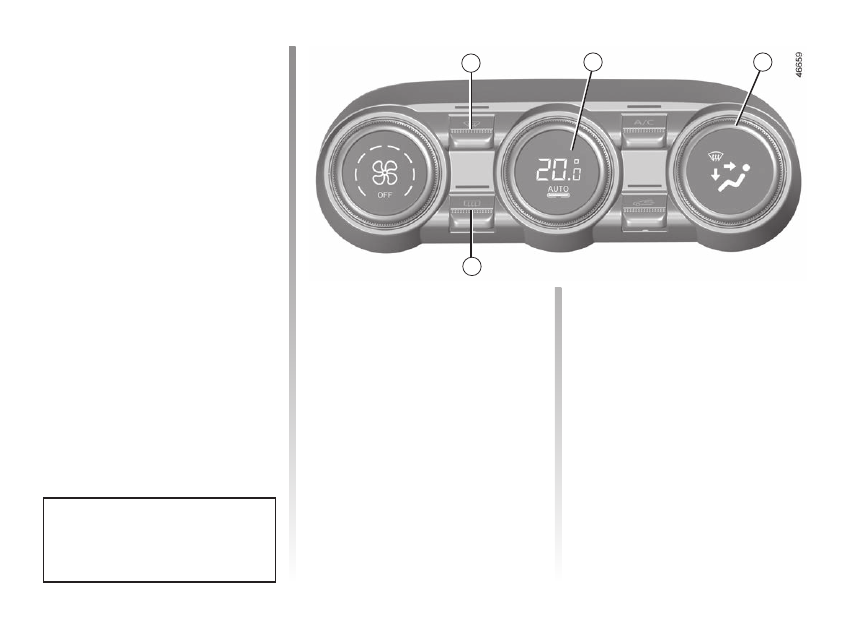

Clear View function

Press the

2

  button: the integrated indi-

cator light comes on.
This system quickly demists and de-

ices the windscreen and the front side

windows. It requires the automatic

usage of the air-conditioning or the

heating.

To exit this function,

 select the adjust-

ment required (distribution, ventilation

speed, temperature, air recirculation).

2

6

3

air conditioning ..........................................

(up to the end of the DU)

heating system ..........................................

(up to the end of the DU)

air conditioning ..........................................

(up to the end of the DU)

temperature regulation ..............................

(up to the end of the DU)

ventilation ..................................................

(up to the end of the DU)

3.7

ENG_UD66775_3

Climatisation automatique (X10 - Renault)



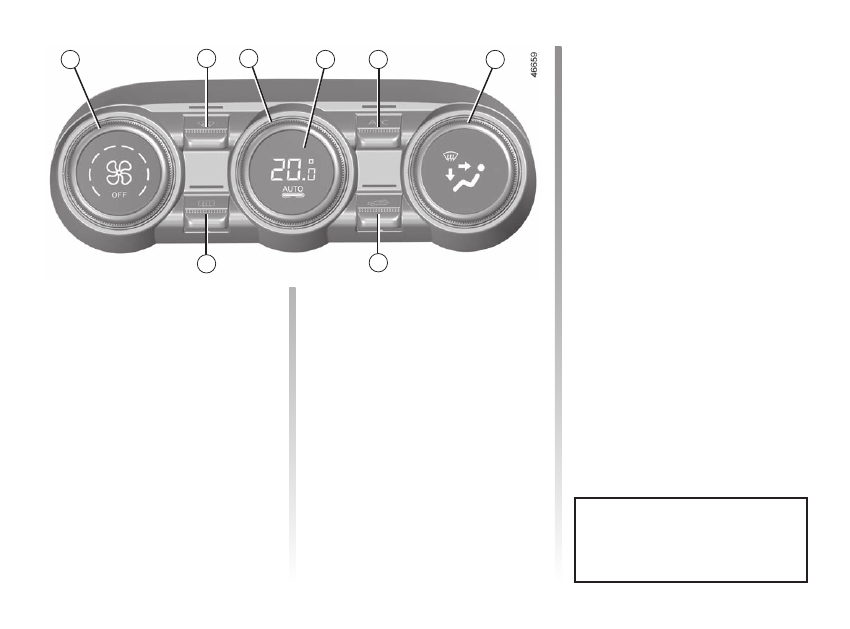

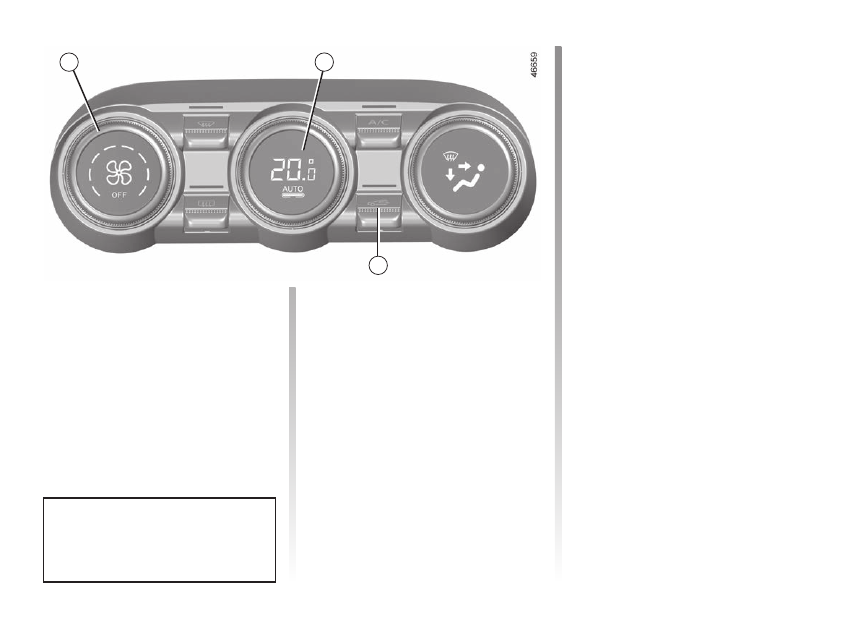

Automatic climate control

The controls

(depending on the vehicle)

1

   Adjusting the ventilation speed and

OFF position.

2

   “Clear View” function.

3

   Adjusting the air temperature.

4

  Automatic mode.

5

   Air conditioning control.

6

  Distribution of air in the passenger

compartment.

7

   Air  recirculation.

8

   De-icing/demisting of the rear screen

and, depending on the vehicle, the

rear view mirrors.

AUTOMATIC CLIMATE CONTROL

(1/4)

Adjusting the ventilation

speed.

In automatic mode, the system uses

the most suitable amount of air to reach

and maintain the desired comfort level.
You can still adjust the ventilation

speed by turning control

1

 to increase

or reduce the ventilation speed.

Adjusting the air temperature

Turn control

3

 to obtain the desired

temperature.
Turning the control to the right in-

creases the temperature.

Note

: to increase the vehicle range,

reduce the comfort level by turning

the

3

 control

Automatic mode

The automatic climate control system

guarantees comfort in the passen-

ger compartment and good visibility

(except in the event of extreme condi-

tions), while optimising fuel consump-

tion. The system controls the ventilation

speed, air distribution, air recirculation,

and starting and stopping the air condi-

tioning and air temperature.
AUTO

:

 allows the selected comfort

level to be best attained, depending on

the exterior conditions. Press button

4

.

1

2

3

4

5

6

7

8

Any action on a button other than

the AUTO button triggers deactiva-

tion of automatic mode.

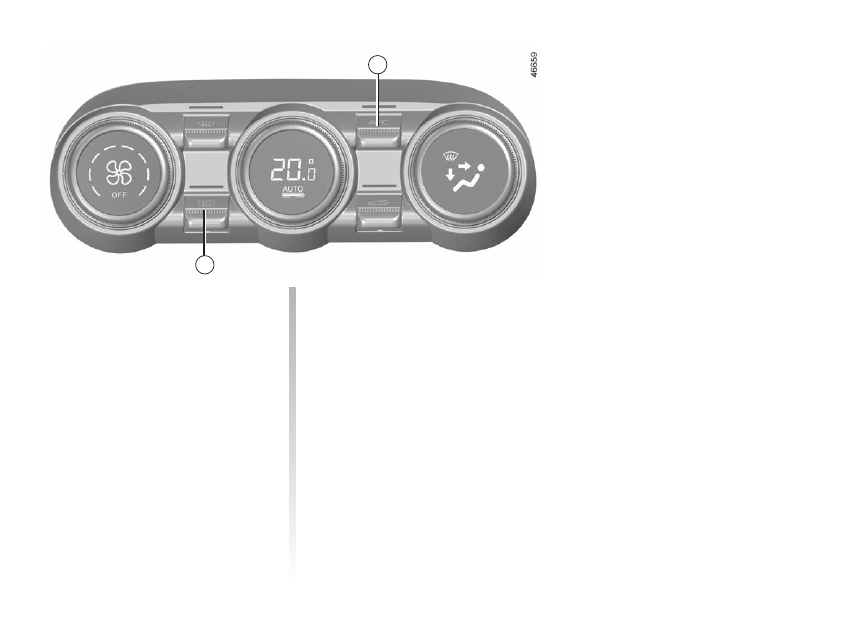

3.8

ENG_UD66775_3

Climatisation automatique (X10 - Renault)



Clear View function

Press the

2

 button: the integrated indi-

cator light comes on.
This function quickly de-mists the wind-

screen, rear screen, front side windows

and door mirrors (depending on the

vehicle). The air conditioning and rear

screen de-icing functions must be ac-

tivated.
Press button

8

 to stop the heated rear

screen operating, and the integrated in-

dicator goes out.

To exit this function

, press button

2



or

4

.

AUTOMATIC CLIMATE CONTROL

(2/4)

ö

The air flow is directed towards

the dashboard vents and to-

wards the footwells.

ô

The air flow is mainly directed

to the dashboard air vents.

ó



The air flow is directed mainly

towards the footwells.

Adjusting the distribution

of air in the passenger

compartment

Turn control

6

. The integrated warning

light in the button comes on.

W

All the air is then directed to

the windscreen and front side

window demisting vents.

The air flow is distributed be-

tween front side window de-

misting vents, the windscreen demist-

ing vents and the footwells.

Some buttons have an operating

tell-tale which indicates the operat-

ing status.

2

4

6

8

3.9

ENG_UD66775_3

Climatisation automatique (X10 - Renault)



Rear screen de-icing/

demisting

Press the

8

 button: the integrated in-

dicator light comes on. This function

enables rapid demisting or de-icing of

the rear screen and de-icing of the rear

view mirrors (on equipped vehicles).

To exit this function,

 press button

8



again. Demisting automatically stops.

AUTOMATIC CLIMATE CONTROL

(3/4)

Switching air conditioning on

or off

In automatic mode, the system switches

the air conditioning system on or off,

depending on the climate conditions.
Press the button

5

 to force the air con-

ditioning to stop. The integrated warn-

ing light will go out.

5

8

3.10

ENG_UD66775_3

Climatisation automatique (X10 - Renault)



AUTOMATIC CLIMATE CONTROL

(4/4)

Stopping the system

Turn the control

1

 to “OFF” to stop the

system. To start it, turn the control

1



again, then adjust the fan speed or

press the button

4

.

The demisting/de-icing will still take

priority over the air recirculation.

Manual use

Press the

7

 button: the integrated indi-

cator light comes on.
Prolonged use of this position may lead

to odours, caused by non-renewal of

air, and the formation of condensation

on the windows.
We therefore advise you to return to au-

tomatic mode as soon as air recircula-

tion is no longer needed, by pressing

button

7

.

Air recirculation (isolation of

the passenger compartment)

This function is managed automatically

(operation is confirmed by a warning

light on button

7

), but you can also acti-

vate it manually.

1

4

7

heating system ..........................................

(up to the end of the DU)

heating, air conditioning: programming .....

(up to the end of the DU)

heating/air conditioning programming .......

(up to the end of the DU)

3.11

ENG_UD69257_4

Conditionnement d’air : programmation (X10 - Renault)



Air conditioning: programming

AIR CONDITIONING: programming

(1/2)

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone on your vehicle, even for

a short time.
In hot and/or sunny weather, please

remember that the temperature

inside the passenger compartment

increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY.

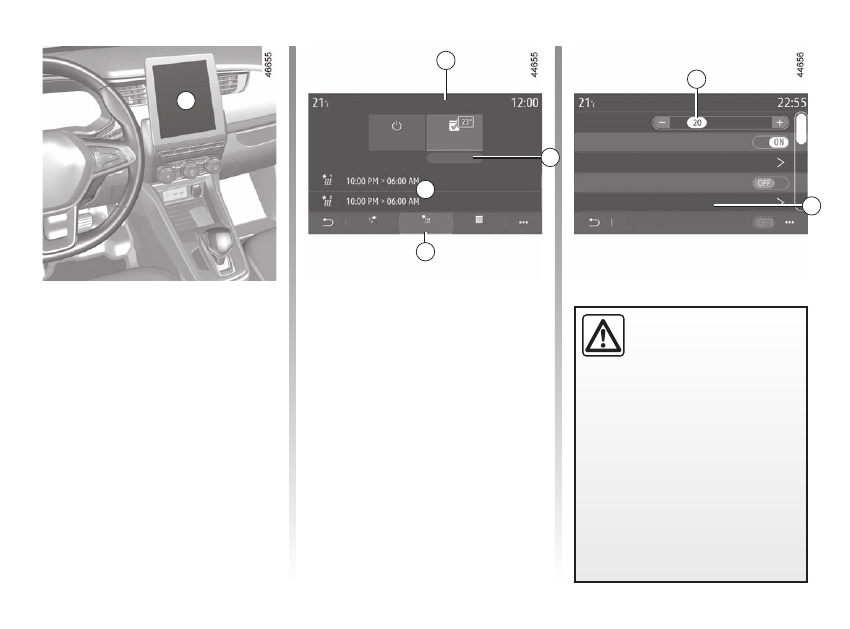

With the engine running

 and the ve-

hicle stationary, use the multimedia

screen

1

 to select the “Settings” menu

and the “Vehicle” tab, then select the

“EV programming” menu

2

 and the

“Climate” tab

4

.

Programming the departure

time

Press “Edit”

3

 to access the comfort

settings.
You may store multiple comfort pro-

grams.

1

EV programming

OFF

Climate

Charge

Calendar

Program

Edit

4

L M M J V S D

L M M J V S D

3

A

2

On vehicles fitted with an automatic air

conditioning system, you can adjust the

temperature

5

 from this menu and acti-

vate/deactivate saved programmes.

Select the time and date

6

 for the

schedule that you wish to change to

access the settings.
Programmed times are displayed in

area

A

.

Note:

 you can program the air condi-

tioning using a smartphone application.

Please refer to the multimedia instruc-

tions for further information.

Comfort programs

Comfort programme 1

Temperature

06:00 AM

 L M M J V S D

09:00 AM

 L M M J V S D

Comfort programme 2

5

Ready to

Ready to

6

3.12

ENG_UD69257_4

Conditionnement d’air : programmation (X10 - Renault)



Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone on your vehicle, even for

a short time.
In hot and/or sunny weather, please

remember that the temperature

inside the passenger compartment

increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY.

AIR CONDITIONING: programming

(2/2)

Note:



–  You can deactivate the comfort pro-

grams by pressing “OFF”;

–  the minimum time period between

each programme is two hours;

–  depending on the vehicle, the se-

lected temperature is displayed on

the

2

 menu.

“Programme” activation

The function launches before the time

scheduled by the customer, so that the

vehicle reaches a comfortable temper-

ature by the time they arrive, if:

–  the vehicle is connected to the elec-

trical supply;

–  the bonnet is closed;

–  the traction battery charge level is

over 20%;

–  the doors are closed and locked;

–  the engine is stopped.
Warning light

 comes on the in-

strument panel.

Note:

 if your vehicle is not connected,

your programme is reduced to 10 min-

utes in order to maintain vehicle range.

Immediate activation of the

air-conditioning

It is possible to carry out immediate

starting of the air conditioning, if:

–  the bonnet is closed;

–  the traction battery charge level is

over 20%;

–  the doors are closed and locked;

–  the engine is stopped.

With the engine running

 and the ve-

hicle stationary, use the multimedia

screen

1

 to select the “Settings” menu,

“Vehicle” tab, then the “EV program-

ming” menu and the “Climate” tab

4

.

Please refer to the multimedia instruc-

tions for further information.

Stopping the programmed air

conditioning

The air conditioning stops automati-

cally around ten minutes after the set

end time.

However, the function can be deacti-

vated if:

–  the engine is running;

–  the charging socket is disconnected;

–  the traction battery charging level is

lower than 20%;

–  the bonnet is open.

Note:

 any modification carried out

within 2 hours before a programmed

start must be cancelled and re-pro-

grammed in order to be registered.

air conditioning ..........................................

(up to the end of the DU)

heating and air conditioning system ..........

(current page)

air conditioning ..........................................

(up to the end of the DU)

3.13

ENG_UD82775_4

Air conditionné : informations et conseils d’utilisation (X10 - Renault)



Air conditioning: information and advice on use

AIR CONDITIONING: information and operating instructions

(1/2)

Do not open the refriger-

ant fluid circuit.

 The fluid

may damage eyes or skin.

Advice on use

In some situations, (air conditioning

off, air recirculation activated, ventila-

tion speed at zero or low, etc.) you may

notice that condensation starts to form

on the windows and windscreen.
If there is condensation, use the

“Clear

View”

 function to remove it, then use

the air conditioning in automatic mode

to stop it forming again.

Maintenance

Refer to the Maintenance Document

for your vehicle for the inspection fre-

quency.

Range

It is normal to notice an increase in

energy usage when the air conditioning

is operating.

Recommendations to limit energy

consumption and maintain the

vehicle range

Drive with the air vents open and the

windows closed. If the vehicle has been

parked in the sun, open the doors for a

few moments to let the hot air escape

before starting the engine.

It is preferable

, before setting off, to

use of the programmed air conditioning

 3.11.

Operating faults

As a general rule, contact your ap-

proved dealer in the event of an oper-

ating fault.
–

Reduction in de-icing, demisting

or air conditioning performance.



This may be caused by the passen-

ger compartment filter cartridge be-

coming clogged.

–

No hot or cold air is being pro-

duced.

 Check that the controls are

set correctly and that the fuses are

sound. Otherwise, switch off the

system.

Presence of water under the

vehicle

After prolonged use of the air condi-

tioning system, it is normal for water

to be present under the vehicle. This is

caused by condensation.

Use the air conditioning system reg-

ularly, even in cold weather, running

it at least once a month for approxi-

mately 5 minutes.

3.14

ENG_UD82775_4

Air conditionné : informations et conseils d’utilisation (X10 - Renault)



AIR CONDITIONING: information and operating instructions

(2/2)

Ñ

Type of refrigerant fluid

(XXX) Type of oil in the air

conditioning circuit

Inflammable product



Consult the driver’s hand-

book

Maintenance

(

1

) Quantity of refriger-

ant fluid present in the

vehicle.

x.xxx kg

(

2

) Global warming po-

tential.

GWP xxxx

(

3

) Quantity in weight

and in CO2 equivalent.

CO2 eq

x.xx t

Before carrying out any

action in the engine com-

partment, you must switch

off the ignition

 2.2.

Do not open the refriger-

ant circuit

. The fluid may

damage eyes or skin.

Additional information

Depending on label and depending on

the type of refrigerant:

Refrigerant fluid R-1234yf

– (

1

) 1,035 kg;

– (

2

) GWP 4;

– (

3

) 0.004 t.

Refrigerant fluid

The refrigerant circuit (of which some

components are hermetically sealed),

which may contain fluorinated green-

house gases.

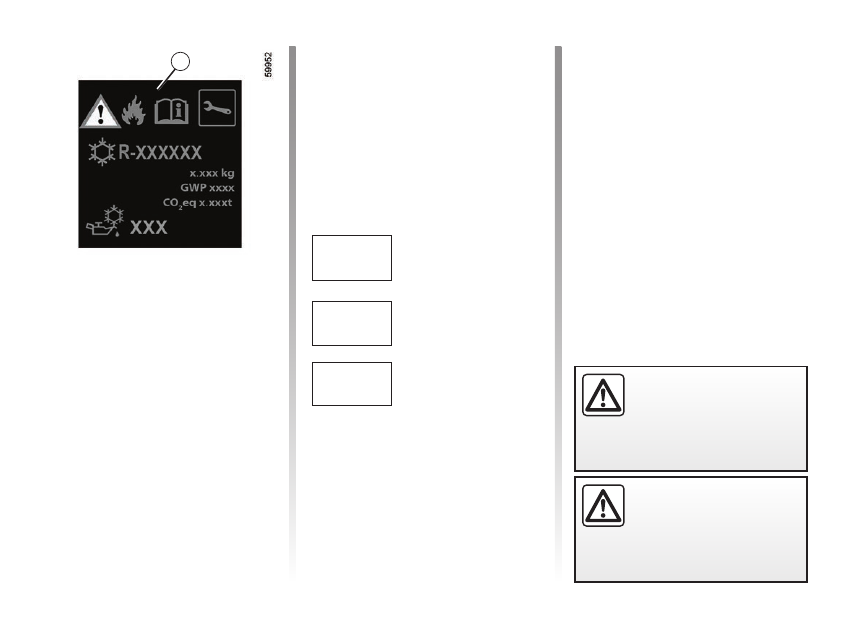

Depending on the vehicle, you will find

the following information on label

A

 af-

fixed inside the engine compartment.
The presence and location of the infor-

mation on the label depends on the ve-

hicle.

A

display .......................................................

(current page)

hands-free telephone integrated control ....

(up to the end of the DU)

multimedia equipment ...............................

(up to the end of the DU)

multimedia (equipment) .............................

(up to the end of the DU)

navigation ..................................................

(up to the end of the DU)

radio...........................................................

(up to the end of the DU)

navigation system ......................................

(up to the end of the DU)

telephone ...................................................

(up to the end of the DU)

3.15

ENG_UD72736_2

Equipement Multimédia (X10 - Renault)



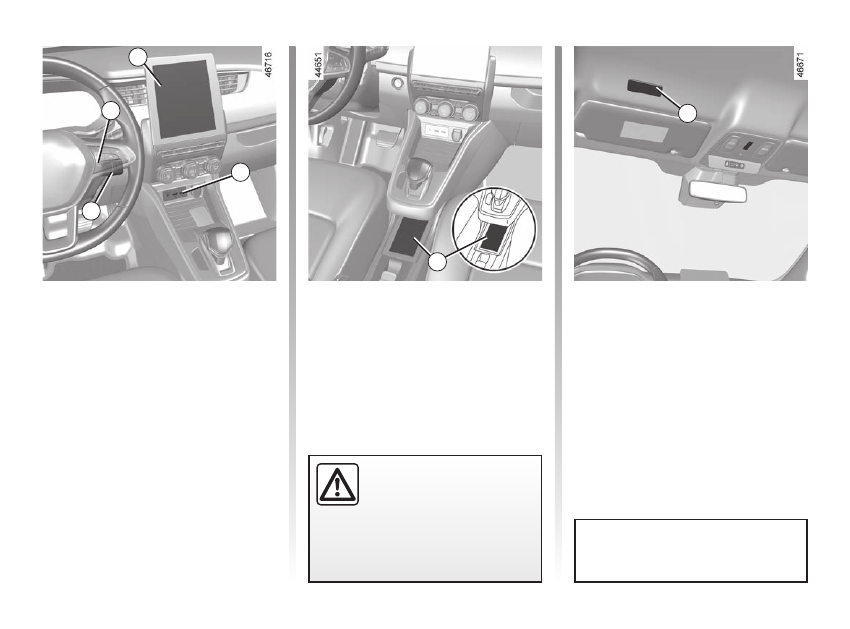

Multimedia equipment

The presence and location of this equip-

ment depends on the vehicle version.

1

  Multimedia touchscreen display;

2

  Multimedia sockets;

3

  Steering column control;

4

  Voice commands;

5

  Induction charging area;

6

 Microphone.

Refer to the equipment instructions

for information on how to operate

this equipment.

Using the telephone

We remind you of the need

to conform to the legislation

in force concerning the use

of such equipment.

MULTIMEDIA EQUIPMENT

6

3

2

1

3

2

4

5

Induction charging area 5

 3.19

children (safety) .........................................

(up to the end of the DU)

electric windows ........................................

(up to the end of the DU)

child safety.................................................

(up to the end of the DU)

3.16

ENG_UD65515_2

Lève-vitres électriques (X10 - Renault)



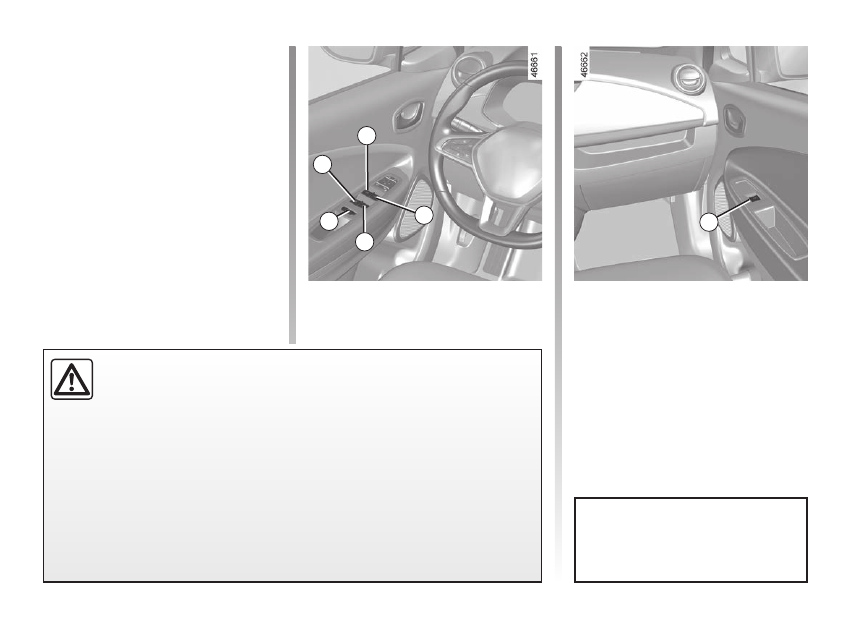

Electric windows

ELECTRIC WINDOWS

(1/2)

From the driver’s seat, use switch:



1

  for the driver’s side;



2

  for the front passenger side;



3

  and

5

 for the rear passenger win-

dows.

From the passenger seats, use

switch

6

.

Note:

 if the window detects resistance

when closing (e.g.: branch of a tree,

etc.) it stops and then lowers again by a

few centimetres.

Electric windows

Press or pull the switch to raise or lower

a window to the desired height (the rear

windows do not open fully);

These systems operate

 with the igni-

tion on or off, until one of the front doors

is opened (limited to about 3 minutes).

1

2

3

4

5

6

Avoid resting any objects against

a half-open window: there is a risk

that the electric window could be

damaged.

Safety of rear occupants

The driver can prevent operation of the rear electric windows by pressing

switch

4

. A confirmation message is displayed on the instrument panel.

Driver’s responsibility

Never leave your vehicle with the card inside, when there is a child, dependent

adult or a pet on-board, even for a short while. They may pose a risk to them-

selves or to others by starting the engine or activating equipment (such as the

gear lever or electric windows). If any part of the body becomes trapped, reverse

the direction of the window immediately by pressing the relevant switch.

Risk of serious injury.















Content      ..     11      12      13      14     ..
