1.82

DRIVING POSITION: RIGHT-HAND DRIVE

(1/2)

1 2

7 5

8 9

10 11

12 2 1

1.83

DRIVING POSITION: RIGHT-HAND DRIVE

(2/2)

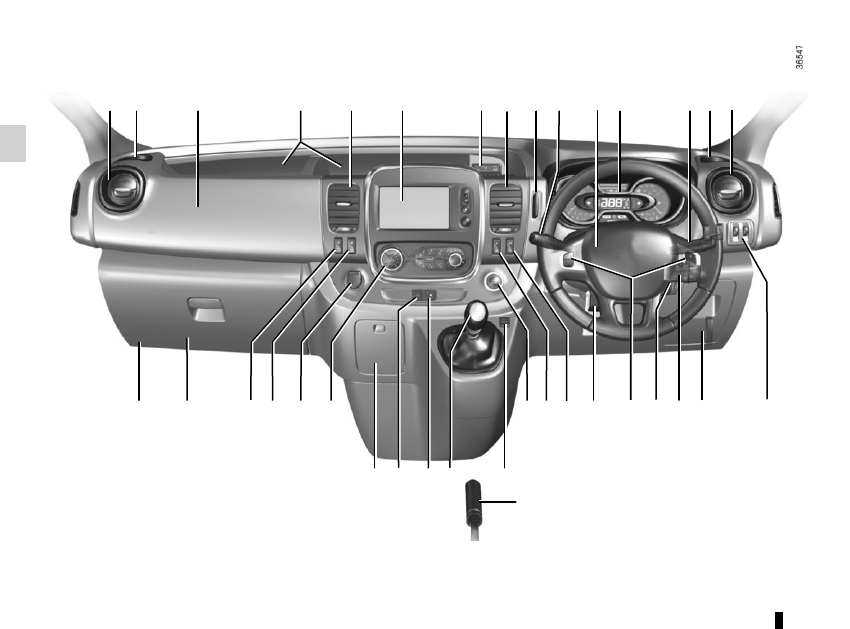

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1 Side air vent.
2 Location for ashtray or cup holder.
3 Location for passenger airbag or

storage compartment.

4 Storage compartment.
5 Centre air vent.
6 Multimedia/radio touchscreen.
7 Accessories socket.
8 RENAULT card reader.
9 Stalk for:

– direction indicator lights;

– exterior lights;

– front fog lights;

– rear fog lights.

10 Location for driver’s airbag and horn.
11 Instrument panel.
12 Stalk for:

– windscreen and rear screen

wiper/washer;

– trip computer and warning

system information read-out.

13 Controls for:

–

headlight beam height remote ad-

justment;

–

lighting rheostat for control instru- -

ments;

– grip control;
–

activation/deactivation of the

parking distance control system.

14 Storage compartment.
15 Remote radio controls.
16 Ignition switch for vehicles with key.
17 Cruise control/speed limiter controls.
18 Control for adjusting steering wheel

reach.

19 Cruise control/speed limiter main

control.

20 Stop and Start mode activation/de-

activation control.

21 Engine start/stop button.
22 ECO mode switch.
23 Handbrake.
24 Gear lever.
25 Central door locking/unlocking con-

trols.

26 Hazard warning lights switch.
27 Location for ashtray or cup holder.
28 Heating and ventilation controls.
29

Accessories socket or cigarette

lighter.

30 Rear de-icer switch.
31 Switch to activate fast idle speed or

to cut the controls of the rear ventila-

tion.

32 Glovebox.
33 Bonnet release control.

1.84

WARNING LIGHTS

(1/4)

Side light warning light

Main beam headlight tell-

tale

Dipped beam headlight tell-

tale

Front fog light tell-tale

Rear fog light telltale

Left-hand direction indicator

tell-tale

Right-hand direction indica-

tor tell-tale

Air bag warning light

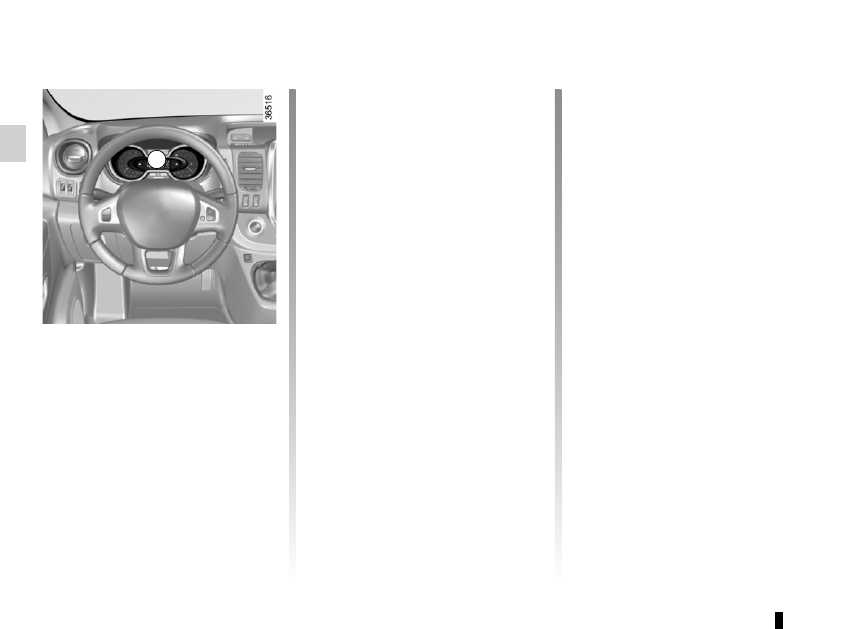

This lights up when the ignition

is switched on and goes out after a few

seconds.

If it does not come on when the igni-

tion is switched on, or comes on when

the engine is running, there is a fault in

the system.

Contact your approved Dealer as soon

as possible.

Low fuel level warning light

This lights up when the ignition

is switched on and goes out after a few

seconds.

If it lights up when driving, fill up with

fuel as soon as possible. There is only

approximately 30 miles (50 km) worth

of fuel left.

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

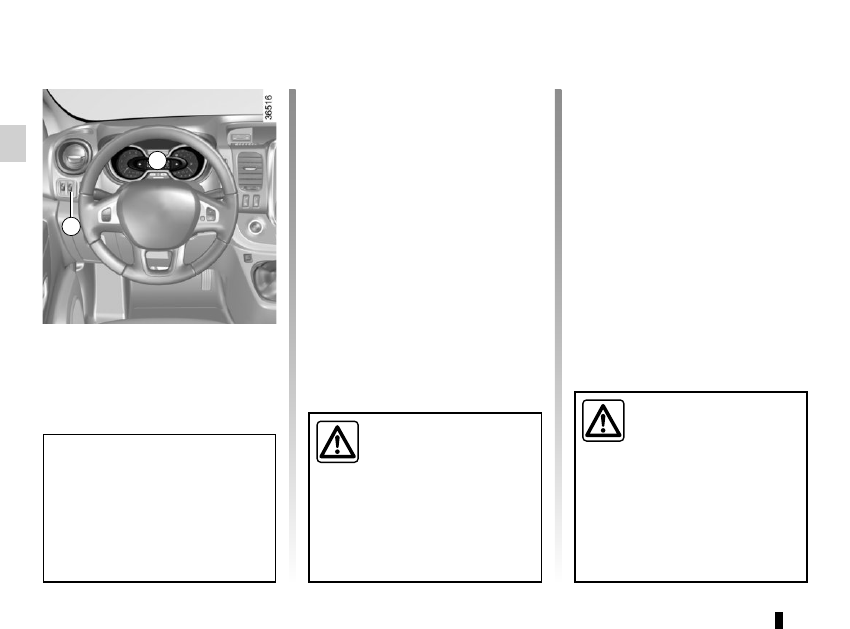

Instrument panel A: lights up when

the ignition is switched on. The bright-

ness can be adjusted by turning control

knob 1.

In some cases, the appearance of a

warning light is accompanied by a mes-

sage.

The

warning light means

you should drive very carefully to

an approved dealer as soon as pos-

sible. If you fail to follow this recom-

mendation, you risk damaging your

vehicle.

Warning light

re-

quires you to stop immedi-

ately, for your own safety,

as soon as traffic conditions

allow. Switch off the engine and do

not restart it. Contact an approved

Dealer.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.85

WARNING LIGHTS

(2/4)

STOP light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It comes on with

other warning lights and/or messages,

and is accompanied by a beep.
It requires you to stop immediately, for

your own safety, as soon as traffic con-

ditions allow. Switch off the engine and

do not restart it.
Contact an approved Dealer.

Oil pressure warning light
This lights up when the ignition

is switched on and goes out after a few

seconds.
If it comes on on the road, accompa-
nied by the

warning light and a

beep, stop immediately and cut the ig-

nition.
Check the oil level. If the level is normal,

the indicator light is being lit by some-

thing else. Contact an approved Dealer.

Warning light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It can light up in

conjunction with other indicator lights

and/or messages on the instrument

panel.

It means you should drive very care-

fully to an approved dealer as soon as

possible. If you fail to follow this recom-

mendation, you risk damaging your ve-

hicle.

Handbrake on and brake cir-

cuit incident warning light

This comes on when the ignition is

switched on and goes out as soon as

the handbrake is released.

If it comes on during braking and is ac-
companied by the

warning light

and a beep, it indicates that the fluid

level in the circuit is low or that there is

a braking system fault.

Stop as soon as traffic conditions allow

and contact an approved Dealer.

Battery charge warning light
This lights up when the ignition

is switched on and goes out after a few

seconds.
If it comes on when the vehicle is being

driven, and is accompanied by the

warning light and a beep, it in-

dicates that the electrical circuit is over-

charged or undercharged.
Stop as soon as traffic conditions allow

and contact an approved Dealer.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.86

Anti-lock braking warning

light

This lights up when the ignition is

switched on and goes out after a few

seconds.

If it lights up when you are driving, it in-

dicates a fault in the anti-lock braking

system.

Braking will then be as normal, without

the ABS. Contact an approved Dealer

as soon as possible.

Coolant temperature warn-

ing light

This comes on when the ignition is

switched on.
If it turns red, stop and let the engine

idle for a minute or two.
The temperature should lower and the

warning light should return to a blue

colour. If not, stop the engine. Let the

engine cool down before checking the

coolant.
Contact an approved Dealer.

WARNING LIGHTS

(3/4)



Warning light, additive level

and faults in the exhaust gas

reduction system
Refer to the information on "Additive

tank" in Section 1.

Toxic Fume Filter System

Warning Light

For vehicles equipped with this option,

the light comes on when the ignition is

switched on then goes out.

– If it lights up continuously, consult

your approved dealer as soon as

possible;

– if it flashes, reduce the engine speed

until the light stops flashing. Contact

your approved Dealer as soon as

possible.

Refer to the information on “Advice:

antipollution, fuel economy and driving”

in Section 2.



Electronic Stability Program

(ESP) and traction control

system warning light
This lights up when the ignition is

switched on and goes out after a few

seconds.
There are several reasons for the warn-

ing light to come on: please refer to the

information on “Driver correction de-

vices and aids” in Section 2.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.87

WARNING LIGHTS

(4/4)

Î¦

Speed limiter and cruise

control indicator lights

See the information on the “Speed lim-

iter” and “Cruise control” in Section 2.



Tyre pressure loss warning
Please refer to the information

on the “Tyre pressure loss warning” in

Section 2.



Traction control warning

light

Refer to the information on “Driving cor-

rection devices and aids” in Section 2.

Preheating warning light

(diesel version)

This should come on when the igni-

tion is switched on. It indicates that the

heater plugs are in operation.
It goes out when preheating is com-

plete. The engine can be started.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Š‰

Gear change indicators

This lights up to advise you to

change to a higher gear (up arrow) or

lower gear (down arrow).



ECO mode warning light
This comes on when ECO

mode is activated.
Please refer to the information on

“Driving advice, Eco-driving” in

Section 2.

Front seat belt reminder

warning light

It lights up on the central display when

the engine is started and, if the driv-

er's seat belt is not fastened, the light

flashes and a beep sounds for about

2 minutes when the vehicle reaches a

speed of about 9.92 mph (16 km/h).

Depending on the vehicle, this flashes if

the front passenger seat belt is not fas-

tened.

Door(s) open warning light



Engine standby warning

light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.



Unavailability of engine

standby warning light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.

1.88

DISPLAYS AND INDICATORS

(1/2)

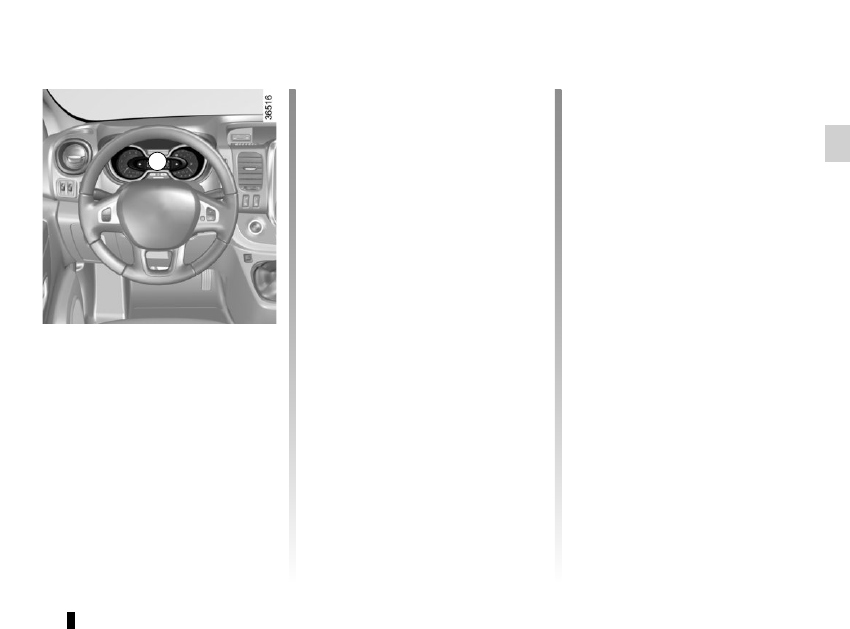

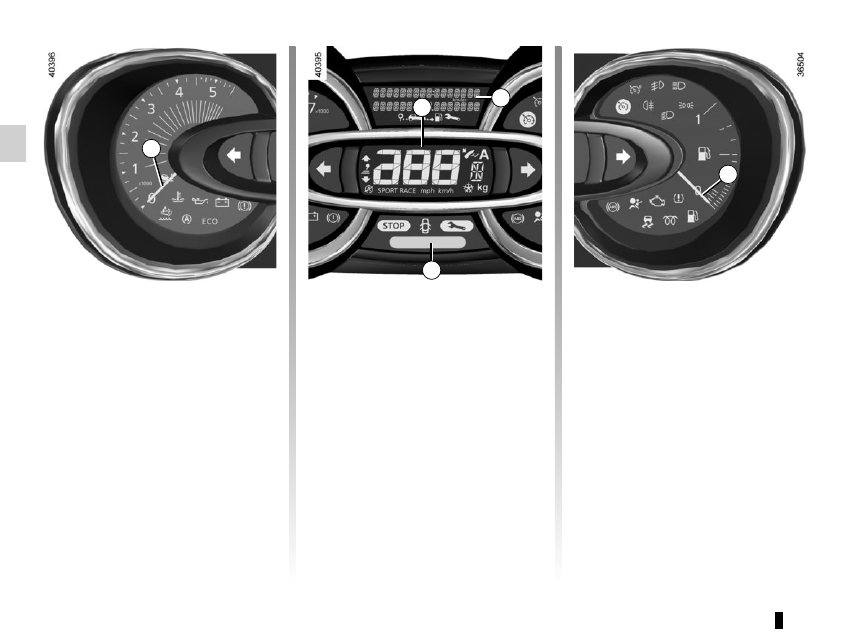

Rev counter 1

(graduations x 1000)

Speedometer 2

(km or miles per hour)

Overspeed buzzer

Depending on the vehicle, a buzzer

sounds for approximately 10 seconds

every 40 seconds, as long as the vehi-

cle is travelling in excess of 72 mph

(120 km/h).

Driving style indicator 4

Please refer to the information on “Eco-

driving” in Section 2.

Low engine oil level warning

When the engine is started, display 3

alerts the driver when the oil level is at

its minimum. Refer to the information

on the “Engine oil level” in Section 4.

Fuel gauge 5

1.89

Instrument panel 6 in miles

(option to switch to km/h)

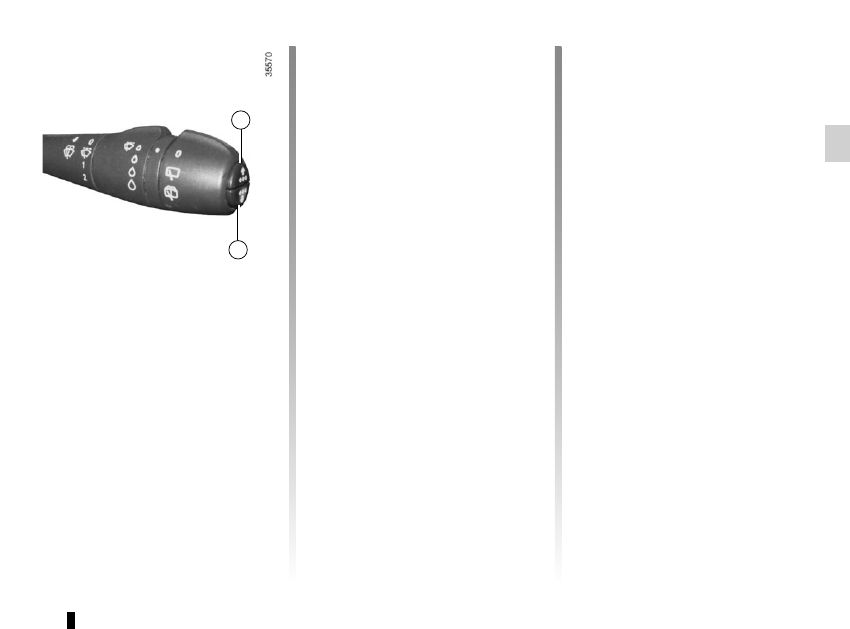

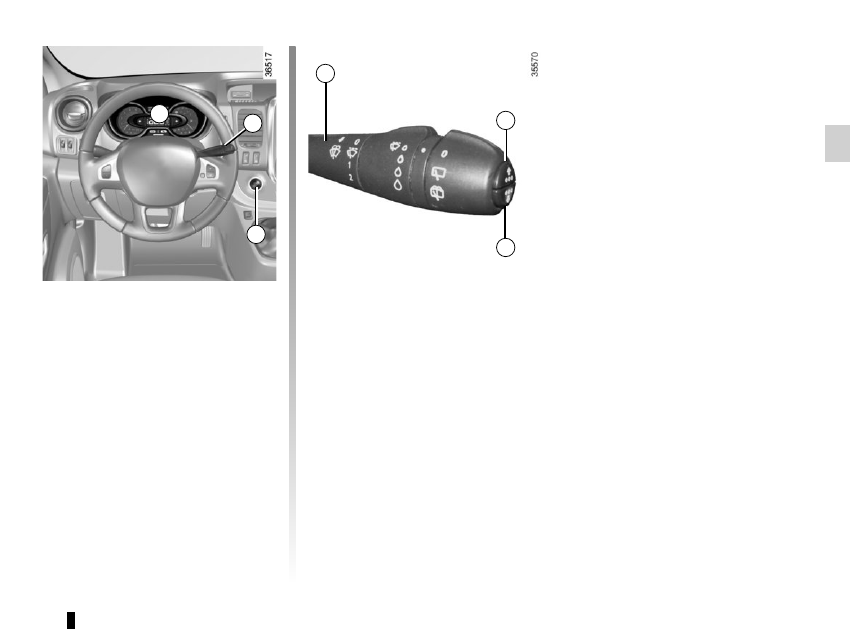

– With ignition off, press button 9 or 10

at the end of stalk 7 and the start

button 8;

– the speedometer unit indicator

flashes for approximately ten se-

conds, then the new unit is dis-

played: release button 9 or 10 when

the unit stops flashing.

To return to the previous mode, repeat

the same operation.
Note: once the battery is switched off,

the trip computer and warning system

automatically returns to the original unit

of measurement.

DISPLAYS AND INDICATORS

(2/2)

1.90

ON-BOARD COMPUTER: general information

(1/2)

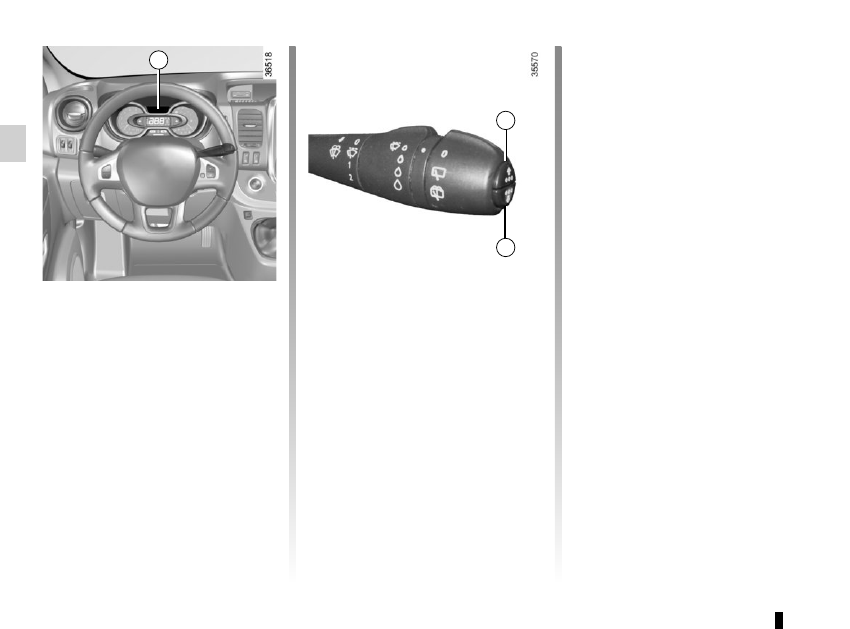

On-board computer 1

Depending on the vehicle, this includes

the following functions:
– distance travelled;

– journey settings;

– information messages;

– operating fault messages (connec-

ted to the

warning light);

– warning messages (connected to the

warning light).

All these functions are described on the

following pages.

Display selection keys 2

and 3

Scroll through the following information

upwards (key 2) or downwards (key 3)

by pressing briefly and successively

(the display depends on the vehicle

equipment and country).
a) total mileage and trip mileage recor-

der;

b) fuel used;

c) average fuel consumption;

d) current fuel consumption;

e) estimated range;

f) distance travelled;

g) average speed;

h) mileage before service, oil change

counter;

i) Reset the tyre pressure

j) cruise control/speed limiter program-

med speed;

k) clock and temperature;

l) trip log, operating faults and informa-

tion message readout;

m) percentage volume of remaining ad-

ditives.

1.91

ON-BOARD COMPUTER: general information

(2/2)

Resetting the trip mileage

With “trip mileage recorder” selected on

the display, press button 2 or 3 until the

mileage recorder resets to zero.

Resetting the journey

parameters (reset button)

With one of the trip parameters selected

as the display, press and hold button 2

or 3 until the display resets.

Interpreting some of the

values displayed after

resetting

The values showing average fuel

consumption, range and average

speed will become more stable and re-

liable the further you travel after pres-

sing the reset button.
For the first few miles after pressing

the reset key you will notice that the

range increases as you travel. This

range takes into account the average

fuel consumption since the last time the

reset button was pressed. Therefore,

the average fuel consumption may de-

crease when:
–

the vehicle stops accelerating;

–

the engine reaches its operating

temperature (if the engine was cold

when the reset key was pressed);

–

when driving from an urban area

onto the open road.

Automatic resetting of the

journey parameters

Resetting occurs automatically when

the maximum value of any of the para-

meters is exceeded.

1.92

ON-BOARD COMPUTER: trip settings

(1/4)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

101778 km

a) Total mileage and trip mileage recorder.

112.4 km

FUEL USED

b) Journey parameters.

Fuel used.

Fuel consumed since the last reset.

AVERAGE

c) Average fuel consumption since the last reset.

The value is displayed after having travelled at least 400 metres since the last

reset.

5.8 L/100

CURRENT

d) Current fuel consumption.

This value is displayed after a speed of approximately 20 mph (30 km/h) is reached.

7.4 L/100

1.93

ON-BOARD COMPUTER: trip settings

(2/4)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

RANGE

e) Estimated range with remaining fuel.

The value is displayed after driving 400 metres.

541 km

DISTANCE

f) Distance travelled since last reset.

522 km

AVERAGE

g) Average speed since the last reset.

The value is displayed after driving 400 metres.

89.4 km/h

1.94

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

ON-BOARD COMPUTER: trip settings

(3/4)

Examples of selections

Interpreting the display selected

On-board computer with distance before

next service message (cntd.)

h) Mileage before service

With the ignition switched on and the engine not running,

when the message “SERVICE INTERVALS” is displayed, press

button 2 or 3 for around 5 seconds to display the mileage before

the next service (distance or time remaining before the next oil

change). When the range approaches its limit, there are several

possible scenarios:

–

distance/time remaining less than 900 miles (1,500 km) or

one month: the message “Service due in” is displayed ac-

companied by the nearest term (distance or time);

–

range equal to 0 km/miles or service date reached: the

message “SERVICE REQUIRED” is displayed accompanied
by warning light

The vehicle requires an oil change as soon as possible.

SERVICE

INTERVALS

OIL CHANGE IN

30 000 km / 24 MO

SERVICE DUE IN

300 km / 24 DAYS

SERVICE REQUIRED

Depending on the vehicle, the mileage before an oil change varies according to the driving style (frequent driving at low speed,

door-to-door journeys, extensive use at idling speed, towing a trailer, etc.). The distance remaining until the next oil change can

therefore decrease more quickly in some cases than the actual distance travelled.
Resetting: To reset the mileage before the next oil change, display the remaining range (distance and time), then press and hold

button 2 or 3 for approximately 10 seconds until the display shows the mileage before oil change without flashing.

1.95

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

ON-BOARD COMPUTER: trip settings

(4/4)

Examples of selections

Interpreting the display selected

TYRE PRESSURE SET

<PRESS-HOLD>

i) Reset the tyre pressure.

Please refer to the information on the “Tyre pressure loss warning” in Section 2.

SPEED LIMITER

j) Cruise control/speed limiter programmed speed.

Refer to the information on the “Speed limiter” and “Cruise control” in Section 2.

90 km/h

CRUISE CONTROL

90 km/h

k) Clock and temperature.

Please refer to the information on the “Clock and exterior temperature” in Section 1.

13°

16:30

NO MESSAGE

MEMORISED

l) Trip log.

Successive display:

–

information messages (passenger airbag OFF etc.);

–

operating fault messages (check the injection system, etc.).

ADBLUE 62%

m) Percentage volume of remaining additives.

Refer to the information on “Additive tank” in Section 1.

1.96

TRIP COMPUTER AND WARNING SYSTEM: information messages

Examples of messages

Interpreting the display selected

« PARKING BRAKE ON » Indicates that the parking brake has been applied.

« BATTERY LOW

START ENGINE »

Indicates that the vehicle must be started to recharge the battery (e.g. after the engine has been

switched off for some time whilst listening to the radio).

« TOP UP OIL LEVEL »

Indicates that the oil level needs adjusting.

« AUTO DOOR

LOCK OFF »

Indicates that the automatic door locking while driving is deactivated.

« STEERING WHEEL

NOT LOCKED »

Indicates that the steering column has not been locked.

These can help in the vehicle starting phase, or give information about a selection or a driving status.

Examples of information messages are given in the following pages.

1.97

TRIP COMPUTER AND WARNING SYSTEM: operating fault messages

These appear with the

warning light and mean that you should drive very carefully to an authorised dealer as

soon as possible. If you fail to follow this recommendation, you risk damaging your vehicle.

They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The

warning light stays on. Examples of operating fault messages are given in the following pages.

Examples of messages

Interpreting the display selected

« CLEAN DIESEL FILTER »

Indicates the presence of water in the diesel filter; contact an approved Dealer

as soon as possible.

« CHECK VEHICLE »

Indicates a fault in one of the pedal sensors, battery management system or oil

level sensor.

« CHECK AIRBAG »

Indicates a fault in the restraint system in addition to the seat belts. In the event

of an accident, it is possible that they may not be triggered.

« Check antipollution system »

– Indicates a fault in the vehicle’s emission control system.
– Indicates a fault in the emissions reduction system when it is accompanied

by the



warning light. Refer to the information on «Additive tank» in

Section 1.

Renault Trafic (2018 year). Instruction - part 6
