Renault Trafic (2018 year). Instruction - part 7





1.98

TRIP COMPUTER AND WARNING SYSTEM: warning message

These appear with the

®

 warning light and require you to stop immediately, for your own safety, as soon as traffic

conditions allow. Stop your engine and do not restart it. Contact an approved Dealer.

Examples of warning messages are given in the following pages. Note: the messages appear on the display either individually

or alternately (when there are several messages to be displayed), and may be accompanied by a warning light and/or a beep.

Examples of messages

Interpreting the display selected

« GEAR BOX RISK OF BREAKAGE »

Indicates an injection fault, the vehicle’s engine has overheated or there is a

serious engine fault.

« Braking system fault »

Indicates a fault in the braking system.

« BATTERY CHARGING FAULT »

Indicates a fault in the vehicle battery charging circuit (alternator etc.).

« PUNCTURE «

Indicates that at least one wheel is punctured or severely underinflated.

1.99

Then press and hold button 2 or 3 to

confirm the time set.
The minute display flashes: repeatedly

press or press and hold button 2 or 3 to

set the time.
When setting is complete, the hours

and minutes remain displayed continu-

ously for 2 seconds: your setting is reg-

istered.
You may change the display.

Display A

(depending on the vehicle)
To access display 1 for setting the time,

press button 2 or 3. Wait for a few sec-

onds.
The hours and minutes flash and you

are now in setting mode; press and

hold button 2 or 3 to set the hours.
Once the minutes flash, repeatedly

press or press and hold button 2 ou 3

to set the time.

CLOCK AND EXTERIOR TEMPERATURE

(1/2)

2

3

If the power supply is cut (battery

disconnected, supply wire cut, etc.),

the clock must be reset.
We recommend that you do not

adjust these settings while driving.

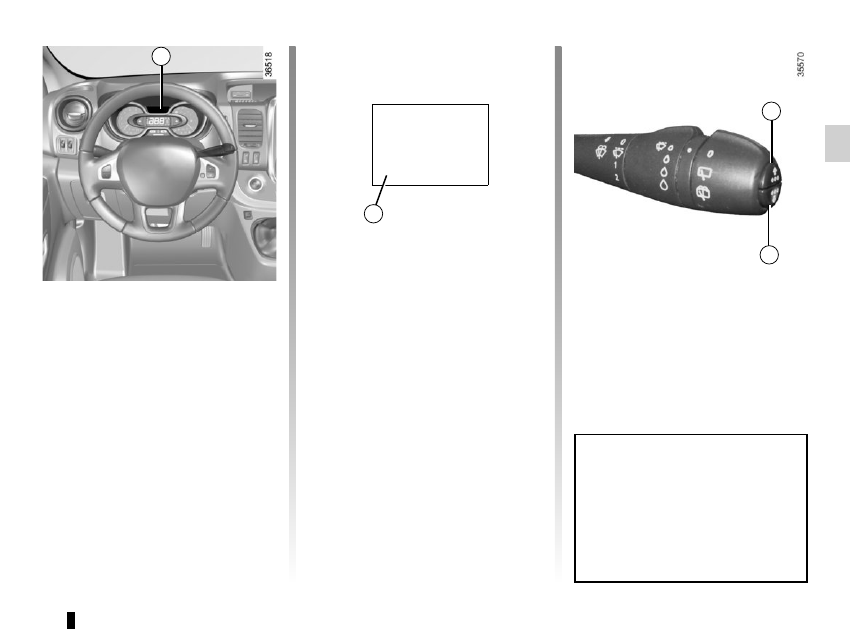

9°C 12:00

1

A

1.100

Display B

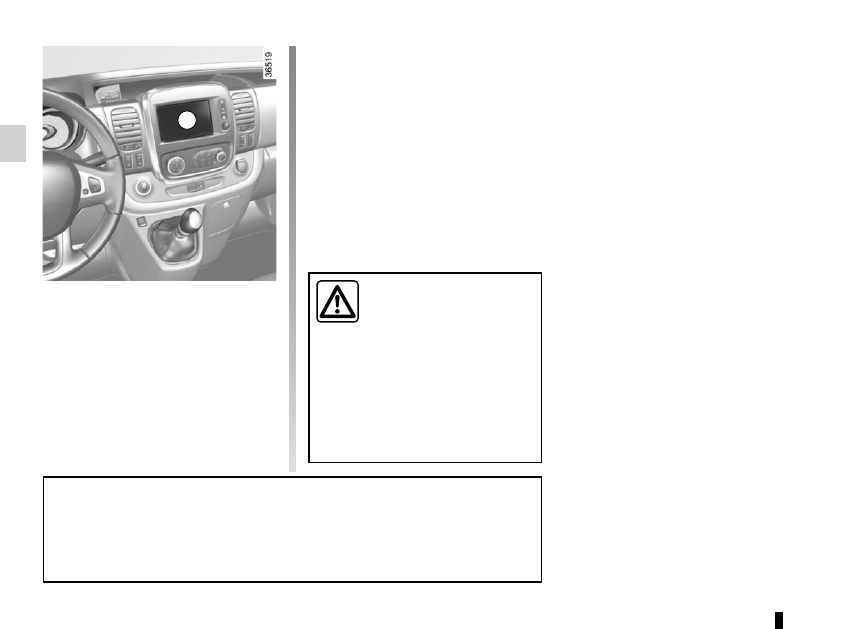

Vehicles fitted with touch-screen

multimedia, navigation aid systems,

telephones, etc.
Refer to the separate instructions for

the function to understand the special

features of this equipment.

External temperature

indicator

Special note:
When the exterior temperature is - 3°C

to + 3°C, the °C characters flash (sig-

nalling a risk of ice on the road).

External temperature in-

dicator
As ice formation is related

to climatic exposure, local

air humidity and temperature, the

external temperature alone is not

sufficient to detect ice.

CLOCK AND EXTERIOR TEMPERATURE

(2/2)

If the power supply is cut (battery disconnected, supply wire cut, etc.), the clock

must be reset.
We recommend that you do not adjust these settings while driving.

B

1.101

Heated door mirrors

Depending on the vehicle, with the

engine running, the mirrors are heated

in conjunction with the rear windows.

Manual door mirrors

To adjust, press the mirror A.

Objects observed in the

door mirror glass are actu-

ally closer than they appear.
For your safety, take this

into account in order to correctly

assess the distance before any ma-

noeuvre.

REAR-VIEW MIRRORS

(1/2)

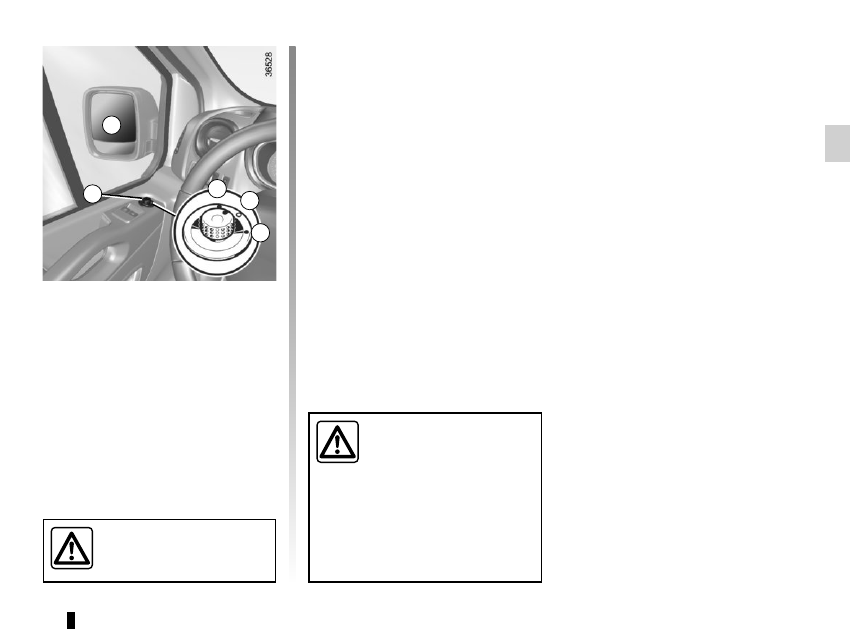

Electrically-adjustable door

mirrors

With the ignition on, position control 1

on:
B  to adjust the left-hand door mirror,

D  to adjust the right-hand door mirror,

C  to deactivate it.

1

B

C

D

For safety reasons, carry

out any adjustments when

the vehicle is stationary.

A

1.102

REAR-VIEW MIRRORS

(2/2)

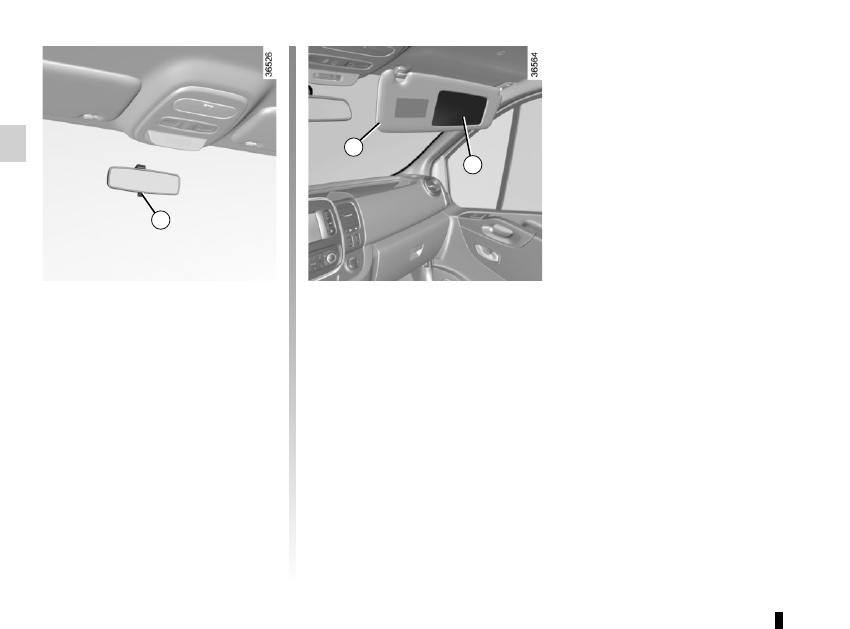

Additional rear-view mirror 4

(depending on the vehicle)
Lower the sun visor 3 to access the

special mirror to increase lateral vision

when manoeuvring.

4

Interior rear view mirror

Its position can be adjusted.

Rear-view mirror with lever 2
For night driving, to avoid being dazzled

by the headlights of the car behind you,

flip the small lever 2 located behind the

rear view mirror.

Rear view mirror without lever 2
The rear view mirror darkens automati-

cally at night if you are being followed

by a vehicle with its lights on.

2

3

1.103

Daytime running lights

function

(front lights only)

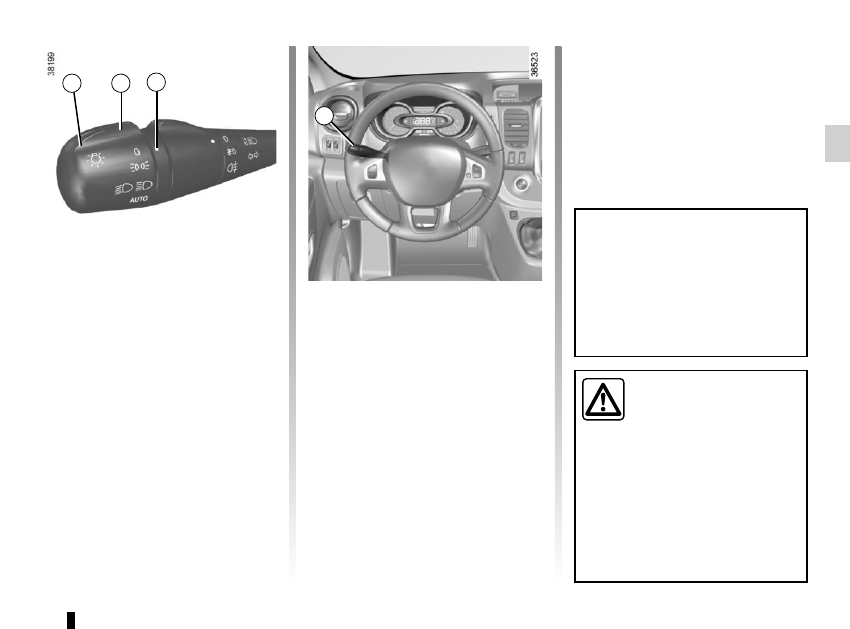

The daytime running lights come on

automatically with no action on stalk 1

when the engine is started, and they go

off once the engine is switched off.

EXTERIOR LIGHTING AND SIGNALS

(1/4)

š

Side lights

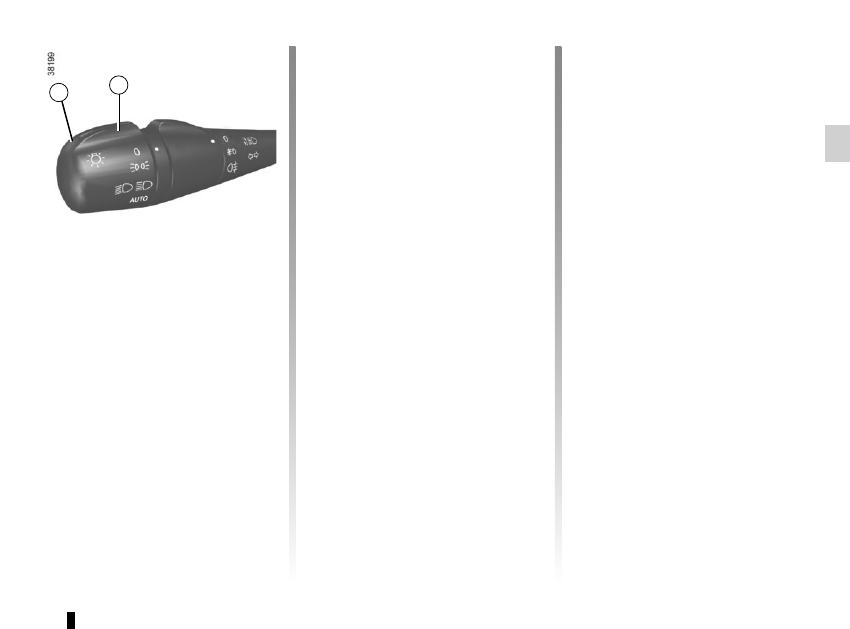

Turn the ring 2 until the symbol

is opposite mark 3.
An indicator light on the instrument

panel will come on.

Switching off the side lights
Manually, move ring 2 to position 0.

1

Before driving at night,

check that the electrical

equipment is operating cor-

rectly and adjust the head-

light beams (if your vehicle is not

carrying its normal load). As a gen-

eral precaution, check that the lights

are not obscured (by dirt, mud,

snow or objects being transported).

3

1

2

When driving on the left in a left-

hand drive vehicle (or vice versa),

drivers must re-adjust their lights

throughout their stay (see “Adjusting

headlight beams” in Section 1).

1.104

EXTERIOR LIGHTING AND SIGNALS

(2/4)

1

2

Switching off the dipped beam

headlights
–  Manually, move ring 2 to position 0;

–  automatically, with ring 2 in position

AUTO, the dipped beam headlights

go out upon stopping the engine, the

driver’s door is opened or the vehi-

cle is locked. In this case, the next

time the engine is started, the dipped

beam headlights will be switched

back on, taking into account the ex-

terior light level, without moving the

stalk 1.

NB: If the main beam headlights or

the fog lights are on, the lights are not

switched off automatically.

k

Dipped beam

headlights

Manual operation

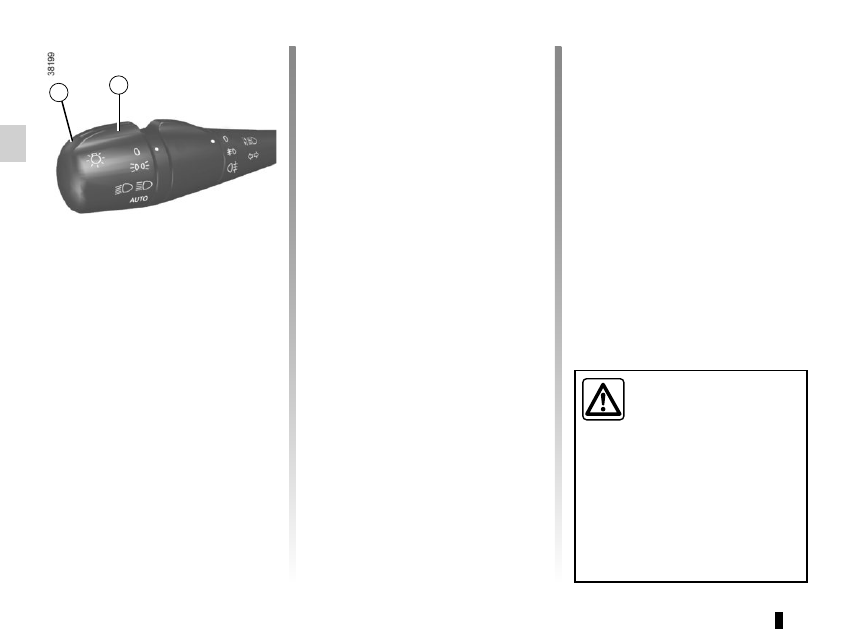

Turn the ring 2 until the symbol is oppo-

site mark 3. This indicator light on the

instrument panel comes on.

Automatic operation

(depending on vehicle)

Turn ring 2 until the AUTO symbol is op-

posite mark 3: with the engine running,

the dipped beam headlights switch on

or off automatically depending on the

brightness of the light outside, without

any action on stalk 1.

If the vehicle is parked on

the hard shoulder with tail-

gate open, the rear lights

may be obscured. You

should make other road users aware

of your vehicle by using a warning

triangle or other equipment speci-

fied by the road traffic regulations of

the country you are driving in.

1.105

á

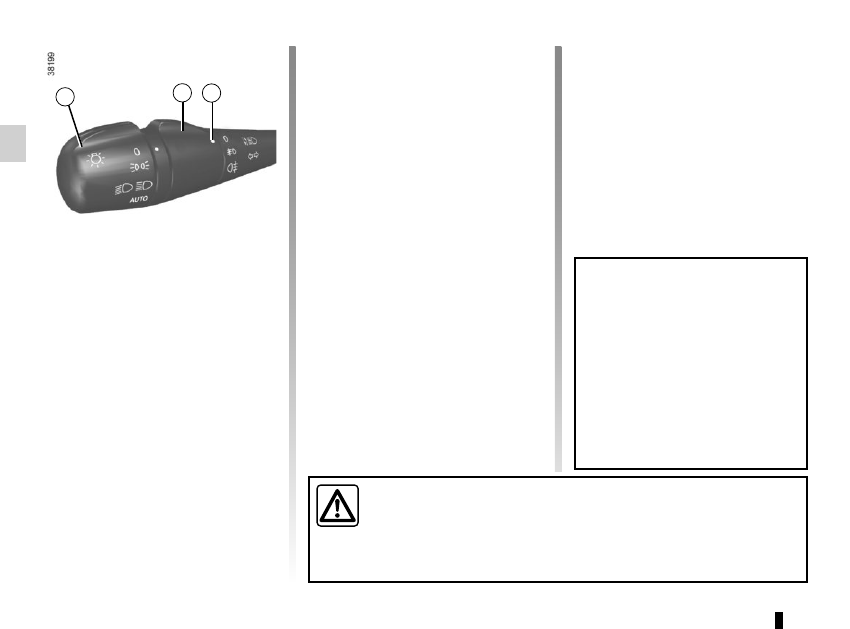

Main beam headlights

With the engine running and

the dipped beam headlights lit, push

stalk 1. This indicator light on the instru-

ment panel comes on.

To return to the dipped headlight posi-

tion, pull the stalk 1 towards you again.

Switching off the main beam

headlights
Manually, move ring 2 to position 0.

Lights-on reminder buzzer

A warning beep sounds when the driv-

er’s door is opened to warn you that the

lights are still on.

EXTERIOR LIGHTING AND SIGNALS

(3/4)

With the engine and lights switched

off, and the ring 2 in position 0, pull the

stalk 1 towards you: the dipped beam

headlights come on for about thirty sec-

onds. To increase this duration, you

may pull the stalk up to four times (total

time restricted to approximately two

minutes). The message “ _ _ _” along

with the time the lights will be on for is

displayed on the instrument panel to

confirm this action.
To switch off the lights before they go

out automatically, turn ring 2 to any po-

sition, then return it to position 0.

“See-me-home lighting”

function

This function allows you to briefly switch

on the dipped beam headlights (to pro-

vide light when opening a gate, etc.).

1

2

1.106

EXTERIOR LIGHTING AND SIGNALS

(4/4)

Cornering lights function

Whenever the dipped beam headlights

are on and under certain conditions (at

speed, the steering wheel at an angle,

in forward gear, the indicator lights on,

etc.), when taking a corner one of the

front fog lights will come on to light the

inside of the bend.

f

Rear fog light

Turn centre ring 4 on the stalk

until the symbol faces mark 5, then re-

lease it.
Operation of the fog lights depends on

the exterior lighting selected, and an in-

dicator light will light up on the instru-

ment panel.
To avoid inconveniencing other road

users, remember to switch off the rear

fog light when it is no longer needed.

Switching off the lights

Turn ring 4 again until mark 5 is oppo-

site the symbol for the fog light you wish

to switch off. The corresponding indi-

cator light goes out on the instrument

panel.
The front and rear fog lights switch off

when the exterior lights are switched

off.

g

Front fog lights

Turn centre ring 4 on the

stalk 1 until the symbol faces mark 5

then release it.

Operation of the fog lights depends on

the exterior lighting position selected,

and an indicator light will light up on the

instrument panel.

When driving in fog or snow, or

when transporting objects which are

higher than the roof, the headlights

do not come on automatically.
Switching on the fog lights remains

the responsibility of the driver: the

indicator lights on the instrument

panel inform you whether the fog

lights are lit (indicator light on) or not

(indicator light not on).

If the vehicle is parked on the hard shoulder with tailgate open, the rear

lights may be obscured. You should make other road users aware of your

vehicle by using a warning triangle or other equipment specified by the

road traffic regulations of the country you are driving in.

4

1

5

1.107

HEADLIGHT BEAM ADJUSTMENT

(1/2)

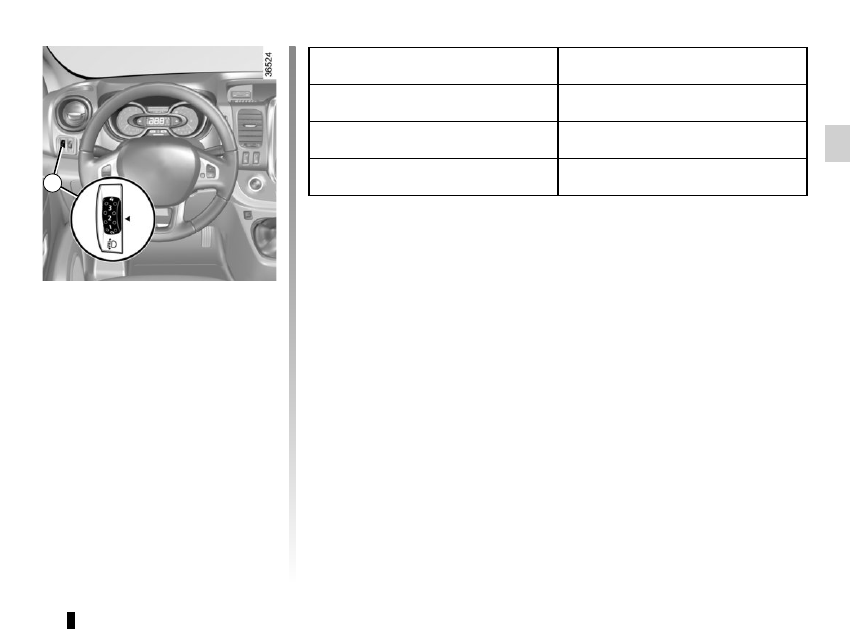

On vehicles fitted with this function,

control A allows you to adjust the height

of the beams according to the load.
Turn control A downwards to lower the

headlights and upwards to raise them.

Load status

Control position

Empty, driver only

0

Driver with passenger(s) and

luggage compartment full (1)

2

Other cases

According to driver’s judgement

(1) Load status at maximum permitted weight.

A

1.108

HEADLIGHT BEAM ADJUSTMENT

(2/2)

Temporary adjustment

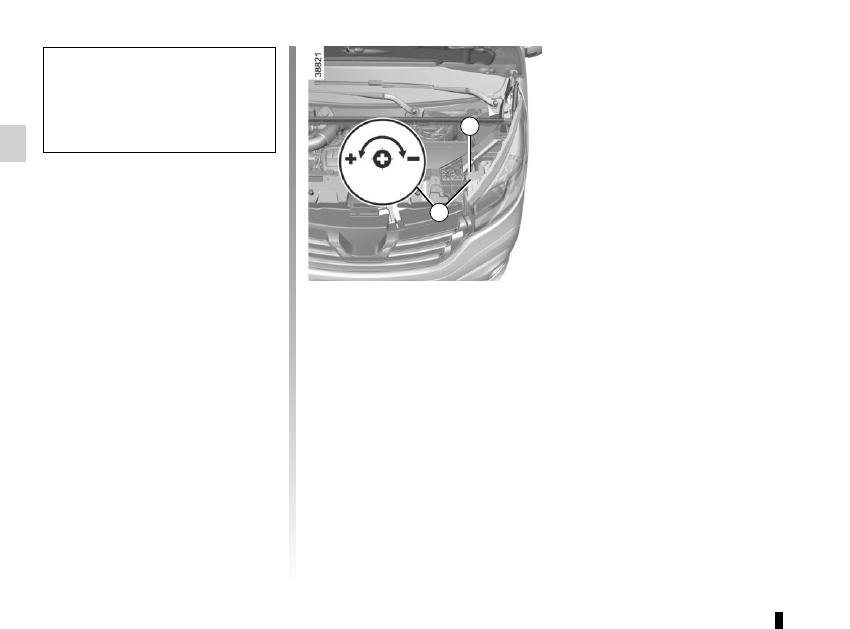

Open the bonnet and identify the mark-

ing B next to one of the front headlight

projectors.
For each headlight, using a screw-

driver, turn the screw 1 by a quarter

turn towards the - symbol to lower the

beams.
Return to the starting point once your

trip is over:  turn the screw 1 by a quar-

ter turn towards the + symbol to raise

the beams.

When driving on the left in a left-

hand drive vehicle (or vice versa),

you must adjust your lights tempo-

rarily during your stay.

B

1

1.109

é

Hazard warning lights

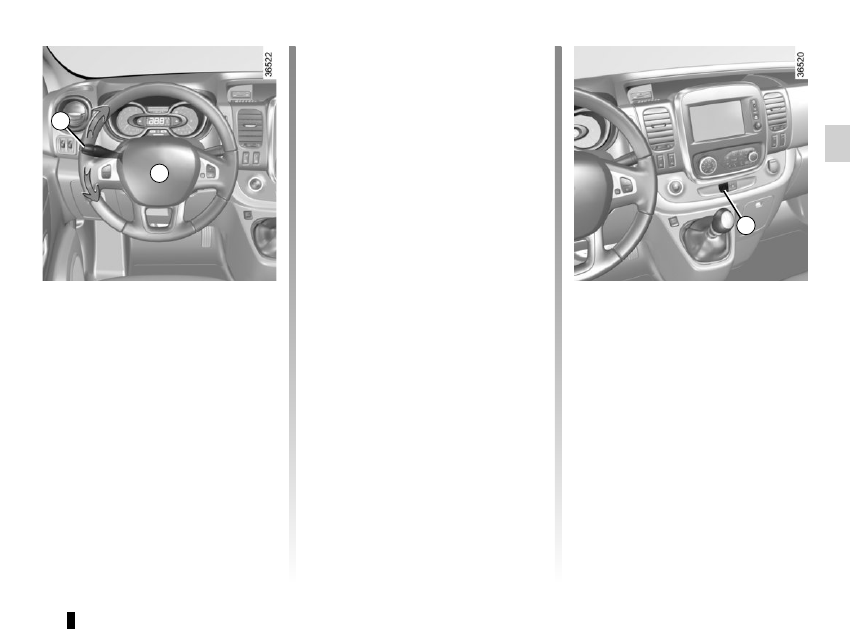

Press switch 2.

This switch activates all four direction

indicators and the side indicator lights

simultaneously. It must only be used in

an emergency to warn drivers of other

vehicles that you have had to stop in

an area where stopping is prohibited or

unexpected, or that you are obliged to

drive under special conditions.

Depending on the vehicle, the hazard

warning lights may come on auto-

matically under heavy deceleration.

You can switch them off by pressing

switch 2 once.

Direction indicators

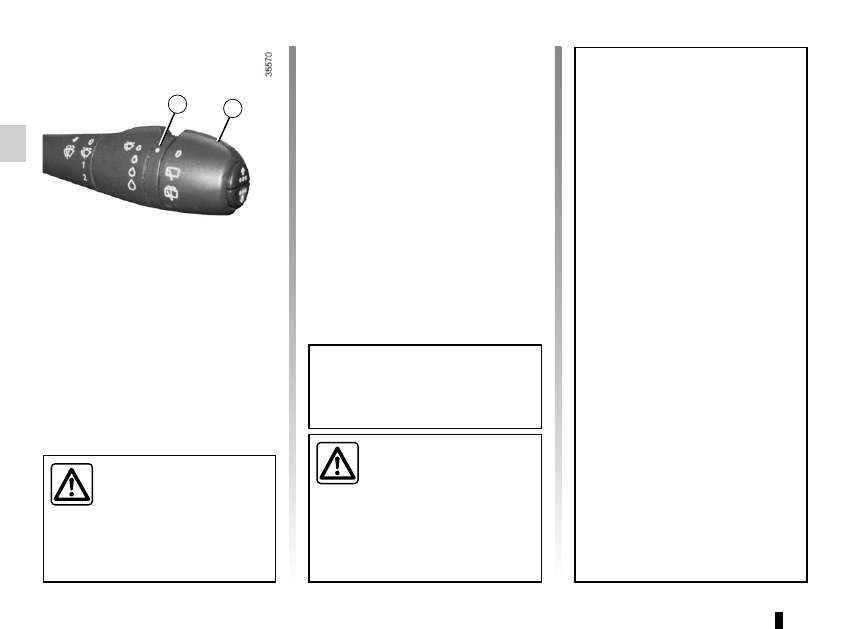

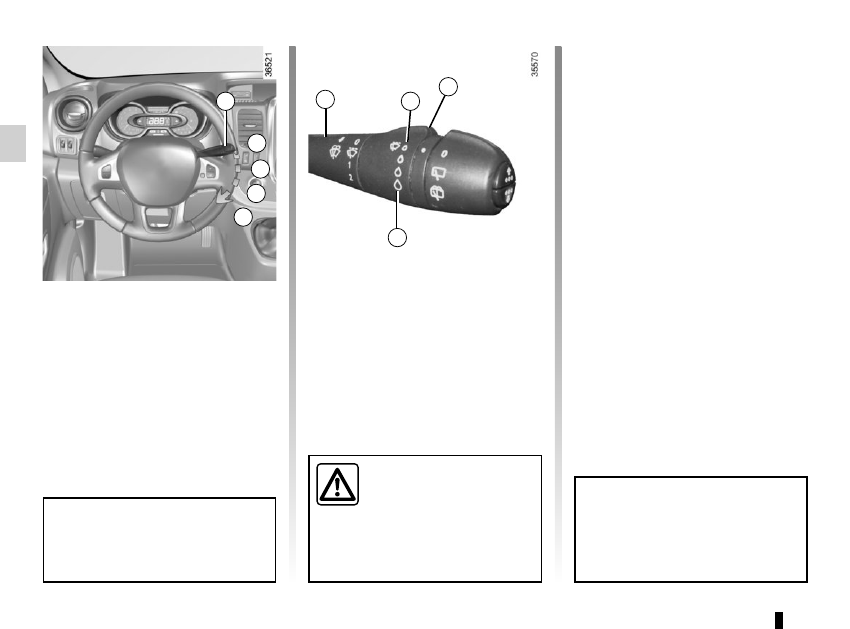

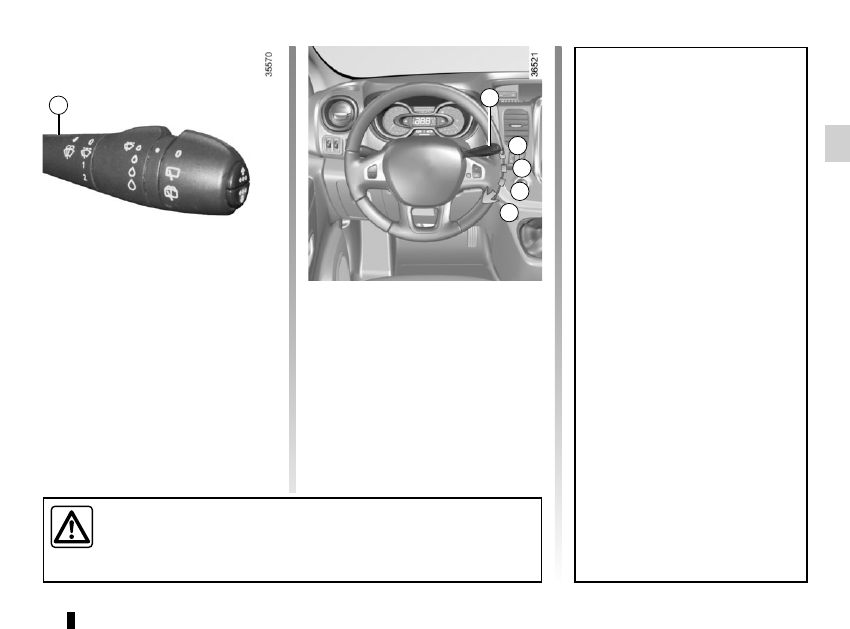

Move stalk 1 parallel to the steering

wheel and in the direction you are going

to turn it.

One-touch mode
When driving, it is possible that the

steering wheel may not be turned suf-

ficiently to return the stalk automatically

to its starting position.

In this case, move the stick 1 to half-

way, then release it: the stalk returns to

its original point and the indicator light

flashes three times.

Horn

Press steering wheel boss A.

Headlight flasher

Pull stalk 1 towards you to flash the

headlights.

AUDIBLE AND VISUAL SIGNALS

A

2

1

1.110

Vehicles with automatic wiper

function

With the engine running, move stalk 1
–  A park.
–  B
 automatic wiper function

When this position is selected, the

system detects water on the wind-

screen and triggers the wipers at a

suitable wiping speed. It is possi-

ble to change the triggering thresh-

old and the time sweeps by turning

ring 2:

–  E: minimum sensitivity

–  F: maximum sensitivity

NB: in foggy weather or during

snowfalls, the wiping is not automati-

cally triggered and remains under

the driver’s control.

–  C normal wiping speed.
–  D
 fast wiping speed.

Special note

When driving, the wiping speed slows

down whenever the vehicle stops. For

example, fast wiping speed will slow to

normal wiping speed. As soon as the

vehicle moves off, wiping will return to

the speed originally selected. If stalk 1

is operated, it overrides and  cancels

the automatic function.

With the ignition on, move stalk 1
–  A park.
–  B
 intermittent wiping.

The wipers will pause for several

seconds between sweeps. It is

possible to change the time be-

tween sweeps by turning ring 2.

–  C normal wiping speed.
–  D
 fast wiping speed.

WINDSCREEN WASH, WIPE

(1/2)

A

B

C

D

1

1

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in position A (park).

Risk of injury.

2

E

F

Positions  B and C are accessible

with the ignition on. Position D is

accessible only when the engine is

running.

Position C is accessible with the ig-

nition on. Positions B and D are ac-

cessible only with the engine run-

ning.

1.111

Before any action involving the windscreen (washing the vehicle, de-ic-

ing, cleaning the windscreen, etc.) return stalk 1 to position A (park).
Risk of injury and/or damage.

Windscreen washer

With the ignition on, pull stalk 1 to-

wards you.
A brief pull will trigger a single sweep

of the wipers, in addition to the wind-

screen washer.
A longer pull will trigger three sweeps

of the wipers followed, a few seconds

later, by a fourth, in addition to the wind-

screen washer.

WINDSCREEN WASH, WIPE

(2/2)

A

B

C

D

1

1

Note:
There is a maintenance position for re-

placing wiper blades.

With the ignition on and the engine

off, lower windscreen wiper stalk 1 fully

(position D). The wiper arms stop in a

position away from the bonnet (please

refer to the information on “Windscreen

wiper blades” in Section 5).

Efficiency of a wiper blade

Check the condition of the wiper

blades. How long they last depends

on you:
–  it must remain clean: clean the

blade and the screen regularly

with soapy water;

–  do not use it when the screen is

dry;

–  free it from the screen when it has

not been used for a long time.

Replace wiper blades as soon as

their performance starts to diminish:

Approximately every year (refer to

the information on “Wiper blades” in

section 5).

Precautions for using the

wipers

–  In freezing or snowy weather,

clear the screen before starting

the wipers (risk of motor over-

heating);

–  ensure that no objects are ob-

structing the travel of the blade.

1.112

p

Rear screen wash/wipe

With the ignition on, turn the

end of stalk 1 to align mark 2 with the

symbol.
When the stalk is released, it returns to

the rear wipe position.

Special note

If the windscreen wipers are operat-

ing or are in automatic mode, the rear

screen wiper wipes intermittently when

reverse gear is engaged.

Y

Speed-dependent

timed rear screen

wiper

With the ignition on, turn the end of

stalk 1 to align mark 2 with the symbol.

Wiping frequency varies with speed.

REAR SCREEN WASH, WIPE

1

2

Before any action on the

windscreen (washing the

vehicle, de-icing, cleaning

the windscreen, etc.) return

stalk 1 to the park position.
Risk of injury and/or damage.

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in the park position.

Risk of injury.

Efficiency of a wiper blade

Check the condition of the wiper

blades. How long they last depends

on you:
–  it must remain clean: clean the

blade and the screen regularly

with soapy water;

–  do not use it when the screen is

dry;

–  free it from the screen when it has

not been used for a long time.

Replace wiper blades as soon as

their performance starts to diminish:

Approximately every year (refer to

the information on “Wiper blades” in

section 5).

Precautions for using the

wipers

–  In freezing or snowy weather,

clear the screen before starting

the wipers (risk of motor over-

heating);

–  ensure that no objects are ob-

structing the travel of the blade.

Do not use the wiper arm to open or

close the tailgate.

1.113

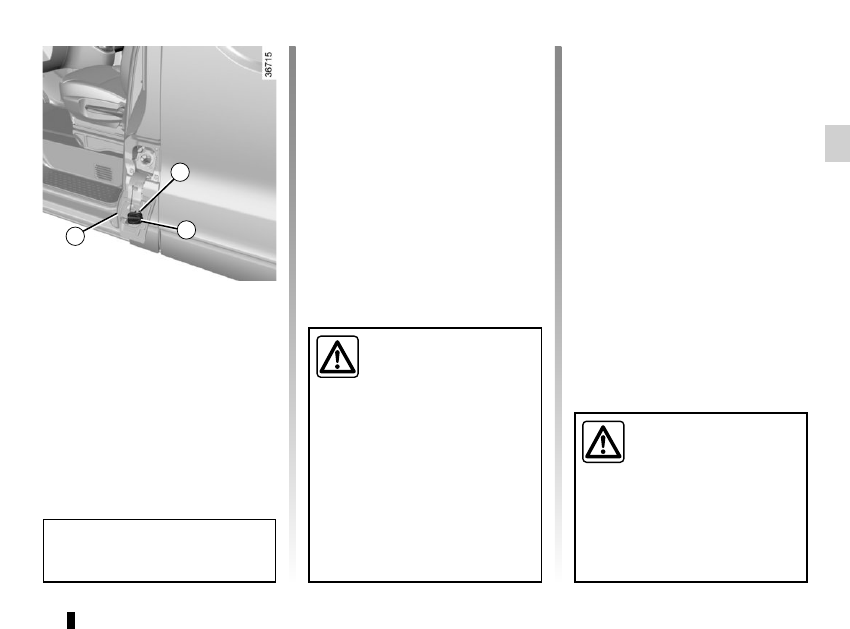

Fuel grade

Use a high-grade fuel that complies

with the legislation in force in each

country and which must comply with

the specifications given on the label

on the cover A. Please refer to the in-

formation on “Engine specifications” in

Section 6.
Diesel version
Only
 use diesel fuel which complies

with the information on the label located

inside the cover A.

Useful capacity of fuel tank: Approx.

80 litres
Open the front left door to open the

cover A.

When filling, use the cap holder 1 on

the cover A to secure the cap 2.

FUEL TANK

(1/3)

After filling, check that the cap and

cover are closed.

Fuel filler cap: this is spe-

cific.
If you have to replace it,

make sure it is identical

to the original cap. Contact an ap-

proved Dealer.

Never place the cap near a source

of heat or flame.
Do not wash the filler area with a

high-pressure washer.

Do not mix even small

amounts of petrol (un-

leaded or E85) with diesel.

Do not use ethanol-based

fuel if your vehicle is not compatible

with this fuel.

Do not add additive to the fuel –

otherwise you risk damaging the

engine.

A

1

2















Content   ..  5  6  7  8   ..
