CHILD SEATS: attachment using the ISOFIX system

(2/12)

5-seater Combi version

Type of child seat

Weight of the child

Seat size ISOFIX

Front

passenger seat

Rear side

seat

Rear centre

seat

Carrycot fitted across

the vehicle

Group 0

< 10 kg

IL (1)

Rear-facing shell seat

Groups 0 and 0+

< 13 kg

IL (2)

Rear-facing seat

Groups 0+ and 1

< 13 kg and 9 to 18 kg

C, D

IL (2)

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

IUF- IL (3)

Booster seat

Groups 2 and 3

15 to 25 kg and 22 to

36 kg

IUF- IL (3)

The table below summarises the information already shown on the diagram on the previous page, to ensure the applica-

ble regulations are respected.

1.67

X = Seat not suitable for fitting child seats ISOFIX.

IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be

attached using the ISOFIX system; check that it can be fitted.

(1) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest

the door.

(2) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(3) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situa-

tions, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child seat

(please refer to the section entitled “Rear headrests” in Section 3). Do not push the seat in front of the child more than halfway

back on its runners and do not recline the seatback more than 25°.

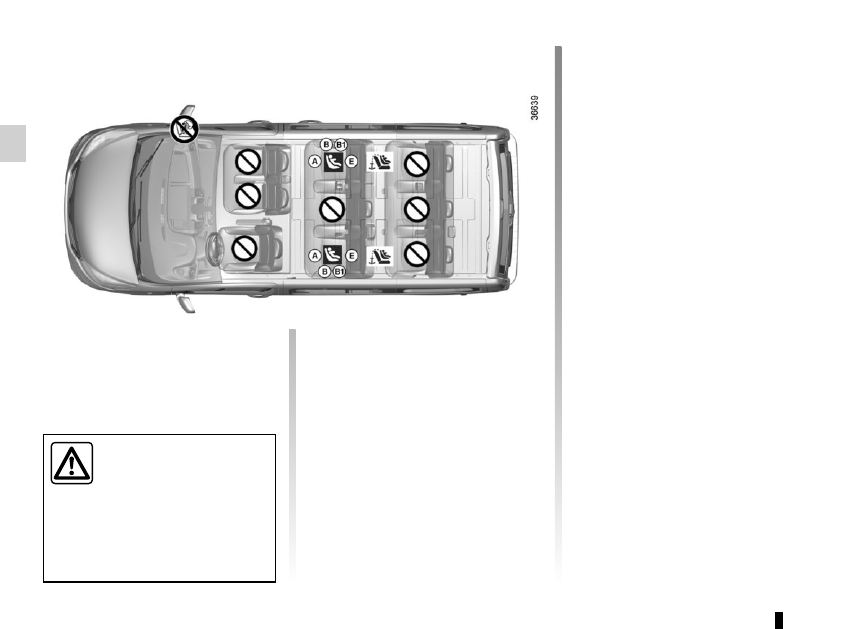

CHILD SEATS: attachment using the ISOFIX system

(3/12)

1.68

6-seater Combi version

Type of child seat

Weight of

the child

Size of

ISOFIX

seat

Front seat

Rear seat

centre

passenger

side

centre

Carrycot fitted across

the vehicle

Group 0

< 10 kg

Rear-facing shell seat

Groups 0 and 0+

< 13 kg

IL (2)

Rear-facing seat

Groups 0+ and 1

< 13 kg and

9 to 18 kg

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

IUF- IL (3)

Booster seat

Groups 2 and 3

15 to 25 kg and

22 to 36 kg

IUF- IL (3)

CHILD SEATS: attachment using the ISOFIX system

(4/12)

The table below summarises the information already shown in the diagram on the following pages, to ensure the appli-

cable regulations are respected.

1.69

X = Seat not suitable for fitting child seats ISOFIX.

IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be

attached using the ISOFIX system; check that it can be fitted.

(1) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest

the door.

(2) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(3) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situa-

tions, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child seat

(please refer to the section entitled “Rear headrests” in Section 3). Do not push the seat in front of the child more than halfway

back on its runners and do not recline the seatback more than 25°.

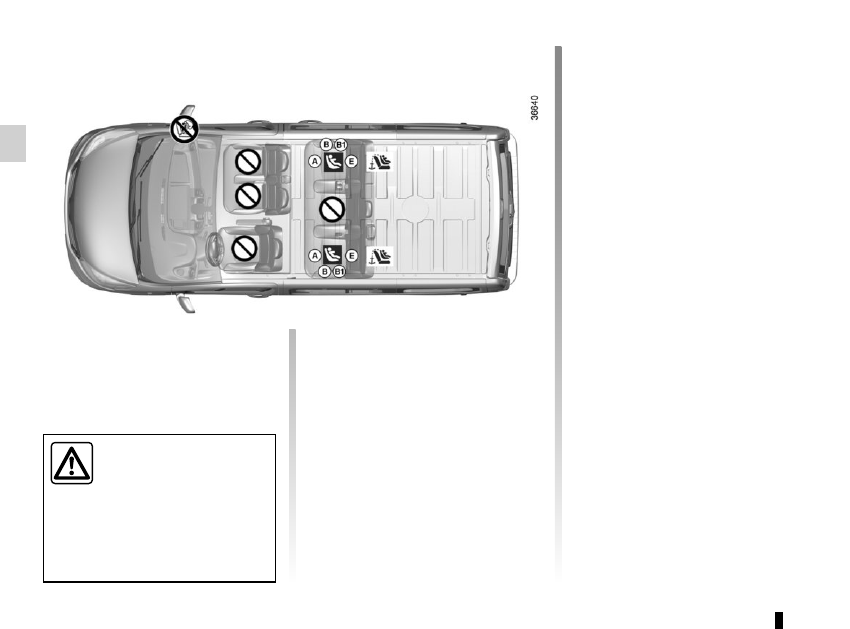

CHILD SEATS: attachment using the ISOFIX system

(5/12)

1.70

CHILD SEATS: attachment using the ISOFIX system

(6/12)

Child seat attached using the ISOFIX

mounting

Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be fitted. The an-

chorage points are located in the lug-

gage compartment and are visible.
The size of the ISOFIX child seat is in-

dicated by a letter:

– A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

– C: rear-facing seats in group 1 (9 to

18 kg);

– D and E: shell seat or rear-facing

seats in group 0 or 0+ (less than

13 kg);

– F and G: carrycots in group 0 (less

than 10 kg).

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

Seat which does not allow a

child seat to be fitted.

6-seater Combi

1.71

Child seat attached using the ISOFIX

mounting

Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be fitted. The an-

chorage points are located in the lug-

gage compartment and are visible.
The size of the ISOFIX child seat is in-

dicated by a letter:

– A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

– C: rear-facing seats in group 1 (9 to

18 kg);

– D and E: shell seat or rear-facing

seats in group 0 or 0+ (less than

13 kg);

– F and G: carrycots in group 0 (less

than 10 kg).

Seat which does not allow a

child seat to be fitted.

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

CHILD SEATS: attachment using the ISOFIX system

(7/12)

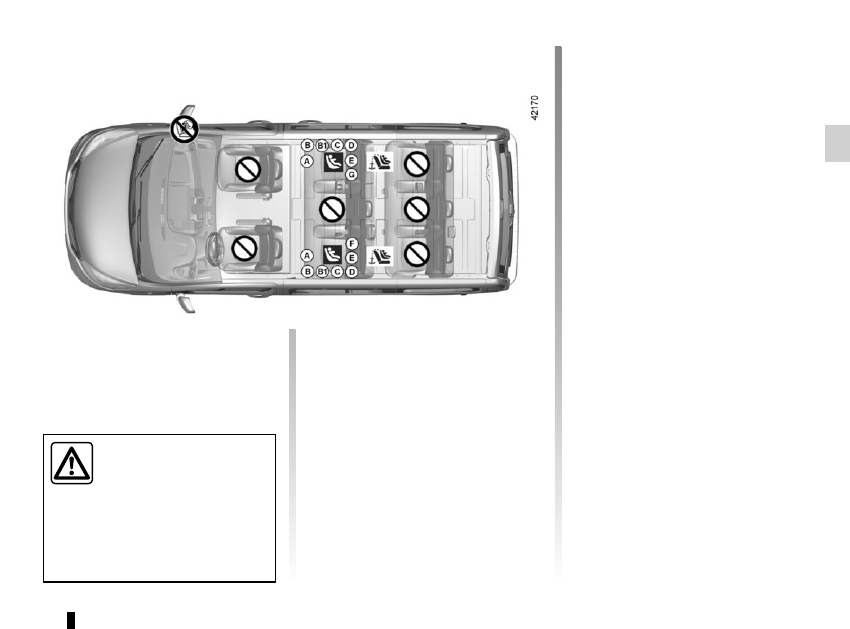

8-seater combi/bus

1.72

CHILD SEATS: attachment using the ISOFIX system

(8/12)

8-seater Bus/Combi version

Type of child seat

Weight of

the child

Size of

ISOFIX

seat

Front

passenger

seat

Rear seat

2nd row

side seats

2nd row

centre seat

3rd row

side seats

3rd row

centre seat

Carrycot fitted

across the vehi-

cle

Group 0

< 10 kg

IL (1)

Rear-facing shell

seat

Groups 0 and 0+

< 13 kg

IL (2)

Rear-facing seat

Groups 0+ and 1

< 13 kg and 9

to 18 kg

C, D

IL (2)

Forward-facing

seat

Group 1

9 to 18 kg

A, B, B1

IUF- IL (3)

Booster seat

Groups 2 and 3

15 to 25 kg and

22 to 36 kg

IUF- IL (3)

The table below summarises the information already shown on the diagram on the previous page, to ensure the applica-

ble regulations are respected.

1.73

X = Seat not suitable for fitting child seats ISOFIX.

IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be

attached using the ISOFIX system; check that it can be fitted.

(1) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest

the door.

(2) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(3) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situa-

tions, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child seat

(please refer to the section entitled “Rear headrests” in Section 3). Do not push the seat in front of the child more than halfway

back on its runners and do not recline the seatback more than 25°.

CHILD SEATS: attachment using the ISOFIX system

(9/12)

1.74

CHILD SEATS: attachment using the ISOFIX system

(10/12)

9-seater Bus/Combi version

Type of

child seat

Weight of

the child

Size of

ISOFIX

seat

Front seat

Rear seat

centre

passenger

side

2nd row

side seats

2nd row

centre

3rd row

side seats

3rd row

centre

seat

Carrycot fitted

across the vehi-

cle

Group 0

< 10 kg

R e a r - f a c i n g

shell seat

Groups 0 and 0+

< 13 kg

IL (2)

Rear-facing seat

Groups 0+ and 1

< 13 kg

and 9 to 18

Forward-facing

seat

Group 1

9 to 18 kg

A, B, B1

IUF- IL (3)

Booster seat

Groups 2 and 3

15 to 25 kg

and 22 to

36 kg

IUF- IL (3)

The table below summarises the information already shown on the diagram on the following pages, to ensure the ap-

plicable regulations are respected.

1.75

X = Seat not suitable for fitting child seats ISOFIX.

IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be

attached using the ISOFIX system; check that it can be fitted.

(1) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest

the door.

(2) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(3) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situa-

tions, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child seat

(please refer to the section entitled “Rear headrests” in Section 3). Do not push the seat in front of the child more than halfway

back on its runners and do not recline the seatback more than 25°.

CHILD SEATS: attachment using the ISOFIX system

(11/12)

1.76

Child seat attached using the ISOFIX

mounting

Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be fitted. The an-

chorage points are located in the lug-

gage compartment and are visible.
The size of the ISOFIX child seat is in-

dicated by a letter:

– A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

– C: rear-facing seats in group 1 (9 to

18 kg);

– D and E: shell seat or rear-facing

seats in group 0 or 0+ (less than

13 kg);

– F and G: carrycots in group 0 (less

than 10 kg).

Seat which does not allow a

child seat to be fitted.

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

CHILD SEATS: attachment using the ISOFIX system

(12/12)

9-seater combi/bus

1.77

CHILD SAFETY: deactivating, activating the front passenger air bag

(1/3)

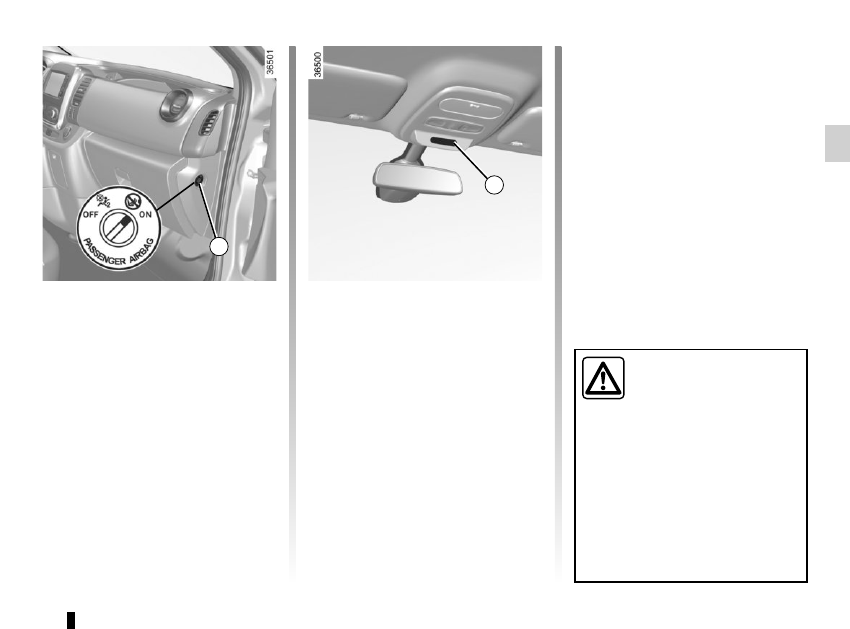

Deactivating the front

passenger airbags

(on equipped vehicles)
Before fitting a child seat on the front

passenger seat you must deactivate

the passenger airbag.

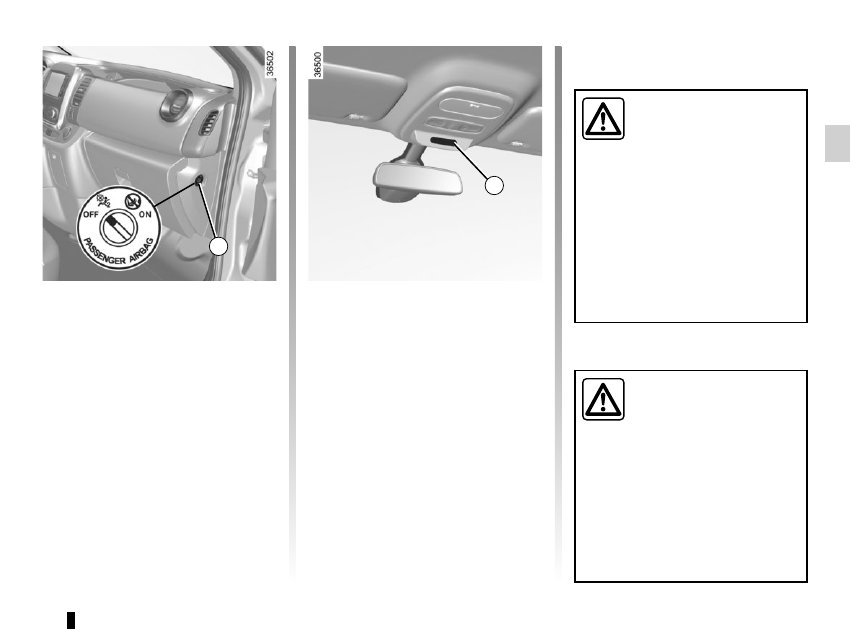

To deactivate the airbags: with the

vehicle stopped and the ignition off,

push and turn lock 1 to the OFF posi-

tion.
With the ignition on, you must check

that the warning light

]

on the dis-

play 2 is lit up and, depending on the

vehicle, that the message “airbag pas-

senger deactivated” is displayed.
This light remains permanently lit to

let you know that you can fit a child

seat.

The passenger airbag must

only be deactivated or acti-

vated when the vehicle is

stationary.

If it is interfered with when the ve-

hicle is being driven, indicator lights

and

will come on.

Switch the ignition off then on again

to reset the airbag in accordance

with the lock position.

DANGER
Since operation of the front

passenger airbag is not

compatible with the po-

sition of a rear-facing child seat,

NEVER fit a rear-facing child re-

straint system in a seat protected

by an ACTIVATED front AIRBAG.

This can lead to the DEATH of the

CHILD or SERIOUS INJURY.

1.78

DANGER
Since operation of the front

passenger airbag is not

compatible with the po-

sition of a rear-facing child seat,

NEVER fit a rear-facing child re-

straint system in a seat protected

by an ACTIVATED front AIRBAG .

This can lead to the DEATH of the

CHILD or SERIOUS INJURY.

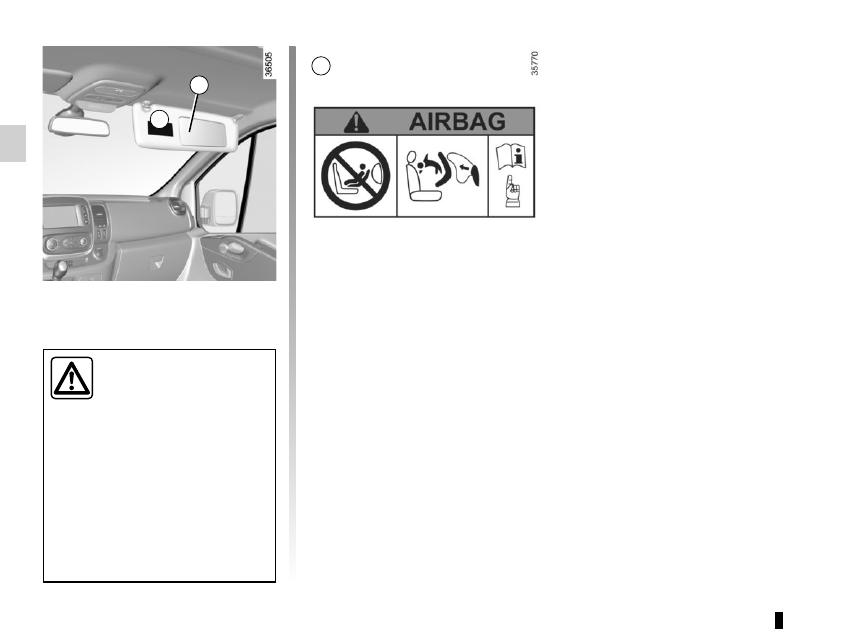

The markings on the dashboard and

labels A on each side of passenger sun

blind 3 (example: label shown above)

remind you of these instructions.

CHILD SAFETY: deactivating, activating the front passenger air bag

(2/3)

1.79

CHILD SAFETY: deactivating, activating the front passenger air bag

(3/3)

Activating the front

passenger airbags

You should reactivate the airbags as

soon as you remove the child seat from

the front passenger seat to ensure the

protection of the front passenger in the

event of an impact.

The passenger airbag must

only be deactivated or acti-

vated when the vehicle is

stationary.

If it is interfered with when the ve-

hicle is being driven, indicator lights

and

will come on.

Switch the ignition off then on again

to reset the airbag in accordance

with the lock position.

Operating faults

It is forbidden to fit a rear-facing child

seat to the front passenger seat if the

airbags activation/deactivation system

is faulty.
Allowing any other passenger to sit in

that seat is not recommended.
Contact your approved dealer as soon

as possible.

To reactivate the airbags: with the

vehicle stopped and the ignition off,

push and turn lock 1 to the ON position.

With the ignition switched on, you must

check that the warning light

]

out and that the warning light



comes on the display 2 after each start-

up for around 60 seconds.
The front passenger seat belt additional

restraint systems are activated.

1.80

DRIVING POSITION: LEFT-HAND DRIVE

(1/2)

1 2

4 5

6 7

9 10

2 1

33 32

1.81

DRIVING POSITION: LEFT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1 Side air vent.
2 Location for ashtray or cup holder.
3 Stalk for:

– direction indicator lights;

– exterior lights;

– front fog lights;

– rear fog lights.

4 Instrument panel.
5 Location for driver’s airbag and horn.
6 Stalk for:

– windscreen and rear screen

wiper/washer;

– trip computer and warning

system information read-out.

7  RENAULT card reader.
8  Remote radio controls.
9  Centre air vent.
10 Accessories  socket.
11 Multimedia/radio  touchscreen.
12 Storage  compartment.

13 Location for passenger airbag or

storage compartment.

14 Glovebox.
15 Switch to activate fast idle speed or

to cut the controls of the rear ventila-

tion.

16 Rear de-icer switch.
17

Accessories socket or cigarette

lighter.

18 Heating and ventilation controls.
19 Handbrake.
20 Location for ashtray or cup holder.
21 Central door locking/unlocking con-

trols.

22 Hazard warning lights switch.
23 Gear lever.
24 ECO mode switch.
25 Engine start/stop button.
26 Stop and Start function activation/

deactivation control.

27 Cruise control/speed limiter main

control.

28 Ignition switch for vehicles with key.
29 Control for adjusting steering wheel

reach.

30 Cruise control/speed limiter controls.
31 Storage compartment.
32 Bonnet release control.
33 Controls for:

–

headlight beam height remote ad-

justment;

–

lighting rheostat for control instru- -

ments;

– traction control;
–

activation/deactivation of the

parking distance control system.

Renault Trafic (2018 year). Instruction - part 5
