Renault Kadjar (2018 year). Instruction - part 6





1.82

“See-me-home lighting”

function

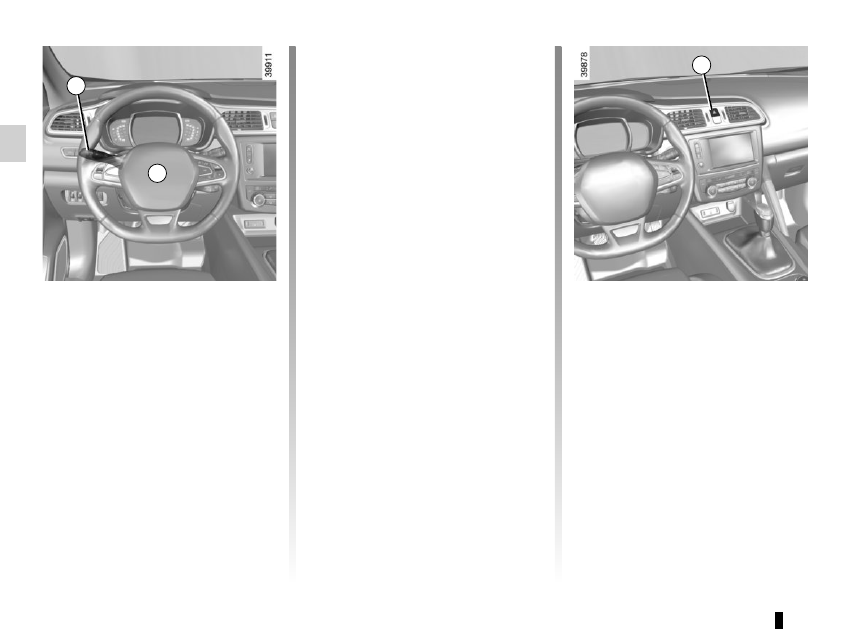

This function allows you to briefly switch

on the dipped beam headlights (to pro-

vide light when opening a gate, etc.).
With the engine and lights switched

off and the ring 3 in position 0 or

AUTO, pull the stalk 1 towards you: the

dipped beam headlights come on for

approximately 30 seconds. To increase

this duration, you may pull the stalk up

to four times (total time restricted to ap-

proximately two minutes). The mes-

sage “Follow-me home for _ _ _” along

with the time the lights will be on for is

displayed on the instrument panel to

confirm this action. You can then lock

your vehicle.
To switch off the lights before they go

out automatically, turn ring 3 to any po-

sition, then return it to the AUTO posi-

tion .

EXTERIOR LIGHTING AND SIGNALS

(5/6)

Welcome and goodbye

function

(depending on the vehicle)
Once the function is activated, the day-

time running lights and the rear side

light light up automatically upon detect-

ing the RENAULT card or when the ve-

hicle is unlocked.
They switch off automatically:
–  approximately one minute after li-

ghting up;

–  when starting the engine based on

the position of the lighting stalk;

or
–  upon locking the vehicle.

Activating/deactivating the function
From the multifunction screen, select

menu “vehicle”, “User settings” then

“External welcome”. Choose “ON”

or “OFF” to activate or deactivate the

function.

1.83

EXTERIOR LIGHTING AND SIGNALS

(6/6)

f

Rear fog lights

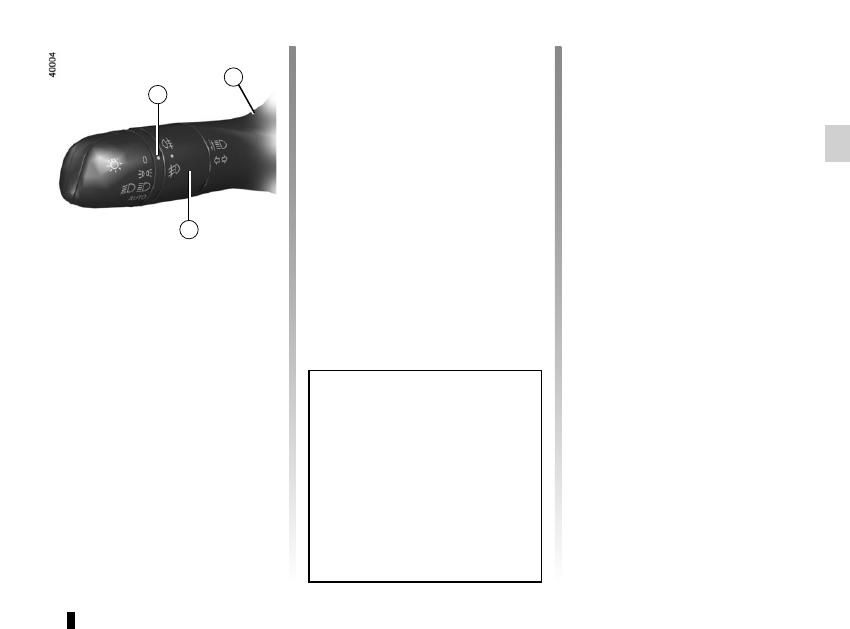

Turn centre ring 7 on the stalk

until the symbol faces mark 2, then re-

lease it.
Operation of the fog lights depends on

the exterior lighting selected, and an in-

dicator light will light up on the instru-

ment panel.
Do not forget to switch off the fog lights

when they are no longer needed, to

avoid inconveniencing other road

users.

Switching off the lights

Turn the ring 7 again until the mark 2

is opposite the symbol for the fog light

that you wish to switch off. The corre-

sponding indicator light on the instru-

ment panel goes out.
The fog lights switch off when the exte-

rior lights are switched off.

Cornering lights

(depending on vehicle)
Whenever the dipped beam headlights

are on and under certain conditions (at

speed, the steering wheel at an angle,

in forward gear, the indicator lights on,

etc.), when taking a corner one of the

front fog lights will come on to light the

inside of the bend.

When driving in fog or snow, or

when transporting objects which are

higher than the roof, the headlights

do not come on automatically.
Switching on the fog lights remains

the responsibility of the driver: the

indicator lights on the instrument

panel inform you whether the fog

lights are lit (indicator light on) or not

(indicator light not on).

7

2

g

Front fog lights

Turn centre ring 7 on stalk 1

until the symbol faces mark 2, then re-

lease it.
Operation of the fog lights depends on

the exterior lighting position selected,

and an indicator light will light up on the

instrument panel.

1

1.84

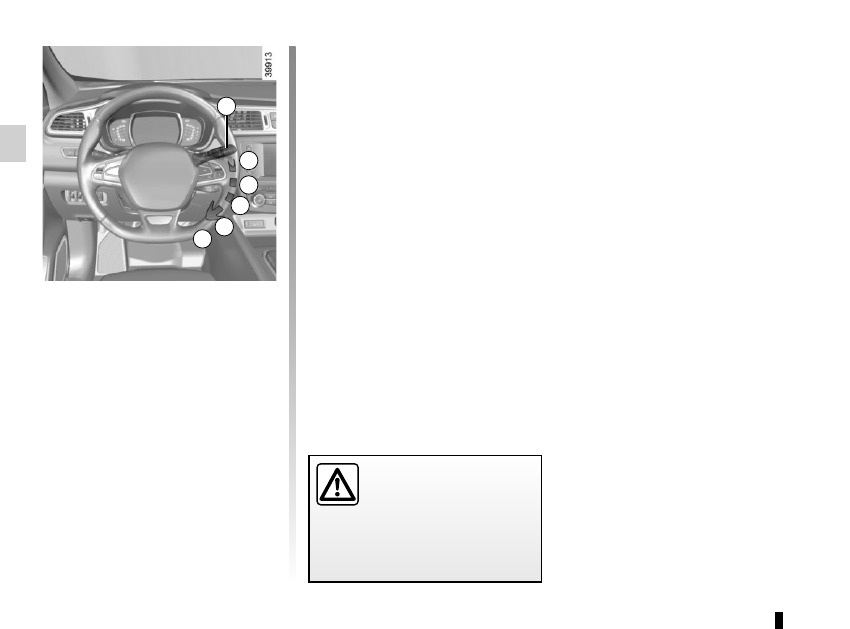

AUDIBLE AND VISUAL SIGNALS

Horn

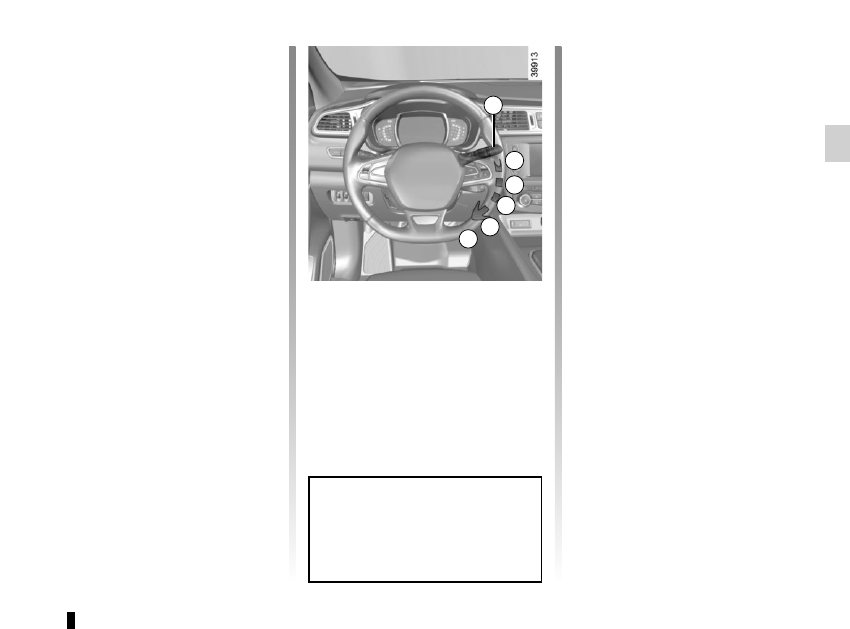

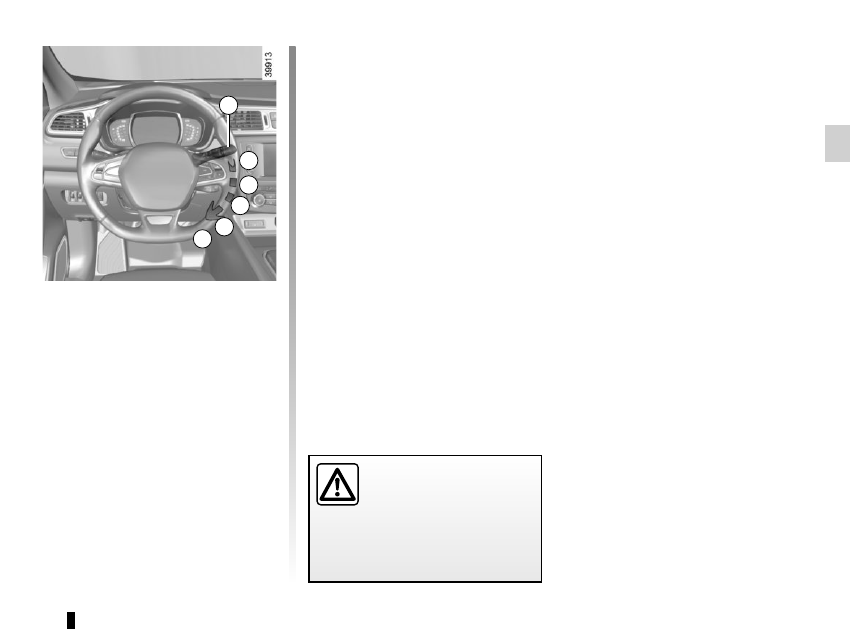

Press the steering wheel boss A to ac-

tivate the horn.

Headlight flasher

Pull stalk 1 towards you to flash the

headlights.

é

Hazard warning lights

Press switch 2. This switch ac-

tivates all four direction indicators and

the side indicator lights simultaneously.

It must only be used in an emergency to

warn drivers of other vehicles that you

have had to stop in an area where stop-

ping is prohibited or unexpected or that

you are obliged to drive under special

conditions.
Depending on the vehicle, the hazard

warning lights may come on automati-

cally under heavy deceleration. You can

switch them off by pressing switch 2.

Direction indicators

Move stalk 1 parallel to the steering

wheel and in the direction you are going

to turn it.

One-touch mode
When driving, it is possible that the

steering wheel may not be turned suf-

ficiently to return the stalk automatically

to its starting position.

In this case, briefly turn stalk 1 to the in-

termediate position, then release it: the

stalk returns to its original point and the

indicator light flashes three times.

2

A

1

1.85

HEADLIGHT BEAM ADJUSTMENT

(1/2)

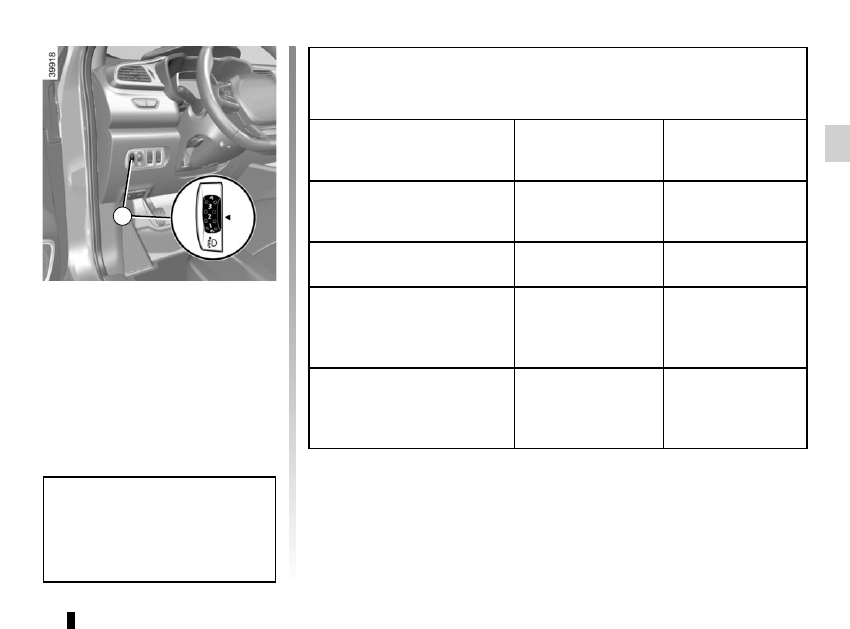

On vehicles fitted with this function,

control A allows you to adjust the height

of the beams according to the load.
Turn control A downwards to lower the

headlights and upwards to raise them.

A

For vehicles not fitted with a con-

trol  A, the headlight adjustment is

automatic, depending on the vehi-

cle load.

For manual settings

Examples of adjustment positions of control A

according to the load and the headlight

Halogen headlights

LED headlight

Driver alone or with front

passenger

0

0

All seats occupied

1

1

Driver with passengers and

luggage (or load) reaching the

maximum permissible all-up

weight

and  4

3

Driver without passengers and

luggage (or load) reaching the

maximum permissible all-up

weight

4

4

The table below gives some examples. In all cases, adjust control A according to the

vehicle load so that the road can be seen and other drivers are not dazzled.

1.86

HEADLIGHT BEAM ADJUSTMENT

(2/2)

Temporary adjustment for

vehicles fitted with halogen

headlights

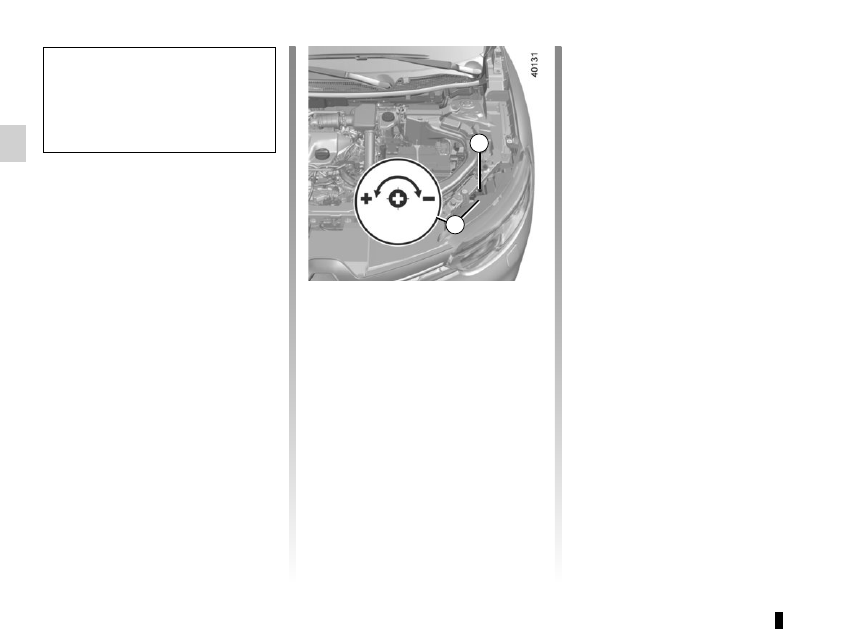

Open the bonnet and identify the mark-

ing B next to one of the front headlight

projectors.
For each headlight, using a screw-

driver, turn the screw 1 by a quarter

turn towards the - symbol to lower the

beams.
Return to the original position once your

trip is over: turn the screw 1 a quarter of

a turn towards the + symbol to raise the

beams.

When driving on the left in a left-

hand drive vehicle (or vice versa),

you must adjust your lights tempo-

rarily during your stay.

1

B

1.87

Special note

When driving the vehicle, the wiping

speed slows down whenever the ve-

hicle stops. For example, fast wiping

speed will slow to normal wiping speed.

As soon as the vehicle moves off,

wiping will return to the speed originally

selected.

If stalk 1 is operated, it overrides and

cancels the automatic function.

Vehicle fitted with intermittent

windscreen wipers

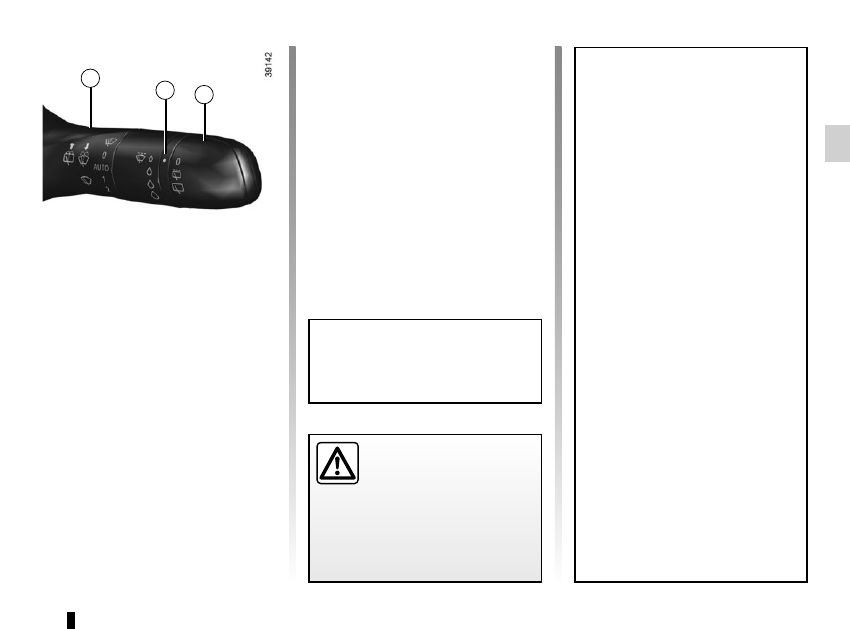

  A single sweep

A short push will trigger one sweep

of the wipers.

  B stop

  C intermittent wiping

The wipers will pause for several

seconds between sweeps. It is

possible to change the time be-

tween sweeps by turning ring 2.

  D  slow continuous wiping

  E  fast continuous wiping

Positions AC and D are accessible

with the ignition on. Position E is

accessible only when the engine is

running.

1

A
B

C

D

WINDSCREEN WASH, WIPE

(1/6)

E

Efficiency of a wiper blade

Check the condition of the wiper

blades. How long they last depends

on you:
–  it must remain clean: clean the

blade and the screen regularly

with soapy water;

–  do not use it when the screen is

dry;

–  free it from the screen when it has

not been used for a long time.

In any event, replace them as soon

as they begin to lose efficiency: ap-

proximately every year (refer to the

information on “Wiper blades: re-

placement” in section 5).

Precautions for using the

wipers

–  In freezing or snowy weather,

clear the screen before starting

the wipers (risk of motor over-

heating);

–  ensure that no objects are ob-

structing the travel of the blade.

1

2

1.88

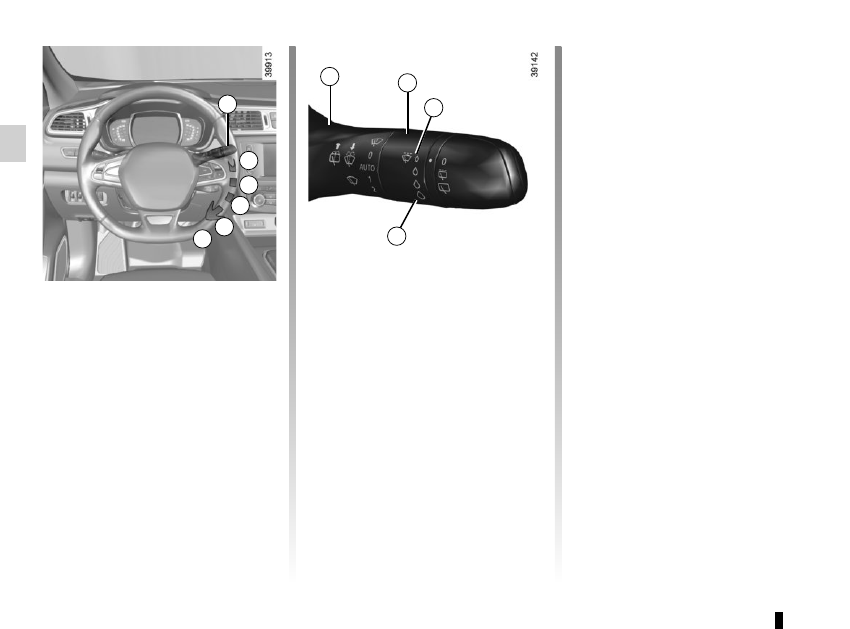

Vehicle fitted with front

windscreen wiper rain sensor

The rain sensor is located on the winds-

creen, in front of the interior rear-view

mirror.

  A single sweep

A short push will trigger one sweep

of the wipers.

  B stop

When activating automatic wiping

or when increasing sensitivity, one

sweep of the blades is performed.
Note:

–

the rain sensor is only intended

as a driving aid. In the event of re-

duced visibility, the driver should

manually activate the wipers;

–

In foggy weather or during snow-

falls, wiping is not automatically

triggered and remains under the

driver’s control;

–

in the event of temperatures

below zero, automatic wiping is

not activated when the vehicle

is started. It is automatically acti-

vated as soon as the vehicle ex-

ceeds a certain speed (approxi-

mately 5 mph (8 km/h));

–

do not activate automatic wiping

in dry weather;

–

fully de-ice the windscreen before

activating automatic wiping.

1

A
B

C

D

G

F

1

E

WINDSCREEN WASH, WIPE

(2/6)

  C  automatic wiper function

When this position is selected, the

system detects water on the wind-

screen and triggers the wipers at a

suitable wiping speed. It is possi-

ble to change the triggering thresh-

old and the time sweeps by turning

ring 2:

–  F : minimum sensitivity

–  G : maximum sensitivity

The higher the sensitivity, the quic-

ker the wipers will react and the

faster the wipe.

2

1.89

  D  slow continuous wiping

  E  fast continuous wiping

Positions  A and D are accessible

with the ignition on. Positions C

and E are accessible only with the

engine running.

Operating fault
In the event of a malfunction of the

automatic wiping, the wiper is set to

intermittent wiping. Contact an au-

thorised dealer.

The operation of the rain sensor can

be disturbed in the event of:

–

damaged windscreen wipers; a

film of water or traces left by a

blade in the sensor’s detection

zone may increase the response

time of the automatic wipers, or

increase the wiping frequency;

–

a windscreen with any chip or

crack level with the sensor, or a

windscreen covered in dust, dirt,

insects, ice, the use of washing

wax and water-repellent chemi-

cals; the windscreen wiper will

be less sensitive or may even not

react at all.

1

A
B

C

D

E

WINDSCREEN WASH, WIPE

(3/6)

Special note
When driving the vehicle
, the wiping

speed slows down whenever the ve-

hicle stops. For example, fast wiping

speed will slow to normal wiping speed.

As soon as the vehicle moves off,

wiping will return to the speed originally

selected.

If stalk 1 is operated, it overrides and

cancels the automatic function.

Precautions
–

In the event of ice, check whether the

blades are stuck to the windscreen

before operating the wiping mecha-

nism. If you activate the wipers while

the blades are stuck down with ice,

you may risk damaging both the

blade and the wiper motor.

–

Do not activate the wipers on a dry

screen. This will lead to the prema-

ture wear or damage to the blades.

1.90

Note:

After your intervention, to reposition the

blades correctly, make sure the blades

are resting on the windscreen, switch

on the ignition and activate the wiper

control.

Before any action involving

the windscreen (washing

the vehicle, de-icing,

cleaning the windscreen,

etc.) return stalk 1 to position B

(stop).
Risk of injury and/or damage.

In the event of obstacles on the

windscreen (dirt, snow, ice etc.),

clean the windscreen (including the

central area located behind the in-

terior rear view mirror) before oper-

ating the wipers (risk of motor over-

heating).
If an object is preventing a blade

from moving, it may stop function-

ing. Remove the obstacle and react-

ivate the wiper using the wiper stalk.

WINDSCREEN WASH, WIPE

(4/6)

Specific front wiper position

(service position)

This position enables the blades to be

lifted to remove them from the winds-

creen.
It may be useful to:

–  to clean the blades;

–  to release the blades from the winds-

creen in winter;

–  replace the blades (please refer to

the information on “Wiper blades” in

Section 5).

With the ignition on and the engine off,

lower the windscreen wiper stalk fully

(fast continuous wipe position). The

wiper arms stop in a position away from

the bonnet.
To return the blades to position, make

sure they have been placed on the

windscreen, then move the stalk to po-

sition B (stop) with the ignition on.
Before switching on the ignition,

place the wipers on the windscreen.

Otherwise, there may a risk of damage

to the bonnet or the wipers when they

are switched on.

1

A
B

1.91

Note:
In temperatures below zero, the washer

liquid risks freezing to the windscreen,

thereby reducing visibility. Heat the

windscreen using the demister control

before cleaning.

Windscreen washer

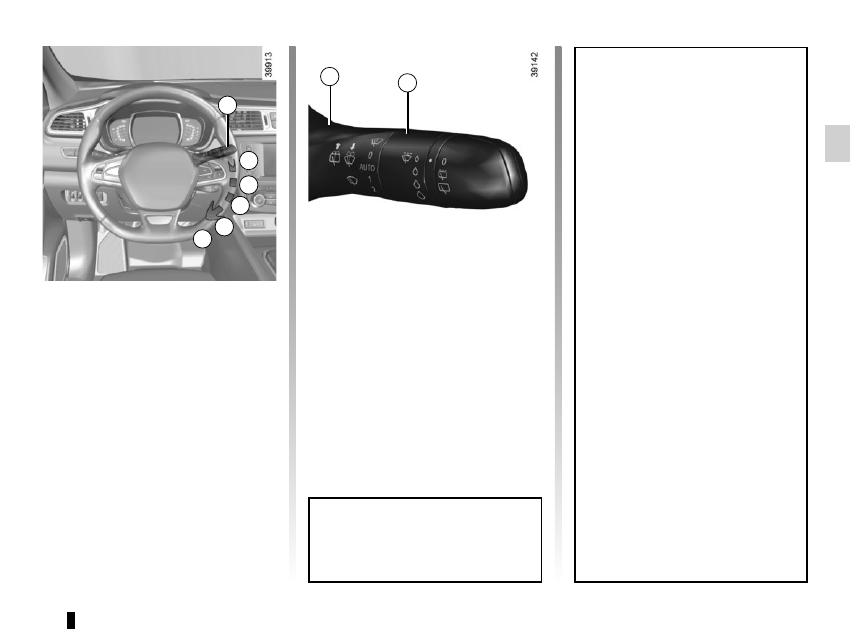

With the ignition on, pull stalk 1 then

release.
A brief pull will trigger a single sweep

of the wipers, in addition to the wind-

screen washer.
A longer pull will trigger three sweeps

of the wipers followed, a few seconds

later, by a fourth, in addition to the wind-

screen washer.

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in position B (stop).

Risk of injury.

WINDSCREEN WASH, WIPE

(5/6)

1

A
B

C

D

E

1.92

Note:
To ensure the headlight washers op-

erate correctly in winter, remove snow

from the jet trims and de-ice the jet

trims using an aerosol de-icer.
You are recommended to regularly

remove dirt encrusted on the headlight

glass.
When the minimum windscreen washer

fluid level is reached, the headlight

washer system may be deprimed.
Fill the windscreen washer fluid and

then activate the windscreen washer,

with the engine running, to reprime

the system.

1

A
B

C

D

E

WINDSCREEN WASH, WIPE

(6/6)

Headlight washers

Headlights on

On equipped vehicles, hold stalk 1

pulled towards you for about 2 seconds

- the headlight washers and winds-

creen washers will be activated at the

same time.

The headlight washers are also activa-

ted after three prolonged movements

on the front windscreen washer control.

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in position B (stop).

Risk of injury.

1.93

REAR SCREEN WASH, WIPE

(1/2)

1

3

Efficiency of a wiper blade

Check the condition of the wiper

blades. How long they last depends

on you:
–  it must remain clean: clean the

blade and the screen regularly

with soapy water;

–  do not use it when the screen is

dry;

–  free it from the screen when it has

not been used for a long time.

In any event, replace them as soon

as they begin to lose efficiency: ap-

proximately every year (refer to the

information on “Wiper blades: re-

placement” in section 5).

Precautions for using the

wipers

–  In freezing or snowy weather,

clear the screen before starting

the wipers (risk of motor over-

heating);

–  ensure that no objects are ob-

structing the travel of the blade.

Y

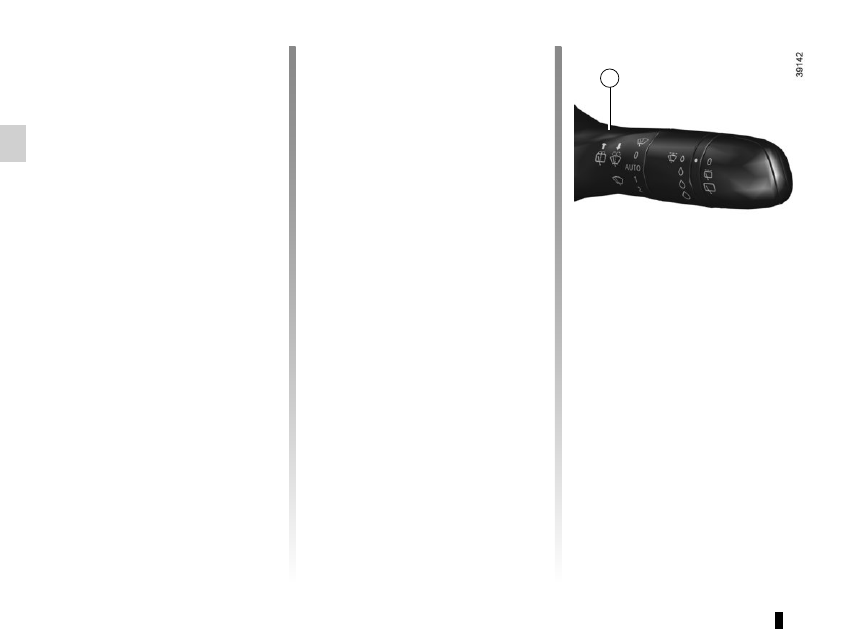

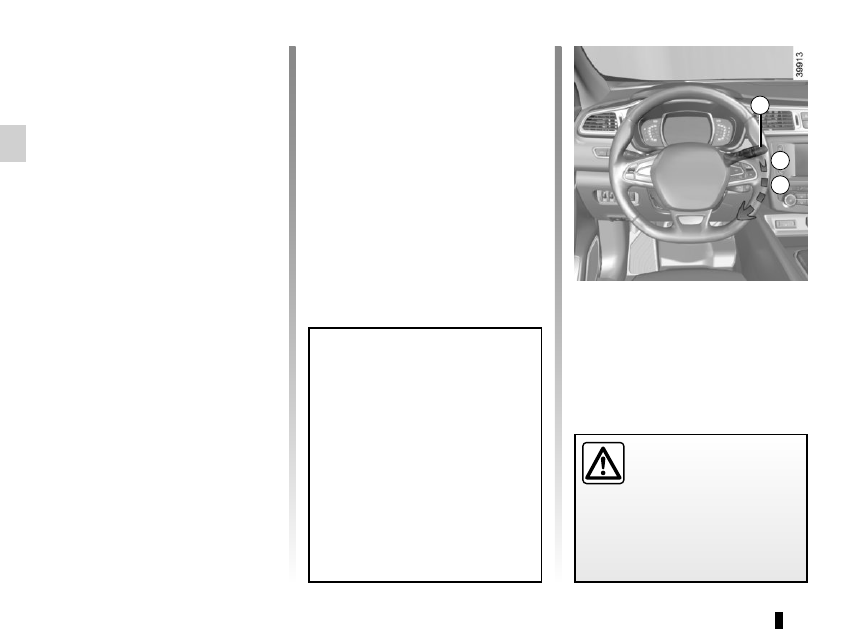

Rear screen wiper

With the ignition on, turn ring 3

on stalk 1 to align the symbol with

mark 2.
  stop;
– intermittent wiping.

The wipers will pause for several

seconds between sweeps. Wiping

frequency varies with vehicle

speed;

  slow continuous wiping.

To stop the operation, pivot ring 3 again.
Note: when washing using a roller

type car wash, return the ring 3 on the

stalk 1 to the stop position to deactivate

automatic wiping.

Follow usage recommendations.

Before any action involving

the rear screen (washing

the vehicle, de-icing, clean-

ing, etc.) return stalk 1 to

the stop position.
Risk of injury and/or damage.

2

Do not use the wiper arm to open or

close the tailgate.

1.94

Activation/deactivation of the rear

screen wiper

(depending on the vehicle)
Engaging reverse gear triggers inter-

mittent wiping (if the front wipers are in

operation). If your vehicle is fitted with

a vehicle settings customisation menu,

you can opt to activate or deactivate

this function. To do this, refer to the in-

formation on the “Vehicle settings cus-

tomisation menu” in Section 1; “Rear

wiping in reverse gear”.

REAR SCREEN WASH, WIPE

(2/2)

p

Rear screen wash/wipe

With the ignition on, push and

hold stalk 1, then release.
A longer action will trigger three sweeps

of the wipers followed, a few seconds

later, by a fourth, in addition to the wind-

screen washer.

In the event of obstacles present on the

rear window (dirt, snow, etc.), the wiper

will try to sweep away all the obstacles.

If an obstacle prevents the blade from

moving, it can be stopped. Remove the

obstacle, wait for around 30 seconds

and reactivate the wiper using the wiper

stalk.

Precautions
–

In the event of ice, check that the

blades are not stuck to the wind-

screen before operating the wipers.

If you activate the wiper while the

blade is blocked by ice, you risk

damaging both the blade and the

wiping motor.

–

Do not operate the wipers on a dry

screen. This will lead to the prema-

ture wear or damage to the blades.

1

1.95

FUEL TANK

(1/3)

A

3

2

Fuel grade

Use a high-grade fuel that complies

with the legislation in force in each

country and which must comply with

the specifications given on the label

on the cover A. Please refer to the in-

formation on “Engine specifications” in

Section 6.

Useful capacity of fuel tank:
– Approximately 12.1 gal (55 litres) or

14.3 gal (65 litres) for 2-wheel ver-

sions, depending on the vehicle;

–  14.3 gal (65 litres) for four-wheel

drive models.

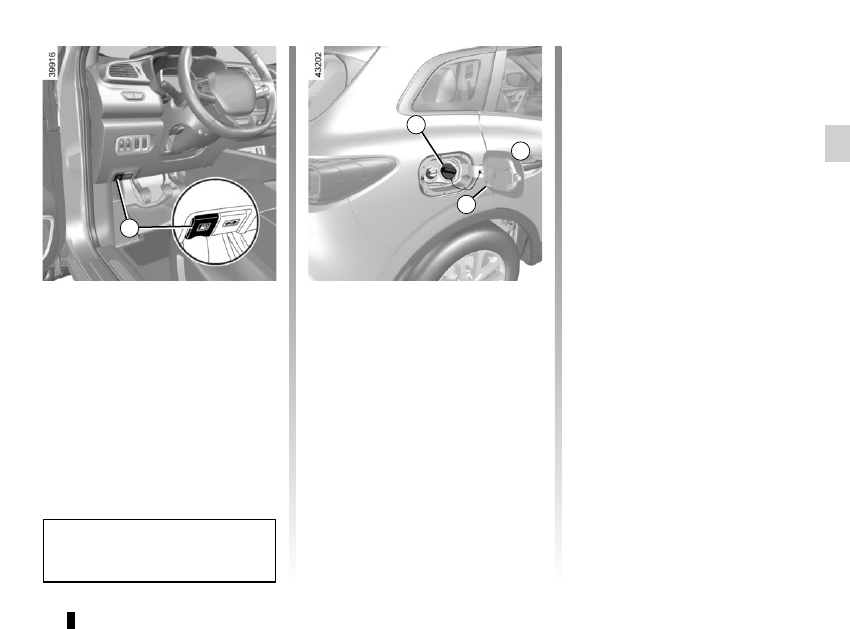

To open the cover A, pull the control 1

Use the cap holder 3 on the flap A

during filling to hold the cap 2 in place.

After filling, check that the cap and

cover are closed.

Petrol version
It is essential to use unleaded petrol.

The octane rating (RON) must comply

with the information given on the label

on the cover A. Refer to Section 6 for

information on “Engine specifications”.
Diesel version
Only
 use diesel fuel which complies

with the information on the label located

inside the cover A.

1

1.96

FUEL TANK

(2/3)

Filling with fuel

With the ignition off, insert the nozzle

and insert it fully before turning it on to

fill the fuel tank (risk of splashing).
Keep the nozzle in this position through-

out the entire filling operation.

When the pump cuts out automatically

at the end of the filling procedure, a

maximum of two further filling attempts

may be made, as there must be suffi-

cient space in the fuel tank to allow for

expansion.

Make sure that no water enters the fuel

tank during filling. The cover A and its

surround must remain clean.

Petrol versions

Using leaded petrol will damage the

antipollution system and may lead to a

loss of warranty.

To ensure that the fuel tank is not filled

with leaded petrol, the fuel tank filler

neck consists of a restrictor fitted with

a safety system which only allows

a nozzle for unleaded petrol to be

used (at the pump).

Vehicle fitted with the Stop and

Start function
To fill up with fuel, the engine must

be stopped (and not on standby):

stop the engine (Please See

“Starting, stopping the engine” in

Section 2).

Fuel filler cap: this is spe-

cific.
If you have to replace it,

make sure it is identical

to the original cap. Contact an ap-

proved Dealer.

Never place the cap near a source

of heat or flame.
Do not wash the filler area with a

high-pressure washer.

Fuel types that conform to European

standards with which the engines of

vehicles sold in Europe are compat-

ible: refer to the “Engine specifica-

tions” in section 6.

Do not mix even small

amounts of petrol (un-

leaded or E85) with diesel.

Do not use ethanol-based

fuel if your vehicle is not compatible

with this fuel.

Do not add anything to the fuel (ad-

ditive, reagent, etc.) to prevent the

risk of damaging the engine.

1.97

FUEL TANK (3/3)

Persistent fuel odour

If you notice a persistent

fuel odour you should:

–  stop the vehicle as soon as traf-

fic conditions allow and switch off

the ignition;

– switch on the hazard warning

lights and ask your passengers to

leave the vehicle and stay clear

of the traffic;

–  contact an approved Dealer.

No modifications what-

soever are permitted on

any part of the fuel supply

system (electronic units,

wiring, fuel circuit, injectors, pro-

tective covers, etc.) as this may be

dangerous (unless undertaken by

qualified Network personnel).

Running out of fuel on diesel

versions

Vehicles with key/remote control
–  Put the ignition key in “On” posi-

tion  M (please see the information

on the “Ignition switch” in Section

2) and wait for a few minutes before

starting, to enable the fuel circuit to

be primed;

–  turn the key to position D. If the

engine does not start, repeat the pro-

cedure.

–  If the engine does not start after sev-

eral attempts, please contact an au-

thorised dealer.

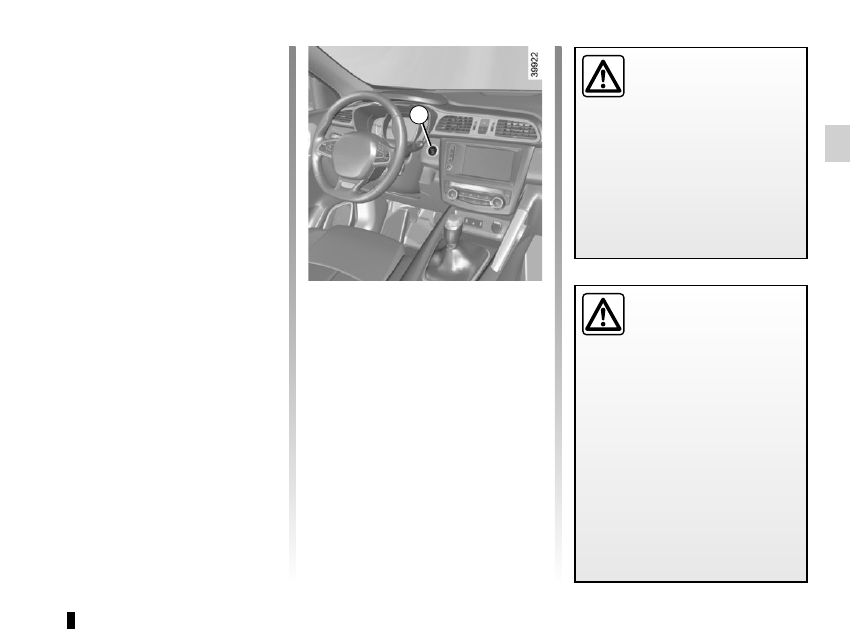

Vehicles with RENAULT card
With the card RENAULT in the pas-

senger compartment, press the start

button  4 without pressing any of the

pedals. Wait a few minutes before start-

ing. This will enable the fuel circuit to

be primed. If the engine does not start,

repeat the procedure.
If the engine does not start after several

attempts, please contact an authorised

dealer.

4















Content   ..  4  5  6  7   ..
