Renault Kadjar (2018 year). Instruction - part 7





1.98

Filling

Capacity of the fuel tank: 3.52 gal

(16 litres) approximately.

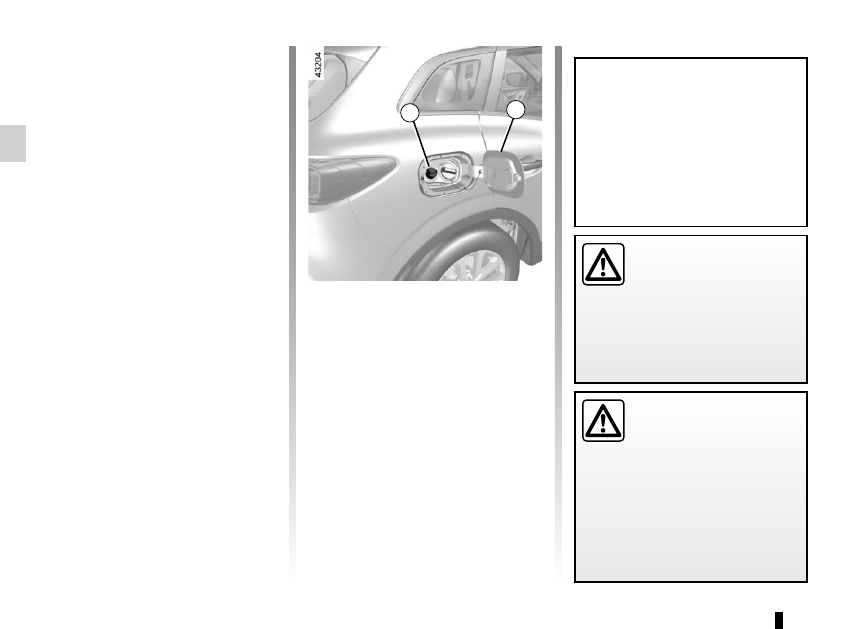

With the ignition switched off, open the

cover A, then unscrew the cap 1.
Note: Ammonium hydroxide vapour

may escape from the cap opening

when the tank temperature is high.

Please ensure that you comply with the

legislation of your country.
It is important to remember that failure

to respect regulations in force could

lead to legal action being taken against

the vehicle owner.

Operating principle

The reagent is intended for diesel en-

gines fitted with the SCR (selective cat-

alytic reduction) system.

The use of reagents reduces exhaust

emissions by transforming the pollut-

ants into water vapour and nitrogen.

Reagent quality

Use  only reagents which conform

to standard ISO 22241 and in accord-

ance with the mark on the tank filler

cap.

REAGENT TANK

(1/4)

A

1

Fuel filler cap: this is spe-

cific.
If you have to replace it,

make sure it is identical

to the original cap. Contact an ap-

proved Dealer. Do not wash the filler

area with a high pressure washer.

Vehicle fitted with the Stop and

Start function

To fill up with reagent, the engine

must be stopped (and not on

standby): stop the engine (please

see “Starting, stopping the engine”

in Section 2).

If the “XXX MILES (XXX

KM) Failure Top up AdBlue”

warning message appears,

fill the reagent tank and

refer to the filling instructions.
Risk of immobilisation of the ve-

hicle.

1.99

In extreme cold weather conditions
Fill the reagent tank as soon as pos-

sible when the warning light



and the message “Top up AdBlue

before 1200 km” are displayed.
The reagent fluid freezes below about

-10°C.
In these conditions, do not attempt fill-

ing when the fluid is frozen. In the event

of needing to top up or fill the tank

with reagent (

 on), park the ve-

hicle in a hotter location if possible so

that the reagent becomes liquid again.

Otherwise, have a qualified profes-

sional top up or fill up with reagent fluid.

Precautions for use

When filling, handle the reagent care-

fully.
They can damage clothes, shoes,

bodywork components etc.
If the reagent overflows, or contami-

nates any paintwork, clean the affected

area quickly with plenty of cold water

and a soft cloth.
Note: If the reagent crystallises, use a

soft sponge.

The reagent must not come

into contact with eyes or

skin. If it does, wash the af-

fected area with plenty of

cold water. If necessary, consult a

doctor.

REAGENT TANK

(2/4)

No work whatsoever is

permitted on any part of

the system. To prevent

damage, only qualified per-

sonnel from our network may work

on the system.

After filling the reagent tank, check

that the cap and cover are closed,

start the engine and WAIT 10 sec-

onds with the vehicle stationary,

engine running before setting off

again.

If this operation is not carried out,

the filling of the tank will not be

taken into account automatically

until after several dozens of minutes

of driving.

The message “--- Top up AdBlue”

and/or the warning lights will con-

tinue to appear until the filling has

been registered by the system.

1.100

REAGENT TANK

(3/4)

Maintenance/Range

The information displayed on the instrument panel may be accompanied by a beep.

Indicator

lights

Message

What to do?

“AdBlue Level Correct”

“Top Up AdBlue before 2400 km”

When the message is displayed when the ignition is switched

on, you have less than 1,488 miles (2,400 km) range.

Fill or have an Approved Dealer fill or top up the reagent in

the tank.

 appears.

“Top up AdBlue before 1200 km”

When the message is displayed when the ignition is switched

on, you have between 744 miles (1,200 km) and 496 miles

(800 km) range.

Fill or have an Approved Dealer fill or top up the reagent in

the tank.

 appears.

“XXX MILES (XXX KM) Failure Top up

AdBlue”

The message is displayed when the ignition is switched on and

is repeated:

–  Approximately every 62 miles (100 km), you have between

about 496 miles (800 km) and 124 miles (200 km) range;

–  Approximately every 31 miles (50 km), you have less than

124 miles (200 km) range.

In any event, fill or have an Approved Dealer fill the reagent

tank as soon as possible.

 appears.

“0 MILES (0 KM) Failure Top up AdBlue”

The engine will not start.
To restart, you must fill the reagent tank yourself.

1.101

REAGENT TANK

(4/4)

System fault

When the indicator lights light up, this may be accompanied by a beep.

Indicator lights

Message

Readings

 and

©

 come on.

“Check anti-pollution system”

Indicates a fault in the system. Contact your approved

dealer as soon as possible.

 and

©

 come on.

“XXX MILES (XXX KM) Failure antipollu-

tion”

Indicates a system fault and that in less than

496 miles (800 km) it will become impossible to

restart the vehicle.
These warnings are repeated:

– Every 62 miles (100 km) until there is around

124 miles (200 km) left before the vehicle cannot

be restarted;

–  Every 31 miles (50 km) when there is less than

124 miles (200 km) left before the vehicle cannot

be restarted.

Contact your approved dealer as soon as possible.

 and

©

 come on.

“0 KM Failure antipollution”

Indicates that after the ignition is switched off the ve-

hicle will not restart. Call an approved Dealer.

1.102

2.1

Section 2: Driving

(Advice on use relating to fuel economy and the environment)

Running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2

Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3

Starting, stopping the engine: vehicle with key/remote control unit . . . . . . . . . . . . . . . . . . . . . . . . . .

2.4

Starting, stopping the engine: vehicle with RENAULT card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.5

Stop and Start Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.8

Special features of petrol versions  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.12

Particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.13

Special features of diesel versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.14

Gear lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.15

Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.16

Electronic parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.17

ECO driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.20

Maintenance and antipollution advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.25

Environment  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.26

Tyre pressure monitoring system  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.27

Driver correction devices/aids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.30

Transmission: 4-wheel drive (4WD)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.40

Lane departure warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.44

Blind spot warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.47

Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.51

Speeding alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.54

Cruise control  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.57

Parking distance control  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.61

Reversing camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.66

Assisted parking  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.68

Automatic gearbox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.72

2.2

RUNNING IN

Petrol version

For the first 600 miles (1,000 km), do

not exceed 78 mph (130 km/h) in the

highest gear, or 3,000 to 3,500 rpm.
You may only expect top performance

from your vehicle after approximately

1,800 miles (3,000 km).
Service intervals: refer to the

Maintenance Document for your vehi-

cle.

Diesel version

For the first 1,000 miles (1,500 km),

do not exceed 80 mph (130 km/h) in

the highest gear, or 2,500 rpm. After

completing this mileage you may drive

faster, although you may only expect

top performance after approximately

3,600 miles (6,000 km).
During the running in period, do not ac-

celerate hard while the engine is still

cold and do not let the engine over-rev.
Service intervals: refer to the

Maintenance Document for your vehi-

cle.

2.3

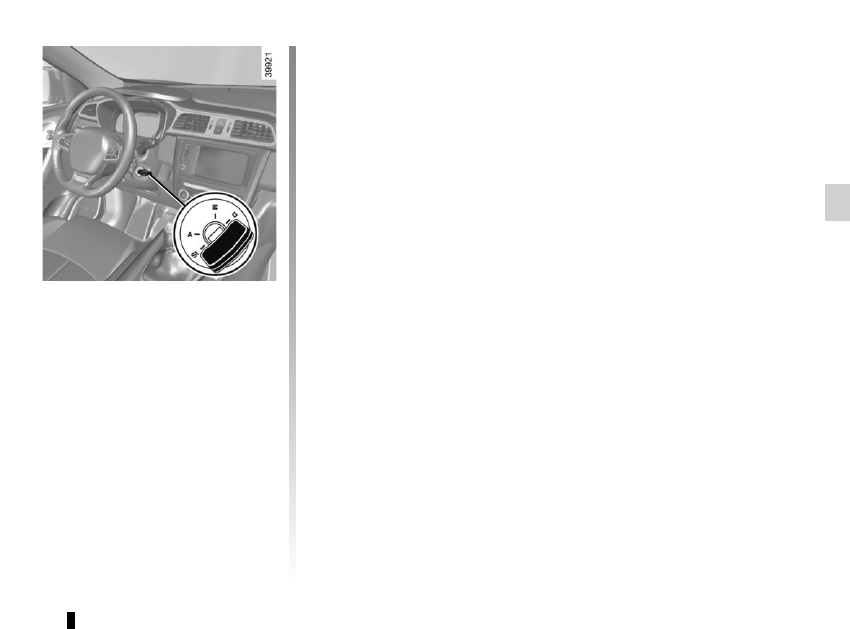

Ignition position M.
The ignition is switched on:

Start position D
If the engine fails to start at the first

attempt, the key must be turned back

before the starter can be activated

again. Release the key as soon as the

engine starts.
Note: on diesel versions, several sec-

onds may pass between turning the

key and the engine starting to allow for

engine preheating.

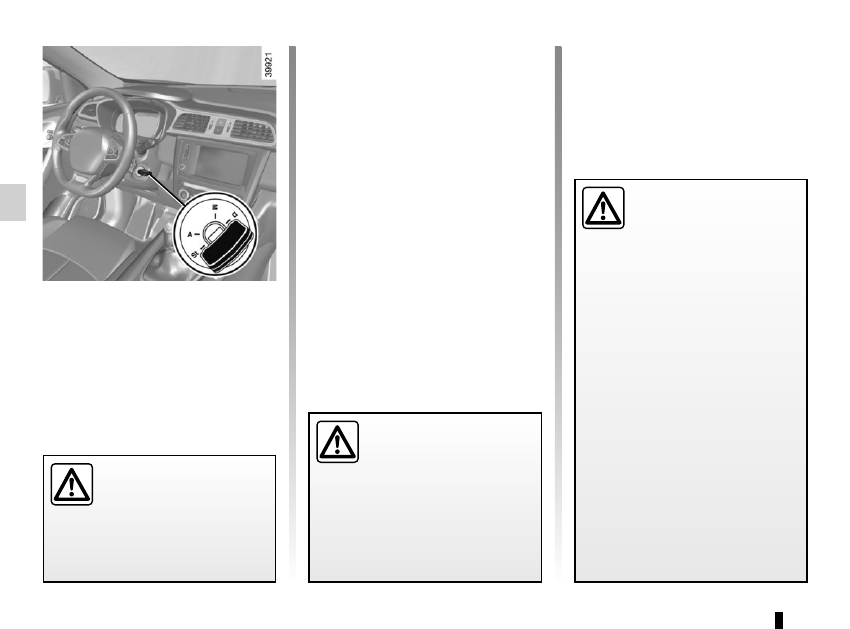

Ignition switch

“Stop and steering lock” position St
To lock: remove the key and turn the

steering wheel until the steering column

locks.
To unlock: turn the key and the steering

wheel slightly.

“Accessories” position A
When the ignition is switched off, any

accessories (radio, etc.) will continue to

function.

IGNITION SWITCH: vehicle with key

2.4

STARTING, STOPPING THE ENGINE: vehicle with key

Starting the engine

Petrol versions

–

Activate the starter without ac-

celerating;

–

release the key as soon as the

engine starts.

É

Diesel versions



–

Turn the ignition key to the

“Ignition on” position M, and hold

this position until the engine pre-

heating light goes off;

–

turn the key to starter position

without depressing the accel-

erator pedal;

–

release the key as soon as the

engine starts.

Special note: if starting the engine

when the outdoor temperature is very

low (below - 10 ° C): hold down the

clutch pedal until the engine starts.

Never start your vehicle

while freewheeling on a

gradient. Risk of non-ac-

tivation of power-assisted

steering.
There is a risk of accidents.

Never switch off the igni-

tion before the vehicle has

stopped completely. Once

the engine has stopped, the

brake servo, power-assisted steer-

ing, etc. and the passive safety de-

vices such as air bags and preten-

sioners will no longer operate.

Driver’s responsibility

when parking or stopping

the vehicle
Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.

They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors, for example.

Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.
RISK OF DEATH OR SERIOUS

INJURY.

Stopping the engine

With the engine idling, turn the key to

the “Stop” position St.

2.5

STARTING, STOPPING THE ENGINE: vehicle with RENAULT CARD

(1/3)

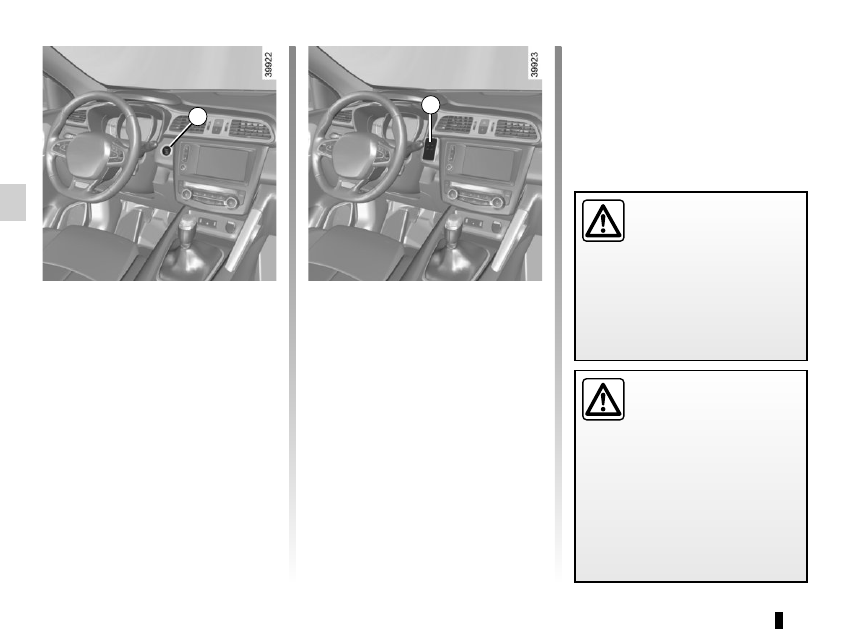

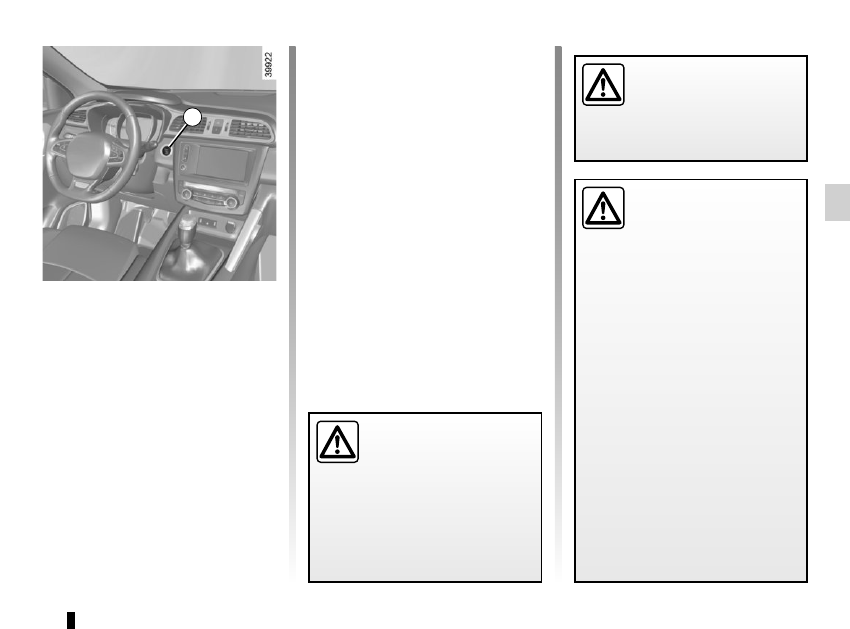

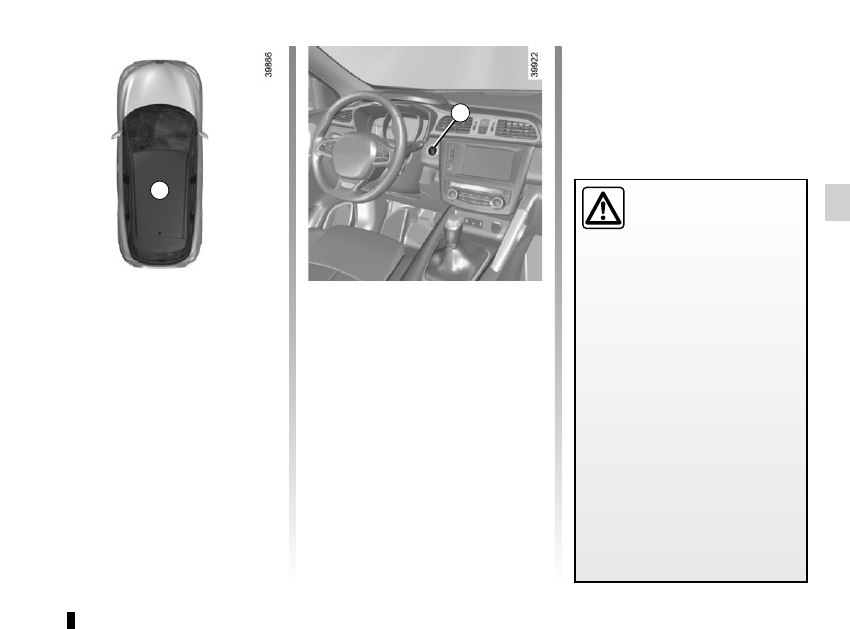

The RENAULT card must be inserted in

detection zone 1.
To start:
–  vehicles with an automatic gearbox,

place the lever in position P, depress

the brake pedal   and press button 2;

– vehicles with a manual gearbox,

depress the brake or clutch pedal

and press the button 2. If a gear is

engaged, the vehicle may only be

started by depressing the clutch

pedal.

“Hands-free” starting with

the tailgate open

In this case, the RENAULT card should

not be located in the boot, to avoid any

risk of loss.

2

1

Special features
–  If one of starting conditions is not ap-

plied, the message “Press brake +

START” or “Press clutch + START”

or “Select P” is displayed on the in-

strument panel;

–  in some cases, it will be necessary to

move the steering wheel while press-

ing the start button 1 to assist in un-

locking the steering column. A mes-

sage on the instrument panel “Turn

steeringwheel + START” warns of

this.

Driver’s responsibility

when parking or stopping

the vehicle
Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.

They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors, for example.

Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.
RISK OF DEATH OR SERIOUS

INJURY.

2.6

STARTING, STOPPING THE ENGINE: vehicle with RENAULT CARD

(2/3)

Operating faults

In certain cases, the RENAULT  “hands-

free” card may not work:
–  when the RENAULT card battery is

drained, etc.;

–  near to appliances operating on the

same frequency as the card (moni-

tor, mobile phone, video game, etc.);

–  vehicle located in a high electromag-

netic radiation zone.

The message “Place card close START

and push” appears on the instrument

panel.

2

Accessories function

(switching on the ignition)
Once you have gained access to your

vehicle, you may use some of its func-

tions (radio, navigation, wipers, etc.).
To use the other functions, with the

RENAULT card in the passenger com-

partment, press button 2 without press-

ing the pedals.

Depress the brake or clutch pedal, then

place the RENAULT 3 card (logo side)

in contact with the start button 2 for

around 2 seconds. Press the 2 button

to start the vehicle. The message goes

out.

3

Never leave your vehicle

with the RENAULT card in

the reader or in the pas-

senger compartment while

there is a child (or an animal) in the

vehicle, even for a short while.
They may pose a risk to themselves

or to others by starting the engine.
Risk of serious injury.

Never switch off the igni-

tion before the vehicle has

stopped completely. Once

the engine has stopped, the

brake servo, power-assisted steer-

ing, etc. and the passive safety de-

vices such as air bags and preten-

sioners will no longer operate.

2.7

STARTING, STOPPING THE ENGINE: vehicle with RENAULT CARD

(3/3)

If the RENAULT card is no longer in the

passenger compartment or if the card

battery is low when you try to switch

the engine off, the message “No key-

card Press and hold” appears on the in-

strument panel: press the button 2 for

longer than two seconds. If the card is

no longer in the passenger compart-

ment, make sure you can retrieve it

before pressing and holding the button.

Without the  RENAULT card, you will

not be able to restart the vehicle.
With the engine switched off, any ac-

cessories being used (radio, etc.) will

continue to function for approximately

10 minutes.
When the driver’s door is opened, the

accessories stop working.

Conditions for stopping the

engine

The vehicle must stationary, with the

lever positioned in N or P for vehicles

with an automatic transmission.
With the RENAULT card in the vehicle,

press the 2 button: the engine will stop.

The steering column is locked when the

driver’s door is opened or the vehicle

is locked.

When you leave your vehi-

cle, especially if you have

your RENAULT card with

you, check that the engine

is completely switched off.

2

Driver’s responsibility

when parking or stopping

the vehicle
Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.

They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors, for example.

Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.
RISK OF DEATH OR SERIOUS

INJURY.

Never switch off the igni-

tion before the vehicle has

stopped completely. Once

the engine has stopped, the

brake servo, power-assisted steer-

ing, etc. and the passive safety de-

vices such as air bags and preten-

sioners will no longer operate.

2.8

For manual gearboxes:

–  the gearbox is in neutral;

and

–  the clutch pedal is released. If the

warning light

 flashes, this

means that the clutch pedal is not

sufficiently released;

and

–  the vehicle speed is less than ap-

proximately 2 mph (3 km/h).

For all vehicles:

Warning light

 on the instru-

ment panel is lit when the engine is on

standby.
The vehicle equipment remain opera-

tional while the engine is stopped.

FUNCTION STOP AND START

(1/4)

This system enables a reduced fuel

consumption and lower greenhouse

gas emissions.

The system is activated automatically

when the vehicle is started.

While driving, the system stops the

engine (standby) when the vehicle is

at a standstill (traffic jam, traffic lights,

etc).

Conditions for engine

standby

The vehicle has set off from where it

was parked;
For automatic gearboxes:

–  the gearbox is in position D, M or N;

and

–  the brake pedal is depressed (suffi-

ciently hard);

and

– the accelerator pedal is not de-

pressed;

and

– the speed is zero for around

1 second.

The engine remains on standby if posi-

tion P is selected, or if position N is se-

lected with the handbrake engaged and

the brake pedal released.

If the engine is put in

standby, the electronic

parking brake (depending

on the vehicle) is not ap-

plied automatically.

Engine on standby - braking

assistance is no longer op-

erational.

If the engine stalls while the system

is in operation, pressing the clutch

pedal right down will start it again.

Keep your vehicle station-

ary when the engine is

on standby (shown by the

warning light

 on the

instrument panel).

Before getting out of the

vehicle, you must switch

off the ignition (please see

section on “Starting, stop-

ping the engine”).

2.9

Conditions for coming out of

engine standby

For automatic gearboxes:
–  the brake pedal is released, position

D or M engaged or,

–  the brake pedal is released, position

N engaged and the handbrake off, or

–  the brake pedal is pressed again,

with position P engaged or position

N engaged with the handbrake ap-

plied, or

–  position R is engaged or,

–  the accelerator pedal is depressed

or,

–  in manual mode, the gear lever is

moved towards + or -.

For manual gearboxes:
–  the gearbox is in neutral and the

clutch pedal is slightly depressed, or

–  the engine is in gear and the clutch

pedal is pressed right down.

To fill up with fuel, the engine must

be stopped (and not on standby):

always stop the engine (please see

“Starting, stopping the engine”).

FUNCTION STOP AND START

(2/4)

Preventing the engine from

standing by

In certain situations, such as negotiat-

ing a crossroads for instance, it is pos-

sible (with the system activated) to keep

the engine running so as to be ready to

move off quickly.
Automatic gearbox:
Keep the vehicle stationary without

pressing too hard on the brake pedal.
Manual gearbox:
Keep the clutch pedal pressed right

down.

Special note: depending on the vehi-

cle, if you switch off the ignition when

the engine is on standby, the warning

light

Ä

 is displayed for a few sec-

onds on the instrument panel.

2.10

FUNCTION STOP AND START

(3/4)

Conditions preventing the

standby of the engine

Certain conditions prevent the system

from using the engine standby function,

including when:
for vehicles equipped with a

RENAULT  card:

–  the driver’s door is not closed;

–  the driver’s seatbelt is not fastened;

for all vehicles:

–  reverse gear is engaged;

–  the bonnet is not locked;

–  the outdoor temperature is too low

or too high (less than around 5 °C or

higher than around 35 °C);

–  the battery is not sufficiently charged;

–  if available, “4WD Lock” mode is

activated (please see the section

“Transmission: 4-wheel drive (4WD)”

in Section 2);

–  the difference between the vehicle

interior temperature and the auto-

matic climate control instruction is

too high;

–  parking distance control is in opera-

tion;

– for vehicles with automatic gear-

boxes, the gradient is steeper than

approximately 12%;

–  the “Clear View” function is activated

(please see “Automatic Climate

Control” in Section 3);

–  the engine temperature is too low;
–  the emission control system is being

regenerated;

or

– ...

Warning light

 is displayed on the

instrument panel. This notifies you that

engine standby is not available.

Special cases for vehicles

with a RENAULT card

With the engine on standby (traffic jam,

traffic lights, etc.), if the driver unfas-

tens the seat belt and opens the driv-

er’s door, or gets out of the seat, the

ignition is switched off.
The assisted parking brake is applied

automatically.
To restart and reactivate the Stop and

Start system, start the engine (please

refer to the information on “Starting,

stopping the engine” in Section 2).

Special cases of vehicles

with a key

With the engine on standby (traffic

jam, traffic lights, etc.), if you get out of

the vehicle, a beep warns you that the

engine is on standby and has not been

stopped.

Deactivate the Stop and

Start function for any opera-

tion performed in the engine

compartment.

2.11

THE STOP AND START

 function (4/4)

Special feature of the automatic

engine re-start
Under certain conditions, the engine

can restart on its own in order to guar-

antee your safety and comfort.
This can occur especially when:
–  the outdoor temperature is too low

or too high (less than around 5 °C or

higher than around 35 °C);

–  the “Clear View” function is activated

(please see “Automatic Climate

Control” in Section 3);

–  the battery is not sufficiently charged;
–  the vehicle speed is above 3 mph

(5 km/h) (downhill slope, etc.);

– repeated pressing on the brake

pedal or braking system require-

ment;

– ...

1

2

For vehicles fitted with a manual gear-

box, the restarting of the engine may be

stopped if the clutch pedal is released

too quickly and a gear is engaged.

Deactivating, activating the

function

Press 1 to deactivate the function.

Note: With the engine on standby,

press switch 1 to automatically re-

start the engine.

The message “Stop & Start deacti-

vated” will appear on the instrument

panel and the integrated warning light 2

on the switch will light up. Pressing

again will reactivate the system. The

message “Stop & Start activated” will

appear on the instrument panel and the

integrated warning light 2 on switch 1

will go out.
The system is automatically reacti-

vated each time the vehicle is started

(see “Starting, stopping the engine” in

Section 2).

Operating faults

When the message “Check Stop &

Start” appears on the instrument panel

and the integrated warning light 2 lights

up on the switch 1, the system is deac-

tivated.

Please consult an authorised dealer.

Before getting out of the

vehicle, you must switch

off the ignition (please see

section on “Starting, stop-

ping the engine”).

Special feature of vehicles with

a key: for some of these condi-

tions the automatic restarting of the

engine is inhibited if a front door is

open.















Content   ..  5  6  7  8   ..
