Renault Kadjar (2018 year). Instruction - part 5





1.66

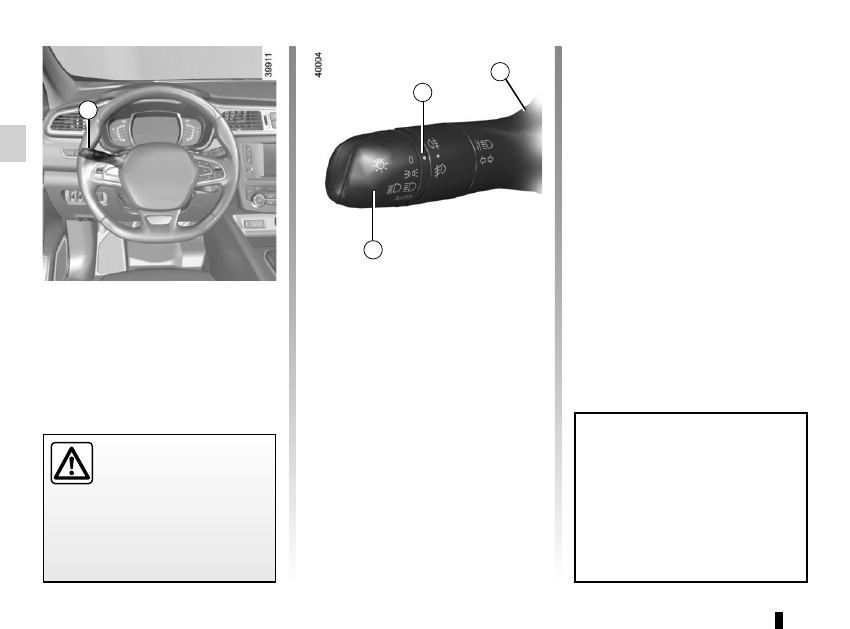

ON-BOARD COMPUTER: trip settings

(3/5)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

On-board computer with mileage-

before-service message

c) Mileage before service or oil change.

Mileage before service

With the ignition switched on, the engine not running and

the display set to “Service Intervals”, press and hold the OK

button for approximately 5 seconds to display the mileage before

service (distance or time to the next service). When the distance

value approaches its limit, there are several possible scenarios:

–

range less than 930 miles (1,500 km) or one month: the

message “Service due in” is displayed accompanied by the

nearest term (distance or time);

–

range equal to 0 km/miles or service date reached: the

message “Service required” is displayed accompanied by
warning light

©

.

The vehicle requires a service as soon as possible.

Service Intervals

Service in

30 000 km / 12 mo

Service due in

300 km / 24 days

Service required

Reset: to reset the distance before the next service, press and hold button 2 for approximately 10 seconds until the display

shows the mileage before service permanently.
NB: if a service is performed without changing the engine oil, only the mileage before the next service should be reset. In the

event of an oil change, both the distance before the next service and the next oil change should be reset.

1.67

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

TRIP COMPUTER: trip settings

(4/5)

Examples of selections

Interpreting the display selected

On-board computer with distance before

next service message (cntd.)

c) Mileage before service or oil change.

Mileage before service

With the ignition switched on, the engine not running and

the display set to “Mileage before service”, press and hold the

OK button for approximately 5 seconds to display the mileage

before the next service, then press the 2 button to view the

mileage before the next oil change (distance or time remaining

before the next service). When the distance value approaches its

limit, there are several possible scenarios:

–

distance/time remaining less than 900 miles (1,500 km) or

one month: the message “Service due in” is displayed, ac-

companied by the nearest term (distance or time);

–

range equal to 0 km/miles or service date reached: the

message “Service required” is displayed accompanied by
warning light

©

.

The vehicle requires an oil change as soon as possible.

Service Intervals

Oil change in

30 000 km / 24 mo

Service due in

300 km / 24 days

Service required

Depending on the vehicle, the mileage before an oil change varies according to the driving style (frequent driving at low speed,

door-to-door journeys, extensive use at idling speed, towing a trailer, etc.). The distance remaining until the next oil change can

therefore decrease more quickly in some cases than the actual distance travelled.
Resetting: to reset the mileage before a service, press and hold button 2 for approximately 10 seconds until the display shows

the range permanently.

NB: if a service is performed without changing the engine oil, only the mileage before the next service should be reset. In the

event of an oil change, both the distance before the next service and the next oil change should be reset.

1.68

ON-BOARD COMPUTER: trip settings

(5/5)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

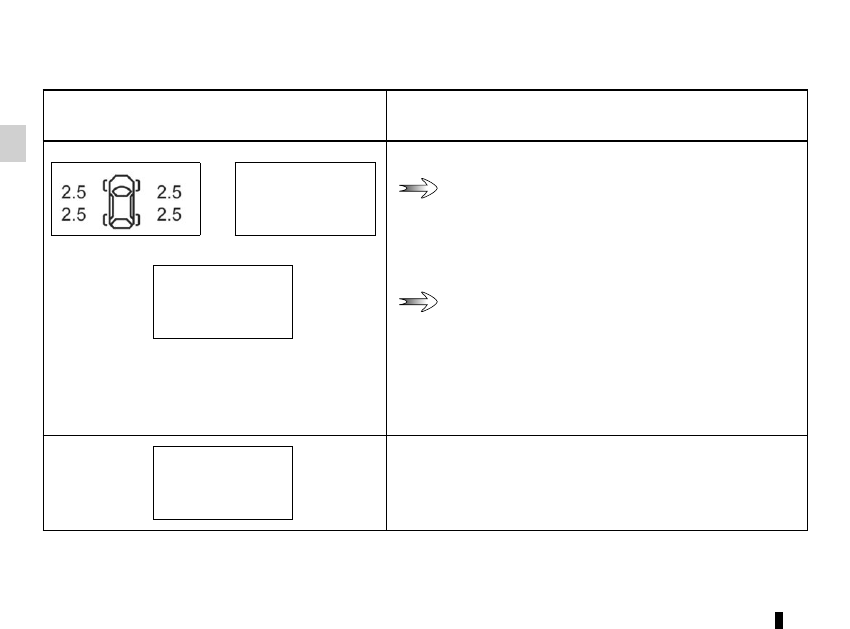

d) Reset the tyre pressure.

Refer to the information on the “Tyre pressure monitor-

ing system” in Section 2.

+

Tyre pressure

No message

memorised

e) Trip log.

Successive display:
–

information messages (passenger airbag OFF etc.);

–

operating fault messages (Check injection system,

etc.).

f)  Estimated range with remaining reagent.

Refer to the information on “Reagent tank” in Section 1.

Top Up AdBlue

before 2400 km

1.69

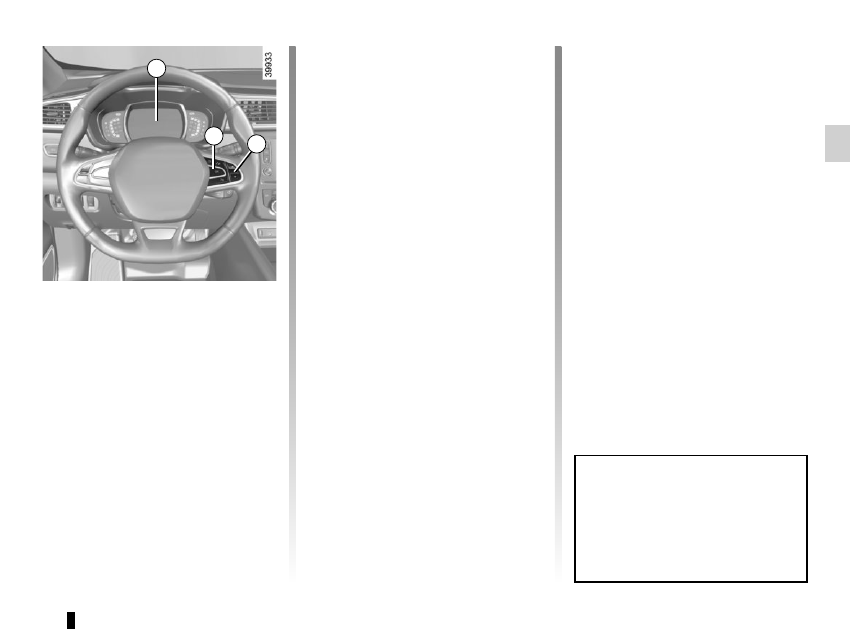

TRIP COMPUTER AND WARNING SYSTEM: information messages

Examples of messages

Interpreting the display selected

« Parking brake on »

Indicates that the parking brake has been applied.

« Checking control functions »

Displayed with the ignition on when the vehicle is running self-diagnostics.

« Turn steeringwheel + START »

Turn the steering wheel slightly whilst pressing the vehicle start button to unlock

the steering column.

« Steering wheel not locked »

Indicates that the steering column has not been locked.

These can help in the vehicle starting phase, or give information about a selection or a driving status.

Examples of information messages are given in the following pages.

1.70

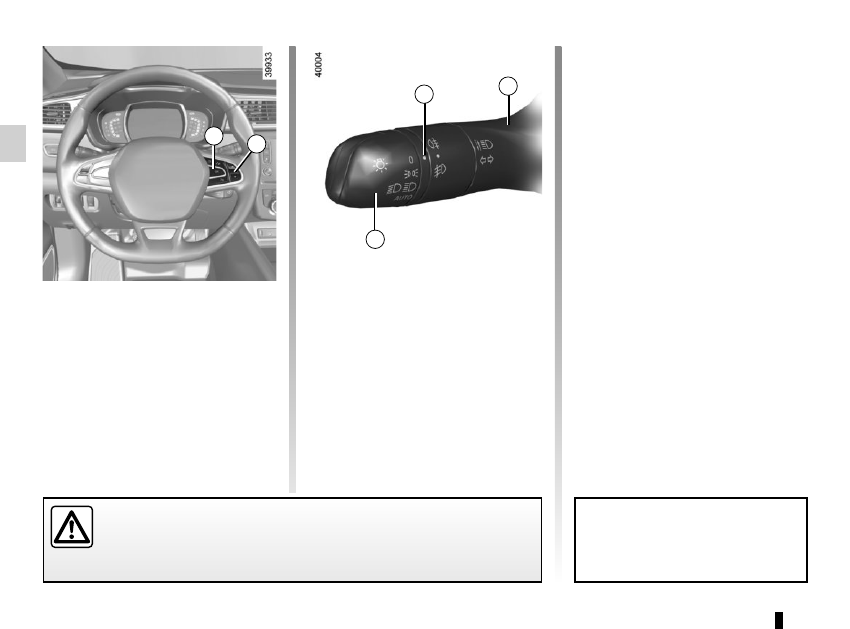

TRIP COMPUTER AND WARNING SYSTEM: operating fault messages

These appear with the

©

 warning light and mean that you should drive very carefully to an authorised dealer as

soon as possible. If you fail to follow this recommendation, you risk damaging your vehicle.

They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The

©

 warning light stays on. Examples of operating fault messages are given in the following pages.

Examples of messages

Interpreting the display selected

“Clean diesel filter”

Indicates the presence of water in the diesel filter; contact an approved Dealer

as soon as possible.

“Check lighting”

Indicates a fault in the headlights.

“Check vehicle”

Indicates a fault in one of the pedal sensors, battery management system or oil

level sensor.

“Check airbag”

Indicates a fault in the restraint system in addition to the seat belts. In the event

of an accident, it is possible that they may not be triggered.

“Check antipollution system”

–  Indicates a fault in the vehicle’s particle filter system.
–  Indicates a fault in the emissions reduction system when it is accompanied

by the

 warning light. Refer to the information on “Reagent tank” in

Section 1.

1.71

TRIP COMPUTER AND WARNING SYSTEM: warning message

These appear with the

®

 warning light and require you to stop immediately, for your own safety, as soon as traf-

fic conditions allow. Stop your engine and do not restart it. Contact an approved Dealer.

Some examples of warning messages are given below. Note: the messages appear on the display either individually or al-

ternately (when there are several messages to be displayed), and may be accompanied by a warning light and/or a beep.

Examples of messages

Interpreting the display selected

« Engine failure hazard »

Indicates an injection fault, the vehicle’s engine has overheated or there is a

serious engine fault.

« Power steering fault »

Indicates a fault in the steering or a problem with the four-wheel drive.

“Braking system fault” or ”Stop vehicle” Indicates a fault in the braking system. Apply the electronic parking brake ma-

nually and ensure that the vehicle is immobilised using a chock.

« Electric failure DANGER »

Indicates a fault in the vehicle battery charging circuit (alternator etc.).

« Puncture »

Indicates a puncture on the tyre displayed on the instrument panel.

1.72

VEHICLE SETTINGS CUSTOMISATION MENU

(1/2)

Adjusting the settings
Select the function to modify:
a) unlocking the driver’s door;

b) automatic locking of the doors while

driving;

c) hands-free function;

d) indicator audio volume;

e) internal welcome sound;

f) external welcome;

g) reading lamp in automatic mode;

h) rear windscreen wiping in reverse

gear;

i)  configuration of the driving style indi-

cator;

j)  Active noise control.
Select “ON” or “OFF” to activate or de-

activate the function.
For the “Light brightness intensity”

function, select the intensity by press-

ing “+” or “-”.

Depending on the vehicle equipment,

this function allows you to activate/de-

activate and adjust some of the vehi-

cle’s functions.

Vehicles fitted with a

navigation system

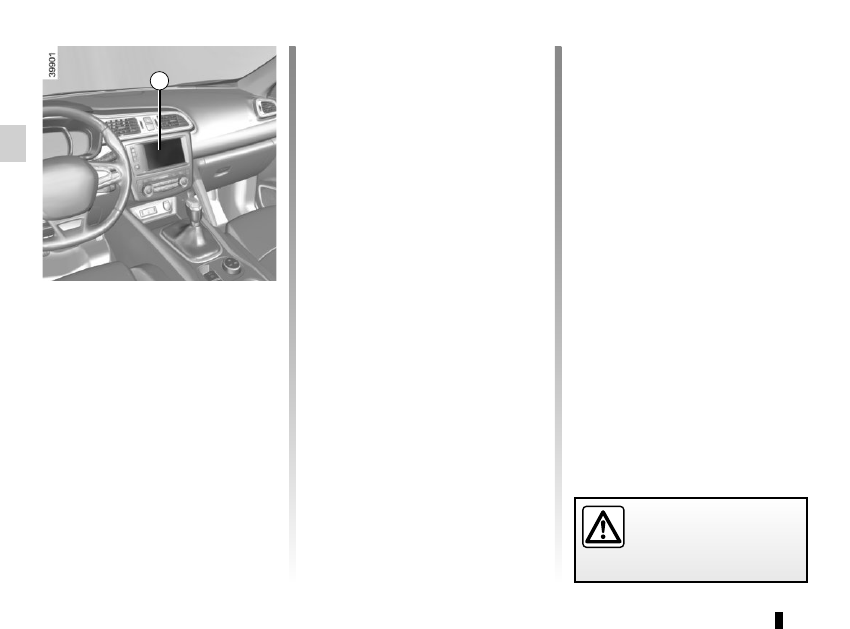

Accessing the settings menu
With the vehicle at a standstill, using

the multifunction screen 1, select menu

“Vehicle”, “User settings” to access the

various settings.

1

For safety reasons, carry

out any adjustments when

the vehicle is stationary.

1.73

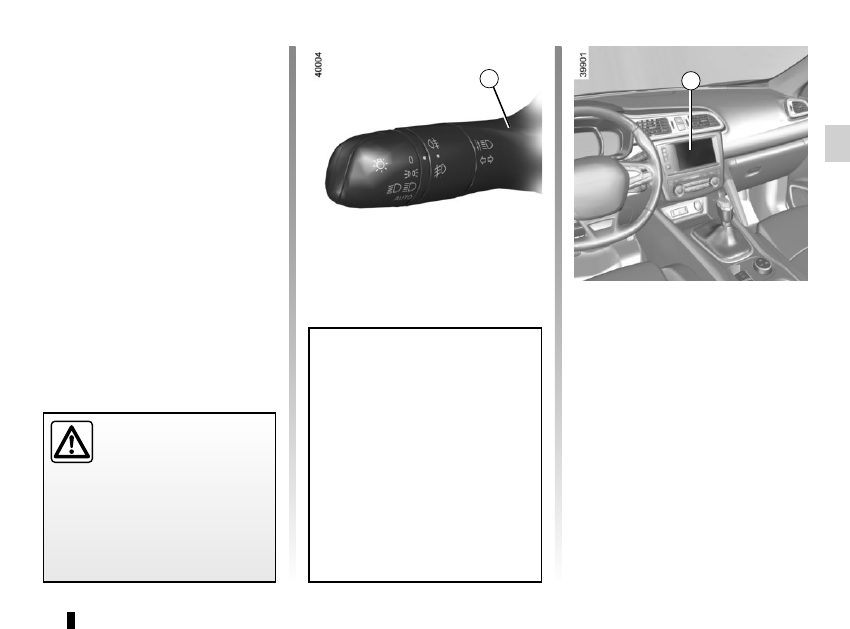

VEHICLE SETTINGS CUSTOMISATION MENU

(2/2)

3

4

If you select either “PARKING ASSIST

VOLUME” or “LANGUAGE”, you will

have to make a further selection (sound

volume of the parking distance control

or instrument panel language). In this

case, make your selection and con-

firm it by holding the switch 3 OK – the

selected value is shown by a

~

 in

front of the line.

To exit the menu, press the control 4

upwards or downwards. It may be nec-

essary to carry out this operation sev-

eral times.

Vehicles not fitted with a

navigation system

Accessing the settings menu on

display 2
With the vehicle at a standstill, press

and hold the switch 3 OK to access the

settings menu.

Adjusting the settings
Browse using the control 4 to select the

function to adjust:
a) Lock doorswhen in motion;
b) Unlock driver door only;
c) Auto rear wipe with reverse gear;
d) PARKING ASSIST;
e) Automaticmain beam lights;
f)  Lane depart warn volume;
g) Lane depart warn sensitivity;
h) PARKING ASSIST;
i) PARKING ASSIST Volume;
j) LANGUAGE;
k) COLOUR.

=

 function activated

<

 function deactivated

Once a line has been selected, press

the switch 3 OK to adjust the function.

The vehicle settings personalisation

menu cannot be used when driv-

ing. At speed exceeding 12 mph

(20 km/h), the instrumental panel

display switches automatically back

to trip computer and warning system

mode.

2

1.74

Power-assisted steering

Variable power-assisted steering
The variable power assisted steering

system is equipped with an electronic

control system which alters the level of

assistance to suit the vehicle speed.
Steering is made easier during parking

manoeuvres (for added comfort) while

the force needed to steer increases

progressively as the speed rises (for

enhanced safety at high speeds).

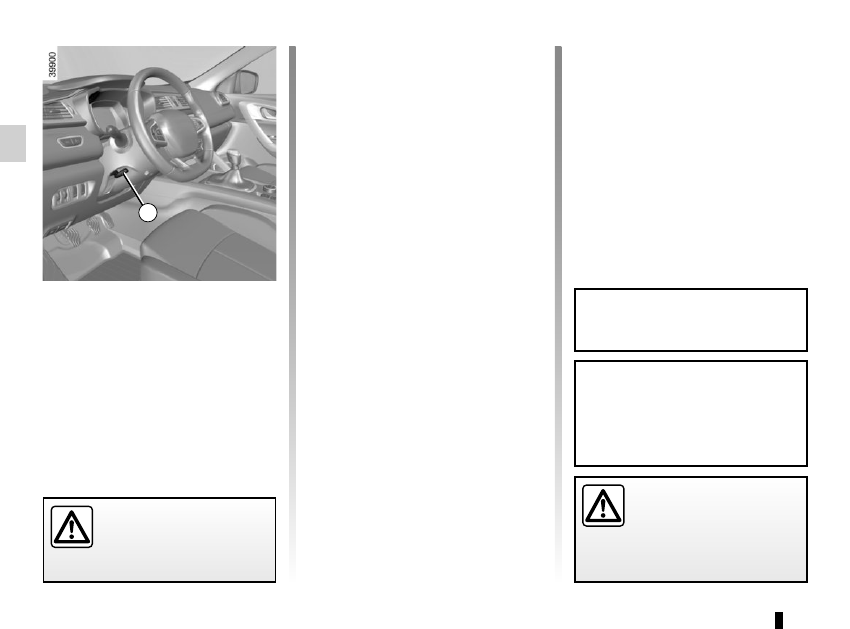

STEERING WHEEL/POWER-ASSISTED STEERING

For safety reasons, only

adjust the steering wheel

when the vehicle is station-

ary.

Never leave the steering wheel at

full lock while stationary.

Do not switch off the engine

when driving downhill and,

as a general rule, when

driving (the power-assisted

steering and brake cannot operate

normally).

With the engine switched off, or if

there is a system fault, it is still pos-

sible to turn the steering wheel. The

force required will be greater.

1

Adjusting the steering wheel

height and depth

Lower the lever 1 and position the

steering wheel in the required position.
Then, raise the lever fully, beyond the

point of resistance to lock the steering

wheel.
Make sure that the steering wheel is

correctly locked.

1.75

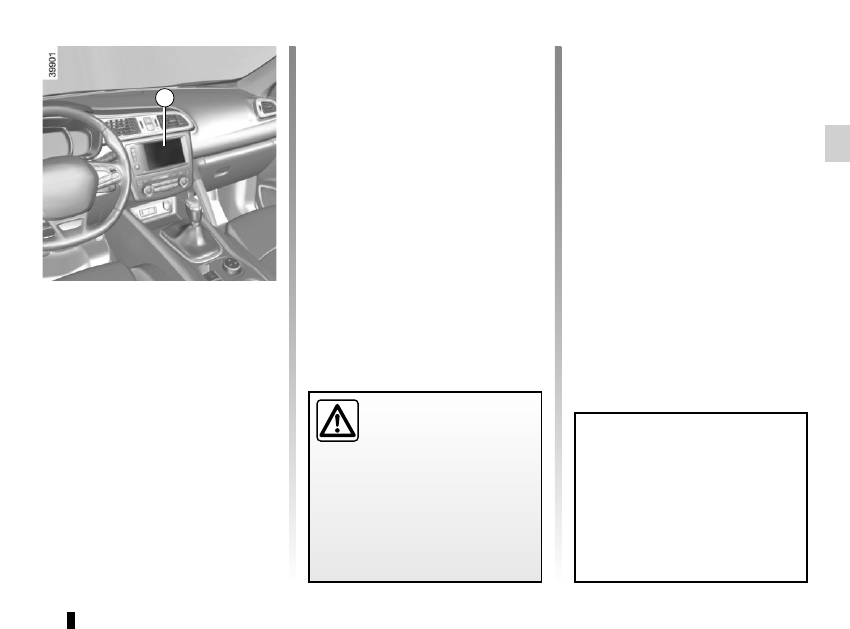

CLOCK AND EXTERIOR TEMPERATURE

External temperature

indicator

Special note:
When the exterior temperature is - 3 °C

to + 3 °C, the °C characters flash (sig-

nalling a risk of ice on the road).

Display 1

Vehicles fitted with a touchscreen

multimedia screen, navigation aid

systems, etc.
The time and exterior temperature are

displayed on the multifunction screen 1.
Refer to the handbook for the equip-

ment.

External temperature

indicator
As ice formation is related

to climatic exposure, local

air humidity and temperature, the

external temperature alone is not

sufficient to detect ice.

1

If the electrical supply is cut (battery

disconnected, broken supply wire,

etc.), the clock will automatically

go back to the right time after a few

minutes once the system is capable

of receiving information GPS.

1.76

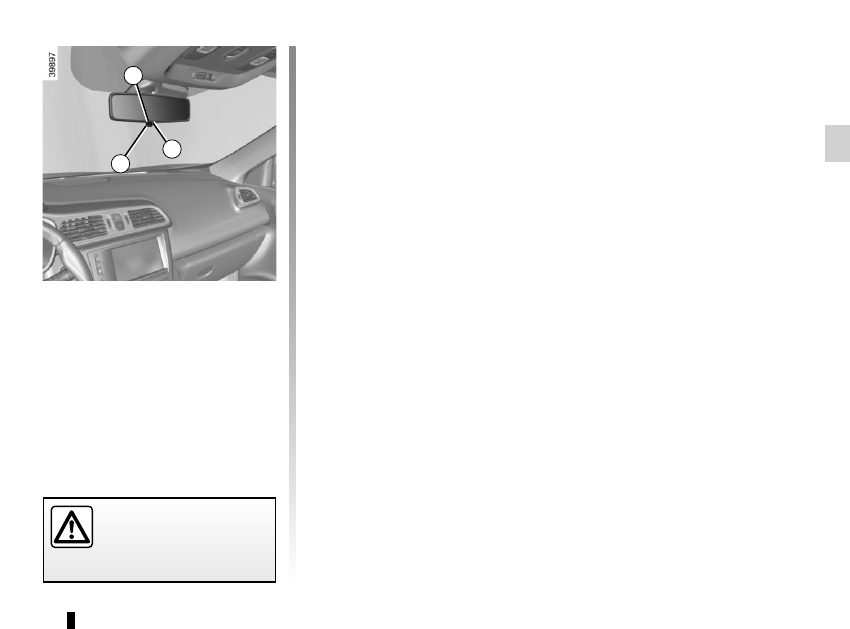

REAR VIEW MIRRORS

(1/2)

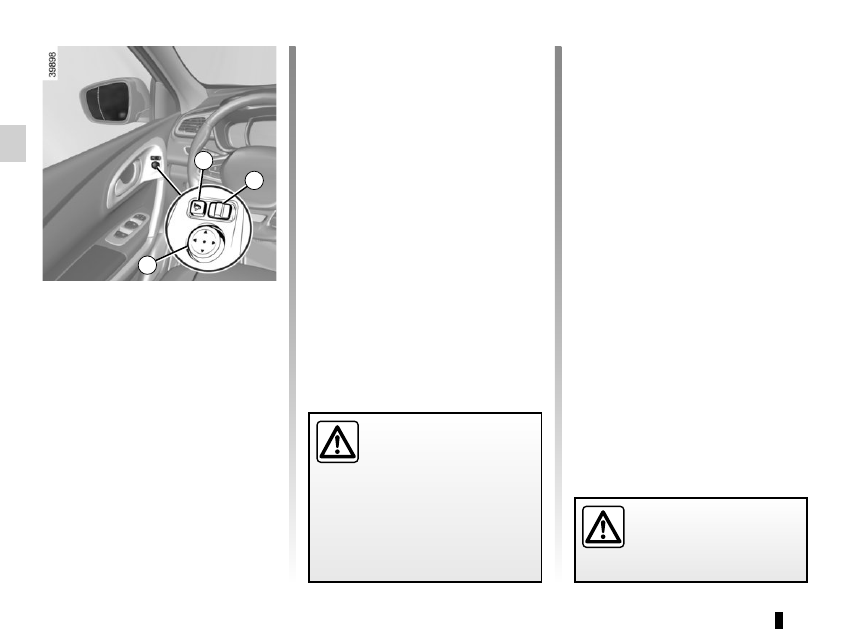

Folding rear view mirrors

Press the switch 1 to fold in the door

mirrors. Press the switch 1 again to au-

tomatically fold out the door mirrors.

Welcome and goodbye function

(depending on the vehicle)
When the door mirrors are not folded in

by pressing switch 1, they:

–  fold in automatically when the vehi-

cle is locked;

–  fold out automatically when the vehi-

cle is unlocked.

Exterior rear view mirrors

Adjustment
Select the door mirror using the

switch  2, then use the control 3 to

adjust it to the desired position.

Heated door mirrors
Mirror de-icing is carried out at the

same time as rear screen de-icing.
Please refer to the information

on “Manual air conditioning” and

“Automatic climate control” in Section 3.

Objects observed in the

door mirror glass are actu-

ally closer than they appear.
For your safety, take this

into account in order to correctly

assess the distance before any ma-

noeuvre.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

1

2

3

1.77

REAR VIEW MIRRORS

(2/2)

5

Interior rear view mirror

Its position can be adjusted.

Rear view mirror with lever 4
When driving at night, to avoid being

dazzled by the headlights of the vehicle

behind, depress the little lever located

behind rear view mirror 4.

Rear view mirror without lever 4
The rear-view mirror darkens automati-

cally at night if you are being followed

by a vehicle with its lights on.
Depending on the vehicle, you can acti-

vate or disable this function by pressing

the 5 button. The 6 warning light comes

on when the function is active.
Note: the function is reactivated once

the engine is switched off and the doors

are locked/unlocked.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

4

6

1.78

á

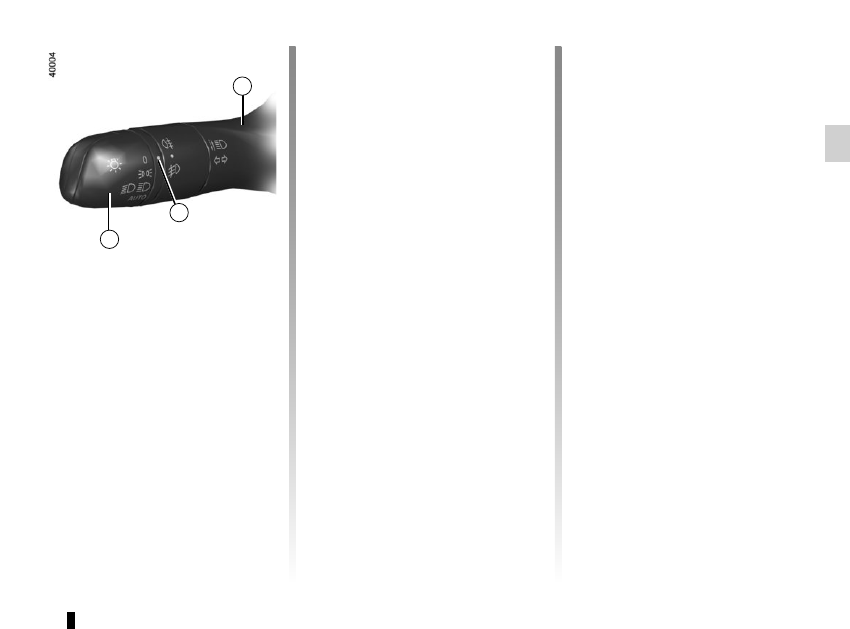

Main beam headlights

With the dipped beam

headlights lit, push stalk 1. This indica-

tor light on the instrument panel comes

on.
To return to the dipped headlight posi-

tion, pull the stalk 1 towards you again.

EXTERIOR LIGHTING AND SIGNALS

(1/6)

š

Side lights

Turn ring 3 until the symbol is

opposite mark 2. This indicator light on

the instrument panel comes on.

k

Dipped beam

headlights

Manual operation

Turn ring 3 until the symbol is opposite

mark 2. This indicator light on the in-

strument panel comes on.

Automatic operation

Turn ring 3 until the AUTO symbol is op-

posite mark 2: with the engine running,

the dipped beam headlights switch on

or off automatically depending on the

brightness of the light outside, without

any action on stalk 1.

Before driving at night:

check that the electrical

equipment is operating cor-

rectly. As a general precau-

tion, check that the lights are not

obscured (by dirt, mud, snow or ob-

jects being transported).

1

3

2

When driving on the left in a left-

hand drive vehicle (or vice versa),

drivers must readjust their lights

throughout their stay (see “Adjusting

headlight beams” in Section 1).

1

1.79

Automatic main beam

headlights

Depending on the vehicle, this system

switches the main beam headlights on

and off automatically. It uses a camera

located behind the interior rear-view

mirror to detect vehicles that are being

followed and those coming in the oppo-

site direction.
The main beam headlights come on au-

tomatically if:

–  exterior light is weak;

–  no other vehicles or lighting are de-

tected;

–  the vehicle speed is above approxi-

mately 25 mph (40 km/h).

If any of the above conditions are not

fulfilled, the system switches to dipped

beam headlights.

The “automatic main beam

headlights” system should

under no circumstances be

used to replace driver atten-

tion and responsibility with regard

to vehicle lighting and adapting to

light, visibility and traffic conditions.

The system may encounter difficul-

ties under certain conditions, inclu-

ding:

–  extreme weather conditions (rain,

snow, fog, etc.);

–  obstruction in front of the wind-

screen or camera;

–  when a following or oncoming ve-

hicle has weak or hidden lighting;

–  incorrect settings for the front

headlights;

– reflective systems;

– ...

EXTERIOR LIGHTING AND SIGNALS

(2/6)

1

4

Switching on

Vehicle fitted with a navigation

system
On the multifunction screen 4, select

the “Vehicle” menu, “Driving assist-

ance”, and “Automaticmain beam

lights”, and then choose “ON” or “OFF”.

1.80

Activation/deactivation

To activate the automatic main beam

headlights:

– turn ring 3 until the AUTO symbol is

opposite mark 2;

– push stalk 1.

Warning light

 comes on the in-

strument panel.
To deactivate the automatic main

beam headlights:

– pull stalk 1;

–  or turn ring 3 to a position other than

AUTO.

Warning light

 goes out on the

instrument panel.
Note: make sure the windscreen is not

obscured (dirt, mud, snow, condensa-

tion etc.).

EXTERIOR LIGHTING AND SIGNALS

(3/6)

5

6

–  repeatedly press the control 6 up or

down until you reach the “Automatic

main beam headlights” menu, then

press the switch 5 OK;

– press the 5 OK switch again to acti-

vate or deactivate the function.

Vehicles not fitted with a navigation

system

–  With the vehicle at a standstill, press

and hold the switch 5 OK to access

the settings menu;

–  repeatedly press the control 6 up or

down until you reach the “Aides à la

conduite” menu. Press the switch 5

OK;

3

1

2

Using the portable navigation system at night in the windscreen area

below the camera may disturb the operation of the “automatic main beam

headlights” system (risk of reflection on the windscreen).

Each time you start the engine, pull

and then push the stalk 1 to reacti-

vate the system.

1.81

Operating faults

When the message “Check auto li-

ghting” appears on the instrument

panel, the system is deactivated.

Consult an approved dealer.

EXTERIOR LIGHTING AND SIGNALS

(4/6)

Switching off the lights

There are two possibilities:

–  manually, move ring 3 to position 0;

–  automatically, the lights will go out

when the engine is switched off, the

driver’s door is opened or the vehicle

is locked. In this case, the next time

the engine is started the lights will be

switched back on according to the

position of the ring 3.

Lights-on reminder buzzer

A warning beep sounds when the driv-

er’s door is opened to warn you that the

lights are still on.

Daytime running lights

function

The daytime running lights come on

automatically with no action on stalk 1

when the engine is started, and they go

off once the engine is switched off.

Operating faults

When the message “Check lighting”
with warning light

©

 is displayed

and warning light

k

 flashes on the

instrument panel, this indicates that

there is a lighting fault.

Consult an approved dealer.

3

2

1















Content   ..  3  4  5  6   ..
