Renault Kadjar (2018 year). Instruction - part 4





1.50

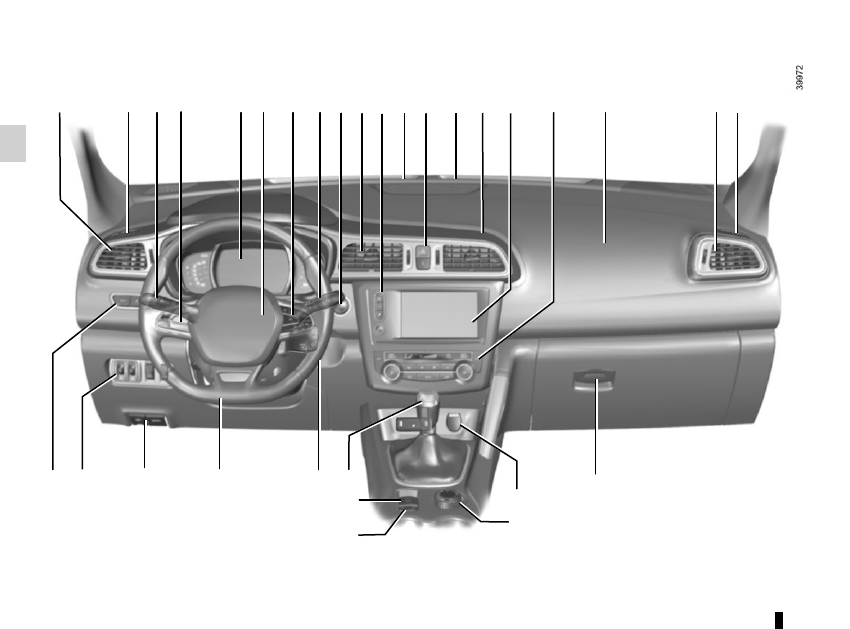

DRIVING POSITION: LEFT-HAND DRIVE

(1/2)

2

3

5 6

8

2

12

13

1

15

16

25

17

11

14

18

7

1

1

4

1

2

10

19

21

22

23

24

9

2

20

1.51

DRIVING POSITION: LEFT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

 19  Assisted parking or handbrake

control.

 20 Gear lever.

 21  Ignition switch (vehicles with key).

 22 Control for adjusting steering

wheel height and reach.

 23 Unlocking controls:

– bonnet;

–  fuel filler flap.

 24 Controls for:

–

headlight beam height remote ad-

justment;

–

lighting rheostat for control instru-

ments;

–

Lane departure warning;

–  ESP and Traction Control system.

 25 Controls for:

– ECO mode;

–

activation/deactivation of the Stop

and Start function.

  1 Air vent.

  2 Demister outlet.

  3 Stalk for:

–  direction indicator lights;

– exterior lights;

– fog lights.

  4  Cruise control/speed limiter con-

trols.

  5 Instrument panel.

  6  Driver Airbag and horn location.

  7 Controls for:

–

on-board computer information

read-out and vehicle settings cus-

tomisation menu;

–

remote radio and navigation

system.

  8  Steering column stalk for wind-

screen and rear screen wash/

wiper.

  9  Engine start/stop button (vehicle

with RENAULT card).

 10 Controls for:

–  access the main menu;

–

access the Driving assistance

menu or, depending on the vehi-

cle, the user preferences menu;

– assisted parking.

 11  Hazard warning light switch, cen-

tral door locking warning light.

 12 Multimedia screen.

 13  Heating or air conditioning con-

trols.

 14 Passenger

Airbag location.

 15 Glovebox.

 16 Accessories and multimedia

socket.

 17  Two and four-wheel drive mode

selector or, depending on the vehi-

cle, traction control.

 18  Cruise control/speed limiter main

control.

1.52

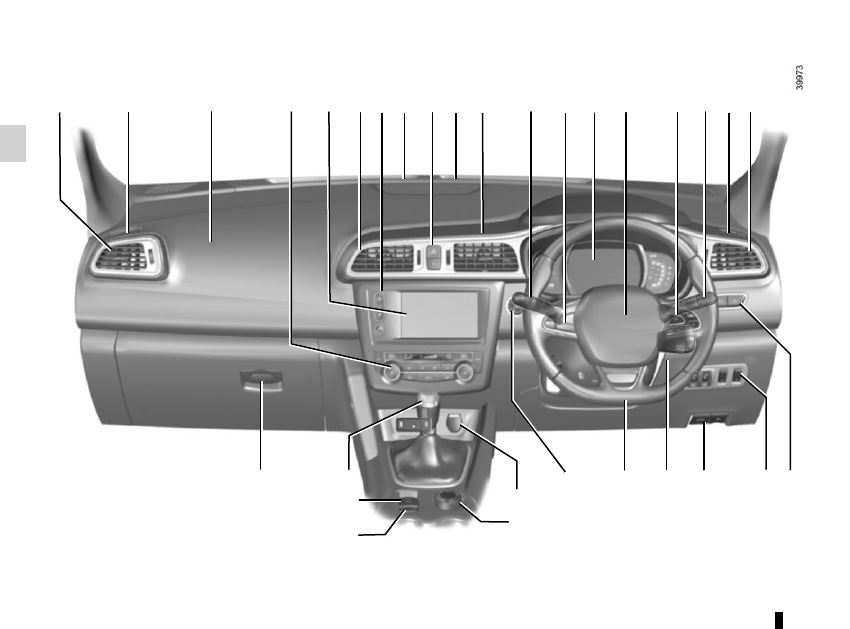

DRIVING POSITION: RIGHT-HAND DRIVE

(1/2)

2

8

10 11

13

2

1

25

20

14

21

7

3

22

12

1

1

9

1

2

6

23

17

18

16

15

2

24

5

4

19

1.53

DRIVING POSITION: RIGHT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

 16 Unlocking controls:

– bonnet,

–  fuel filler flap.

 17  Ignition switch (vehicles with key).

 18 Control for adjusting steering

wheel height and reach.

 19  Engine start/stop button (vehicle

with RENAULT card).

 20 Accessories and multimedia

socket.

 21  Two and four-wheel drive mode

selector or, depending on the vehi-

cle, traction control.

 22  Cruise control/speed limiter main

control.

 23  Assisted parking or handbrake

control.

 24 Gear lever.

 25 Glovebox.

  1 Air vent.

  2 Demister outlet.

  3 Passenger

Airbag location.

  4  Heating or air conditioning con-

trols.

  5 Multimedia screen.

  6 Controls for:

–  access the main menu,

–

access the Driving assistance

menu or, depending on the vehi-

cle, the user preferences menu,

– assisted parking.

  7  Hazard warning light switch, cen-

tral door locking warning light.

  8 Stalk for:

–  direction indicator lights;

– exterior lights;

– fog lights.

  9  Cruise control/speed limiter con-

trols.

 10 Instrument panel.

 11  Driver Airbag and horn location.

 12 Controls for:

–

on-board computer information

read-out and vehicle settings cus-

tomisation menu,

–

remote radio and navigation

system.

 13  Steering column stalk for wind-

screen and rear screen wash/

wiper.

 14 Controls for:

– ECO mode,

–

activation/deactivation of the Stop

and Start function.

 15 Controls for:

–

electric headlight beam adjust-

ment;

–

lighting dimmer for control instru-

ments;

–

Lane departure warning;

–  ESP and Traction Control system.

1.54

š

Side light warning light

á

Main beam headlight tell-

tale

k

Dipped beam headlight tell-

tale

g

Front fog light tell-tale



Rear fog light telltale



Automatic main beam head-

light indicator light

Please refer to the information

on “External signals and lights” in

Section 1.

c

Left-hand direction indicator

tell-tale

b

Right-hand direction indica-

tor tell-tale

M

Low fuel level warning light

It lights up orange when the ig-

nition or the engine is switched on and

goes off after a few seconds.

If it comes on orange while driving and

is accompanied by a beep, fill up with

fuel as soon as possible. There is only

approximately 30 miles (50 km) worth

of fuel left.

A

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

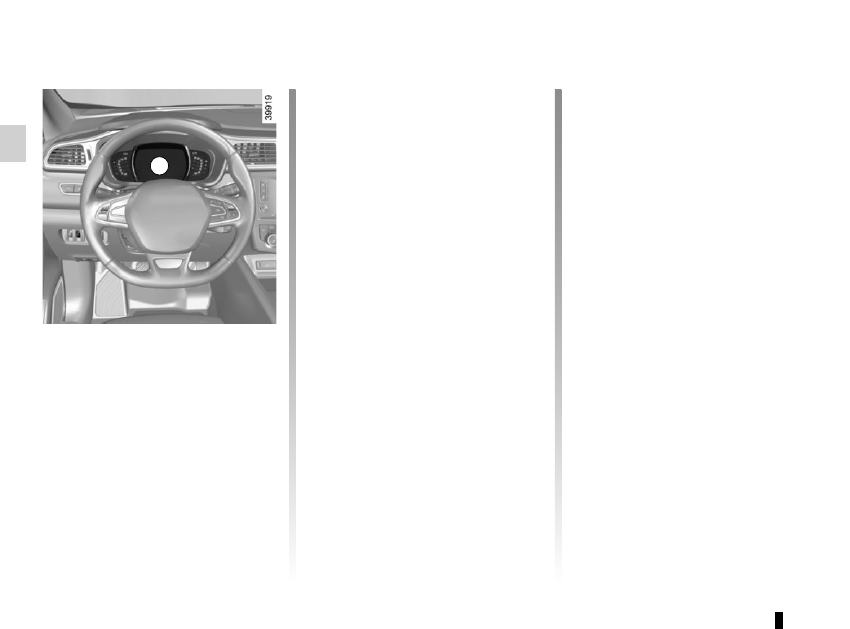

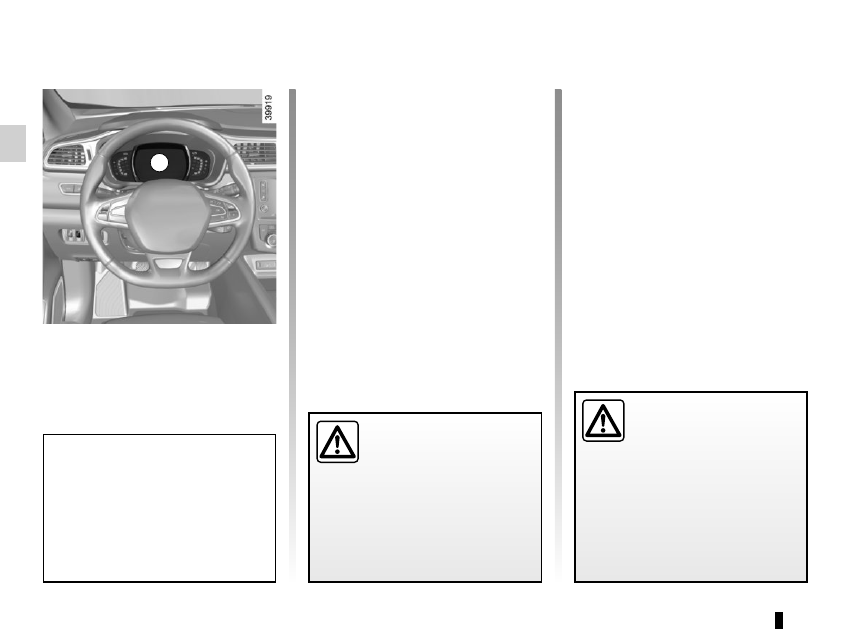

Instrument panel  A: this comes on

when the driver's door is opened.
In some cases, the appearance of a

warning light is accompanied by a mes-

sage.

The

©

 warning light means

you should drive very carefully to

an approved dealer as soon as pos-

sible. If you fail to follow this recom-

mendation, you risk damaging your

vehicle.

Warning light

®

 re-

quires you to stop immedi-

ately, for your own safety,

as soon as traffic conditions

allow. Switch off the engine and do

not restart it. Contact an approved

Dealer.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

WARNING LIGHTS

(1/6)

1.55

WARNING LIGHTS

(2/6)

®

STOP light

This lights up when the igni-

tion or engine is switched on and goes

out as soon as the engine is running. It

comes on with other warning lights and/

or messages, and is accompanied by

a beep.
It requires you to stop immediately, for

your own safety, as soon as traffic con-

ditions allow. Switch off the engine and

do not restart it.
Contact an approved Dealer.

À

Oil pressure warning light
It lights up when the ignition or

the engine is switched on and goes off

after a few seconds.
If it comes on on the road, accompa-
nied by the

®

 warning light and

a beep, stop immediately and cut the

ignition.
Check the oil level. If the level is normal,

the indicator light is being lit by some-

thing else. Contact an approved Dealer.

U

Variable power-assisted

steering warning light

It lights up when the ignition or the

engine is switched on and goes off after

a few seconds.
If it comes on while driving, alongside
the warning light

®

, this means

there is a system fault.
Contact an authorised dealer.

D

Brake circuit fault warning

light

It lights up when the ignition or the

engine is switched on and goes off after

a few seconds.
If it comes on during braking and is ac-
companied by the

®

 warning light

and a beep, it indicates that the fluid

level in the circuit is low or that there is

a braking system fault. Stop as soon as

traffic conditions allow and contact an

authorised dealer.

Ú

Battery charge warning light
It lights up when the ignition or

the engine is switched on and goes off

after a few seconds.
If it comes on on the road, accompa-
nied by the

®

 warning light and a

beep, this indicates an overload or dis-

charge in the electrical circuit.
Stop as soon as traffic conditions allow

and contact an approved Dealer.

A

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.56

WARNING LIGHTS

(3/6)

x

Anti-lock braking warning

light

It lights up when the ignition or the

engine is switched on and goes off after

a few seconds.

If it lights up when you are driving, it in-

dicates a fault in the anti-lock braking

system.

Braking will then be as normal, without

the ABS. Contact an approved Dealer

as soon as possible.

Ô

Coolant temperature warn-

ing light

This lights up red when the ignition is

switched on or the engine is started.
If it turns red, stop and let the engine

idle for a minute or two.
The temperature should drop.

Otherwise, stop the engine. Let the

engine cool down before checking the

coolant.
Contact an approved Dealer.

©

Warning light

This lights up when the ignition

or engine is switched on and goes out

as soon as the engine is running. It can

light up in conjunction with other warn-

ing lights and/or messages on the in-

strument panel.

It means you should drive very care-

fully to an approved dealer as soon as

possible. If you fail to follow this recom-

mendation, you risk damaging your ve-

hicle.

Ä

Toxic Fume Filter System

Warning Light

On vehicles which are equipped with it,

this light comes on when the engine is

started and, depending on the vehicle,

when the ignition is switched off if the

vehicle is in the engine standby phase

(refer to the information on the “Stop

and Start function” in Section 2) then

goes out.
–  If it lights up continuously, consult

your approved dealer as soon as

possible;

–  if it flashes, reduce the engine speed

until the light stops flashing. Contact

your approved Dealer as soon as

possible.

Refer to the information on “Advice:

antipollution, fuel economy and driving”

in Section 2.

A

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.57

WARNING LIGHTS

(4/6)

Particle filter system warn-

ing light (petrol version)

Refer to the “Special features of petrol

versions” in Section 2.

A

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Ó

Brake pedal warning light
This lights up when the brake

pedal should be depressed. Refer to

the information on the “Automatic gear-

box” in Section 2.
Please refer to the information on

“Driving advice, Eco-driving” in

Section 2.

}

Handbrake or electronic

parking brake warning light

Refer to the information on the “Assisted

parking brake” in Section 2.

É

Preheating warning light

(Diesel version)

This should come on when the igni-

tion is switched on. It indicates that the

heater plugs are in operation.
It goes out when preheating is com-

plete. The engine can be started.

2

 Door(s) open warning light

Š

Gear change indicator

This lights up to advise you to

change to a higher gear (up arrow) or

lower gear (down arrow).

Please refer to the information on

“Driving advice, Eco-driving” in

Section 2.

å

Indicator lightAirbag

This warning light will be dis-

played on the instrument panel when

the ignition is switched on or the engine

is started, and will then go out after a

few seconds.

If it does not come on when the igni-

tion is switched on, or comes on when

the engine is running, there is a fault in

the system.

Contact your approved Dealer as soon

as possible.

1.58

WARNING LIGHTS

(5/6)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Assisted parking brake fault

light

Please refer to the information on the

“Assisted parking brake” in Section 2.

Emergency active brake

assist

Refer to the information on “Driving cor-

rection devices and aids” in Section 2.

Warning light for the elec-

tronic stability program

(ESC) and traction control system
It lights up when the ignition or the

engine is switched on and goes off after

a few seconds.
There are several reasons for the warn-

ing light to come on: please refer to the

information on “Driver correction de-

vices and aids” in Section 2.

A

Φ

Speed limiter and cruise

control indicator lights

See the information on the “Speed lim-

iter” and “Cruise control” in Section 2.

Tyre pressure monitoring

system

Refer to the information on the “Tyre

pressure monitoring system” in

Section 2.

Mode warning light ECO
This comes on when ECO

mode is activated.
Please refer to the information on “Eco-

driving” in Section 2.

Warning light for reagent

level and faults in the ex-

haust gas reduction system.
Refer to the information on “Reagent

tank” in Section 1.

Engine standby warning

light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.

Unavailability of engine

standby warning light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.

1.59

WARNING LIGHTS

(6/6)

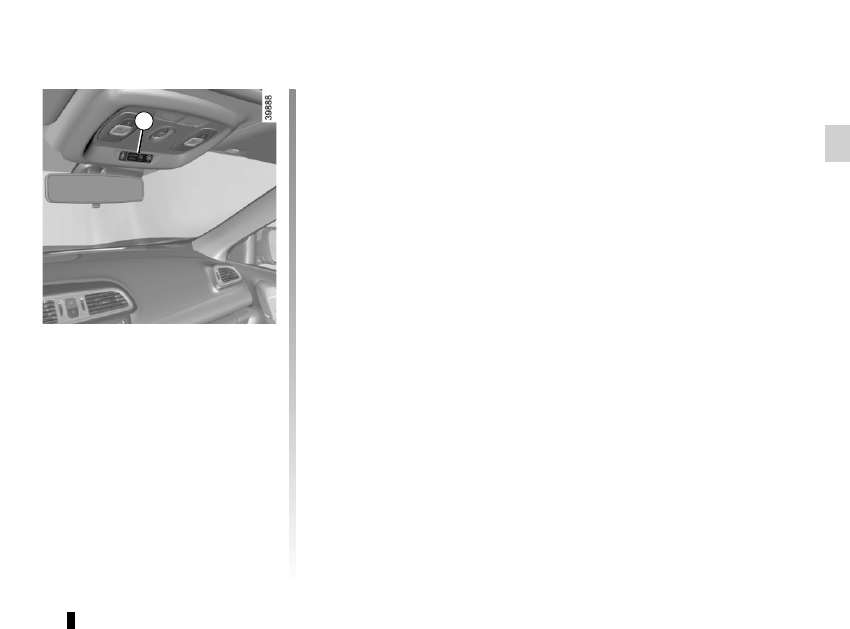

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

On display B

Passenger Airbag ON



 Refer to the information on

“Child safety: deactivating/activating

the front passenger airbag” in Section 1.

¹

Passenger Airbag   OFF

Refer to the information on

“Child safety: deactivating/activating

the front passenger airbag” in Section 1.

ß

Driver’s seat belt reminder

and, depending on the vehi-

cle, front passenger seat belt re-

minder

This lights up when the ignition is

switched on, then, if the driver's or front

passenger's (if this seat is occupied)

seat belt is not fastened and the vehicle

has reached approximately 12.4 mph

(20 km/h), it flashes and a beep sounds

for around 2 minutes.

Note: an object placed on the passen-

ger seat base can activate the warning

light.
Rear seat belt reminder (depending

on vehicle)

Warning light

ß

 comes on, accom-

panied (depending on the vehicle) by

a message indicating the number of

fastened seat belts on the instrument

panel for approximately 30 seconds,

each time the vehicle is started, a door

is opened or a rear seat belt is fas-

tened/unfastened. Check that the rear

passengers are wearing seat belts and

that the number of seat belts shown as

fastened corresponds to the number of

rear seat places occupied.

B

1.60

DISPLAYS AND INDICATORS

(1/2)

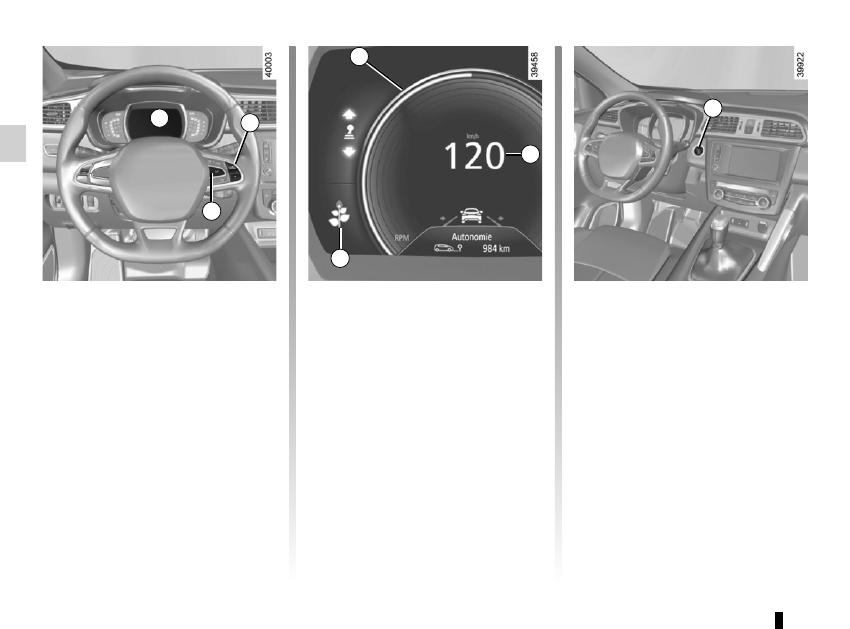

Instrument panel A

You can customise your instrument

panel with the content and colours of

your choice.

For vehicles fitted with a navigation

system, refer to the handbook for the

equipment.

For vehicles not fitted with a naviga-

tion system, refer to the information on

“Vehicle settings customisation menu”

in Section 1.

Rev counter 4

(graduations x 1000)

A

5

3

Driving style indicator 3

Please refer to the information on “Eco-

driving” in Section 2.

Speedometer 5

(km or miles per hour)

This is displayed differently according

to how the instrument panel is custom-

ised.

Overspeed buzzer

Depending on the vehicle and coun-

try, a buzzer sounds for approximately

10 seconds every 40 seconds, as long

as the vehicle is travelling in excess of

72 mph (120 km/h).

6

Instrument panel in miles

(option to switch to km/h)
Vehicles not fitted with a navigation

system

–  With the ignition off, press the OK

button 2 and the start button 6;

– using control 1, select “Settings”,

“Instrument panel”, then the unit;

– Press the OK button 2 to confirm.
To return to the previous mode, repeat

the same operation.

4

1

2

1.61

DISPLAYS AND INDICATORS

(2/2)

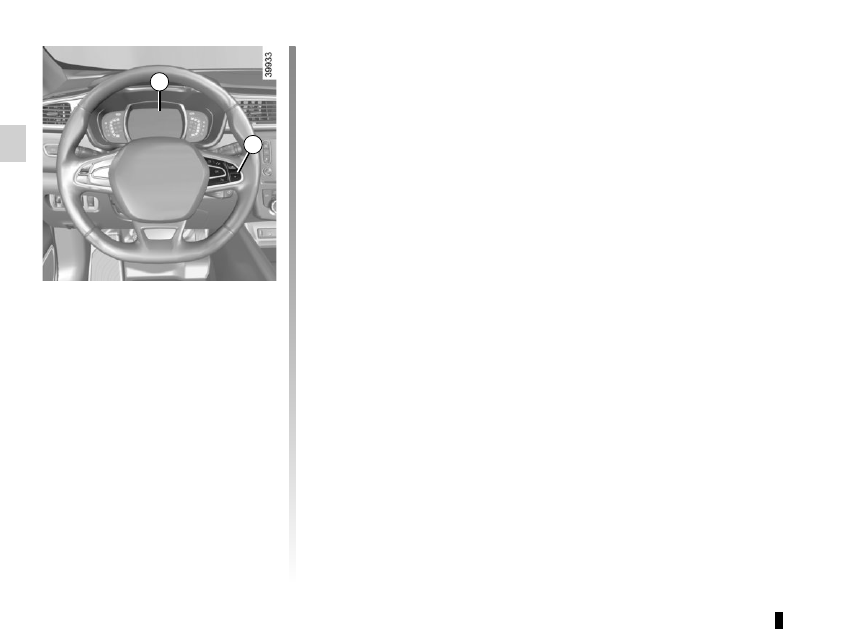

Engine oil level low warning

When the engine is started, the instru-

ment panel display A alerts you when

the minimum oil level is reached. Refer

to the information on the “Engine oil

level” in Section 4.
The first time the warning appears,

it can be cleared by pressing the OK

button 2.
Subsequent warnings will disappear

automatically after 30 seconds.

2

A

Coolant temperature

indicator 6

Fuel level gauge 7

If the level is at the minimum, warn-

ing light

M

 integrated in the indica-

tor comes on orange, accompanied by

a beep. Fill up as soon as possible.

7

Vehicles fitted with a navigation

system

On the multifunction screen, select

“System” , “User profile” and “Unit”.
Note: In both cases, once the battery

is switched off, the on-board computer

automatically returns to the original unit

of measurement.

Trip computer and warning

system

Refer to the information on the “Trip

computer and warning system” in

Section 1.

6

1.62

1

Display selection keys 2

Scroll through the following information

by repeated short presses on the con-

trol 2 (the display depends on the vehi-

cle equipment and country):
a)  total mileage and trip mileage re-

corder;

b) journey parameters:

–

current fuel consumption;

–  Estimated range with remaining fuel;

– distance travelled;

– average speed;
c) mileage before service;
d) tyre pressure reset;
e) trip log, operating faults and informa-

tion message readout;

f)  Estimated range with remaining rea-

gent.

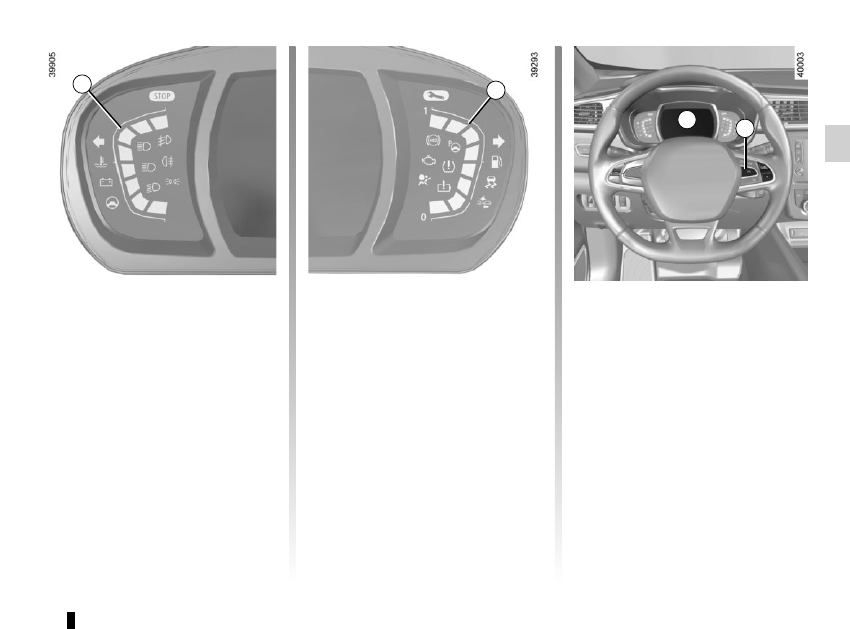

On-board computer 1

Depending on the vehicle, this includes

the following functions:
– distance travelled;
– journey parameters;
– information messages;
–  operating fault messages (associ-

ated with the

©

 warning light);

–  warning messages (associated with

the

®

 warning light);

All these functions are described on the

following pages.

TRIP COMPUTER:  general information

(1/2)

2

1.63

3

ON-BOARD COMPUTER: general information

(2/2)

Interpreting some of the

values displayed after

resetting

The values showing average fuel con-

sumption and average speed will

become more stable and reliable the

further you have travelled since the last

time the Reset button was pressed.
The average fuel consumption may de-

crease when:
–

the vehicle stops accelerating;

–

the engine reaches its operating

temperature (if the engine was cold

when the reset key was pressed);

–

when driving from an urban area

onto the open road.

Automatic resetting of the

journey parameters

Resetting occurs automatically when

the maximum value of any of the pa-

rameters is exceeded.

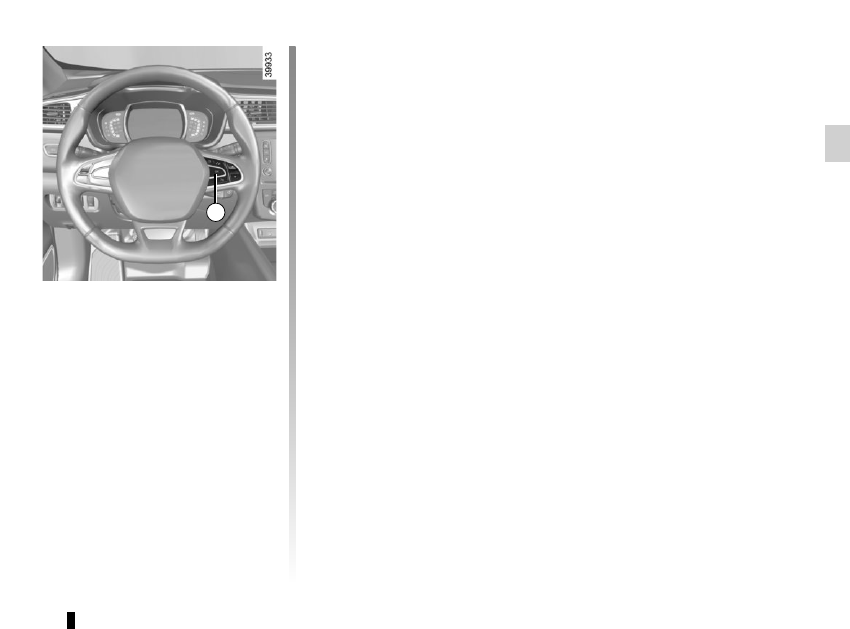

Trip mileage resetting

With “trip mileage recorder” selected

on the display, press key OK 3 until the

mileage recorder resets to zero.

Resetting the journey

parameters (reset button)

with the display showing one of the trip

settings, press key OK 3 until the dis-

play is reset to zero.

1.64

ON-BOARD COMPUTER: trip settings

(1/5)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

101 778 km

a) Total mileage and trip mileage recorder.

   112,4 km

Fuel used

b) Journey parameters:

Fuel consumed since the last reset.

8 l

Current

  Current fuel consumption.

This value is displayed after a speed of approximately 20 mph (30 km/h) is

reached.

7,4 l/100

1.65

ON-BOARD COMPUTER: trip settings

(2/5)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

Range

  Estimated range with remaining fuel.

The value is displayed after driving 400 metres.

541 km

Distance

 Distance

travelled since last reset.

522 km

Average

 Average

speed since the last reset.

The value is displayed after driving 400 metres.

123,4 km/h















Content   ..  2  3  4  5   ..
