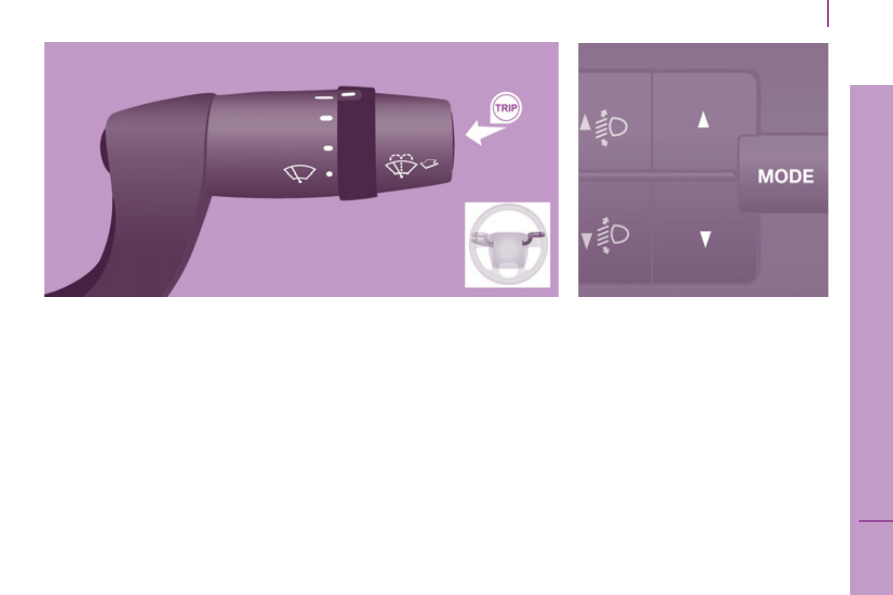

The TRIP button, located at the end of the
wiper stalk, provides access to the following
information:
-

Ambient temperature

This indicates the temperature outside
the vehicle.

Range

This indicates the distance that can still
be travelled with the fuel remaining in
the tank on the basis of the average
consumption over the last few miles
(kilometres) travelled.

Average speed A

This is the average speed calculated
since the last trip computer zero reset
(with the ignition on).

Trip duration A

This indicates the total time since the
last trip recorder zero reset.

Distance A

This indicates the distance travelled
since the last trip computer zero reset.

Average fuel consumption A

This is the average quantity of fuel
consumed since the last trip computer
zero reset.

Current fuel consumption A

This is the average quantity of fuel
consumed during the last few seconds.

TRIP COMPUTER

If TRIP B is activated on the MODE menu:
- Distance

Average fuel consumption B

Average speed B

Trip duration B

Trip computer

Mode

MODE

Configuration - Personalisation

If your vehicle is fitted with the control panel
located to the left of the steering wheel, this
provides access to menus which permit the
personalisation of some of your equipment.
Seven languages are offered: Italian,
English, German, French, Spanish,
Portuguese, Dutch.
As a safety precaution, some menus can
only be accessed when the ignition is off.

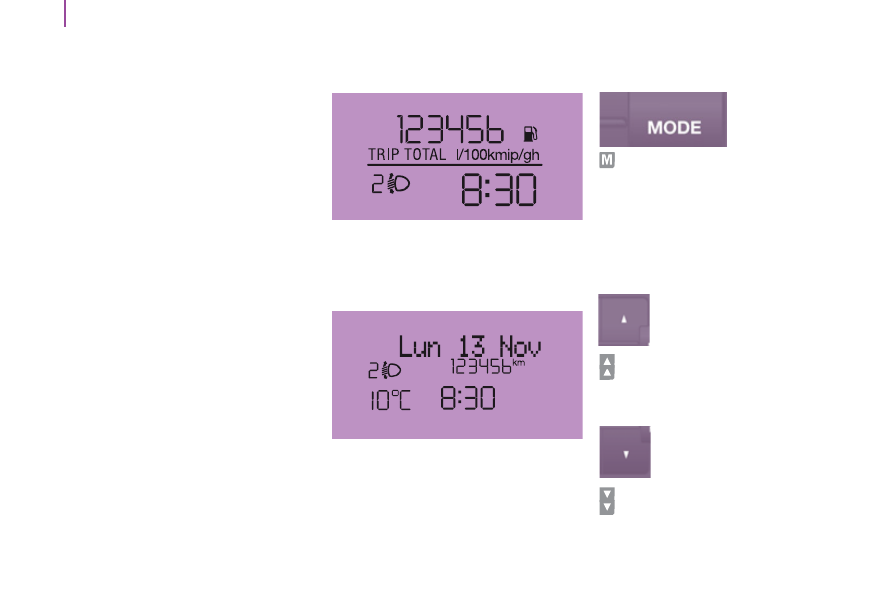

Instrument panel screen 1
If your vehicle is fi tted with this screen, you
have access to the menus 1 (Speed), 4 (Hour),
8 (Unit), 10 (Buzz), 13 (Bag P) and 14.

scroll up through a menu,

increase a value.

scroll down through a menu,

decrease a value.

Instrument panel screen 2
If your vehicle is fitted with this screen, you
have access to all of the menus.

This MODE button enables you to:
-

access the menus and sub-menus,

confirm your selections, within a
menu,

exit from the menus.

A long press enables you to return to
the welcome screen.

This button enables you to:

ECHNOLOGY

BOAR

Mode

Menu...

Press...

Sub-menu…

Press...

Select…

Confirm
and exit

Enables you to...

1 Bleep

Speed
(Speed)

Increase

Activate/deactivate the audible
signal indicating exceeding of
the programmed speed and
select the speed.

Decrease

OFF

2 Headlamp

sensor

Increase

Set the sensitivity of the
sunshine sensor (1 to 3).

Increase

3 Activation

Trip B

Activate

Display a second distance
"Trip B".

Deactivate

4 Setting the

time (Hour)

Hours/Minutes

Increase

Set the clock.

Decrease

Time format

Select the clock display mode.

5 Setting the

date

Year/Month/
Day

Activate

Set the date.

Deactivate

6 See radio

Display the name of the station.

OFF

7 Autoclose

While moving

Activate/Deactivate automatic
door locking above approx
12 mph (20 km/h)

OFF

Mode

Menu…

Press...

Sub-menu…

Press...

Select…

Confirm
and exit

Enables you to...

8 Measurement

unit (Unit)

Distance

Select the distance display unit.

Miles

Fuel
consumption

km/l

Select the fuel consumption
display unit.

l/100 km

9 Languages

List of
languages
available

Select the display language.

10 Volume of

announcements

(Buzz)

Increase

Increase/decrease the volume
of the announcements or of the
audible warning.

Decrease

11 Volume of

the buttons

Increase

Increase/decrease the volume of
the buttons.

Decrease

12 Service

Service (Miles/km
before oil change)

Display the miles/kilometres
remaining before the next oil
change.

Oil

Display the oil level.

13 Passenger

airbag
(BAG P)

Yes

Activate the passenger airbag.

OFF

Yes

Deactivate the passenger
airbag.

14 Exit from

Exit from the menu. Press the
arrow at the bottom to go to the
first menu.

ECHNOLOGY

BOAR

Parking sensors

AUDIBLE REAR PARKING SENSORS

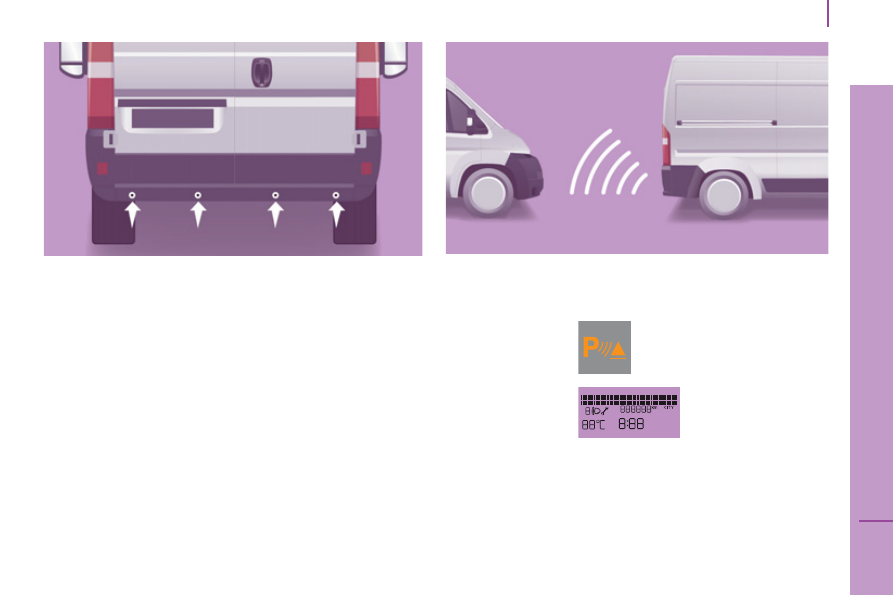

If fitted on your vehicle, the system consists
of four proximity sensors, installed in the
rear bumper.
They detect any obstacle: person, vehicle,
tree, fence, behind the vehicle during the
manoeuvre.
However, objects the size or thickness of
which are detected at the beginning of the
manoeuvre will no longer be detected at the
end of the manoeuvre: blind spots between
and below the sensors. Examples: stake,
roadworks cone or pavement post.

Engage reverse gear

The proximity information is indicated by an
audible signal of increasing frequency as the
vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
The system cannot, in any circumstances,
take the place of the vigilance and
responsibility of the driver.

Stop the assistance

Change to neutral.

Malfunction

If this warning lamp comes on in
the instrument panel, contact a
PEUGEOT dealer.

If your vehicle is fitted
with this screen, a
message appears.

Good practice

In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.

Reversing camera

REVERSING CAMERA

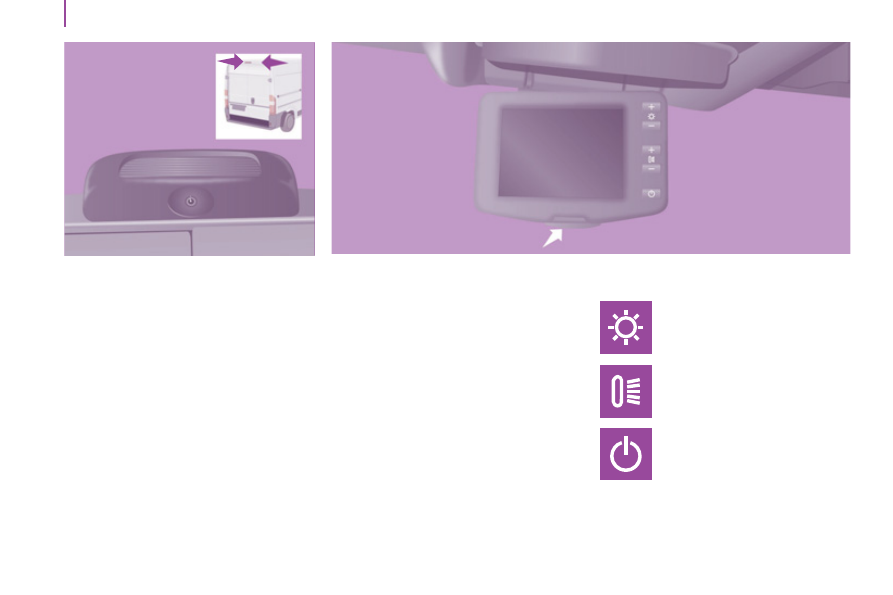

If your vehicle is fitted with this camera, it
is located at the rear of the van, next to the
third brake lamp.
It sends views to the screen installed
in the cab. This rear vision is an aid to
manoeuvring.

Screen

The camera sends the images to a 4 inch or
6.5 inch adjustable colour LCD which takes
the place of the interior rear view mirror.
Press the button and place the screen in the
required position.

Activation

With the key in the running position, unfold
the screen.
The camera comes into operation when
reverse gear is engaged and remains active
up to approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).
When a forward gear is engaged, the last
image remains displayed for approximately
5 seconds then switches off.
Fold the screen.

Buttons

Brightness adjustment.

Back-lighting adjustment.

ON/OFF enables you to see rear
views without engaging reverse
gear.

ECHNOLOGY

BOAR

Reversing camera

Initial settings

With reverse gear not engaged,
press and hold the ON/OFF
button for approximately
3 seconds. The button flashes

twice to confirm the reinitialisation.

Alarm display on the screen
In the ON position, information in text
format accompanies the manoeuvre and is
displayed on the screen:
-

each time reverse gear is engaged, a
message appears before the first view is
transmitted,

at 11 mph (18 km/h) in reverse gear,
the rear view disappears and the
screen switches to "Stand by". The view
appears again when the vehicle returns
to a speed below 9 mph (15 km/h).

Change of language
With reverse gear not engaged, press
the ON/OFF button and any other button
simultaneously.
Scroll through the languages by pressing
ON/OFF.
When the language has been selected, wait
approximately 3 seconds for it to be stored.

Good practice
When vehicle conditions are optimum
(position on the road, loading level) the
maximum area of visibility covered by the
camera has a field depth approximately 3 m
long and 5.5 m wide.
The area of visibility may vary depending on
the external weather conditions (brightness,
rain, snow, fog, ...), the load in the vehicle
and the position of the vehicle on the road.
Please store the screen in its housing when
no longer in use.
When cleaning the camera and the screen,
avoid using a detergent or a tool which may
scratch the glass.
Use a non-abrasive cloth or a small brush.
Following a collision, if the screen glass has
cracked and allows liquid crystal to flow out:
do not touch it.
If you have come into contact with it, quickly
wash the contaminated part of the body with
soapy water.
Contact a PEUGEOT dealer to have the
screen repaired.

Pneumatic suspension

PNEUMATIC SUSPENSION

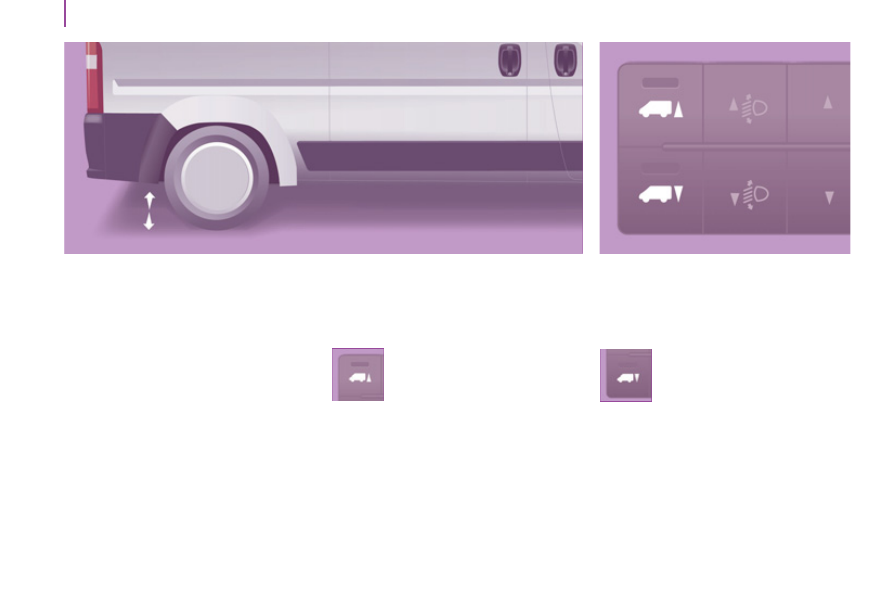

If your vehicle is fitted with pneumatic
suspension, you can adjust the height of
the rear of the vehicle to make loading and
unloading easier.

The control panel is located on the
dashboard.

There is a nominal level as well as 6 height
adjustment levels, raising (from +1 to +3) or
lowering (from -1 to -3). Each level reached
is indicated on the instrument panel screen.

Manual adjustment of the loading

height

Raise: upwards adjustment of the load

floor

Make a quick press on the control
to select the next level up. Each
press (LED on) raises the floor by
one level: +1 to +3.

A long press selects the highest level (+3).

Lower: downwards adjustment of the

load floor

Make a quick press on the control
to select the next level down.
Each press (LED on) lowers the
floor by one level: -1 to -3.

A long press selects the lowest level (-3).

ECHNOLOGY

BOAR

Pneumatic suspension

Deactivation
Make a long press on both controls
simultaneously to deactivate the system.
The LEDs remain on.

Return to the nominal floor height
Press the same number of times in reverse
as the level of the position displayed.

Reactivation
A second long press on both controls
simultaneously reactivates the system. The
LEDs go off.

Automatic correction of loading

floor height

Above 12 mph (20 km/h), the system
automatically returns the rear height to its
nominal value.

Warning lamp

Refer to the "Instruments and controls"
section of chapter 2.

Good practice

Driving with the suspension set too high or
too low risks damaging components under
the body.
The height may be adjusted automatically to
take account of changes of temperature or
loading.
You must avoid using this control in the
following circumstances:
-

when working underneath the vehicle,

when changing a wheel,

when the vehicle is being transported by
lorry, train, ferry, boat, ...

Above 3 mph (5 km/h), the system
reactivates automatically.

Tachograph

TACHOGRAPH

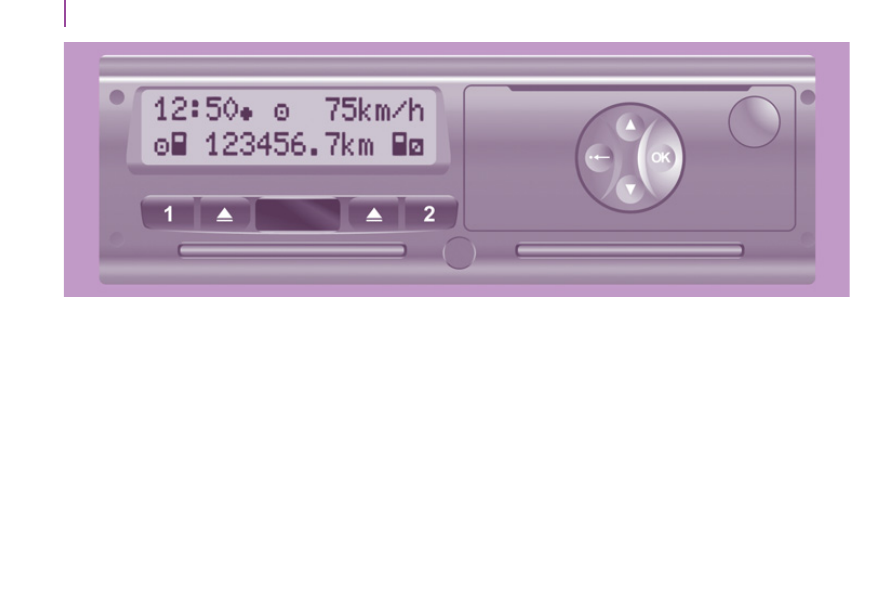

If your vehicle is fitted with a tachograph,
this permits storing of all of the data relating
to the vehicle in the unit and on a card
inserted in it.
Example: at the beginning of each journey
or change of team.

When the card is inserted, all of the data
can be:
-

displayed on the tachograph screen,

- printed,
-

transferred to external storage media via
an interface.

For further information, refer to the
documents supplied by the manufacturer of
the tachograph.
If your vehicle is fitted with a tachograph,
disconnection of the negative (-) terminal of
the battery (located under the floor on the
left-hand side, in the cab) is recommended if
the vehicle is not to be used for a period of
more than 5 days.

Audio equipment

ECHNOLOGY

BOAR

Volume adjustment.

Automatic presetting of stations

(autostore).

Selection of wavebands

FM1, FM2, FMA.

Selection of wavebands:

MW1, MW2.

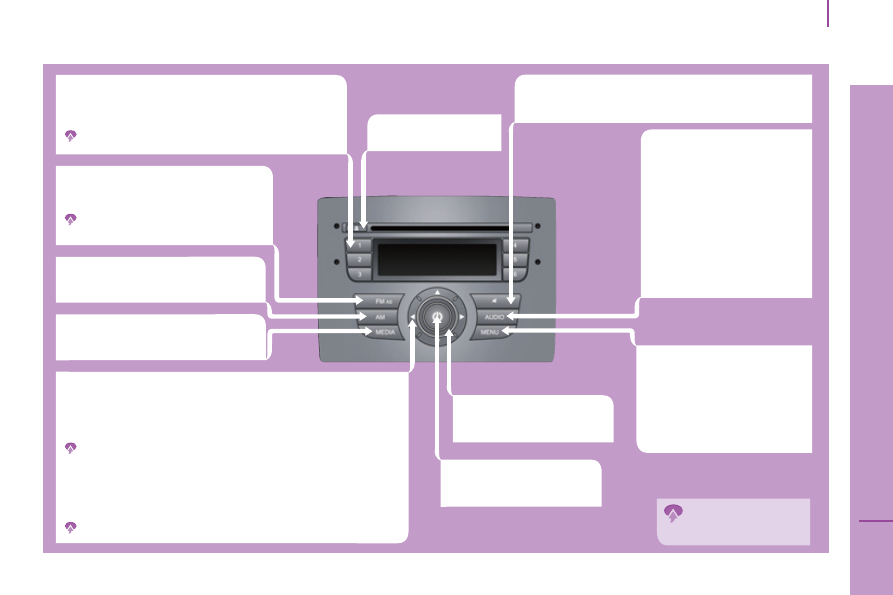

FIRST STEPS

On.
Off.

CD eject, if the audio

system is on.

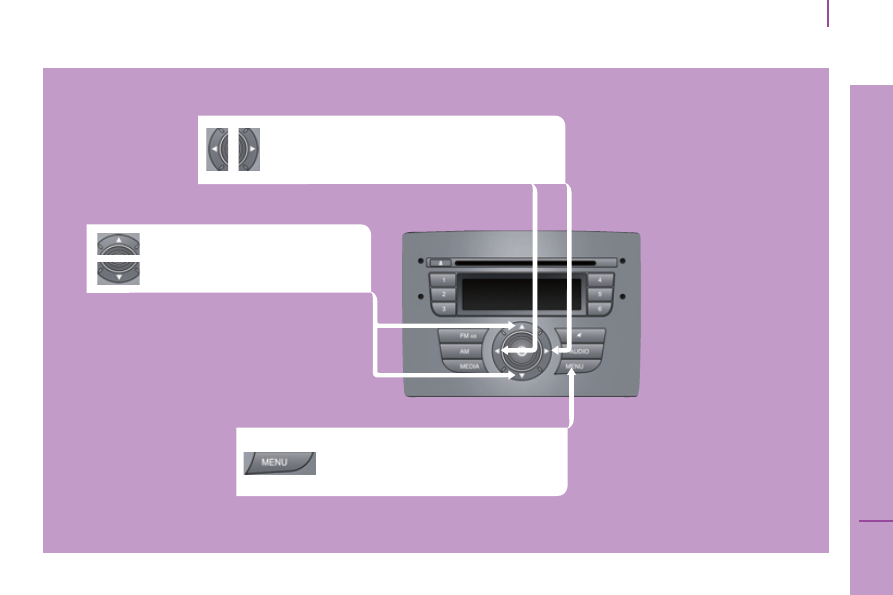

Open / close the menu.

and to select the

setting.

and to adjust the

setting.

See "MENU".

Setting of the audio options:

bass, treble, fader (front/

rear), balance (left/right),

fader (front/rear), loudness,

equaliser, personalised

equaliser.

and to select the

setting.

and to adjust the

setting.

Mute /

restore sound.

  CD / MP3 CD:
     and    : play previous / next track.
     and    : play previous / next folder.

Requires a long

press.

  Radio:
     and    : automatic station search down / up.
     and    : manual frequency search.

and , and : fast forward.

and : fast backwards / forwards in the track.

Presetting a station.

1/2/3/4/5/6: selection of the preset station.

Selection of the source:

CD / MP3 CD.

Audio equipment

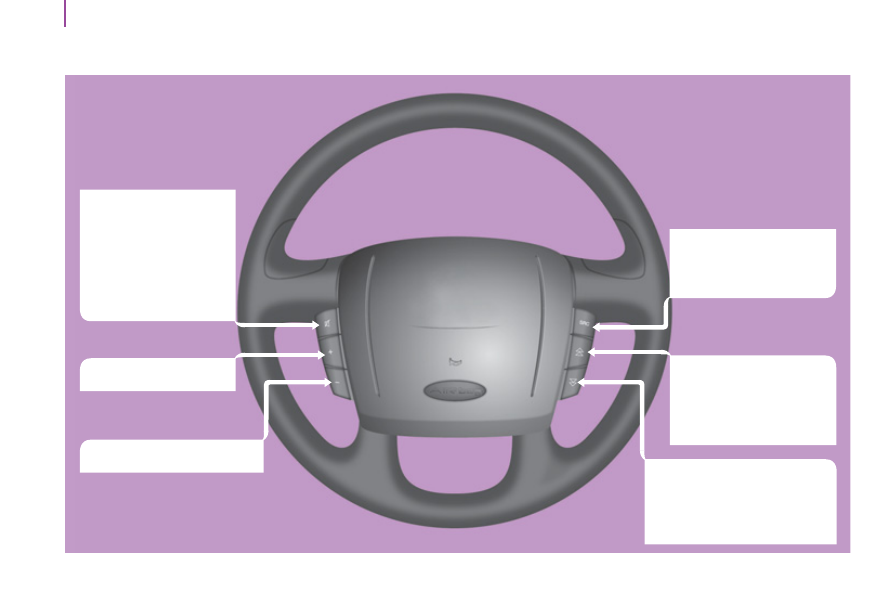

STEERING MOUNTED CONTROLS

Change of source:

CD/MP3 CD or radio

frequency.

Automatic search for a

higher radio frequency.

Select the next CD/MP3

CD track.

Automatic search for a lower

frequency.

Select the previous CD/MP3

CD track.

Mute / restore the

sound.

Pause CD/MP3 CD

track.

Volume increase.

Volume decrease.

Audio equipment

Scroll the

display

Select

Display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you

to…

AF
Switching
On

AF
Switching
Off

Set the sensitivity of automatic reception of the FM

radio frequencies (tuner):
-

On for a search of the transmitters which have

the strongest signal,

Off for a search of all of the surrounding

transmitters.

Traffic
Information
Off

Traffic
Information
On

Receive traffic information from FM1, FM2, FMA
radio stations.
TA is displayed if On is selected.

Regional
mode Off

Regional
mode On

Select the reception of local or regional
programmes (different from one region to another):
-

Off for no programmes,

On for local programmes.

MP3
display
(if there
is an MP3
CD in the
player)

Title

Author

Album

Folder
name

File
name

Select the type of MP3 display for the current track
(if ID3 TAG available for the CD):
-

Title for the title of the track,

Author for the name of the artist,

ALBUM for the title of the album,

Folder name for the name of the directory
(folder) for the current track,

File name for the name of the file.

Audio equipment

ECHNOLOGY

BOAR

Scroll the

display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you

to…

Speed
volume Off

Speed
volume
Low

Speed
volume
High

Select the automatic control of the volume in relation to
the vehicle speed:
- Off.
-

Low for on (low sensitivity),

High for on (high sensitivity),

Radio on
vol - Limit
on

Radio
on vol -
Limit off

Select the initial volume setting:
Limit on:
-

if the volume equal to or greater than the maximum
value, the volume will be at maximum,

if the volume is between the maximum and
minimum values, the volume will be that memorised
when switching off,

if the volume is equal to or lower than the minimum
value, the volume will be at minimum.

Limit off:
-

the volume is memorised when switching off.
Choose a volume setting between 1 and 40.

EXT Audio
off

EXT
Audio
Volume
23

Choose the volume setting for an external telephone:
-

Off for mute,

23 by default. Select a volume level between 1 and 40.

Audio equipment

Scroll the

display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you

to…

Radio off

00 MIN

20 MIN

Set the audio system play time after switching off the
engine:
-

00 MIN to switch off immediately,

20 MIN to play for 20 minutes.

Place the key in the "MAR" running position to switch
the audio system back on.

System
reset NO

YES

Restore factory settings.
-

NO to not restore factory settings,

YES to restore factory settings, "Resetting" is
displayed.

Peugeot Boxer Benne (2012 year). Instruction - part 6
