Peugeot Boxer Benne (2012 year). Instruction

EADY

SET OFF

Instruments and controls

WARNING LAMPS

Every time the engine is started: a series of warning lamps comes on, applying a self-checking test. They go off almost
immediately. When the engine is running: a warning lamp becomes a warning sign if it remains on continuously or flashes. This
initial warning may be accompanied by an audible signal and a message in the screen. "Do not ignore these warnings."

Warning lamp

indicates

Solution - action

Service

on temporarily.

minor faults.

Contact a PEUGEOT dealer.

continuously on,
accompanied by
a message on
the screen.

major faults.

Make a note of the warning message and contact a
PEUGEOT dealer.

Parking brake -
Brake fluid level

on.

that the parking brake is applied or
has not been released correctly.

Releasing the parking brake switches off the warning lamp.

on.

that the fluid level is too low.

Top up with a fluid recommended by PEUGEOT.

continuously on,
even though the
level is correct.

Stop immediately, park, switch off the ignition and
contact a PEUGEOT dealer.

Electronic brake
force distribution

on.

an electronic brake force
distribution fault.

Stop immediately. Consult a PEUGEOT dealer.

Low coolant
level

on.

that the fluid level is too low.

Park and switch off the ignition. Allow to cool. Refer to the
"Levels" section of chapter 7. Consult a PEUGEOT dealer.

Instruments and controls

Warning lamp

indicates

Solution - action

Coolant
temperature

on with the
needle in the red
zone.

an abnormal increase.

Park and switch off the ignition, allow the system to cool.
Visually check the level.

on H in the red
zone.

a coolant temperature.

Refer to the "Levels" section of chapter 7. Consult a
PEUGEOT dealer.

Engine oil
pressure

on while driving. that the pressure is too low.

Park and switch off the ignition, allow the lubrication
system to cool in order to check its level. Refer to the
"Levels" section of chapter 7.

continuously on,
even though the
level is correct.

a major fault.

Consult a PEUGEOT dealer.

flashing, for a
few seconds,
with a message
on the screen.

that a service will soon be due.

Refer to the list of checks in the servicing booklet then
carry out the PEUGEOT service.

Battery charge

on.

a malfunction of the charging
system.

Check the battery terminals… Refer to the "Battery"
section of chapter 8.

continuously on,
fixed or flashing
in spite of the
checks.

a circuit fault, an ignition or
injection malfunction.

Consult a PEUGEOT dealer.

Door or bonnet
open detection

on.

that a door or the bonnet is not
closed correctly.

Check that the cab doors, the rear and side doors and
the bonnet are closed.

READY

SET OFF

Instruments and controls

Warning lamp

indicates

Solution - action

Seat belt not
fastened

on then flashes.

that the driver has not fastened
his seat belt.

Pull the strap then insert the tongue in the buckle.

accompanied
by an audible
signal then
remains on.

that the vehicle is moving
with the driver's seat belt
unfastened.

Check that the seat belt is fastened correctly by pulling
the strap. Refer to "Seat belts" section of chapter 5.

Power steering

on, accompanied
by an audible
signal and a
message on the
screen.

its malfunction.

The vehicle retains conventional steering without
assistance. Have the system checked by a PEUGEOT
dealer.

Front/lateral
airbag

flashing or
continuously on.

a fault with an airbag.

Have the system checked by a PEUGEOT dealer. Refer
to the "Airbags" section of chapter 5.

Suspension

on.

a fault with the pneumatic
compensation.

Consult a PEUGEOT dealer.

ABS

on.

failure of the system.

The vehicle retains conventional braking without
assistance. However, you are advised to stop and
contact a PEUGEOT dealer.

Instruments and controls

Warning lamp

indicates

Solution - action

ASR/ESP

flashing.

that it is in operation.

The system optimises traction and allows improved
directional stability of the vehicle.

on, accompanied
by an audible
signal and a
message in the
screen.

its malfunction or failure of the

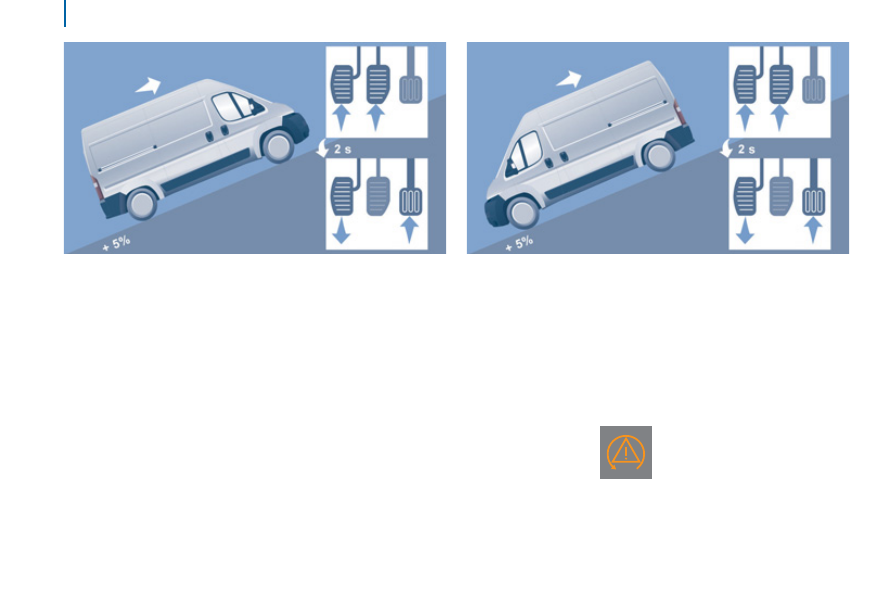

hill start assist.

Consult a PEUGEOT dealer.
Refer to the "Driving safety" section of chapter 5.

on.

a fault with the Intelligent
Traction Control.

Anti-pollution

on.

the regeneration of the particle
emissions filter.

It is recommended that you leave the engine running
until the warning lamp goes off so that regeneration can
be completed. Section 7, "Checks".

Emission control
system

on.

a fault with the system.

Have the system checked by a PEUGEOT dealer
without delay.

Deactivation
of the front
passenger airbag

on.

the intentional deactivation of
this airbag when a rear facing
child seat is installed.

Configure via the trip computer MODE menu. Refer to
the "Mode" section of chapter 4.

Electronic
immobiliser

on.

the ignition key inserted is not
recognised.
The vehicle cannot be started.

Use another key and have the faulty key checked by
a PEUGEOT dealer. Refer to the "Access" section of
chapter 2.

Front brake
pads

on.

brake pad wear.

Have the pads replaced by a PEUGEOT dealer.

READY

SET OFF

Instruments and controls

Warning lamp

indicates

Solution - action

Water in
Diesel filter

on,
accompanied by
a message on
the screen.

that there is water in the Diesel
fuel filter.

Have the filter bled by a PEUGEOT dealer.
Refer to the "Checks" section of chapter 7.

Low fuel level

on with the
gauge needle in
zone E.

that the fuel reserved is being
used.

Fill up with fuel without delay. The calculation of the
remaining fuel depends on the style of driving, the
profile of the road, the time elapsed and the distance
travelled since the warning lamp first came on.

flashing.

a malfunction.

Consult a PEUGEOT dealer.

Diesel
pre-heating

on.

that the weather conditions
impose pre-heating.

Wait for the warning lamp to switch off before operating
the starter.

Dipped beam
headlamps

on.

manual selection.

Turn the ring on the lighting stalk to the second position.

Main beam
headlamps

pulling of the stalk towards you. Pull the stalk to return to dipped beam headlamps.

Instruments and controls

Warning lamp

indicates

Solution - action

Direction
indicators

flashing with
buzzer.

a change of direction using the
lighting stalk, to the left of the
steering wheel.

To the Right: press the stalk upwards.
To the Left: press the stalk downwards.

Front foglamps

on.

that the button on the centre
console has been pressed.

Manual selection.
The foglamps only operate if the dipped beam
headlamps are on.

Rear foglamps

on.

that the button on the centre
console has been pressed.

Manual selection. The foglamps only operate if the
dipped beam headlamps are on. When visibility is
normal, please switch the foglamps off.

Cruise control

on.

that the cruise control has been
selected.

Manual selection.
Refer to the "Steering mounted controls" section of
chapter 3.

Faulty bulb

on accompanied
by a message
on the screen.

that one or more bulbs have
blown.

Have the bulb changed.
Refer to the "Changing a bulb" section of chapter 8 or
contact a PEUGEOT dealer.

Rear parking
sensors

on.

failure of the system.

The audible assistance is no longer active.
Have the system checked by a PEUGEOT dealer
without delay.

EADY

SET OFF

Instruments and controls

Screen

displays

indicates

Solution - action

Temperature /
Ice

the ice warning,
the temperature
flashing
accompanied by
a message on
the screen.

weather conditions which could
result in ice on the road.

Be particularly vigilant and do not brake sharply.
Refer to the "Driving Safely" section of chapter 5".

Date 11:00:00

a setting: Date.
Time.

a configuration via the MODE
menu.

Refer to the "Mode" section of chapter 4.

Headlamp beam
height

a headlamp
height setting.

A position from 0 to 3 depending
on the load carried

Adjust using the control on the dashboard.
Refer to the "Steering mounted controls" section of
chapter 3.

Service spanner

a service
spanner which
remains on.

that a service will soon be due.

Refer to the list of checks in the servicing booklet. Have
the service carried out by a PEUGEOT dealer.

Stop & Start

on.

engine going into STOP mode
after the the vehicle stops.

As soon as you want to move off, the warning lamp
goes off and the engine restarts automatically in START
mode.

flashes for a few
seconds, then
goes off.

STOP mode temporarily
unavailable or automatic
operation of START mode.

Special cases for STOP mode and START mode. See
the corresponding sections.

Instruments and controls

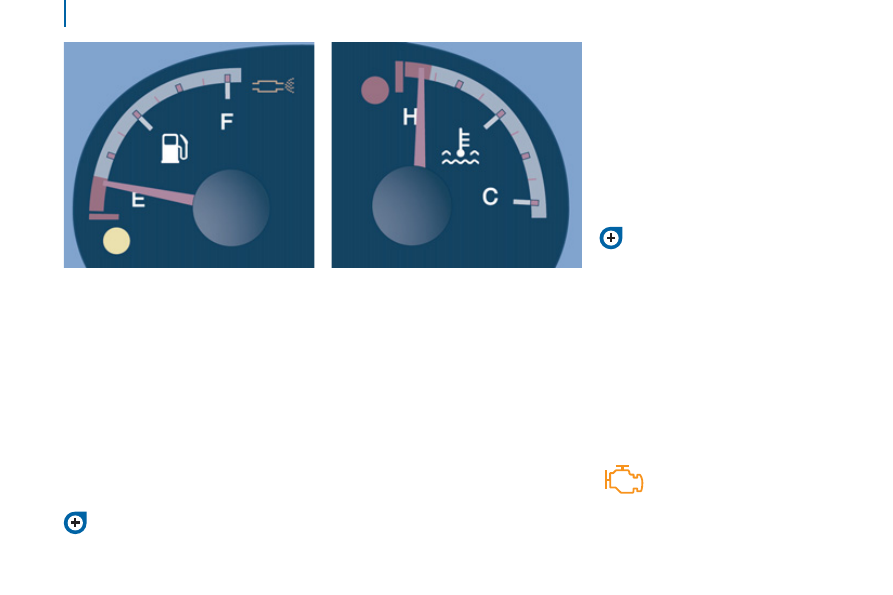

FUEL GAUGE

The fuel level is tested each time the key is
turned to the "running" position.
The gauge is positioned on:
-

F (Full): the fuel tank is full,
approximately 90 litres.

E (Empty): the reserve is now being
used, the warning lamp comes on
continuously.

The reserve when the warning first comes
on is approximately 11 litres.
Fuel tanks of different capacities (60 and
125 litres) are available as an option.

COOLANT TEMPERATURE

The needle is positioned between C
(Cold) and H (Hot): normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.

wait for the engine to cool down in
order to check the level and top it up if
necessary. Follow this advice:

the cooling system is pressurised. In
order to avoid any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.

When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone,
contact a PEUGEOT dealer.

Refer to the "Levels" section of
chapter 7.

Refer to the "Fuel" section of chapter 7.

  What you should do if the needle enters the
red zone, or if the warning lamp comes on:
   -

stop immediately, switch off the ignition.
The fan may continue to operate for
a certain time up to approximately
10 minutes.

EMISSION CONTROL

EOBD (European On Board Diagnosis) is
a diagnostics system which complies with,
among others, the standards concerning
authorised emissions of:
-

CO (carbon monoxide),

HC (unburnt hydrocarbons),

NOx (nitrogen oxides) or particles,
detected by oxygen sensors placed
upstream and downstream of the
catalytic converters.

Therefore, the driver is warned of any
malfunction of this emission control
system by the lighting of this specifi c
warning lamp on the instrument panel.

There is a risk of damage to the catalytic
converter. Have it checked by a PEUGEOT
dealer.

READY

SET OFF

Instruments and controls

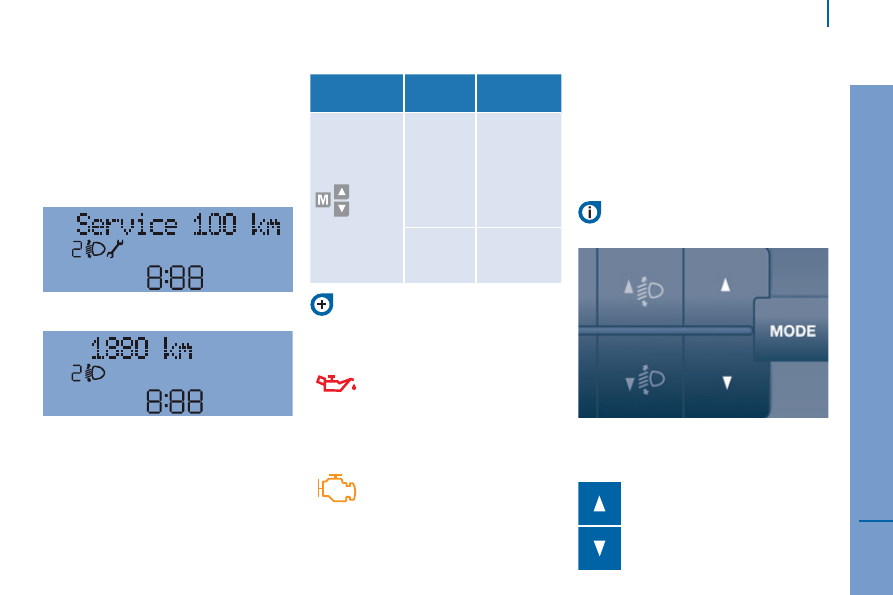

SERVICE INDICATOR

For a few seconds after the ignition is
switched on, the spanner symbolising the
service indicator comes on: the screen
informs you when the next service is due,
in accordance with the manufacturer's
servicing schedule indicated in the servicing
booklet. This information is determined in
relation to the distance travelled since the
previous service.

LIGHTING RHEOSTAT

The rheostat is active when the lighting
is on.

After a few seconds, the display returns to
its usual functions.

Use these controls to adjust the
brightness of the instrument panel.
There are 8 levels.

A long press returns you to the main menu.

Refer to "Mode" section of chapter 4.

Deterioration of the engine oil

Refer to the list of checks in the
servicing booklet which was given to

you on handover of the vehicle.

Reminder of servicing information

At any time, to access the service indicator,
press briefly on the MODE button.
Use the up/down arrows to see the
scheduling and engine oil wear information.
Pressing the MODE button again allows you
to return to the various display menus.

Menu...

Choose...

Allows

you to...

12
Service

Service
(miles/km
before oil
change)

Display the
distance
remaining
before the
next oil
change.

Oil

Display the
oil level.

Resetting to zero

The stopping of the permanent flashing of
the indicator is carried out by an repairer
equipped with a diagnostic tool.

This 2 nd warning lamp, coupled
with the 1 st , comes on in the
instrument panel when the oil
has not been changed and the
deterioration of the oil has reached
another threshold. To avoid the risk
of damage, have the oil changed
without waiting for this level.

The warning lamp flashing and,
if your vehicle has the function,
a message displayed at every
engine start: the system has
detected deterioration of the
engine oil. Have the oil changed
as soon as possible.

For 3.0 litre HDi engines, the engine speed
is restricted to 3 000 rpm, then 1 500 rpm
until the oil change is done. Have the engine
oil changed to avoid any risk of damage.

Gearbox and steering wheel

MANUAL

To change gear easily, always depress the
clutch pedal fully.
To prevent the mat from becoming caught
under the pedal:
-

ensure that the mat is positioned
correctly,

never fit one mat on top of another.

Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may wear
the internal components of the gearbox over
time.

GEARBOX AND STEERING WHEEL

STEERING WHEEL REACH

ADJUSTMENT

With the vehicle stationary, first adjust your
seat to the most suitable position.
Unlock the steering wheel adjustment by
pulling the lever towards you.
Adjust the reach of the steering wheel, then
lock by lowering the lever fully.
As a safety precaution, these operations
must not be carried out while driving.

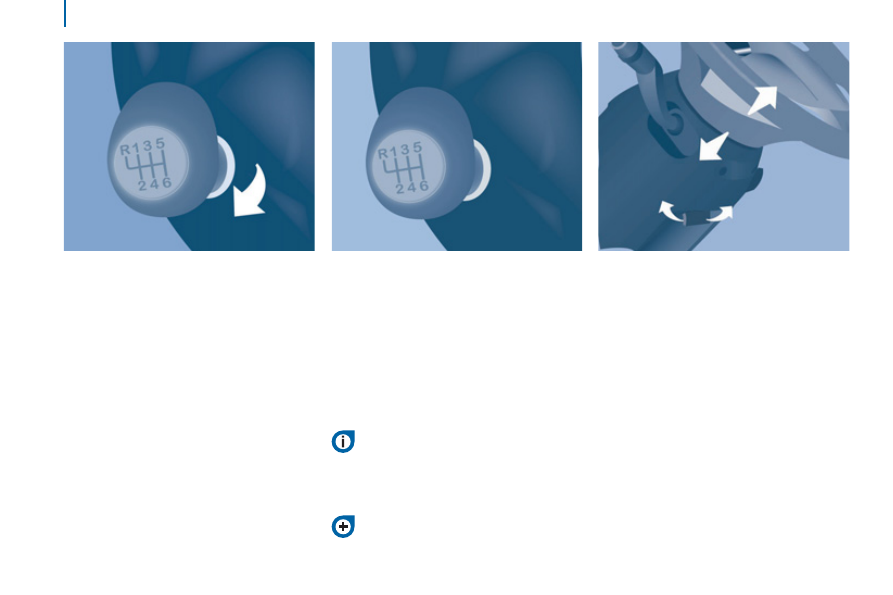

Reverse gear

Raise the collar under the gear knob to
engage reverse gear.

Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.
Your reversing manoeuvre is indicated by an
audible exterior warning.

If your vehicle is fitted with parking
sensors, the system comes into

operation when reverse gear is engaged and
an audible signal is heard.

Refer to the "Rear parking sensors"
section of chapter 4.

EADY

SET OFF

Starting and stopping

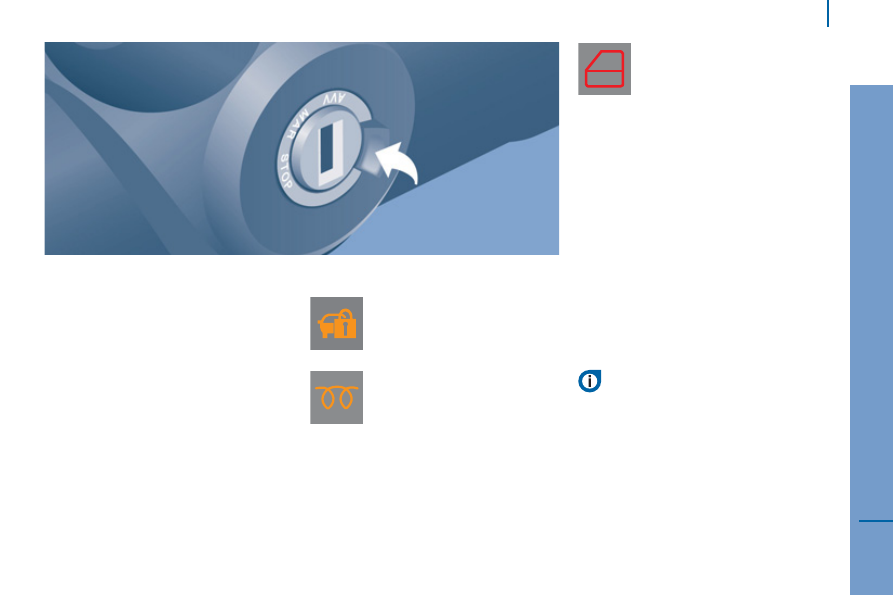

STARTING AND STOPPING

  MAR  position: running.
Certain accessories can be used.
  AVV  position: starter.
The starter is operated.
  STOP  position: steering lock.
The ignition is off.

Good practice when starting

Engine immobiliser warning lamp
If this comes on, use another key
and have the faulty key checked by a
PEUGEOT dealer.

Diesel pre-heating warning lamp
Turn the key to the MAR position.
In cold weather, wait for this
warning lamp to switch off then

operate the starter ( AVV position) until the
engine starts.
If the temperature is high enough, the
warning lamp comes on for less than one
second, you can start without waiting.

Door or bonnet open warning lamp
If this comes on, a door or the bonnet
is not closed correctly, check!

Good practice when stopping

Minimise engine and gearbox wear
When switching off the ignition, let the
engine to idle for a few seconds to allow the
turbocharger to slow down.
Do not press the accelerator when switching
off the ignition.
There is no need to engage a gear after
parking the vehicle.

In low temperatures
In mountainous and/or cold areas, it is

advisable to use a "winter" type fuel suited
to low or minus temperatures.

Starting and stopping

HILL START ASSIST

This function, linked with the ESP, makes hill
starts easier and is activated in the following
conditions:
-

the vehicle must be stationary, engine
running, foot on the brake,

the gradient of the road must be steeper
than 5%,

uphill, the gearbox must be in neutral or
in a gear other than reverse,

downhill, reverse gear must be engaged.

The HHC (Hill Holder Control) or Hill Start
Assist function is a driving comfort system. It
is not an automatic vehicle parking function
or an automatic parking brake.

Operation

With the brake pedal and clutch pedal
pressed, from the time you release the brake
pedal you have approximately 2 seconds
before the vehicle starts to roll back and
without using the parking brake within which
to move off.
During the moving off phase, the function
is deactivated automatically, gradually
releasing the braking pressure. During
this phase, the characteristic noise of
mechanical release of the brakes may be
heard, indicating the imminent movement of
the vehicle.

Operating fault

If a malfunction of the system
occurs, this warning lamp comes
on accompanied by an audible
signal and confirmed by a
message in the screen. Contact a

PEUGEOT dealer or a qualified workshop to
have the system checked.

Hill start assist is deactivated in the following
situations:
-

when the clutch pedal is released,

when the parking brake is applied,

when the engine is switched off,

when the engine stalls.

EADY

SET OFF

Starting and stopping

The Stop & Start system puts the engine
temporarily into standby - STOP mode -
during stops in the traffic (red lights, traffic
jams, or other...). The engine restarts
automatically - START mode - as soon as
you want to move off. The restart takes
place instantly, quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions and offers the comfort of
complete silence when stationary.

STOP & START

Operation

Going into engine STOP mode

- The

"S" warning lamp

comes on in the instrument
panel and the engine goes
into standby. With the vehicle
stationary, put the gear lever
into neutral, then release the
clutch pedal.

Automatic stopping of the engine is
only possible after the vehicle has

exceed a speed of about 6 mph (10 km/h),
to avoid repeated stopping of the engine
when driving slowly.

Never leave your vehicle with out first
turning off the ignition with the key.

Never refuel with the engine in STOP
mode; you must switch off the ignition

with the key.

Special cases: STOP mode unavailable
The STOP mode is not invoked when:
-

the system is initialising,

the driver's door is open,

the driver's seat belt is not fastened,

the air conditioning is running,

the heated rear screen is on,

the windscreen wiper is on fast wipe,

reverse gear is engaged, for a parking
manoeuvre,

some special conditions (battery
charge, engine temperature, particle
filter regeneration, braking assistance,
ambient temperature...) where the
engine is needed to assure control of a
system.

The "S" warning lamp flashes for
a few seconds, then goes off.

Starting and stopping

Going into engine START mode

- The

"S" warning lamp goes

off and the engine restarts.

If following an automatic restart in START
mode, the driver takes no action on the
the vehicle during the next 3 minutes, the
system stops the engine definitively. The
engine can then only be restarted using
the key.

Special cases: START invoked

automatically
The START mode is invoked automatically
when:
-

the vehicle's is free wheeling on a slope,

the windscreen wiper is on fast wipe,

the air conditioning is running,

the engine has been stopped for around
3 minutes with Stop & Start,

some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the
engine is needed to assure control of a
system.

In this case, a message appears
in the instrument panel screen,
accompanied by the "S" warning
lamp, which flashes for a few
seconds, then goes off.

Good practice

  With a manual gearbox in STOP mode, if a
gear is engaged without fully depressing the
clutch pedal, restarting may not take place.
A warning lamp or message is displayed
in the instrument panel asking you to fully
depress the clutch pedal to allow restarting.
With the engine stopped in STOP mode,
if the driver unfasten's their seat belt and
opens a front door, the engine can only be
restarted using the ignition key. There is an
audible signal, accompanied by flashing of
the "S"  warning lamp and, depending on
equipment, a message is displayed.

This operation is perfectly normal.

With the vehicle in gear, automatic engine
restarting is only allowed by fully depressing
the clutch pedal.

EADY

SET OFF

Starting and stopping

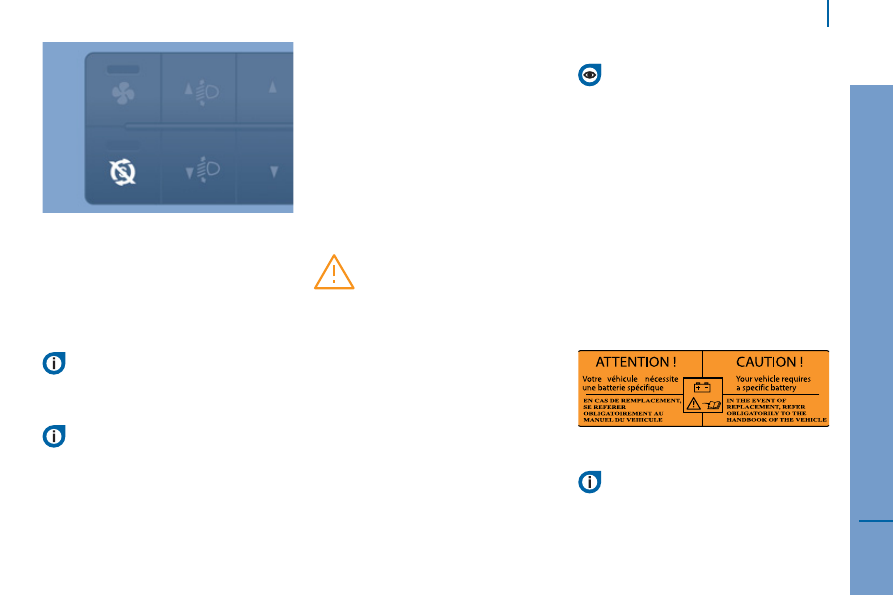

Deactivation

At any time, press the "S - OFF" switch to
deactivate the system.
Illumination of the switch warning lamp,
accompanied by a message in the
instrument panel screen, confirms the the
instruction has been registered.

If the system has been deactivated
in STOP mode, the engine restarts

immediately.

It is necessary to deactivate the
Stop & Start system if you want

to allow continuous operation of the air
conditioning.
The switch warning lamp stays on.

Reactivation

Press the "S - OFF" switch again.
The system is active again; the switch
warning lamp going off and a message
in the instrument panel screen confirm
reactivation.

Operating fault

In the event of a fault with
the system, the Stop & Start
system is deactivated and the
service warning lamp comes

on, accompanied by a message in the
instrument panel screen
Have it checked by a PEUGEOT dealer or a
qualified workshop.
In the event of an operating fault with STOP
mode, it is possible to restart the engine by
depressing the clutch pedal fully and putting
the gear lever into neutral.

Maintenance

Before working under the bonnet, you
must switch off the ignition with the

key to avoid any risk of injury resulting from
automatic operation of START mode.

This system requires a specific battery
with a special specification and technology
(reference numbers available from a
PEUGEOT dealer or a qualified workshop).
Fitting a battery not listed by
PEUGEOT introduces the risk of malfunction
of the system.
Refer to part 8 in the "Battery" section.

The Stop & Start system makes use
of advanced technology. Specialist

knowledge is needed for any work on the
system, which can only be assured by
PEUGEOT dealers.

Improved comfort

SOUNDPROOFING

Your vehicle benefits from a suspension
which contributes to improving general
comfort. These developments also
contribute to reducing noise disturbance.

IMPROVED COMFORT

TREATMENT OF THE BODYWORK

LEADING TO ACOUSTIC COMFORT

The underseal under the body, on the body
sills and on the wheel arches considerably
reduces noise and protects the body from
external attack.

Peugeot Boxer Benne (2012 year). Instruction - part 3
