WELCOME

The Boxer has been designed to satisfy all your requirements
in terms of practicality, comfort, safety and aesthetics.
In order to get the most out of your vehicle, we suggest that
you take a tour, with the "Handbook" in front of you. The
handbook presents the operation of the equipment available
on board in detail.
PEUGEOT thanks you for your confidence and wishes you
very happy motoring.

Please note the following point: the fitting of electrical equipment
or accessories which are not recommended by PEUGEOT
may result in a failure of your vehicle's electronic system.
Please note this specific warning. It is advisable to contact a
PEUGEOT dealer to be shown the recommended equipment and
accessories.

Your vehicle is fitted with only some of the equipment described
in this document, depending on its trim level, version and the
specification for the country in which it was sold.

For any work on your vehicle, use a qualified workshop that has
the technical information, competence and equipment required,
which a PEUGEOT dealer is able to provide.

Contents

3. EASE OF USE and

COMFORT 46-78

Lighting control stalk

Wipers

Cruise control

Demisting and

defrosting

Manual heating /

air conditioning

Digital air conditioning

Additional heating

systems 60

Rear Heating /
Air Conditioning

Programmable additional

heating

Front seats

Front bench seat

Rear seats

Crew cab

Front fi ttings

Rear fi ttings

Mirrors

Electric windows

Presentation

Exterior

Access

Interior

Sitting comfortably

Seeing clearly

Ventilation

Monitoring

Passenger safety

Driving safely

Eco-driving

1. FAMILIARISATION

4-20

4. TECHNOLOGY on

BOARD

79-113

Trip computer

Mode

Parking sensors

Reversing camera

Pneumatic suspension 86
Tachograph 88
Audio system 89

2. READY TO SET OFF

21-45

Remote control

Key

Confi dential card

Alarm

Front - rear doors

Load space

Instrument panels 30
Warning lamps

Fuel gauge 38
Temperature indicator

Service indicator

Lighting rheostat

Gearbox and steering

wheel 40

Starting and stopping

Hill start assist 42
Stop & Start

This symbol informs you of
equipment which is specific
to the combi model.

Sliding side windows. Rear
heating / air conditioning.
Rear seats / bench seats.

CONTENT

Contents

5. SAFETY

114-132

6. ACCESSORIES

133-136

7. CHECKS

137-144

8. QUICK HELP

145-162

9. TECHNICAL DATA

163-173

Parking brake

114

Hazard warning lamps 114
Horn 115
ABS

115

Emergency braking

assistance

115

Anti-slip regulation (ASR)

and electronic stability
programme (ESP)

116

Fixed speed limiter

118

Seat belts

119

Airbags 122
Deactivating the passenger

airbag

123

Child seats

125

ISOFIX seats

129

Towing a trailer

133

Roof bars

135

Other accessories

135

Opening the bonnet

137

Under the bonnet

138

Levels 139
Checks 141
Fuel 144

Battery 145
Changing a wheel

148

Puncture repair kit

151

Changing a bulb

153

Changing a fuse

157

Changing a wiper blade

161

Being towed

162

Environment 163
Dimensions 164
Engines 171
Weights 172
Identifi cation markings 173

10. VISUAL SEARCH

174-180

Exterior 174
Instruments

and controls

175

Interior 177
Technical data -

Maintenance

178

Child seats in the rear.

PRESENTATION

Within the chapters symbols draw your attention to specific
information:

This handbook is designed to familiarise you with the new vehicle
from the moment you get behind the wheel and to describe the
operating features.
Reading the handbook is made easy by a content divided into
10 colour-coded chapters. Its sections cover, by theme, all of the
functions of the vehicle in its most complete specification.
Chapter 9 gives all of the technical data relating to your vehicle.
At the end of the document, diagrams of the outside and inside of
the vehicle will assist you in locating equipment or functions and
page numbers refer you to the relevant section of the handbook.

directs you to the chapter and section which contains detailed
information concerning a function,

indicates important information relating to use of the equipment,

alerts you to the safety of individuals and equipment on board.

MILIARISA

TION

Familiarisation

Reversing camera
This system is activated automatically
when reverse gear is engaged, with a
visual return on a screen that takes the
place of the interior rear view mirror.

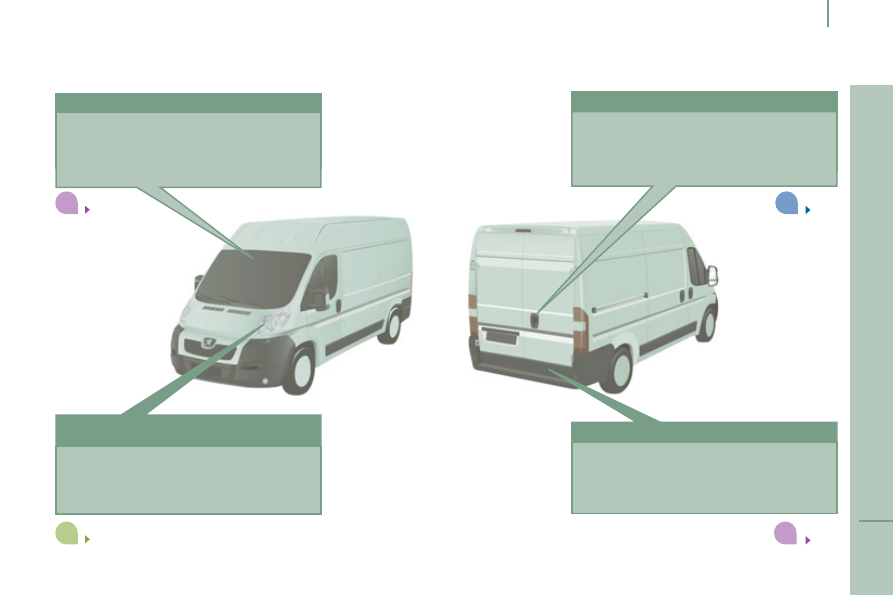

EXTERIOR

"Guide-me-home"

welcome lighting
After switching off the ignition, when you
leave the vehicle, the front lamps remain
on for a short period.

Opening the rear doors to 180°
Once the vehicle has been unlocked, the
rear doors can be opened to 180° to make
unloading/loading operations easier.

Rear parking sensors
This system warns you if an obstacle is
detected behind the vehicle when reverse
gear is engaged.

Familiarisation

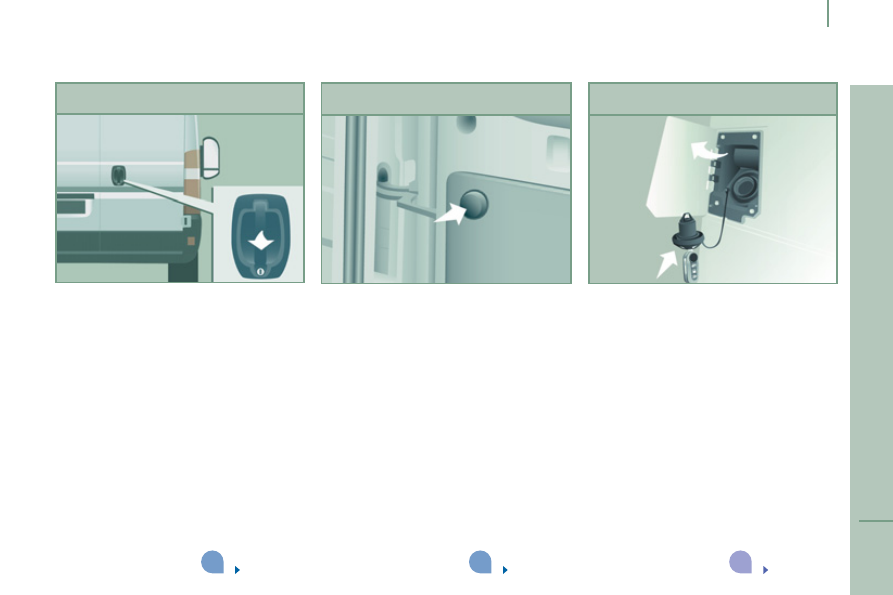

Sliding side door

Opening
Pull the handle towards you then towards
the rear.
Take care not to obstruct the guide space
on the floor so as to allow the door to slide
correctly.
Take care to open the door fully so as to
engage the latch at the bottom of the door.
Do not drive with the sliding side door open.

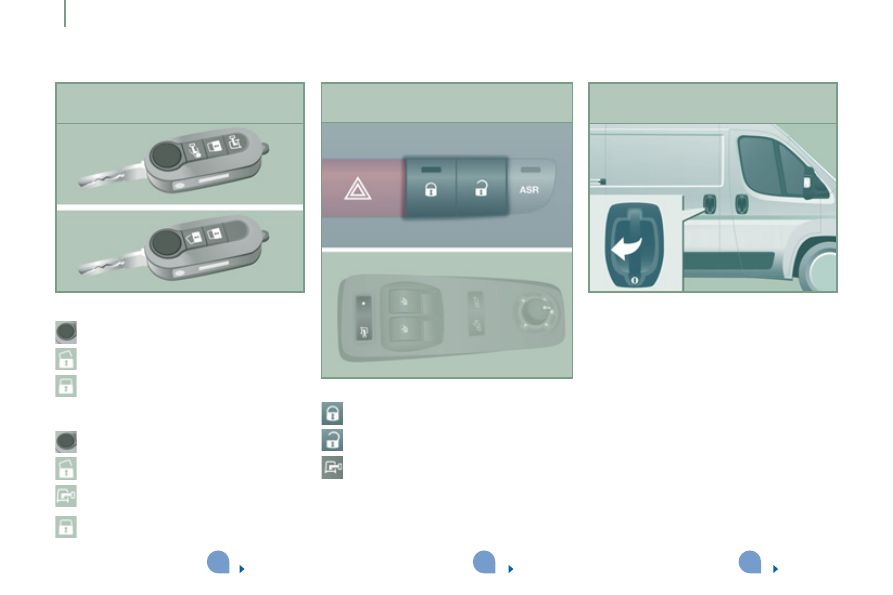

Remote control key

2 buttons

Manual central locking controls

ACCESS

3 buttons

Unfolding / Folding the key.

Unlocking.

Locking.

Unfolding / Folding the key.

Unlocking the cab.

Unlocking the load space.

Locking the vehicle.

Unlocking the vehicle.

Locking / Unlocking the load space.

MILIARISA

TION

Familiarisation

Opening
Pull the handle towards you.
Closing
To close, start with the left-hand door then
close the right-hand door.

Rear doors

Opening to 180°

Press the button, located on the door trim
panel, to widen the angle of opening of the
door.

Fuel tank

Opening the fuel filler flap.
Hooking the fuel filler cap.
Capacity of the fuel tank: approximately 90 litres.

ACCESS

144

Familiarisation

INTERIOR

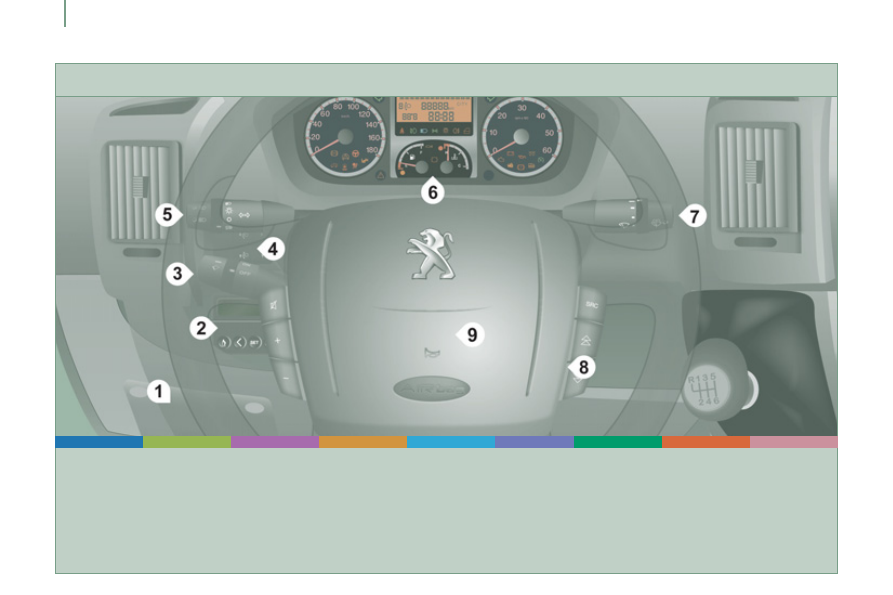

Instruments and controls

1. Fusebox.
2. Programmable

heating.

3. Cruise control switch.

4. MODE, configuration and

personalisation / lighting dimmer /
headlamp beam height adjustment.

5. Lighting and direction indicator control

stalk.

6. Instrument panel with screen.

7. Wiper / screenwash / trip computer

control stalk.

8. Ignition

switch.

9. Driver's airbag / horn.

MILIARISA

TION

Familiarisation

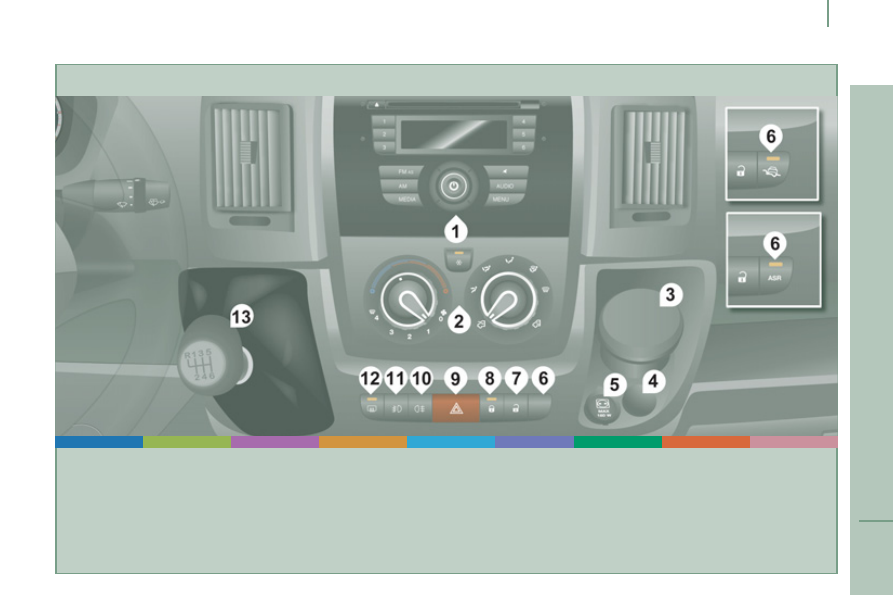

Centre console
1. Audio

equipment.

2. Manual air conditioning.
3. Portable

ashtray.

4. Cigarette

lighter.

5. 12 volt accessory socket (180 W max).
6. Dynamic stability control (ASR) /

Intelligent Traction Control.

7. Central unlocking of the doors and load

space.

  8.   Central locking / alarm indicator lamp.
  9.   Hazard warning lamps.
  10.  Rear foglamps.
  11.  Front foglamps.
  12.   Demisting / defrosting.
  13.  Gear lever.

Familiarisation

SITTING COMFORTABLY

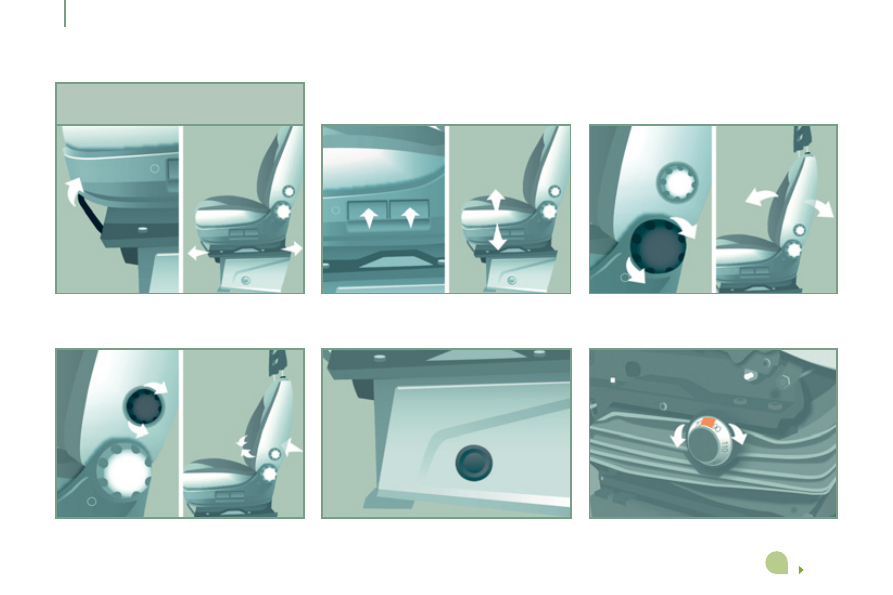

Driver's seat adjustments

Forwards-backwards

Seat height

Seat back angle

Lumbar support

Seat heating

Variable damping seat

MILIARISA

TION

Familiarisation

SITTING COMFORTABLY

   1.   Unlocking the adjustment mechanism.
  2.   Locking the adjustment mechanism.

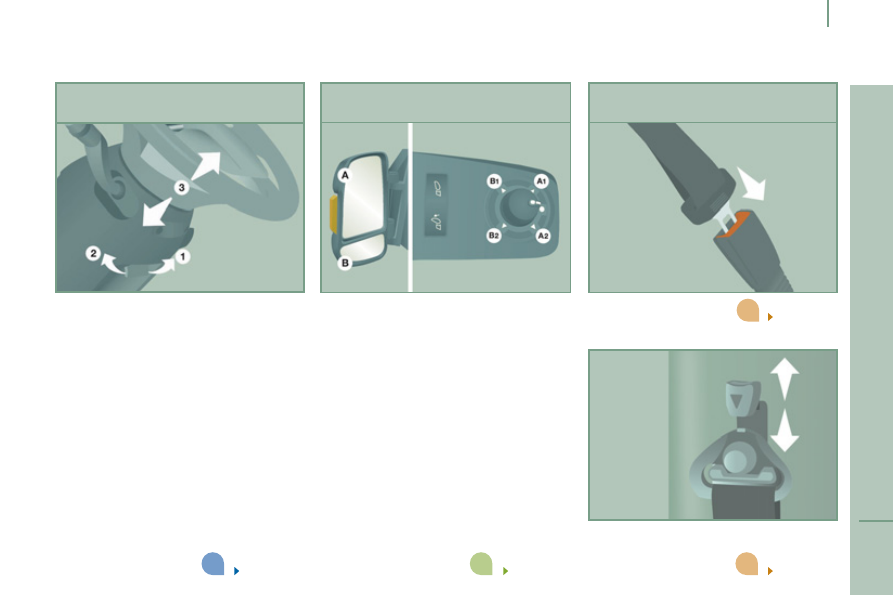

  3.   Adjustment of the reach of the steering wheel.

Manual adjustment of the reach of the

steering wheel

Door mirror adjustment

The mirrors are divided into two zones: A
and B.
  1. Driver's mirror:
  A1-  Adjustment of the upper mirror.
  B1-  Adjustment of the lower mirror.
  2. Passenger's mirror:
  A2-  Adjustment of the upper mirror.
  B2-  Adjustment of the lower mirror.

Front seat belt

Fastening.

Height adjustment.

119

Familiarisation

SEEING CLEARLY

Lighting

Parking lamps

Front and rear foglamps.

Automatic illumination of
headlamps.

Lamps off.

Dipped or main beam headlamps.

With the ignition off and the key in the STOP
position or removed:
Move the ring on the lighting stalk to
position O, then to dipped or main beam
headlamps.
The lamps will remain on while you are
parked.

SITTING COMFORTABLY

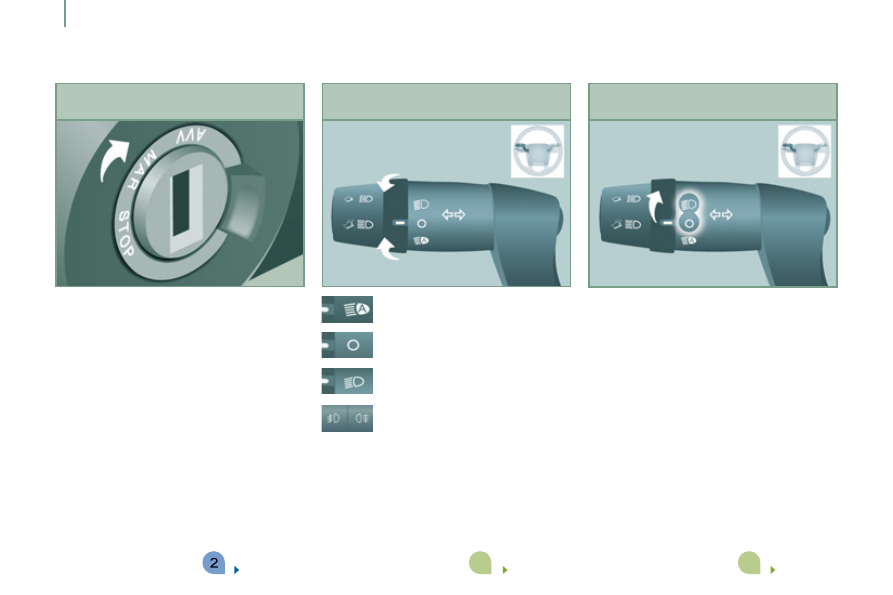

Ignition switch

- STOP

position.

- RUNNING

position.

- START

position.

FAMILIARISA

TION

Familiarisation

Windscreen wash

Pull the control stalk towards you, the
windscreen wash is accompanied by a timed
operation of the wipers.

SEEING CLEARLY

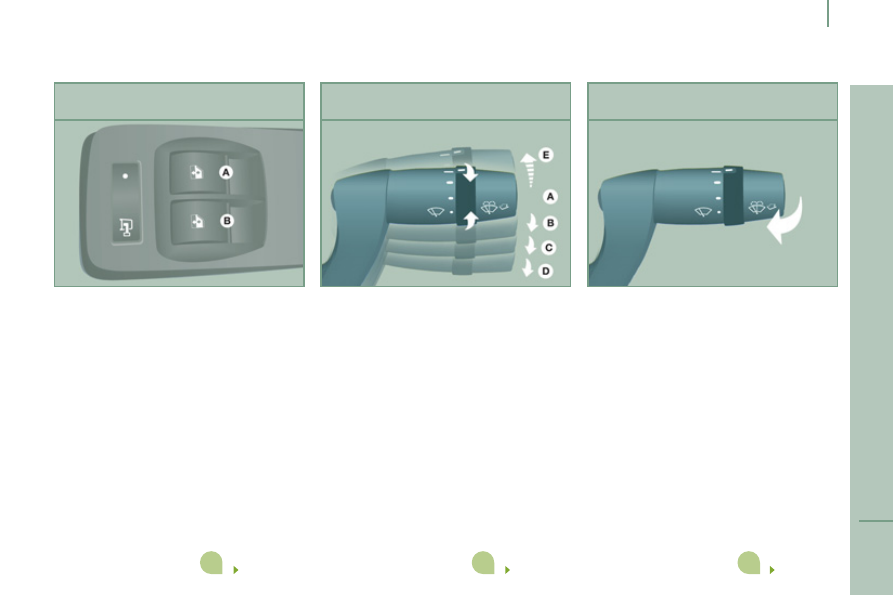

Electric window controls

A. Driver's electric window control.
B. Passenger's electric window control.
The electric window functions are
deactivated one minute after the ignition is
switched off.

Windscreen wipers

   A.  Park.
  B.   Intermittent (4 speeds).
  C.  Slow continuous.
  D.  Fast continuous.
  E.  Single wipe.

Familiarisation

VENTILATION

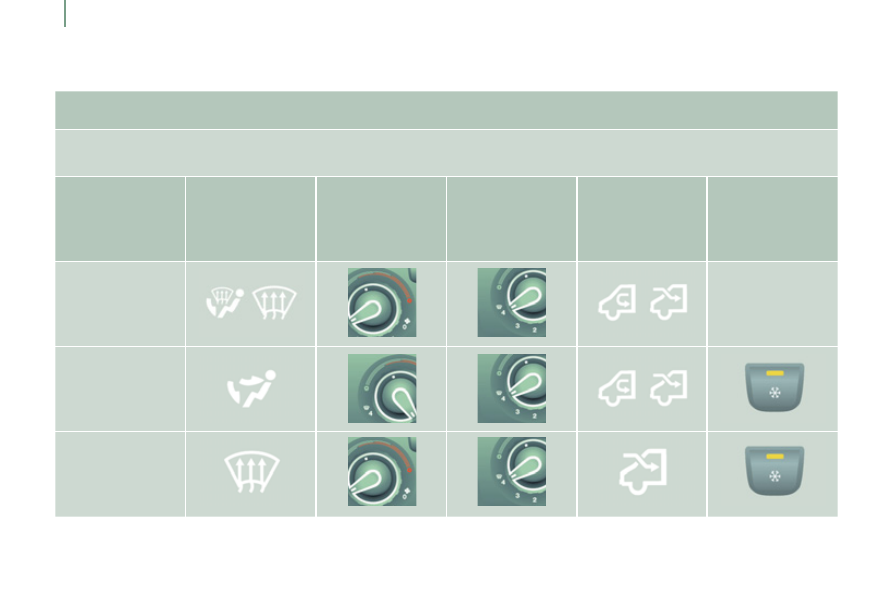

Digital air conditioning : use of the fully automatic operation by pressing the "AUTO" button is recommended.

Recommended interior settings

Manual Air Conditioning

If I require...

Air distribution

Temperature

Air flow

Air recirculation

Heating

Cooling

Demisting

Defrosting
