70

Storage

Push the tail lights into the retainer

(1). Insert pins into the designated

holes of the retainer and the tail lights

(2).

Note

Check that the tail lights of the

vehicle are working properly.

Fold in number plate holder

Lift the number plate holder and fold

it forwards.

Retracting the rear carrier system

Caution

Ensure that all foldable parts, e.g.

wheel recesses and mounting

brackets, are stowed correctly.

Otherwise the rear carrier system

may get damaged when trying to

retract it.

Push the release lever up and hold it.

Lift the system slightly and push it into

the bumper until it engages.
Release lever must return to original

position.

9

Warning

If the system cannot be correctly

engaged, seek the assistance of a

workshop.

Storage

71

Load compartment

Load compartment extension

Caution

First fold down the rear seat

cushion before folding the rear

seat backrest.
Disregard may lead to damage to

the rear seat.

1. Push head restraints down by

pressing the catch.

Note

To ensure sufficient room for rear

seat cushion operation, slide the

front seat forward and move the front

seat backrest upright.

2. Pull the loop under the seat

cushion and fold down the seat

cushion.

3. Pull the release lever on top of the

rear backrest.

4. Fold the backrest forward and

down.

5. Put the seat belts for the outboard

seats into the belt guides.

72

Storage

To return the backrest to the original

position, pull out the seat belt from the

belt guides and lift backrest up.
Push backrest firmly into place.

9 Warning

When folding up, ensure that

backrests are securely engaged in

position before driving. Failure to

do so may result in personal injury

or damage to the load or vehicle in

the event of hard braking or a

collision.

Ensure the seat belts are not pinched

by the latch.
The centre rear seat belt may lock

when you raise the backrest. If this

happens, allow the belt go back all the

way and repeat operation.
If the seat belt is still locked, fold down

the seat cushion and try again.
To return the rear seat cushion, put

the rear part of the seat cushion in its

original position ensuring that the

seat belt buckle straps are not twisted

or caught under the seat cushion,

then push the front part of the seat

cushion firmly down until it latches.

Caution

When returning rear seat backrest

to the upright position, place the

rear seat belt and buckles

between the rear seat backrest

and one cushion. Make sure the

rear seat belt and buckles do not

get pinched under the rear seat

cushion.
Ensure the seat belts are not

twisted or caught in the seat

backrest and are arranged in their

proper position.

Load compartment cover

Do not place any objects on the cover.

Removing

Unhook retaining straps from tailgate.
Lift cover at the rear and push it

upwards at the front.
Remove the cover.

Fitting

Engage cover in side guides and fold

downwards.
Attach retaining straps to tailgate.

Storage

73

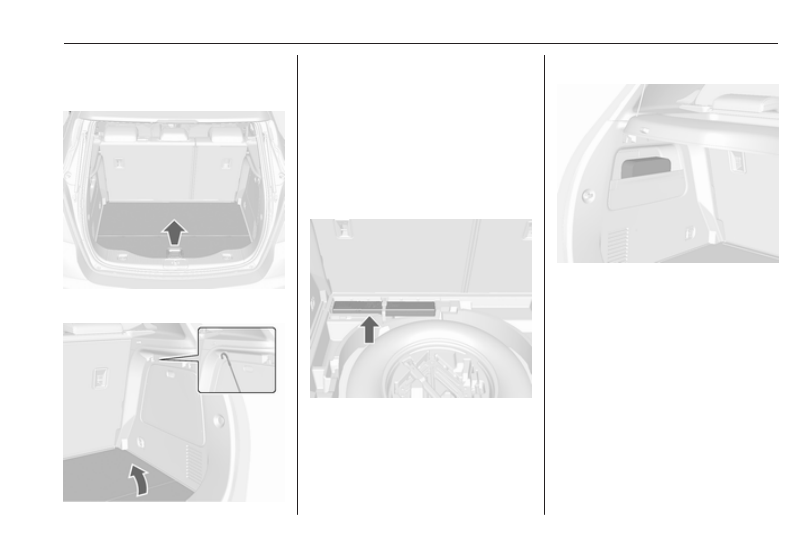

Rear floor storage cover

Rear floor cover

Grasp the handle and lift the cover.

Mount the cover to the hook at the

sidewall.

Lashing eyes

The lashing eyes are designed to

secure items against slippage, e.g.

using lashing straps or luggage net.

Warning triangle

Stow the warning triangle below the

floor cover in the load compartment.

Secure it with the strap.

First aid kit

Stow the first aid kit in the storage

compartment at the left sidewall of the

load compartment.

74

Storage

Roof rack system

Roof rack

The roof rack has side rails attached

to the roof.
For safety reasons and to avoid

damage to the roof, the vehicle

approved roof rack system is

recommended. For further

information contact your workshop.

Loading information

● Heavy objects in the load

compartment should be placed

against the seat backrests.

Ensure the backrests are

securely engaged. If objects can

be stacked, the heavier objects

should be placed at the bottom.

● Prevent sliding of loose objects

by securing them with straps

attached to the lashing eyes

3

 73.

● Do not allow the load to protrude

above the upper edge of the

backrests.

● Do not place any objects on the

load compartment cover or the

instrument panel, and do not

cover the sensor on top of the

instrument panel.

● The load must not obstruct the

operation of the pedals, parking

brake and gear selector, or

hinder the freedom of movement

of the driver. Do not place any

unsecured objects in the interior.

● Do not drive with an open load

compartment.

9 Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or vehicle.

● The payload is the difference

between the permitted gross

vehicle weight (Identification

plate 3 224) and the EC kerb

weight.
To calculate the payload, enter

the data for your vehicle in the

weights table at the front of this

manual.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (fuel

tank 90% full).
Optional equipment and

accessories increase the kerb

weight.

Storage

75

● Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a

detrimental effect on vehicle

handling due to the vehicle’s

higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining

straps. Adjust the tyre pressure

and vehicle speed according to

the load conditions. Check and

retighten the straps frequently.
Do not drive faster than

120 km/h.

● The permissible roof load is

75 kg. The roof load is the

combined weight of the roof rack

and the load.

76

Instruments and controls

Instruments and

controls

Controls ....................................... 77

Steering wheel adjustment ........ 77

Steering wheel controls ............. 77

Heated steering wheel ............... 77

Horn ........................................... 78

Windscreen wiper and washer . . 78

Rear window wiper and

washer ...................................... 80

Outside temperature .................. 80

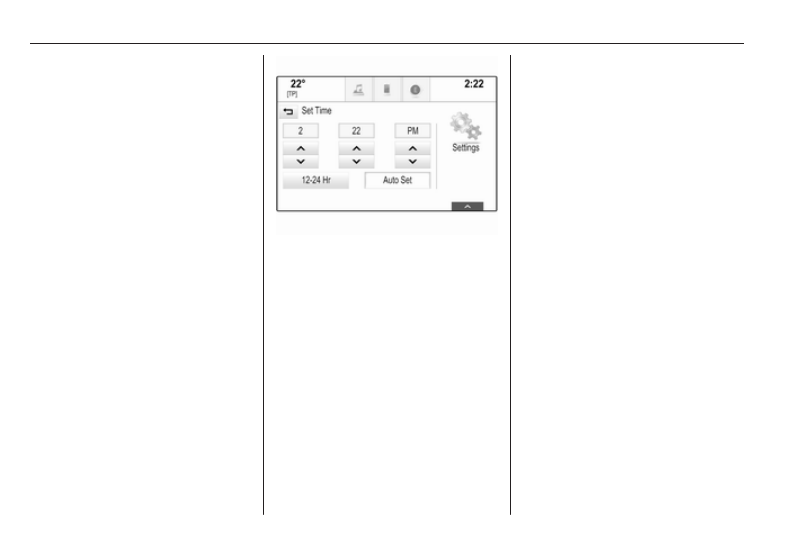

Clock ......................................... 81

Power outlets ............................. 83

Warning lights, gauges and indi‐

cators ........................................... 84

Speedometer ............................. 84

Odometer .................................. 84

Trip odometer ............................ 84

Tachometer ............................... 85

Fuel gauge ................................ 85

Fuel selector .............................. 86

Engine coolant temperature

gauge ....................................... 87

Service display .......................... 87

Control indicators ...................... 88

Turn lights .................................. 92

Seat belt reminder ..................... 92

Airbag and belt tensioners ......... 92

Airbag deactivation .................... 93

Charging system ....................... 93

Malfunction indicator light .......... 93

Brake and clutch system ........... 93

Antilock brake system (ABS) ..... 94

Gear shifting .............................. 94

Descent control system ............. 94

Lane departure warning ............ 94

Electronic Stability Control off ... 94

Electronic Stability Control and

Traction Control system ........... 94

Traction Control system off ....... 95

Preheating ................................. 95

AdBlue ....................................... 95

Tyre pressure monitoring

system ...................................... 95

Engine oil pressure .................... 95

Low fuel ..................................... 95

Immobiliser ................................ 96

Exterior light .............................. 96

High beam ................................. 96

High beam assist ....................... 96

Adaptive forward lighting ........... 96

Front fog lights ........................... 96

Rear fog light ............................. 96

Cruise control ............................ 96

Vehicle detected ahead ............. 97

Speed limiter ............................. 97

Traffic sign assistant .................. 97

Door open .................................. 97

Displays ....................................... 97

Driver Information Centre .......... 97

Info Display .............................. 102

Vehicle messages ...................... 104

Warning chimes ....................... 105

Battery voltage ........................ 105

Vehicle personalisation .............. 106
Telematics service ..................... 110

OnStar ..................................... 110

ERA GLONASS ....................... 114

Instruments and controls

77

Controls

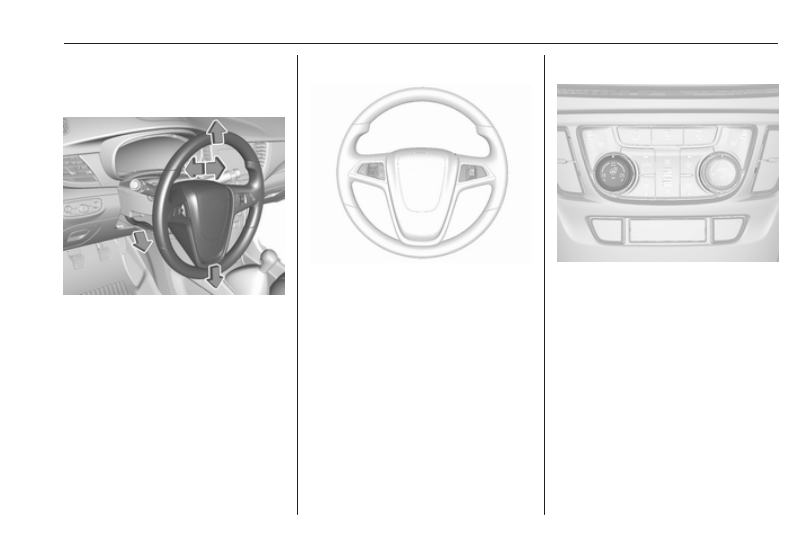

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and steering

wheel lock has been released.

Steering wheel controls

Cruise control and speed limiter are

operated via the controls on the left

side of the steering wheel.
Additionally, forward collision alert

can be set by using the controls on the

left side of the steering wheel.
Infotainment system can be operated

via the controls on the right side of the

steering wheel.
Driver assistance systems 3 155.
Further information is available in the

Infotainment manual.

Heated steering wheel

Activate heating by pressing *.

Activation is indicated by the LED in

the button.
Heating is operational when the

engine is running.

78

Instruments and controls

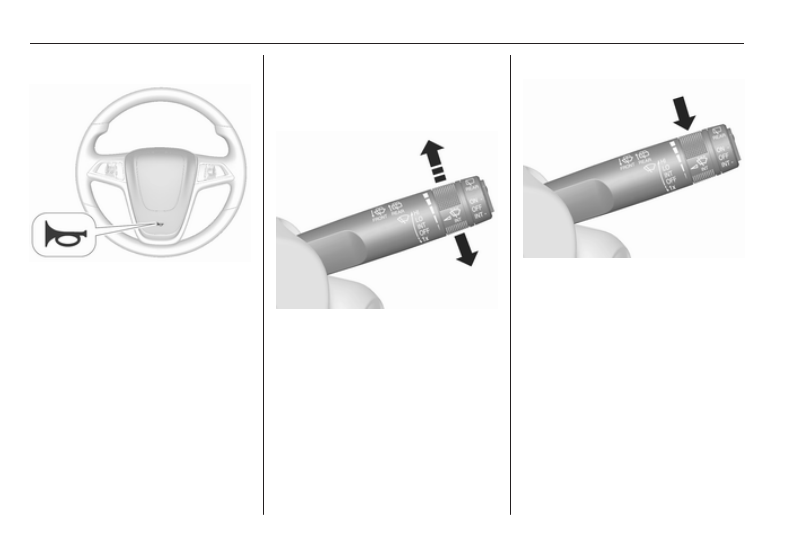

Horn

Press j.

Windscreen wiper and

washer

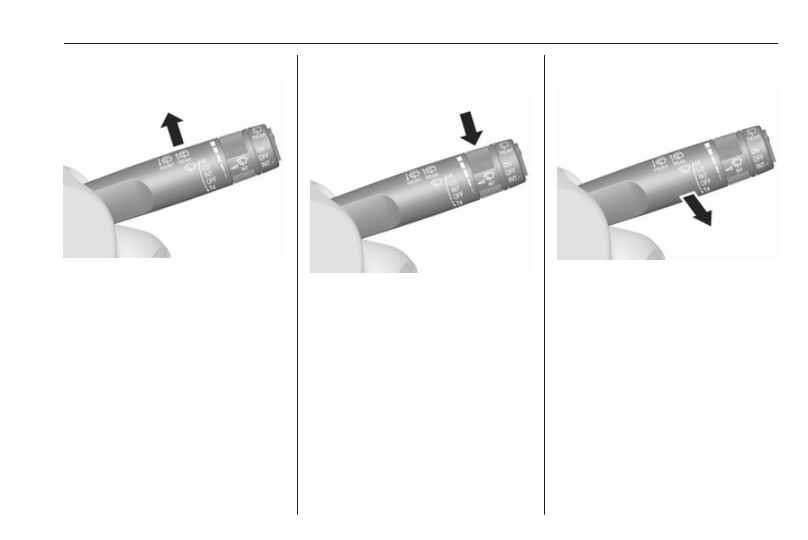

Windscreen wiper

HI

: fast

LO : slow

INT : interval wiping or automatic

wiping with rain sensor

OFF : off
For a single wipe when the

windscreen wiper is off, press the

lever down to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable wiper interval

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

desired wipe interval:
short interval

: turn adjuster

wheel upwards

long interval

: turn adjuster

wheel downwards

Instruments and controls

79

Automatic wiping with rain sensor

INT : automatic wiping with rain

sensor

The rain sensor detects the amount of

water on the windscreen and

automatically regulates the frequency

of the windscreen wiper.

Adjustable sensitivity of the rain

sensor

Turn the adjuster wheel to adjust the

sensitivity:
low sensitivity : turn adjuster

wheel downwards

high sensitivity : turn adjuster

wheel upwards

Keep the sensor free from dust, dirt

and ice.

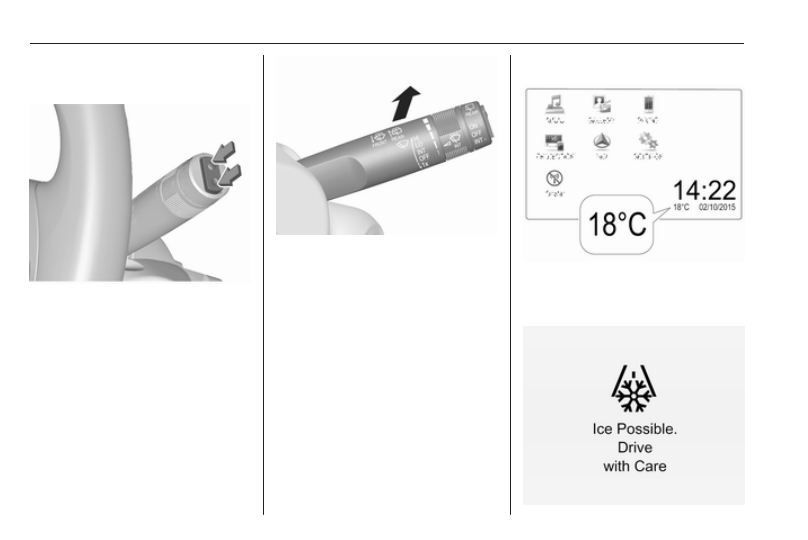

Windscreen washer

Pull lever. Washer fluid is sprayed

onto the windscreen and the wiper

wipes a few times.
Washer fluid 3 185

80

Instruments and controls

Rear window wiper and

washer

Press the rocker switch to activate the

rear window wiper:
upper switch

: continuous

operation

lower switch

: intermittent

operation

middle position : off

Push lever. Washer fluid is sprayed

onto the rear window and the wiper

wipes a few times.
Do not use if the rear window is

frozen.
Switch off in car washes.
The rear window wiper comes on

automatically when the windscreen

wiper is switched on and reverse gear

is engaged.
Activation or deactivation of this

function can be changed in the menu

Settings in the Info Display.
Washer fluid 3 185.
Vehicle personalisation 3 106.

Outside temperature

A drop in temperature is indicated

immediately and a rise in temperature

after a time delay.

Instruments and controls

81

If outside temperature drops to

0.5 °C, a warning message is

displayed in the Driver Information

Centre.

9 Warning

The road surface may already be

icy even though the display

indicates a few degrees above

0 °C.

Clock

Date and time are shown in the

Info Display.
Info Display 3 102.

Graphic Info Display

Press MENU to open the respective

audio menu.

Select Time and Date.

Set Time

Select Set Time to enter the

respective submenu.
Select Auto Set at the bottom of the

screen. Activate either On - RDS or

Off (Manual).
If Off (Manual) is selected, adjust

hours and minutes.
Repeatedly select 12-24 HR at the

bottom of the screen to choose a time

mode.
If the 12-hour mode is selected, a

third column for AM and PM selection

is displayed. Select the desired

option.

Set Date

Select Set Date to enter the

respective submenu.
Select Auto Set at the bottom of the

screen. Activate either On - RDS or

Off (Manual).
If Off (Manual) is selected, adjust the

date settings.

7'' Colour Info Display

Press ; and then select Settings.

Select Time and Date to display the

respective submenu.

Set Time Format

To select the desired time format,

touch the screen buttons 12 h or 24 h.

Set Date Format

To select the desired date format,

select Set Date Format and choose

between the available options in the

submenu.

Auto Set

To choose whether time and date are

to be set automatically or manually,

select Auto Set.

82

Instruments and controls

For time and date to be set

automatically, select On - RDS.
For time and date to be set manually,

select Off - Manual. If Auto Set is set

to Off - Manual, the submenu items

Set Time and Set Date become

available.

Set time and date

To adjust the time and date settings,

select Set Time or Set Date.
Touch + or - to adjust the settings.

8'' Colour Info Display

Press ; and then select the

Settings icon.
Select Time and Date.

Set time

Select Set Time to enter the

respective submenu.

Select Auto Set at the bottom of the

screen. Activate either On - RDS or

Off - Manual.
If Off - Manual is selected, adjust

hours and minutes by touching n or

o

.

Touch 12-24 Hr on the right side of the

screen to select a time mode.
If 12-hour mode is selected, a third

column for AM and PM setting is

displayed. Select the desired option.

Set date

Select Set Date to enter the

respective submenu.

Note

If date information is automatically

provided, this menu item is not

available.

Select Auto Set at the bottom of the

screen. Activate either On - RDS or

Off - Manual.
If Off - Manual is selected, adjust the

date by touching n or o.

Clock display

Select Clock Display to enter the

respective submenu.
To turn off the digital clock display in

the menus, select Off.

Instruments and controls

83

Power outlets

A 12 V power outlet is located in the

front console behind the cover. To

open, push the button.
A further 12 V power outlet may be

located in the rear centre console.
Do not exceed the maximum power

consumption of 120 W.
Depending on equipment, a 230 V

power outlet is located in the rear

centre console.

Do not exceed the maximum power

consumption of 150 W.
With ignition off the power outlet is

deactivated.
Additionally the power outlet is

deactivated in the event of low battery

voltage.
Electrical accessories that are

connected must comply with the

electromagnetic compatibility

requirements laid down in

DIN VDE 40 839.

Caution

Do not connect any current

delivering accessories, e.g.

electrical charging devices or

batteries.
Do not damage the outlets by

using unsuitable plugs.

84

Instruments and controls

Warning lights, gauges

and indicators

Speedometer

Indicates vehicle speed.

Odometer

The total recorded distance is

displayed in km.

Trip odometer

The recorded distance since the last

reset is displayed on the trip computer

page.
Trip odometer counts up to

9,999 km and then restarts at 0.
Two trip odometer pages are

selectable for different trips.

Midlevel instrument cluster

Select ; by pressing Menu on the

turn signal lever. Turn adjuster wheel

and select ;1 or ;2. Each trip

odometer page can be reset

separately by pressing SET/CLR on

the turn signal lever for a few seconds

on the respective menu.

Instruments and controls

85

Uplevel instrument cluster

Select Info page Q by pressing Menu.

Choose page Trip A or Trip B by

turning adjuster wheel on the turn

signal lever.
Each trip odometer page can be reset

separately by pressing SET/CLR on

the turn signal lever for a few seconds

on the respective menu.
Driver Information Centre 3 97.

Tachometer

Displays the engine speed.
Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning

zone, the maximum permitted

engine speed is exceeded. Engine

at risk.

Fuel gauge

Displays the level in the fuel or gas

tank depending on the operation

mode.
The arrow indicates the vehicle side

where the fuel filler flap is located.
Control indicator Y illuminates if the

level in the tank is low. Refuel

immediately if it flashes.
During liquid gas operation, the

system automatically switches over to

petrol operation when gas tanks are

empty 3 86.
Never run fuel tank dry.
