86

Instruments and controls

Because of the fuel remaining in the

tank, the top-up quantity may be less

than the specified tank capacity.

Fuel selector

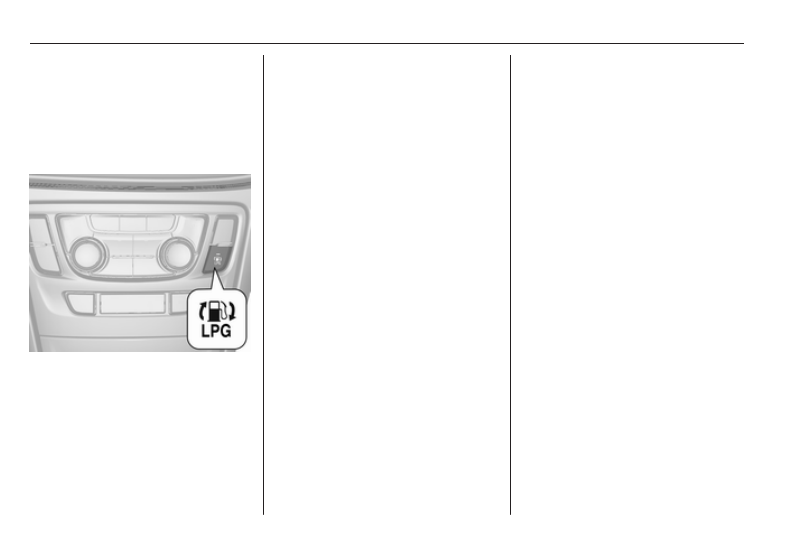

Liquid gas operation, LPG

Pressing LPG switches between

petrol and liquid gas operation as

soon as the required parameters

(coolant temperature, gas

temperature and minimum engine

speed) have been reached. The

requirements are usually fulfilled after

approximately 60 seconds

(depending on exterior temperature)

and the first firm press on the

accelerator. The LED status shows

the current operating mode when

egnine is running.
LED off : petrol operation

LED

flashes

: checking conditions for

fuel transition to liquid

gas operation.

Illuminates if conditions

are fulfilled.

LED illu‐

minates

: liquid gas operation

LED

flashes

five

times

and

extin‐

guishes

: liquid gas tank is empty

or failure in liquid gas

system. A message is

displayed in the Driver

Information Centre. The

vehicle is in petrol

operation.

The selected fuel mode is stored and

reactivated at the next ignition cycle if

conditions allow.
As soon as the liquid gas tank is

empty, a warning message is

displayed in the Driver Information

Centre and the LED in the button

flashes rapidly. Petrol operation is

automatically engaged.

When switching automatically

between petrol or gas operation, a

brief delay of engine tractive power

may be noticeable.
When petrol fuel tank is empty, the

engine will not start.
Every six months, run the petrol tank

down until control indicator Y

illuminates, then refuel. This helps

maintain fuel quality and system

function for petrol operation.
Fill the tank completely at regular

intervals to prevent corrosion in the

tank.

Faults and remedies

If gas mode is not possible, check the

following:

● Is there enough liquid gas

present?

● Is there enough petrol present for

starting?

Due to extreme temperatures in

combination with the gas

composition, it may take slightly

longer before the system switches

from petrol to gas mode.

Instruments and controls

87

In extreme situations, the system may

also switch back to petrol mode if the

minimum requirements are not

fulfilled. If conditions allow, it may be

possible to manually switch back to

liquid gas operation.
Seek the assistance of a workshop in

the event of all other faults.

Caution

Repairs and adjustments may only

be made by trained specialists in

order to maintain the safety and

warranty on the LPG system.

Liquid gas is given a particular odour

(odorised) so that any leaks can be

detected easily.

9 Warning

If you smell gas in the vehicle or in

the immediate vicinity, switch to

petrol mode immediately. No

smoking. No naked flames or

ignition sources.

If the gas odour persists, do not start

the engine. Have the cause of the

fault remedied by a workshop.
When using underground car parks,

follow the instructions of the operator

and local laws.

Note

In the event of an accident, switch off

the ignition.

Fuel for liquid gas operation 3 171.

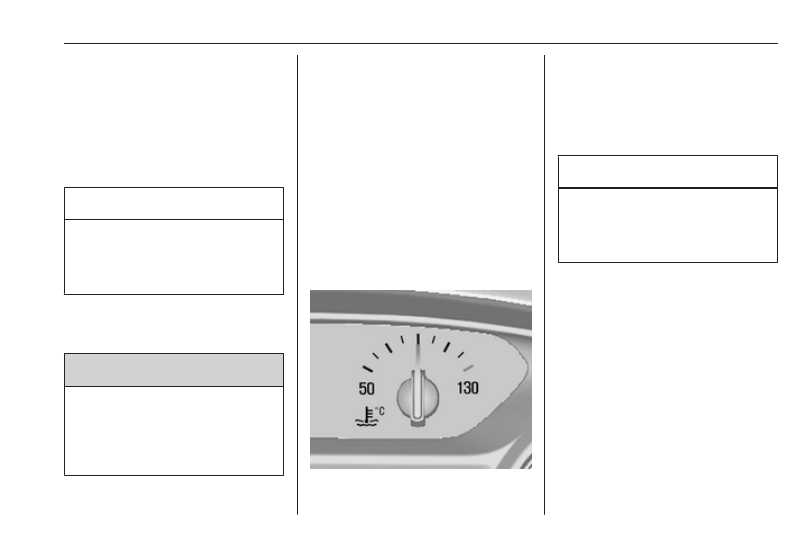

Engine coolant temperature

gauge

Displays the coolant temperature.

50

: engine operating

temperature not yet

reached

central

area

: normal operating

temperature

130

: temperature too high

Caution

If engine coolant temperature is

too high, stop vehicle, switch off

engine. Danger to engine. Check

coolant level.

Service display

The engine oil life system informs

when to change the engine oil and

filter. Based on driving conditions, the

interval at which an engine oil and

filter change will be indicated can vary

considerably.
When the system has calculated that

engine oil life has diminished, a

warning message appears in the

Driver Information Centre. Have

engine oil and filter changed by a

workshop within one week or

500 km (whichever occurs first).

88

Instruments and controls

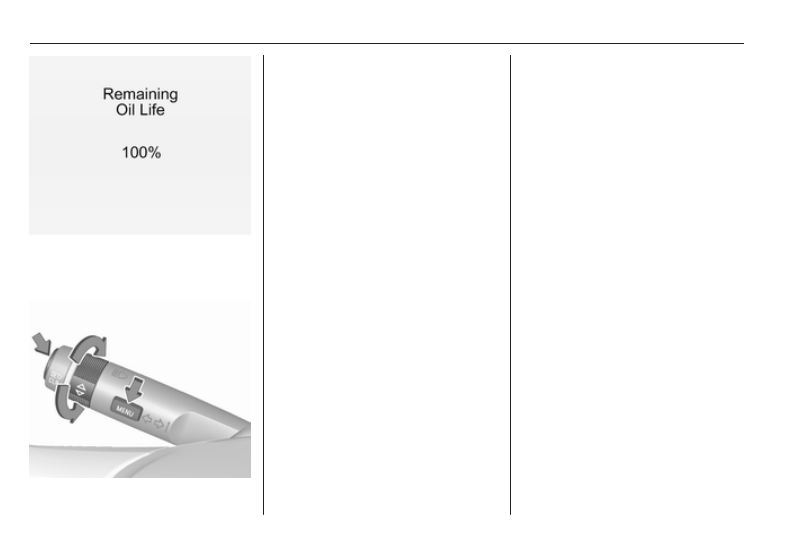

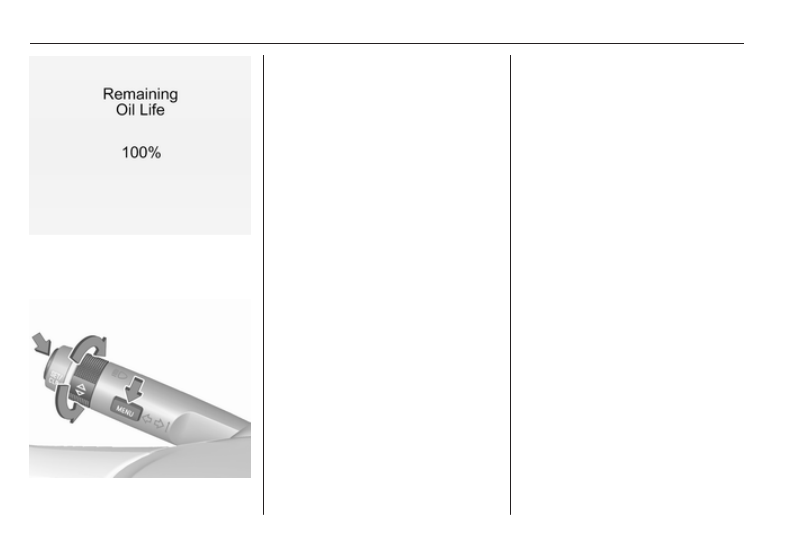

The remaining oil life duration menu

is displayed in the Driver Information

Centre 3 97.

On Midlevel display select the

Option ? Menu by pressing

MENU on the turn signal lever. Turn

the adjuster wheel to select the

Remaining Oil Life page.
On Uplevel display select the Info Q

Menu by pressing MENU on the turn

signal lever. Turn the adjuster wheel

to select Oil Life page.
Remaining oil life duration is indicated

in percentage.

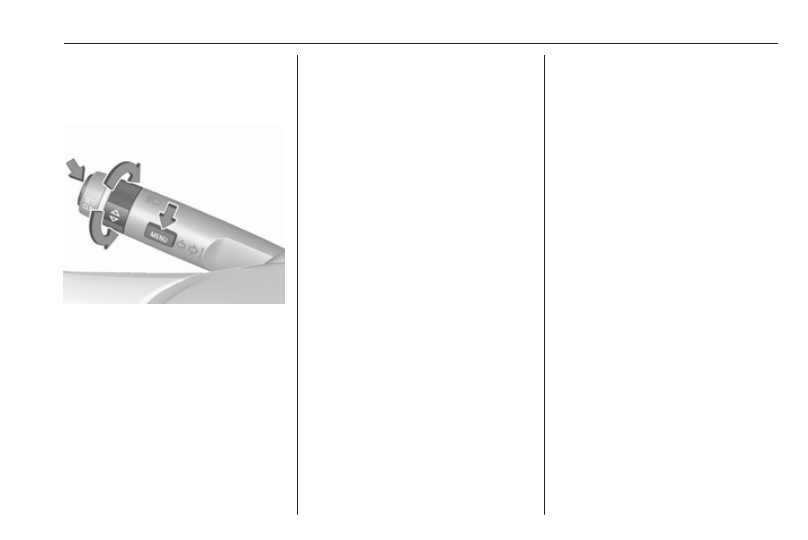

Reset

Press SET/CLR on turn signal lever

for several seconds to reset. The

engine oil life page must be active.

The ignition must be switched on but

engine not running.
The system must be reset every time

the engine oil is changed to allow

proper functionality. Seek the

assistance of a workshop.

Next service

A message appears in the Driver

Information Centre, when

maintenance of the vehicle is

required. Have maintenance work

carried out by a workshop within one

week or 500 km, whichever occurs

first.
Service information 3 221.

Control indicators

The control indicators described are

not present in all vehicles. The

description applies to all instrument

versions. Depending on the

equipment, the position of the control

indicators may vary. When the

ignition is switched on, most control

indicators will illuminate briefly as a

functionality test.
The control indicator colours mean:
red

: danger, important reminder

yellow : warning, information, fault

green : confirmation of activation

blue

: confirmation of activation

white : confirmation of activation

Control indicators in the

instrument cluster

Depending on the version, two

instrument clusters are available:

Instruments and controls

89

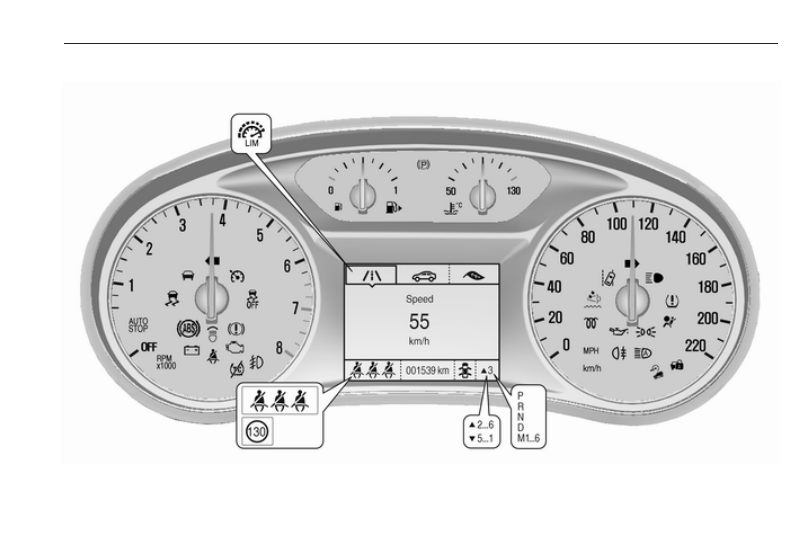

Midlevel instrument cluster

90

Instruments and controls

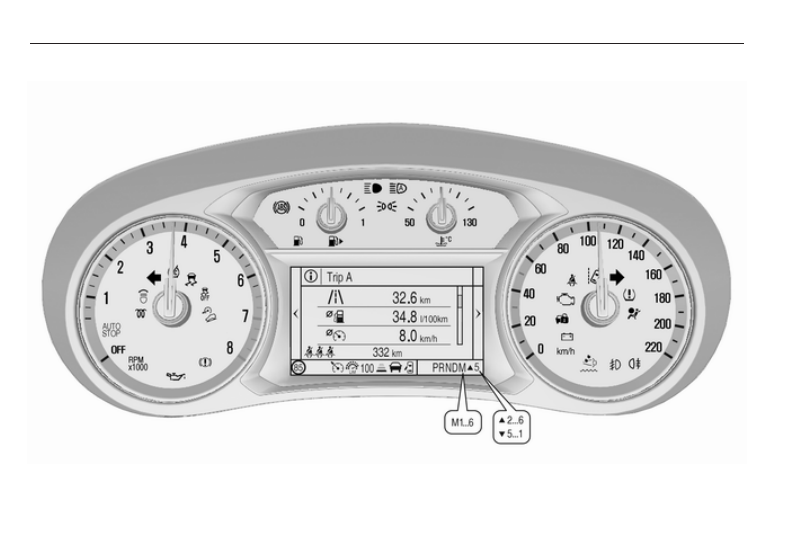

Uplevel instrument cluster

Instruments and controls

91

Control indicators in the centre

console

Overview

O

Turn signal 3 92

X

Seat belt reminder, driver

3

 92

k

Seat belt reminder, front

passenger 3 92

v

Airbag and belt tensioners

3

 92

V

 /

*

Airbag deactivation 3 93

p

Charging system 3 93

Z

Malfunction indicator light

3

 93

R

Brake and clutch system

3

 93

u

Antilock brake system (ABS)

3

 94

R

Gear shifting 3 94

u

Descent control system

3

 94

)

Lane departure warning

3

 94

n

Electronic Stability Control off

3

 94

b

Electronic Stability Control

and Traction Control system

3

 94

k

Traction Control system off

3

 95

!

Preheating 3 95

ù

AdBlue 3 95

w

Tyre pressure monitoring

system 3 95

I

Engine oil pressure 3 95

Y

Low fuel 3 95

d

Immobiliser 3 96

8

Exterior light 3 96

C

High beam 3 96

f

High beam assist 3 96

f

Adaptive forward lighting

3

 96

>

Fog light 3 96

r

Rear fog light 3 96

m

Cruise control 3 96

A

Vehicle detected ahead

3

 97

L

Speed limiter 3 97

L

Traffic sign assistant 3 97

h

Door open 3 97

92

Instruments and controls

Turn lights

O

 illuminates or flashes green.

Illuminates briefly

The parking lights are switched on.

Flashes

A turn signal or the hazard warning

flashers are activated.
Rapid flashing: failure of a turn light or

associated fuse, failure of turn light on

trailer.
Bulb replacement 3 188.
Fuses 3 193.
Turn lights 3 123.

Seat belt reminder

Seat belt reminder on front seats

X

 for driver's seat illuminates or

flashes red in the instrument cluster.
k for front passenger seat illuminates

or flashes red in the centre console

when seat is occupied.

Illuminates

After the ignition has been switched

on until the seat belt has been

fastened.

Flashes

After having started the engine until

the seat belt has been fastened.

Seat belt status on rear seats

(vehicles with Midlevel display)

X

 illuminates or flashes white or grey

in the Driver Information Centre, after

having started the engine.

Illuminates white

Seat belt is unfastened.

Illuminates grey

Seat belt has been fastened.

Flashes white or grey

Fastened seat belt has been

unfastened.
Fastening the seat belt 3 45.

Seat belt status on rear seats

(vehicles with Uplevel display)

X

 illuminates green or grey or flashes

yellow in the Driver Information

Centre, after having started the

engine.

Illuminates grey

Seat belt is unfastened.

Illuminates green

Seat belt has been fastened.

Flashes yellow

Fastened seat belt has been

unfastened.
Fastening the seat belt 3 45.

Airbag and belt tensioners

v

 illuminates red.

When the ignition is switched on, the

control indicator illuminates for a few

seconds. If it does not illuminate,

does not go out after a few seconds

or illuminates whilst driving, there is a

fault in the airbag system. Seek the

assistance of a workshop. The

Instruments and controls

93

airbags and belt pretensioners may

fail to trigger in the event of an

accident.
Deployment of the belt pretensioners

or airbags is indicated by continuous

illumination of v.

9 Warning

Have the cause of the fault

remedied immediately by a

workshop.

Belt pretensioners 3 44.
Airbag system 3 47.

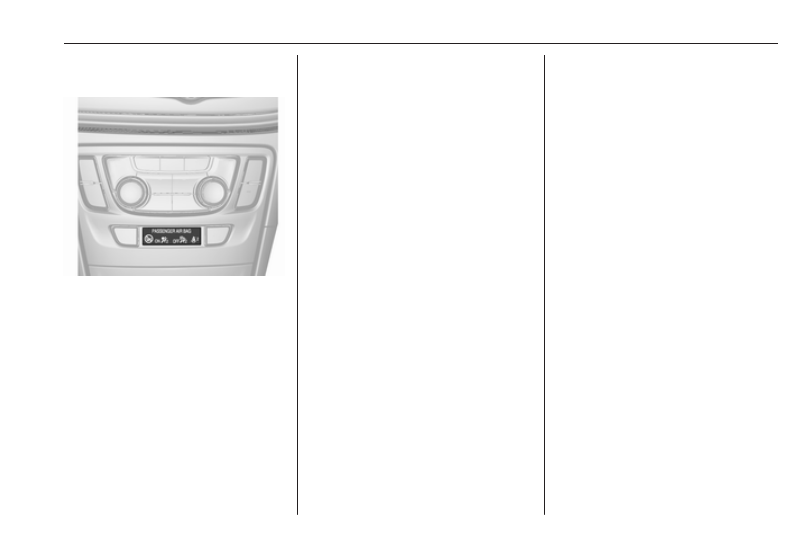

Airbag deactivation

V

 illuminates yellow.

The front passenger airbag is

activated.
* illuminates yellow.
The front passenger airbag is

deactivated 3 52.

9 Danger

Risk of fatal injury for a child using

a child restraint system together

with activated front passenger

airbag.
Risk of fatal injury for an adult

person with deactivated front

passenger airbag.

Charging system

p

 illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Stop, switch off engine. Battery is not

charging. Engine cooling may be

interrupted. The brake servo unit may

cease to be effective. Seek the

assistance of a workshop.

Malfunction indicator light

Z

 illuminates or flashes yellow.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Fault in the emission control system.

The permitted emission limits may be

exceeded. Seek the assistance of a

workshop immediately.

Flashes when the engine is

running

Fault that could lead to catalytic

converter damage. Ease up on the

accelerator until the flashing stops.

Seek the assistance of a workshop

immediately.

Brake and clutch system

R

 illuminates red.

The brake and clutch fluid level is too

low, when manual parking brake is

not applied 3 185.

94

Instruments and controls

9 Warning

Stop. Do not continue your

journey. Consult a workshop.

Illuminates when the manual parking

brake is applied and ignition is

switched on 3 151.

Antilock brake system

(ABS)

u

 illuminates yellow.

Illuminates for a few seconds after the

ignition is switched on. The system is

ready for operation when the control

indicator extinguishes.
If the control indicator does not

extinguish after a few seconds, or if it

illuminates while driving, there is a

fault in the ABS. The brake system

remains operational but without ABS

regulation.
Antilock brake system 3 151.

Gear shifting

R

 or S with the number of a higher or

lower gear is indicated, when up- or

downshifting is recommended for fuel

saving reasons.

Descent control system

u

 illuminates or flashes green.

Illuminates green

The system is ready for operation.

Flashes green

The system is in operation.

Lane departure warning

)

 illuminates green or flashes yellow.

Illuminates green

System is switched on and ready to

operate.

Flashes yellow

System recognises an unintended

lane change.
Lane departure warning 3 168.

Electronic Stability Control

off

n

 illuminates yellow.

The system is deactivated.

Electronic Stability Control

and Traction Control system

b

 illuminates or flashes yellow.

Illuminates

A fault in the system is present.

Continued driving is possible. Driving

stability, however, may deteriorate

depending on road surface

conditions.
Have the cause of the fault remedied

by a workshop.

Flashes

The system is actively engaged.

Engine output may be reduced and

the vehicle may be braked

automatically to a small degree.
Electronic Stability Control 3 153.
Traction Control system 3 152.

Instruments and controls

95

Traction Control system off

k

 illuminates yellow.

The system is deactivated.

Preheating

!

 illuminates yellow.

Preheating of diesel engine is

activated. Only activates when

outside temperature is low.

AdBlue

ù flashes yellow.
AdBlue level is low. Refill AdBlue

soon to avoid prevention of the

engine start.
AdBlue 3 144.

Tyre pressure monitoring

system

w illuminates or flashes yellow.

Illuminates

Tyre pressure loss. Stop immediately

and check tyre pressure.

Flashes

Fault in system or tyre without

pressure sensor mounted (e.g. spare

wheel). After 60-90 seconds the

control indicator illuminates

continuously. Consult a workshop.
Tyre pressure monitor system

3

 201.

Engine oil pressure

I

 illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Caution

Engine lubrication may be

interrupted. This may result in

damage to the engine and/or

locking of the drive wheels.

1. Depress clutch.
2. Select neutral gear, set selector

lever to N.

3. Move out of the flow of traffic as

quickly as possible without

impeding other vehicles.

4. Switch off ignition.

9 Warning

When the engine is off,

considerably more force is needed

to brake and steer. During an

Autostop the brake servo unit will

still be operational.
Do not remove key until vehicle is

stationary, otherwise the steering

wheel lock could engage

unexpectedly.

Keep engine turned off and let the

vehicle be towed to a workshop

3

 183.

Low fuel

Y

 illuminates or flashes yellow.

Illuminates

Level in fuel tank is too low.

96

Instruments and controls

Flashes

Fuel used up. Refuel immediately.

Never run the tank dry.
Refuelling 3 172.
Catalytic converter 3 143.
Bleeding the diesel fuel system

3

 187.

Immobiliser

d

 flashes yellow.

Fault in the immobiliser system. The

engine cannot be started.
Have the cause of the fault remedied

by a repairer.

Exterior light

8

 illuminates green.

The exterior lights are on 3 116.

High beam

C illuminates blue.

Illuminates when high beam is on or

during headlight flash 3 117, or when

high beam is on with high beam

assist, adaptive forward lighting

3

 120.

High beam assist

f

 illuminates green.

The high beam assist is activated

3

 120.

Adaptive forward lighting

f

 illuminates or flashes yellow.

Illuminates

The adaptive forward lighting system

needs a service.
Seek the assistance of a workshop.
Adaptive forward lighting 3 120.

Flashes

System switched to symmetrical low

beam.

Control indicator f flashes for approx.

4 seconds after the ignition is

switched on as a reminder that the

system has been activated 3 119.
Automatic light control 3 117.

Front fog lights

>

 illuminates green.

The front fog lights are on 3 123.

Rear fog light

r

 illuminates yellow.

The rear fog light is on 3 123.

Cruise control

m

 illuminates white or green.

Illuminates white

The system is on.

Illuminates green

Cruise control is active.
Cruise control 3 155.

Instruments and controls

97

Vehicle detected ahead

A

 illuminates green or yellow.

Illuminates green

A vehicle ahead is detected in the

same lane.

Illuminates yellow

The distance to a preceding moving

vehicle gets too small or when

approaching another vehicle too

rapidly.
Forward collision alert 3 158.

Speed limiter

L

 illuminates white or green.

Illuminates white

The system is on.

Illuminates green

Speed limiter is active. Set speed is

indicated near L symbol.
Speed limiter 3 157.

Traffic sign assistant

L

 displays detected traffic signs as a

control indicator.
Traffic sign assistant 3 165.

Door open

h

 illuminates red.

A door or the tailgate is open.

Displays

Driver Information Centre

The Driver Information Centre is

located in the instrument cluster.
Depending on the version and the

instrument cluster, the Driver

Information Centre is available as

Midlevel display or Uplevel display.
Driver Information Centre indicates

depending on the equipment:

● overall and trip odometer
● vehicle information
● trip / fuel information
● driving economy information
● vehicle and warning messages
● vehicle settings

98

Instruments and controls

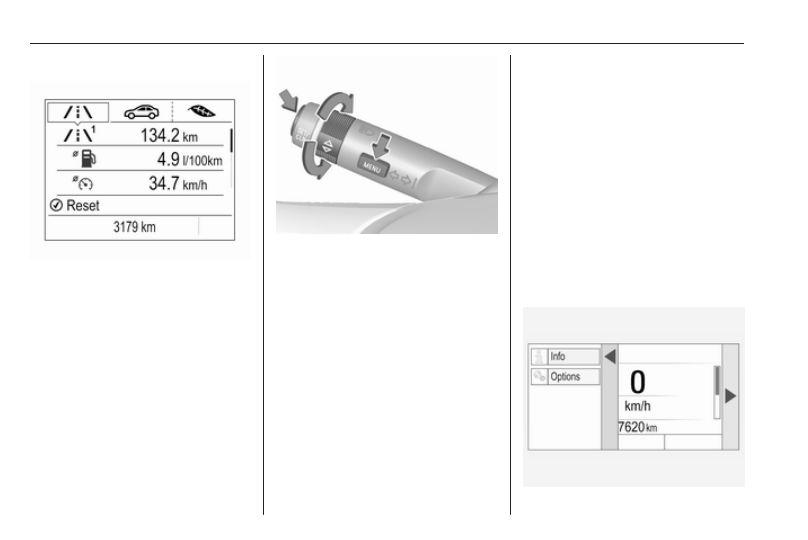

Midlevel display

Selecting menus and functions

The menus and functions can be

selected via the buttons on the turn

signal lever.

Press MENU to switch between the

main menus or to return from a

submenu to the next higher menu

level.
Turn the adjuster wheel to select a

submenu of the main menu or to set

a numeric value.
Press SET/CLR to select and confirm

a function.
Vehicle and service messages are

popped up in the Driver Information

Centre if required. Confirm messages

by pressing SET/CLR.
Vehicle messages 3 104.

Main menu

Main menus are:

● Trip / fuel information, displayed

by ;, see description below.

● Vehicle information, displayed

by ?, see description below.

● Eco information, displayed by

@

, see description below.

Some of the displayed functions differ

when the vehicle is being driven or at

a standstill and some functions are

only active when the vehicle is being

driven.

Uplevel display

Instruments and controls

99

Selecting menus and functions

The menus and functions can be

selected via the buttons on the turn

signal lever.

Press MENU to switch between the

main menus or to return from a

submenu to the next higher menu

level.
Turn the adjuster wheel to select a

submenu of the main menu or to set

a numeric value.
Press SET/CLR to select and confirm

a function.

Vehicle and service messages are

popped up in the Driver Information

Centre if required. Confirm messages

by pressing SET/CLR.
Vehicle messages 3 104.

Main menu

Main menus are:

● Trip / fuel information, displayed

by Info  Q, see description below.

● Vehicle information, displayed by

Options L, see description

below.

Some of the displayed functions differ

when the vehicle is being driven or at

a standstill and some functions are

only active when the vehicle is being

driven.

Trip / fuel information menu, ;

or Info Q

The following list contains all possible

Info Menu pages. Some may not be

available for your particular vehicle.

Depending on the display, some

functions are symbolised.

Turn the adjuster wheel to select a

page:

● Trip odometer 1/2 or A/B
● Average fuel consumption
● Average speed
● Digital speed
● Fuel range
● Instantaneous fuel consumption
● Remaining oil life
● Tyre pressure
● Traffic sign assistant
● Following distance
● Timer
● AdBlue level

On Midlevel display the pages

Remaining Oil Life, Tyre Pressure,

Traffic Sign Assistant and Following

Distance are displayed in the Vehicle

information menu, select ?.

Trip odometer 1/2 or A/B

Trip odometer displays the current

distance since a certain reset.
Trip odometer counts up to a distance

of 9,999 km then restarts at 0.

100

Instruments and controls

To reset press SET/CLR for a few

seconds.
The information of trip odometer page

1/A and 2/B can be reset separately

while the respective display is active.

Average Fuel Consumption

Display of average consumption. The

measurement can be reset at any

time and starts with a default value.
To reset press SET/CLR for a few

seconds.

Average speed

Display of average speed. The

measurement can be reset at any

time.
To reset press SET/CLR for a few

seconds.

Digital speed

Digital display of the instantaneous

speed.

Fuel range

Range is calculated from current fuel

level and current consumption. The

display shows average values.

After refuelling, the range is updated

automatically after a brief delay.
When the level in the fuel tank is low,

a message appears on the display

and the control indicator Y in the fuel

gauge illuminates.
When the fuel tank must be refuelled

immediately, a warning message

appears and remains on the display.

Additionally, the control indicator Y in

the fuel gauge flashes 3 95.

Instantaneous Fuel Consumption

Display of the instantaneous

consumption.

Remaining Oil Life

Indicates an estimate of the oil's

useful life. The number in percentage

means the remainder of current oil life

3

 87.

Tyre Pressure

Checks tyre pressure of all wheels

during driving 3 201.

Traffic sign assistant

Displays the detected traffic signs for

the current route section 3 165.

Following Distance

Displays the distance in seconds to a

preceding moving vehicle 3 160.

Timer

To start and stop follow the

instructions on the display. To reset,

press SET/CLR.

AdBlue

Displays the AdBlue level.

Additionally the AdBlue range can be

displayed.

Eco information menu, @

● Top consumers
● Economy trend
● Eco index

On Uplevel display the pages Top

Consumers, Economy Trend and Eco

index, are displayed in the Trip/fuel

information menu, select Info.

Top Consumers

List of top comfort consumers

currently switched on is displayed in

descending order. Fuel saving

potential is indicated.

Instruments and controls

101

During sporadic driving conditions,

the engine will activate the heated

rear window automatically to increase

the engine load. In this event, the

heated rear window is indicated as

one of the top consumers, without

activation by the driver.

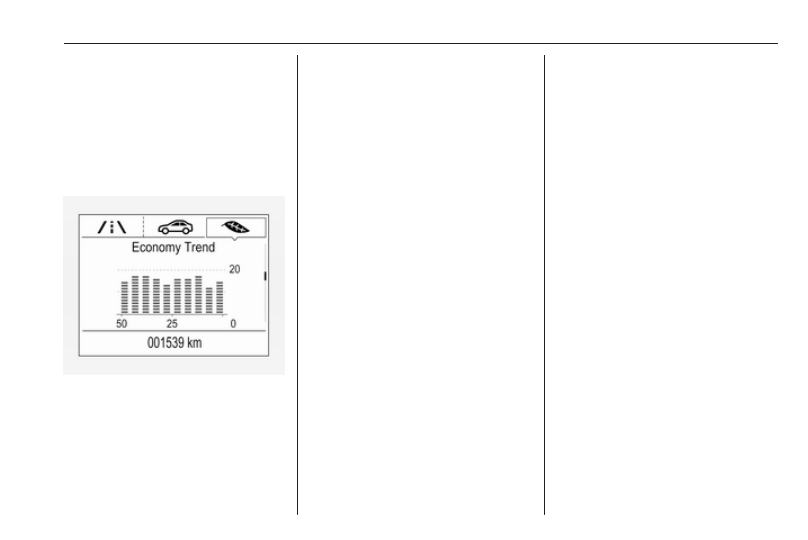

Economy Trend

Displays the average consumption

development over a distance of

50 km. Filled segments display the

consumption in 5 km steps and shows

the effect of topography or driving

behaviour on fuel consumption.

Economy index

The current fuel consumption is

indicated on an economic scale. For

economical driving, adapt driving

style to keep the filled segments

within the Eco area. The more

segments are filled, the higher the

fuel consumption.
Simultaneously the average

consumption value is indicated.

Vehicle information menu, ? or

Options L

The following list contains all possible

Options Menu pages. Some may not

be available for your particular

vehicle. Depending on the display

some functions are symbolised.
Turn the adjuster wheel to select a

page and follow the instructions given

in the submenus:

● Units
● Info pages
● Speed warning
● Tyre loading

Units

Press SET/CLR while units is

displayed. Select imperial or metric

units by turning adjuster wheel.

Confirm by pressing SET/CLR.

Info pages

Press SET/CLR while Info pages is

displayed. A list of all items in the Info

Menu is displayed. Select the

functions to be displayed in the Info

page by turning the adjuster wheel

and confirm by pressing SET/CLR.

Selected pages have a 9 in a

checkbox. Non-viewable functions

have a blank checkbox. See Info

Menu above.
