54

Seats, restraints

When the child restraint system is not

in use, secure the seat with a seat belt

or remove it from the vehicle.

Note

Do not affix anything on the child

restraint systems and do not cover

them with any other materials.
A child restraint system which has

been subjected to stress in an

accident must be replaced.

Child restraint systems can be

fastened with:

● Three-point seat belt
● ISOFIX brackets
● Top-tether anchor

Three-point seat belt

Child restraint systems can be

fastened by using a three-point seat

belt. Depending on the size of the

used child restraint systems, up to

three child restraint systems can be

attached to the rear seats. After

fastening the child restraint system

the seat belt has to be tightened

3

 56.

ISOFIX child restraint systems

For the installation of ISOFIX child

restraint systems, two variants are

available:

● Installation of ISOFIX child

restraint systems without

permanent guide

● Installation of ISOFIX child

restraint systems with permanent

guide

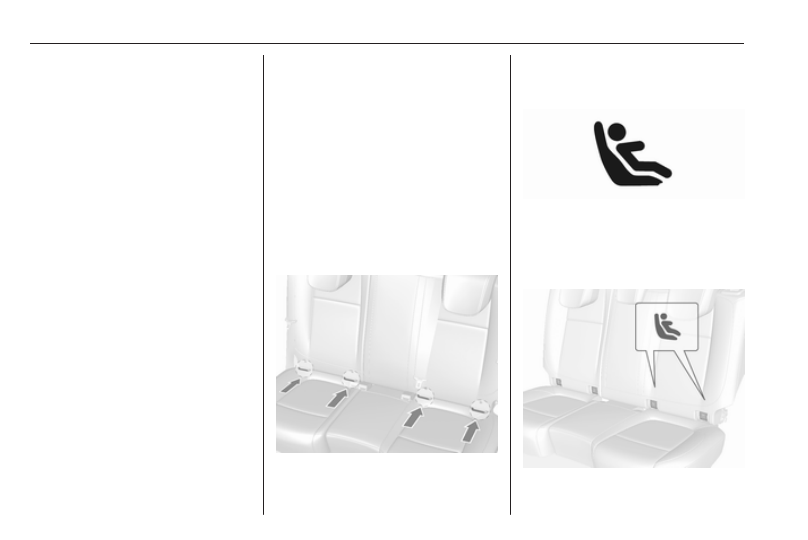

Installation of ISOFIX child restraint

systems without permanent guide

Fasten vehicle-approved ISOFIX

child restraint systems to the ISOFIX

mounting brackets. Specific vehicle

ISOFIX child restraint system

positions are marked in the table by

IL.

ISOFIX mounting brackets are

indicated by a label on the backrest.

Installation of ISOFIX child restraint

systems with permanent guide

Seats, restraints

55

The vehicle might be equipped with

guides in front of the mounting

brackets to support the installation of

the child restraint system.

The covers of the guides will swivel

backwards automatically when

attaching the child restraint system.

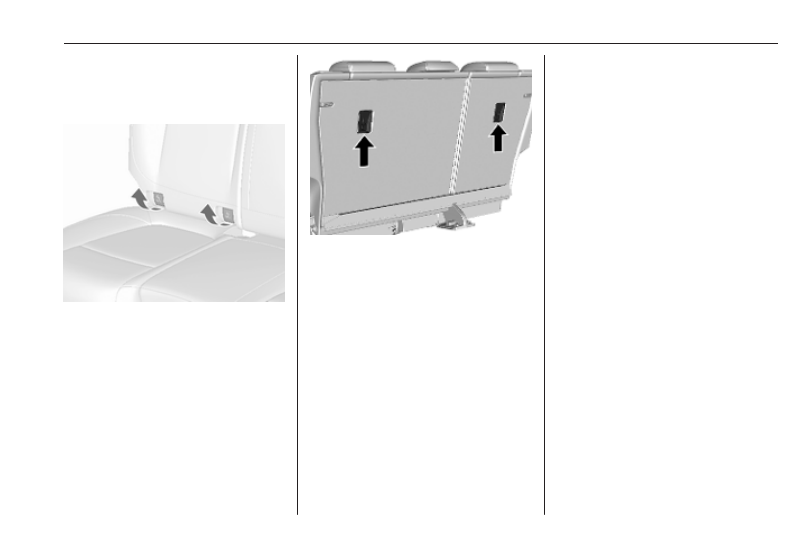

Top-tether anchors

Depending on country specific

equipment, the vehicle might have

two or three fastening eyes.
Top-Tether anchors are marked with

the symbol : for a child restraint.

For non-ISOFIX child restraints,

fasten the Top-Tether strap to the

Top-Tether anchors.
For ISOFIX child restraints, fasten the

Top-Tether strap to the Top-Tether

anchors in addition to the ISOFIX

mounting.
ISOFIX child restraint systems of

universal category positions are

marked in the table by IUF.

56

Seats, restraints

Child restraint installation locations

Permissible options for fitting a child restraint system

Weight class

On front passenger seat

On rear outboard seats

On rear centre seat

activated airbag

deactivated airbag

Group 0: up to 10 kg

X

U

1

U

2

U

2

Group 0+: up to 13 kg

X

U

1

U

2

U

2

Group I: 9 to 18 kg

X

U

1

U

2

U

2

Group II: 15 to 25 kg

X

X

U

2

U

2

Group III: 22 to 36 kg

X

X

U

2

U

2

1

: if the child restraint system is being secured using a three-point seat belt, move seat height adjustment to uppermost

position and ensure that vehicle seat belt runs forwards from the upper anchorage point. Adjust seat backrest

inclination as far as necessary to a vertical position to ensure that the belt is tight on the buckle side.

2

: move the head restraint to uppermost position. If it interferes with the proper installation of the child restraint system,

remove the head restraint 3 39.

U : universal suitability in conjunction with three-point seat belt.

X : no child restraint system permitted in this weight class.

Seats, restraints

57

Permissible options for fitting an ISOFIX child restraint system

Weight class

Size class Fixture

On front passenger seat On rear outboard seats On rear centre seat

Group 0: up to 10 kg

E

ISO/R1 X

IL

1

X

Group 0+: up to 13 kg E

ISO/R1 X

IL

1

X

D

ISO/R2 X

IL

1

X

C

ISO/R3 X

IL

1

X

Group I: 9 to 18 kg

D

ISO/R2 X

IL

1

X

C

ISO/R3 X

IL

1

X

B

ISO/F2

X

IL, IUF

X

B1

ISO/F2X X

IL, IUF

X

A

ISO/F3

X

IL, IUF

X

Group II: 15 to 25 kg

X

IL

X

Group III: 22 to 36 kg

X

IL

X

1

: move front passenger seat to the foremost position or adjust front seat backrest inclination as far as necessary to

a vertical position to ensure that there is no interference between child restraint system and front seat backrest.

IL : suitable for particular ISOFIX restraint systems of the "specific-vehicle", "restricted" or "semi-universal" categories.

The ISOFIX restraint system must be approved for the specific vehicle type.

IUF : suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class.

X

: no ISOFIX child restraint system approved in this weight class.

58

Seats, restraints

ISOFIX size class and seat device

A – ISO/F3

: forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg

B – ISO/F2

: forward-facing child restraint system for smaller children in the weight class 9 to 18 kg

B1 – ISO/F2X : forward-facing child restraint system for smaller children in the weight class 9 to 18 kg

C – ISO/R3

: rear-facing child restraint system for children of maximum size in the weight class up to 18 kg

D – ISO/R2

: rear-facing child restraint system for smaller children in the weight class up to 18 kg

E – ISO/R1

: rear-facing child restraint system for young children in the weight class up to 13 kg

Storage

59

Storage

Storage compartments ................ 59

Glovebox ................................... 59

Cupholders ................................ 59

Front storage ............................. 60

Underseat storage ..................... 60

Centre console storage ............. 61

Rear carrier system ................... 61

Load compartment ....................... 71

Load compartment cover ........... 72

Rear floor storage cover ............ 73

Lashing eyes ............................. 73

Warning triangle ........................ 73

First aid kit ................................. 73

Roof rack system ......................... 74

Roof rack ................................... 74

Loading information ..................... 74

Storage compartments

9 Warning

Do not store heavy or sharp

objects in the storage

compartments. Otherwise, the

storage compartment lid could

open and vehicle occupants could

be injured by objects being thrown

around in the event of hard

braking, a sudden change in

direction or an accident.

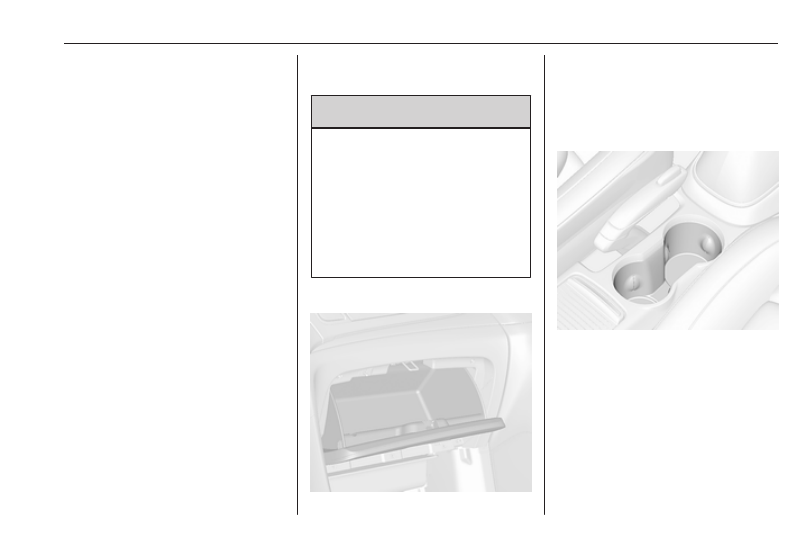

Glovebox

To open, pull the handle.
The glovebox should be closed while

driving.

Cupholders

The cupholders are located in the

centre console and rear part of the

centre console.

60

Storage

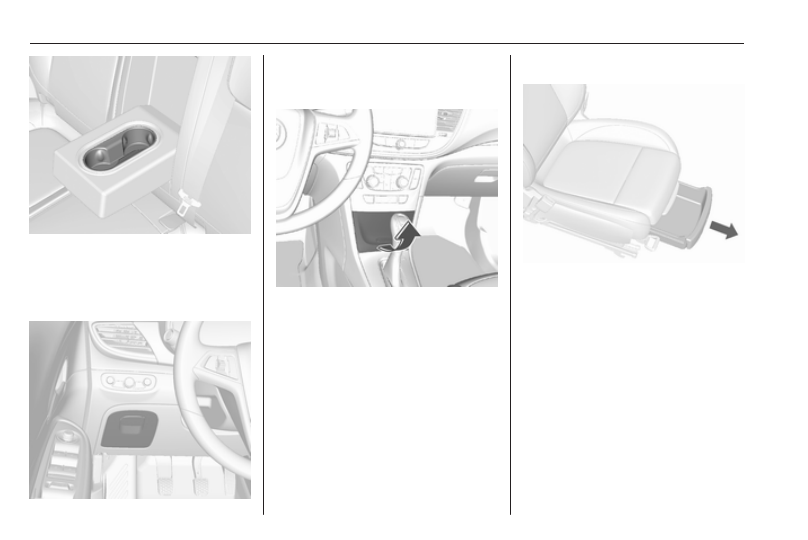

To use the rear seat cupholder, fold

down the rear seat armrest.

Front storage

A storage compartment is located

next to the steering wheel. Pull the

handle to open.

A further storage compartment is

located in the centre console.
To open, press the button.
The covers of the storage

compartments should be closed while

driving.

Underseat storage

Lift drawer at the front and pull out. To

close, push the drawer in and

engage.

Storage

61

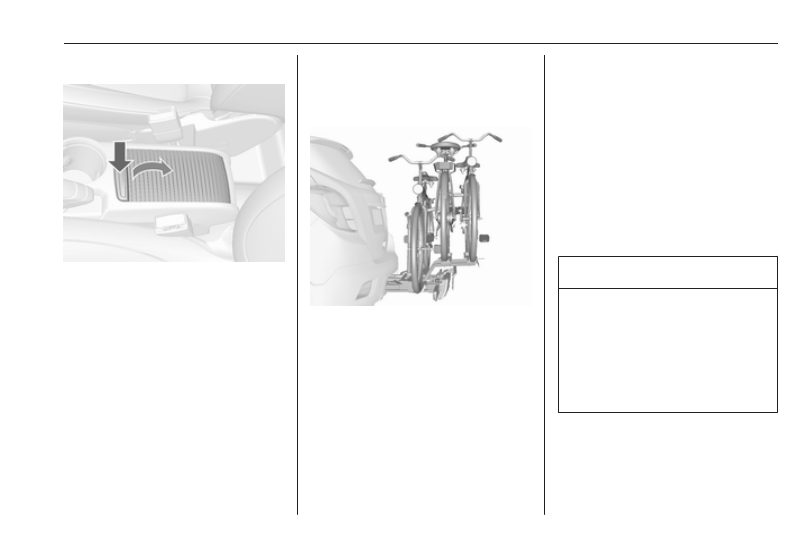

Centre console storage

Push down the button and slide cover

backwards.

Rear carrier system

Rear carrier system for three

bicycles

The rear carrier system (Flex-Fix

system) allows one bicycle to be

attached to an extendable carrier

integrated into the vehicle floor. It is

possible to attach two further bicycles

on an adapter. The transportation of

other objects is not permitted.
The maximum load of the rear carrier

system is 60 kg with attached adapter

and 30 kg without attached adapter.

This allows the attachment of an

electrically-powered bicycle to the

rear carrier system. The maximum

load per bicycle on the adapter is

20 kg.
The wheelbase of a bicycle must not

exceed 1.15 m. Otherwise the secure

fastening of a bicycle is not possible.
If not in use, the rear carrier system

must be slid back into the vehicle

floor.
There must not be any objects on the

bicycles that could become loose

during transportation.

Caution

If the rear carrier system is

extended and the vehicle is fully

loaded, the ground clearance will

be reduced.
Drive carefully whenever the road

has a steep inclination or when

driving over a ramp, bump, etc.

62

Storage

Caution

Consult your bicycle dealer before

attaching bicycles with carbon

frames. The bicycles may get

damaged.

Note

The tail lights of the vehicle will be

deactivated if the tail lights of the

rear carrier system are installed.

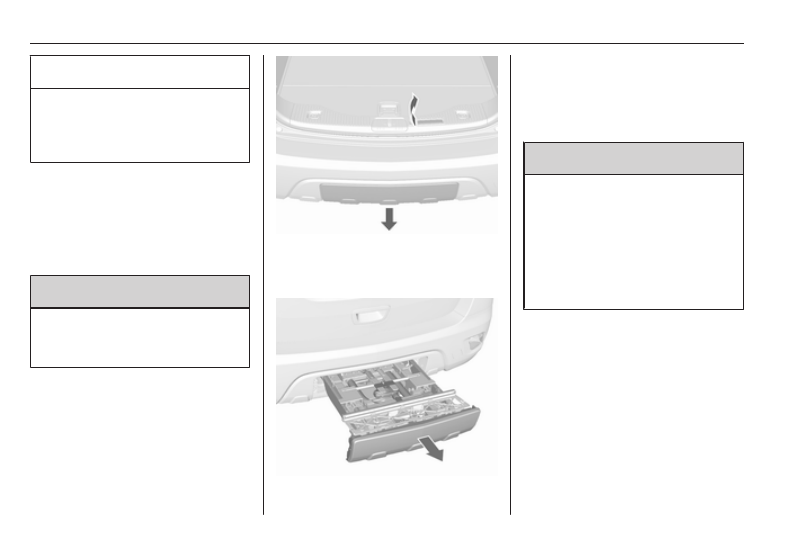

Extending

Open the tailgate.

9 Warning

No-one should be in the extension

zone of the rear carrier system,

risk of injury.

Pull release lever up. The rear carrier

system disengages and travels

quickly out of the rear bumper.

Completely pull out the rear carrier

system until you hear it engage.
Ensure that it is not possible to push

in the rear carrier system without

pulling the release lever again.

9 Warning

It is only permissible to fit objects

to the rear carrier system if the

system has been correctly

engaged. If the rear carrier system

will not engage correctly, do not fit

objects to the system and slide the

system back. Seek the assistance

of a workshop.

Storage

63

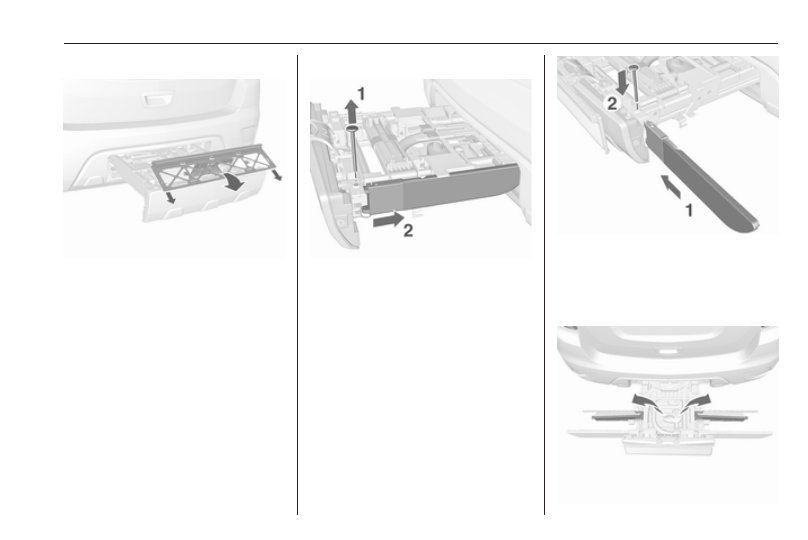

Unfold number plate holder

Lift the number plate holder and fold

it backwards.
Affix the number plate before first use

of the rear carrier system.

Fold out tail lights

To install the tail lights, remove both

pins (1). Pull tail lights out of the

retainer towards the front (2) and

downwards and swivel them to the

side.

Push the tail lights into the retainer

(1) and reinstall pins (2) all the way to

attach the lights.

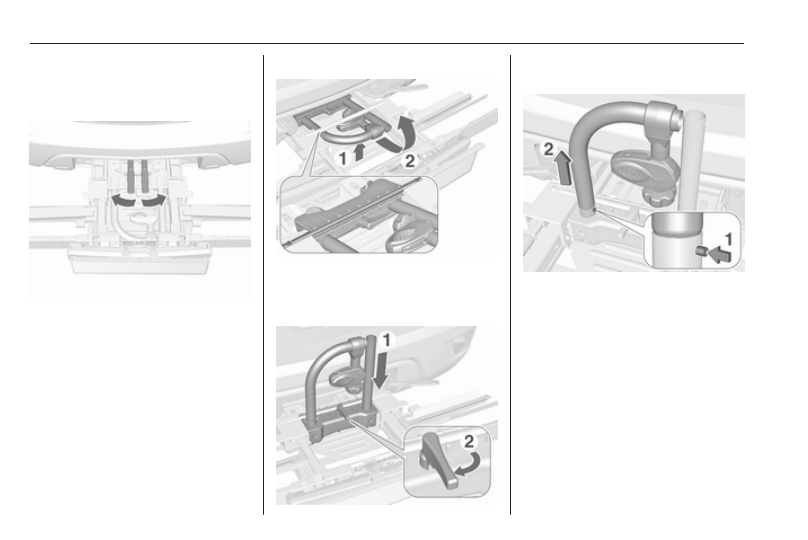

Fold out wheel recess

64

Storage

Remove strap and fold out the wheel

recess.

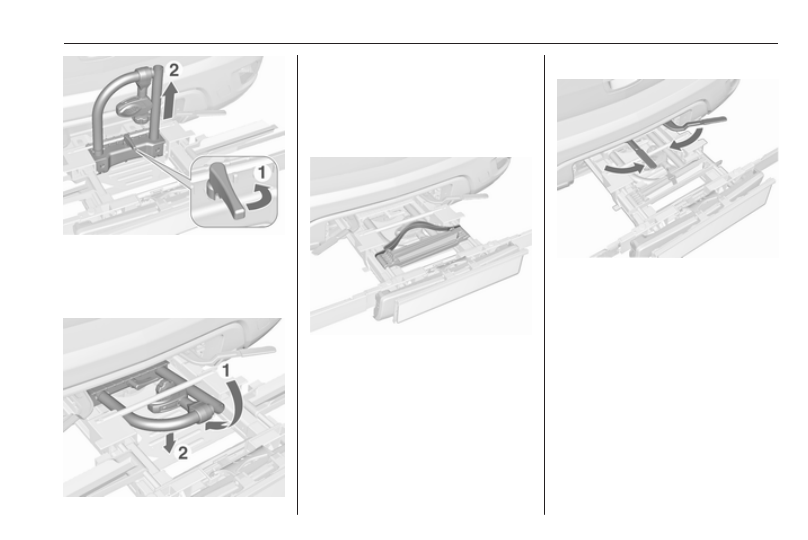

Lock the rear carrier system

Remove strap and swivel both

clamping levers sideways as far as

they will go.
Otherwise safe functionality is not

guaranteed.

Assembling the bicycle rack

Lift the rack at the rear (1) and pull it

backwards.
Fold up the rack (2).

Push down the rack (1) and swivel

handle (2) backwards to engage.

Press button (1) and remove left part

of rack (2).

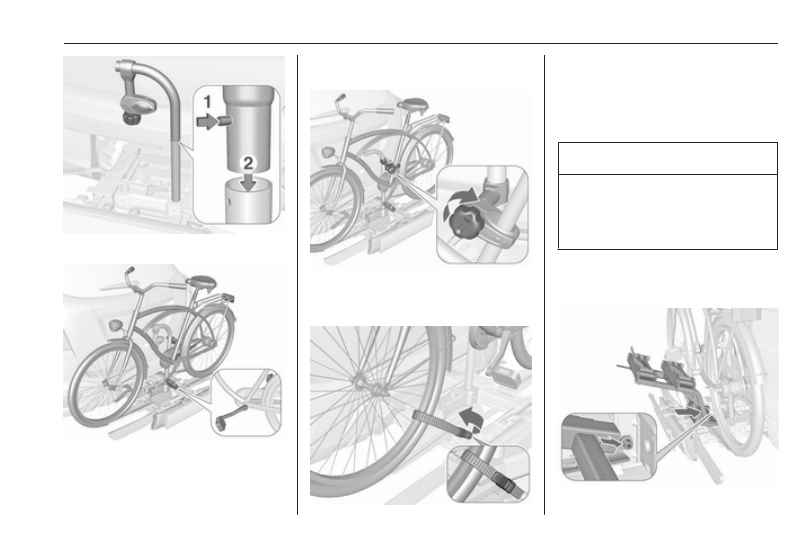

Press button (1) and insert left part of

rack into the right part (2).

Storage

65

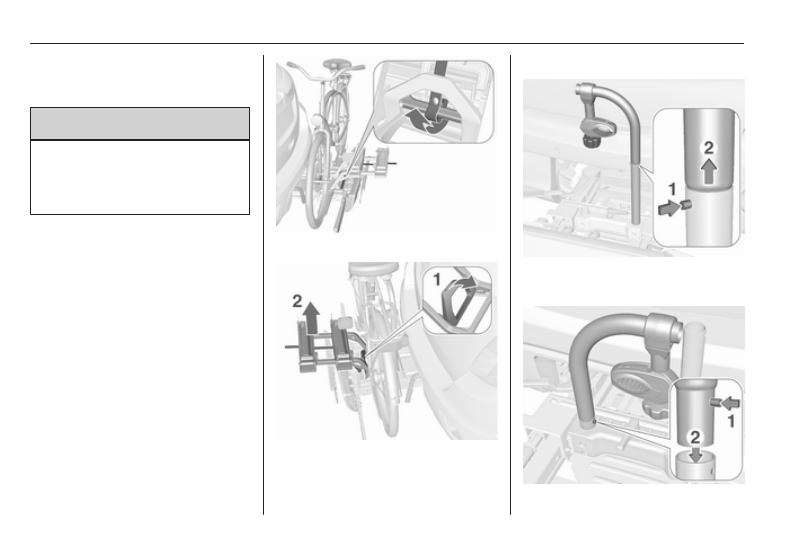

Attaching a bicycle

1. Rotate the pedals into position, as

shown in the illustration, and put

the bicycle on the wheel recess.

Make sure that the bicycle stands

centrally on the wheel recesses.

2. Attach the short mounting bracket

to the bicycle frame. Turn the

knob clockwise to fasten.

3. Secure both bicycle wheels to the

wheel recesses using the strap

retainers.

4. Check the bicycle to make sure it

is secure.

Caution

Ensure gap between bicycle and

vehicle is at least 5 cm. If

necessary, loosen handlebar and

swivel sideways.

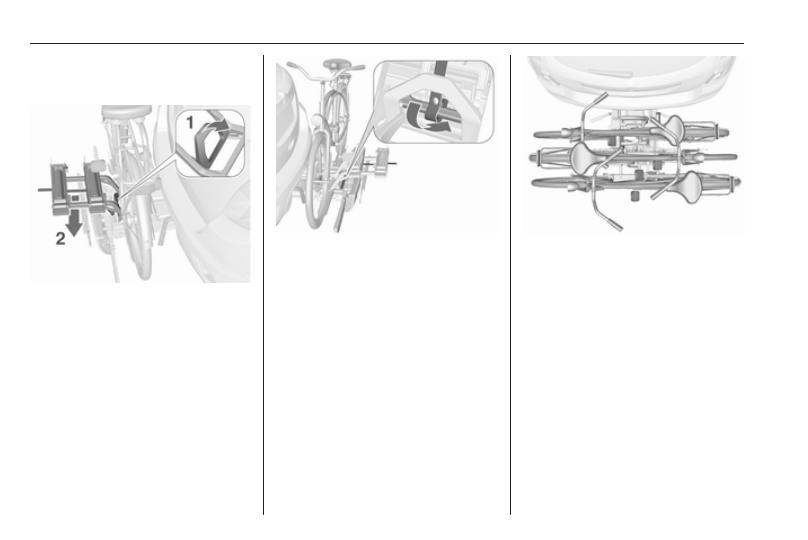

Attaching the adapter

When carrying more than one bicycle,

the adapter must be fixed.

66

Storage

1. Apply the adapter to the rear

carrier system, as shown in the

illustration.

2. Turn the lever (1) forwards and

hold it, then lower the adapter (2)

at the rear.

3. Release lever and check if the

adapter is engaged securely.

4. Guide the strap attached to the

adapter underneath the lever

when folding back the rear carrier

system. Fasten the strap.

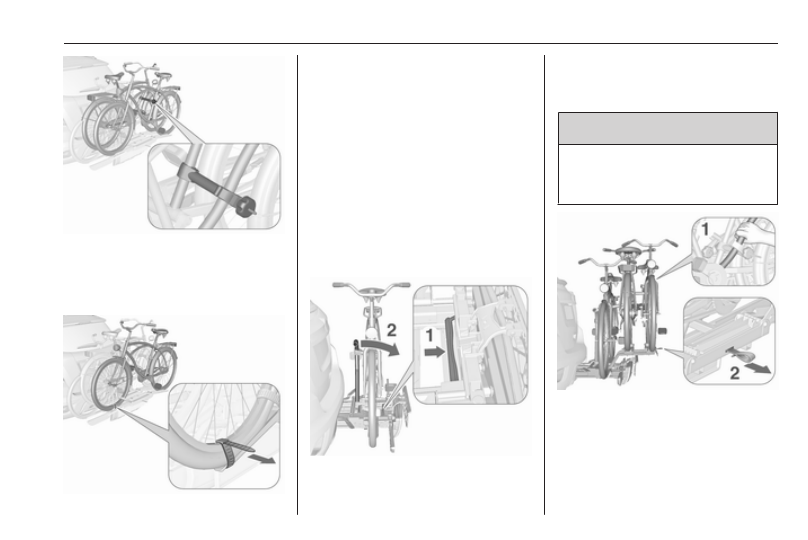

Attaching further bicycles

The attachment of further bicycles is

similar to the attachment of the first

bicycle. Additionally, some steps

must be considered:

1. Before putting on the bicycle,

always unfold the wheel recesses

for the next bicycle if necessary.

2. Always rotate the pedals into an

appropriate position before

putting on the bicycle.

3. Position the bicycles on the rear

carrier system alternately aligned

to the left and to the right.

4. Align the bicycles with the one

attached previously. The wheel

hubs of the bicycles must not

touch each other.

5. Attach the bicycles with mounting

brackets and strap retainers as

described for the first bicycle. The

mounting brackets should be

fixed in parallel.
Use the long mounting bracket to

attach the second bicycle to the

rack.

Storage

67

Use the short accessory mounting

bracket to attach the third bicycle.

The bracket must be fixed

between the frames of the second

and third bicycle.

6. Additionally, secure both bicycle

wheels of the third bicycle to the

wheel recesses using the

tensioning straps.

It is recommended to attach a

warning sign to the rearmost bicycle,

to increase visibility.

Fold the rear carrier system

backwards

The rear carrier system can be folded

backwards to gain access to the load

compartment.

● Without attached adapter:

Push the lever (1) to disengage

and hold it.

Pull the rack (2) backwards to

fold the rear carrier system.

● With attached adapter:

9 Warning

Take care when disengaging the

rear carrier system as it will tilt

backwards. Risk of injury.

Hold frame (1) of rearmost

bicycle with one hand and pull the

loop (2) to disengage.
Hold rearmost bicycle with both

hands and fold the rear carrier

system backwards.

68

Storage

To increase visibility, the tail lights of

the vehicle are activated when the

rear carrier system is folded back.

9 Warning

When folding the rear carrier

system forwards again, ensure

that the system is engaged

securely.

Removing bicycles

Undo strap retainers on both bicycle

tyres.
Turn knob anticlockwise and remove

mounting brackets.

Detaching adapter

Detach the adapter before removing

the bicycle on the rear carrier system.

1. Fold in wheel recesses.

2. Unbutton the strap.

3. Turn the lever (1) forwards and

hold it.

4. Lift the adapter (2) at the rear and

remove.

Disassembling the bicycle rack

Press button (1) and remove upper

part of rack (2).

Press button (1) and reinstall rack (2).

Storage

69

Arrange mounting brackets as shown

in the illustration.
Swivel handle (1) sideways to

disengage and lift the rack (2).

Fold the rack backwards, then push

forwards until it stops (1).
Press the rack down at the rear (2).

Fold in wheel recess

Fold in wheel recess. Fasten strap.

Stow the strap retainers accurately.

Unlock the rear carrier system

Swivel both clamping levers inwards

as far as they will go. Fasten strap.

Fold in tail lights

Remove both pins. Pull tail lights out

of the retainer and put them in the

position to be stored in.
