8D–24

WIRING SYSTEM

1

2

D08RWA03

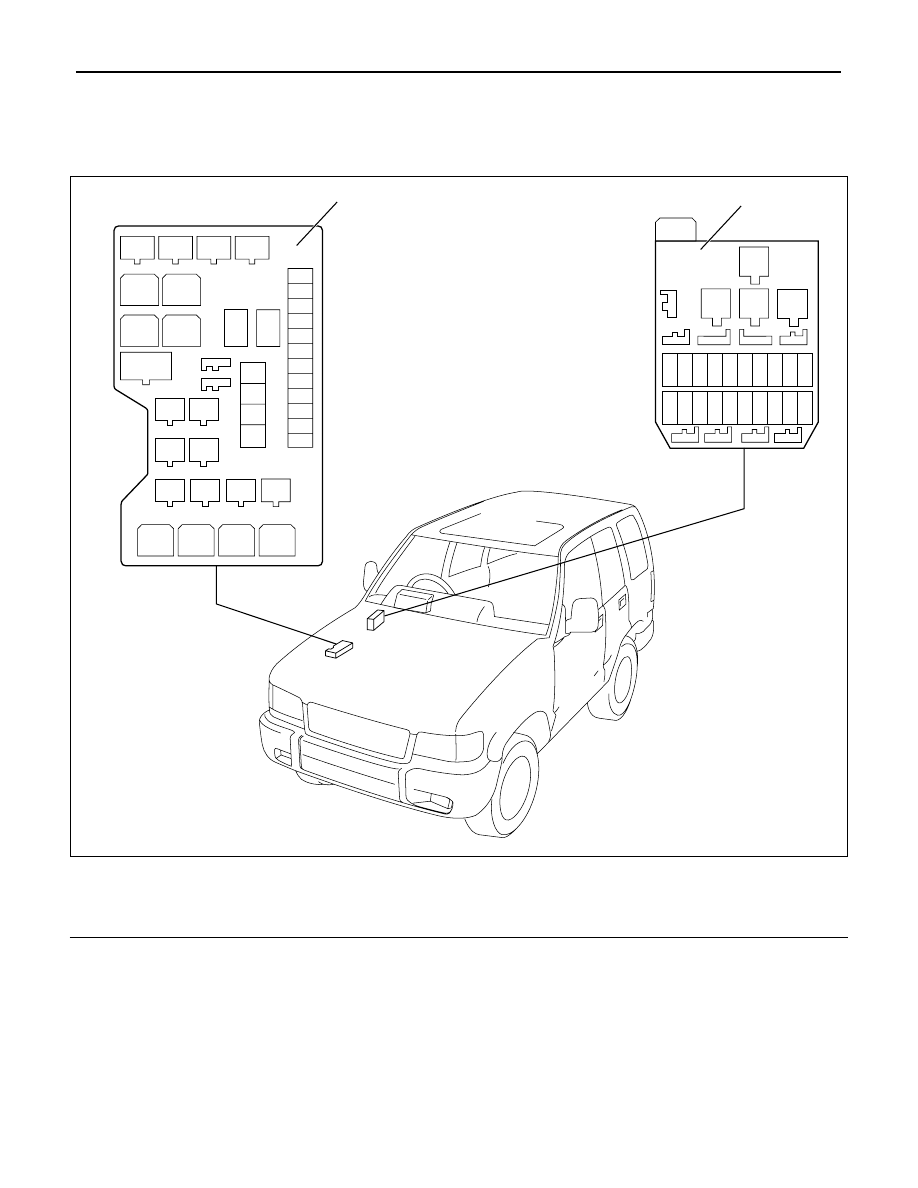

Legend

(1) Relay and Fuse Box
(2) Fuse Box

Main Data and Specifications

Fuse, Fusible Link and Circuit Breaker Location

WIRING SYSTEM

8D–25

Relay & Fuse Box

FL-1

FL-2

FL-6 FL-5 FL-4 FL-3

F-12 F-11 F-10 F-9 F-8

F-7 F-6 F-5 F-4 F-3 F-2 F-1

RELAY AND FUSE BOX

RHD

FUSIBLE LINK

FUSE

MODEL

No.

FL-1
FL-2
FL-3
FL-4
FL-5
FL-6
F-1
F-2
F-3
F-4
F-5
F-6
F-7

F-8
F-9
F-10
F-11
F-12

LHD

80A MAIN
50A KEY SW
30A ECM (GASOLINE)
30A CONDENSER FAN
50A GLOW (4JG2)
40A ABS
10A RR SUB
10A O

2

 SENSOR (GASOLINE)

15A HORN HAZARD
15A H/LAMP-LH
15A H/LAMP-RH
10A RR COOLER
15A ANTI-THEFT (4JG2)
20A ACC SOCKET (6V

∗

1)

20A FOG
20A ABS
15A FUEL PUMP (GASOLINE)
15A ANTI-THEFT
15A TAIL

80A MAIN
50A KEY SW
30A ECM (GASOLINE)
30A CONDENSER FAN
50A GLOW (4JG2)
40A ABS
15A RR COOLER/ANTI-THEFT
10A O

2

 SENSOR (GASOLINE)

15A HORN HAZARD
10A H/LAMP-LH (HI)
10A H/LAMP-RH (HI)
10A H/LAMP-LH (LOW)
10A H/LAMP-RH (LOW)

20A FOG
20A ABS
15A FUEL PUMP (GASOLINE)
10A TAIL-LH
10A TAIL-RH

810RS027

8D–26

WIRING SYSTEM

Fuse Box

This illustration is based on RHD

C/B-1

C/B-2

C-10

C-20

C-9

C-8

C-7

C-6

C-5

C-4

C-3

C-2

C-1

C-19 C-18 C-17 C-16 C-15 C-14 C-13 C-12 C-11

C-21 C-22 C-23 C-24

FUSE BOX

RHD

No.

C-1
C-2
C-3
C-4
C-5
C-6
C-7
C-8
C-9

C-10
C-11
C-12
C-13
C-14
C-15
C-16
C-17
C-18
C-19
C-20
C-21
C-22
C-23
C-24

LHD

10A STARTER RELAY
15A SEAT HEATER
10A TURN, BACK
15A ELEC. IGN.
15A FRT WIPER AND WASHER
10A RR WIPER AND WASHER
10A H/LAMP WIPER
15A ENGINE
15A IGN. COIL (GASOLINE)
15A FUEL CUT (4JG2)
10A METER, GAUGE
10A AUDIO, MIRROR
20A CIGARETTE
10A ANTI-THEFT
15A STOP, A/T CONT.
20A TELEPHONE
10A CLOCK, ROOM
25A RR DEFOG.
20A DOOR LOCK
25A BLOWER
10A AIR CON.
10A SRS-1

10A STARTER RELAY
15A SEAT HEATER
10A TURN, BACK
15A ELEC. IGN.
15A FRT WIPER AND WASHER
10A RR WIPER AND WASHER
10A H/LAMP WIPER
15A ENGINE
15A IGN. COIL (GASOLINE)
15A FUEL CUT (4JG2)
10A METER, GAUGE
10A AUDIO, MIRROR
20A CIGARETTE
10A ANTI-THEFT
15A STOP, A/T CONT.
20A TELEPHONE
10A CLOCK, ROOM
25A RR DEFOG.
20A DOOR LOCK
25A BLOWER
10A AIR CON.
10A SRS-1

FUSE

RHD

No.

C/B-1
C/B-2

LHD

30A P/W, P/S, S/R

30A P/W, P/S, S/R

—

—

CIRCUIT BREAKER

—
—
—

—
—
—

810RV026

WIRING SYSTEM

8D–27

Relay Location-1 (Relay and Fuse Box)

RHD

No.

X-1
X-2
X-3
X-4
X-5
X-6
X-7
X-8
X-9
X-10
X-11
X-12
X-13
X-16
X-17

X-18
X-19
X-20

X-21
X-22
X-23

LHD

RELAY ; LIGHTING

RELAY ; ACC SOCKET
RELAY ; A/C THERMO
RELAY ; RR COOLER
RELAY ; COMPRESSOR (GASOLINE)
RELAY ; HORN
RELAY ; TAIL

RELAY ; FUEL PUMP (GASOLINE)
RELAY ; ECM MAIN (GASOLINE)

RELAY ; ANTI-THEFT
RELAY ; STARTER (GASOLINE)
RELAY ; CHARGE (DIESEL)
RELAY ; SHIFT ON THE FLY
RELAY ; CONDENSER FAN (GASOLINE)
RELAY ; CORNERING LIGHT
RELAY ; IMMOBILIZER

RELAY ; RR FOG LIGHT
RELAY ; FRT FOG LIGHT

RELAY ; LIGHTING

RELAY ; DIMMER

RELAY ; A/C THERMO
RELAY ; RR COOLER
RELAY ; COMPRESSOR (GASOLINE)
RELAY ; HORN
RELAY ; TAIL

RELAY ; FUEL PUMP (GASOLINE)
RELAY ; ECM MAIN (GASOLINE)

RELAY ; ANTI-THEFT
RELAY ; STARTER (GASOLINE)
RELAY ; CHARGE (DIESEL)
RELAY ; SHIFT ON THE FLY
RELAY ; CONDENSER FAN

RELAY ; FRT FOG LIGHT

—
—

—

—

—

—

—

—

—

—

—
—

X-1

X-2

X-3

X-4

X-5

X-6

X-7

X-8

X-9

X-10

X-12

X-11

X-13

X-16

X-17

X-18

X-19

X-20

X-21

X-22

X-23

RELAY AND FUSE BOX

810RS029
