8D–28

WIRING SYSTEM

Relay Location-2 (Fuse Box)

1

2

3

4

5

810RW330

Legend

(1) Heater & A/C Relay
(2) Power Window Relay
(3) H-63

(4) Flasher Unit
(5) Rear Defogger Relay

WIRING SYSTEM

8D–29

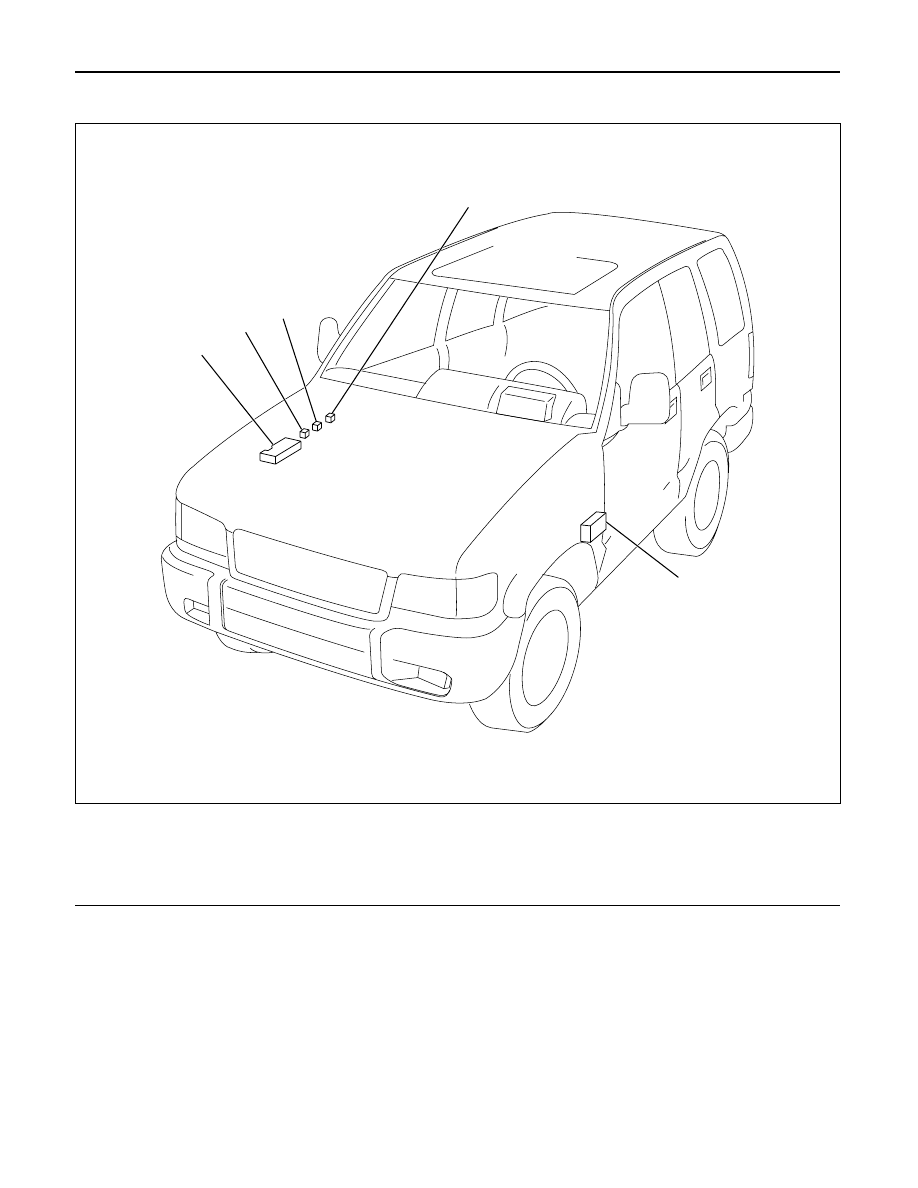

Relay Location-3

5

3

2

1

4

810RW331

Legend

(1) Relay and Fuse Box
(2) Glow Relay-1
(3) Glow Relay-2

(4) Starter Relay
(5) Fuse Box

8D–30

WIRING SYSTEM

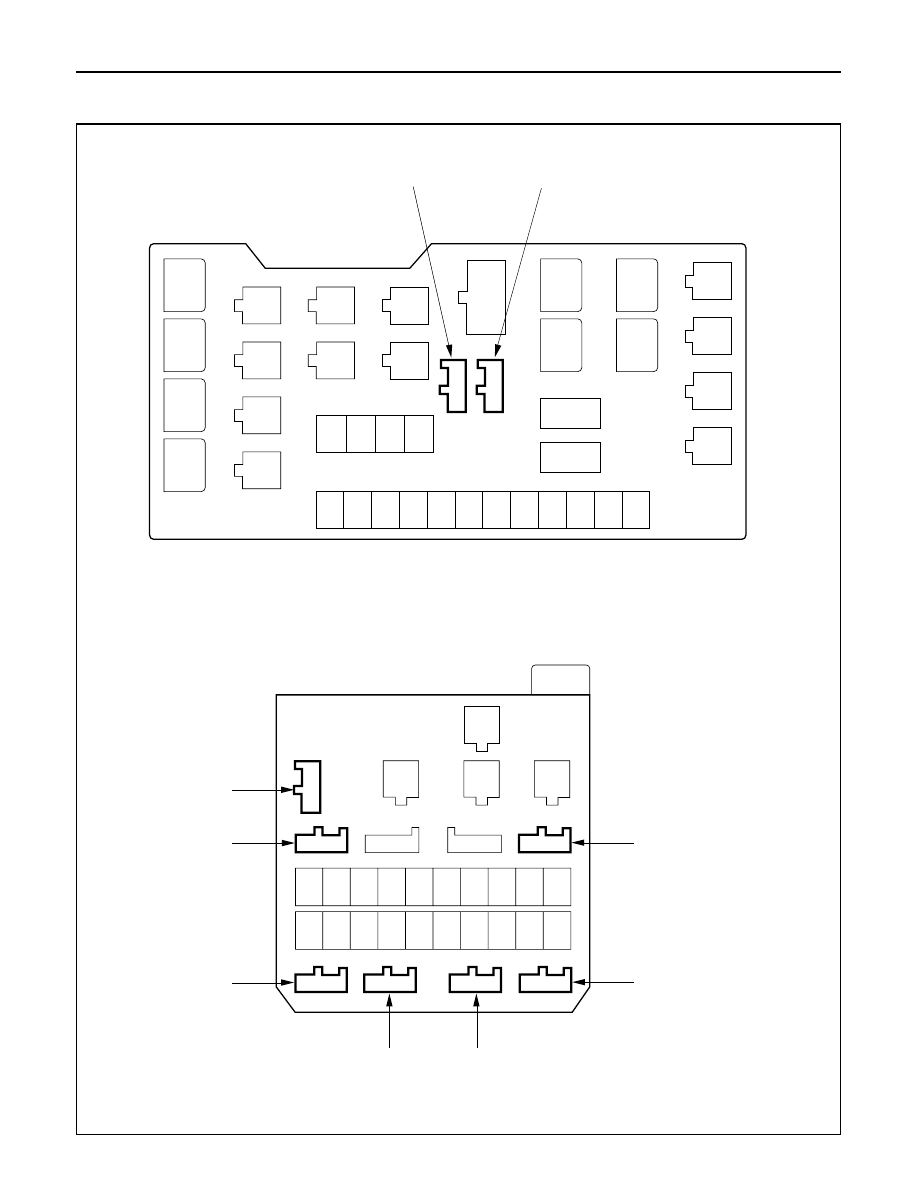

Diode Location

B-43

B-47

B-46

B-45

B-44

B-40

B-39

FUSE BOX

RELAY AND FUSE BOX

X-15

X-14

WIRING SYSTEM

8D–31

Grounding Point

Reference Table
(6VD1 RHD)

Connector No.

Cable harness

Location

Parts (Load)

B-1

Door mirror defogger (LH), Fan SW, FRT power
window & door lock SW-LH, Cruise control
unit, FRT door key SW-LH, FRT door lock
actuator-LH, FRT door lock SW-LH

B-2

Sun roof SW, Sun roof control unit,
Safety SW, Limit SW

Body-LH

B-18

FRT door key SW-RH, FRT door lock & power
window SW-RH, FRT door lock actuator & lock
SW-RH, FRT door lock SW-RH, Door mirror
defogger (RH), RR wiper intermittent relay,
Mode SW (A/T), Starter relay

B-19

B-26

RR Power window SW-RH, Mirror control SW,
Mirror defogger SW, Mirror folding SW,
Car telephone, Shift lock controller, POWER &
WINTER SW, Seat heater, Seat heater SW,
RR door lock actuator-LH, EBCM

Body-RH

Body harness

Body-center

C-16

Pump & VSV, Headlight wiper timer

2

C-16

4WD SW, VSV;FRT axle, FRT axle SW

3

C-16

FRT fog light

4

C-16

P/S pressure SW, Headlight leveling actuator-LH

7

C-16

Side turn signal light (LH)

8

Fender-LH

Engine room

harness

Cigar lighter, Dimmer·passing SW, Illumination
controller, RR defogger SW, Flasher unit,
Power window relay, Cruise main indicator
light, Lighting SW, Glove box illumination light,
Ashtray illumination light, Headlight wiper SW,
Clock, FRT fog light SW, Variable intermittent
(FRT wiper & washer SW), Kick down SW,
Anti-theft controller, Turn signal indicator light,
Heater & A/C relay

C-16

5

Headlight wiper motor

C-16

Clearance light, FRT turn signal light

1

C-16

O

2

 Sensor, Headlight leveling actuator-RH

6

B-28

RR power window SW-RH, Power & winter SW,
Power seat SW, Tilt motor & SW, Recliner
motor & SW, RR door lock actuator-RH, EBCM
