Opel Frontera UBS. Manual - part 2705





8D–20

WIRING SYSTEM

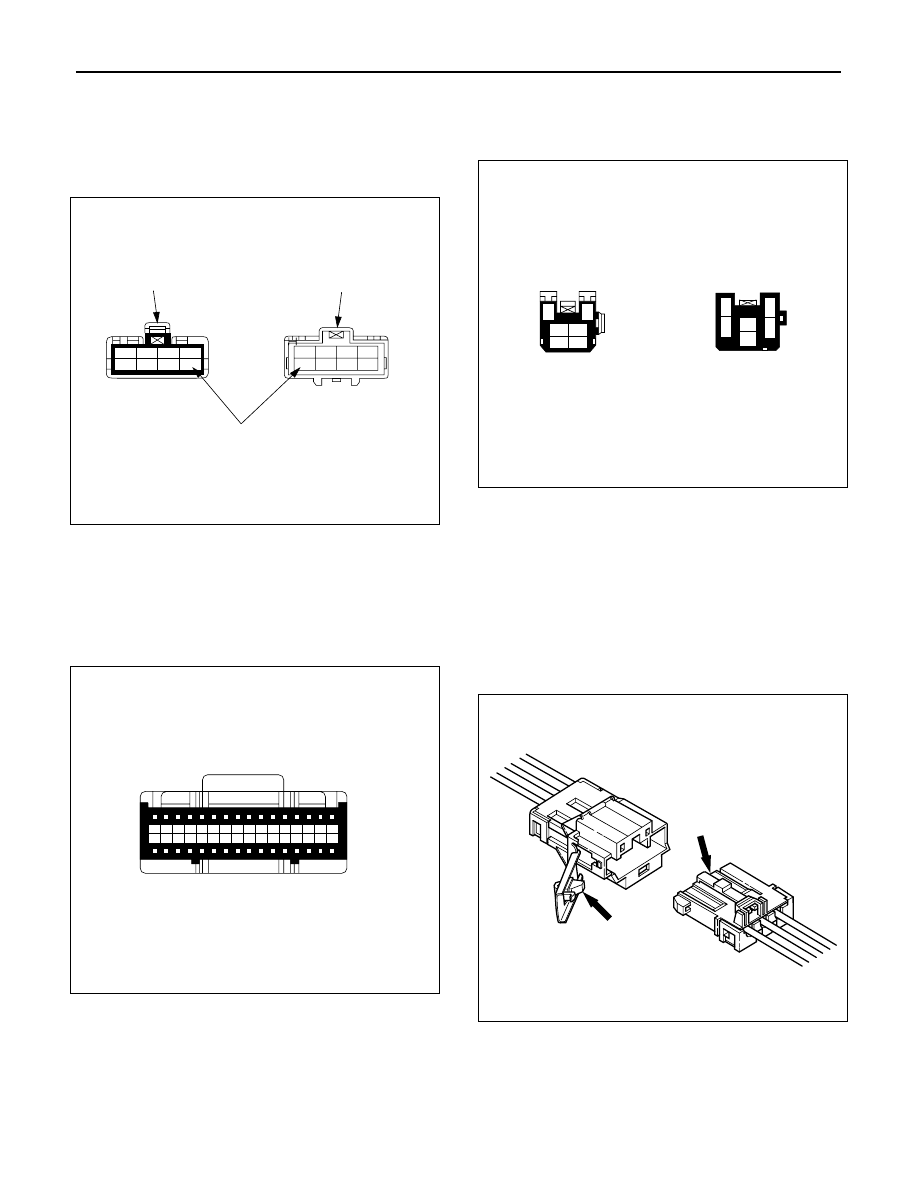

Connector terminal numbers (10) are clearly shown.
Male side connector (9) terminal numbers are in
sequence from upper right to lower left.
Female side connector (8) terminal numbers are in
sequence from upper left to lower right.

NOTE:
1. For those connectors on which specific terminal

numbers or symbols are shown (such as PCM), the
terminal numbers or symbols are used in the circuit
diagram, irrespective of the above rule.
Refer to the following figure.

2. The connectors used for relays have their own terminal

number assignment, irrespective of the above rule.
Refer to the following figure.

Double Lock Type Connector

Double lock type yellow color connectors are used for
supplemental restraint system–air bag circuit. When
removing the cable harness, disconnect the connector by
unlocking at two places, outside (1) and inside (2). In such
a case, do not pull the cables. Otherwise, cable
disconnection may occur.
When connecting the connector, insert the connector
completely and lock at outside. Imperfect locking may
cause malfunction of SRS system circuit.

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

10

8

9

C1 C2 C3 C4 C5 C6 C7 C8 C9 C10C11C12C13C14C15C16

D1 D2 D3 D4 D5 D6 D7 D8 D9 D10D11D12D13D14D15D16

2

1

2

4

1

3

6

5

6

5

1

4

2

3

WIRING SYSTEM

8D–21

Reading the Circuit Diagram

In this section, each system has its own parts location
illustration and circuit diagram.
And harness connector faces used in the circuit diagram
are shown at the end of this section.

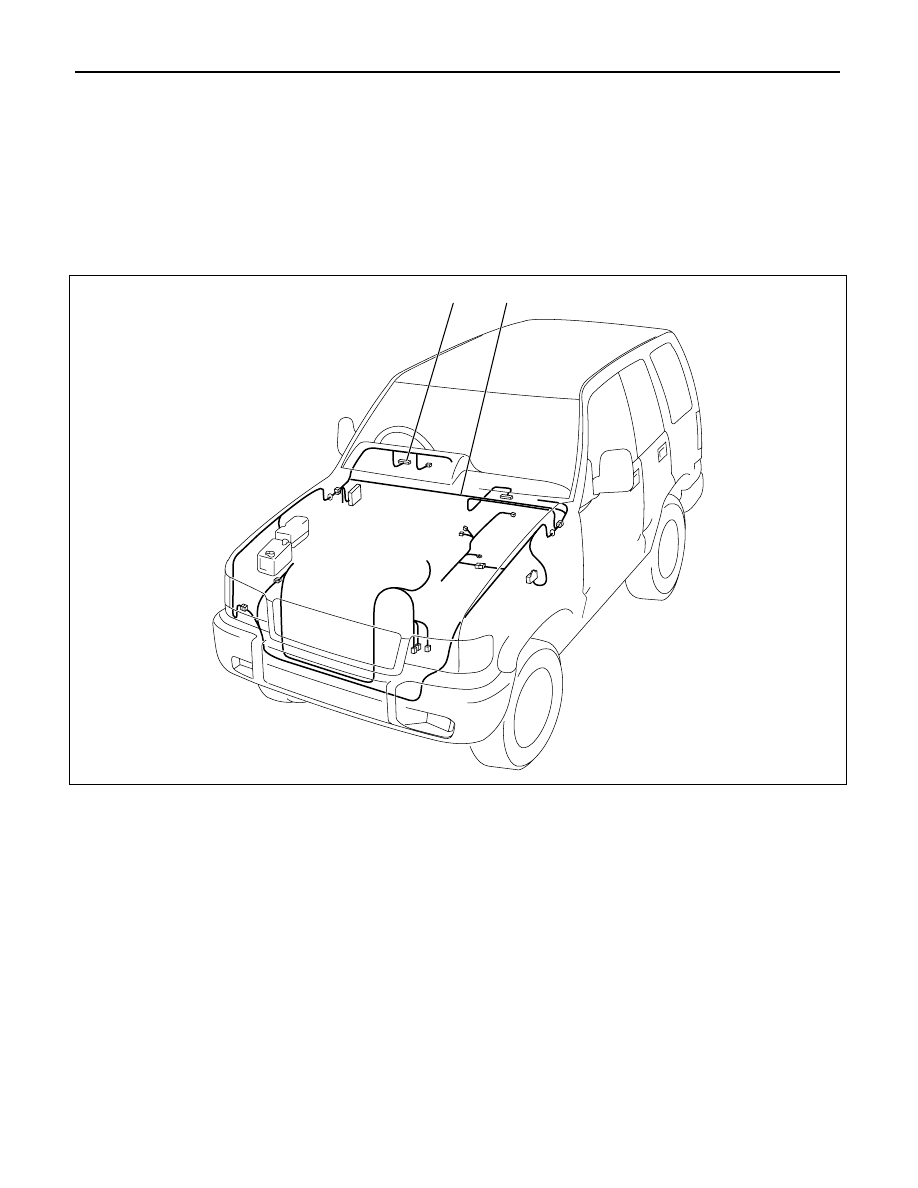

Parts Location

The parts location shows the location of the connectors
(1) and the harness (2) used in each harness routing.

1

2

D08RWB11

8D–22

WIRING SYSTEM

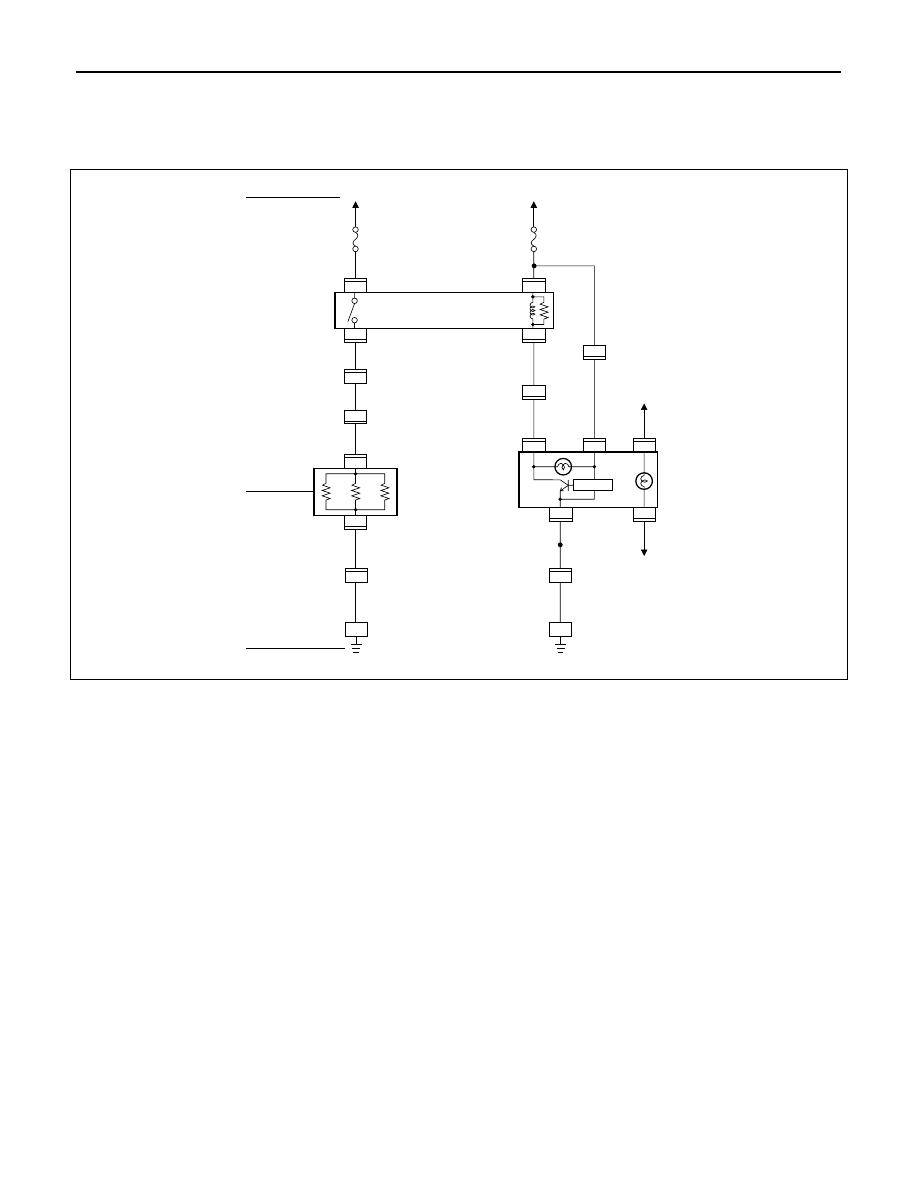

Circuit Diagram

The circuit diagram shows the power supply (1), the load
or loads (2) and the grounding point(s) (3).

5.0

W

BATT.(+)

C-17 15A
RR DEF

RR DEFOGGER RELAY

3.0

L/O

3.0
B/L

3.0
B/L

3.0
B/L

B-38

4

I-17

5

I-17

ILLUMINATION

CONTROLLER(3)

RR DEFOGGER
SW

RR DEFOGGER

2

H-37

G-7

1

2

B-38

2

2

H-31

1

G-3

3.0

B/Y

0.5

L/W

0.5

L/W

0.5

L/W

0.5

O/L

0.5

O/L

STARTER SW

(IG1)

C-4 10A
ELEC.IGN.

3

B-38

4

I-17

15

H-48

TIMER

6

I-17

0.85

G/R

TAIL RELAY(4)

B-38

1

H-25

3

H-25

5

1

I-17

B-2

2.0

B

3.0

B

3.0

B

2.0

B

0.3

B

0.3

R/G

BODY-RH

R-3

BODY-RR

4

H-37

1

2

3

D08RW425

WIRING SYSTEM

8D–23

Harness Connector Faces

The harness connector faces show each connector’s
number (1), configuration (2) and the pin number (3).

No.

B-21

Connector face

No.

Connector face

B-22

B-23

NOT USED

NOT USED

1

2

3

B-31

B-32

B-33

2 1

2 1

1 2

1 2

1

3

2

4

1

3 4 5 6

2

2

6 5 4 3

1

D08RW424
