Opel Frontera UBS. Manual - part 2704





8D–16

WIRING SYSTEM

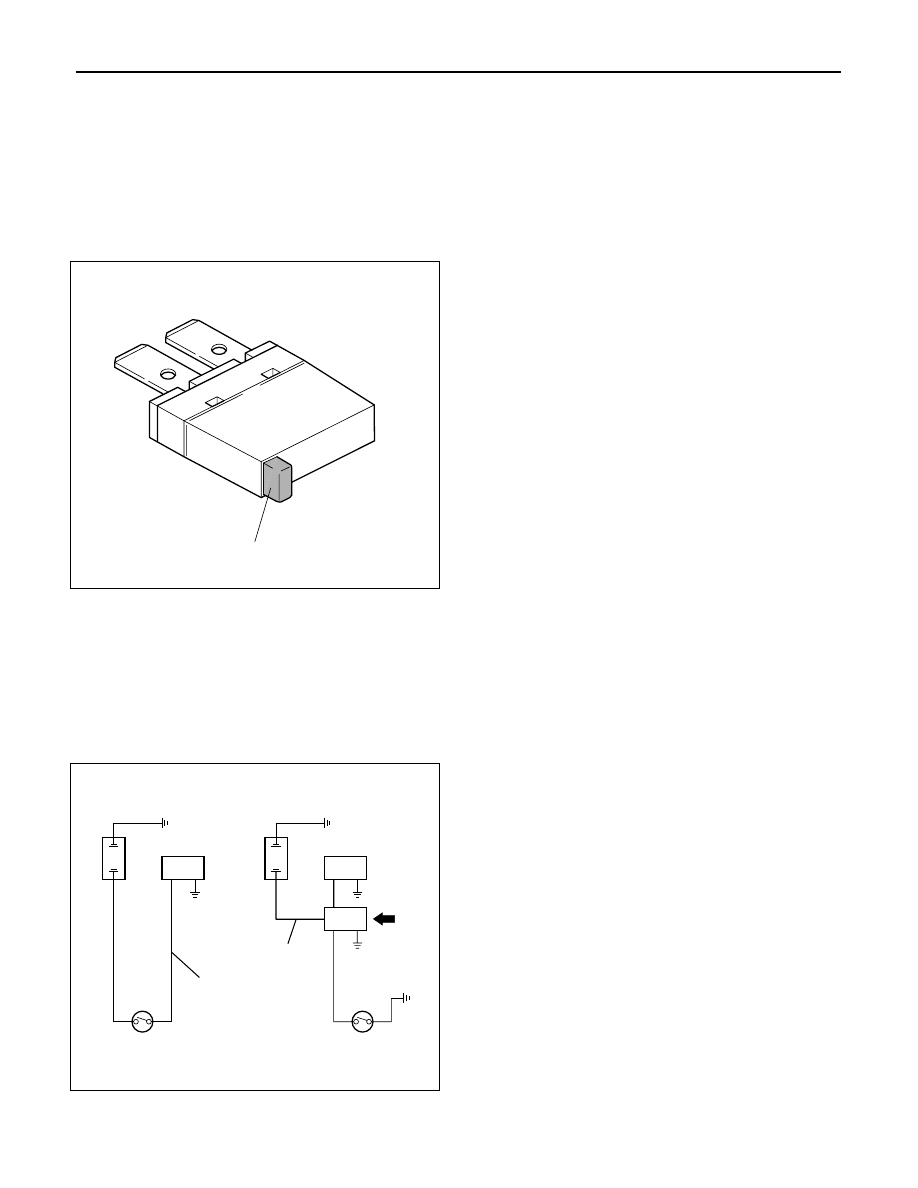

Circuit Breaker

The circuit breaker is a protective device designed to
open the circuit when a current load is in excess of rated
breaker capacity. If there is a short or other type of
overload condition in the circuit, the excessive current will
open the circuit between the circuit breaker terminals.
The reset knob (1) pops out when the circuit is open. Push
the reset knob in place to restore the circuit after repairing
it.

Relay

Battery and load location may require that a switch be
placed some distance from either component. This
means a longer wire and a higher voltage drop (1).
The installation of a relay between the battery and the
load reduces the voltage drop (2).
Because the switch controls the relay, amperage through
the switch can be reduced.

Push

LOAD

1

2

LOAD

RELAY

D08RW404

1

WIRING SYSTEM

8D–17

Name/

Color

Rated

voltage/Coil

resistance

Internal circuit

Name/

Color

Rated

voltage/Coil

resistance

Internal circuit

1M

(MR5L)/

Black

12V/

Approx.

80

Minimum

operating

voltage: 7V

at 77˚F (25˚C)

2M

(MR5)/
Brown

12V/

Approx.

80

Minimum

operating

voltage: 7V

at 77˚F (25˚C)

1B

(MR5L)/

Grey

1B-1M

(MR5)/

Grey

1M

(MR5)/

Black

(Case),

Blue

(Base)

1M

1T

(MR5)/

Black/

Blue

1M

(MR5B)/

Black

Minimum

operating

voltage: 9V

at 68˚F (20˚C)

12V

Minimum

operating

voltage:

4.3V at 77˚F

(25˚C)

1M

(Horn
relay)

12V/

Minimum

operating

voltage: 8V

at 68˚F (20˚C)


➅ ➂

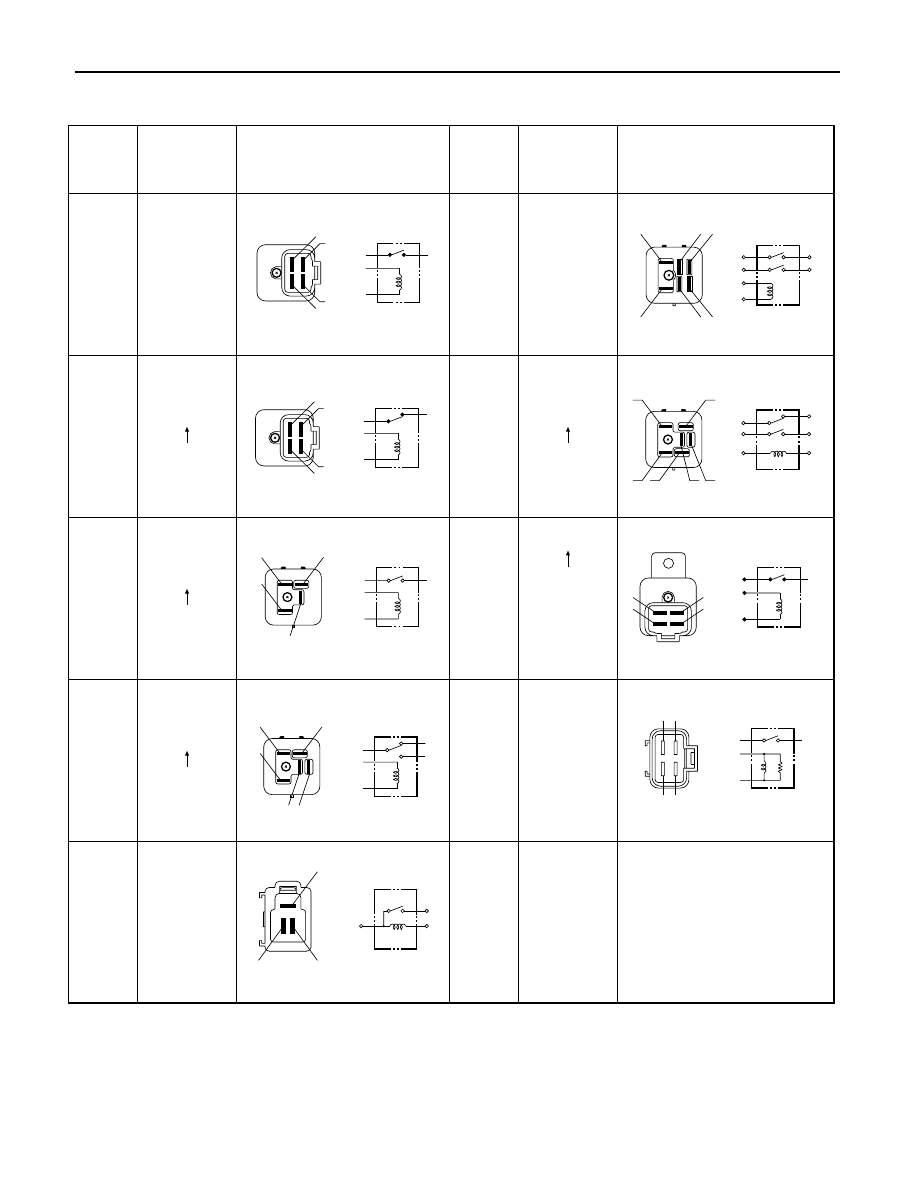

Relay Specifications and Configurations

* Relay contact shown in the wiring diagram indicates condition before actuation.

8D–18

WIRING SYSTEM

SHAPE

MARK/

COLOR

CONSTRUCTION

CHECKING

BLACK

BLACK

CONNECTION
PATTERN

2

1

A

B

+

BLACK

3

2

1

3

2

1

+

+

+

+

+

+

+

+

+

4

3

2

+

+

1

+

+

+

+

BLACK

4

3

2

1

THERE SHOULD BE CONTINUITY IN
EITHER A OR B WHEN A CIRCUIT
TESTER  IS CONNECTED WITH
DIODE TERMINAL

TERMINAL NO.

CONNECTION
PATTERN

A

B

TERMINAL NO.

CONNECTION
PATTERN

A

B

TERMINAL NO.

CONNECTION
PATTERN

A

B

TERMINAL NO.

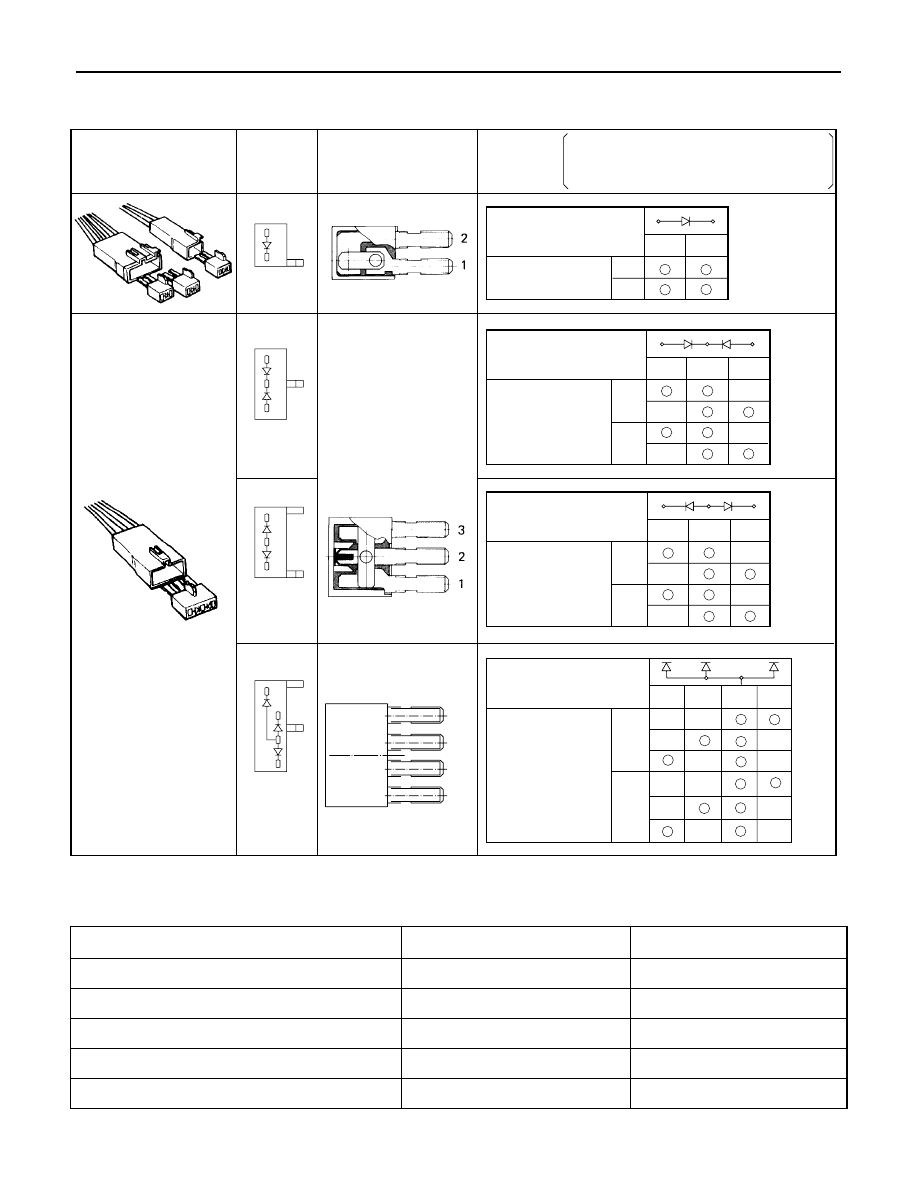

Diode – Diode Specifications and Configurations

Diode – Maximum Rating (Temp. = 77°F (25°C))

Items

Rating

Remarks

Peak reverse voltage

400V

Transient peak reverse voltage

500V

Average output current

1.5A

Temp. = 104°F (40°C)

Working ambient temperature

–22°F~176°F (–30°C~80°C)

Storage temperature

–40°F~212°F (–40°C~100°C)

WIRING SYSTEM

8D–19

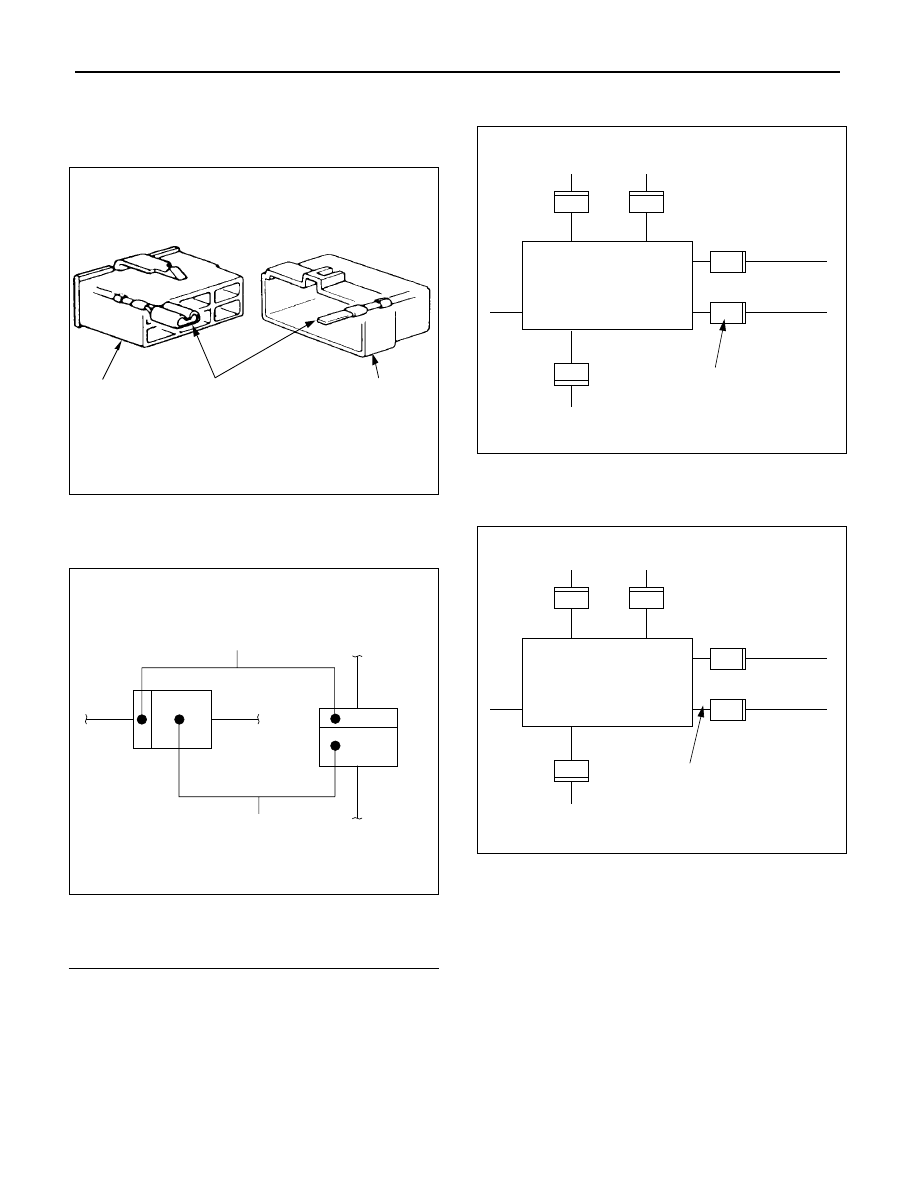

Connector

The connector pin shape (2) determines whether the
connector is male (3) or female (1).

The symbol illustrated in the figure is used as connector,
in the circuit of this section.

Legend

(4)

Female Side Connector

(5)

Male Side Connector

Connector is identified with a connector number (6)

The applicable terminal number (7) is shown for each
connector.

W-38

W-38

W-38

W-38

W-38

SHIFT LOCK

6

7

5

1

4

6

0.5 R/L

0.85 W/L

W-38

W-38

W-38

W-38

W-38

SHIFT LOCK

7

7

5

1

4

6

0.5 R/L

0.85 W/L

4

5

1

2

3
