7B–8

MANUAL TRANSMISSION

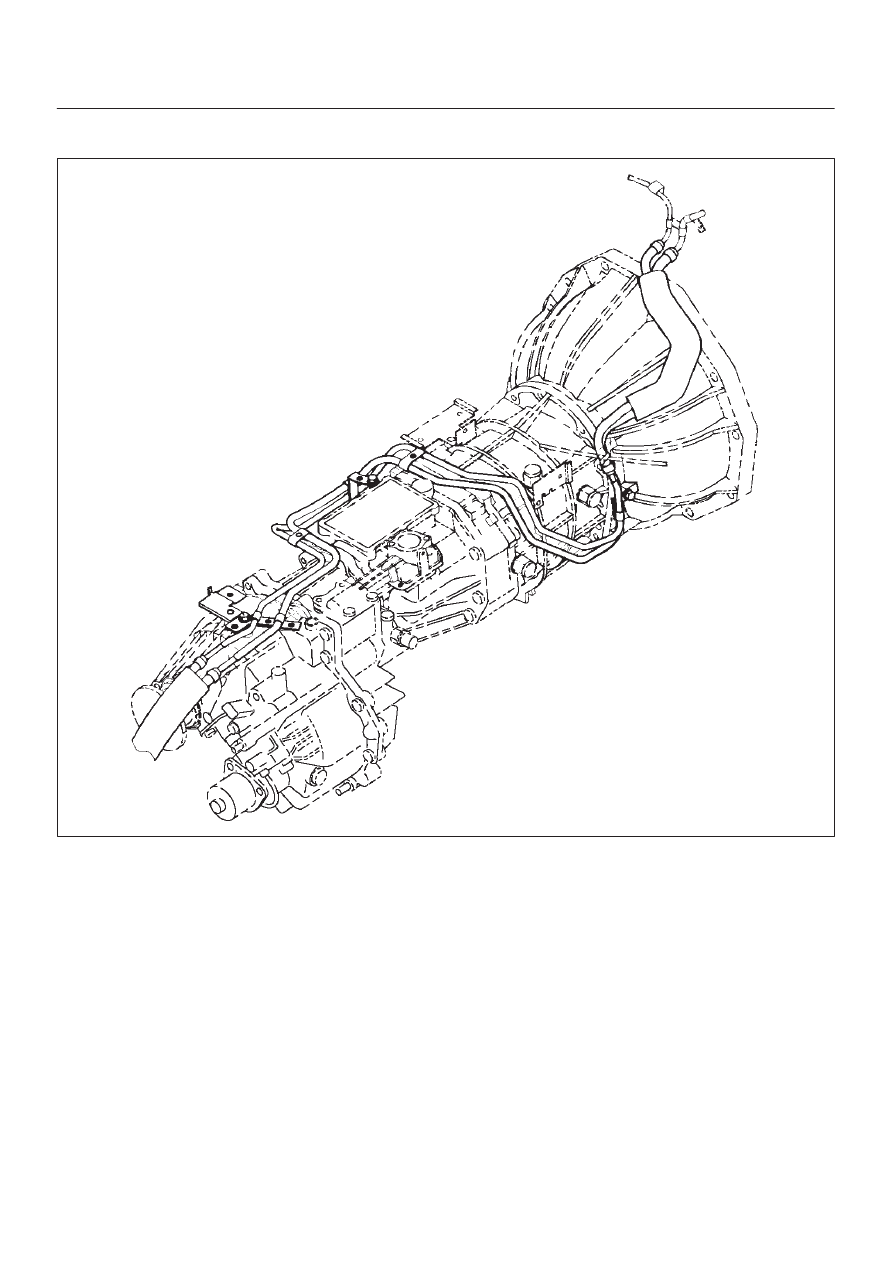

15. Remove four fuel pipe bracket from the transmission

case (6VE1).

141RW024

MANUAL TRANSMISSION

7B–9

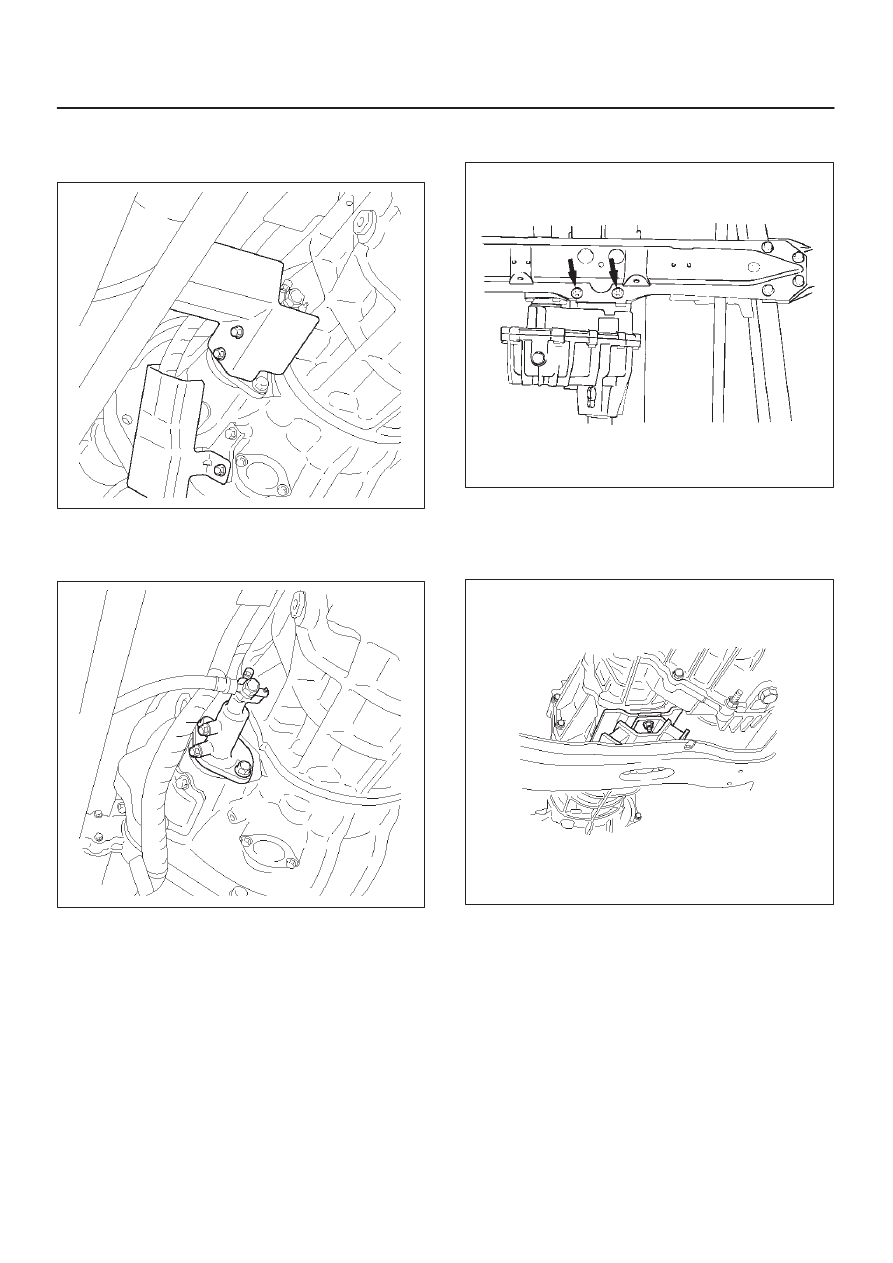

16. Remove the slave cylinder heat protector.
17. Remove the harness heat protector (6VE1).

(6VE1)

225RW006

18. Remove two transmission harness clamps and

bracket (6VE1).

19. Remove the slave cylinder.

206RW002

20. Remove the two dust cover from transmission case.
21. Support the transfer case with a jack.

22. Remove two engine rear mount nuts.

(6VE1)

022RT002

23. Remove third crossmember (6VE1).
24. Remove third crossmember with rear mount rubber

(4JX1).

(4JX1)

022RW013

25. Remove two engine rear mount bolts (6VE1).
26. Remove the rear mount from the transmission

(6VE1).

27. Remove three flywheel under cover (6VE1).

7B–10 MANUAL TRANSMISSION

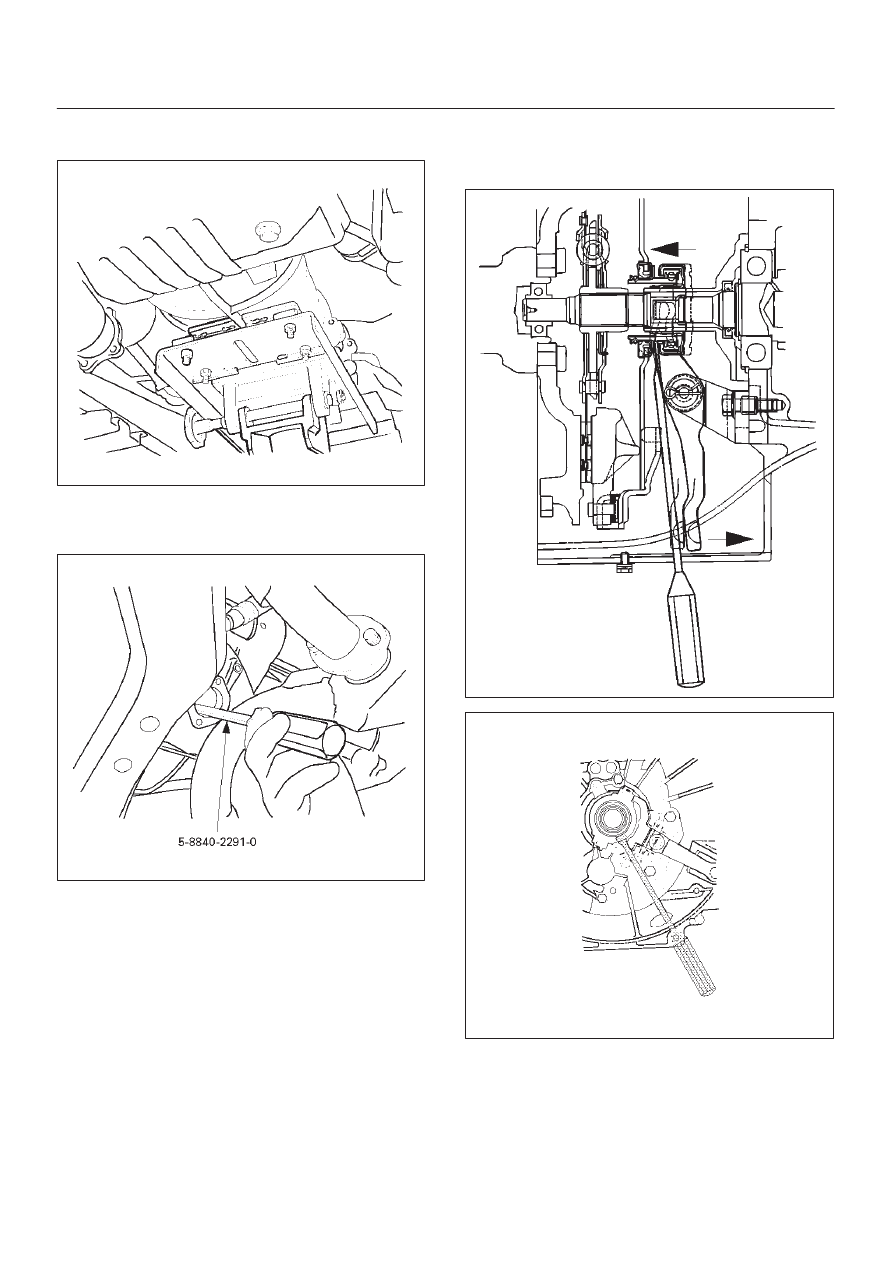

28. Support the transmission with a transmission jack

and then remove jack from the transfer case side.

220RS001

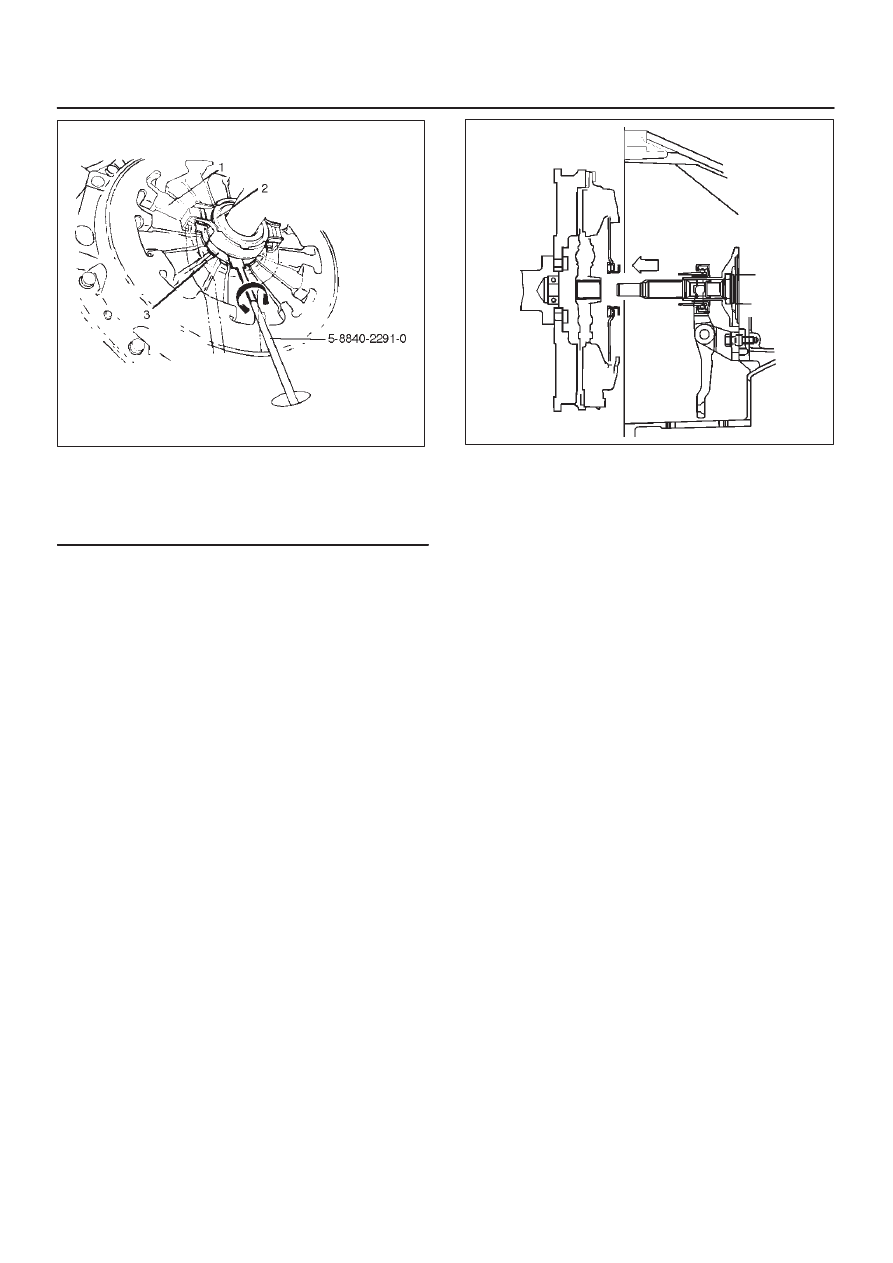

29. Use the clutch release bearing remover

5–8840–2291–0 (J–39207) to disconnect the clutch
release bearing from the clutch pressure plate.

220RW109

Release bearing disconnection

1. Pull the shift fork toward the transmission to press

the clutch release bearing against the clutch.

2. Insert the clutch release bearing remover

between the wedge collar and the release
bearing.

3. Turn the remover to separate the release bearing.

NOTE: Be sure not to insert the remover between the
wedge collar and the clutch.

220RW063

220RW064

MANUAL TRANSMISSION

7B–11

220RW119

Legend

(1) Pressure Plate Assembly
(2) Release Bearing
(3) Wedge Collar

30. Remove the transmission retaining nuts and bolts.
31. Remove the transmission assembly with transfer

case from the vehicle.

NOTE: Remove the transfer case from the transmission
assembly if the transmission disassembly required.
Refer to Transfer Case in Drive Line/Axle section.

Installation

1. Apply a thin coat of molybdenum disulfide grease to

the top gear shaft spline.

2. Slowly operate the transmission jack until the front of

transmission is aligned with the rear of the engine.
The slope of the engine and the transmission must be
the same.

3. Align the top gear shaft spline with the clutch driven

plate spline.

220RS005

4. Install the transmission to the engine.

Tighten the transmission retaining nuts and bolts.
