TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–99

Transmission Fluid Temperature (TFT) Sensor Specifications

Temperature

Temperature

Minimum

Resistance

Nominal

Resistance

Maximum

Resistance

Signal

°

F

°

C

W

W

W

Volts

-40

-40

600500

664200

731100

5.00

-22

-30

319800

350400

382400

4.65

-4

-20

177400

192700

208600

4.41

14

-10

102200

110100

118300

4.00

32

0

60870

65110

69450

3.52

50

10

37410

39750

42120

2.98

68

20

23660

24980

26300

2.40

86

30

15270

16120

16970

1.85

104

40

10040

10660

11290

1.43

122

50

6758

7211

7673

4.29

140

60

4645

4980

5324

4.04

158

70

3255

3506

3765

3.69

176

80

2323

2513

2710

3.34

194

90

1685

1831

1982

3.04

212

100

1242

1355

1472

2.58

230

110

929

1017

1109

2.24

248

120

704

773

846

1.97

266

130

540

595

653

1.67

248

140

419

464

511

1.42

302

150

329

365

403

1.16

MANUAL TRANSMISSION

7B–1

TRANSMISSION

MANUAL TRANSMISSION

CONTENTS

Service Precaution

7B–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

7B–2

. . . . . . . . . . . . . . . . . . . . .

Diagnosis

7B–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Manual Transmission Assembly

7B–5

. . . . . . . . . . .

Transmission and Associated Parts

7B–5

. . . . . .

Removal

7B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

7B–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Oil Seal (Transfer Adapter)

7B–17

. . . . . . . . . .

Removal

7B–17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

7B–17

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Transmission (AR-5)

7B–18

. . . . . . . . . . . . . . . . . . . . .

Disassembled View

7B–18

. . . . . . . . . . . . . . . . . . . .

Disassembly

7B–21

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

7B–39

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

7B–41

. . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

7B–68

. . . . . . . . . . . . .

General Specifications

7B–68

. . . . . . . . . . . . . . . . .

Torque Specifications

7B–69

. . . . . . . . . . . . . . . . . .

Special Tools

7B–72

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: IF SO EQUIPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION

7B–2

MANUAL TRANSMISSION

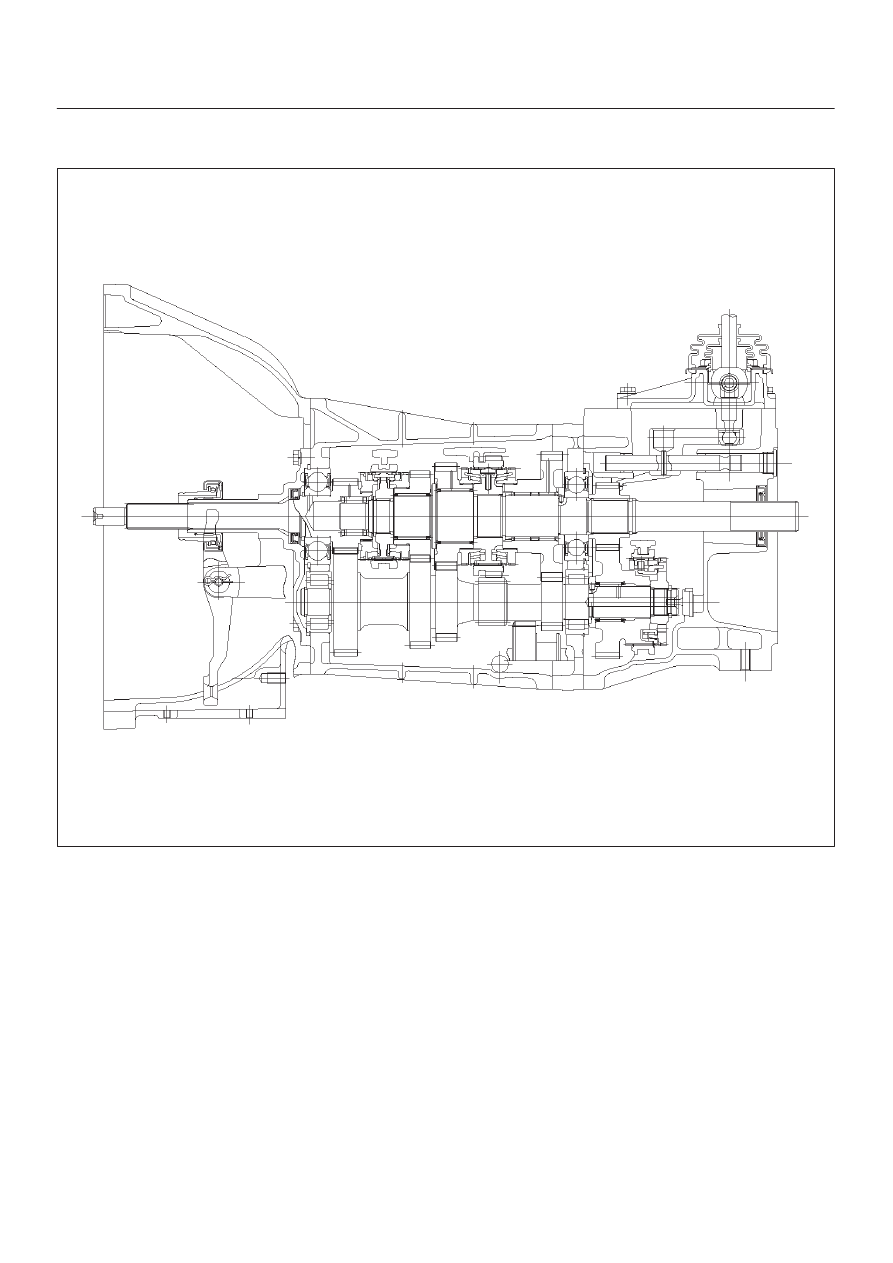

General Description

(6VE1)

A07RW044

MANUAL TRANSMISSION

7B–3

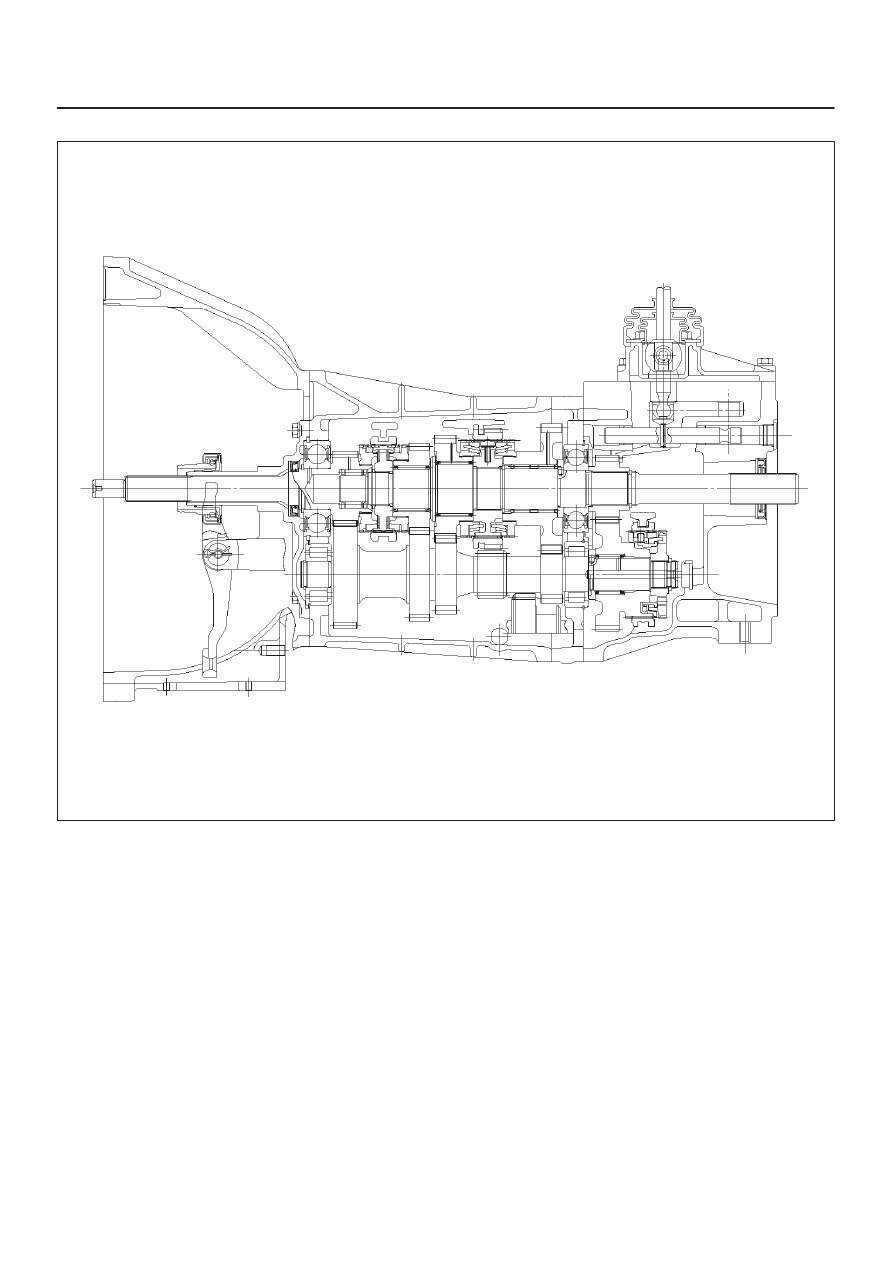

(4JX1)

A07RW043
